Page 2313 of 2771

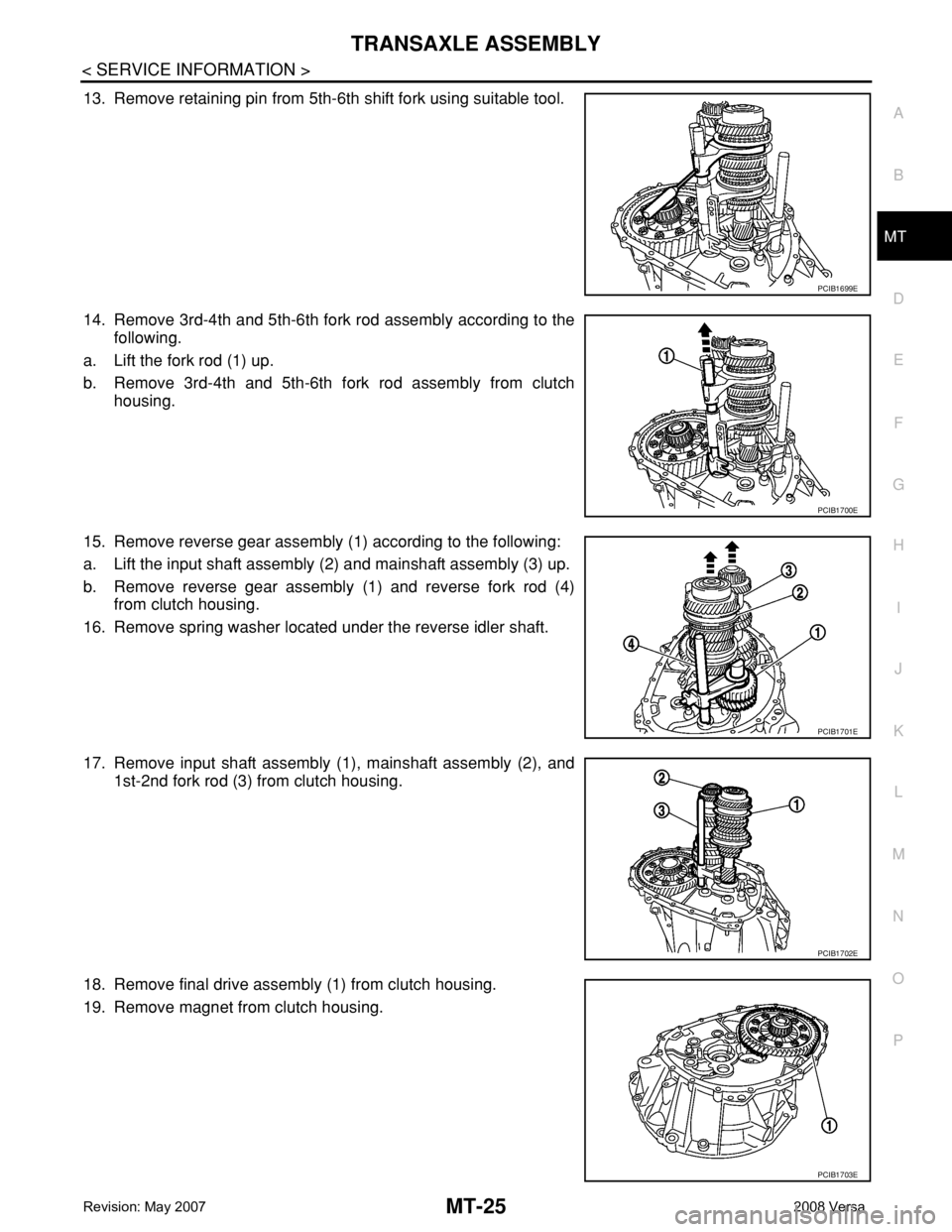

NISSAN LATIO 2008 Service Repair Manual TRANSAXLE ASSEMBLY MT-25 < SERVICE INFORMATION > D E F G H I J K L MA B MT N O P 13. Remove retaining pin from 5th-6th shift fork using suitable tool. 14. Remove 3rd-4th and 5th-6th fork rod assembly

Page 2314 of 2771

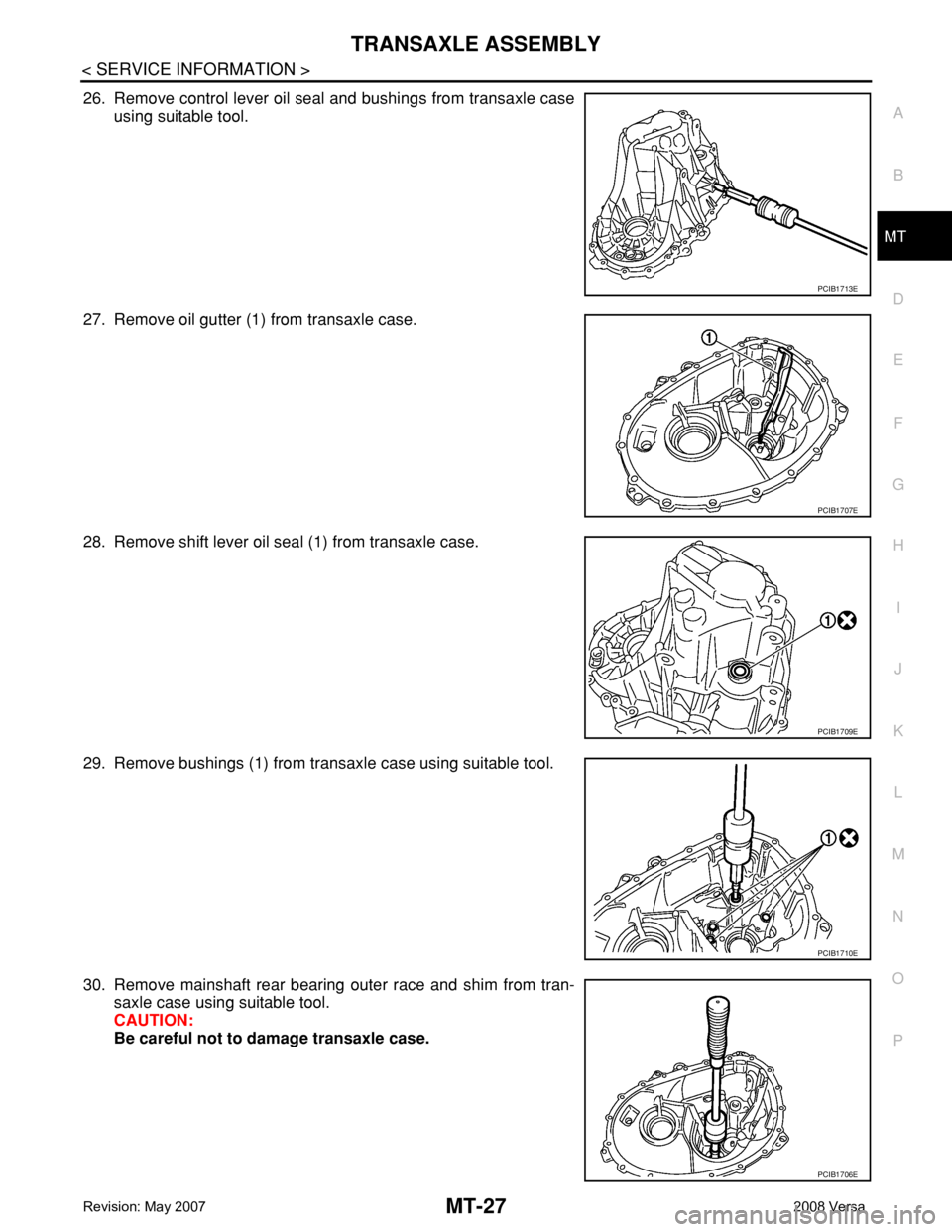

NISSAN LATIO 2008 Service Repair Manual MT-26 < SERVICE INFORMATION > TRANSAXLE ASSEMBLY 20. Remove differential side oil seals (1) from clutch housing and transaxle case using suitable tool. CAUTION: Be careful not to damage clutch housing

Page 2315 of 2771

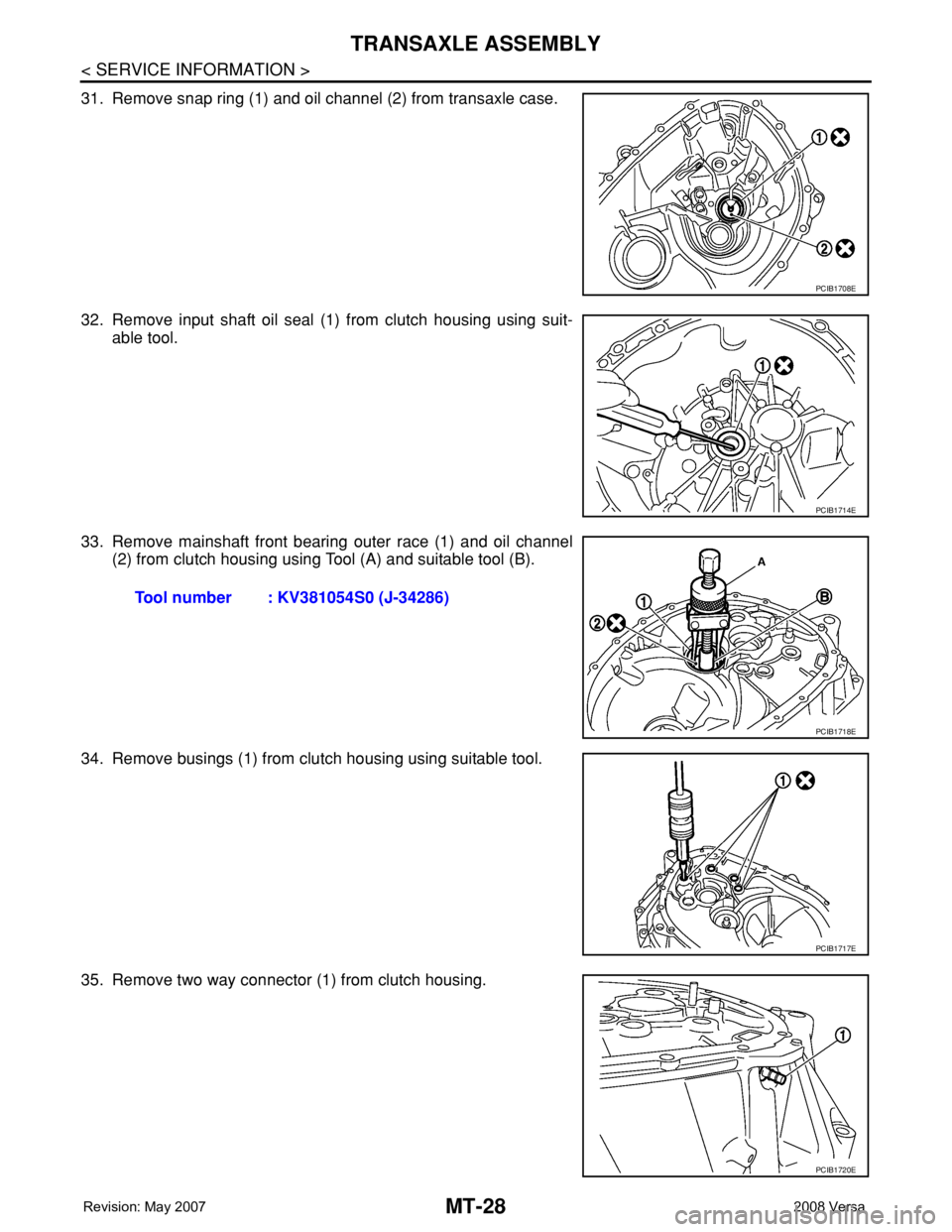

NISSAN LATIO 2008 Service Repair Manual TRANSAXLE ASSEMBLY MT-27 < SERVICE INFORMATION > D E F G H I J K L MA B MT N O P 26. Remove control lever oil seal and bushings from transaxle case using suitable tool. 27. Remove oil gutter (1) from

Page 2316 of 2771

NISSAN LATIO 2008 Service Repair Manual MT-28 < SERVICE INFORMATION > TRANSAXLE ASSEMBLY 31. Remove snap ring (1) and oil channel (2) from transaxle case. 32. Remove input shaft oil seal (1) from clutch housing using suit- able tool. 33. Re

Page 2317 of 2771

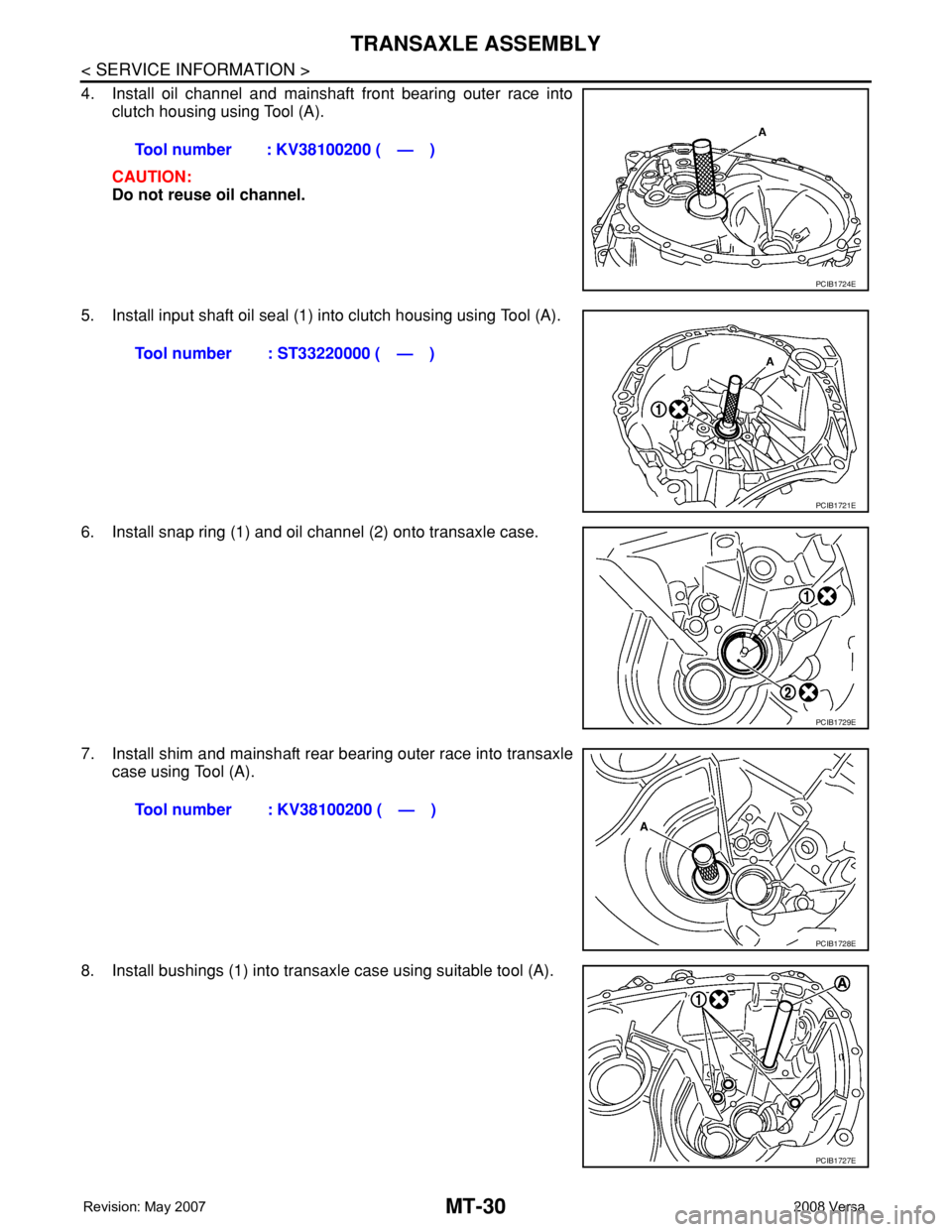

NISSAN LATIO 2008 Service Repair Manual TRANSAXLE ASSEMBLY MT-29 < SERVICE INFORMATION > D E F G H I J K L MA B MT N O P 36. Remove pinion gear (1) and pinion shaft (2) from clutch housing. ASSEMBLY 1. Install pinion gear (1) and pinion sha

Page 2318 of 2771

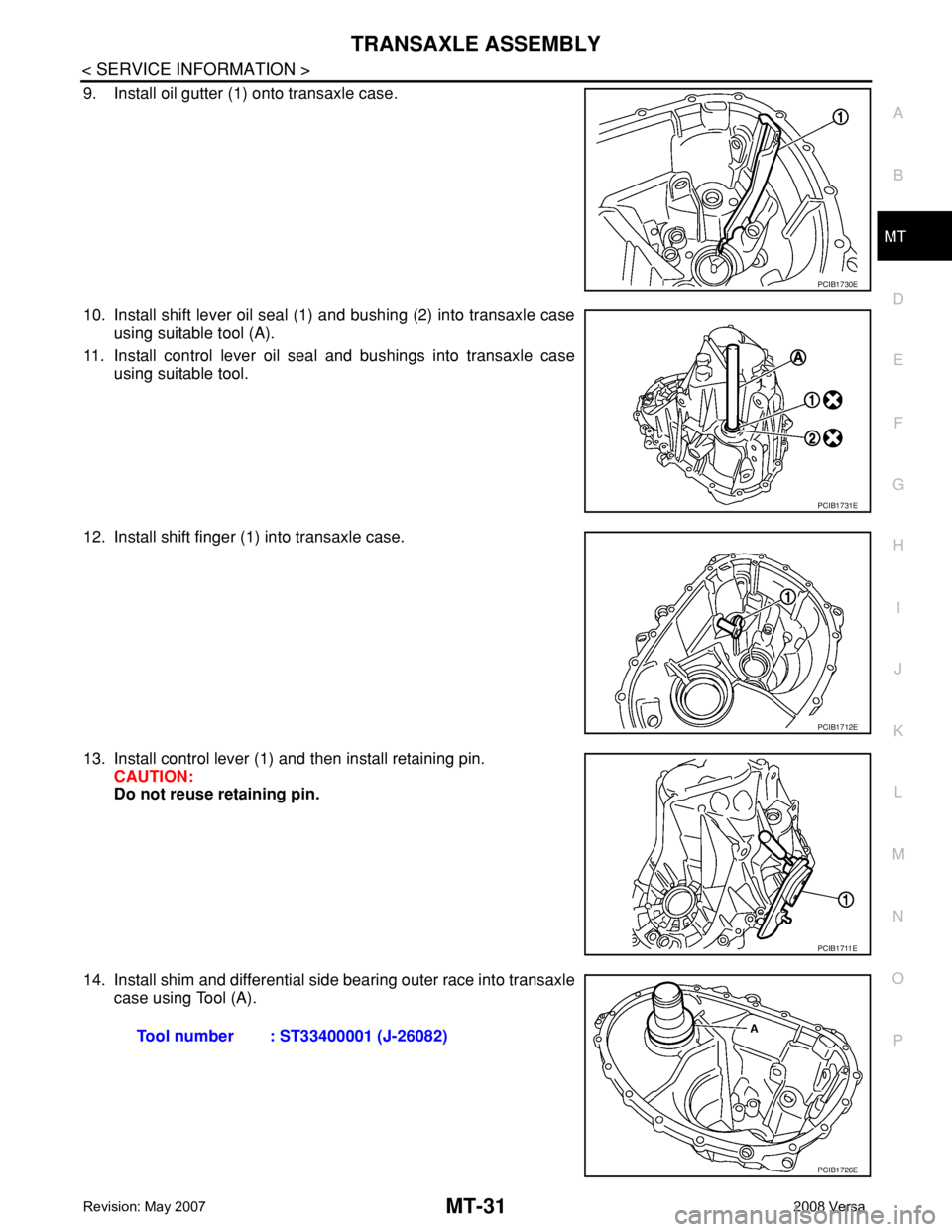

NISSAN LATIO 2008 Service Repair Manual MT-30 < SERVICE INFORMATION > TRANSAXLE ASSEMBLY 4. Install oil channel and mainshaft front bearing outer race into clutch housing using Tool (A). CAUTION: Do not reuse oil channel. 5. Install input s

Page 2319 of 2771

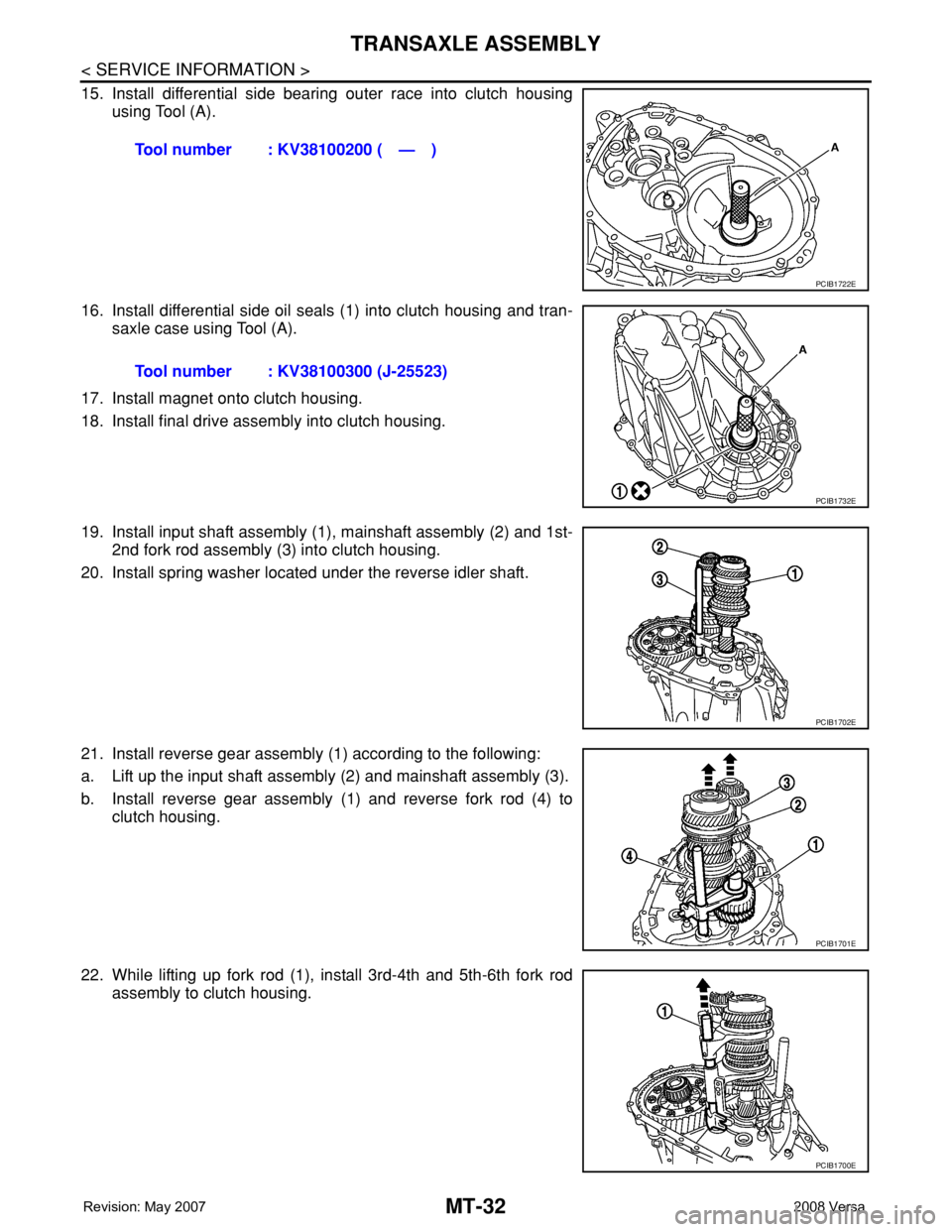

NISSAN LATIO 2008 Service Repair Manual TRANSAXLE ASSEMBLY MT-31 < SERVICE INFORMATION > D E F G H I J K L MA B MT N O P 9. Install oil gutter (1) onto transaxle case. 10. Install shift lever oil seal (1) and bushing (2) into transaxle case

Page 2320 of 2771

NISSAN LATIO 2008 Service Repair Manual MT-32 < SERVICE INFORMATION > TRANSAXLE ASSEMBLY 15. Install differential side bearing outer race into clutch housing using Tool (A). 16. Install differential side oil seals (1) into clutch housing an
