Page 2193 of 2771

NISSAN LATIO 2008 Service Repair Manual LT-56
< SERVICE INFORMATION >
TURN SIGNAL AND HAZARD WARNING LAMPS
3. Perform the preliminary check. Refer to LT-56, "Preliminary Check" .
4. Check symptom and repair or replace the cause of

LT-56
< SERVICE INFORMATION >
TURN SIGNAL AND HAZARD WARNING LAMPS
3. Perform the preliminary check. Refer to LT-56, "Preliminary Check" .
4. Check symptom and repair or replace the cause of the malfunction.
5. Do turn signal and hazard warning lamps operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckINFOID:0000000001704419
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR BCM
Refer to BCS-15, "BCM Power Supply and Ground Circuit Inspection" .
CONSULT-III Function (BCM)INFOID:0000000001704420
Refer to LT- 11 , "CONSULT-III Function (BCM)" .
Turn Signals Do Not OperateINFOID:0000000001704421
1.CHECK COMBINATION SWITCH INPUT SIGNAL
With CONSULT-III
1. Select “BCM” on CONSULT-III. Select “FLASHER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen. Make sure that “TURN SIGNAL R” and
“TURN SIGNAL L” turns ON-OFF linked with operation of lighting switch.
Without CONSULT-III
Refer to LT-63, "
Combination Switch Inspection" .
OK or NG
OK >> Replace the BCM. BCS-18, "Removal and Installation of BCM"
NG >> Check combination switch (lighting switch). Refer to LT-63, "Combination Switch Inspection" .
Front Turn Signal Lamp Does Not OperateINFOID:0000000001704422
1.CHECK BULB
Verify the bulb standard of each turn signal lamp is correct. Refer to LT-113, "
Exterior Lamp" .
OK or NG
OK >> GO TO 2.
NG >> Replace turn signal lamp bulb. Refer to LT-59, "
Bulb Replacement for Front Turn Signal Lamp" .
2.CHECK FRONT TURN SIGNAL LAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and front combination lamp LH or
RH connector.
3. Check continuity between BCM harness connector M20 (A) ter-
minal 60 and front combination lamp LH harness connector E29
(B) terminal 4.
4. Check continuity between BCM harness connector M20 terminal
61 (A) and front combination lamp RH harness connector E30
(B) terminal 4.
OK or NG
OK >> GO TO 3.When turn signal switch is
right position: TURN SIGNAL R ON
When turn signal switch is
left position: TURN SIGNAL L ON
60 - 4 : Continuity should exist.
61 - 4 : Continuity should exist.
WKIA5612E

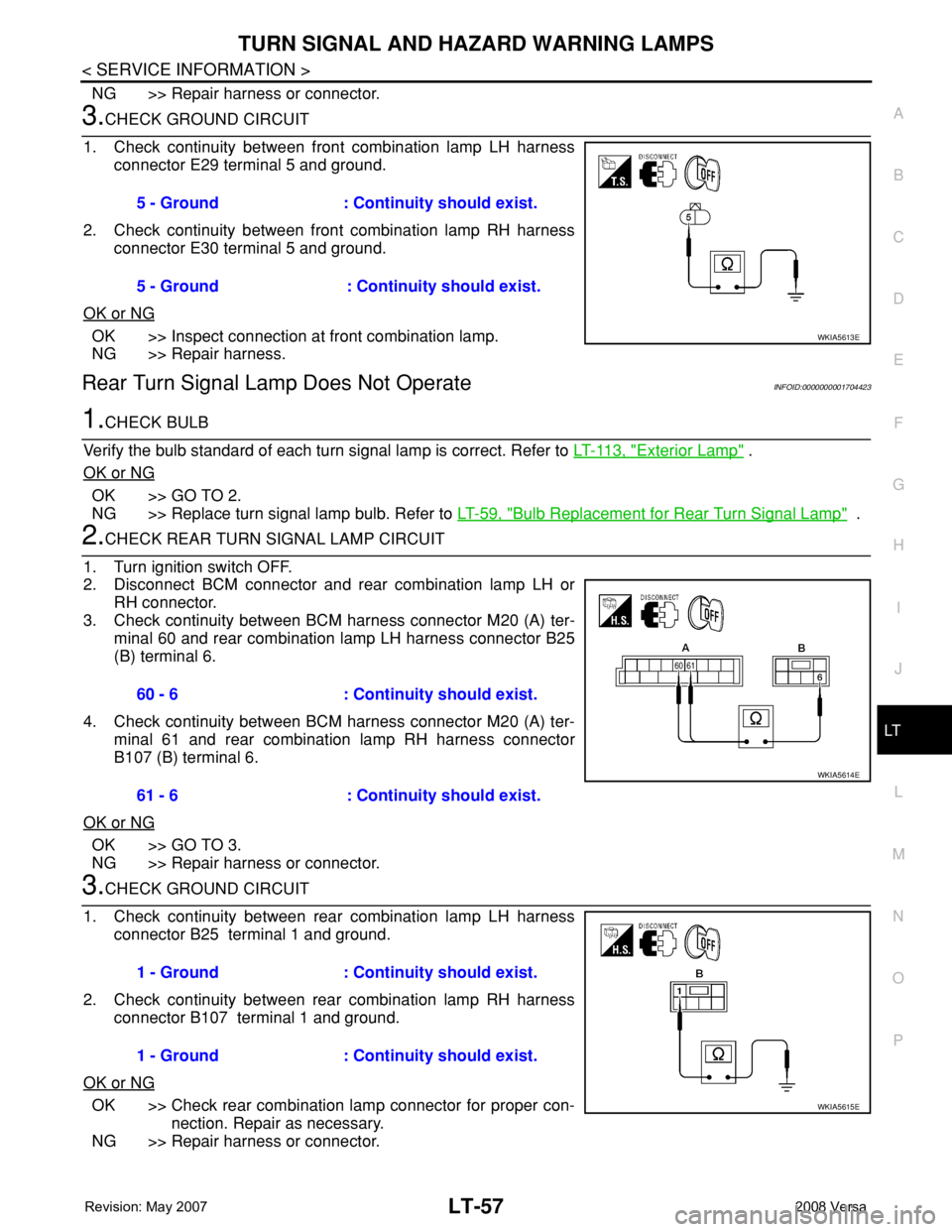

Page 2194 of 2771

NISSAN LATIO 2008 Service Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-57
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
LT
N
O
P
NG >> Repair harness or connector.
3.CHECK GROUND CIRCUIT
1. Check continuity between front combinati

Page 2195 of 2771

NISSAN LATIO 2008 Service Repair Manual LT-58
< SERVICE INFORMATION >
TURN SIGNAL AND HAZARD WARNING LAMPS
Hazard Warning Lamp Does Not Operate But Turn Signal Lamp Operates
INFOID:0000000001704424
1.CHECK HAZARD SWITCH INPUT SIGNAL
With C

Page 2196 of 2771

NISSAN LATIO 2008 Service Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-59
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
LT
N
O
P
1. Disconnect hazard switch connector.
2. Check continuity hazard switch terminals.
OK or NG
OK >> Re

Page 2197 of 2771

NISSAN LATIO 2008 Service Repair Manual LT-60
< SERVICE INFORMATION >
LIGHTING AND TURN SIGNAL SWITCH
LIGHTING AND TURN SIGNAL SWITCH
Removal and InstallationINFOID:0000000001704430
REMOVAL
1. Remove steering column cover. Refer to IP-10 .

Page 2198 of 2771

NISSAN LATIO 2008 Service Repair Manual HAZARD SWITCH
LT-61
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
LT
N
O
P
HAZARD SWITCH
Removal and InstallationINFOID:0000000001704431
REMOVAL
1. Remove cluster lid C. Refer to IP-10 .
2. Disconnec

Page 2199 of 2771

NISSAN LATIO 2008 Service Repair Manual LT-62
< SERVICE INFORMATION >
COMBINATION SWITCH
COMBINATION SWITCH

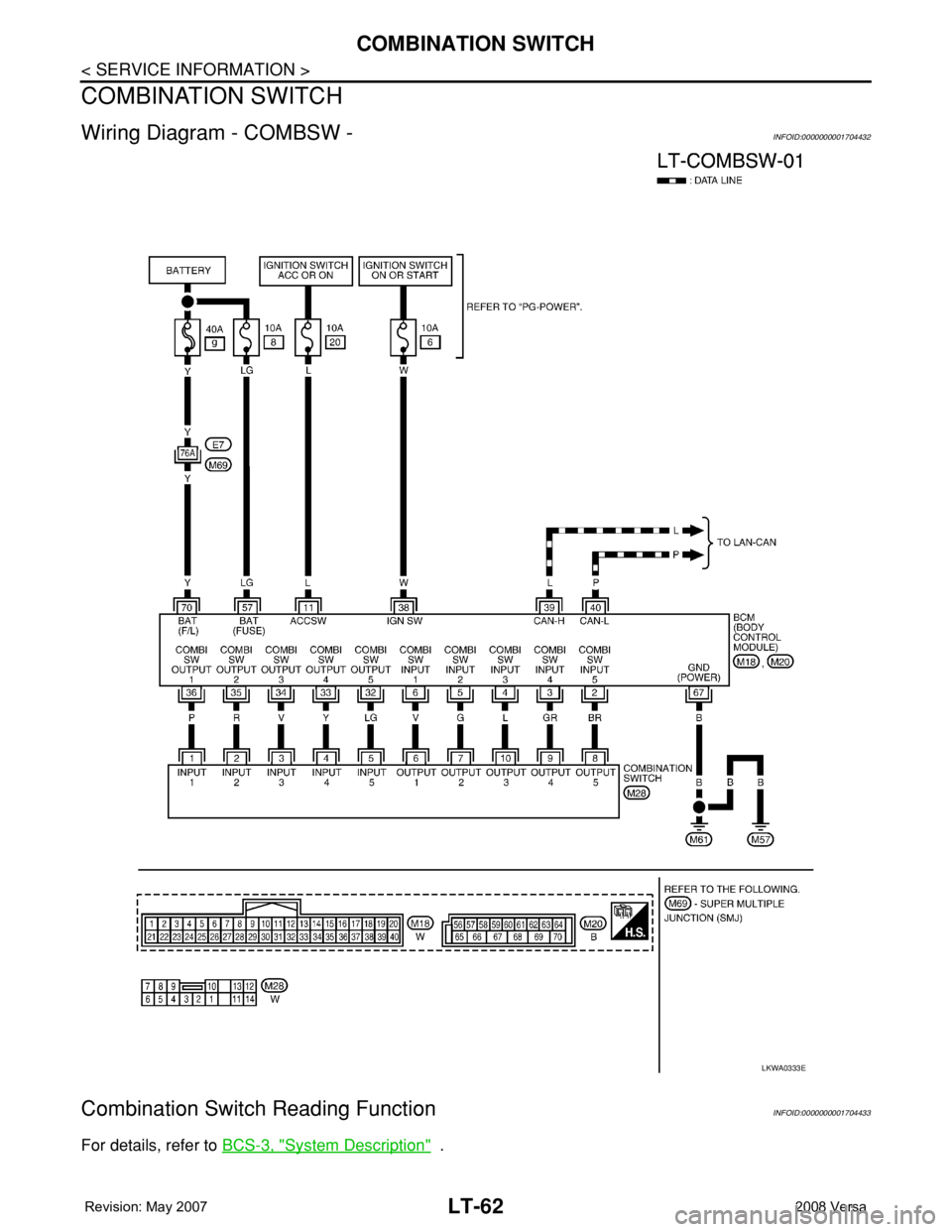

Wiring Diagram - COMBSW -INFOID:0000000001704432
Combination Switch Reading FunctionINFOID:0000000001704433
For details, refer to BC

Page 2200 of 2771

NISSAN LATIO 2008 Service Repair Manual COMBINATION SWITCH
LT-63
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
LT
N
O
P
Terminal and Reference Value for BCMINFOID:0000000001704434
Refer to BCS-11, "Terminal and Reference Value for BCM&
