Page 721 of 2771

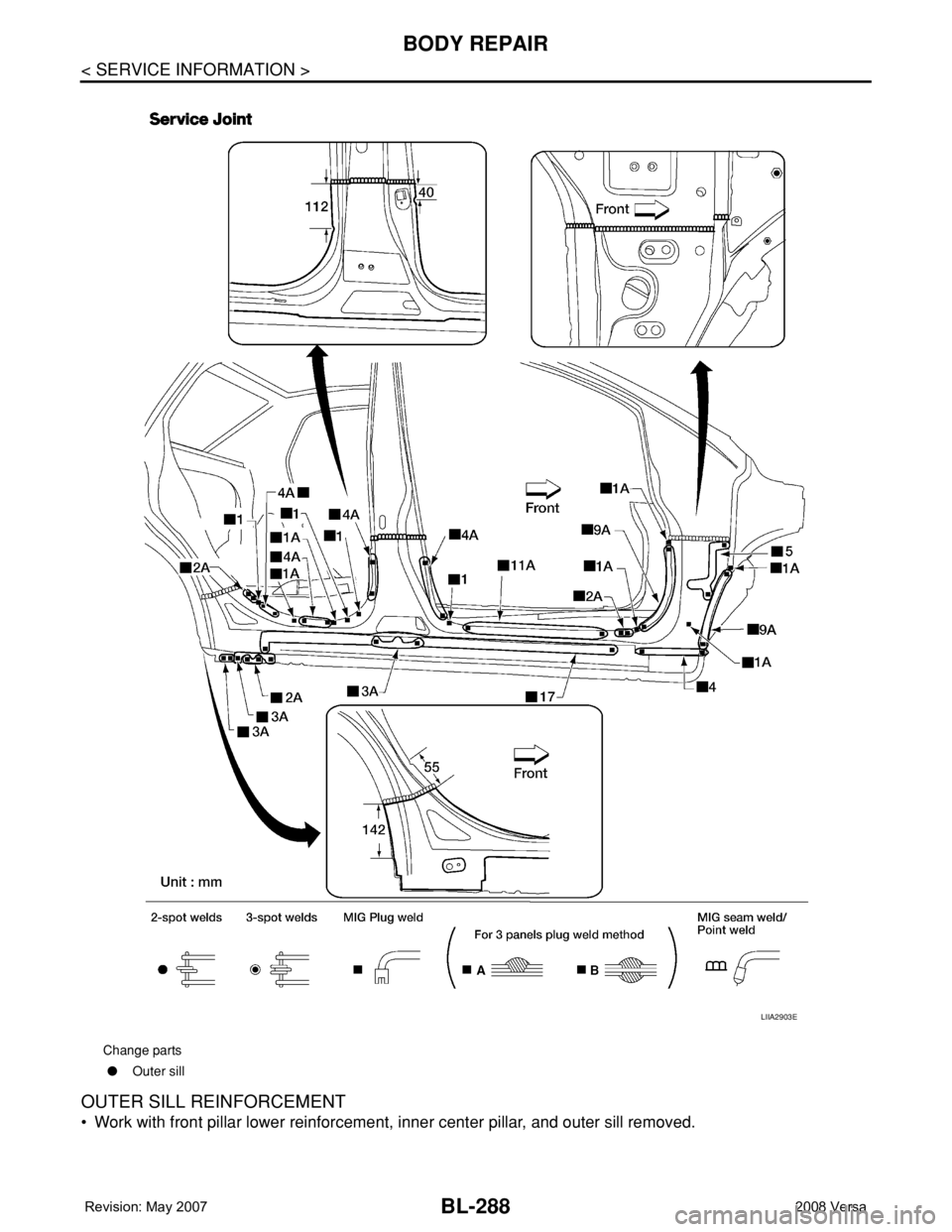

NISSAN LATIO 2008 Service Repair Manual BODY REPAIR BL-287 < SERVICE INFORMATION > C D E F G H J K L MA B BL N O P OUTER SILL Change parts ●Inner center pillar WIIA1394E

Page 722 of 2771

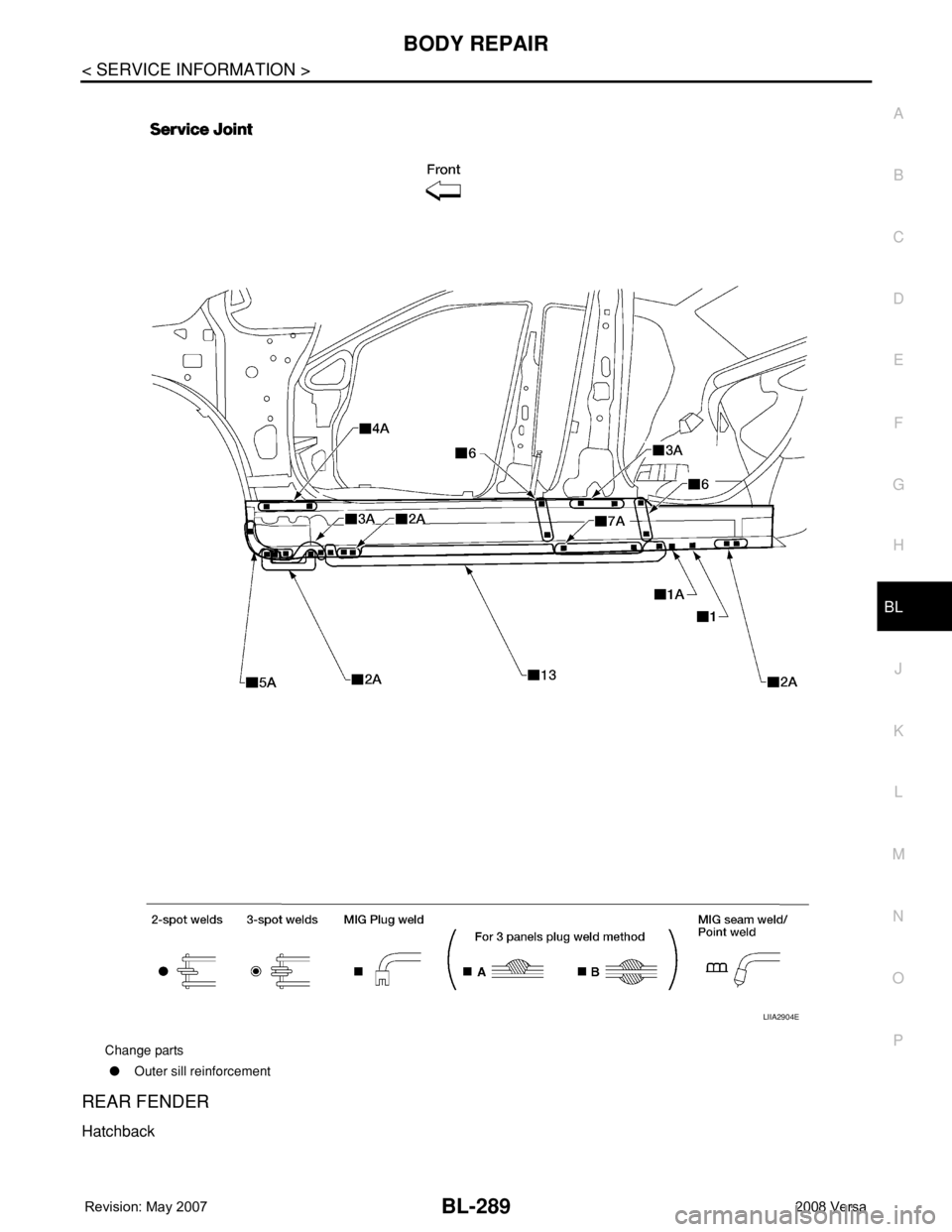

NISSAN LATIO 2008 Service Repair Manual BL-288 < SERVICE INFORMATION > BODY REPAIR OUTER SILL REINFORCEMENT • Work with front pillar lower reinforcement, inner center pillar, and outer sill removed. Change parts ●Outer sill LIIA2903E

Page 723 of 2771

NISSAN LATIO 2008 Service Repair Manual BODY REPAIR BL-289 < SERVICE INFORMATION > C D E F G H J K L MA B BL N O P REAR FENDER Hatchback Change parts ●Outer sill reinforcement LIIA2904E

Page 724 of 2771

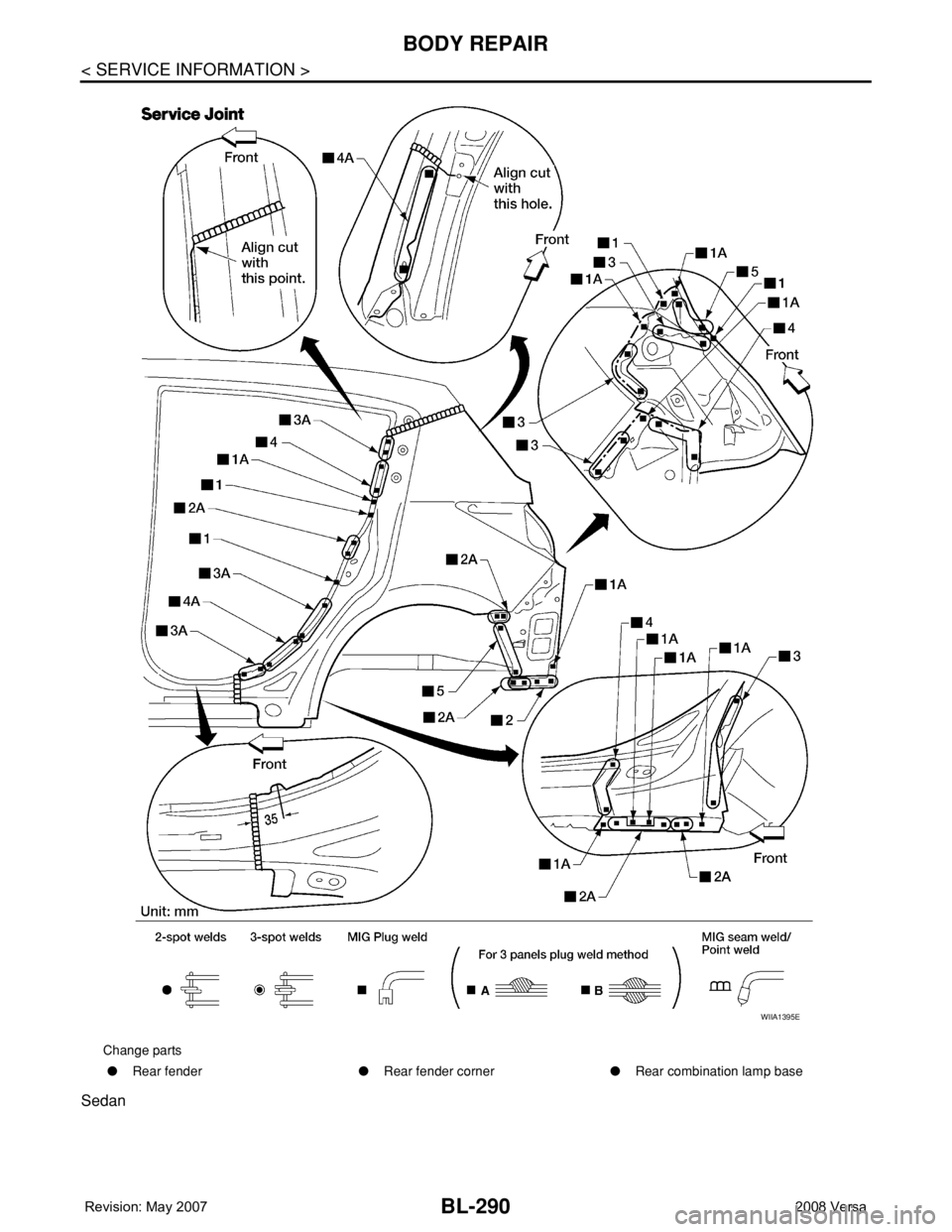

NISSAN LATIO 2008 Service Repair Manual BL-290 < SERVICE INFORMATION > BODY REPAIR Sedan Change parts ●Rear fender ●Rear fender corner ●Rear combination lamp base WIIA1395E

Page 725 of 2771

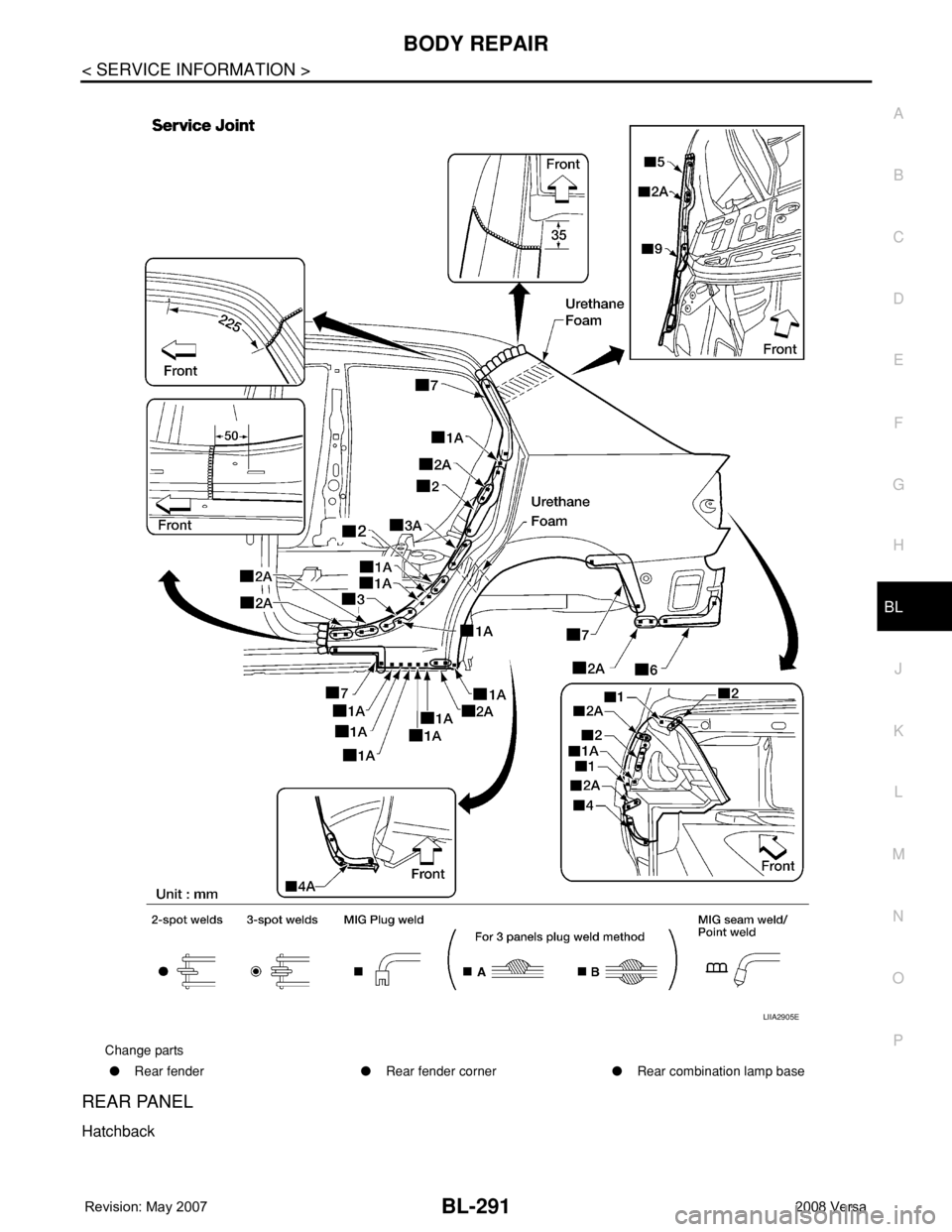

NISSAN LATIO 2008 Service Repair Manual BODY REPAIR BL-291 < SERVICE INFORMATION > C D E F G H J K L MA B BL N O P REAR PANEL Hatchback Change parts ●Rear fender ●Rear fender corner ●Rear combination lamp base LIIA2905E

Page 726 of 2771

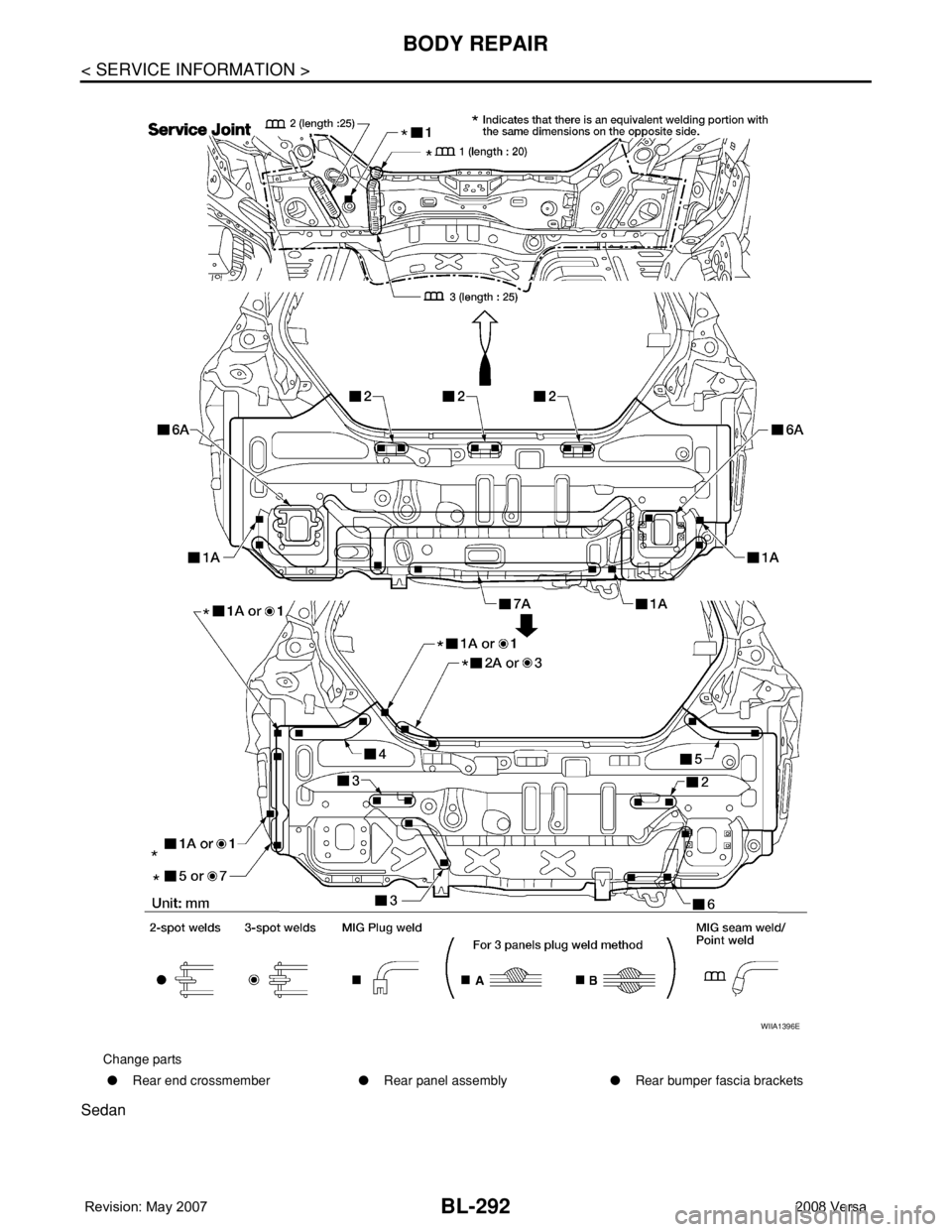

NISSAN LATIO 2008 Service Repair Manual BL-292 < SERVICE INFORMATION > BODY REPAIR Sedan Change parts ●Rear end crossmember●Rear panel assembly●Rear bumper fascia brackets WIIA1396E

Page 727 of 2771

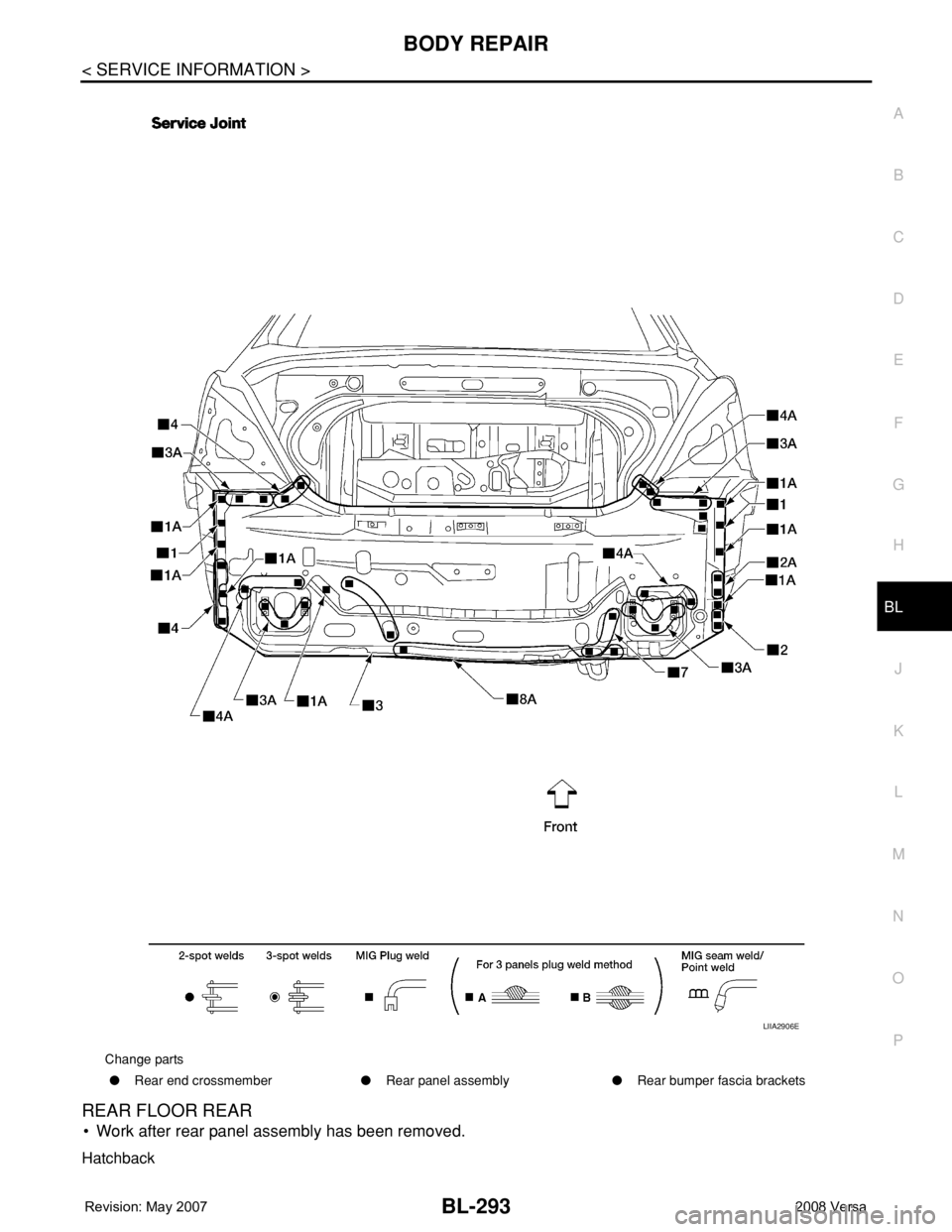

NISSAN LATIO 2008 Service Repair Manual BODY REPAIR BL-293 < SERVICE INFORMATION > C D E F G H J K L MA B BL N O P REAR FLOOR REAR • Work after rear panel assembly has been removed. Hatchback Change parts ●Rear end crossmember●Rear pa

Page 728 of 2771

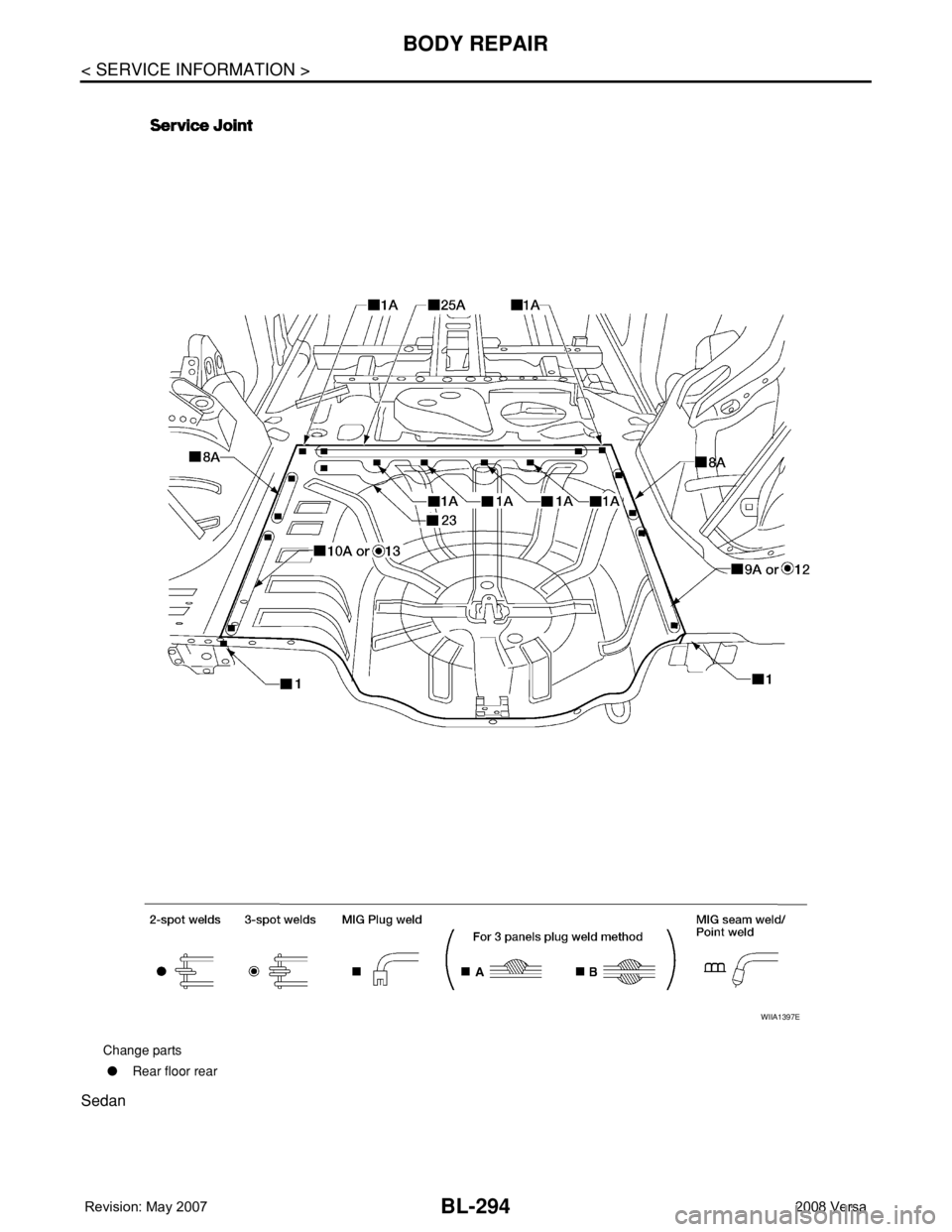

NISSAN LATIO 2008 Service Repair Manual BL-294 < SERVICE INFORMATION > BODY REPAIR Sedan Change parts ●Rear floor rear WIIA1397E
