Page 1537 of 2771

NISSAN LATIO 2008 Service Repair Manual DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION EC-463 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in

Page 1538 of 2771

NISSAN LATIO 2008 Service Repair Manual EC-464 < SERVICE INFORMATION > DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION Check voltage between ECM terminal 2 and ground under the fol- lowing conditions with CONSULT-II or tester. OK or NG OK >> G

Page 1539 of 2771

NISSAN LATIO 2008 Service Repair Manual DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION EC-465 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O 7.DETECT MALFUNCTIONING PART Check the following. • Harness connectors E8, F8 • Harness

Page 1540 of 2771

NISSAN LATIO 2008 Service Repair Manual EC-466 < SERVICE INFORMATION > DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION Refer to EC-466, "Component Inspection". OK or NG OK >> GO TO 13. NG >> GO TO 14. 13.CHECK INTERMITTENT INCIDENT Ref

Page 1541 of 2771

NISSAN LATIO 2008 Service Repair Manual DTC P2118 THROTTLE CONTROL MOTOR EC-467 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O DTC P2118 THROTTLE CONTROL MOTOR Component DescriptionINFOID:0000000001702998 The throttle control motor

Page 1542 of 2771

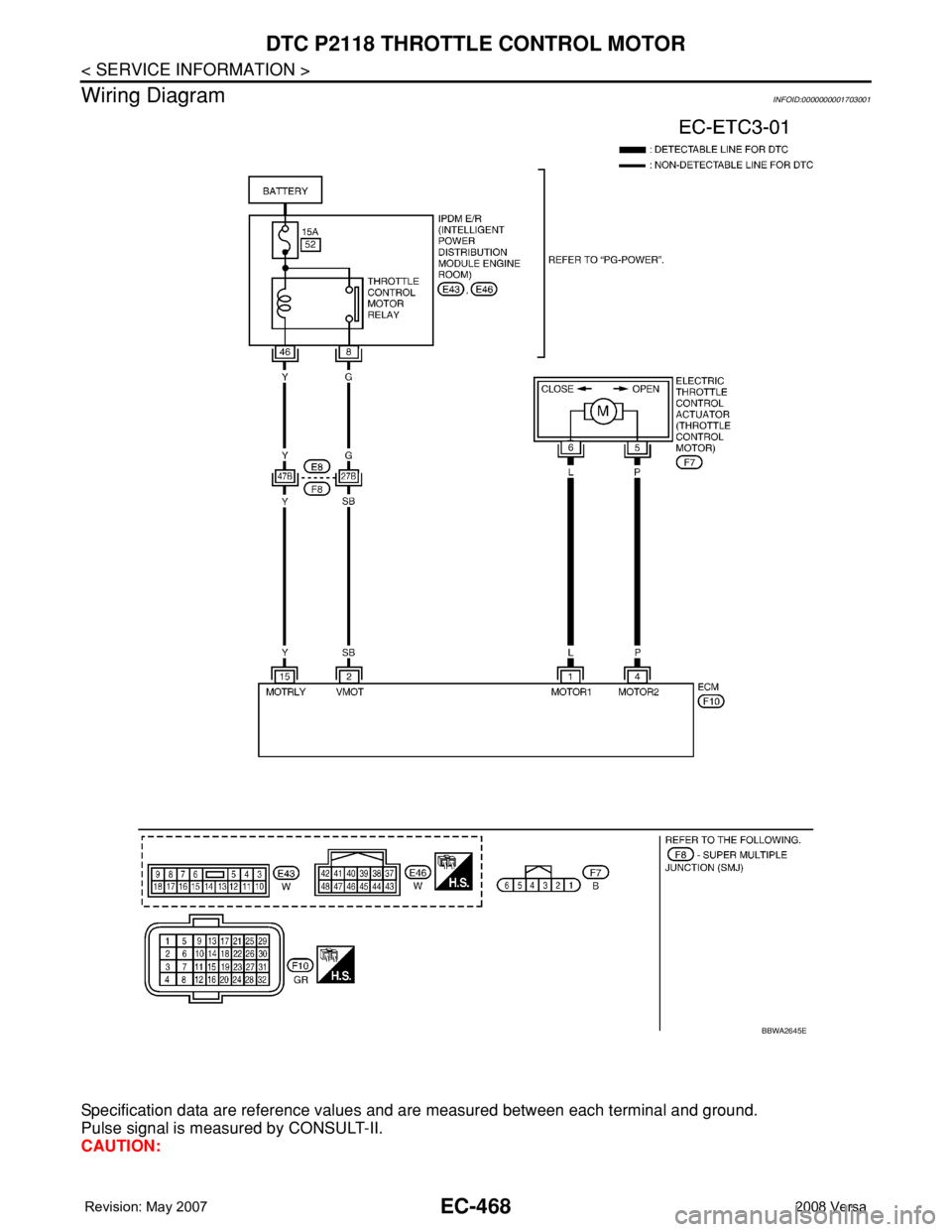

NISSAN LATIO 2008 Service Repair Manual EC-468 < SERVICE INFORMATION > DTC P2118 THROTTLE CONTROL MOTOR Wiring Diagram INFOID:0000000001703001 Specification data are reference values and are measured between each terminal and ground. Pulse

Page 1543 of 2771

NISSAN LATIO 2008 Service Repair Manual DTC P2118 THROTTLE CONTROL MOTOR EC-469 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam- age to

Page 1544 of 2771

NISSAN LATIO 2008 Service Repair Manual EC-470 < SERVICE INFORMATION > DTC P2118 THROTTLE CONTROL MOTOR 1. Disconnect electric throttle control actuator (1) harness connec- tor. - : Vehicle front 2. Disconnect ECM harness connector. 3. Chec
