Page 625 of 2771

NISSAN LATIO 2008 Service Repair Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-191
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
SchematicINFOID:0000000001704086
ALKWA0197GB

Page 626 of 2771

NISSAN LATIO 2008 Service Repair Manual BL-192
< SERVICE INFORMATION >
VEHICLE SECURITY (THEFT WARNING) SYSTEM

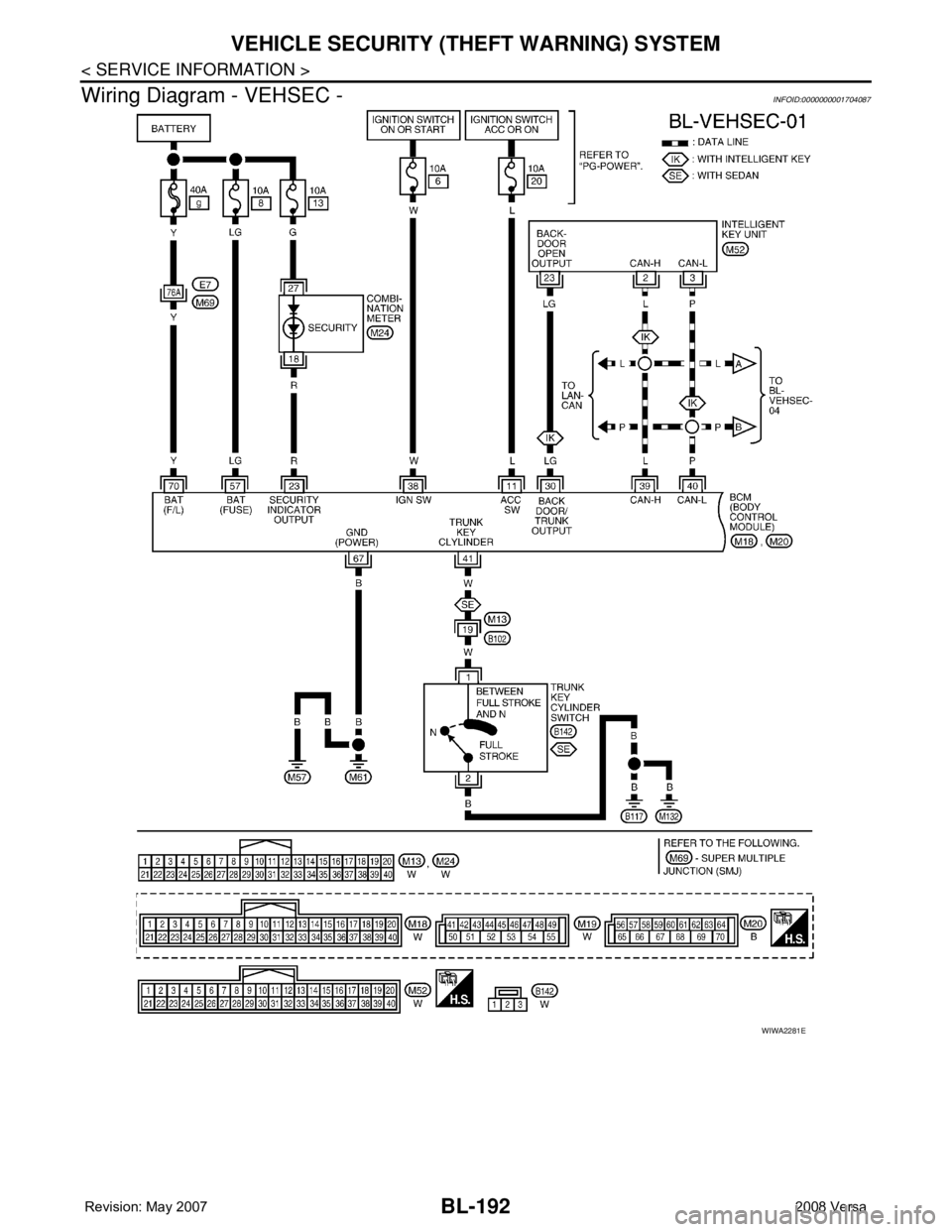

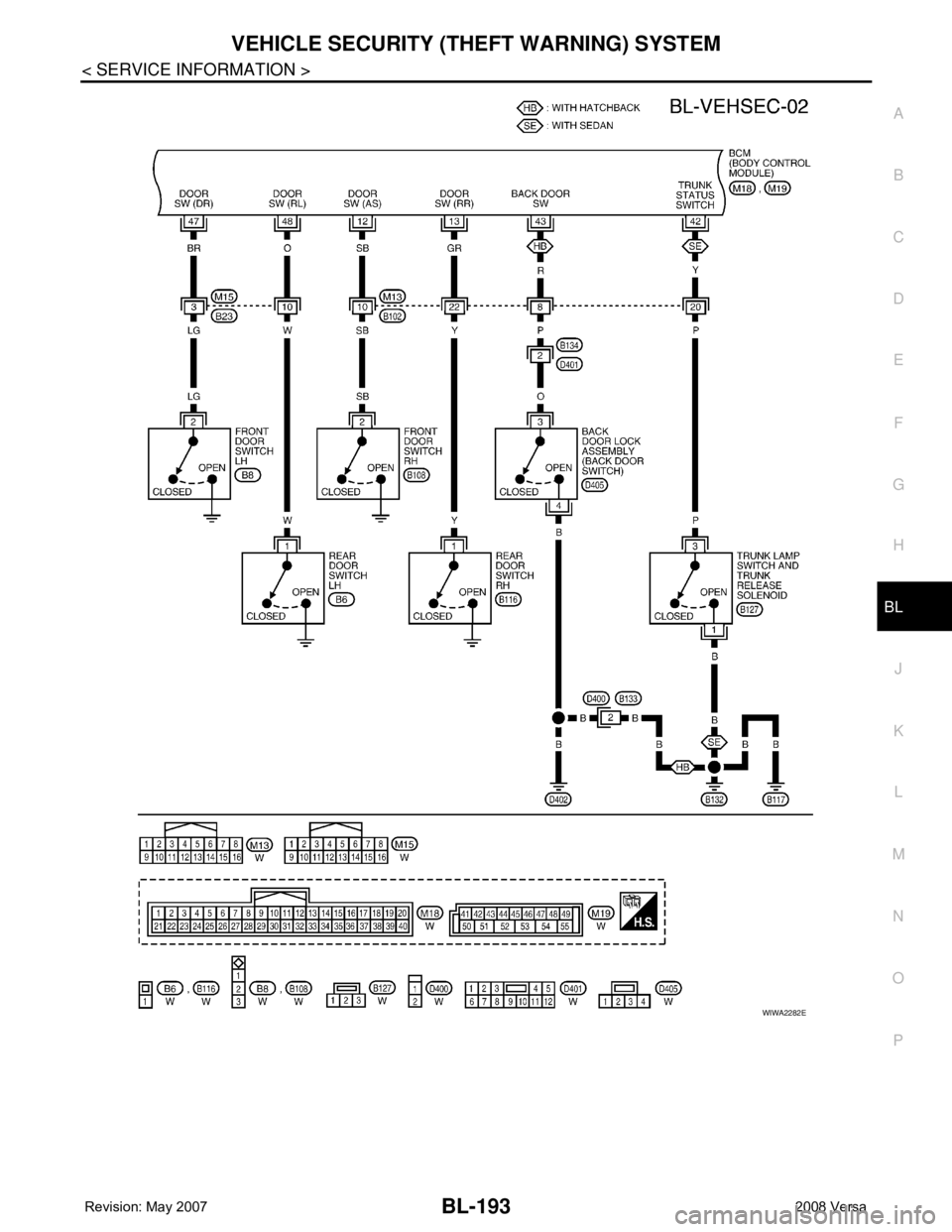

Wiring Diagram - VEHSEC -
INFOID:0000000001704087
WIWA2281E

Page 627 of 2771

NISSAN LATIO 2008 Service Repair Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-193
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P

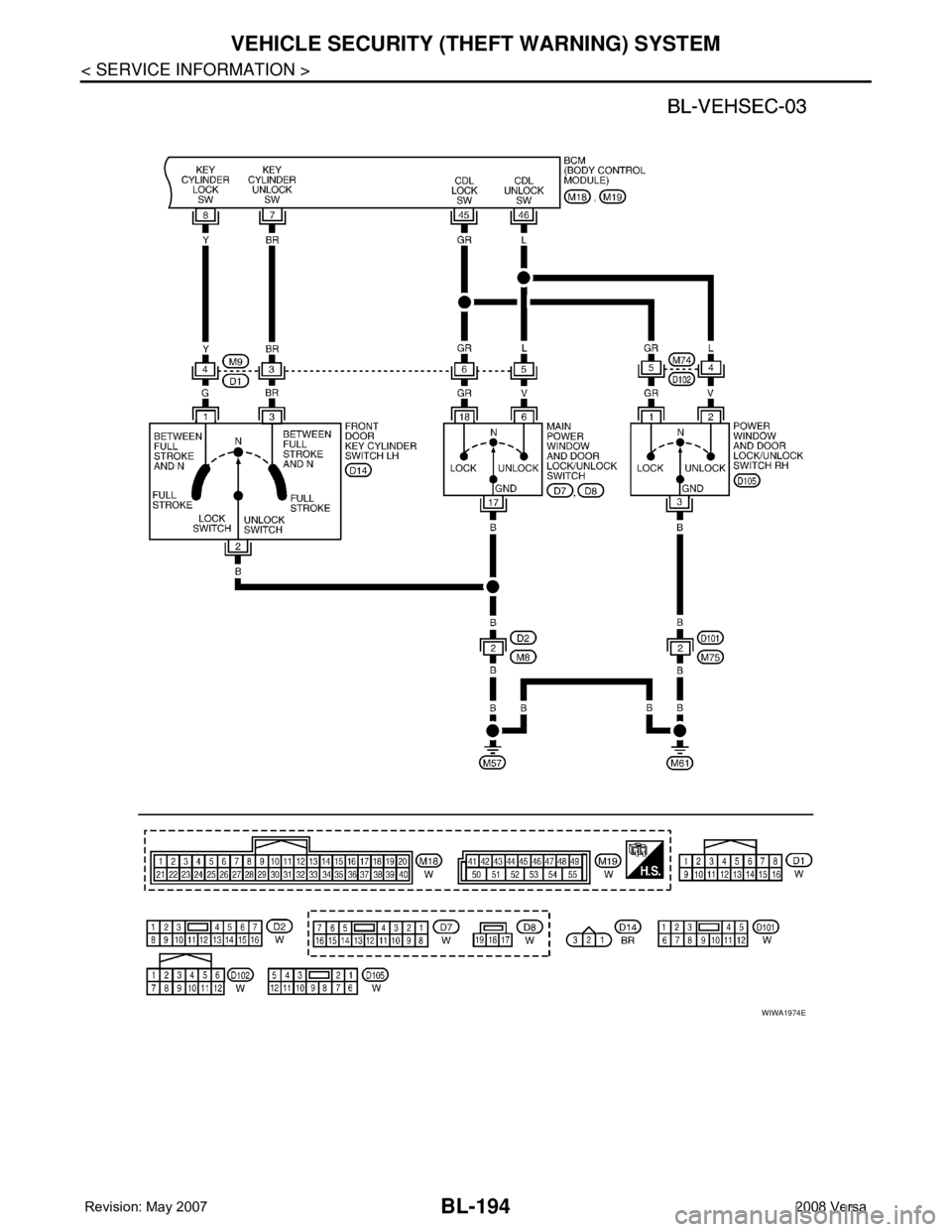

WIWA2282E

Page 628 of 2771

NISSAN LATIO 2008 Service Repair Manual BL-194
< SERVICE INFORMATION >
VEHICLE SECURITY (THEFT WARNING) SYSTEM

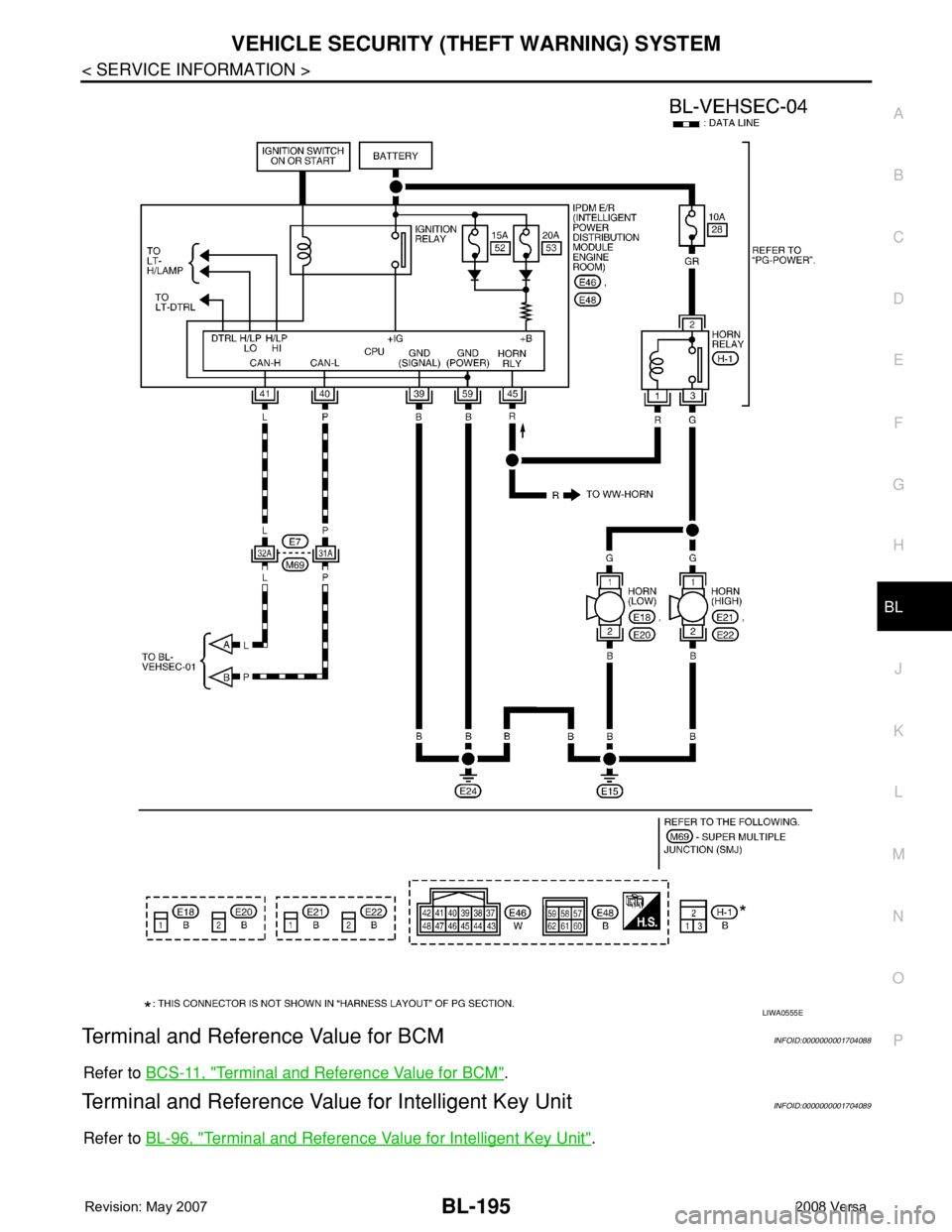

WIWA1974E

Page 629 of 2771

NISSAN LATIO 2008 Service Repair Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-195
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
Terminal and Reference Value for BCMINFOID:0000000001704088
Refer to BCS-11, "Terminal and Re

Page 630 of 2771

NISSAN LATIO 2008 Service Repair Manual BL-196
< SERVICE INFORMATION >
VEHICLE SECURITY (THEFT WARNING) SYSTEM
CONSULT-III Function (BCM)
INFOID:0000000001704090
CONSULT-III can display each diagnostic item using the diagnostic test modes s

BL-196
< SERVICE INFORMATION >
VEHICLE SECURITY (THEFT WARNING) SYSTEM
CONSULT-III Function (BCM)
INFOID:0000000001704090
CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-III APPLICATION ITEM
Work Support
Data Monitor
* : With remote keyless entry system
** : With Intelligent Key systemBCM
diagnostic test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the
BCM for setting the status suitable for required operation, input/output sig-
nals are received from the BCM and received date is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TESTOperation of electrical loads can be checked by sending drive signal to
them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTRThe result of transmit/receive diagnosis of CAN communication can be
read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
Test Item Description
SECURITY ALARM SET This mode can confirm and change security alarm ON-OFF setting.
THEFT ALM TRGThe switch which triggered vehicle security alarm is recorded. This mode is able to confirm and
erase the record of vehicle security alarm. The trigger data can be erased by touching “CLEAR” on
CONSULT-III screen.
Monitored Item Description
IGN ON SW Indicates [ON/OFF] condition of ignition switch.
ACC ON SW Indicates [ON/OFF] condition of ignition switch in ACC position.
KEYLESS LOCK* Indicates [ON/OFF] condition of lock signal from keyfob.
KEYLESS UNLOCK* Indicates [ON/OFF] condition of unlock signal from keyfob.
I-KEY LOCK** Indicates [ON/OFF] condition of lock signal from keyfob.
I-KEY UNLOCK** Indicates [ON/OFF] condition of unlock signal from keyfob.
I-KEY TRUNK** Indicates [ON/OFF] condition of trunk open signal from keyfob.
TRNK OPNR SW Indicates [ON/OFF] condition of trunk opener switch.
TRUNK CYL SW Indicates [ON/OFF] condition of trunk key cylinder switch.
TRNK OPN MNTR Indicates [ON/OFF] condition of trunk lid status.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch LH.
DOOR SW-AS Indicates [ON/OFF] condition of front door switch RH.
DOOR SW-RR Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL Indicates [ON/OFF] condition of rear door switch LH.
BACK DOOR SW Indicates [ON/OFF] condition of back door switch.
KEY CYL LK SW Indicates [ON/OFF] condition of lock signal from key cylinder switch.
KEY CYL UN SW Indicates [ON/OFF] condition of unlock signal from key cylinder switch.
CDL LOCK SW Indicates [ON/OFF] condition of lock signal from door lock/unlock switch LH and RH.
CDL UNLOCK SW Indicates [ON/OFF] condition of unlock signal from door lock/unlock switch LH and RH.

Page 631 of 2771

NISSAN LATIO 2008 Service Repair Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-197
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P Active Test
Trouble DiagnosisINFOID:0000000001704091

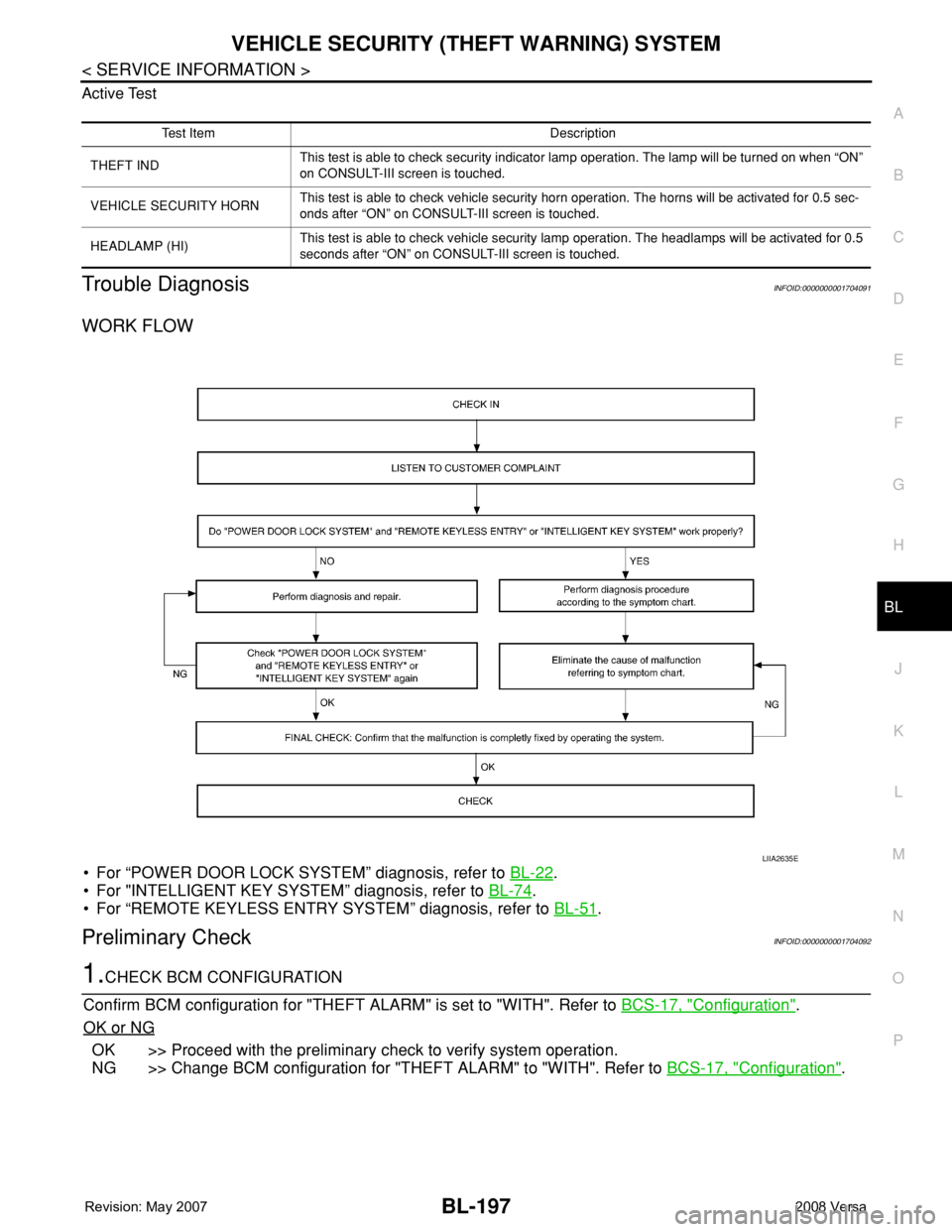

WORK FLOW
• For “POWER DOOR LOCK SYSTEM�

Page 632 of 2771

NISSAN LATIO 2008 Service Repair Manual BL-198
< SERVICE INFORMATION >
VEHICLE SECURITY (THEFT WARNING) SYSTEM

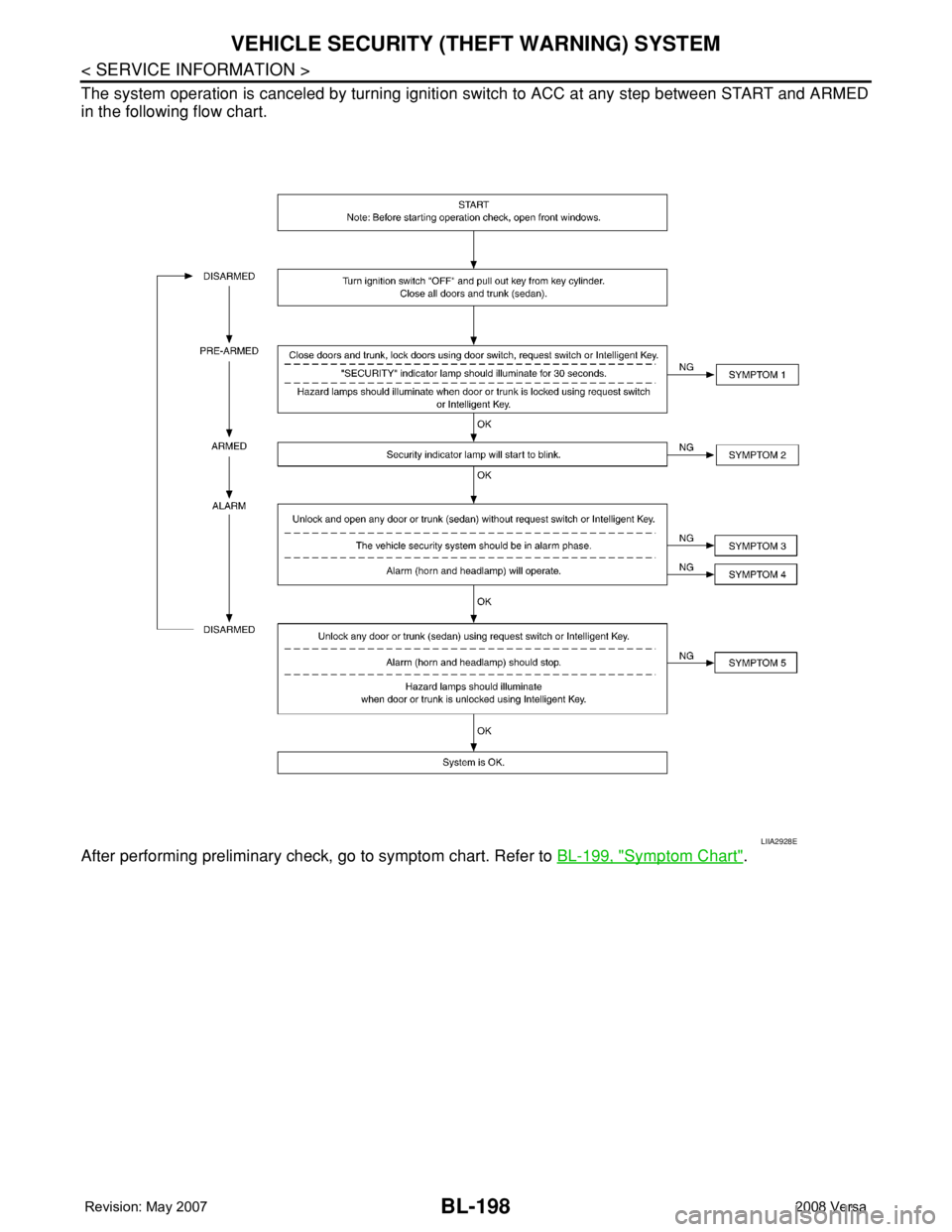

The system operation is canceled by turning ignition switch to ACC at any step between START and ARMED
in the following flow char
