Page 665 of 2771

NISSAN LATIO 2008 Service Repair Manual BODY REPAIR BL-231 < SERVICE INFORMATION > C D E F G H J K L MA B BL N O P Sedan 1. Roof panel assembly 2. Rear roof rail assembly 3. 4th roof rail assembly 4. 3rd roof rail assembly 5. 2nd roof rail

Page 666 of 2771

NISSAN LATIO 2008 Service Repair Manual BL-232 < SERVICE INFORMATION > BODY REPAIR 7. Front roof rail assembly 8. Sun roof assembly 9. Front roof rail assembly (if equipped with sunroof) 10. Roof side rail reinforcement (RH & LH) 11. Inner

Page 667 of 2771

NISSAN LATIO 2008 Service Repair Manual BODY REPAIR BL-233 < SERVICE INFORMATION > C D E F G H J K L MA B BL N O P To improve repairability and corrosion resistance, a new type of anti- corrosive precoated steel sheet has been adopted repla

Page 668 of 2771

NISSAN LATIO 2008 Service Repair Manual BL-234 < SERVICE INFORMATION > BODY REPAIR Hatchback LIIA2600E

Page 669 of 2771

NISSAN LATIO 2008 Service Repair Manual BODY REPAIR BL-235 < SERVICE INFORMATION > C D E F G H J K L MA B BL N O P Sedan UNDERCOATING The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip

Page 670 of 2771

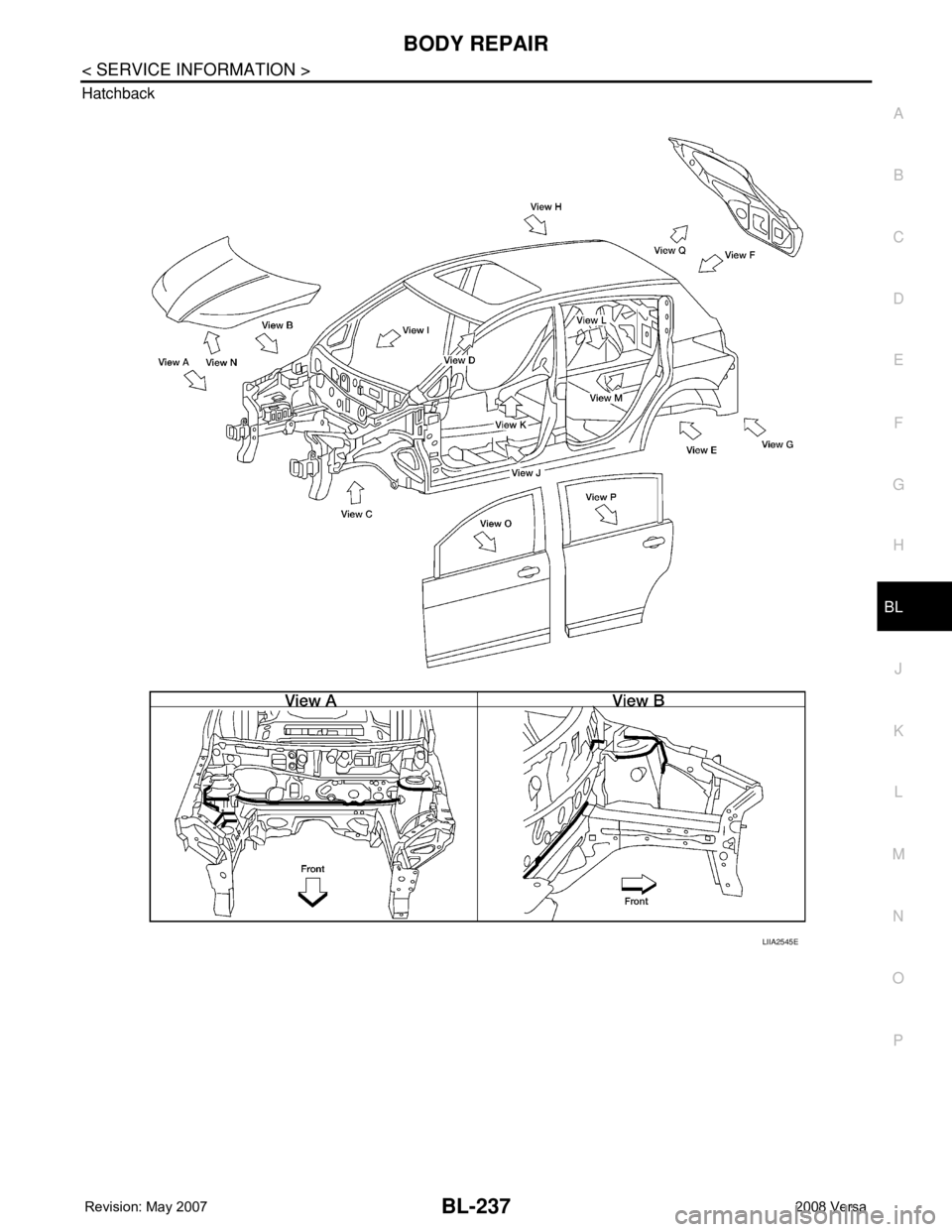

NISSAN LATIO 2008 Service Repair Manual BL-236 < SERVICE INFORMATION > BODY REPAIR Hatchback Sedan Body SealingINFOID:0000000001704121 DESCRIPTION The following figure shows the areas which are sealed at the factory. Sealant which has been

Page 671 of 2771

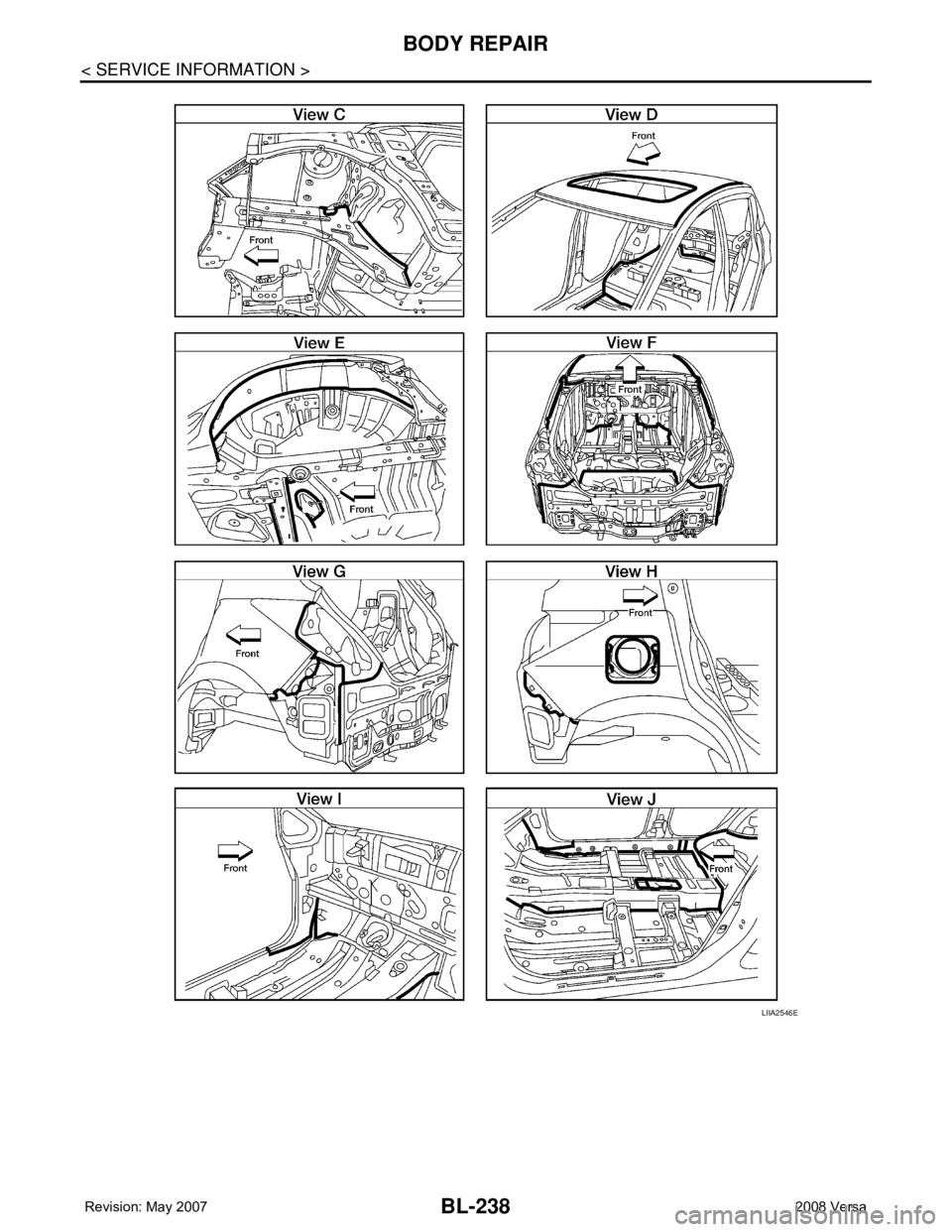

NISSAN LATIO 2008 Service Repair Manual BODY REPAIR BL-237 < SERVICE INFORMATION > C D E F G H J K L MA B BL N O P Hatchback LIIA2545E

Page 672 of 2771

NISSAN LATIO 2008 Service Repair Manual BL-238 < SERVICE INFORMATION > BODY REPAIR LIIA2546E
