Page 505 of 1807

PRICES SUBJECT TO CHANGE WITHOUT NOTICEORDERING INFORMATION ON PAGE 5
TOYOTA COLLISION REPAIR & REFINISH PAGE 2 of 5
SERVICE PUBLICATIONS (cont'd)
COLLISION REPAIR MANUALS (cont'd)
ModelYearPart NumberPrice
CRESSIDA
Collision Repair Manual 1992±89 00400±BR016 $6.95
Collision Repair Manual±Sedan 1992±87 00400±BR012 6.95
Collision Repair Manual±Wagon 1992±88 00400±BR014 4.95
LANDCRUISER
Collision Repair Manual 1997±93 00400±BR050 15.00
MR2
Collision Repair Manual 1995±91 00400±BR025 6.95
Collision Repair Manual 1989±85 00400±36440±A 15.00
Collision Repair Manual±T±Roof 1989±87 00400±BRM00±8E 4.95
PASEO
Collision Repair Manual 1997±96 00400±BR05 15.00
Collision Repair Manual±Convertible 1997 00400±BR065 15.00
Collision Repair Manual 1995±92 00400±BR030 9.00
PREVIA
Collision Repair Manual 1997±91 00400±BR027 6.95
RAV4
Collision Repair Manual 1997±96 00400±BR045 20.00
Collision Repair Manual±5±Door 1997±96 00400±BR052 15.00
SUPRA
Collision Repair Manual 1997±93 00400±BR042 9.00
Collision Repair Manual±Sport Roof 1992±86 00400±BRM00±5E 6.95
Collision Repair Manual 1992±86 00400±BRM00±9E 4.95
SUPRA, CELICA
Collision Repair Manual 1986±82 00400±36182 6.95
TERCEL
Collision Repair Manual 1997±95 00400±BR047 20.00
Collision Repair Manual 1994±92 00400±BR029 9.00
Collision Repair Manual±Sedan 1991±86 00400±BRM00±7U 6.95
Collision Repair Manual±Coupe 1991±87 00400±BRM01±1U 4.95
Collision Repair Manual 1986±85 00400±36431±E 6.95
Collision Repair Manual±4WD 1988±83 00400±36432±E 6.95
VA N
Collision Repair Manual 1989±84 00400±BRM00±3E 6.95
4RUNNER
Collision Repair Manual 1997±96 00400±BR060 20.00
Page 506 of 1807

PRICES SUBJECT TO CHANGE WITHOUT NOTICEORDERING INFORMATION ON PAGE 5
TOYOTA COLLISION REPAIR & REFINISH PAGE 3 of 5
SERVICE PUBLICATIONS (cont'd)
COLLISION REPAIR SUPPORT MATERIALS
These manuals focus on the fundamental skills necessary to develop a qualified body or
paint technician.
Each title is useful for:
Quick reference guidelines
Fundamental repair information
Basic diagnostic and damage assessment
Name
Part NumberPrice
FUNDAMENTAL BODY
REPAIR PROCEDURES
Fundamental Manual 00400±BRM00±2E $14.95
FUNDAMENTAL PAINTING
PROCEDURES
Fundamental Manual 00400±BR024 19.00
COLLISION REPAIR TRAINING COURSE PACKAGES
Each of these course packages are used exclusively at all Toyota Collision Repair and
Refinish Training Centers and are available as self±study training packages for technicians
performing collision repair and refinish operations.
Each training package includes a technician reference guide, videotape and learning aid.
Topics covered include:
Cutting and welding procedures
Body panel replacement
Preparation procedures for refinish
Color evaluation
Name
Part NumberPrice
Toyota Paint
Finish Repair (PFR) 00400±10000 $54.95
Toyota Color Matching
For Painters (CMFP) 00415±10002 54.95
Toyota Advanced
Painting Techniques (APT) 00415±10004 54.95
Toyota Non±Structural
Body Repair Techniques (NBRT) 00415±10001 54.95
Toyota Structural
Body Repair Techniques (SBRT) 00415±10003 54.95
Page 507 of 1807

PRICES SUBJECT TO CHANGE WITHOUT NOTICEORDERING INFORMATION ON PAGE 5
TOYOTA COLLISION REPAIR & REFINISH PAGE 4 of 5
SERVICE PUBLICATIONS (cont'd)
COLLISION REPAIR INFORMATION BULLETINS
Collision Repair Information Bulletins (CRIBS) provide Toyota body and paint technicians
with the latest developments in collision repair and refinish. Information is divided among
the following topics:
General informationInterior
Structural repairElectrical
WeldingAlignment
RefinishTools and equipment
Exterior
Name
Part NumberPrice
Collision Repair Information Binder
includes Bulletins #1±41 00408±03000±01 $20.00
CRIB Bulletin #49 00408±03000±49 1.00
CRIB Bulletins #51±57 00408±03000±51±57 10.00
CRIB Bulletins #58±61 00408±03000±58±61 5.00
CRIB Bulletins #62±65 00408±03000±62±65 5.00
CRIB Bulletins #66±67 00408±03000±66±67 5.00
CRIB Bulletins #68±69 00408±03000±68±69 1.18
CRIB Bulletin #70 00408±03000±70 2.00
CRIB Bulletin #71 00408±03000±71 2.24
CRIB Bulletin #72 00408±03000±72 1.62
BODY DIMENSIONS GUIDE
The Toyota Body Dimension Guide provides data necessary to assess the extent of
collision damage by using vehicle±specific dimension charts and measurement
specifications. The dimension guide provides specifications for the following areas:
engine compartmentsuspension crossmember
door and compartment openingsframe alignment
underbodycab alignment
1980±1997 Body Dimension Guide 00117±00540±97 $3.50
Page 508 of 1807
TOYOTA COLLISION REPAIR & REFINISH PAGE 5 of 5
SERVICE PUBLICATIONS (cont'd)
Page 509 of 1807
NO8908
(Three-Dimensional Distance)
Imaginary
Standard
Line
mm (in.)
Hole dia.
10 (0.39)
18 (0.71)
14 (0.55)nut
10 (0.39)nut
18 (0.71)
10 (0.39)nut
12 (0. 47)nut Name
Front floor reinforcement standard hole
Rear floor side member standard hole
Rear suspension member installation nut
Suspension member bracket installation nut-front, outer
Rear floor side member rear standard hole
Tank band installation nut
Transport hook installation nut Symbol
L, l
M, m
N, n
P, p
Q, q
R Hole dia.
7 (0.28)
9 (0.35)
18 (0.71)
13 (0.51)
14 (0.55) nut
18 (0.71)
10 (0.39) nut
10(0.39) nut Name
Font side member standard hole
Font crossmember working hole
Font side member standard hole
Font suspension crossmember installation hole
Front suspension crossmember installation nut
Front side member standard hole
Engine rear mounting member installation nut-front
Propeller shaft center support bearing installation nut Symbol
A, a
B, b
D, d
F, f
H, h
I, i
J, j
K, k
UNDER BODY
r
BODY DIMENSIONSDI-8
Page 510 of 1807

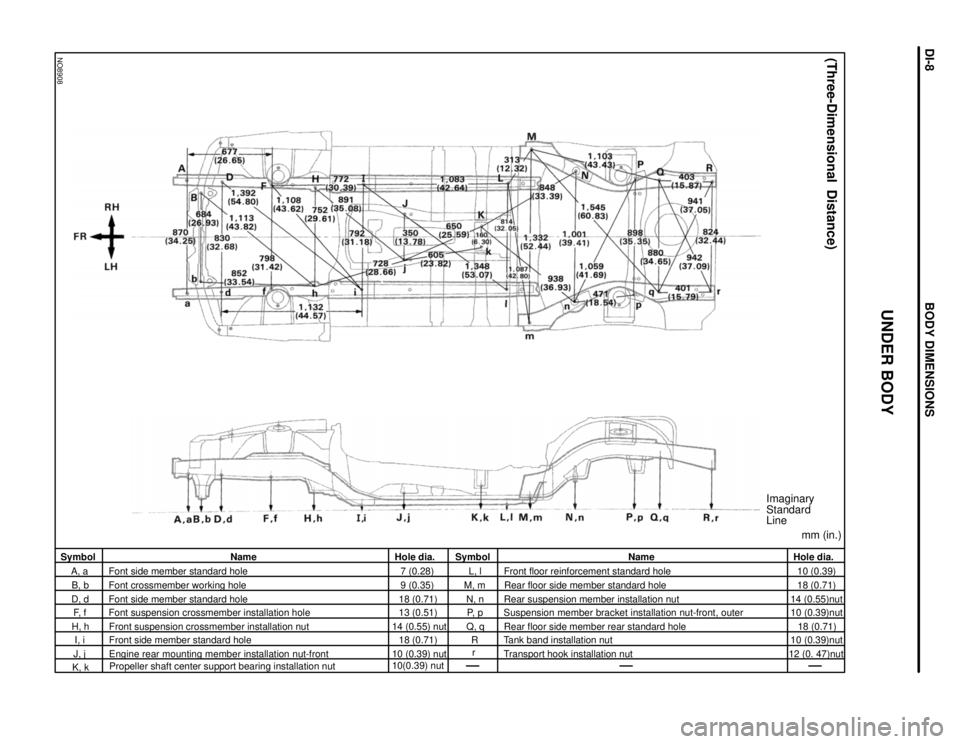

NOTICE: True up the mounting section of
the front airbag sensor very carefully and
accurately so that the sensor can be
mounted at the correct angle.
NO8948
Wheel base
2,550 (100.39)
Imaginary
Standard
Line
mm (in.)
(Two-Dimensional Distance)
Hole dia.
10 (0.39)nut
10 (0.39)
18 (0.71)
14 (0.55)nut
9 (0.35)
10 (0.39)nut
18 (0.71)
10 (0.39)nut
12 (0.47)nut Name
Propeller shaft center support bearing installation nut
Front floor reinforcement standard bole
Rear floor side member standard hole
Rear suspension member installation nut
Rear spring support hole-outer
Suspension member bracket installation nut-front, outer
Rear floor side member rear standard hole
Tank band installation nut
Transport hook installation nut Symbol
K, k
L, l
M, m
N, n
O, o
P, p
Q, q
R
r Hole dia.
7 (0.28)
9 (0.35)
9 (0.35)
18 (0.71)
8 (0.31) nut
13 (0.51)
13 (0.51)
14 (0.55) nut
18 (0.71)
10 (0.39) nut Name
Front side member standard hole
Front crossmember working hole
Front airbag sensor installation hole
Front side member standard bole
Front airbag sensor installation nut
Front suspension crossmember installation hole
Front spring support hole-outer
Front suspension crossmember installation nut
Front side member standard hole
Engine rear mounting member installation nut-front Symbol
A, a
B, b
C, c
D, d
E, e
F, f
G, g
H, h
I, i
J, j
UNDER BODY (Cont'd)
BODY DIMENSIONSDI-9
Page 511 of 1807

FOR THE TOYOTA DEALER
COLLISION REPAIR INFORMATION
TITLE: URETHANE ADHESIVE SEALANT FOR PAGE 1 of 3
FIXED GLASS INSTALLATION
SECTION: STRUCTURAL REPAIR BULLETIN #31
MODELS: ALL
DATE: NOVEMBER 1988
In order to comply with FMVSS 212 ± Windshield Retention and FMVSS 216 ± Roof Crush
Resistance, the factory uses a urethane adhesive sealant with bonded strength of not less
than 40 kilograms per square centimeter or 569
pounds per square inch for certain bonded
windshields and rear windows on Toyota vehicles.
A Urethane adhesive sealant of at least equivalent strength must
be used to maintain
these retention and roof crush standards when windshield glass replacements are
performed by either the dealer or an outside glass shop.
Since the adhesive kits listed in Toyota Repair Manuals are not available in the U.S.A.
, a
listing of some locally available equivalent materials is provided below. Be sure to follow
the sealant manufacturer's instructions for best results.
CVS Urethane Auto Glass Sealer by American Sure Seal
Bonding strength = 600 pounds per square in. (approximate)
Super Fast Urethane by 3M
Bonding strength = 1000 pounds per square in. (approximate)
Unrest 212 by Kent Industries
Bonding strength = 600 pounds per square in. (approximate)
Urethane E Auto Glass Sealer by Protective Treatment Inc.
Bonding strength = 600 pounds per square in. (approximate)
For more detailed application information, see the attached ªUrethane Adhesive Sealant
Application for Toyota Modelsº.
Rear quarter windows on some models are bonded, however, the adhesive for these
windows requires less bonding strength and therefore, use of Butyl sealer may be sufficient
for these windows.
This bulletin is for information and clarification purposes only. Existing Warranty policy and
Flat Rate information have not been changed. Toyota is not responsible for problems that
occur from usage of improper sealants or procedures which fail to meet Toyota
specifications. PLEASE CONSULT THE APPROPRIATE TOYOTA SERVICE MANUAL
FOR THE PROPER REPAIR PROCEDURES.
NOTE: PLEASE ROUTE THIS BULLETIN TO YOUR COLLISION REPAIR CENTER
MANAGER
Page 512 of 1807

URETHANE ADHESIVE SEALANT FOR FIXED PAGE 2 of 3
GLASS INSTALLATION (cont'd)
URETHANE ADHESIVE SEALANT APPLICATION FOR TOYOTA MODELS
MODELBODYWINDSHIELDREAR WINDOWQUARTER
WINDOW
TERCEL
AL/EL
8608 to date EL2±Dr Sdn
4±Dr Sdn
5±Dr SdnUrethane
BondedConventional
WeatherstripButyl
Bonded
8308 to 8802 AL5±Dr WgnUrethane
BondedConventional
WeatherstripConventional
Weatherstrip
8208 to 8607 AL3±Dr L/BUrethane
BondedConventional
WeatherstripConventional
Weatherstrip
COROLLA
2±Dr S/C
4±Dr SdnUrethane
BondedUrethane
BondedButyl
Bonded
FWD AE
8708 to dateAll±Trac WgnUrethane
BondedUrethane
BondedButyl
Bonded
4±Dr WgnUrethane
BondedConventional
WeatherstripButyl
Bonded
FWD AE4±Dr SdnUrethane
BondedConventional
WeatherstripConventional
Weatherstrip
FWD AE
8409 to 87075±Dr L/BUrethane
BondedConventional
WeatherstripButyl
Bonded
FX Models
8608 to 88073±Dr L/BUrethane
BondedConventional
WeatherstripConventional
Weatherstrip
RWD AE
8409 to 87072±Dr S/C
2±Dr L/BUrethane
BondedConventional
WeatherstripButyl
Bonded
MR2
AW 8501 to date2±SeaterUrethane
BondedConventional
WeatherstripButyl
Bonded
CELICA
ST 8509 to date2±Dr S/C
2±Dr L/BUrethane
BondedUrethane
BondedButyl
Bonded
SUPRA
MA70 8601 to date2±Dr L/BUrethane
BondedUrethane
BondedButyl
Bonded
