mm in.
1204.72
QUARTER WHEEL HOUSING OUTER PANEL
(ASSY): Normal Roof Left Side

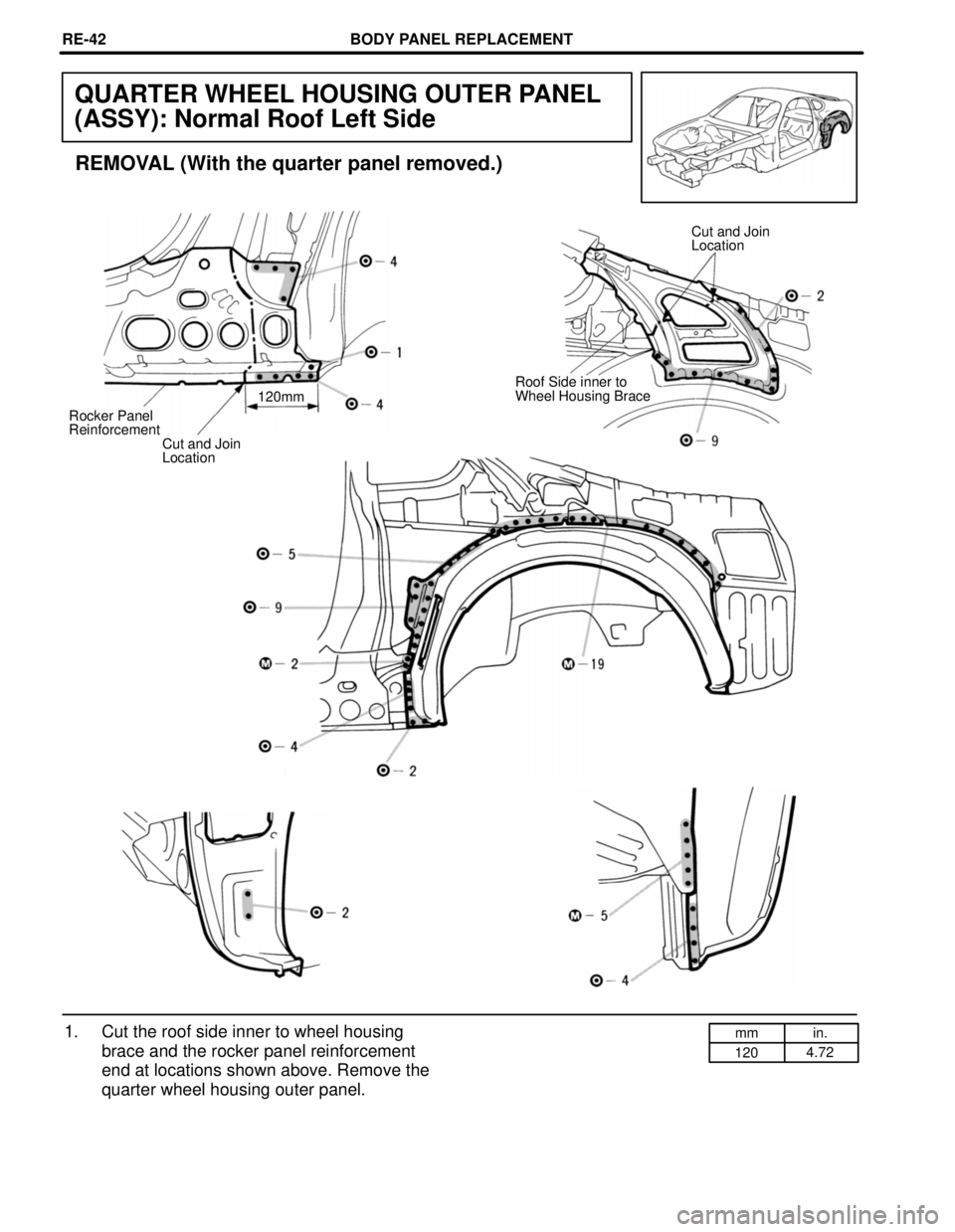

REMOVAL (With the quarter panel removed.)
Cut and Join
Location
Roof Side inner to
Wheel Housing Brace
120mm
Rocker Panel
Reinforcement
Cut and Join
Location
1. Cut the roof side inner to wheel housing
brace and the rocker panel reinforcement
end at locations shown above. Remove the
quarter wheel housing outer panel.
BODY PANEL REPLACEMENTRE-42
Page 450 of 1807

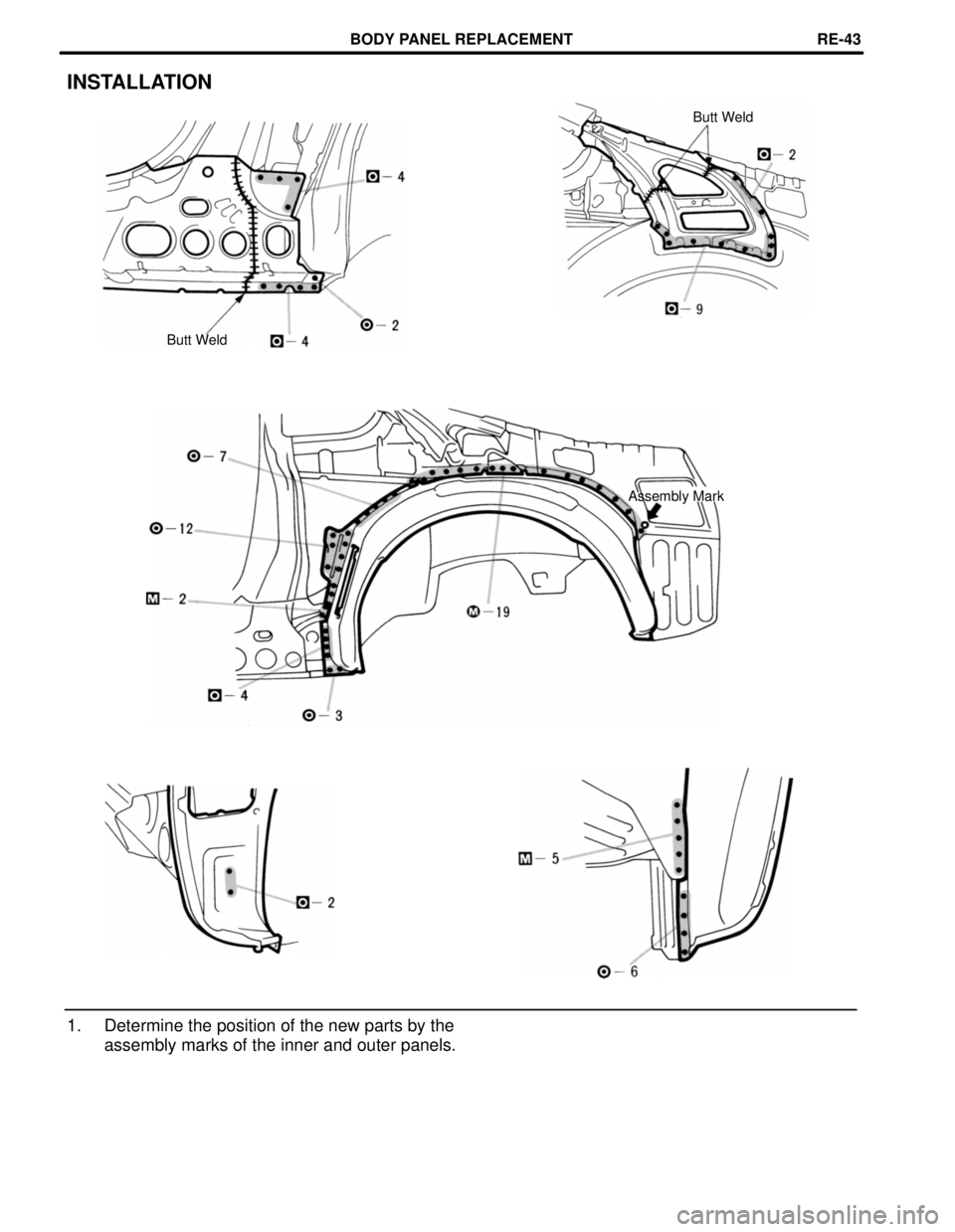

INSTALLATION
Butt Weld
Butt Weld
Assembly Mark
1. Determine the position of the new parts by the
assembly marks of the inner and outer panels.
BODY PANEL REPLACEMENTRE-43
Page 451 of 1807
mm in.
120 4.72
QUARTER WHEEL HOUSING OUTER PANEL
(ASSY): Sport Roof Right Side
REMOVAL (With the quarter panel removed.)
Cut and Join Location
Roof Side Inner to
Wheel Housing Brace
120 mm
Cut and Join Location
Rocker Panel Reinforcement
1. Cut the roof side inner to wheel housing brace
and the rocker panel reinforcement end at the
locations shown above. Remove the quarter
wheel housing outer panel.
BODY PANEL REPLACEMENTRE-44
Page 452 of 1807

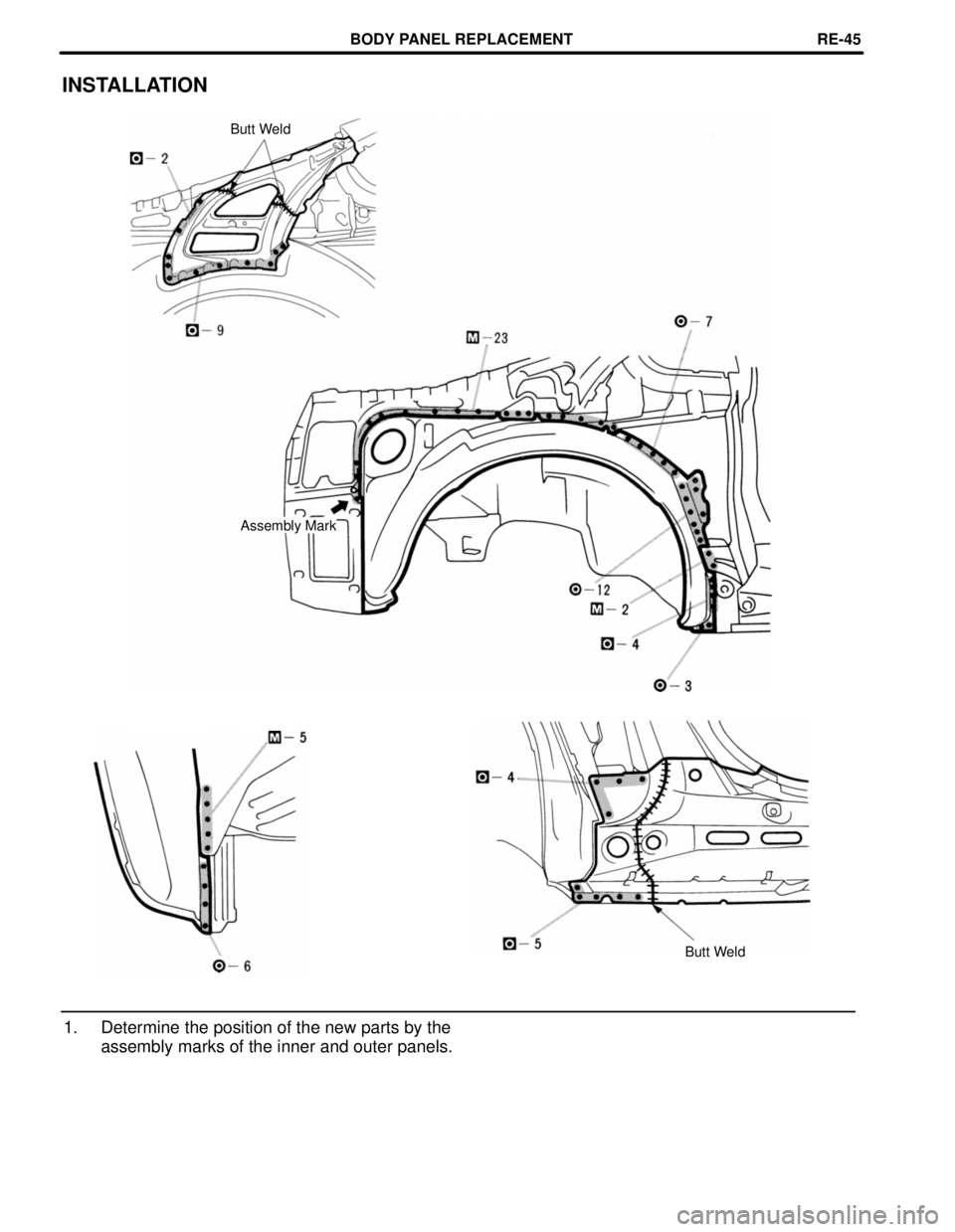

INSTALLATION
Butt Weld
Assembly Mark
Butt Weld
1. Determine the position of the new parts by the
assembly marks of the inner and outer panels.
BODY PANEL REPLACEMENTRE-45
Page 453 of 1807
mm in.
120
4.72
QUARTER WHEEL HOUSING OUTER PANEL
(ASSY): Sport Roof Left Side
REMOVAL (With the quarter panel removed.)
Cut and Join Location
Roof Side Inner to heel
Housing Brace
120 mm
Rocker Panel
Reinforcement
Cut and Join
Location
1. Cut the roof side inner to wheel housing brace
and the rocker panel reinforcement end at the
location shown above. Remove the quarter
wheel housing outer panel.
BODY PANEL REPLACEMENTRE-46
Page 454 of 1807

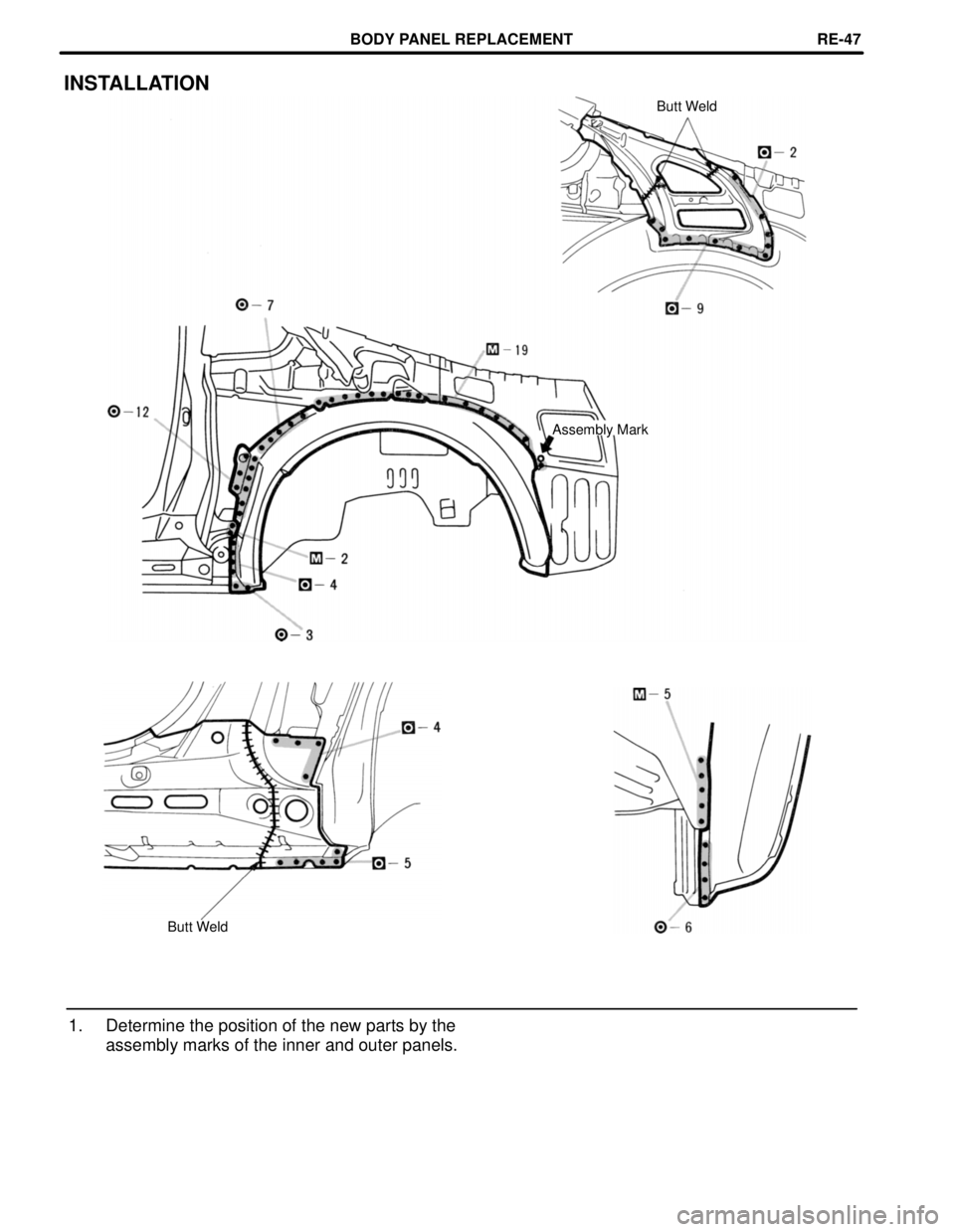

INSTALLATION
Butt Weld
Assembly Mark
Butt Weld
1. Determine the position of the new parts by the
assembly marks of the inner and outer panels.
BODY PANEL REPLACEMENTRE-47
Page 455 of 1807
QUARTER INNER PANEL (CUT-P): Left Side
REMOVAL (With the quarter panel and body lower
back panel removed.)

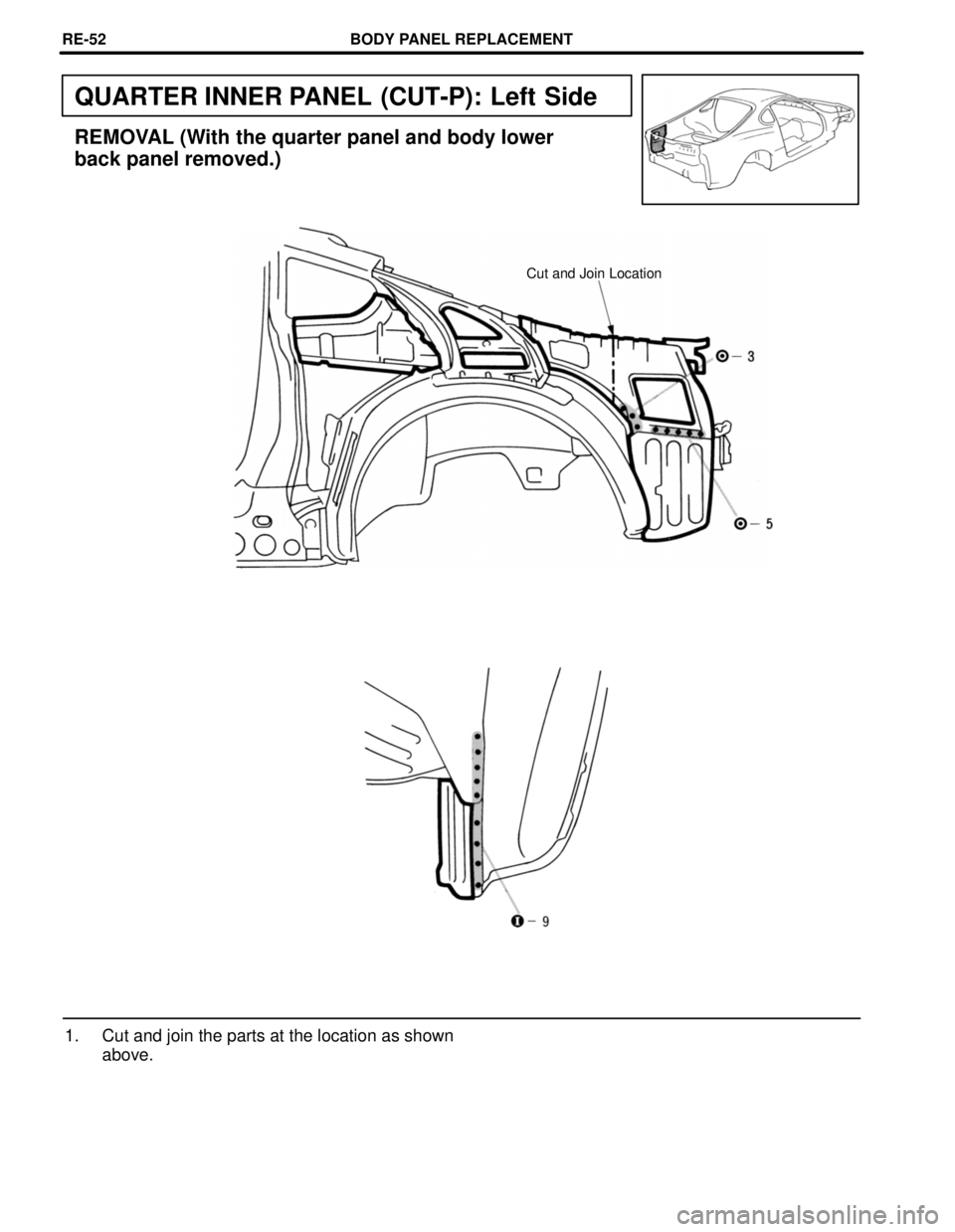

Cut and Join Location
1. Cut and join the parts at the location as shown
above.
BODY PANEL REPLACEMENTRE-52
Page 456 of 1807

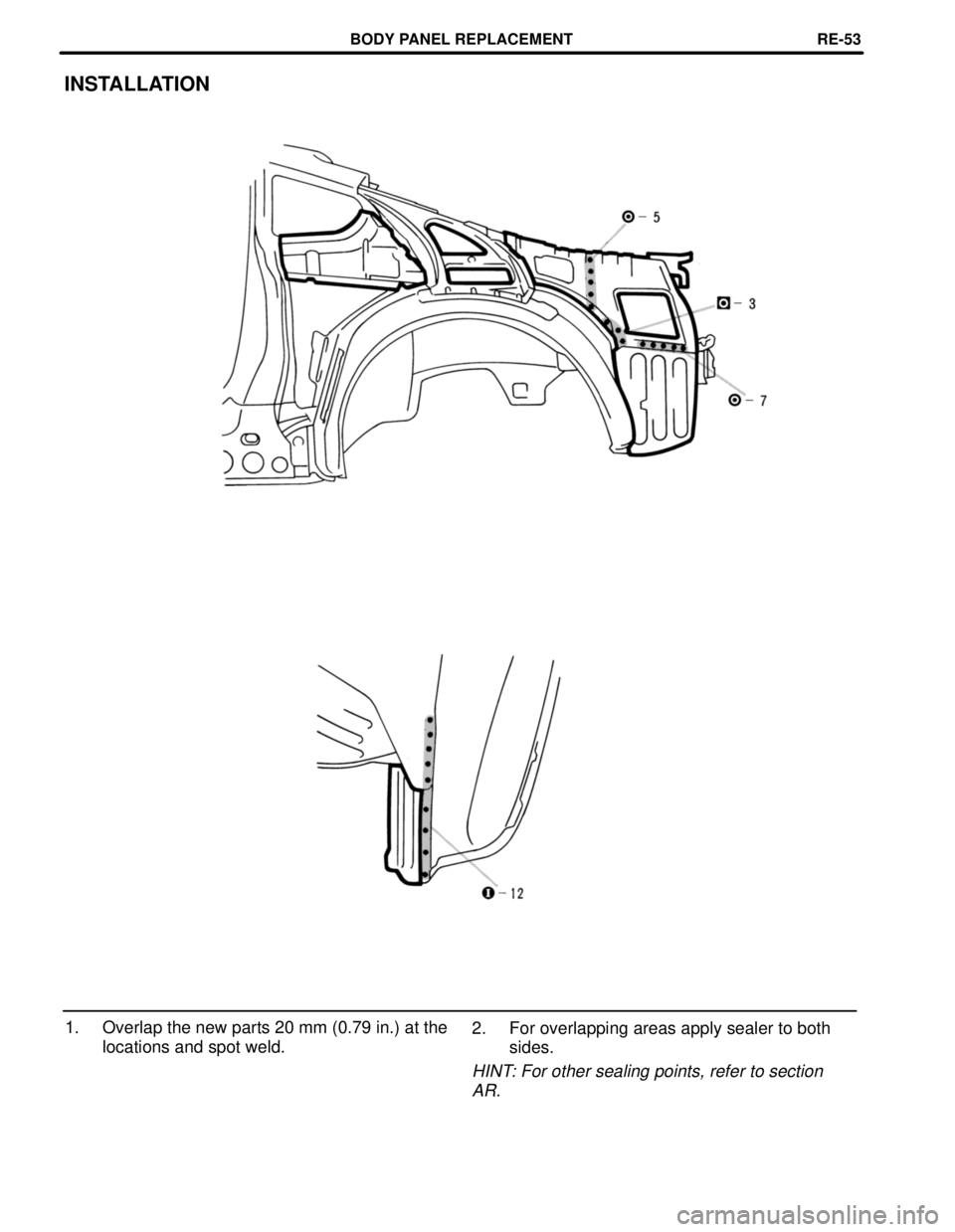

1. Overlap the new parts 20 mm (0.79 in.) at the
locations and spot weld.
INSTALLATION
2. For overlapping areas apply sealer to both
sides.
HINT: For other sealing points, refer to section
AR.
