Page 497 of 1807

FOR THE TOYOTA DEALER
COLLISION REPAIR INFORMATION
TITLE: SRS AIRBAG COMPONENT REPLACEMENT PAGE 1 of 6
SECTION: ELECTRICAL BULLETIN #79
MODELS: ALL
DATE: AUGUST 1997
After an airbag has been deployed during a collision, it will be necessary to replace certain
components of the airbag system. Technicians can identify these parts by using the
attached matrix.
If the airbag does not deploy, yet the combination meter (airbag warning light) stays on for
more that 10 seconds after the key is turned to the ªACCº or ªONº position, it is necessary
to perform a diagnostic test. Always refer to the Toyota repair manual for the correct repair
procedure.
The attached information includes:

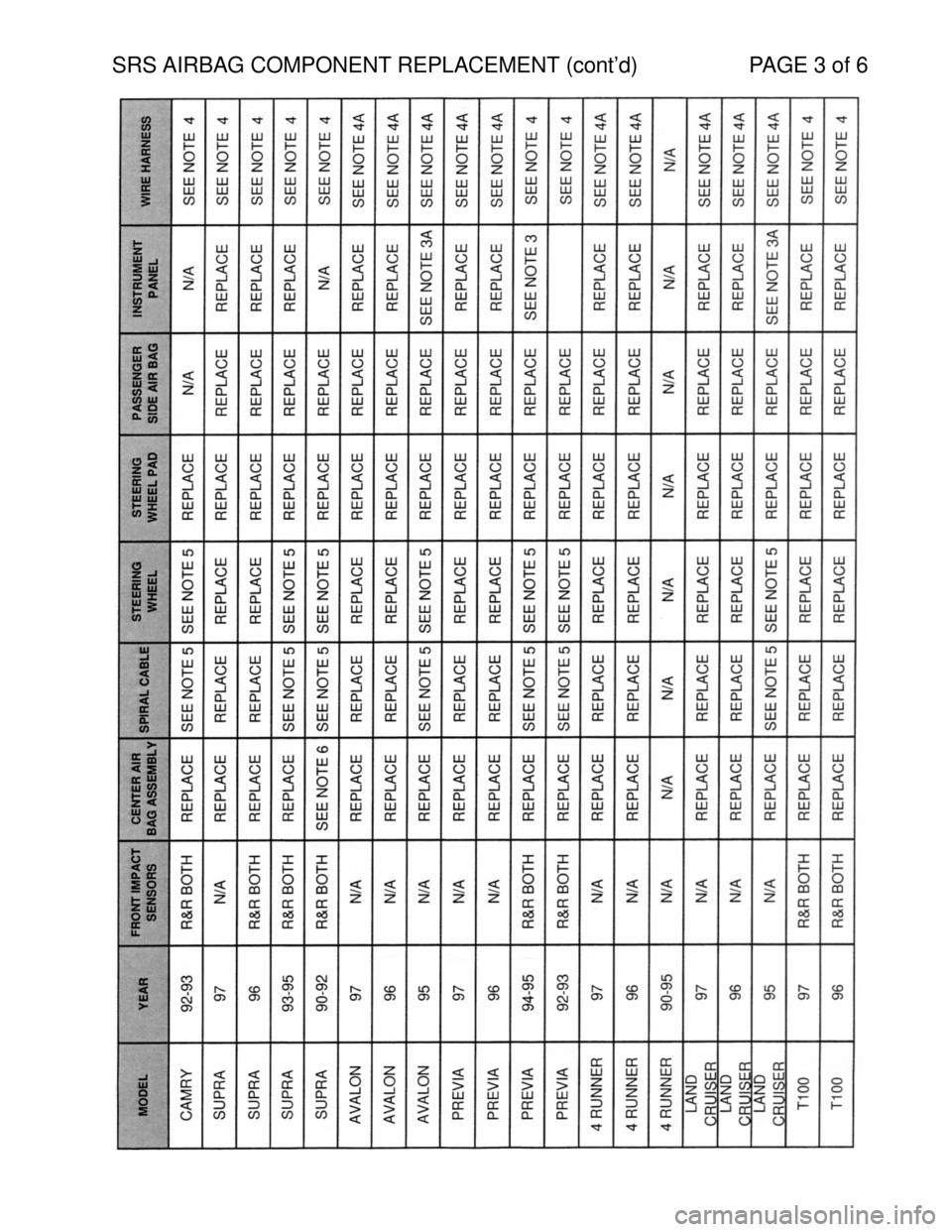

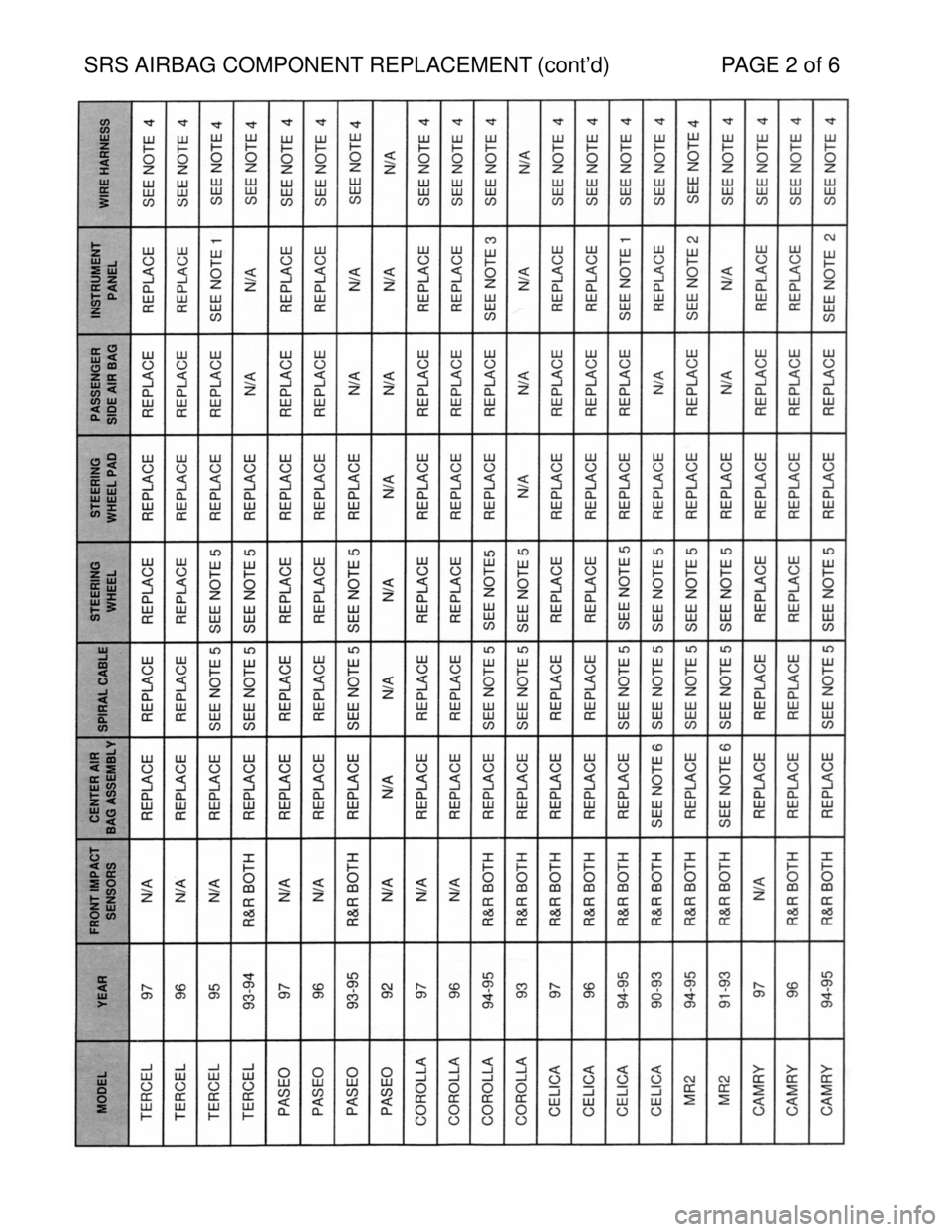

A matrix indicating components requiring replacement (pages 2±4).
Parts replacement note (page 5).
An example repair manual page outlining the diagnostic procedure available in
each model specific repair manual (page 6).
Toyota recommends the use of electrical repair kit (P/N 00002±04200±01) for any wiring
repairs. This kit includes a selection of numerous repair connectors, terminal ends, a repair
procedures manual and special tools specific to Toyota. The
replacement electrical wire
and connector (from the wire harness to the front sensors) is P/N 82988±24010.
Toyota also offers a video package which shows the operation of the SRS airbag system
(P/N 00401±42994).
CAUTION: SRS Airbag service work can be performed only AFTER 90 SECONDS
from the time the ignition switch is turned to the ªlockº position and the
negative (±) terminal cable is disconnected from the battery.
NOTE: PLEASE ROUTE THIS BULLETIN TO YOUR COLLISION REPAIR CENTER
MANAGER!
Page 498 of 1807
SRS AIRBAG COMPONENT REPLACEMENT (cont'd) PAGE 2 of 6
Page 499 of 1807
SRS AIRBAG COMPONENT REPLACEMENT (cont'd) PAGE 3 of 6
Page 500 of 1807
SRS AIRBAG COMPONENT REPLACEMENT (cont'd) PAGE 4 of 6
Page 501 of 1807

SRS AIRBAG COMPONENT REPLACEMENT (cont'd) PAGE 5 of 6
Component Replacement Notes
Note 1 ± Replace the following items:
Instrument panel
Center console bracket support
Note 2 ± Replace the following items if deformed:
Instrument panel
Instrument panel reinforcement
Glove compartment
Glove compartment door
Note 3 ± Replace the following items:
Instrument panel reinforcement
Glove compartment
Glove compartment door
Note 3a ± Replace the following items:
Instrument panel
Instrument panel reinforcement
Glove compartment door
Note 4 ± If the SRS wire harness assembly is damaged:
Use a repair wire specially designed for use in the SRS airbag system at the front
sensor (P/N 82988±24010).
OR
Replace the entire wire harness assembly.
Note 4a ± Replace wire harness if damaged.
Repair only if wire harness connector is damaged.
Note 4b ± Replace wire harness if damaged.
Note 5 ± Replace the following items if deformed:
Steering wheel
Spiral cable
Note 6 ± Replace center airbag sensor assembly if:
Center airbag sensor assembly has been found faulty in troubleshooting
Center airbag sensor assembly has been found faulty during the following checks:
1. Deformation of the bracket or case
2. Vinyl seal broken
3. Damage to connector
Center airbag sensor assembly has been dropped.
Page 502 of 1807
SRS AIRBAG COMPONENT REPLACEMENT (cont'd) PAGE 6 of 6
This is an example from a Toyota Repair Manual. Always refer to the repair manual
applicable to the model and year vehicle you are diagnosing.
Page 503 of 1807
mm in.
5
10
13
18
220.20
0.39
0.51
0.71
0.86Center Mark
18
f
22f
10f10 f
10f
13f
18f
18f

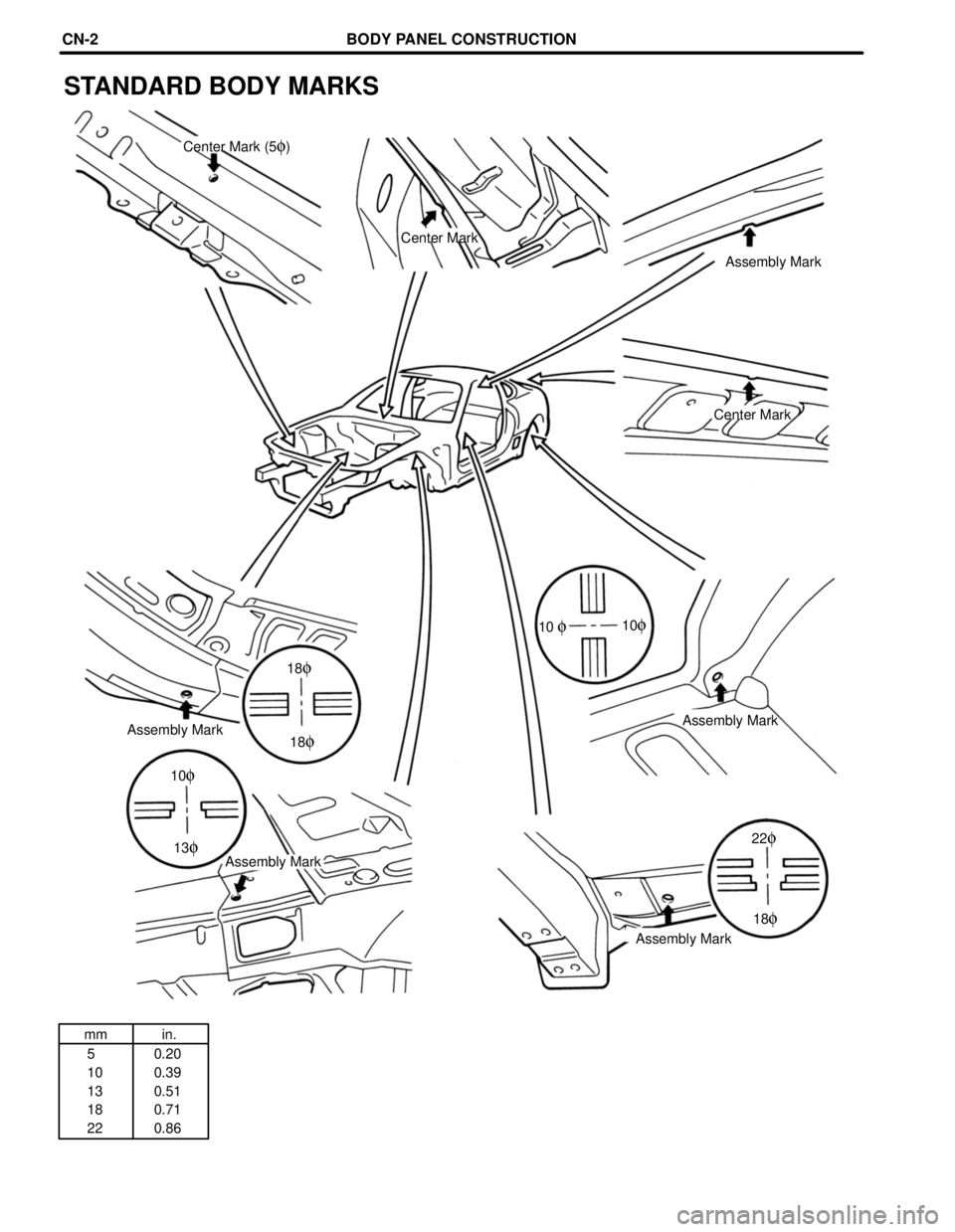

STANDARD BODY MARKS
Center Mark (5f)
Assembly Mark
Center Mark
Assembly Mark
Assembly Mark
Assembly Mark
Assembly Mark
BODY PANEL CONSTRUCTIONCN-2
Page 504 of 1807

FOR THE TOYOTA DEALER
COLLISION REPAIR INFORMATION
TITLE: TOYOTA COLLISION REPAIR & PAGE 1 of 5
REFINISH SERVICE PUBLICATIONS
SECTION: GENERAL INFORMATION BULLETIN #75
MODELS: ALL
DATE: JANUARY 1997
Toyota Collision Repair and Refinish Service Publications are an integral part of the Toyota
philosophy of ªfix it right the first timeº. This detailed repair information is designed to
speed and simplify repair operations and improve the quality of each repair. For ordering
information, please refer to page 5 of this bulletin.
COLLISION REPAIR MANUALS
Cutting and welding operationsAnti±rust treatment
Body component diagrams and illustrationsSRS handling precautions
Body panel replacementElectronic control unit (ECU) locations
Body dimensionsPlastic body part identification
Model
YearPart NumberPrice
AVALON
Collision Repair Manual 1997±95 00400±BR046 $20.00
CAMRY
Collision Repair Manual 1997 00400±BR062 20.00
Collision Repair Manual 1996±92 00400±BR032 9.00
Collision Repair Manual±Coupe 1996±94 00400±BR043 9.00
Collision Repair Manual±Wagon 1996±92 00400±BR035 9.00
Collision Repair Manual 1991±87 00400±BRM01±0E 8.95
Collision Repair Manual 1986±83 00400±36433±E 6.95
CELICA
Collision Repair Manual±Convertible 1997±94 00400±BR048 15.00
Collision Repair Manual 1997±94 00400±BR044 15.00
Collision Repair Manual 1993±90 00400±BR022 6.95
Collision Repair Manual 1989±86 00400±BRM00±1E 8.95
COROLLA
Collision Repair Manual 1997±93 00400±BR038 15.00
Collision Repair Manual±Sedan 1992±87 00400±BR012 6.95
Collision Repair Manual±All Trac 1992±88 00400±BR014 4.95
Collision Repair Manual±Wagon 1992±88 00400±BR013 4.95
Collision Repair Manual±FX 1988±87 00400±BRM00±6E 4.95
Collision Repair Manual±FF/FR 1987±83 00400±36434±E 6.95
(Front Wheel Drive/Rear Wheel Drive)
