1995 NISSAN ALMERA N15 Service Manual

Metalclip
To instrument panel

___________
s~rcN~T~E~R*IO~R~~T~RI~M~~CO':;j;;j),-=====~

d

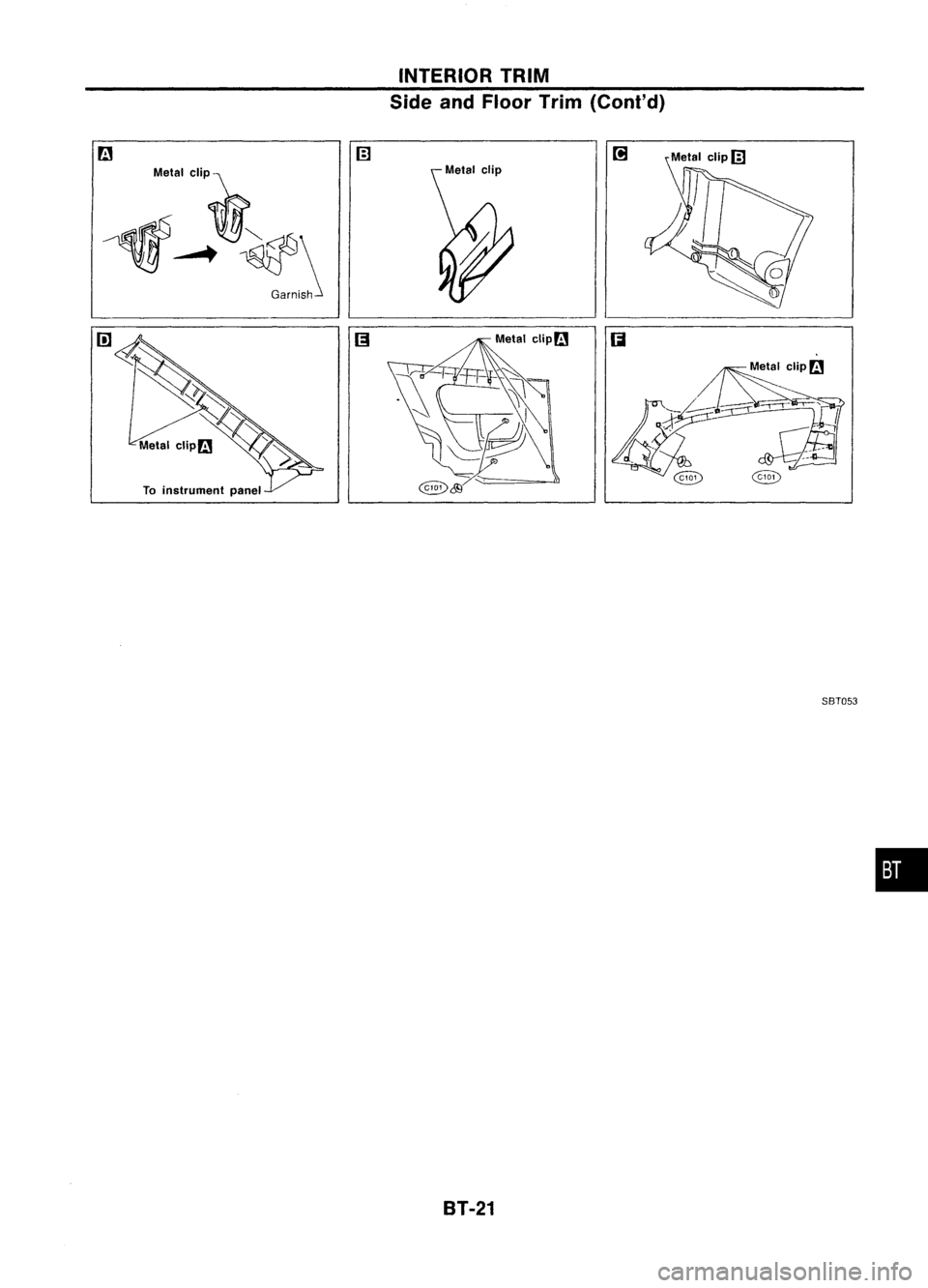

Floor Trim(Cont d)
Side an
1

SBT053
•

8T-21

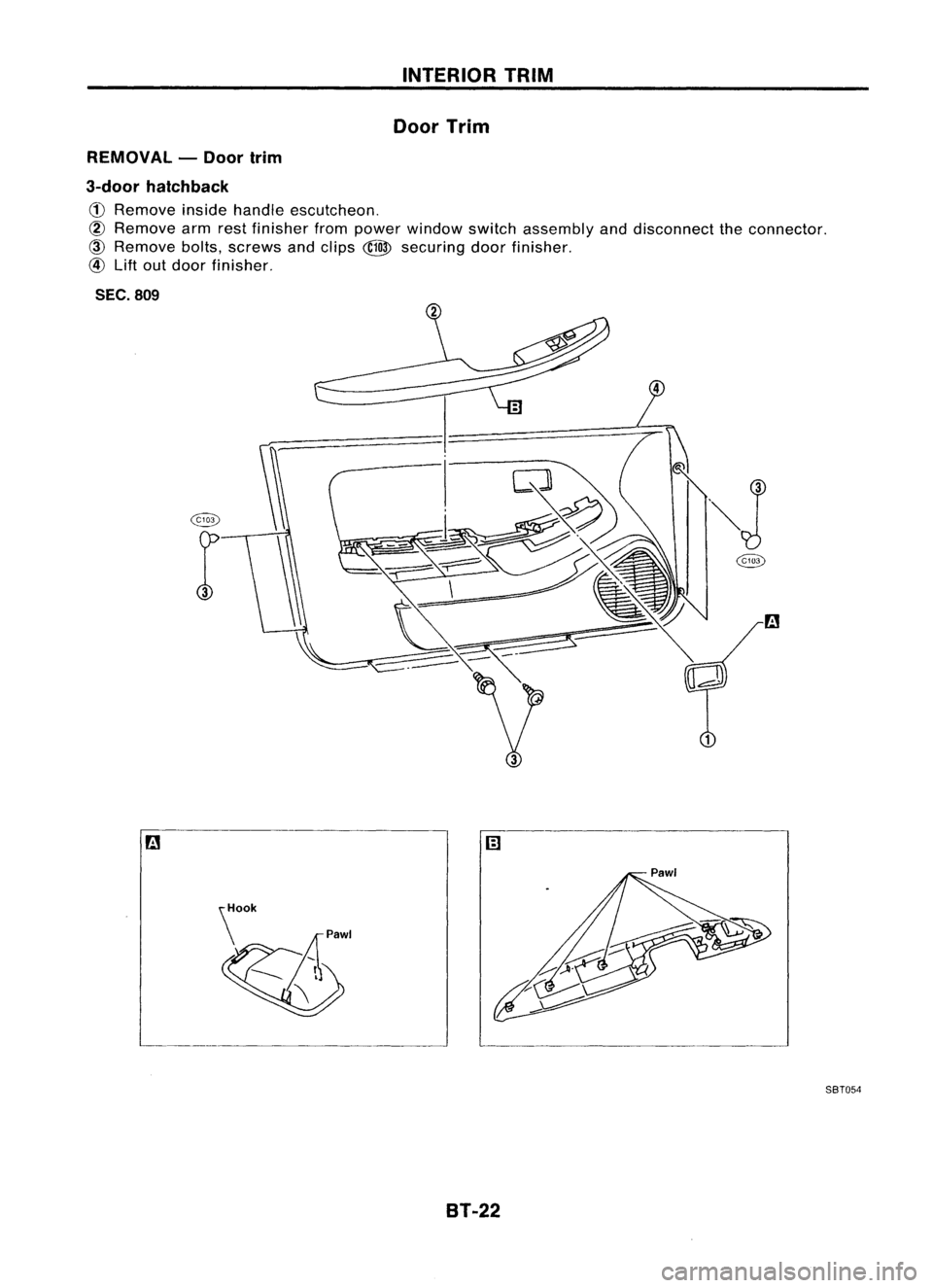

INTERIORTRIM
Door Trim
REMOVAL -Door trim
3-door hatchback

(j)
Remove insidehandle escutcheon.

@
Remove armrestfinisher frompower window switchassembly anddisconnect theconnector.

@
Remove bolts,screws andclips
@
securing doorfinisher.

@
Lift out door finisher.

SEC. 809

@
""J

r
@

a

~' SBT054

8T-22

INTERIORTRIM
Door Trim
(Coni' d)

REMOVAL -Door trim
4-door sedanand5-door hatchback

G)
Remove insidehandle escutcheon.

CID
Remove armrestfinisher frompower window switchassembly anddisconnect theconnector.

@
Remove screwsecuring pullhandle andremove pullhandle.

@
Remove windowregulator handle(Manual windowmodels).

@
Remove bolts,screws andclips ~securing doorfinisher.
@ Lift outdoor finisher.
SEC. 251-267-809-828
Hook
:

~ Manual window regulator handle
Removal

(j)
~? .P"h
~ Flat-bladed
{} screwdriver

@~l

Squeeze theregulator handleclipinplace witha
screwdriver andremove theregulator handlefrom
the regulator shaft.
Set theregulator handleclipasshown infigure
CD.

Installation
Push theregulator handletoinstall itonto theregulator
shaft.
Install theregulator handleinplace asshown inthe figure
with thewindow completely closed.
8T-23
88T055
•

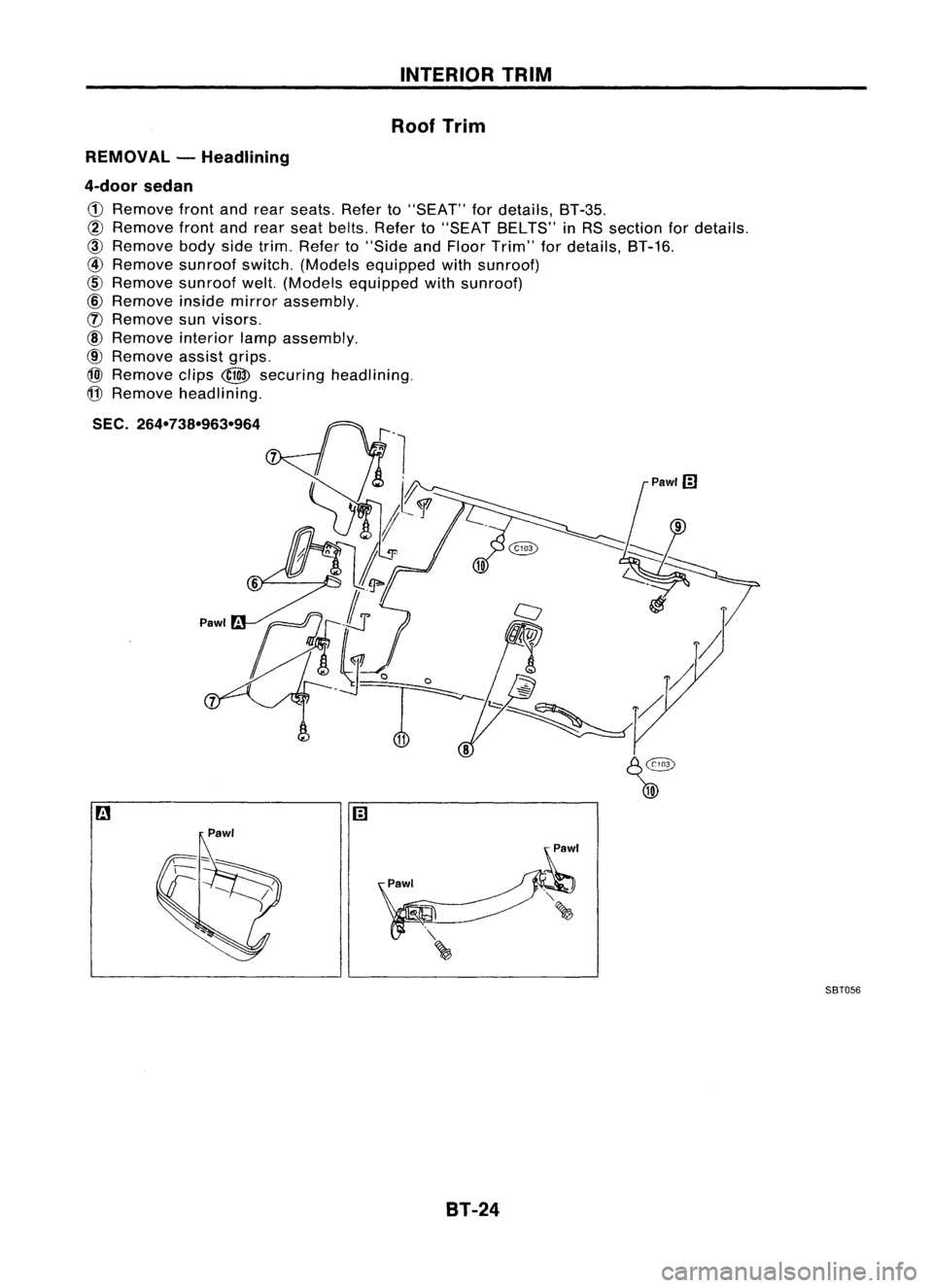

INTERIORTRIM
Roof Trim
REMOVAL -Headlining
4-door sedan

CD
Remove frontandrear seats. Referto"SEAT" fordetails, BT-35.

@
Remove frontandrear seat belts. Referto"SEAT BELTS" inRS section fordetails.

@)
Remove bodysidetrim. Refer to"Side andFloor Trim" fordetails, BT-16.

@
Remove sunroofswitch.(Models equipped withsunroof)

@
Remove sunroofwelt.(Models equipped withsunroof)

@
Remove insidemirror assembly.
([) Remove sunvisors.

@
Remove interiorlampassembly.

@
Remove assistgrips.

@)
Remove clips
@
securing headlining.

@
Remove headlining.

SEC. 264-738-963-964

9
Pawl'
Pawl SBT056
BT-24

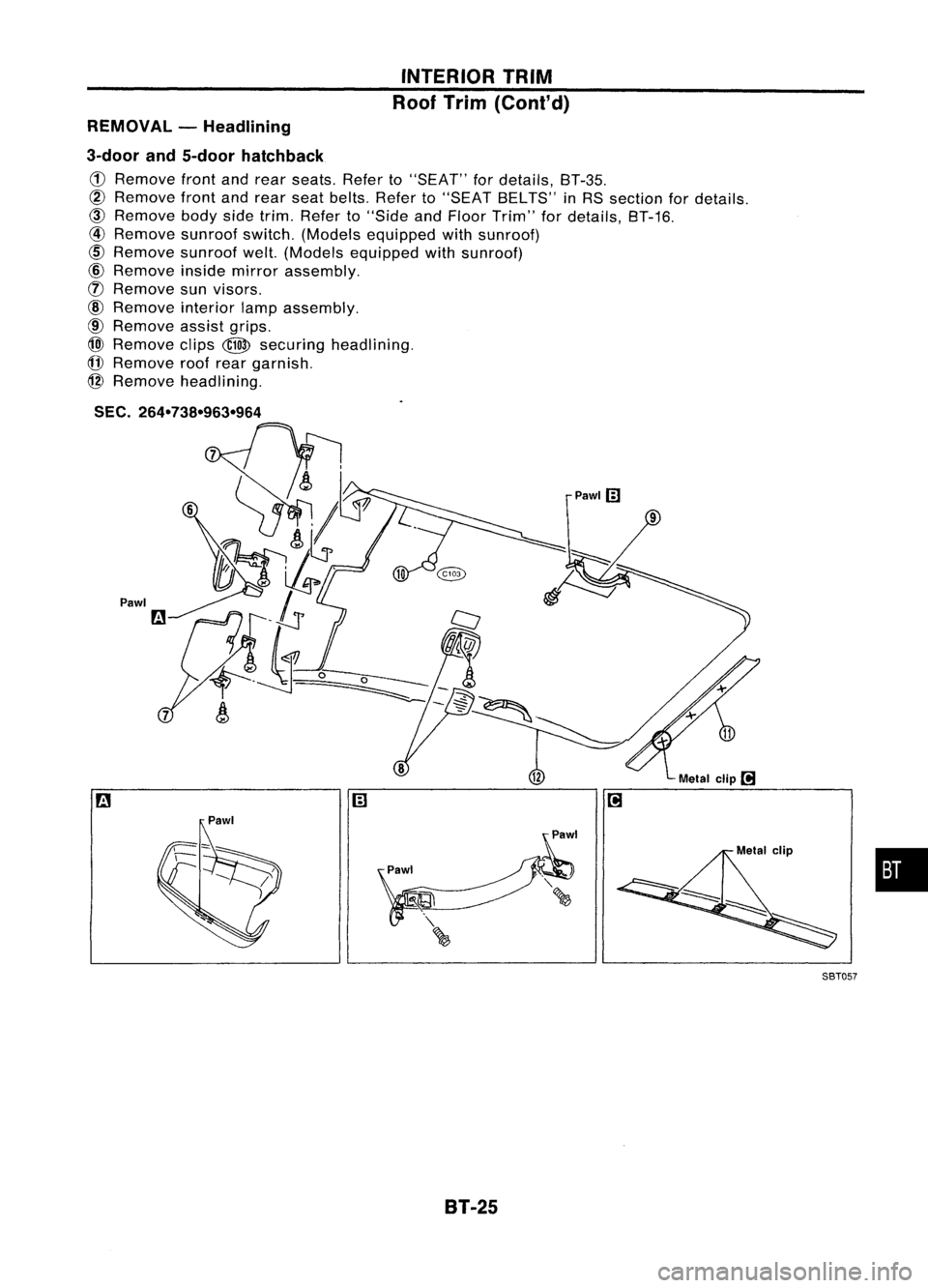

INTERIORTRIM
Roof Trim (Cont'd)
REMOVAL -Headlining
3-door and5-door hatchback

CD
Remove frontandrear seats. Referto"SEAT" fordetails, BT-35.

@
Remove frontandrear seat belts. Referto"SEAT BELTS" inRS section fordetails.

@)
Remove bodysidetrim. Refer to"Side andFloor Trim" fordetails, BT-16.

@
Remove sunroofswitch.(Models equipped withsunroof)

cID
Remove sunroofwelt.(Models equipped withsunroof)

@
Remove insidemirror assembly.

(f)
Remove sunvisors.

@
Remove interiorlampassembly.

@
Remove assistgrips.

@)
Remove clips
@
securing headlining.

(j]
Remove roofrear garnish.

@
Remove headlining.

SEC.
264-738-963-964

Pawl
•

Metal
clip
l!1

Pawlm

m
SBT05?
8T-25

SEC.849

___________
-:~N~T~E~R~IO~R~T~R~IM~----------

kRoom Trim
Trun
rear plate
Trunk room Front
m floor trim
Trunk roo

SBT05B

BT-26

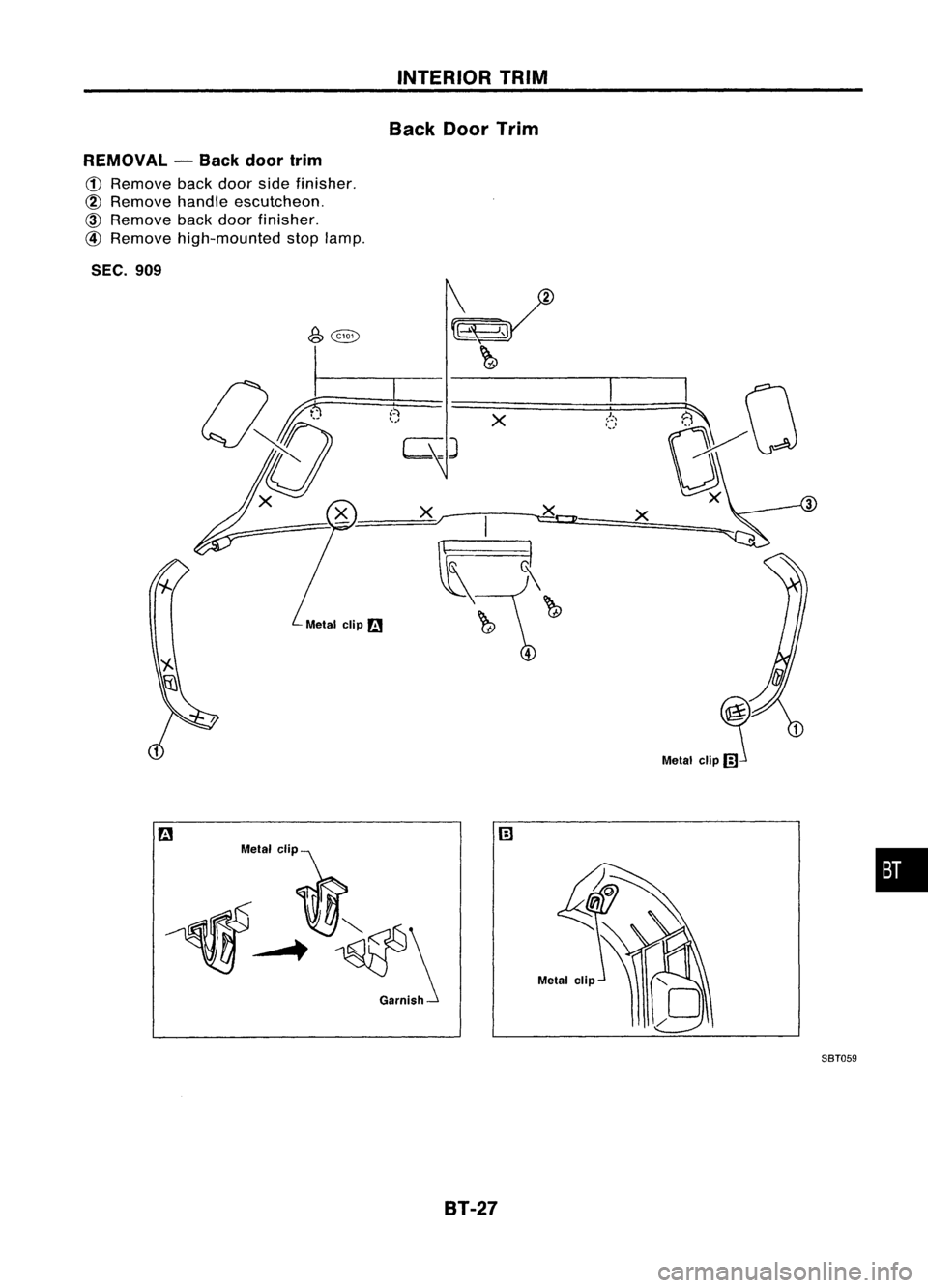

INTERIORTRIM
Back DoorTrim
REMOVAL -Back doortrim

CD
Remove backdoorsidefinisher.

CID
Remove handleescutcheon.

@)
Remove backdoorfinisher.
@ Remove high-mounted stoplamp.

SEC. 909

x

Me'"
'UP~

><

x
G',"'~
•

SBTOS9
BT-27

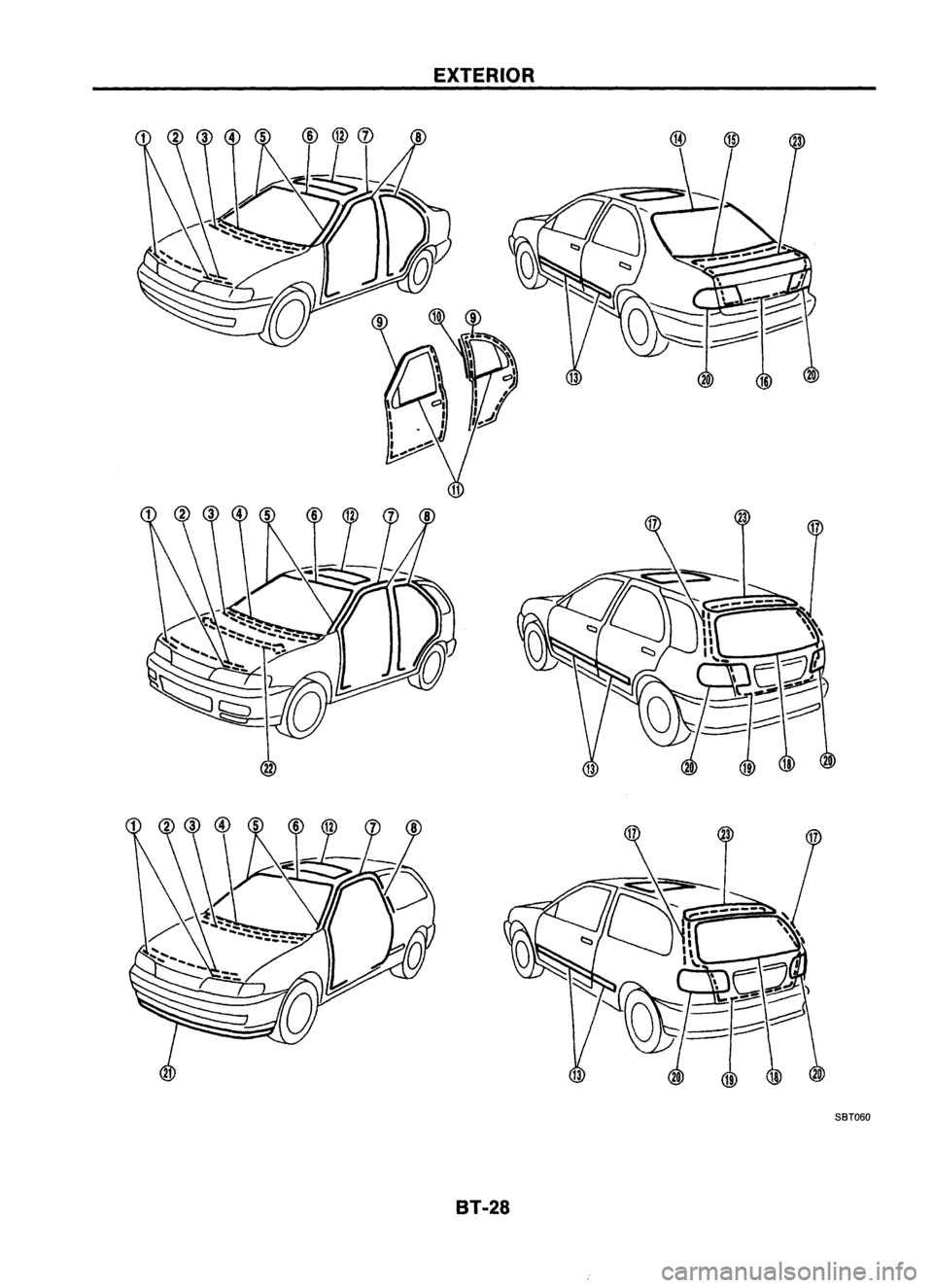

EXTERIOR

8T-28
SBT060
