1995 NISSAN ALMERA N15 Service Manual

2nd&3rd~
bushing -'-~)
2nd gear ~
1 st main gear REPAIR
FORCOMPONENT PARTS
I
RSSF32A
I

Mainshaft andGears (Cont'd)

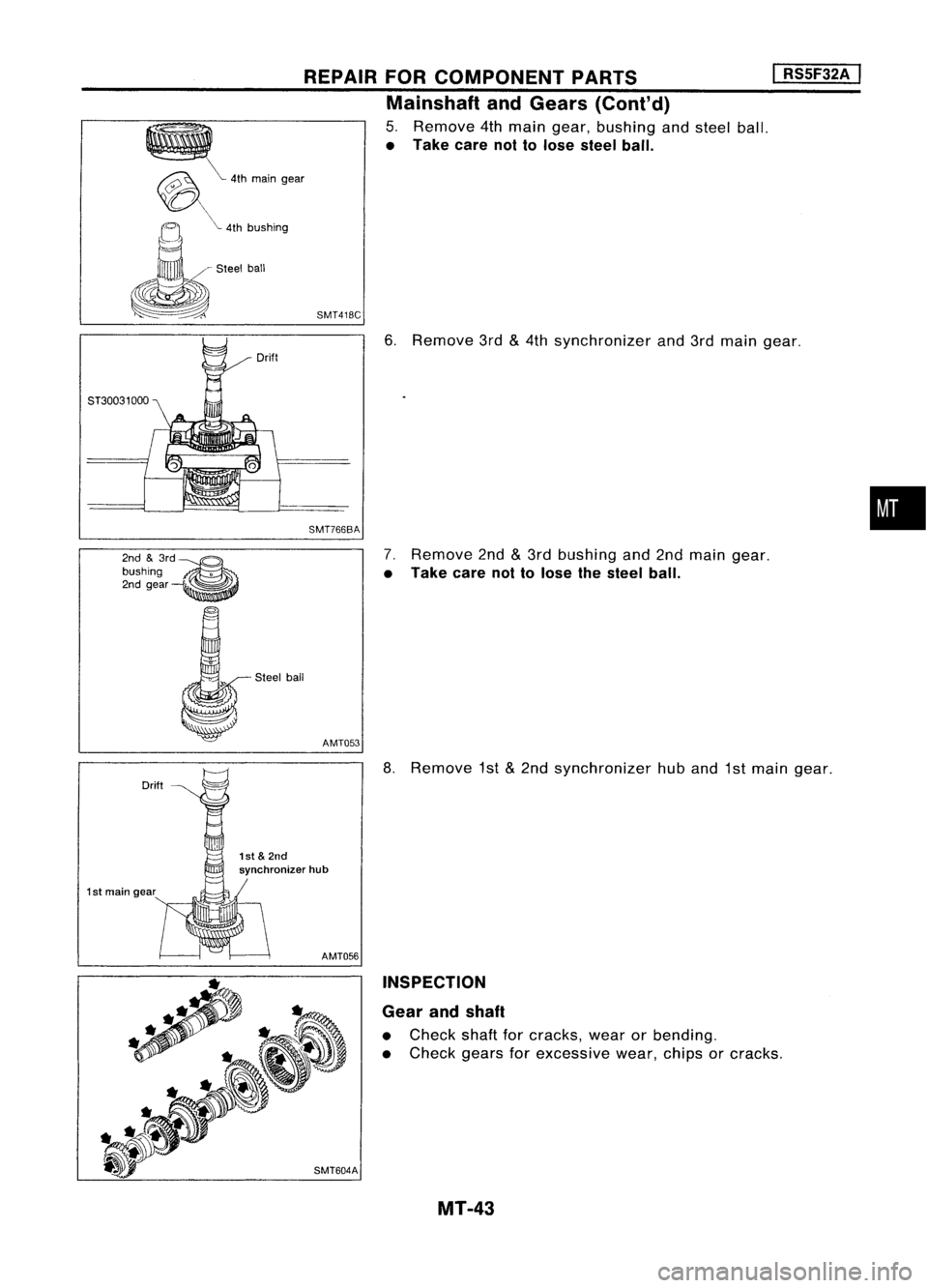

5. Remove 4thmain gear, bushing andsteel ball.

• Take carenottolose steel ball.

SMT418C
6.Remove 3rd
&
4th synchronizer and3rdmain gear.

SMT766BA
7.Remove 2nd
&
3rd bushing and2ndmain gear.

• Take carenottolose thesteel ball.

AMT053
8.Remove 1st
&
2nd synchronizer huband 1stmain gear.

AMT056 INSPECTION
Gear andshaft

• Check shaftforcracks, wearorbending.
• Check gearsforexcessive wear,chipsorcracks.

SMT604A MT-43
•

t
REPAIR
FORCOMPONENT PARTS
I
RS5F32A
I

Mainshaft andGears (Cont'd)

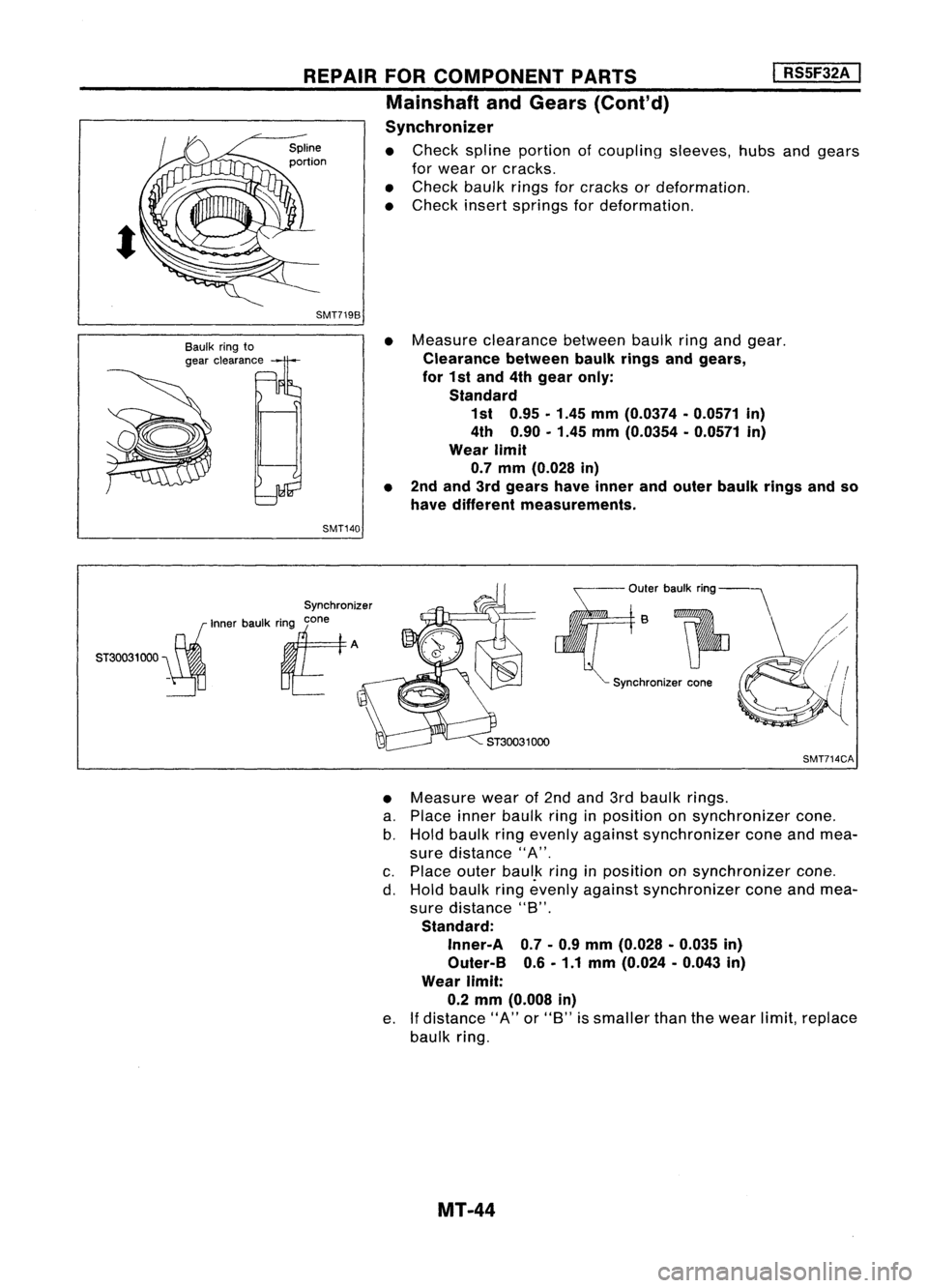

Synchronizer

• Check spline portion ofcoupling sleeves,hubsandgears
for wear orcracks.
• Check baulkringsforcracks ordeformation.
• Check insertsprings fordeformation.

SMT7198

Baulk ringto
gear clearance

SMT140

Synchronizer

, fli
10M'
baolk
'fOM FA

ST30031000 ~
•
Measure clearance betweenbaulkringandgear.

Clearance betweenbaulkringsandgears,
for 1st and 4thgear only:
Standard 1st 0.95. 1.45mm(0.0374 •0.0571 in)
4th 0.90. 1.45mm(0.0354 •0.0571 in)
Wear limit
0.7 mm (0.028 in)
• 2nd and 3rdgears haveinner andouter baulk ringsandso
have different measurements.

Outerbaulkring--\

B

SMT714CA

• Measure wearof2nd and3rdbaulk rings.
a. Place innerbaulk ringinposition onsynchronizer cone.
b. Hold baulk ringevenly against synchronizer coneandmea-
sure distance "A".
c. Place outerbaul.k ringinposition onsynchronizer cone.
d. Hold baulk ringevenly against synchronizer coneandmea-
sure distance "B".

Standard: Inner-A 0.7-0.9 mm (0.028 -0.035 in)
Outer-B 0.6-1.1 mm (0.024 -0.043 in)
Wear limit:
0.2 mm (0.008 in)

e.
If
distance "A"or"B" issmaller thanthewear limit,replace
baulk ring.

MT-44

SPD715
•

I

RS5F32A
I

Ensure correct fittingof1st
&
2nd synchronizer hub.

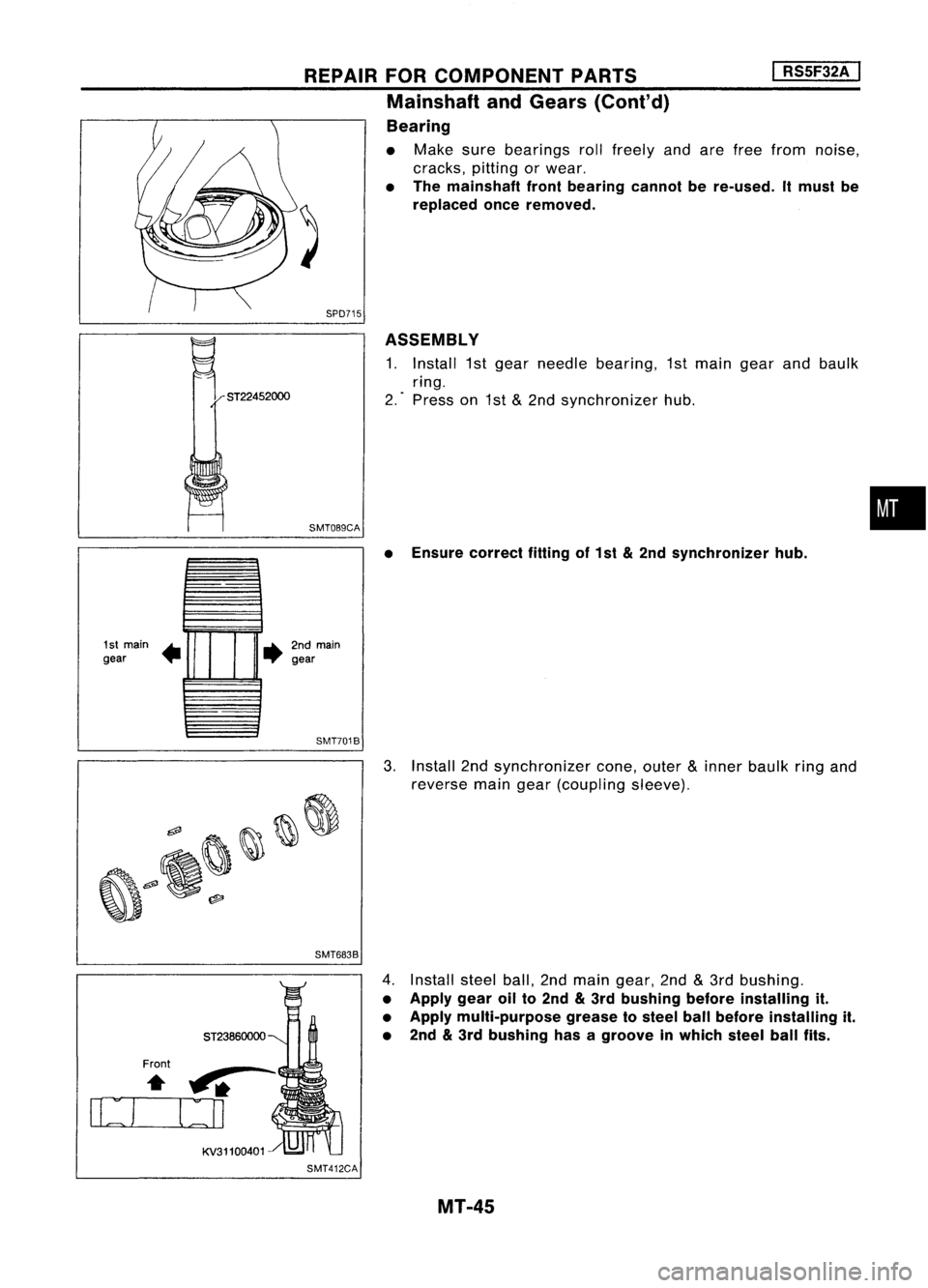

ASSEMBLY

1. Install 1stgear needle bearing, 1stmain gearandbaulk
ring.
2. Press on1st
&
2nd synchronizer hub.

•
SMT089CA
REPAIR
FORCOMPONENT PARTS
Mainshaft andGears (Cont'd)
Bearing

• Make surebearings rollfreely andarefree from noise,
cracks, pittingorwear.

• The mainshaft frontbearing cannotbere-used. Itmust be
replaced onceremoved.

1st main.

gear •
2ndmain
gear
SMT7018
3.Install 2ndsynchronizer cone,outer
&
inner baulk ringand
reverse maingear(coupling sleeve).

SMT6838
ST23860000
Front
.....

rr=DJ
KV31100401-
4.
Install steelball,2ndmain gear, 2nd
&
3rd bushing.

• Apply gearoilto2nd
&
3rd bushing beforeinstalling it.
• Apply multi-purpose greasetosteel ballbefore installing it.
• 2nd
&
3rd bushing hasagroove inwhich steelballfits.
SMT412CA MT-45

4thmain .....
gear ...... REPAIR
FORCOMPONENT PARTS
I
RS5F32A
I

Mainshaft andGears (Cont'd)

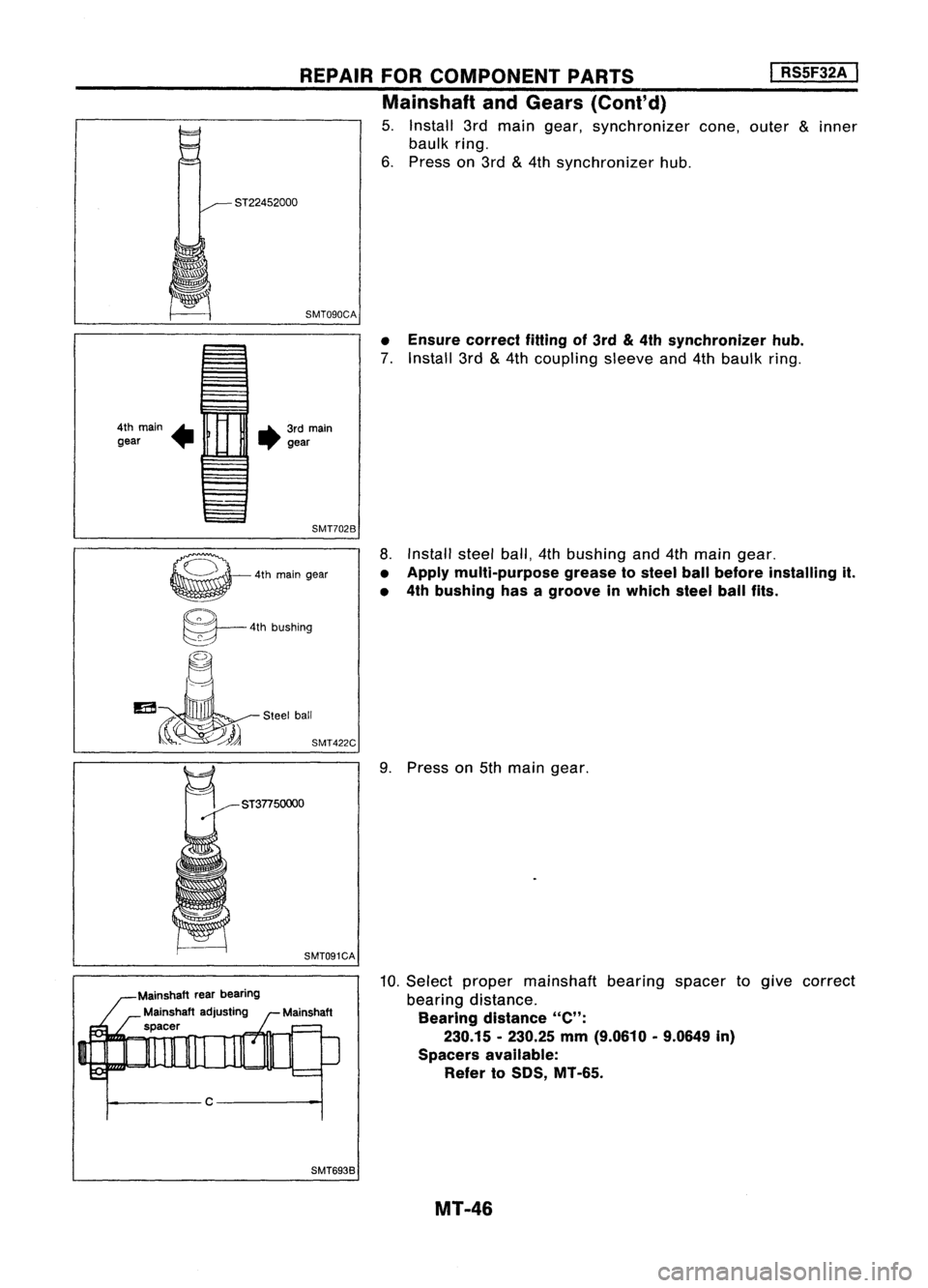

5. Install 3rdmain gear, synchronizer cone,outer
&
inner
baulk ring.
6. Press on3rd
&
4th synchronizer hub.

SMT090CA •Ensure correct fittingof3rd &4th synchronizer hub.

7. Install 3rd
&
4th coupling sleeveand4thbaulk ring.

..... 3rdmain
.".. gear
SMT7028

~ 4thm.lo
g.. '

~-

~ 4thbushing

mAr-51""'"
l(~J

SMT422C
8.
Install steelball,4thbushing and4thmain gear.

• Apply multi-purpose greasetosteel ballbefore installing it.
• 4th bushing hasagroove inwhich steelballfits.

ST3n50000
SMT091CA
9.
Press on5th main gear.

Mainshaft rearbearing
Mainshaft adjusting
spacer

c
SMT6938
10.
Select proper mainshaft bearingspacertogive correct
bearing distance.

Bearing distance
"e":

230.15 -230.25 mm(9.0610 -9.0649 in)
Spacers available:
Refer toSOS, MT-65.
MT-46

SMT092CA
REPAIR
FORCOMPONENT PARTS
Mainshaft andGears (Cont'd)

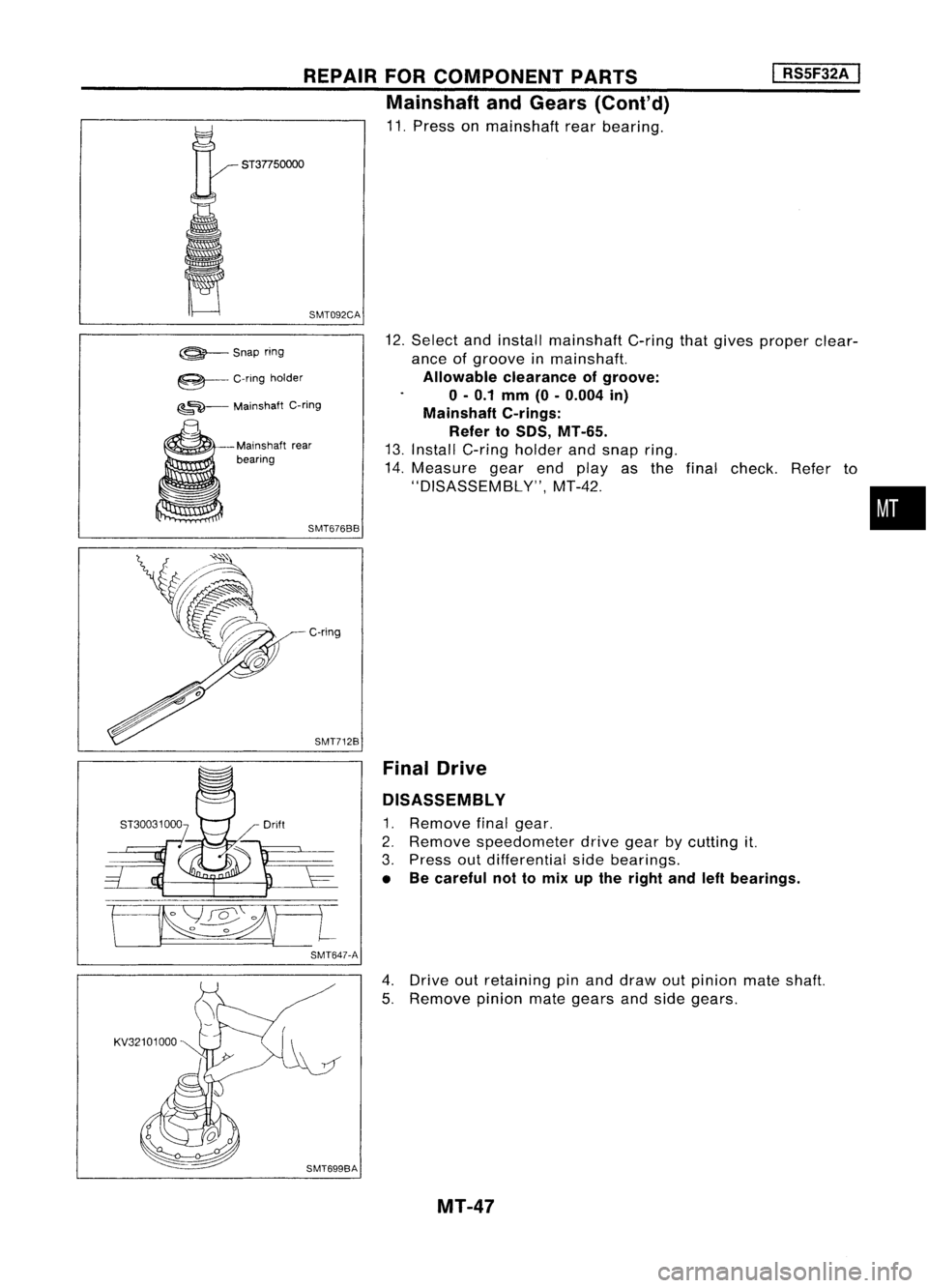

11. Press onmainshaft rearbearing.

•

I

RS5F32A
I

12. Select andinstall mainshaft C-ringthatgives proper clear-
ance ofgroove inmainshaft.

Allowable clearanceofgroove:

o -
0.1
mm
(0-0.004
in)
Mainshaft C-rings:
Refer to50S, MT-65.

13. Install C-ring holder andsnap ring.
14. Measure gearendplayas thefinal check. Referto
"DISASSEMBLY", MT-42.

ST37750000
SMT676BB

Mainshaft
rear
bearing
@-Snapring

e---
C-ringholder
~~ MainshaftC-ring
C-ring
SMT712B FinalDrive
DISASSEMBL Y

1. Remove finalgear.
2. Remove speedometer drivegearbycutting it.
3. Press outdifferential sidebearings.

• Becareful nottomix upthe right andleftbearings.
SMT647-A
4.Drive outretaining pinand draw outpinion mateshaft.
5. Remove pinionmategears andside gears.

MT-47

SPD715
SMT083A
ASSEMBLY
1. Attach sidegear thrust washers toside gears, theninstall
pinion matewashers andpinion mategears inplace.

I

RS5F32A
I

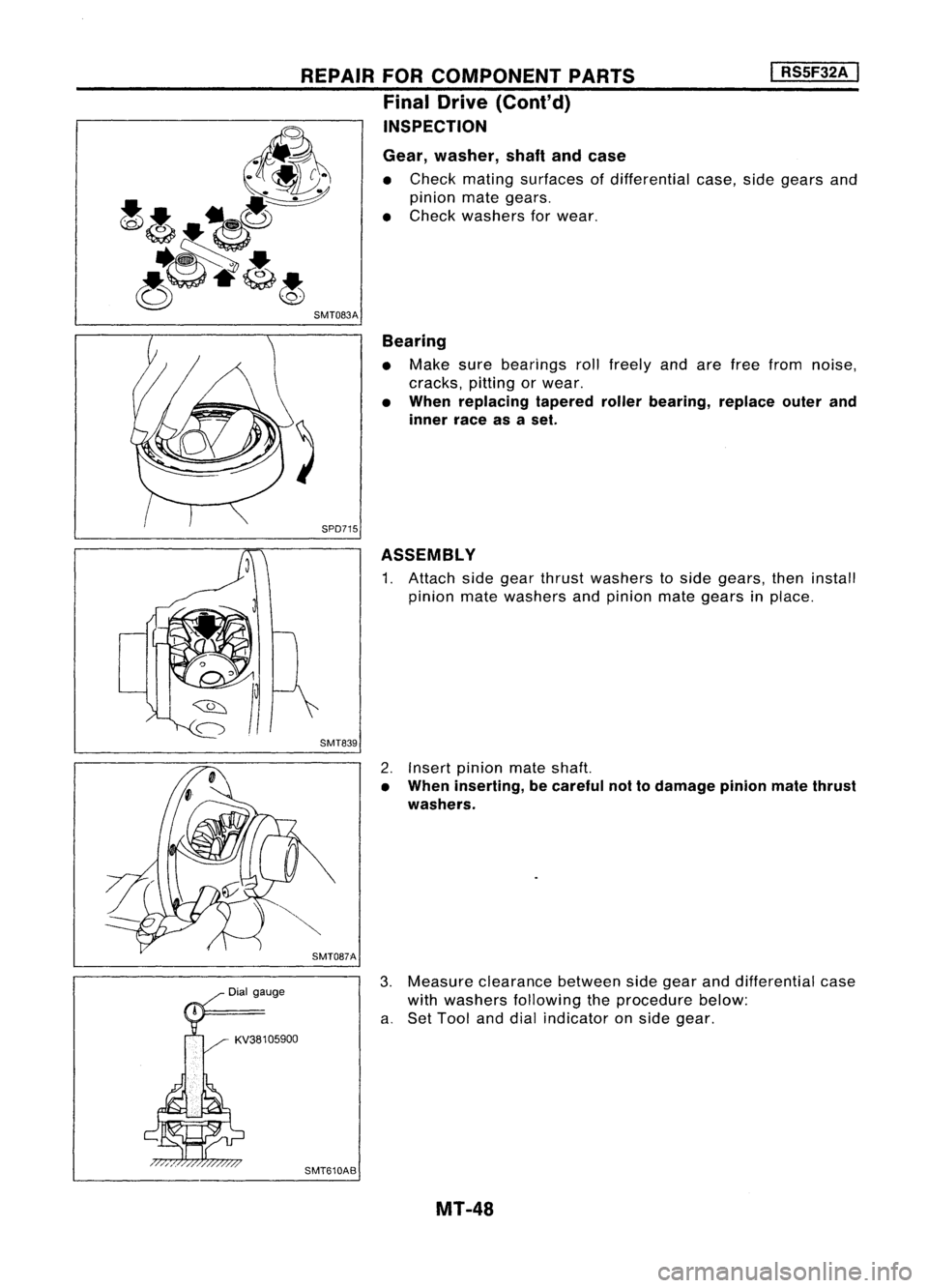

Gear, washer, shaftandcase

• Check mating surfaces ofdifferential case,sidegears and
pinion mategears.
• Check washers forwear.

Bearing

• Make surebearings rollfreely andarefree from noise,
cracks, pittingorwear.

• When replacing taperedrollerbearing, replaceouterand
inner raceasaset.
REPAIR
FORCOMPONENT PARTS
Final Drive (Cont'd)
INSPECTION
SMT839
KV381 05900
2.
Insert pinion mateshaft.

• When inserting, becareful nottodamage pinionmatethrust
washers.

3. Measure clearance betweensidegear anddifferential case
with washers following theprocedure below:
a. Set Tool anddial indicator onside gear.

SMT610AB MT-48

REPAIRFORCOMPONENT PARTS
I
RS5F32A
I

Final Drive (Cont'd)

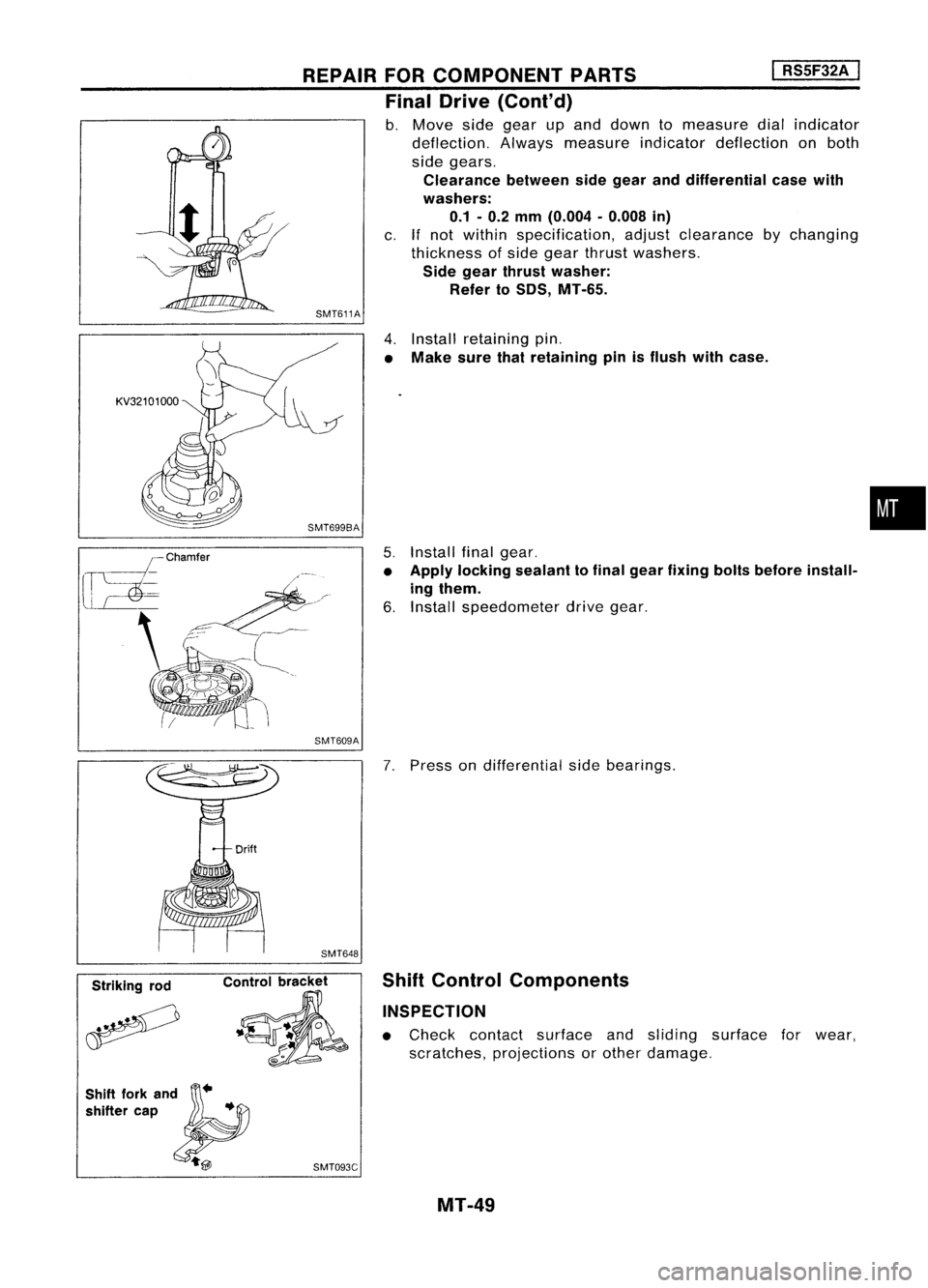

b. Move sidegear upand down tomeasure dialindicator
deflection. Alwaysmeasure indicatordeflection onboth
side gears.

Clearance betweensidegear anddifferential casewith
washers:
0.1 -0.2
mm
(0.004 -0.008
in)

c.
If
not within specification, adjustclearance bychanging
thickness ofside gear thrust washers.

Side gear thrust washer:
Refer toSOS, MT-65.
SMT611A

4.Install retaining pin.

• Make surethatretaining pinisflush withcase.

5. Install finalgear.

• Apply locking sealant tofinal gear fixing boltsbefore install-
ing them.

6. Install speedometer drivegear.

SMT609A
•

Striking rod

_.~0

~ SMT648
Control bracket
.~
7.
Press ondifferential sidebearings.

Shift Control Components
INSPECTION

• Check contact surface andsliding surface forwear,
scratches, projections orother damage.

Shift forkan};Jd"
shifter cap •

s:;

'l@
SMT093C

MT-49

Strikinglever
Reverse brakeearn REPAIR
FORCOMPONENT PARTS
Shift Control Components (Cont'd)
SMT099C I
RS5F32A
I

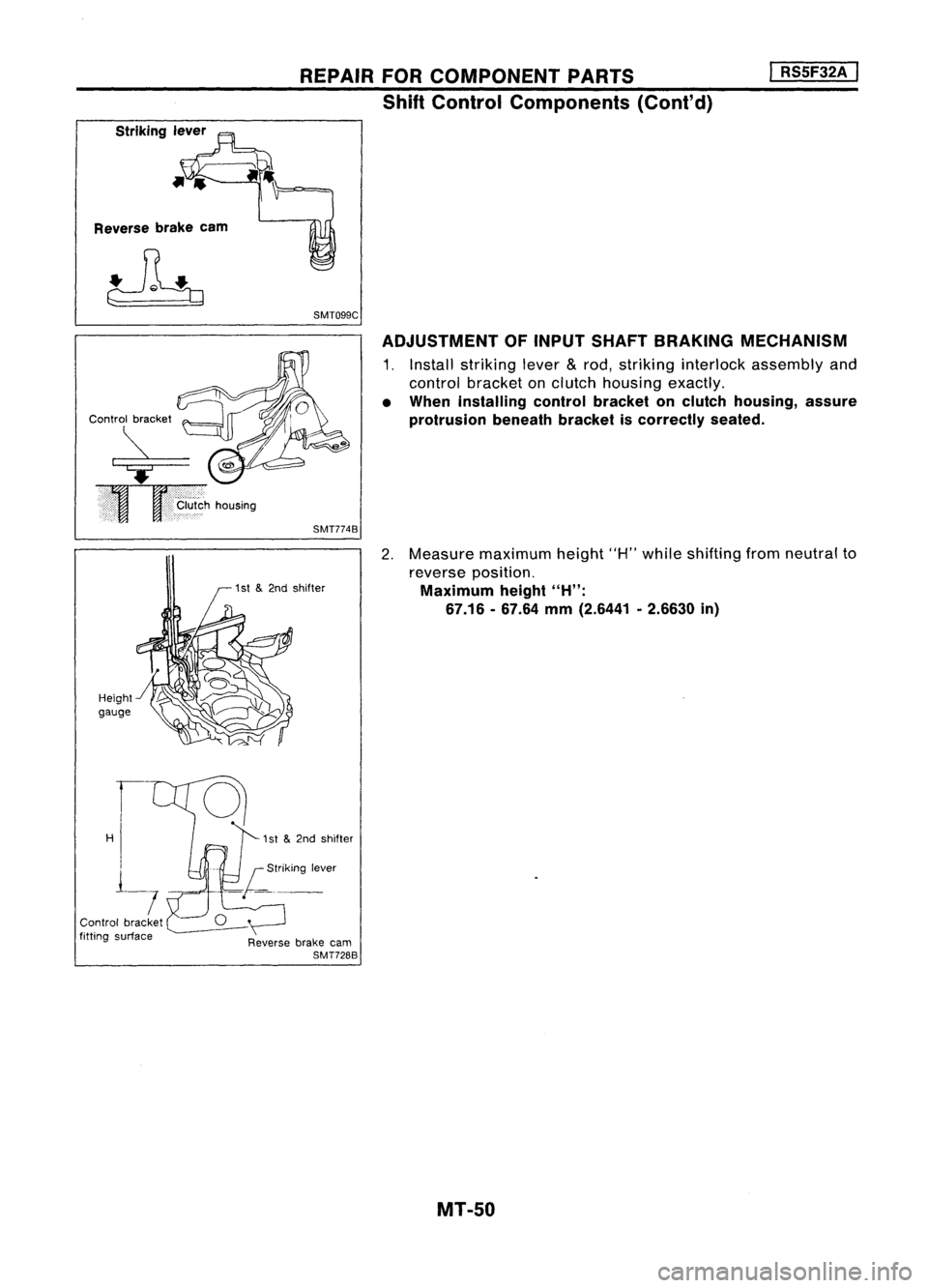

ADJUSTMENT OFINPUT SHAFT BRAKING MECHANISM

1. Install striking lever
&
rod, striking interlock assembly and
control bracket onclutch housing exactly.

• When installing controlbracket onclutch housing, assure
protrusion beneathbracketiscorrectly seated.
SMT774B

Height
gauge
2.
Measure maximum height"H"while shifting fromneutral to
reverse position.

Maximum height
"H":

67.16 -67.64
mm
(2.6441 .2.6630
in)

Control bracket
fitting surface 1
st
&
2nd shifter

~
Reverse brakecarn

SMT728B

MT-SO
