INSTRUMENTPANEL
CAUTION:
• Disconnect bothbattery cablesinadvance.
• Disconnect airbag system lineinadvance.
• Never tamper withorforce airbag lidopen, asthis may adversely affectairbag performance.
• Becareful nottoscratch padandother parts.
REMOVAL -Instrument panelassembly

Instrument panelassembly
Remove airbag module (driver's) andsteering wheel.
Refer to"SUPPLEMENTAL RESTRAINTSYSTEM"inRS section fordetails.

CD
Steering columncoverandcombination switch
• Remove screws.

l6l
Instrument lowerpanel ondriver side
• Remove screws.

@
Cluster lidC
• Remove screwsanddisconnect harnessconnectors. Audio

&AIC
control
Consolebox

@
Cluster lidA
• Remove screws.

@
Combination meter
• Remove screwsanddisconnect harnessconnectors.

cID
Audio and
AIC
control unit
• Remove screwsfromtheinstrument panel.

(J)
Glove boxassembly
• Remove gloveboxpin.
• Then disconnect passengerairbag module
connector.

@
Passenger airbag module
• Refer to"SUPPLEMENTAL RESTRAINT
SYSTEM" inRS section fordetails.
@
AIT
finisher orMIT shift lever boot

@
Rear console box
• Remove consolemaskandscrews.

@
Front console box
• Remove screwsandbolts.

@
Instrument mask
• Disconnect harnessconnector.

@
Front pillargarnish
• Refer to"Side andFloor Trim" in"INTE-
RIOR TRIM" fordetails, 8T-16.

@
Instrument panelandpads
II

• Remove boltsandnuts.
• Remove doormirror switch anddisconnect
the connector.
•

8T-13

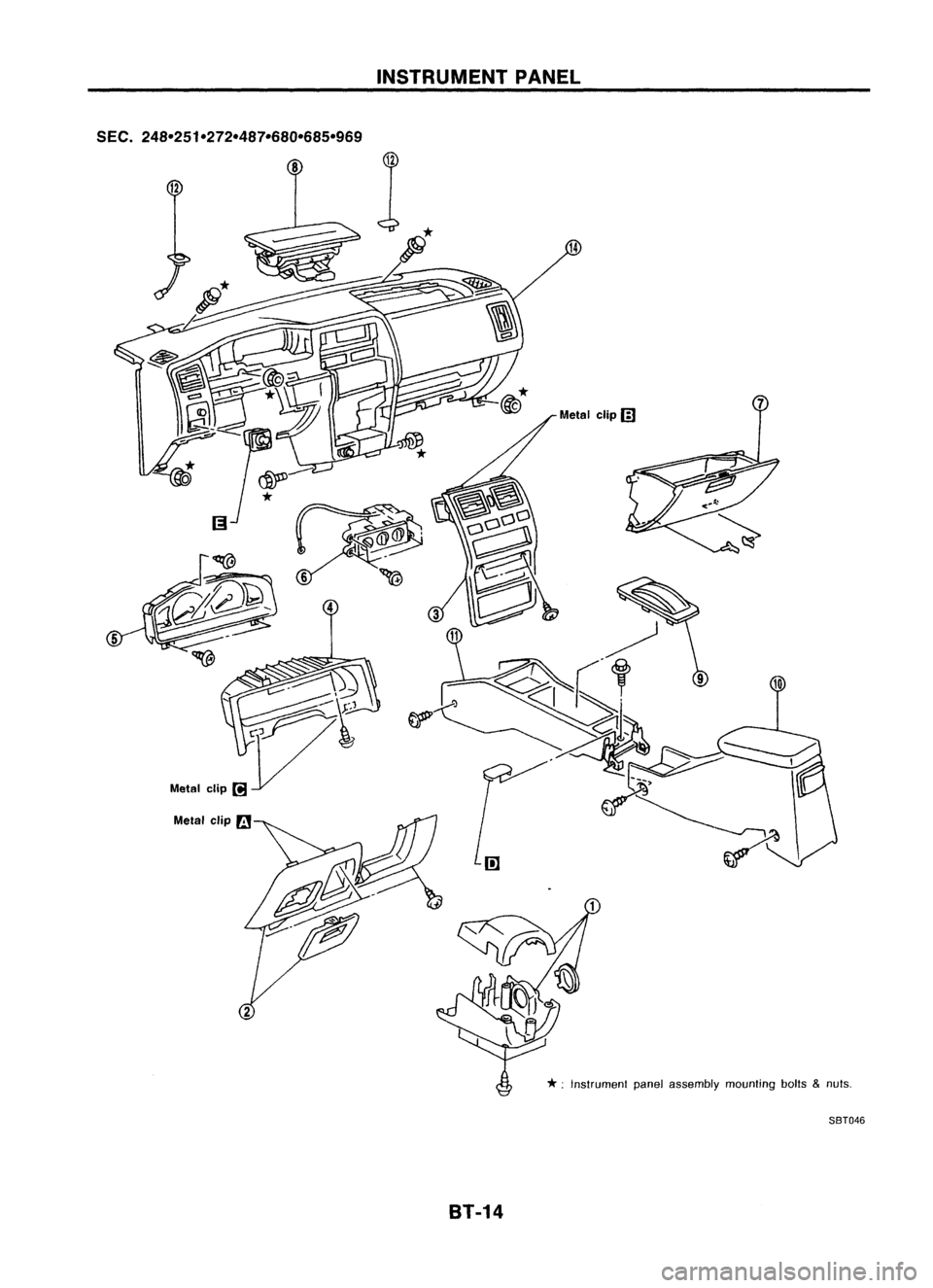

SEC.248-251-272-487-680-685-969

8INSTRUMENT
PANEL
Metalclip
rn

* :
Instrument panelassembly .
mounting
bolts
&
nuts.

SBT046

8T-14

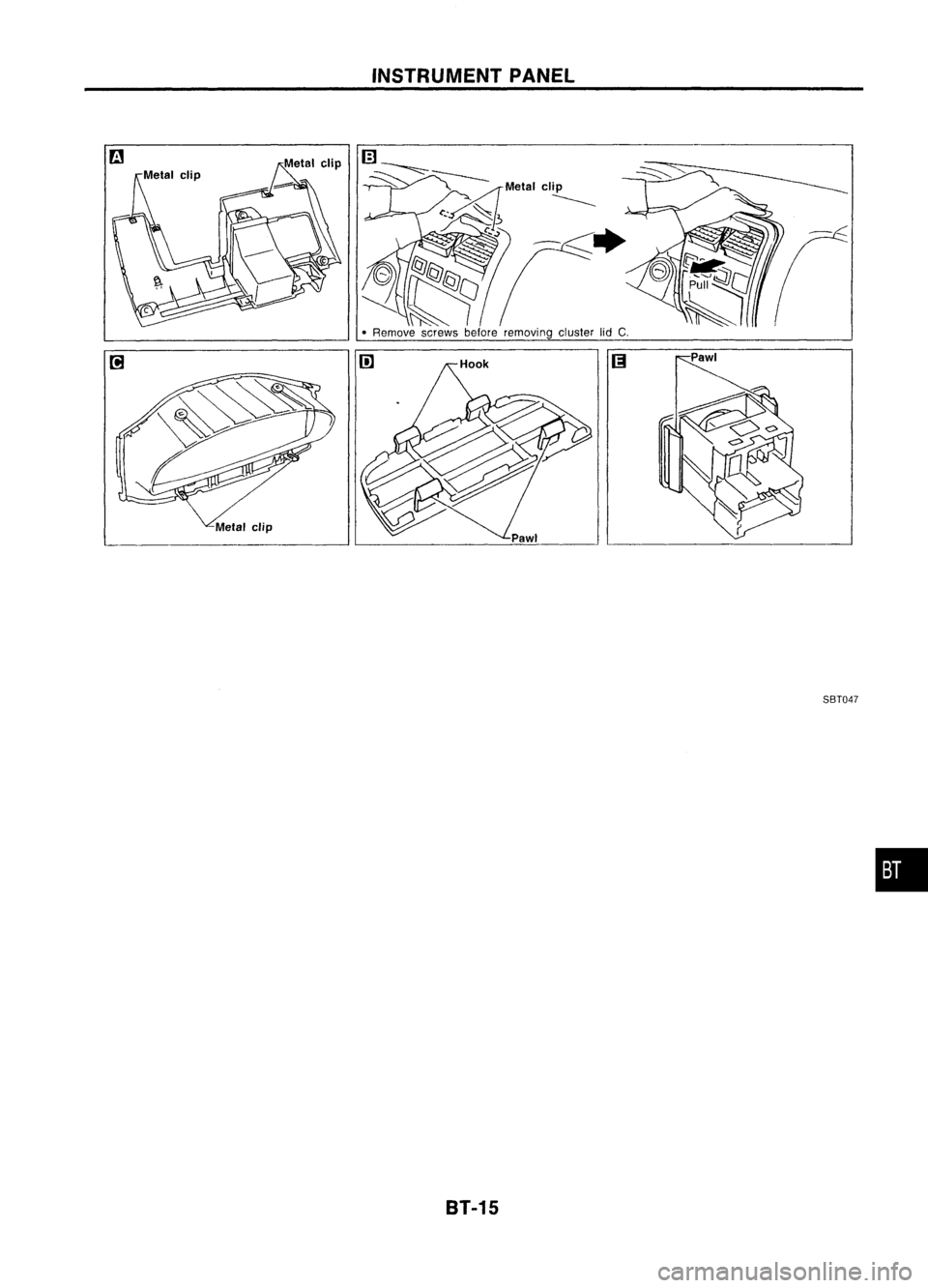

NTPANEL
INSTRUME
SBT047
8T-15
•

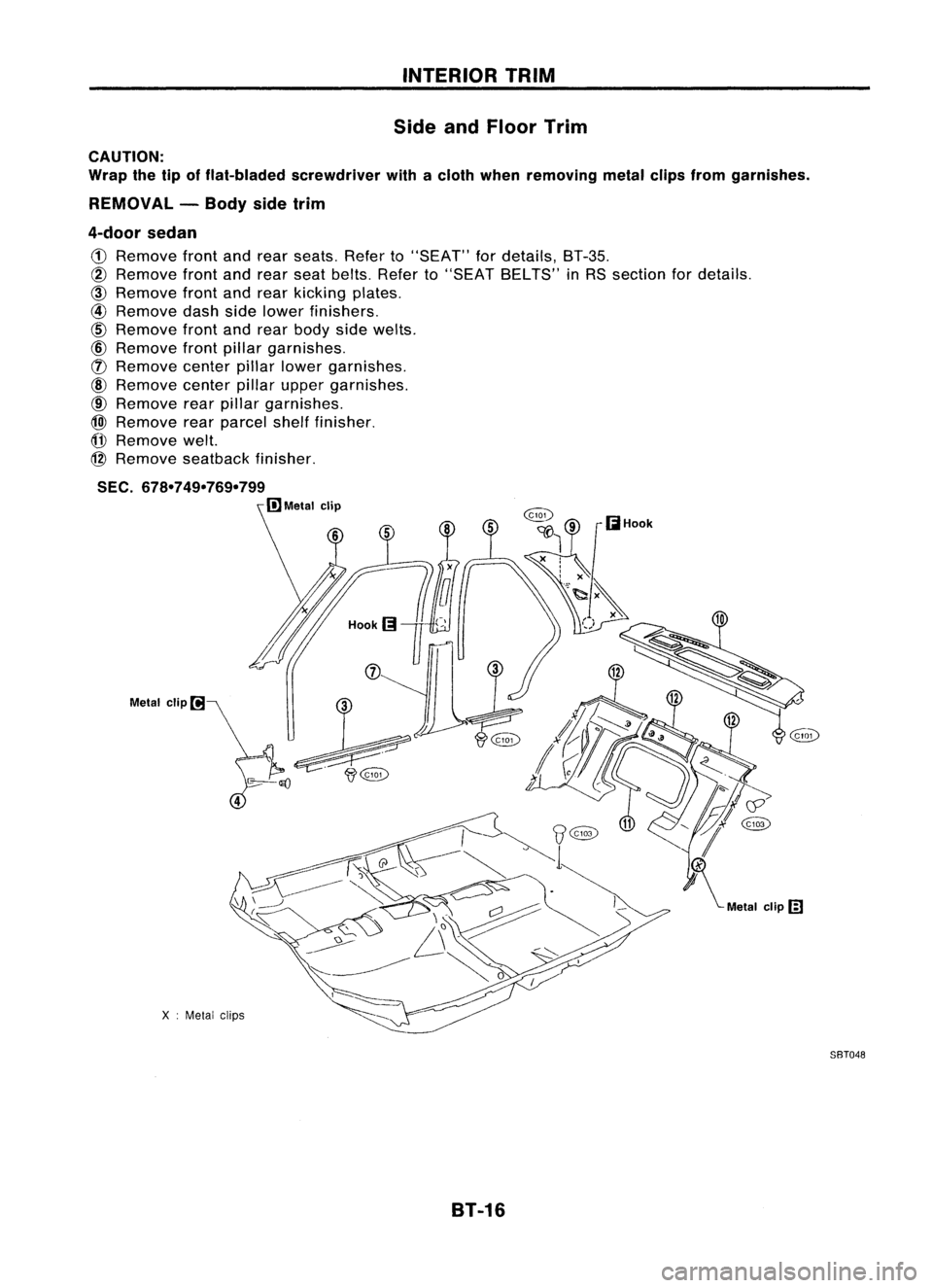

INTERIORTRIM
Side andFloor Trim
(ilHook
X :Metal clips

Metal
clip~

CAUTION:
Wrap thetipofflat-bladed screwdriver withacloth when removing metalclipsfrom garnishes.
REMOVAL -Body sidetrim
4-door sedan

CD
Remove frontandrear seats. Referto"SEAT" fordetails, BT-35.

@
Remove frontandrear seat belts. Referto"SEAT BELTS" inRS section fordetails.

@)
Remove frontandrear kicking plates.

@
Remove dashsidelower finishers.

@)
Remove frontandrear body sidewelts.

@
Remove frontpillar garnishes.

tD
Remove centerpillarlower garnishes.

@
Remove centerpillarupper garnishes.

@
Remove rearpillar garnishes.

@)
Remove rearparcel shelffinisher.

@
Remove welt.

@
Remove seatback finisher.

SEC. 678-749-769-799
(!]
Metal clip

SBT048
8T-16

Toinstrument panel
m

INTERIOR
TRIM
Side andFloor Trim(Cont'd)
8T-17 8BT049

•

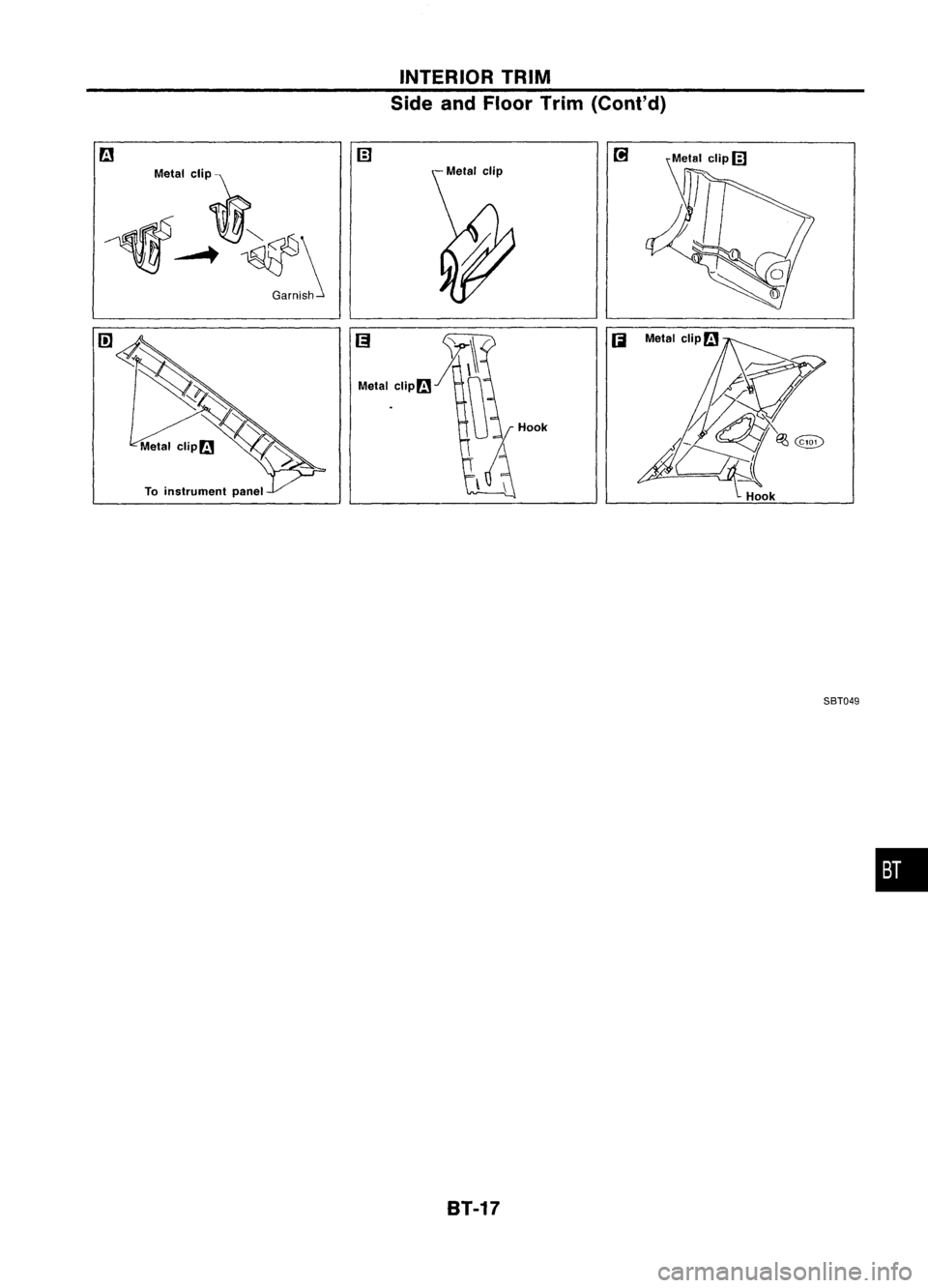

INTERIORTRIM
Side andFloor Trim(ConI' d)
REMOVAL -Body sidetrim
5-door hatchback

• Remove tonneau boardbefore removing bodysidetrim.

CD
Remove frontandrear seats. Referto"SEAT" fordetails, BT-35.

@
Remove frontandrear seat belts. Referto"SEAT BELTS" inRS section fordetails.

@)
Remove frontandrear kicking plates.

@
Remove dashsidelower finishers.

CID
Remove frontandrear body sidewelts.

@)
Remove frontpillar garnishes.

(f)
Remove centerpillarlower garnishes.

@
Remove centerpillarupper garnishes.

@
Remove rearparcel shelfsidefinishers.

@)
Remove rearpillar finishers.

@
Remove rearwheelhouse finishers.

@
Remove luggageroomrearplate.

@
Remove luggageroomrearfinisher.

@
Remove luggageroomsidelower finishers.

SEC. 678-749-769-799

MetalcliPGl
~:Velcro
X :Metal clip
88T050
8T-18

Toinstrument panel
INTERIOR
TRIM
Side andFloor Trim(Cont'd)
SBT051
8T-19
•

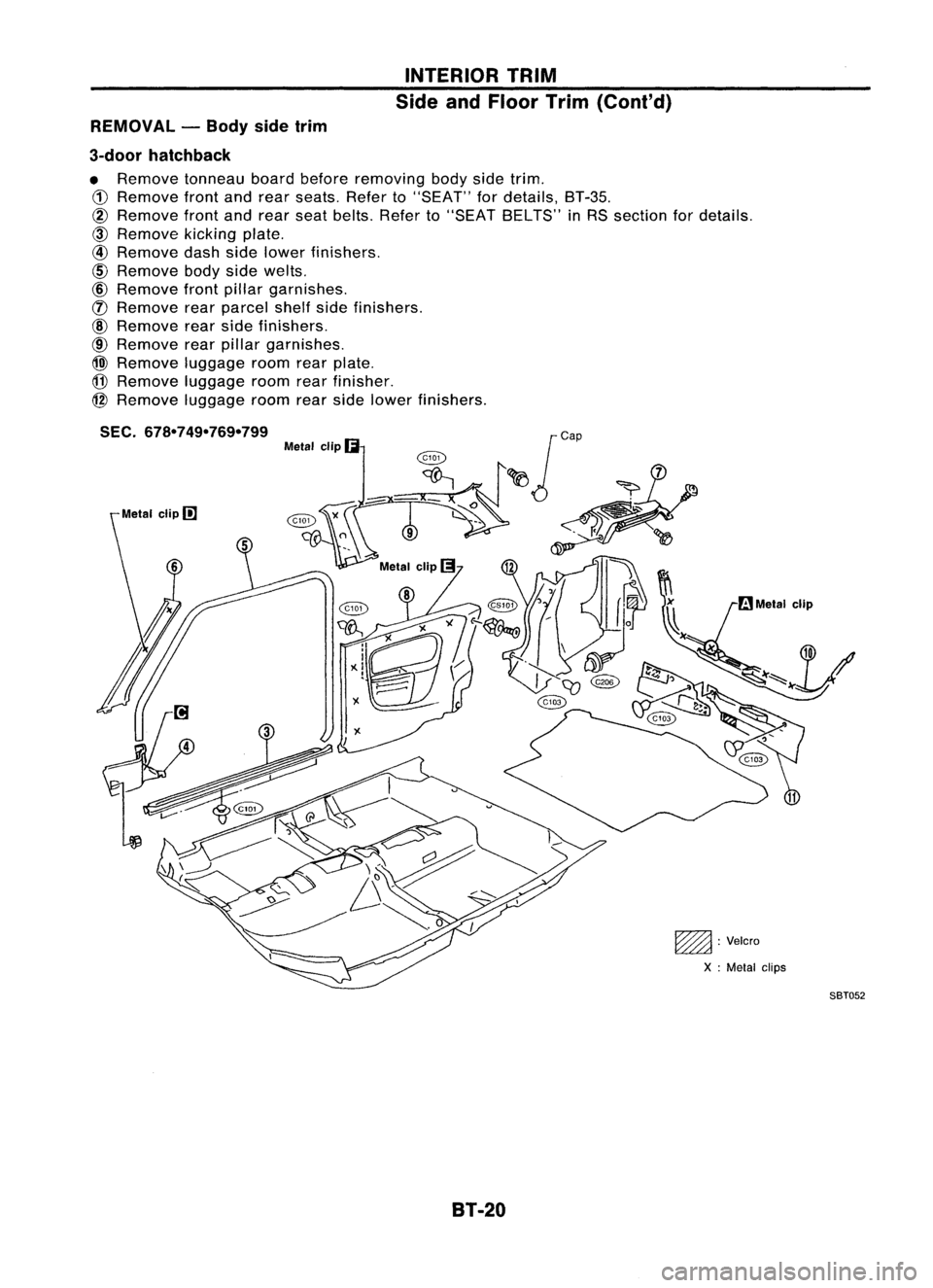

INTERIORTRIM
Side andFloor Trim(Conl'd)
REMOVAL -Body sidetrim
3-door hatchback

• Remove tonneauboardbefore removing bodysidetrim.

CD
Remove frontandrear seats. Referto"SEAT" fordetails, BT-35.

@
Remove frontandrear seat belts. Referto"SEAT BELTS"
in
RS section fordetails.

@)
Remove kickingplate.

@
Remove dashsidelower finishers.

@
Remove bodysidewelts.

@
Remove frontpillar garnishes.

(j)
Remove rearparcel shelfsidefinishers.

@
Remove rearside finishers.

@
Remove rearpillar garnishes.

@)
Remove luggageroomrearplate.

@
Remove luggageroomrearfinisher.

@
Remove luggageroomrearside lower finishers.

SEC. 678-749-769-799

~:Velcro
X :Metal clips
SBT052
8T-20
