SBR215BREAR

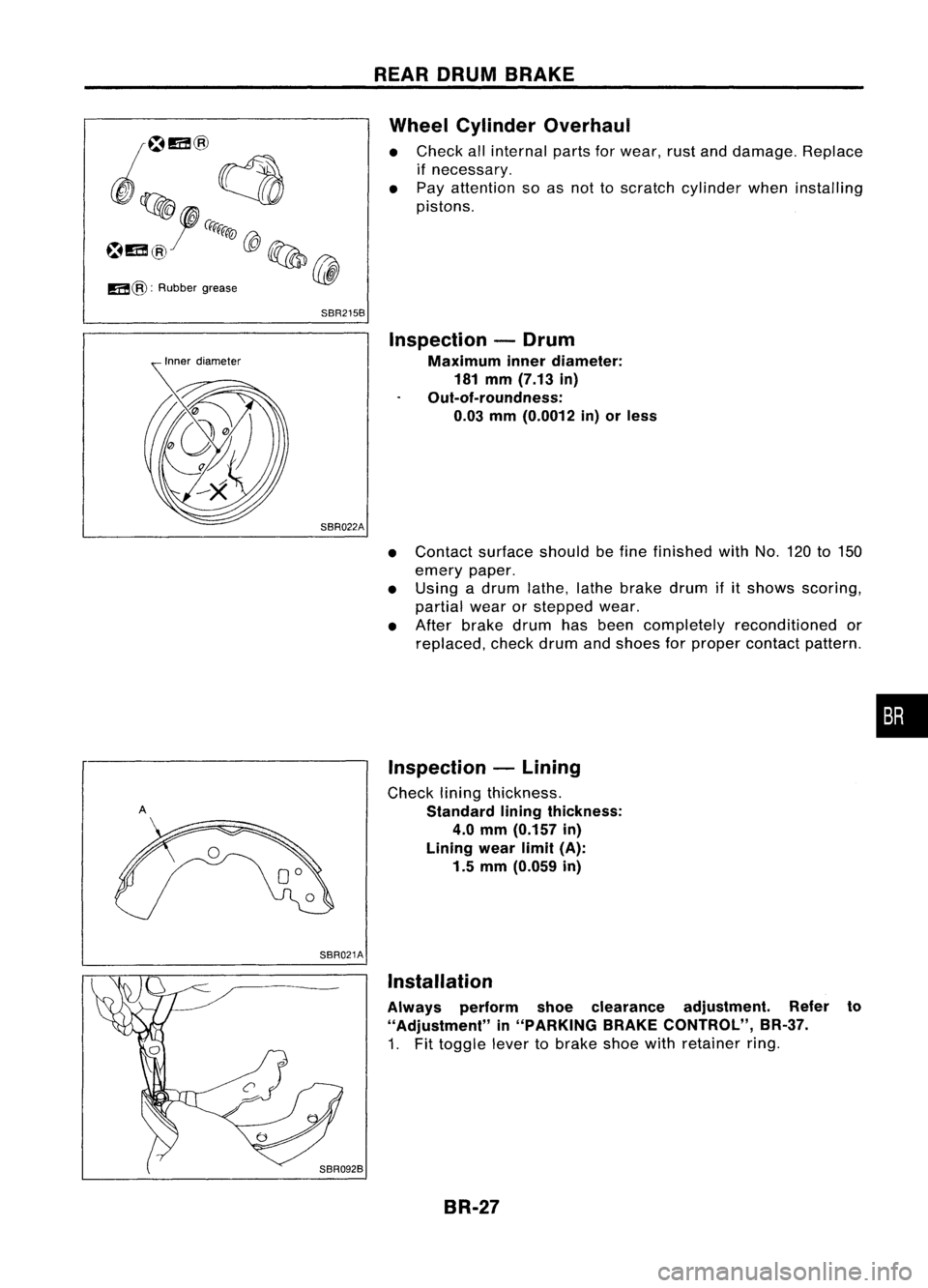

DRUM BRAKE
Wheel Cylinder Overhaul

• Check allinternal partsforwear, rustanddamage. Replace
if necessary.
• Pay attention soasnot toscratch cylinder wheninstalling
pistons.

SBR022A Inspection
-Drum
Maximum innerdiameter:
181 mm (7.13 in)
Out-of-roundness: 0.03 mm(0.0012 in)orless

• Contact surfaceshouldbefine finished withNo.120to150
emery paper.
• Using adrum lathe, lathebrake drumifitshows scoring,
partial wearorstepped wear.
• After brake drumhasbeen completely reconditioned or
replaced, checkdrumandshoes forproper contact pattern.

•

A

SBR021AInspection
-Lining

Check liningthickness.

Standard liningthickness:
4.0 mm (0.157 in)
Lining wearlimit(A):
1.5 mm (0.059 in)
Installation
Always perform shoeclearance adjustment. Referto
"Adjustment" in"PARKING BRAKECONTROL", BR.37.

1. Fittoggle levertobrake shoewithretainer ring.

BR-27

SBR216B
~ ~Vohi'" 'COol
DepreSSi~~
"
~

/

SBR217B
SBR279B
REAR
DRUM BRAKE

Installation (Cont'd)

2. Apply brake grease tothe contact areasshown atleft.
3. Shorten adjuster byrotating it.

• Pay attention todirection ofadjuster.

Wheel Screw Depression
Left Left-handthread
Yes

Right Right-handthread No

4. Connect parkingbrakecabletotoggle
lever.

5. Install allparts.

Be careful nottodamage wheelcylinder pistonboots.

6. Check allparts areinstalled properly.

Pay attention todirection ofadjuster assembly.

7. Install brakedrum.
8. When installing newwheel cylinder oroverhauling wheel
cylinder, bleedair.Refer to"Bleeding procedure", BR-6.
9. Adjust parking brake.RefertoBR-37.

BR-28

SBR023DREAR
DISCBRAKE

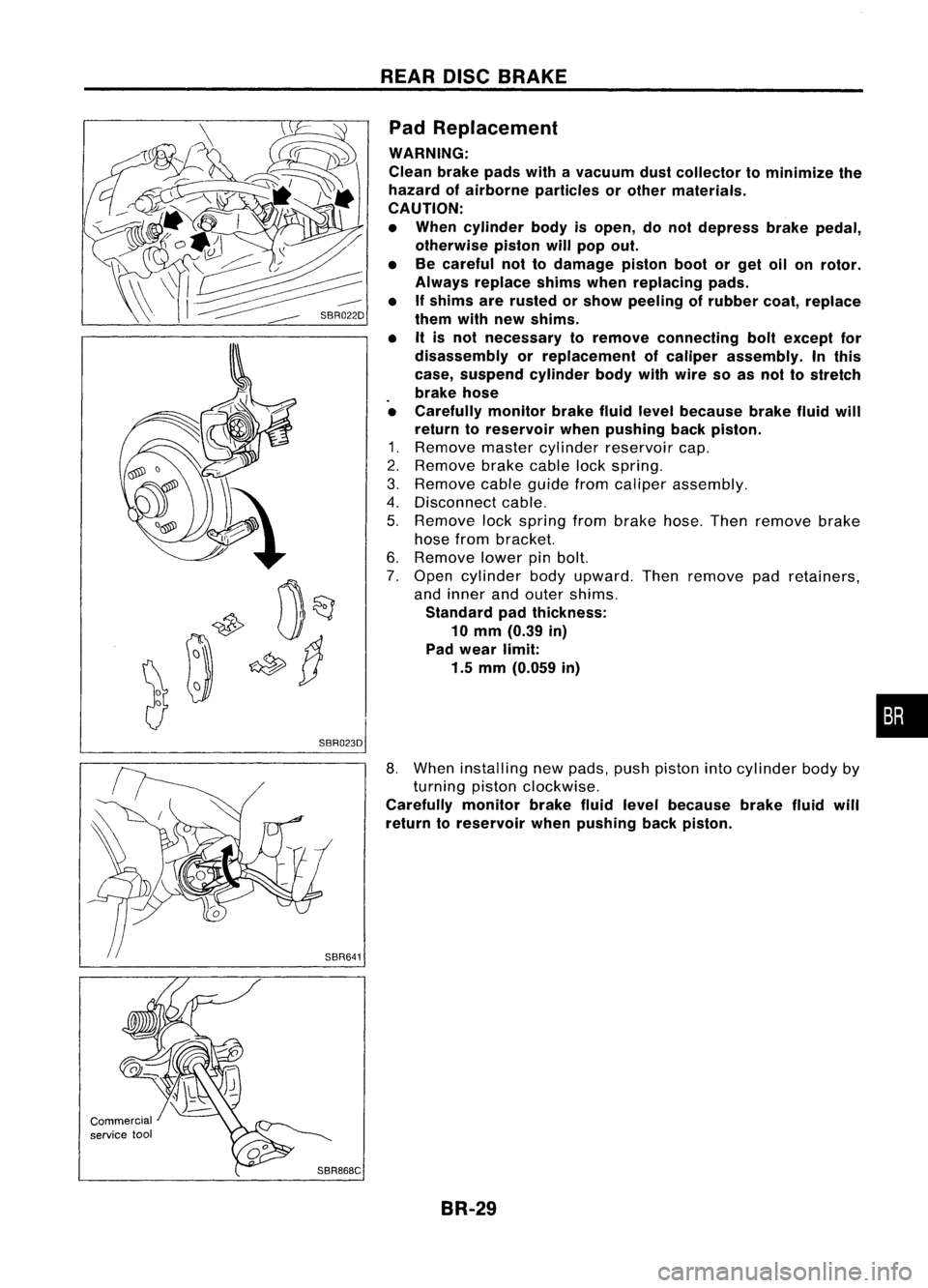

Pad Replacement
WARNING:
Clean brakepadswithavacuum dustcollector tominimize the
hazard ofairborne particles orother materials.
CAUTION:
• When cylinder bodyisopen, donot depress brakepedal,
otherwise pistonwillpop out.
• Becareful nottodamage pistonbootorget oilonrotor.
Always replace shimswhenreplacing pads.
• Ifshims arerusted orshow peeling ofrubber coat,replace
them withnewshims.
• Itis not necessary toremove connecting boltexcept for
disassembly orreplacement ofcaliper assembly. Inthis
case, suspend cylinderbodywithwire soas nol tostreich
brake hose
• Carefully monitorbrakefluidlevel because brakefluidwill
return toreservoir whenpushing backpiston.

1. Remove mastercylinder reservoir cap.
2. Remove brakecablelockspring.
3. Remove cableguide fromcaliper assembly.
4. Disconnect cable.
5. Remove lockspring frombrake hose.Thenremove brake
hose from bracket.
6. Remove lowerpinbolt.
7. Open cylinder bodyupward. Thenremove padretainers,
and inner andouter shims.

Standard padthickness:
10 mm (0.39 in)
Pad wear limit:
1.5 mm (0.059 in)

•

Commercial

service tool

SBR868C
8.
When installing newpads, pushpiston intocylinder bodyby
turning pistonclockwise.

Carefully monitorbrakefluidlevel because brakefluidwill
return toreservoir whenpushing backpiston.
BR-29

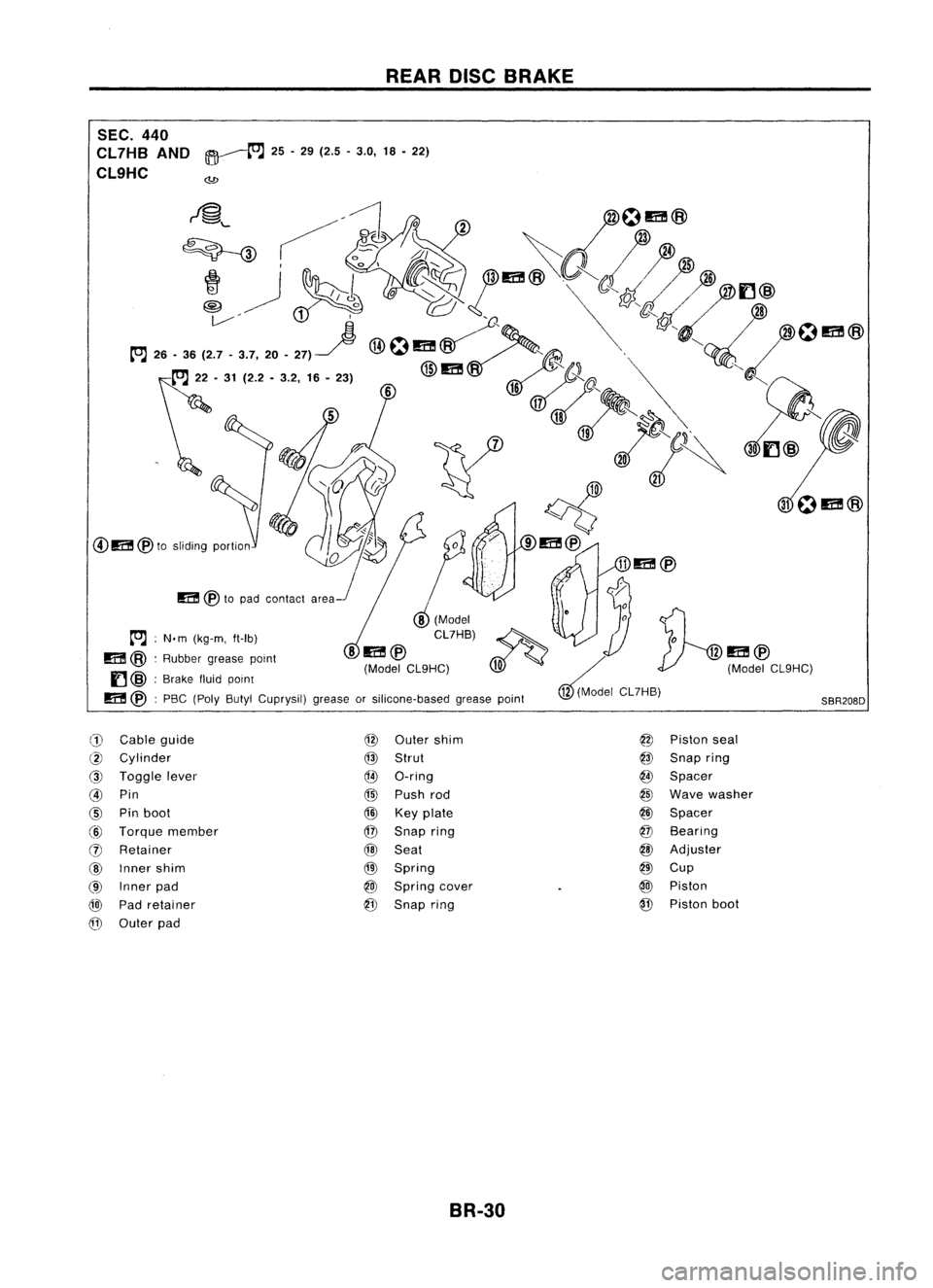

REARDISCBRAKE
SBR208D

Piston seal

@
@
Snap ring

@
Spacer
Wave washer

@

@l
Spacer

@
Bearing

@
Adjuster

@'J
Cup

@)
Piston

@
Piston boot

18
-22)
~ 25-29 (2.5 -3.0,

~

Cable guide
Cylinder
Toggle lever
Pin
Pin boot
ember
Torque m
Retainer
Inner shim
Inner pad
Pad retainer
Outer pad

SEC.
440

CL7HB AND
CL9HC

!

@m@to

,Ii""
pmli"
J

m
@to
p,d ,,,,,,, ""
@~~~:':'~) ~' ~
:d~CL9HC)

II-'b) •
m@
@
'f /
B)

""" .N.m (kg-m,. (ModelCL9HC) @(ModelCL7H

,-,
- "pom' .
'i'i' ,Robb" "" d""" pom'

m'O'
kfluid point eor silicone-base

in
@ :
Bra e Cuprysil)greas
U BC(Poly Butyl

m
@,
p
@
Oo'e"him

@
Strut

@
O-ring

@
Push rod

@
Keyplate

@
Snap ring

@
Seat

@
Spring

@l
Spring cover

@
Snap ring

CD

@
@
@
@

(6)

(j)

@
@
@
@
BR-30

((I

~i

i
U

Commercial service tool
SBR025D
SBR646
SBR868C! SBR889 REAR
DISCBRAKE

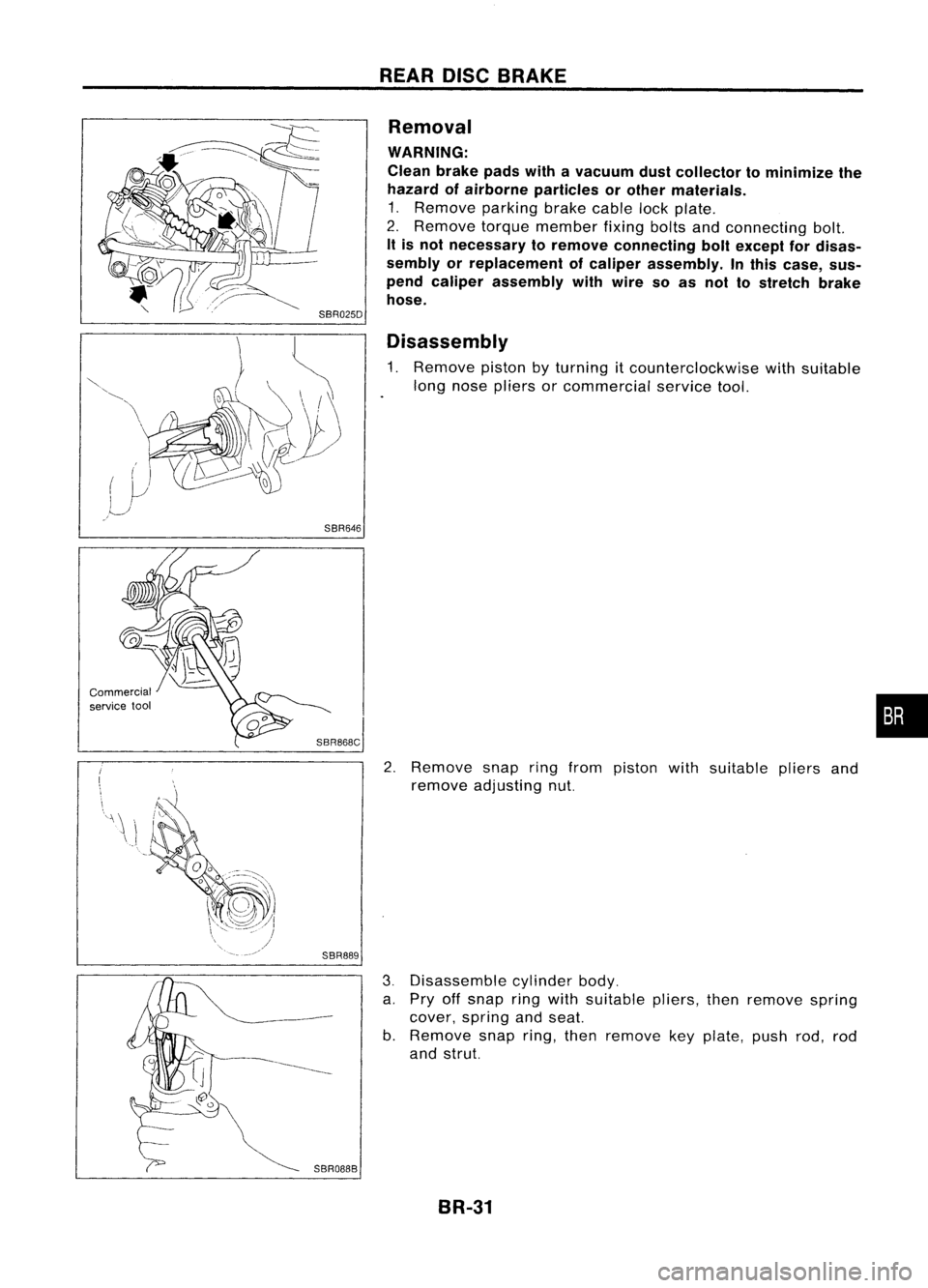

Removal

WARNING:

Clean brakepadswithavacuum dustcollector tominimize the
hazard ofairborne particles orother materials.
1. Remove
parkingbrakecablelockplate.
2. Remove torquemember fixingboltsandconnecting bolt.

It is not necessary toremove connecting boltexcept fordisas-
sembly orreplacement ofcaliper assembly. Inthis case, sus-
pend caliper assembly withwire soas not tostretch brake
hose.
Disassembly
1. Remove pistonbyturning itcounterclockwise withsuitable
long nose pliers orcommercial
service
tool.
2. Remove snapringfrom piston withsuitable pliersand
remove adjusting nut.
•

3. Disassemble cylinderbody.
a. Pry offsnap ringwith suitable pliers,thenremove spring
cover, spring andseat.
b. Remove snapring,then remove keyplate, pushrod,rod
and strut.

BR-31

l

--,II

~//

SBR656
SBR026D REAR
DISCBRAKE
Disassembly (Cont'd)

c. Remove pistonseal.

Be careful nottodamage cylinderbody.

4. Remove returnspring, toggleleverandcable guide.

Inspection -Caliper
CAUTION: Use brake fluidtoclean cylinder. Neverusemineral
oil.

CYLINDER BODY

• Check insidesurface ofcylinder forscore, rust,wear, dam-
age orpresence offoreign objects. Ifany ofthe above con-
ditions areobserved, replacecylinder body.
• Minor damage fromrustorforeign objects maybeelimi-
nated bypolishing surfacewithafine emery paper.
Replace cylinder bodyifnecessary.

TORQUE MEMBER

Check forwear, cracks orother damage. Replaceifnecessary.

PISTON
CAUTION:
Piston sliding surface ;splated. Donot polish withemery paper
even ifrust orforeign objects isstuck tosliding surface.

Check pistonforscore, rust,wear, damage orpresence offor-
eign objects. Replace ifany ofthe above conditions are
observed.

SLIDE PIN,PINBOLT, ANDPINBOOT

Check forwear, cracks orother damage.
Replace ifany ofthe above conditions areobserved.

BR-32

SBR847
SBR247B REAR
DISCBRAKE
Inspection -Rotor
RUBBING SURFACE

Check rotorforroughness, cracksorchips.

RUNOUT
1. Secure rotortowheel hubwith atleast twonuts (M12 x1.25).
2. Check runout usingadial indicator.

Make surethatwheel bearing axialendplay iswithin thespec-
ifications beforemeasuring. Referto"Rear Wheel Bearing" of
"ON-VEHICLE SERVICE"inRA section.

3. Change relativepositions ofrotor andwheel hubsothat
runout isminimized.

Maximum runout:
0.07 mm(0.0028 in)
THICKNESS Rotor repair limit:
Minimum thickness
CL7HB 6.0mm (0.236 in)
CL9HC 8.0mm (0.315 in)
Thickness variation(Atleast 8portions)
Maximum 0.02mm(0.0008 in)

Replace rotorifany ofthe above donot meet thespecifications .

Assembly
1. Insert camwithdepression facingtowards openendofcyl-
inder.
2. Generously applyrubber grease tostrut andpush rodto
make insertion easy.

BR-33
•

Snapring

~

Keyplate~

Rod
---{[J

Snaprjng-~
Spring cover~
Spring-l Seat--@
Snap ring-o
Spacer
------L81

VVave washer~
Spacer----i9'J

Ball bearmg~

AdjUSler-i

Cup---@)

P"'o0-e
Convex
portion

SBR809B
Press
SBR810B
SBR078D REAR
DISCBRAKE

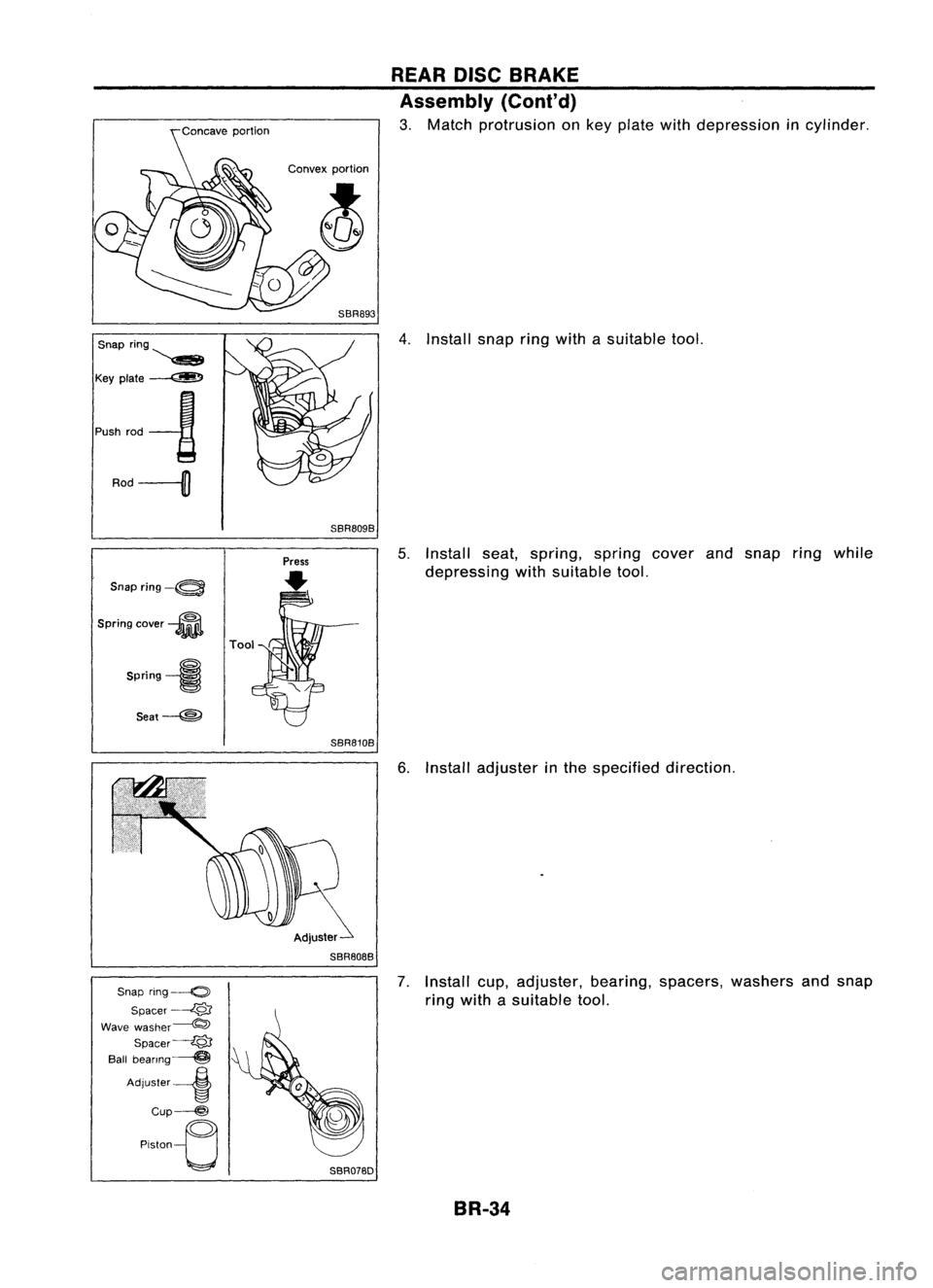

Assembly (Cont'd)

3. Match protrusion onkey plate withdepression incylinder.
4. Install snapringwith asuitable tool.
5. Install seat,spring, springcoverandsnap ringwhile
depressing withsuitable tool.
6. Install adjuster inthe specified direction.
7. Install cup,adjuster, bearing,spacers, washersandsnap
ring with asuitable tool.
