1995 NISSAN ALMERA N15 Service Manual

SRA696A
SRA697A

S
Control rod

Lateral link
~H";""I"

ITorsion
beam
SRA698AREAR
SUSPENSION
Removal andInstallation
CAUTION:
• Before removing therear suspension assembly,disconnect
the ABS wheel sensor fromtheassembly. Failuretodo so
may result indamage tothe sensor wiresandthesensor
becoming inoperative.

• Remove suspension assembly.
1. Disconnect brakehydraulic linesandparking brakecableat
toggle lever.(Models withdrum brakes.)
• Drain brake fluidbefore disconnecting brakelines.
2. Disconnect parkingbrakecablefromcaliper andremove
brake caliper androtor. (Models withdiscbrakes.)

Suspend caliperassembly withwire soasnot tostretch brake
hose.
Be careful nottodepress brakepedal, orpiston willpop out.
Make surebrake hoseisnot twisted.

3. Using atransmission jack,raise torsion beamalittle, and
remove nutsandbolts fromthetrailing arm,shock absorber
assembly (lowerside)andlateral link.
4. Lower transmission jack,andremove suspension.
5. Remove luggagecompartment trim.Refer toBT section.
6. Remove strutsecuring nuts(upper side).Thenpulloutstrut
assembly.
• Install suspension assembly.

CAUTION: Refill withnewbrake fluid"DOT
3".

Never reusedrained brakefluid.

1. Attach torsion beam,attrailing armandlateral link,tovehi-
cle. Donot tighten boltsatthis time.
2. Using atransmission jack,place lateral linkand control rod
horizontally againsttorsionbeam.Tighten laterallinkon
vehicle.
3. Attach shockabsorber assembly tovehicle. Thentighten the
lower sideofshock absorber assembly.
4. Lower torsion beamtofully extended position.Remove
transmission jackandtighten torsion beam,attrailing arm,
to specified torque.RefertoRA-8.
5. Install brakehydraulic linesandtighten flarenuts.

~: 15-18 N'm (1.5.1.8 kg-m,11-13 ft-Ib)
Coil Spring andShock Absorber
REMOVAL

Remove shockabsorber upperandlower fixing nuts.

Do not remove pistonrodlock nutonvehicle.
RA-9
•

REARSUSPENSION

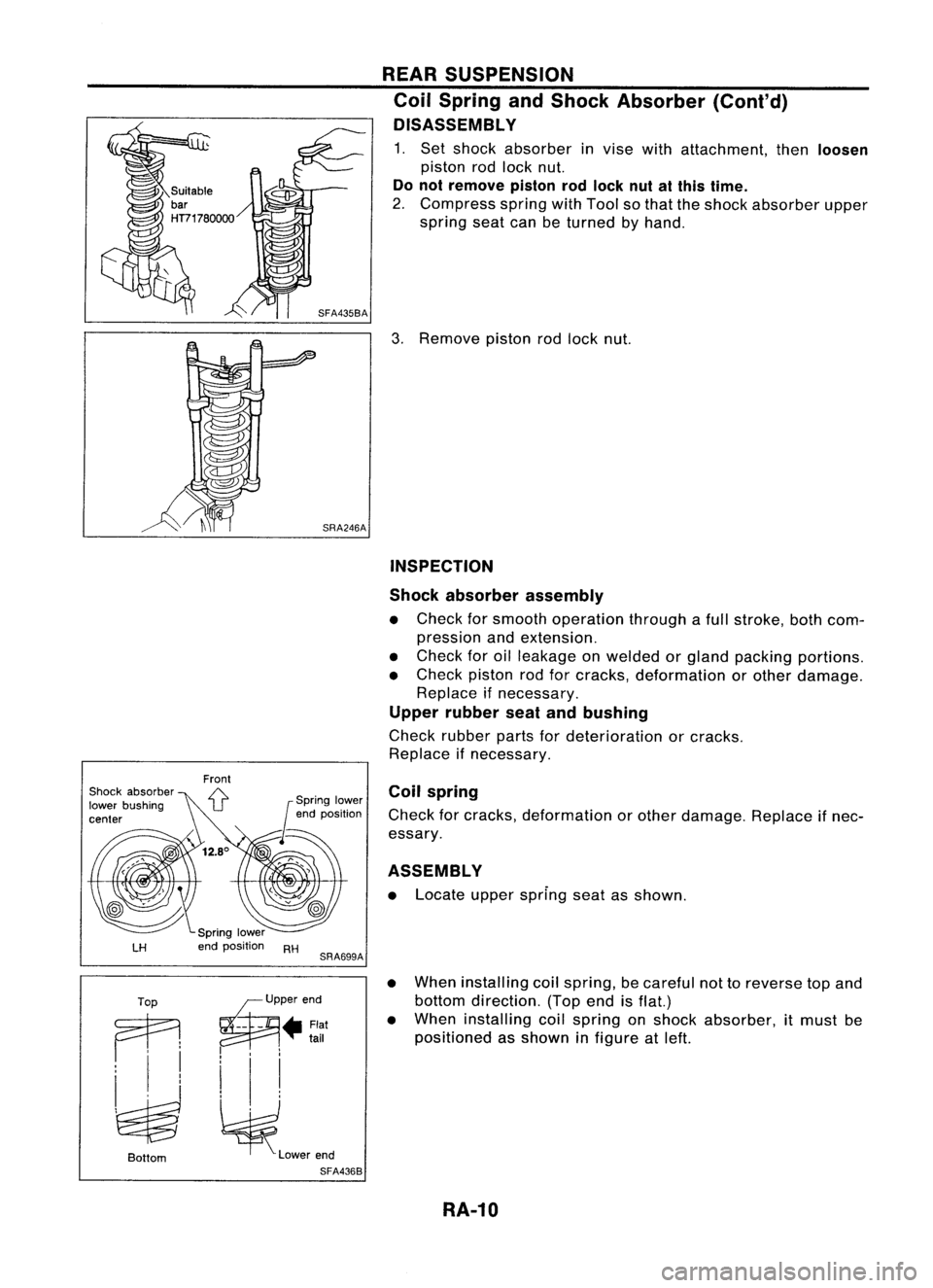

Coil Spring andShock Absorber (Conl'd)
DISASSEMBL Y

1. Set shock absorber invise withattachment, then
loosen

piston rodlock nut.

Do not remove pistonrodlock nutatthis time.

2. Compress springwithTool sothat theshock absorber upper
spring seatcanbeturned byhand.
3. Remove pistonrodlock nut.

INSPECTION
Shock absorber assembly

• Check forsmooth operation throughafull stroke, bothcom-
pression andextension.
• Check foroilleakage onwelded orgland packing portions.
• Check pistonrodforcracks, deformation orother damage.
Replace ifnecessary.

Upper rubber seatandbushing

Check rubber partsfordeterioration orcracks.
Replace ifnecessary.

ASSEMBLY

• Locate upperspring seatasshown.

Coil
spring

Check forcracks, deformation orother damage. Replaceifnec-
essary.

LH
RH

SRA699A
•
Top ~P"'"d

Ai
--
- • Flat
•
tail

i 'I

~ ~l_""d
Bottom
SFA4368
When
installing coilspring, becareful nottoreverse topand
bottom direction. (Topendisflat.)
When installing coilspring onshock absorber, itmust be
positioned asshown infigure atleft.

RA-10

REARSUSPENSION

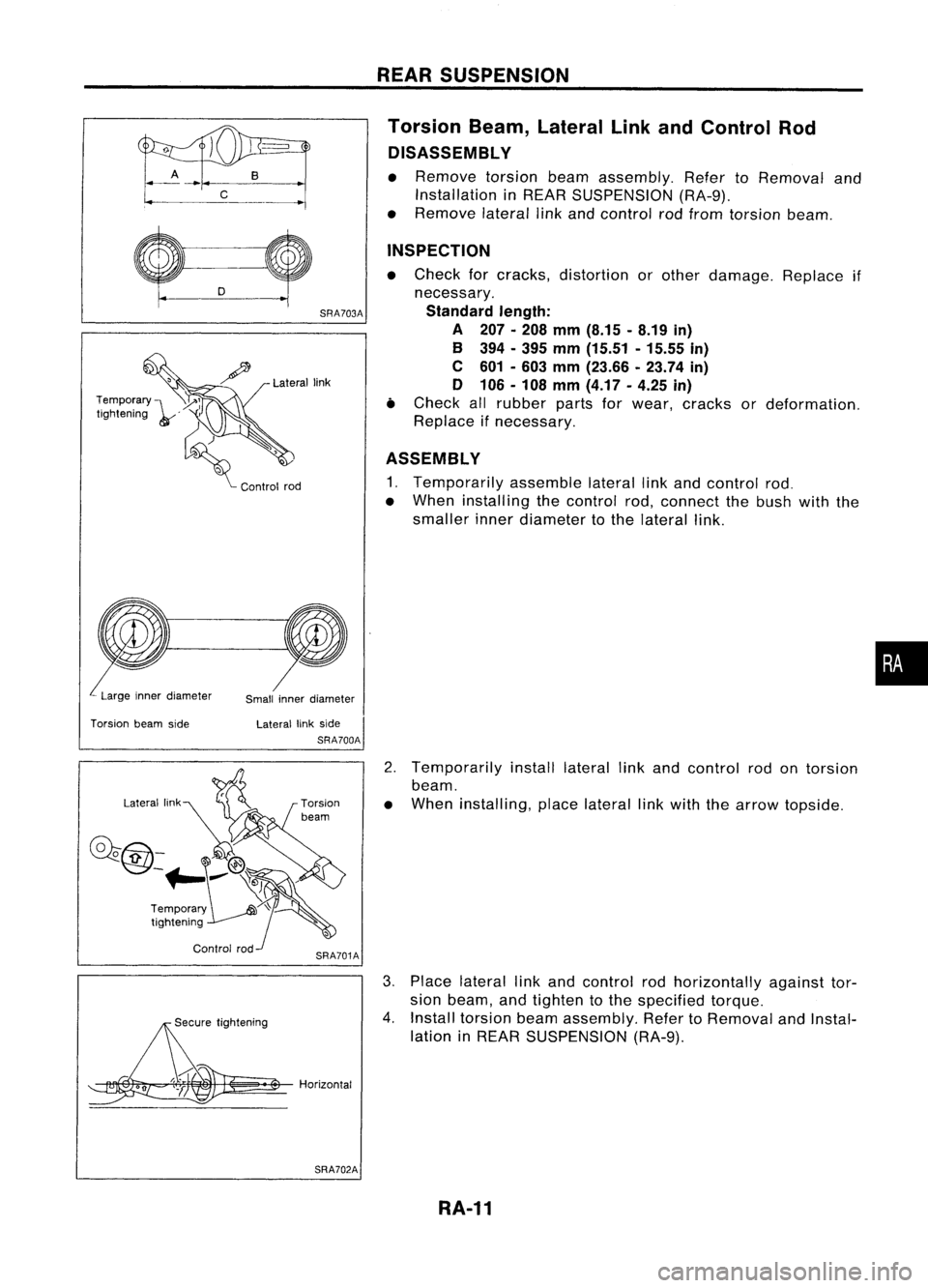

Torsion Beam,Lateral LinkandControl Rod
DISASSEMBL Y

• Remove torsionbeamassembly. RefertoRemoval and
Installation inREAR SUSPENSION (RA-9).
• Remove laterallinkand control rodfrom torsion beam.
Lateral link
SRA703A
INSPECTION

• Check forcracks, distortion orother damage. Replaceif
necessary.

Standard length:
A 207.208 mm(8.15 -8.19 in)
B 394 -395 mm (15.51 -15.55 in)
C 601 -603 mm (23.66 .23.74 in)
o 106 -108 mm (4.17 -4.25 in)

• Check allrubber partsforwear, cracks ordeformation.
Replace ifnecessary.

ASSEMBLY
1. Temporarily assemblelaterallinkand control rod.
• When installing thecontrol rod,connect thebush withthe
smaller innerdiameter tothe lateral link.
Temporary

I~~

Ilgh"oIog ,,'
d) ,

~ Cootrol100

Large innerdiameter
Smallinnerdiameter

•

Torsion beamside Laterallinkside

SRA700A

2.Temporarily installlateral linkand control rodontorsion
beam.
• When installing, placelateral linkwith thearrow topside.

0""
;;~h"0109

~ .$
Horizontal 3.
Place lateral linkand control rodhorizontally againsttor-
sion beam, andtighten tothe specified torque.
4. Install torsion beamassembly. RefertoRemoval andInstal-
lation inREAR SUSPENSION (RA-9).

SRA702A
RA-11

SERVICEDATAANDSPECIFICATIONS (50S)
General Specifications

Suspension type
Shock absorber type
Stabilizer Multi-link
beamsuspension
Double-acting hydraulic
Standard equipment

WHEEL ALIGNMENT (Unladen*) Inspection
andAdjustment
WHEEL BEARING

Camber Minimum-1'45'
(-1.75')
Degree minute Nominal
-1'00'
(-1.00')
(Decimal degree) Maximum -0'15'
(-0.25')
Total toe-in Minimum-3
(-0.12)
Distance (A-B) Nominal
1
(0.04)
mm (in) Maximum 5(0.20)
Angle (leftpius right) Minimum -16'(-0.27')
Degree minute Nominal
5'
(0.08')
(Decimal degree)Maximum 26'
(0.43') Wheel
bearing axialendplay
mm (in)
Wheel bearing locknuttighten-
ing torque
N'm(kg-m. ft-lb) 0.05
(0.0020) orless
186 -255
(19 -26, 137 -188)
': Fuel, radiator coolantandengine oilfull. Spare tire.jack, hand
tools andmats indesignated positions.

RA-12

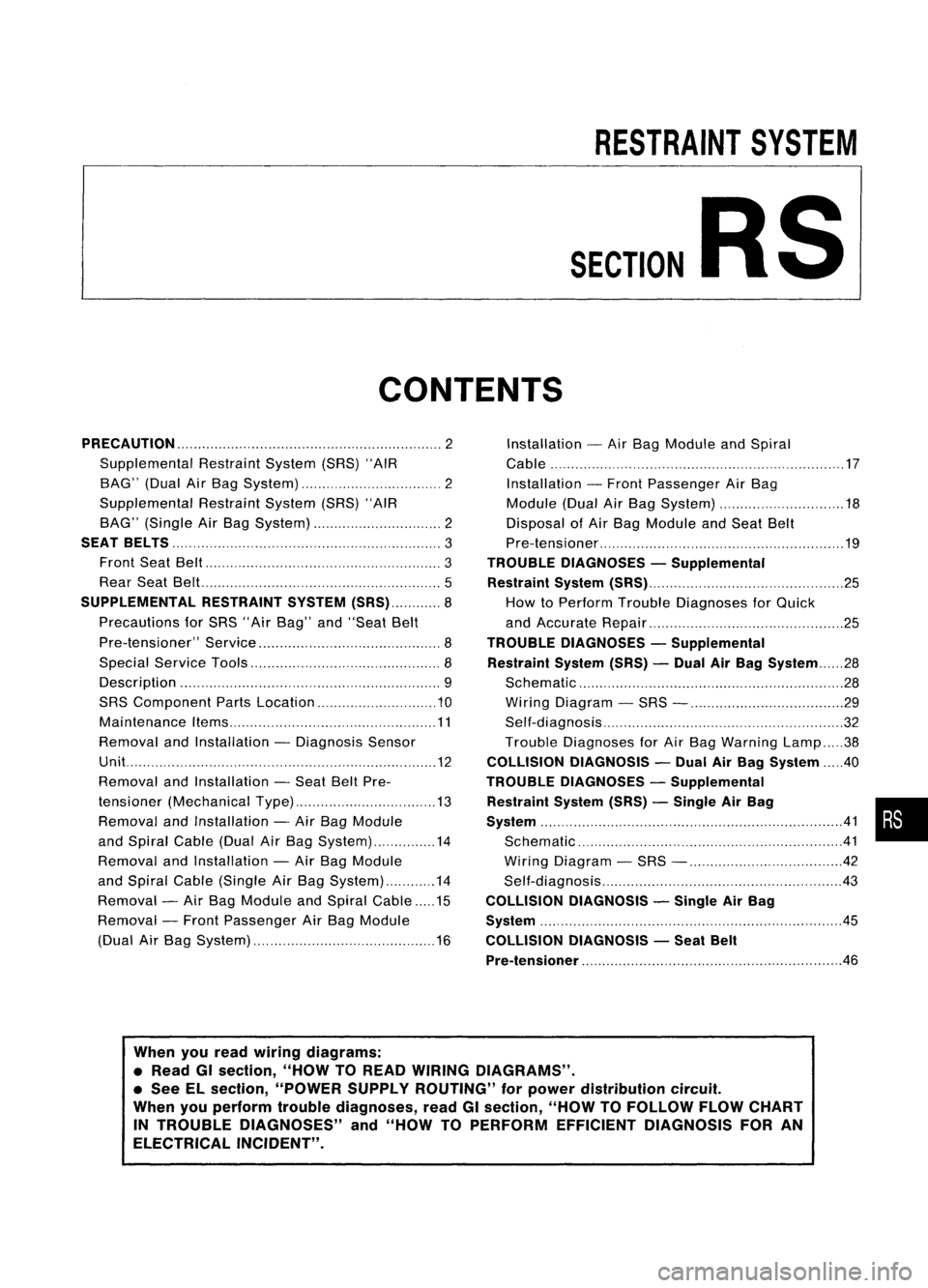

RESTRAINTSYSTEM
SECTION
RS
CONTENTS
PRECAUTION 2

Supplemental RestraintSystem(SRS)"AIR
BAG" (DualAirBag System) 2
Supplemental RestraintSystem(SRS)"AIR
BAG" (Single AirBag System) 2

SEAT BELTS
3

Front SeatBelt 3
Rear SeatBel!. 5

SUPPLEMENTAL RESTRAINTSYSTEM(SRS) 8

Precautions forSRS "AirBag" and"Seat Belt
Pre-tensioner" Service 8
Special Service Tools 8
Description 9
SRS Component PartsLocation 10
Maintenance Items 11
Removal andInstallation -Diagnosis Sensor
Unit. 12
Removal andInstallation -Seat BeltPre-
tensioner (Mechanical Type) 13
Removal andInstallation -Air Bag Module
and Spiral Cable(DualAirBag System) 14
Removal andInstallation -Air Bag Module
and Spiral Cable(Single AirBag System) 14
Removal -Air Bag Module andSpiral Cable 15
Removal -Front Passenger AirBag Module
(Dual AirBag System) 16Installation
-Air Bag Module andSpiral
Cable 17
Installation -Front Passenger AirBag
Module (DualAirBag System) 18
Disposal ofAir Bag Module andSeat Belt
Pre-tensioner 19

TROUBLE DIAGNOSES -Supplemental
Restraint System(SRS) 25

How toPerform TroubleDiagnoses forQuick
and Accurate Repair 25

TROUBLE DIAGNOSES -Supplemental
Restraint System(SRS)-Dual AirBag System 28

Schematic 28
Wiring Diagram -SRS - 29
Self-diagnosis 32
Trouble Diagnoses forAir Bag Warning Lamp38

COLLISION DIAGNOSIS -Dual AirBag System .40
TROUBLE DIAGNOSES -Supplemental
Restraint System(SRS)-Single AirBag •
System 41•

Schematic 41
Wiring Diagram -SRS - 42
Self-diagnosis 43

COLLISION DIAGNOSIS -Single AirBag
System .45
COLLISION DIAGNOSIS -Seat Belt
Pre-tensioner
.46

When youread wiring diagrams:
• Read GIsection, "HOWTOREAD WIRING DIAGRAMS" .
• See ELsection, "POWER SUPPLYROUTING" forpower distribution circuit.
When youperform troublediagnoses, readGIsection, "HOWTOFOLLOW FLOWCHART
IN TROUBLE DIAGNOSES" and"HOW TOPERFORM EFFICIENT DIAGNOSIS FORAN
ELECTRICAL INCIDENT".

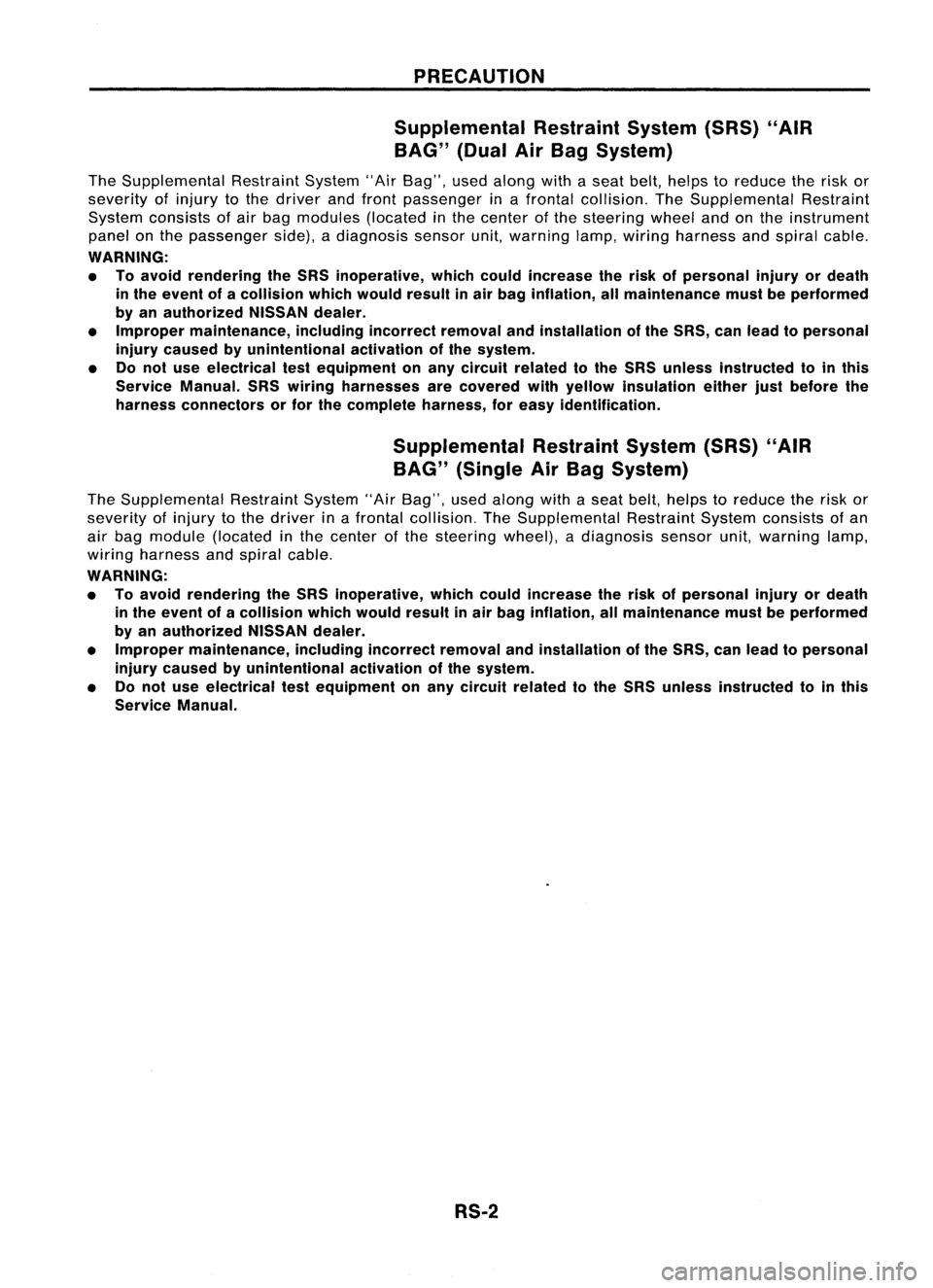

PRECAUTION
Supplemental RestraintSystem(SRS)"AIR
BAG" (DualAirBag System)

The Supplemental RestraintSystem"AirBag", usedalong withaseat belt, helps toreduce therisk or
severity ofinjury tothe driver andfront passenger inafrontal collision. TheSupplemental Restraint
System consists ofair bag modules (locatedinthe center ofthe steering wheelandonthe instrument
panel onthe passenger side),adiagnosis sensorunit,warning lamp,wiring harness andspiral cable.

WARNING:
• Toavoid rendering theSRS inoperative, whichcouldincrease therisk ofpersonal injuryordeath
in the event ofacollision whichwould resultinair bag inflation, allmaintenance mustbeperformed
by an authorized NISSANdealer.
• Improper maintenance, includingincorrectremovalandinstallation ofthe SRS, canlead topersonal
injury caused byunintentional activationofthe system.
• Donot use electrical testequipment onany circuit related tothe SRS unless instructed tointhis
Service Manual. SRSwiring harnesses arecovered withyellow insulation eitherjustbefore the
harness connectors orfor the complete harness,foreasy identification.
Supplemental RestraintSystem(SRS)"AIR
BAG" (Single AirBag System)

The Supplemental RestraintSystem"AirBag", usedalong withaseat belt, helps toreduce therisk or
severity ofinjury tothe driver inafrontal collision. TheSupplemental RestraintSystemconsists ofan
air bag module (located inthe center ofthe steering wheel),adiagnosis sensorunit,warning lamp,
wiring harness andspiral cable.

WARNING:
• Toavoid rendering theSRS inoperative, whichcouldincrease therisk ofpersonal injuryordeath
in the event ofacollision whichwould resultinair bag inflation, allmaintenance mustbeperformed
by an authorized NISSANdealer.
• Improper maintenance, includingincorrectremovalandinstallation ofthe SRS, canlead topersonal
injury caused byunintentional activationofthe system.
• Donot use electrical testequipment onany circuit related tothe SRS unless instructed tointhis
Service Manual.
RS-2

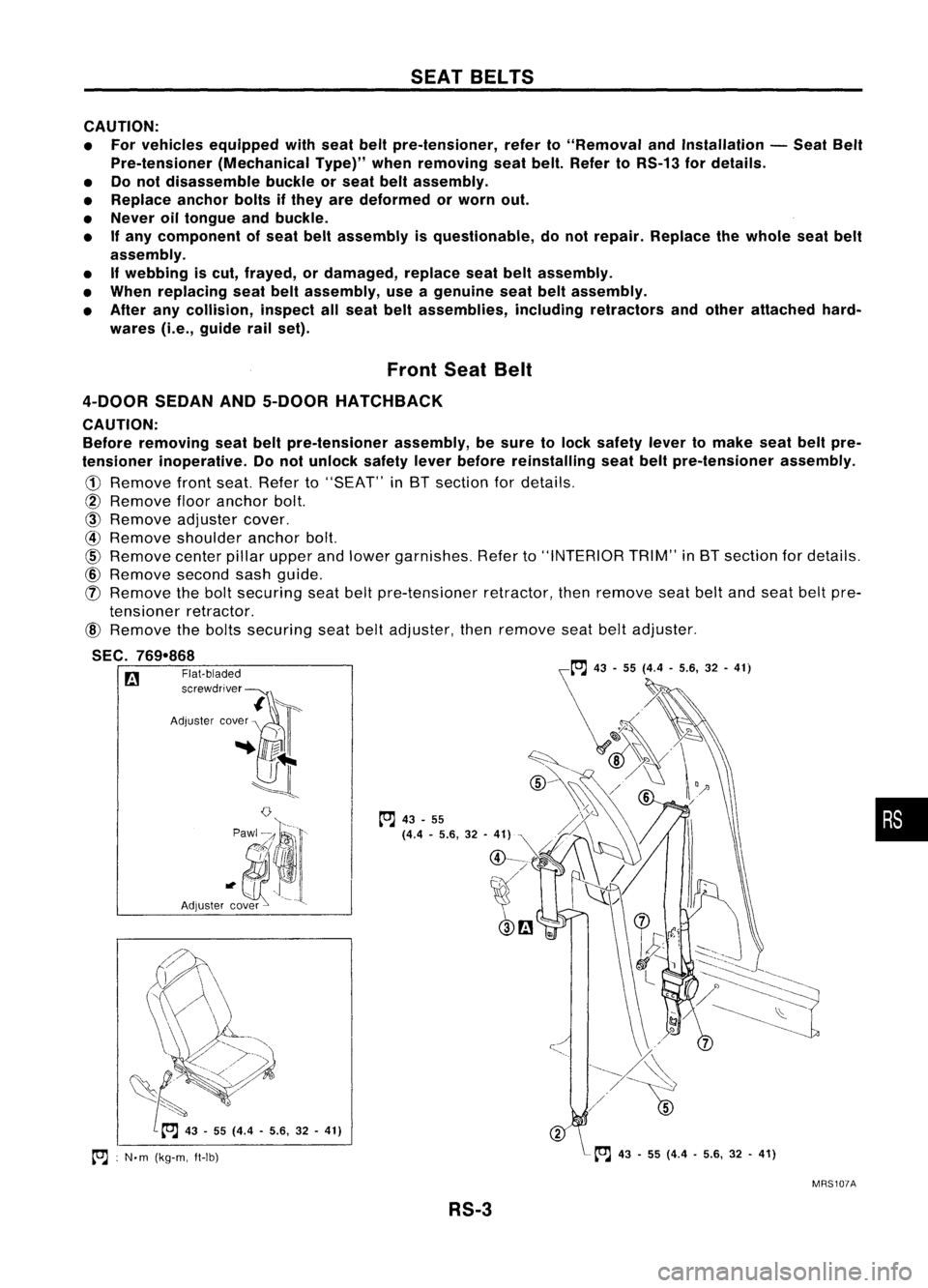

SEATBELTS
CAUTION:
• For vehicles equipped withseat beltpre-tensioner, referto"Removal andInstallation -Seat Belt
Pre-tensioner (MechanicalType)"whenremoving seatbelt. Refer toRS-13 fordetails.
• Donot disassemble buckleorseat beltassembly.
• Replace anchorboltsifthey aredeformed orworn out.
• Never oiltongue andbuckle.

• If
any component ofseat beltassembly isquestionable, donot repair. Replace thewhole seatbelt
assembly.
• Ifwebbing iscut, frayed, ordamaged, replaceseatbeltassembly.
• When replacing seatbeltassembly, useagenuine seatbeltassembly.
• After anycollision, inspectallseat beltassemblies, includingretractors andother attached hard-
wares (i.e.,guide railset).

•

toJ
43-55 (4.4 -5.6, 32-41)

A

~. t;//
~>-..,\

~t ..
~<:.~

~ 0

...
~

~ 43-55 (4.4 -5.6, 32-41)

toJ :
N.m (kg-m, ft-Ib)
Front
SeatBelt
4-DOOR SEDANAND5-DOOR HATCHBACK
CAUTION: Before removing seatbeltpre-tensioner assembly,besure tolock safety levertomake seatbeltpre-
tensioner inoperative. Donot unlock safetyleverbefore reinstalling seatbeltpre-tensioner assembly.

Remove frontseat. Refer to"SEAT" inBT section fordetails.
@ Remove flooranchor bolt.

@
Remove adjustercover.
@ Remove shoulder anchorbolt.

@
Remove centerpillarupper andlower garnishes. Referto"INTERIOR TRIM"inBT section fordetails.
@ Remove secondsashguide.

(J)
Remove thebolt securing seatbeltpre-tensioner retractor,thenremove seatbeltand seat beltpre-
tensioner retractor.

@
Remove thebolts securing seatbeltadjuster, thenremove seatbeltadjuster.

SEC. 769-868

rz1

MRS107A
RS-3

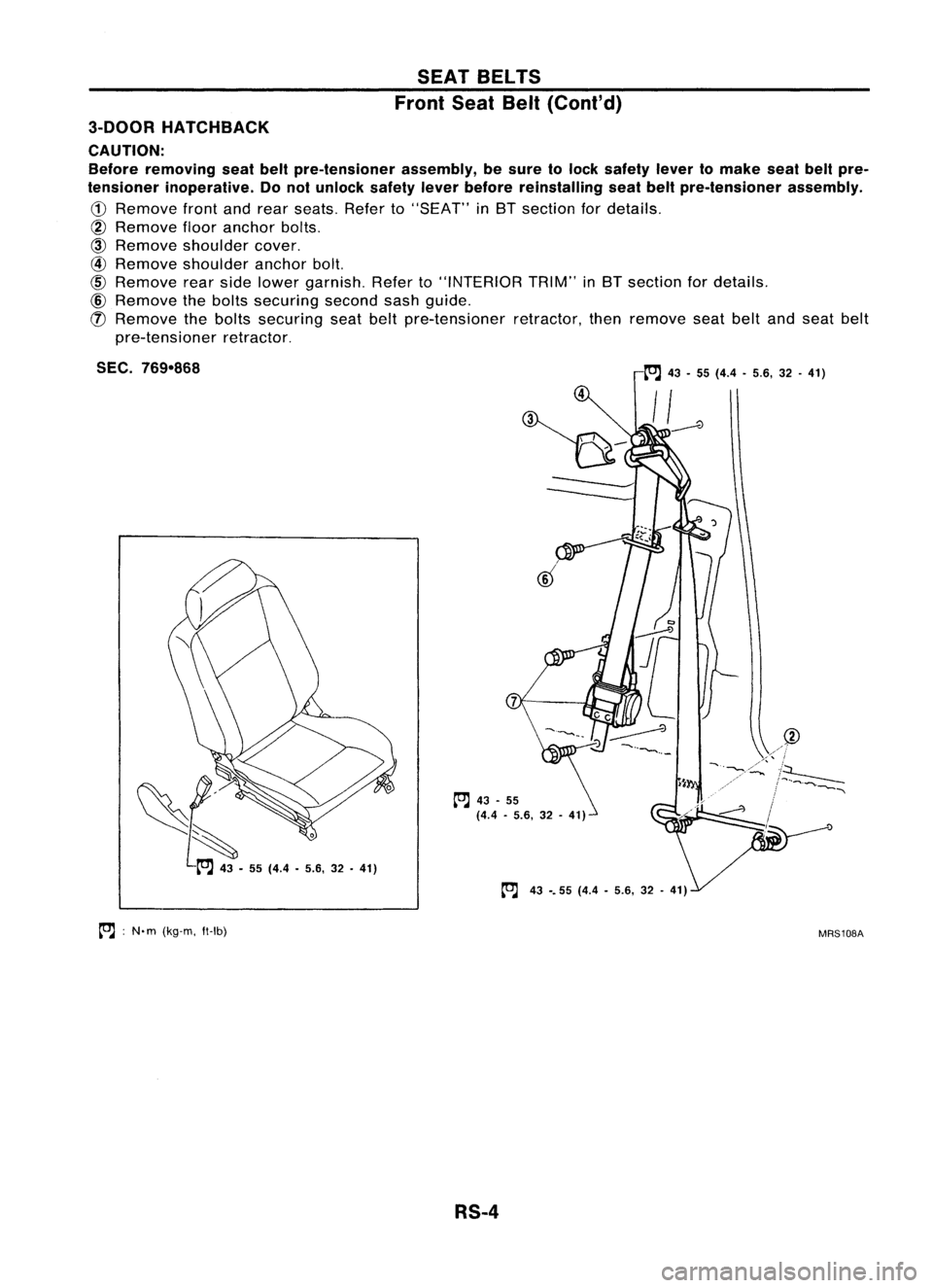

SEATBELTS
Front SeatBelt(Cont'd)
3-DOOR HATCHBACK
CAUTION: Before removing seatbeltpre-tensioner assembly,besure tolock safety levertomake seatbeltpre-
tensioner inoperative. Donot unlock safetyleverbefore reinstalling seatbeltpre-tensioner assembly.

CD
Remove frontandrear seats. Referto"SEAT" in8T section fordetails.

@
Remove flooranchor bolts.

@
Remove shoulder cover.

@
Remove shoulder anchorbolt.

@
Remove rearside lower garnish. Referto"INTERIOR TRIM"in8T section fordetails.

@
Remove thebolts securing secondsashguide.

(!)
Remove thebolts securing seatbeltpre-tensioner retractor,thenremove seatbeltandseat belt
pre-tensioner retractor.

SEC. 769-868

[OJ
43•55 (4.4 •5.6, 32.41)

tOJ
43-.55 (4.4•5.6, 32.41)
~~.
55(44 •5~" 32•41) ,
4

to.J
43•55

(4.4 •5.6, 32.41)
@

>~",
~//~«;~

~J. / /--...""

to.J :
N'm (kg-m. ft-Ib)

MRS108A
