1995 NISSAN ALMERA N15 Service Manual

PRECAUTIONSANDPREPARATION
Supplemental RestraintSystem(SRS)"AIR
BAG" (DualAirBag System)

The Supplemental RestraintSystem"AirBag", usedalong withaseat belt,helps toreduce therisk or•
severity ofinjury tothe driver andfront passenger inafrontal collision. TheSupplemental Restraint
i

System consists ofair bag modules (locatedinthe center ofthe steering wheelandonthe instrument
panel onthe passenger side).adiagnosis sensorunit,warning lamp,wiring harness andspiral cable.
Information necessarytoservice thesystem safelyisincluded inthe
RSsection
ofthis Service Manual.

WARNING:
• Toavoid rendering theSRS inoperative, whichcouldincrease therisk ofpersonal injuryordeath
in the event ofacollision whichwould resultinair bag inflation, allmaintenance mustbeperformed
by an authorized NISSANdealer.
• Improper maintenance, includingincorrectremovalandinstallation ofthe SRS, canlead topersonal
injury caused byunintentional activationofthe system.
• Donot use electrical testequipment onany circuit related tothe SRS unless instructed tointhis
Service Manual. SRSwiring harnesses arecovered withyellow insulation eitherjustbefore the
harness connectors orfor the complete harness,foreasy identification.
Supplemental RestraintSystem(SRS)"AIR
BAG" (Single AirBag System)

The Supplemental RestraintSystem"AirBag", usedalong withaseat belt,helps toreduce therisk or
severity ofinjury tothe driver inafrontal collision. TheSupplemental RestraintSystemconsists ofan
air bag module (located inthe center ofthe steering wheel),adiagnosis sensorunit,warning lamp,
wiring harness andspiral cable. Information necessarytoservice thesystem safelyisincluded inthe

RS section
ofthis Service Manual.

WARNING:
• Toavoid rendering theSRS inoperative, whichcouldincrease therisk ofpersonal injuryordeath
in the event ofacollision whichwould resultinair bag inflation, allmaintenance mustbeperformed
by an authorized NISSANdealer.
• Improper maintenance, includingincorrectremovalandinstallation ofthe SRS, canlead topersonal
injury caused byunintentional activationofthe system.
• Donot use electrical testequipment onany circuit related tothe SRS.
MA-3

PRECAUTIONSANDPREPARATION

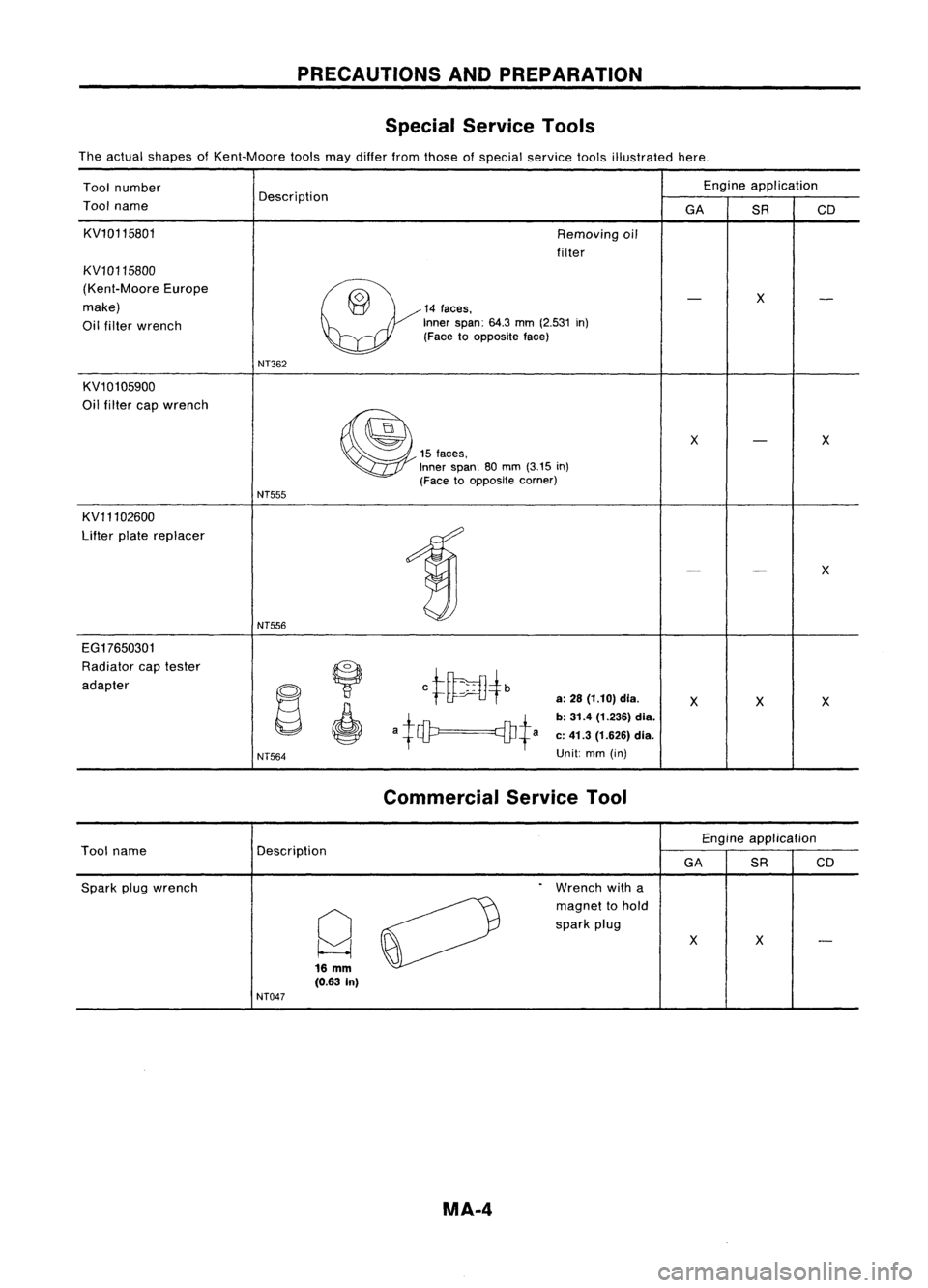

Special Service Tools

The actual shapes ofKent-Moore toolsmaydiffer fromthose ofspecial service toolsillustrated here.
Tool number Engine
application
Tool name Description
GASRCD
KV10115801 Removingoil
filter
KV10115800
(Kent-Moore Europe

~14"'"
-

X

-

make)
Oil filter wrench Inner
span:
64.3
mm
(2.531
in)
(Face toopposite face)

NT362

KV10105900
Oil filter capwrench

~
X

-

X

15
faces,
Inner span: 80mm
(3.15
in)
(Face toopposite corner)

NT555

KV11102600
Lifter platereplacer

1
-
-
X

NT556

EG17650301 Radiator captester

~
ct~4b
adapter

~
"
a:

28
(1.10) dia.

XX X

a+ciP q]J+a
b:
31.4 (1.236) dia.
c: 41.3 (1.626) dia.

I
NT564
Unit:
mm(in)

Commercial ServiceTool

Engineapplication
Tool name Description
GASRCD
Spark plugwrench
.

Wrench witha

Q
0
magnet
tohold
spark plug

XX

-

16
mm

(0.63 In)
NT047

MA.4

PRE-DELIVERYINSPECTIONITEMS
Shown belowarePre-delivery InspectionItemsrequired forthe new vehicle. Itis recommended that
necessary itemsotherthanthose listedherebeadded, payingdueregard tothe conditions ineach
country.

Perform applicable itemsoneach model. Consult textofthis section forspecifications .

UNDER HOOD-engine off

o
Radiator coolantlevelandcoolant hosecon-
nections forleaks

o
Battery fluidlevel, specific gravityandcondi-
tions ofbattery terminals

o
Drive beltstension

D
Fuel filter forwater ordusts, andfuel lines
and connections forleaks
[] Engine oillevel andoilleaks

D
Clutch andbrake reservoir fluidlevel and
fluid lines forleaks

o
Windshield andrear window washerand
headlamp cleanerreservoir fluidlevel

D
Power steering reservoir fluidlevel andhose
connections forleaks

ON INSIDE ANDOUTSIDE

D
Remove frontspring/strut spacer(Ifapplica-
ble)

D
Operation ofall instruments, gauges,lights
and accessories

o
Operation ofhorn(s), wiperandwasher
[] Steering lockforoperation
[] Check airconditioner forgas leaks

o
Front andrear seats, andseat belts foroper-
ation

n
All moldings, trimsandfittings forfitand
alignment

[J
Allwindows foroperation andalignment

n
Hood, trunklid,door panels forfitand align-
ment

[1
Latches, keysandlocks foroperation

rl
Weatherstrips foradhesion andfit

[l
Headlamp aiming
I~ Tighten wheelnuts(Inc. inner nutsifapplica-
ble)
IJ Tire pressure (Inc.spare tire)

Il
Check frontwheels fortoe-in
IJ Install clock/voltmeter/room lampfuse(If
applicable)
~ Install deodorizing filtertoair purifier (If
applicable)
~ Remove wiperbladeprotectors (Ifapplicable)
UNDER
BODY

o
Manual transmission/transaxle, transferand
differential gearoillevel

D
Brake andfuel lines andoil/fluid reservoirs
for leaks

D
Tighten boltsandnuts ofsteering linkageand
gear box,suspension, propellershaftsand
drive shafts
~ Tighten rearbody boltsandnuts (Models with
wooden bedonly)

ROAD TEST

D
Clutch operation

D
Parking brakeoperation

[J
Service brakeoperation

D
Automatic transmission/transaxle shifttiming
and kickdown
[] Steering controlandreturnability

o
Engine performance

D
Squeaks andrattles

ENGINE OPERATING ANDHOT

D
Adjust idlemixture andspeed (andignition
timing*1)

n
Automatic transmission/transaxle fluidlevel
~ Engine idlingandstop knob operation (Diesel
only)

FINAL INSPECTION

n
Install necessary parts(outside mirror,wheel
covers, seatbelts, mat,carpet ormud flaps)

[1
Inspect forinterior andexterior metaland
paint damage
[] Check forspare tire,jack, tools (wheel
chock), andliterature

n
Wash, cleaninterior andexterior

"1: Not required onmodels withadirect ignition system
~ :Not appiicable tothis model.
•

MA-5

GENERALMAINTENANCE

General maintenance includesthoseitemswhich should bechecked duringthenormal day-to-day
operation ofthe vehicle. Theyareessential ifthe vehicle isto continue operating properly.Theowners
can perform thechecks andinspections themselves orthey canhave theirNISSAN dealersdothem.

Item

OUTSIDE THEVEHICLE

The maintenance itemslistedhereshould beperformed fromtimetotime, unless oth-
erwise specified.

Tires
Check thepressure withagauge periodically whenataservice station, including
the spare, andadjust tothe specified pressureifnecessary. Checkcarefully fordamage,
cuts orexcessive wear.

Windshield wiperblades
Checkforcracks orwear ifthey donot wipe properly.

Doors andengine hood
Check thatalldoors, theengine hood,thetrunk lidand back
door operate properly. Alsoensure thatalllatches locksecurely. Lubricate hinges,
latches, rollersandlinks ifnecessary. Makesurethatthesecondary latchkeeps thehood
from opening whentheprimary latchisreleased.
When driving inareas usingroadsaltorother corrosive materials, checkforlubrication
frequently.

Tire rotation
Tiresshould berotated every
10,000
km
(6,000
miles).

INSIDE THEVEHICLE

The maintenance itemslistedhereshould bechecked onaregular basis,suchaswhen
performing periodicmaintenance, cleaningthevehicle, etc.

Lights
Makesurethattheheadlights, stoplights, taillights, turnsignal lights,andother
lights arealloperating properlyandinstalled securely. Alsocheck headlight aim.

Warning lightsandbuzzers/chimes
Makesurethatallwarning lightsandbuzzers/chimes
are operating properly.

Steering wheel
Check forchange inthe steering conditions, suchasexcessive freeplay,
hard steering orstrange noises.

Free play: Lessthan35mm (1.38 in)
Seat belts
Check thatallparts ofthe seat beltsystem (e.g.buckles, anchors, adjusters
and retractors) operateproperly andsmoothly, andareinstalled securely. Checkthebelt
webbing forcuts, fraying, wearordamage.

UNDER THEHOOD ANDVEHICLE

The maintenance itemslisted hereshould bechecked periodically e.g.each timeyou
check theengine oilorrefuel.

Windshield washerfluid
Check thatthere isadequate fluidinthe tank.

Engine coolant level
Check thecoolant levelwhen theengine iscold.

Engine oillevel
Check thelevel afterparking thevehicle onalevel spotandturning off
the engine.

Brake andclutch fluidlevels
Makesurethatthebrake andclutch fluidlevels arebetween
the "MAX" and"MIN" linesonthe reservoir.

Battery
Checkthefluid level ineach cell.Itshould bebetween the"MAX" and"MIN"
lines.

MA-6
Reference
pages
MA-51
MA-50
MA-19,38
MA-24, 33,41
MA-45,47

PERIODICMAINTENANCE (ExceptforEurope)

The following tablesshowthenormal maintenance schedule.Depending uponweather andatmospheric
conditions, varyingroadsurfaces, individual drivinghabitsandvehicle usage,additional ormore fre-
quent maintenance mayberequired.

Periodic maintenance beyondthelast period shown onthe tables requires similarmaintenance .
Engine andEmission ControlService

•

Abbreviations: I
=
Inspect andcorrect orreplace asnecessary. R

MAINTENANCE OPERATION

Perform eitheratnumber ofkilometers (miles)
or months, whichever comestirst. km
x1,000
(Miles x1,000)
Months
Replace.
A
=
Adjust, C
=
Clean.

MAINTENANCE INTERVAL
10 20 3040
506070
80
Reference page
(6) (12) (18)
(24)(30)(36)(42)(48)
6 12 18
24
3036
42 48
Underhood andunder vehicle GA
SR
Intake
&
exhaust valveclearance (GA15DE
&
GA16DE engines) SeeNOTE (1)
EM41
-

Drive belts
II
MA 17
24
Engine anti-Ireeze coolant(Ethylene glycolbase)(LLC) RRMA 1929
Engine coolant (Softwater) RRR
R

R R

R
RMA
1929
Cooling system
I
I

I
I
MA 2131
Fuel lines
I
I
MA
22
32
Air cleaner filter(Drypaper type)*
CC
C RC CC RMA 23

-

Air cleaner filter(Viscous papertype)* R
RMA
2333
Engine oil(Use APISE,SF.SGorSH oil)*
R

RRRR R
RR
MA 24
33
Engine oilfilter* R
R R
R
R RRRMA
2433
Fuel filter* R
RMA
22
32
Spark plugs(except Platinum-tipped type) R
RMA
25

-

Spark plugs(platinum-tipped type) Replaceevery100,000 km(60.000 miles). MA

-
34
Ignition wires
I

I
MA
2635
PCV filter* R
RMA
26

-

Vapor lines
I

I
MA
26
36
(Heated) OxygenSensor
I

I

MA 2737
NOTE: (1)
If
valve noiseincreases, checkvalveclearance.

*
Maintenance itemswith
"*"
should beperformed morefrequently accordingto"Maintenance undersevere driv-
ing conditions".

MA-7

PERIODICMAINTENANCE (ExceptforEurope)
Chassis andBody Service

Abbreviations: I
=
Inspect andcorrect orreplace asnecessary, RReplace, L
=
Lubricate.

MAINTENANCE OPERATION MAINTENANCE
INTERVAL
km x1,000 10
20 30 40
5060 70
80Refer-
Perform eitheratnumber ofkilometers (miles)or
ence

months, whichever comesfirst. (Miles
x1,000) (0.6)(6)(12) (18) (24)(30)(36) (42)(48)
page
Months 612 1824
3036 42
48

Underhood andunder vehicle

Brake, clutch
&
automatic transaxlefluidoroil (For
level
&
leaks)* MA-47,
45, 46
Brake fluid* R
RMA-47
Brake booster
vacuum
hoses,connections
&
check
valve
MA-48
Power steering fluid
&
lines (For
level
&
leaks)

""
I'

"
MA-50
Brake, clutch
&
exhaust systems MA-47,
45
Manual transaxle oil(For level
&
leaks)*

"
I'
I' I'

MA-45
MA-50
Steering gear
&
linkage, axle
&
suspension parts
&
drive
shafts* I'
FA-5
RA-4

Outside andInside

Wheel alignment,
If
necessary, rotate
&
balance wheels MA-49
FA-6
Brake pads,disc
&
other brake components* MA-48
Brake linings, drums
&
other brake components MA-49
Locks, hinges
&
hood latch* L'
LL' LL'
LL'
LMA-51
Seat belts, buckles, retractors, anchors
&
adjuster MA-51
BR-11,
Foot brake, parking brake
&
clutch (Forfreeplay, stroke
&
operation)
I'
I'
I'
I'
37
CL-5
Air bag system See
NOTE (1) RS-11

NOTE: (1)Inspect atthe first 10years, andthen every 2years.

*
Maintenance itemswith
"*"
should beperformed morefrequently accordingto"Maintenance UnderSevere Driv-
ing Conditions".
*:
Except
for
Australia models

MA-8

PERIODICMAINTENANCE (ExceptforEurope)
Maintenance UnderSevere DrivingConditions

The maintenance intervalsshownonthe preceding pagesarefornormal operating conditions. Ifthe
vehicle ismainly operated undersevere drivingconditions asshown below, morefrequent maintenance •
must beperformed onthe following itemsasshown inthe table. •

SEVERE DRIVING CONDITIONS

A -Driving underdustyconditions
B -Driving repeatedly shortdistances
C -Towing atrailer orcaravan
D -Extensive idling
E -Driving inextremely adverseweather con-
ditions orinareas where ambient temper-
atures areeither extremely lowor
extremely high F
-Driving inhigh humidity areasorinmoun-
tainous areas
G -Driving inareas usingsaltorother corro-
sive materials
H -Driving onrough and/or muddy roadsorin
the desert
- Driving withfrequent useofbraking orin
mountainous areas
Driving
condition Maintenance
item Maintenance
operation Maintenance
interval Reference
page
GA
SR

A Aircleaner filter
Dry paper type
Clean MA
23
-

All types ReplaceMorefrequently MA
2333
PCV filter Replace MA26
-

A BC D
Engineoil
&
oil filter ReplaceEvery
5,000km
MA2424
(3,000 miles) or3months
A E Fuel
filter Replace
Every20,000 km MA
2232
F Brakefluid Replace(12,000
miles)or12 months
MA-47
C
H
Automatic

&
manual transaxle Replace Every40,000 km
MA-46,45
oil (24,000
miles)or24 months
G
H
Steering
gear
&
linkage, axle
&
Check
Every10,000 km MA-50
suspension parts
&
drive shafts
(6,000miles) or6months FA-5,
7
RA-4
A C G
H

I
Brake pads,discs
&
other brake Check Every
5,000km
MA-48
components (3,000
miles) or3months
A C
G
H

1
Brake
linings, drums
&
other
Check Every
10,000 km
MA-49
brake components (6,000
miles) or6months
G Lock,
hinges
&
hood latch Lubricate
Every5,000km
MA-51
(3,000 miles) or3months
Maintenance operation:Check
=
Check. Correct orreplace
if
necessary.

MA-9

PERIODICMAINTENANCE (ForEurope)
The following tablesshowthenormal maintenance schedule.Depending uponweather andatmospheric
conditions, varyingroadsurfaces, individual drivinghabitsandvehicle usage,additional ormore fre-
quent maintenance mayberequired.
Periodic maintenance beyondthelast period shown onthe tables requires similarmaintenance.
Engine Oil
&
Minor Service
GASOLINE ENGINE

Abbreviation: R
=
Replace.

MAINTENANCE OPERATION
Perform eitheratnumber ofkilometers (miles)or
months, whichever comesfirst. km
x1,000
(Miles x1,000)
Months MAINTENANCE
INTERVAL
15 30 45
60 75
90105
120
Reference
(9) (18) (27) (36)(45)(54) (63)(72) page
12 24 3648 6072 84
96
Underhood andunder vehicle
Engine
011
(API SGorSH
011)*

Engine oilfiller*
DIESEL ENGINE
R

R R

R R

R
R

R
R

R
R
R
R

R
R

R
MA-24
MA-24

Abbreviations: R
=
Replace, IInspect
andcorrect orreplace asnecessary

MAINTENANCE OPERATION
Perform eitheratnumber ofkilometers (miles)or kmx1,000 10
20 30
40
5060 70
80
Reference
months, whichever comesfirst.
(30)(36) page
(Miles x1,000) (6)(12) (18) (24)
(42)
(48)
Months 612
1824
3036 42
48
Underhood andunder vehicle
Engine oil(Use APiCDoil)* R
RRR
RR R
R MA-41
Engine oilfilter* R
RRR RR RR MA-41
Drive belts MA-38
Idle speed MA-44
NOTE:
*
Maintenance itemswith
"*"
should beperformed morefrequently accordingto"Maintenance UnderSevere Driv-
ing Conditions".
MA-10
