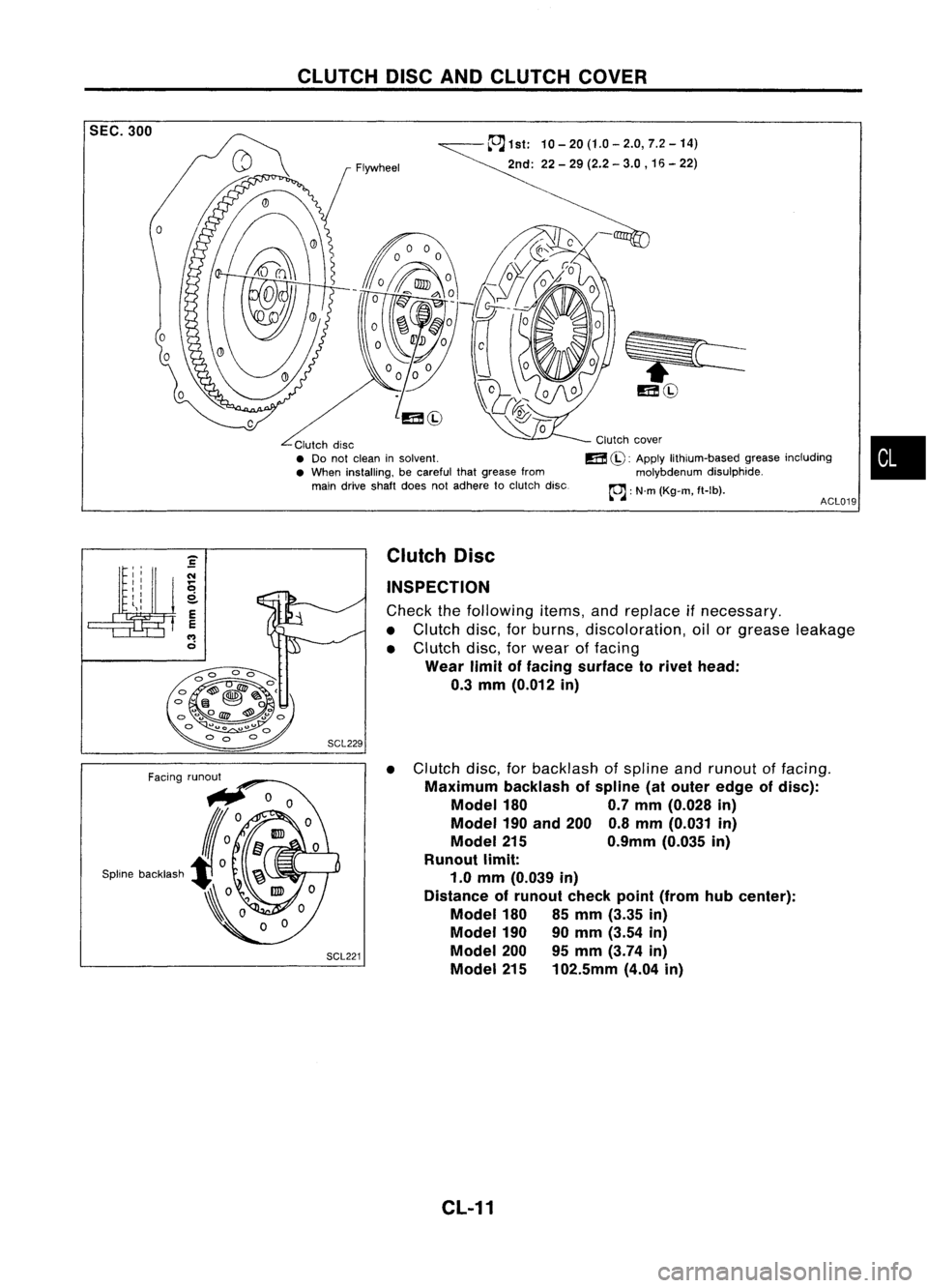

1995 NISSAN ALMERA N15 Service Manual

CLUTCHDISCANDCLUTCH COVER

~1st: 10-20(1.0-2.0,7.2-14)
2nd: 22-29 (2.2 -3.0 ,16 -22)

ACL019
SEC.
300

o

Clutchdisc
• Do not clean insolvent.
• When installing, becareful thatgrease from
main drive shaft doesnotadhere toclutch disc. Clutch
cover

m
(iJ:
Apply lithium-based greaseincluding
molybdenum disulphide.
~ :N'm (Kg-m, ft-Ib).

•

SCL221 Clutch
Disc
INSPECTION

Check thefollowing items,andreplace ifnecessary.
• Clutch disc,forburns, discoloration, oilorgrease leakage
• Clutch disc,forwear offacing

Wear limitoffacing surface torivet head:
0.3 mm (0.012 in)

• Clutch disc,forbacklash ofspline andrunout offacing.

Maximum backlashofspline (atouter edgeofdisc):
Model 180 0.7mm (0.028 in)

Model 190
and 200 0.8mm (0.031 in)
Model 215 0.9mm(0.035in)
Runout limit:
1.0 mm (0.039 in)
Distance ofrunout checkpoint(from hubcenter):

Model 180
85mm (3.35 in)

Model 190
90mm (3.54 in)

Model 200
95mm (3.74 in)
Model 215102.5mm (4.04in)
CL-11

CLUTCHDISCANDCLUTCH COVER
Clutch Disc(Cont'd)
INSTALLATION

• Apply recommended greasetocontact surface ofsplines.

• Too much lubricant maydamage clutchdiscfacing.
Dial gauge Clutch
CoverandFlywheel
INSPECTION ANDADJUSTMENT

• Check clutchcover, installed onvehicle, foruneven dia-
phragm springtoeheight.

Uneven limit:
Model 180 1.0mm (0.039 in)

Model 190,
200and 215 0.7mm (0.028 in)

• Ifout oflimit, adjust theheight withTool.

SCL466-A FLYWHEEL INSPECTION
CAUTION:
Do not allow anymagnetic materials tocontact thering gear
teeth.

• Inspect contact surface offlywheel forslight burns ordis-
coloration. Cleanflywheel withemery paper.
• Check flywheel runout.

Maximum allowable runout:
Refer toEM section ("Inspection", "CYLINDER
BLOCK").
AEM100
INSTALLATION

• Insert Toolintoclutch dischubwhen installing clutchcover
and disc.
• Becareful nottoallow grease tocontaminate clutchfacing.
• Tighten boltsinnumerical order,intwo steps.

First step:
~: 10•20 N'm '(1.0 •2.0 kg-m, 7-14 ft-Ib)
Final step:
~: 22•29 N'm (2.2•3.0 kg-m, 16•22 ft-Ib)
SCL616-A
CL-12

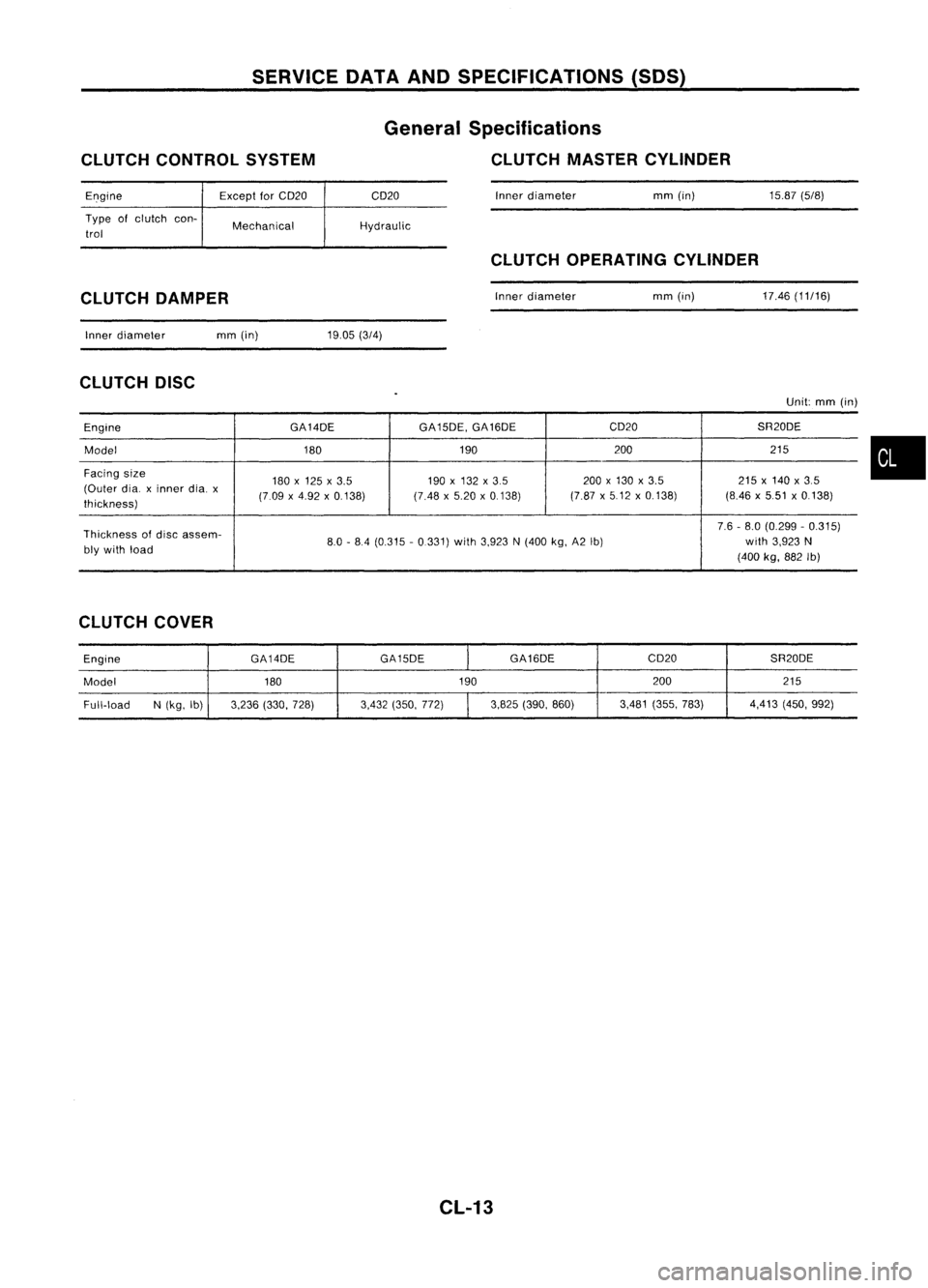

SERVICEDATAANDSPECIFICATIONS (SOS)
CLUTCH CONTROL SYSTEM General
Specifications
CLUTCH MASTER CYLINDER

Engine
Type ofclutch con-
trol Except
forCD20
Mechanical CD20
Hydraulic Inner
diameter
mm(in)
15.87(5/8)
CLUTCH OPERATING CYLINDER
CLUTCH DAMPER
Inner
diameter
mm(in)
17.46
(11/16)

Inner diameter
mm(in)
19.05
(3/4)

CLUTCH DISC

Unit:mm(in)

Engine GA14DEGA15DE,
GA16DE CD20
SR20DE
Model 180190
200 215
Facing size
180x125 x3.5 190
x132 x3.5 200
x130 x3.5 215x140 x3.5
(Outer dia.xinner dia.x
(7.09x4.92 x0.138) (7.48x5.20 x0.138) (7.87
x5.12 x0.138) (8.46x5.51 x0.138)
thickness)
Thickness ofdisc assem- 7.6
-8.0 (0.299 -0.315)
bly with load 8.0
-8.4 (0.315 -0331) with3,923 N(400 kg,A2Ib) with3,923 N
(400 kg,882 Ib)

CLUTCH COVER

Engine GA14DE
GA15DE

I
GA16DE
CD20
SR20DE
Model 180 190200
215
Full-load N
(kg, Ib) 3,236(330,728) 3,432(350,772)

I
3,825
(390,860) 3,481(355,783) 4,413
(450,992)

CL-13
•

SERVICEDATAANDSPECIFICATIONS (SOS)
Inspection andAdjustment
CLUTCH PEDAL

Unit:mm(in)
Except forCD20 engine models
CD20engine models
Applied model
RHOLHD
RHO LHD
Pedal height "H"
159-169 (6.26 -6.65)'1 153-163 (6.02 -6.42)*2 156-166 (6.14 -6.54)'1
149-159 (5.87 -6.26)'2
Pedal freetravel "A"
11-15 (0.43 -0.59)
9-16 (0.35 -0.63)
(at pedal pad)
Withdrawal leverplay"8" 2.5-3.5 (0.098 -0.138)

-

'1: Measured fromsurface ofdash reinforcement paneltosurface ofpedal pad.
'2: Measured fromsurface ofdash lower paneltosurface ofpedal pad.

CLUTCH DISC

Unit:mm(in)
Disc model
180190

I
200
215
Wear limitoffacing surface torivet head
0.3(0.012)
Runout limitoffacing 1.0(0.039)
Distance ofrunout checkpoint(from hub
85(3.35) 90(3.54)

I
95
(3.74) 102.5(4.04)
center)
Maximum backlashofspline (atouter edgeof
0.7(0.028) 0.8(0.031)
0.9(0.035)
disc)

CLUTCH COVER

Cover model
Uneven limitofdiaphragm springtoeheight 180
1.0 (0.039)

CL-14 190

I
200
0.7 (0.028)
I
Unit:
mm(in)
215

ELECTRICALSYSTEM
