PRECAUTIONSANDPREPARATION
Precautions
• When installing rubberparts,finaltightening mustbecar-
ried outunder unladen condition* withtires onground.
*: Fuel, radiator coolantandengine oilfull. Spare tire,
jack,

hand tools andmats indesignated positions.
• After installing removedsuspension parts,check wheel
alignment andadjust ifnecessary.
• Use flare nutwrench whenremoving orinstalling brake
tubes.
• Always torquebrakelineswhen installing.

Tool number
Tool name
SBR820B

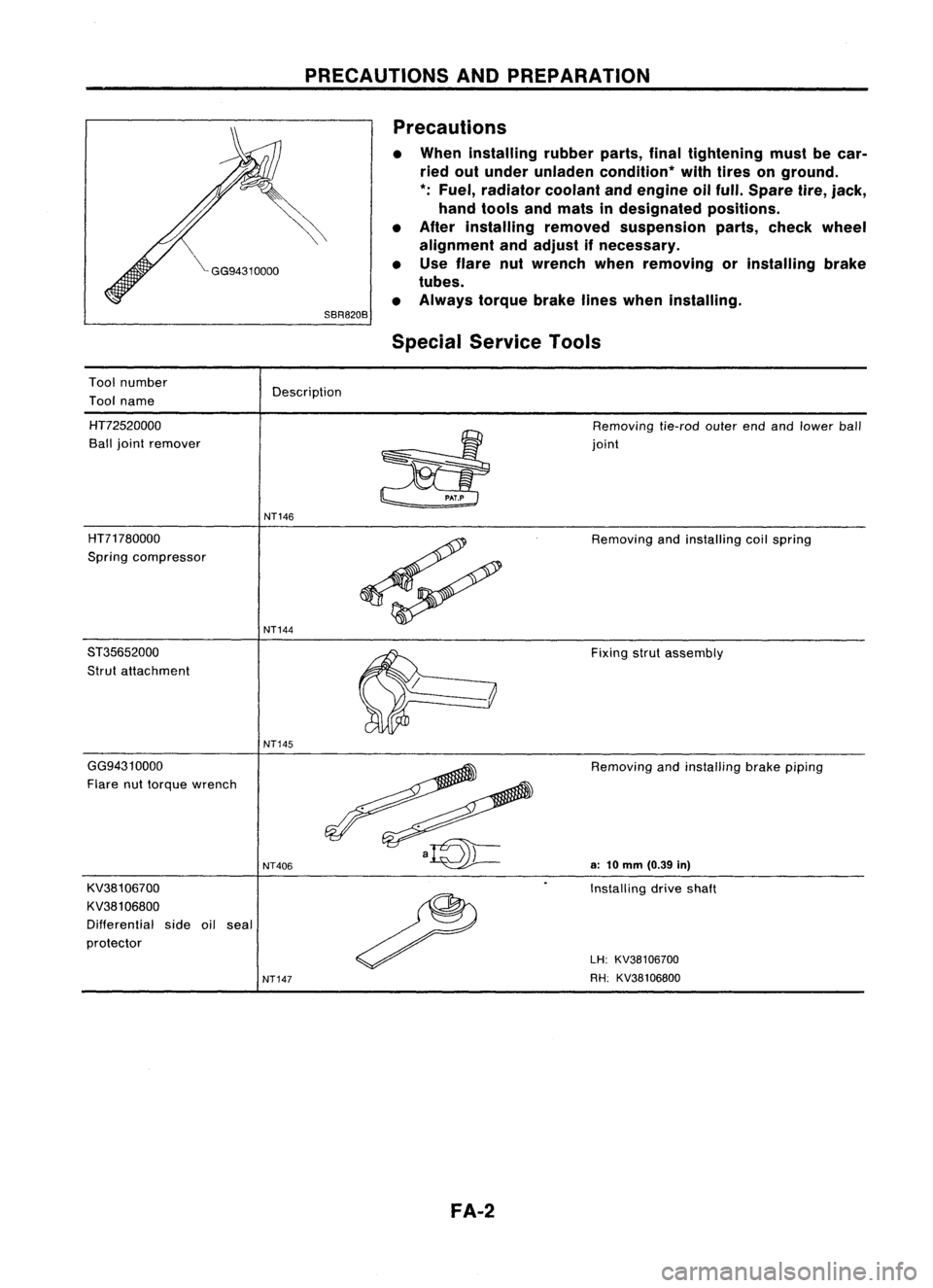

Special Service Tools

Description

HT72520000

Ball joint remover Removing
tie-rodouterendandlower ball
joint

NT146
HT71780000

Spring compressor

ST35652000
Strut attachment
NT144
Removing
andinstalling coilspring
Fixing strutassembly

NT145
GG94310000

Flare nuttorque wrench

KV38106700
KV381 06800

Differential sideoilseal
protector
NT406
NT147
FA-2
Removing
andinstalling brakepiping

a:
10mm (0.39 in)

Installing driveshaft

LH: KV38106700
RH: KV38106800

Toolname
Front wheel hubdrift
PRECAUTIONS
ANDPREPARATION

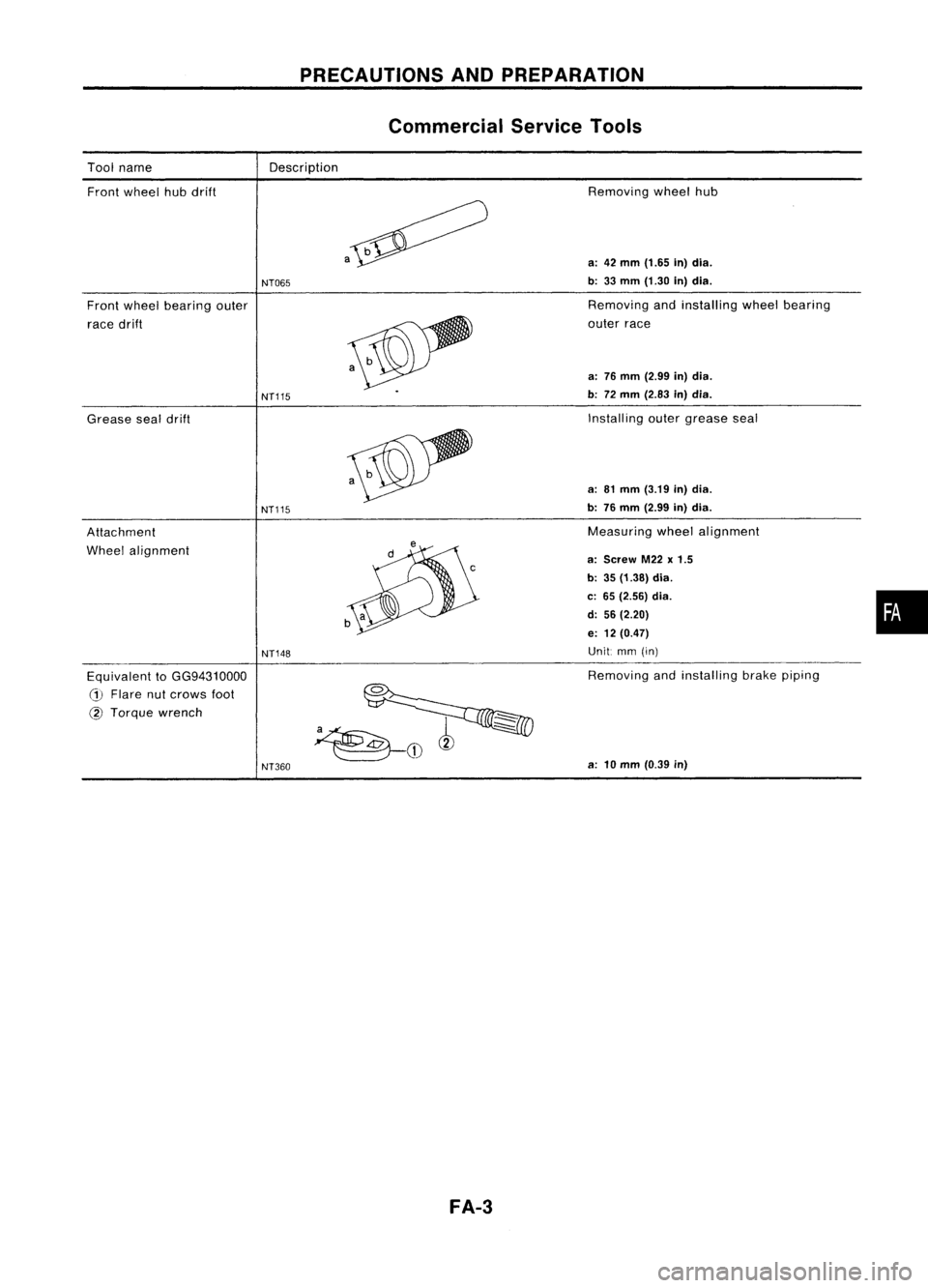

Commercial ServiceTools

Description Removingwheelhub
Front wheel bearing outer
race drift
Grease sealdrift
Attachment
Wheel alignment
Equivalent toGG94310000

G)
Flare nutcrows foot

GV
Torque wrench
NT065
NT115
NT115
NT148
NT360
FA-3
a:
42 mm (1.65 in)dia.
b: 33mm (1.30 in)dia.
Removing andinstalling wheelbearing
outer race
a: 76mm (2.99 in)dia.
b: 72mm (2.83 in)dia.
Installing outergrease seal
a: 81mm (3.19 in)dia.
b: 76mm (2.99 in)dia.
Measuring wheelalignment

a: Screw M22x1.5

b: 35(1.38) dia.
c: 65 (2.56) dia.
d: 56(2.20)
e: 12(0.47)

Unit mm(in)

Removing andinstalling brakepiping
a: 10mm (0.39 in)
•

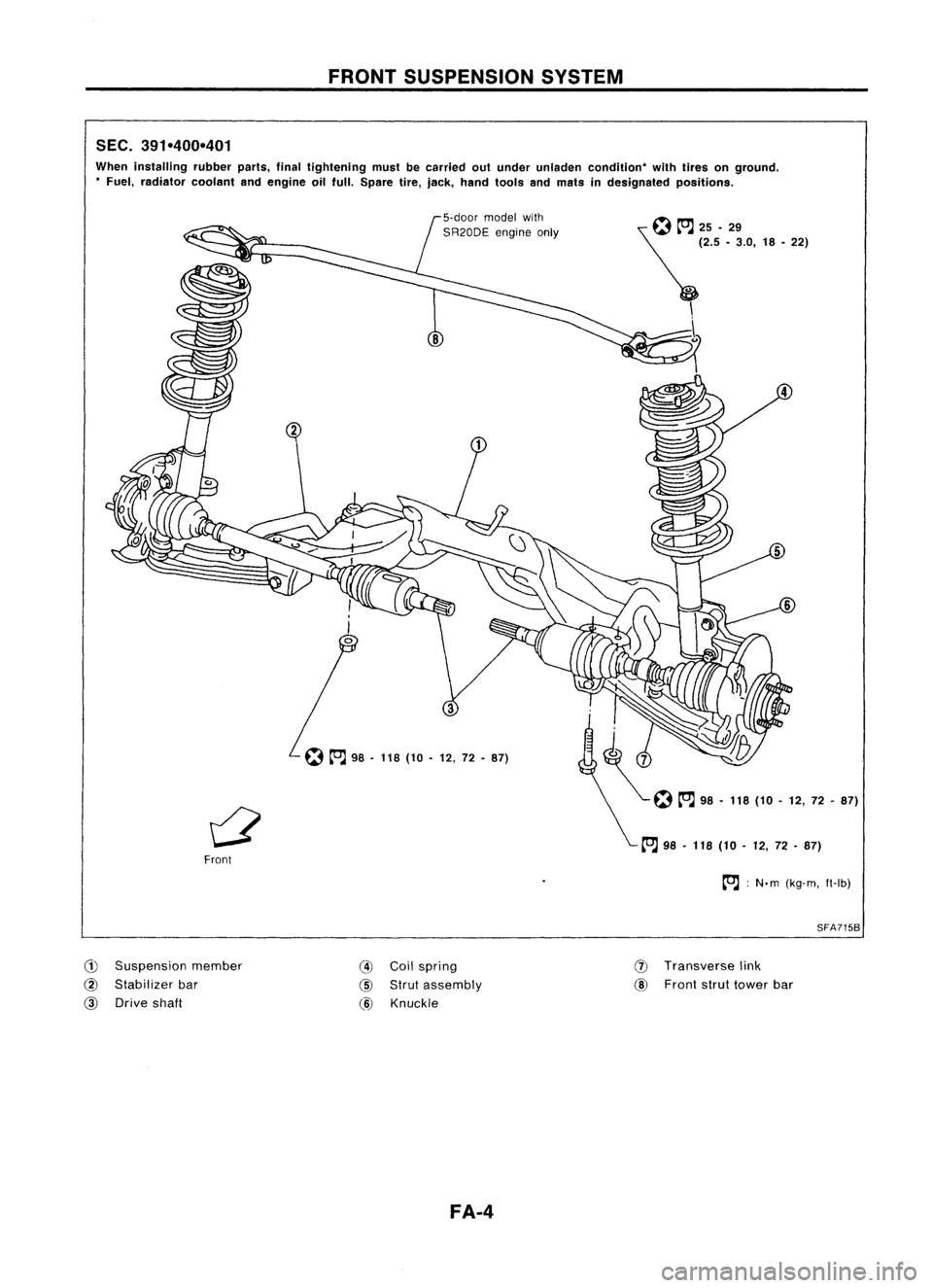

FRONTSUSPENSION SYSTEM
SEC. 391-400-401

When installing rubberparts,finaltightening mustbecarried outunder unladen condition" withtires onground .
• Fuel, radiator coolantandengine oilfull. Spare tire,jack, hand tools andmats indesignated positions.

~~25.29
~ (2.5•3.0, 18•22)

\ \
...

5

~ 98•118 (10•12, 72•87)

Front

to.J:
N. m (kg-m, ft-Ib)

SFA715B

CD
Suspension member

@
Stabilizer bar

@
Drive shaft
@

Coilspring

@
Strut assembly

@
Knuckle

FA-4
(J)

Transverse link

@
Front struttower bar

SMA525AON-VEHICLE
SERVICE
Front AxleandFront Suspension Parts

Check frontaxleandfront suspension partsforexcessive play,
cracks, wearorother damage.
• Shake eachfrontwheel tocheck forexcessive play.
• Make surethatcotter pinsareinserted.
• Retighten allaxle andsuspension nutsandbolts tothe
specified torque.

Tightening torque:
Refer toFRONT SUSPENSION (FA-24).
Strut
Ball
joint

SFA392B
•
Check strut(shock absorber) foroilleakage orother dam-
age.
• Check suspension balljoint forgrease leakage andball
joint dustcover forcracks orother damage.
If ball joint dustcover iscracked ordamaged, replacetrans-
verse link.
• Check suspension balljoint endplay.
a. Jack upfront ofvehicle andsetthe stands.
b. Clamp dialindicator ontotransverse linkand place indica- •
tor tiponlower edgeofbrake caliper. •
c. Make surefront wheels arestraight andbrake pedalis
depressed.
d. Place apry bar between transverse linkand inner rimof
road wheel.
e. While raising andreleasing prybar, observe maximum dial
indicator value.
Vertical endplay: 0mm (0in)

f. Ifball joint vertical endplay exists, remove transverse link
and recheck theball joint. Refer toFA-27.

SFA484A Front
Wheel Bearing

• Check thatwheel bearings operatesmoothly.
• Check axialendplay.

Axial endplay: 0.05mm(0.0020 in)orless
• If
out ofspecification orwheel bearing doesnotturn
smoothly, replacewheelbearing assembly.
Refer toFRONT AXLE-Wheel HubandKnuckle (FA-B).

FA-5

ON-VEHICLESERVICE
Front Wheel Alignment

Before checking frontwheel alignment, besure tomake apre-
liminary inspection (Unladen*).
*: Fuel, radiator coolantandengine oilfull. Spare tire,jack,
hand tools andmats indesignated positions.

SFA575B PRELIMINARY INSPECTION

1. Check tiresforwear andimproper inflation.
2. Check wheelrunout.

Wheel runout:
Refer toSOS (FA-30).

3. Check frontwheel bearings forlooseness.
4. Check frontsuspension forlooseness.
5. Check steering linkageforlooseness.
6. Check thatstruts workproperly.
7. Check vehicle posture (Unladen).

TOE-IN Measure toe-inusingfollowing procedure.
WARNING:
• Perform following procedure alwaysonaflat surface.
• Make surethatnoperson isin front ofthe vehicle before
pushing it.

1. Bounce frontofvehicle upand down tostabilize theposture.
2. Push thevehicle straight aheadabout5m (16 ft).
3. Put amark onbase lineoftread (rearside) ofboth tires at
the same height ashub center. Thesearemeasuring points.
4. Measure distance"A"(rear side).
5. Push thevehicle slowlyaheadtorotate thewheels 180
degrees (1/2turn).

If the wheels haverotated morethan180degrees
(112
turn), try
the above procedure againfromthebeginning. Neverpush
vehicle backward.

6. Measure distance"B"(front side).

Total toe-in
Refer toSOS (FA-29).
CAMBER,
CASTERANDKINGPIN INCLINATION
Camber, casterandkingpin inclination arepreset atfactory and
cannot beadjusted.

1. Measure camber,casterandkingpin inclination ofboth right
and leftwheels withasuitable alignment gauge.

Camber, CasterandKingpin inclination:
Refer toSOS (FA-29).

2. Ifcamber, casterorkingpin inclination isnot within
specification, inspectfrontsuspension parts.Replace dam-
aged orworn outparts.

Front
SFA948A
SFA614B
SFA234AC
Lines
parallel to
center lineofbody

Q

Front

Hub
center
height
