1995 NISSAN ALMERA N15 Service Manual

SST491B
SST090B ON-VEHICLE
SERVICE
Bleeding Hydraulic System

1. Raise frontendofvehicle untilwheels areclear ofthe
ground.
2. Add fluid intooiltank tospecified level.Thenquickly turn
steering wheelfullytoright andleftand lightly touchsteer-
ing stoppers.
Repeat steering wheeloperation untilfluid level nolonger
decreases.
3. Start engine.
Repeat step2.above.
• Incomplete airbleeding willcause thefollowing tooccur.
When thishappens, bleedairagain.
a. Air bubbles inreservoir tank
b. Clicking noiseinoil pump
c. Excessive buzzinginoil pump
Fluid noise mayoccur inthe valve oroil pump. Thisiscommon
when thevehicle isstationary orwhile turning thesteering
wheel slowly. Thisdoes notaffect theperformance ordurabil-
ity ofthe system.

Checking SteeringWheelTurning Force(For
power steering)

1. Park vehicle onalevel, drysurface andsetparking brake.
2. Start engine.
3. Bring power steering fluiduptoadequate operating temper-
ature. [Make suretemperature offluid isapproximately 60
to 80°C (140to176°F).]

Tires needtobe inflated tonormal pressure.

4. Check steering wheelturning forcewhen steering wheel
has been turned 360°from theneutral position.

Steering wheelturning force: •
39 N(4 kg, 9Ib) orless

5.
If
steering wheelturning forceisout ofspecification, check
rack sliding force.
a. Disconnect steeringcolumnlowerjointandknuckle arms
from thegear.
b. Start andrunengine atidle tomake suresteering fluidhas
reached normaloperating temperature.
c. Pull tie-rod slowlytomove itfrom neutral position to
::l::
11.5
mm
(::l::
0.453 in)atspeed of3.5 mm (0.138 in)/s.Check that
rack sliding forceiswithin specification.

Average racksliding force:
152.0 -240.3 N(15.5 -24.5 kg,34.2 -54.0 Ib)
Maximum forcedeviation:
98 N(10 kg, 22Ib)

6.
If
rack sliding forceisnot within specification, overhaul
steering gearassembly.
7. Ifrack sliding forceisOK, inspect steering column.Referto
ST-13.

ST-7

ST27091000

.. :Direction ofoil flow Low-pressure
hose SST834-AON-VEHICLE
SERVICE
Checking Hydraulic System

Before starting, checkbelttension, drivingpulleyandtirepres-
sure. 1. Set Tool. Open shut-off valve.Thenbleed air.(See "Bleed-
ing Hydraulic System"ST-7.)
2. Run engine.

Make suretemperature offluid intank rises to60 to80°C (140
to 176°F).
WARNING:
Warm upengine withshut-off valvefullyopened. Ifengine is
started withshut-off valveclosed, fluidpressure inoil pump
increases tomaximum. Thiswillraise oiltemperature abnor-
mally.

3. Check pressure withsteering wheelfullyturned toleft and
right positions withengine idlingat1,000 rpm.

CAUTION:
Do not hold thesteering wheelinalocked position formore
than 15seconds.
Oil pump maximum standardpressure:
7,649 -8,238 kPa(76.5 .82.4 bar,
78 -84 kg/cm
2,
1,109-1,194 psi)

4.
If
oil pressure isbelow thestandard pressure, slowlyclose
shut-off valveandcheck pressure.
• When pressure reachesstandard pressure, gearisdam-
aged.
• When pressure remainsbelowstandard pressure, pumpis
damaged.

CAUTION: Do not close shut-off valveformore than15seconds.

5.
If
oil pressure ishigher thanstandard pressure, checkoil
pump flowcontrol valve.
6. After checking hydraulic system,removeToolandaddfluid
as necessary. Thencompletely bleedairout ofsystem.

S1-8

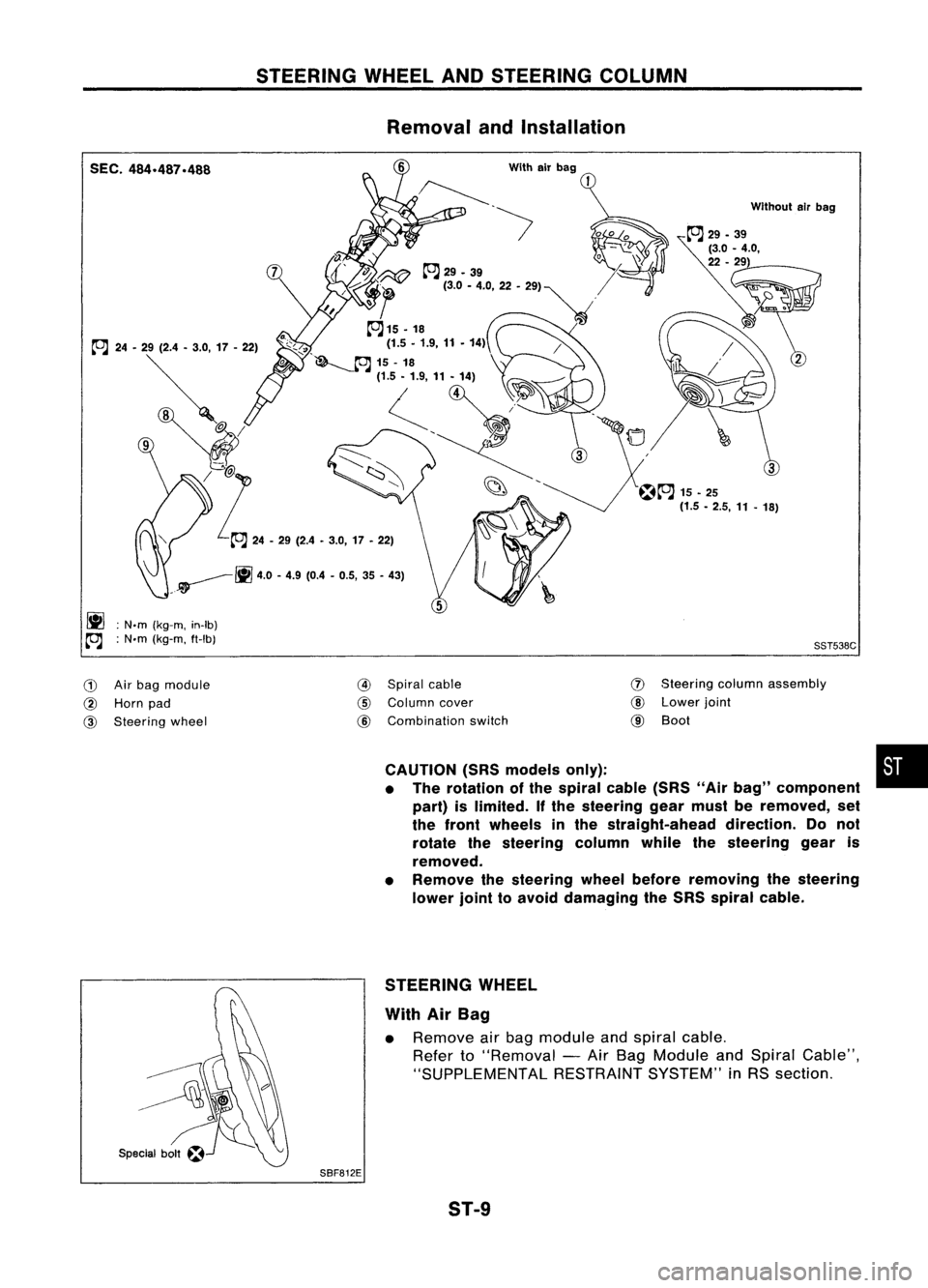

STEERINGWHEELANDSTEERING COLUMN
Removal andInstallation

SEC. 484.487.488

_~ ~4.0-4.9 (0.4 -0.5, 35-43)

ij] :
N.m (kg-m, in-Ib)

co;J :
N.m (kg-m. ft-Ib) With
airbag
Withoutairbag

SST538C

G)
Airbag module

@
Horn pad

@
Steering wheel
@

Spiral cable

@
Column cover

@
Combination switch
(J)

Steering columnassembly

@
Lower joint

@
Boot

CAUTION (SRSmodels only): •
• The rotation ofthe spiral cable(SRS"Airbag" component
part) islimited. Ifthe steering gearmust beremoved, set
the front wheels inthe straight-ahead direction.Donot
rotate thesteering columnwhilethesteering gearis
removed.
• Remove thesteering wheelbefore removing thesteering
lower jointtoavoid damaging theSRS spiral cable.

STEERING WHEEL
With AirBag

• Remove airbag module andspiral cable.
Refer to"Removal -Air Bag Module andSpiral Cable",
"SUPPLEMENTAL RESTRAINTSYSTEM"inRS section.

SBF812E ST-9

STEERINGWHEELANDSTEERING COLUMN
Removal andInstallation (Cont'd)

• Align spiral cablecorrectly wheninstalling steeringwheel.
a. Set thefront wheels inthe straight-ahead position.
b. Make surethatthespiral cableisin the neutral position.
\ Theneutral position isdetected byturning left2.5revolu-
~ tionsfromtheright endposition. Alignthetwo marks (~').

CAUTION:
The spiral cablemaysnap duetosteering operation ifthe cable
is installed inan improper position.
Also, withthesteering linkagedisconnected, thecable may
snap byturning thesteering wheelbeyond thelimited number
of turns. (Thespiral cablecanbeturned upto2.5 turns fromthe
neutral position toboth theright andleft.)
MBF487BA
•Remove steering wheelwithTool.

Without AirBag

1. Remove hornpad.
Insert acrosshead screwdriver intohole onlower sideof
spoke andremove clamp.

Lift
horn padoffbyhand.

Three spoke type
Cross headscrewdriver SST502C
SST495CA ST-10

STEERINGWHEELANDSTEERING COLUMN
Removal andInstallation (Cont'd)
Two spoke type
Clamp

Crosshead screwdriver~

II
SST503C

2.Remove steering wheelwithTool.

SST122B

Cr~I~I;~

~#f
~.'".
Lowerjoint
SST112B
SST800A
•
When installing steeringwheel,lubricate withmulti-purpose
grease. Applygrease toentire surface ofturn signal cancel
pins andhorn contact sliprings.

STEERING COLUMN

• When installing steeringcolumn,fingertighten alllower
bracket andclamp retaining bolts;thentighten them
securely. Donot apply undue stress tosteering column.
• When attaching couplingjoint,besure tightening boltfaces
cutout portion.
• Align slitoflower jointwithprojection ondust cover. Insert
joint untilsurface Acontacts surfaceB.

CAUTION:
After installation, turnsteering wheeltomake sureitmoves
smoothly. Ensurethenumber ofturns arethesame fromthe
straight forward position toleft and right locks. Besure thatthe
steering wheelisin aneutral position whendriving straight
ahead.
•

SST491C ST-11

SEC.488 STEERING
WHEELANDSTEERING COLUMN
Disassembly andAssembly

~.N.m (kg-m, in-Ib)
~ .N.m (kg-m, ft-Ib)

SST539C

G)
Spiral cable

@
Combination switch

@
Lock nut

@
Tiltlever

@
Washer

@
Tiltlever stopper
!J)

Steering columnmounting
bracket

@
Adjust bolt

CID
Adjust boltstopper

@J
Push nut

@
Jacket tubeassembly
@

Boot

@
Steering columnshaft

@
Lower joint

@
Return spring

Lock nut

II
I
•
When disassembling andassembling, unlocksteering lock
with key.
• Install locknutonsteering columnshaftandtighten thenut
to specification.

~: 25-34 N.m (2.5-3.5 kg-m, 18-25 ft-Ib)
SST490C ST-12

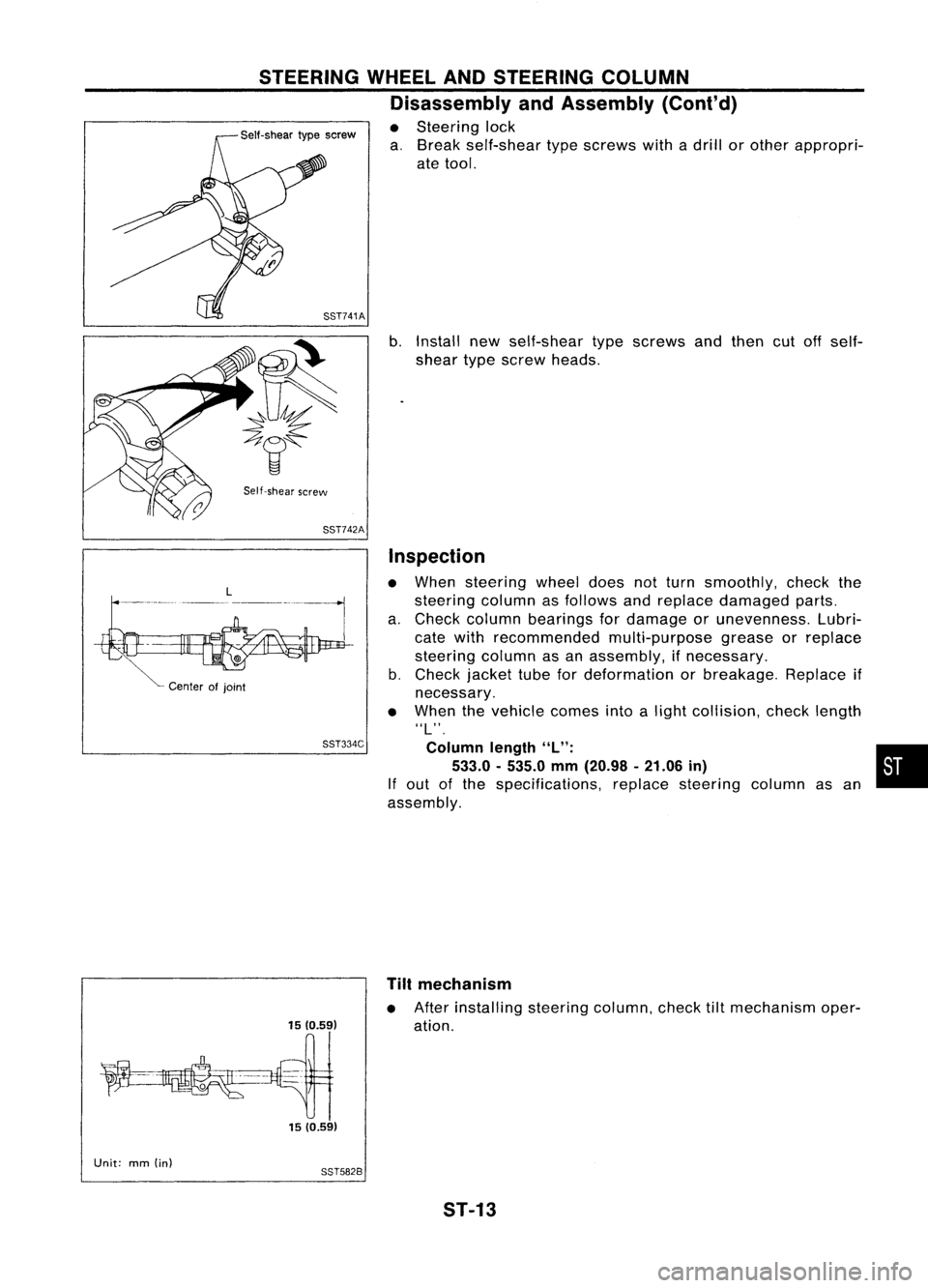

STEERINGWHEELANDSTEERING COLUMN
Disassembly andAssembly (Cont'd)

• Steering lock
a. Break self-shear typescrews withadrill orother appropri-
ate tool.

SST741A
b.Install newself-shear typescrews andthen cutoffself-
shear typescrew heads.

Self-shear screw
SST742A

L

-
--- ---_
..
_-------,
I

Center ofjoint

SST334C

1510.59) 15 (0.59)
Inspection

• When steering wheeldoesnotturn smoothly, checkthe
steering columnasfollows andreplace damaged parts.
a. Check column bearings fordamage orunevenness. Lubri-
cate with recommended multi-purposegreaseorreplace
steering columnasan assembly, ifnecessary.
b. Check jackettubefordeformation orbreakage. Replaceif
necessary.
• When thevehicle comesintoalight collision, checklength

ilL",
Column length
"L": •

533.0 -535.0 mm(20.98 -21.06 in)

If out ofthe specifications, replacesteering columnasan
assembly.

Tilt mechanism

• After installing steeringcolumn,checktiltmechanism oper-
ation.

Unit: mm(in)

8ST5828
ST-13

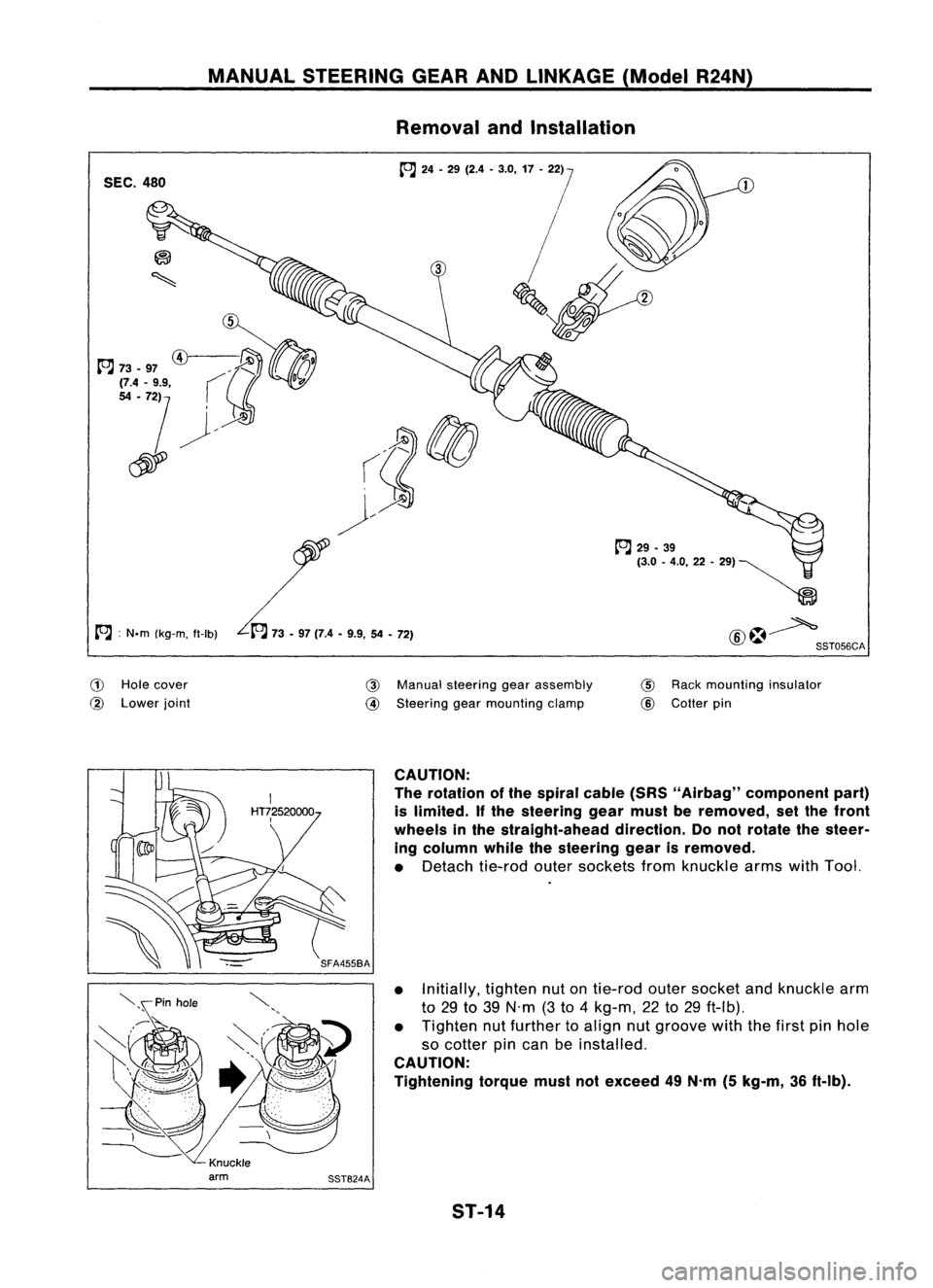

MANUALSTEERING GEARANDLINKAGE (ModelR24N)
Removal andInstallation
SEC. 480
A :
N.m (kg-m, tt-Ib)

(!)
Hole cover

@
Lower joint
@

Manual steering gearassembly

@
Steering gearmounting clamp
tt'J

29•39

(3.0 -4.0,22 -", ~

~
@~ SST056CA

@
Rack mounting insulator

@
Cotter pin

CAUTION:
The rotation ofthe spiral cable(SRS"Airbag" component part)
is limited.
If
the steering gearmust beremoved, setthe front
wheels inthe straight-ahead direction.Donot rotate thesteer-
ing column whilethesteering gearisremoved.

• Detach tie-rodoutersockets fromknuckle armswithTool.
• Initially, tightennutontie-rod outersocket andknuckle arm
to 29 to39 N'm (3to 4kg-m, 22to29 ft-Ib).
• Tighten nutfurther toalign nutgroove withthefirst pinhole
so cotter pincan beinstalled.

CAUTION:
Tightening torquemustnotexceed 49N.m (5kg-m, 36ft-Ib).
ST-14
