1995 NISSAN ALMERA N15 Service Manual

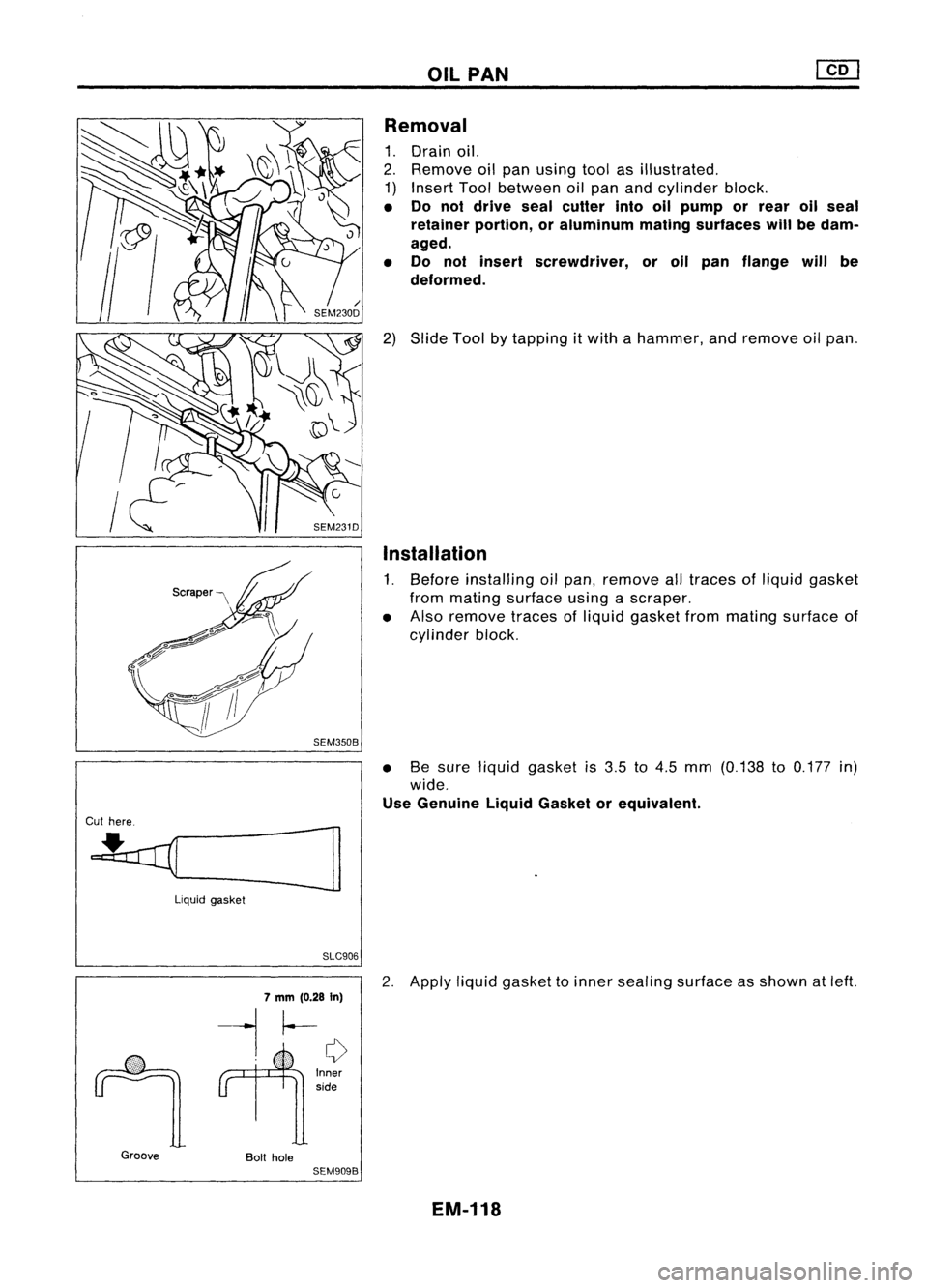

OILPAN
Scraper '""'\
SEM3508Removal

1. Drain oil.
2. Remove oilpan using toolasillustrated.
1) Insert Toolbetween oilpan andcylinder block.

• Do not drive sealcutter intooilpump orrear oilseal
retainer portion,oraluminum matingsurfaces willbedam-
aged.
• Do not insert screwdriver, oroil pan flange willbe
deformed.

2) Slide Toolbytapping itwith ahammer, andremove oilpan.

Installation
1. Before installing oilpan, remove alltraces ofliquid gasket
from mating surface usingascraper.
• Also remove tracesofliquid gasket frommating surface of
cylinder block.
• Besure liquid gasket is3.5 to4.5 mm (0.138 to0.177 in)
wide.

Use Genuine LiquidGasket orequivalent.
Cut here.

~--=J
Liquidgasket
SLC906
7
mm
(0.28 In)

-1
Inner
side
2.
Apply liquidgasket toinner sealing surface asshown atleft.

Groove Bolthole
SEM9098
EM-118

~:Sealing point

SEM894BA
SEM369D OIL
PAN [][]

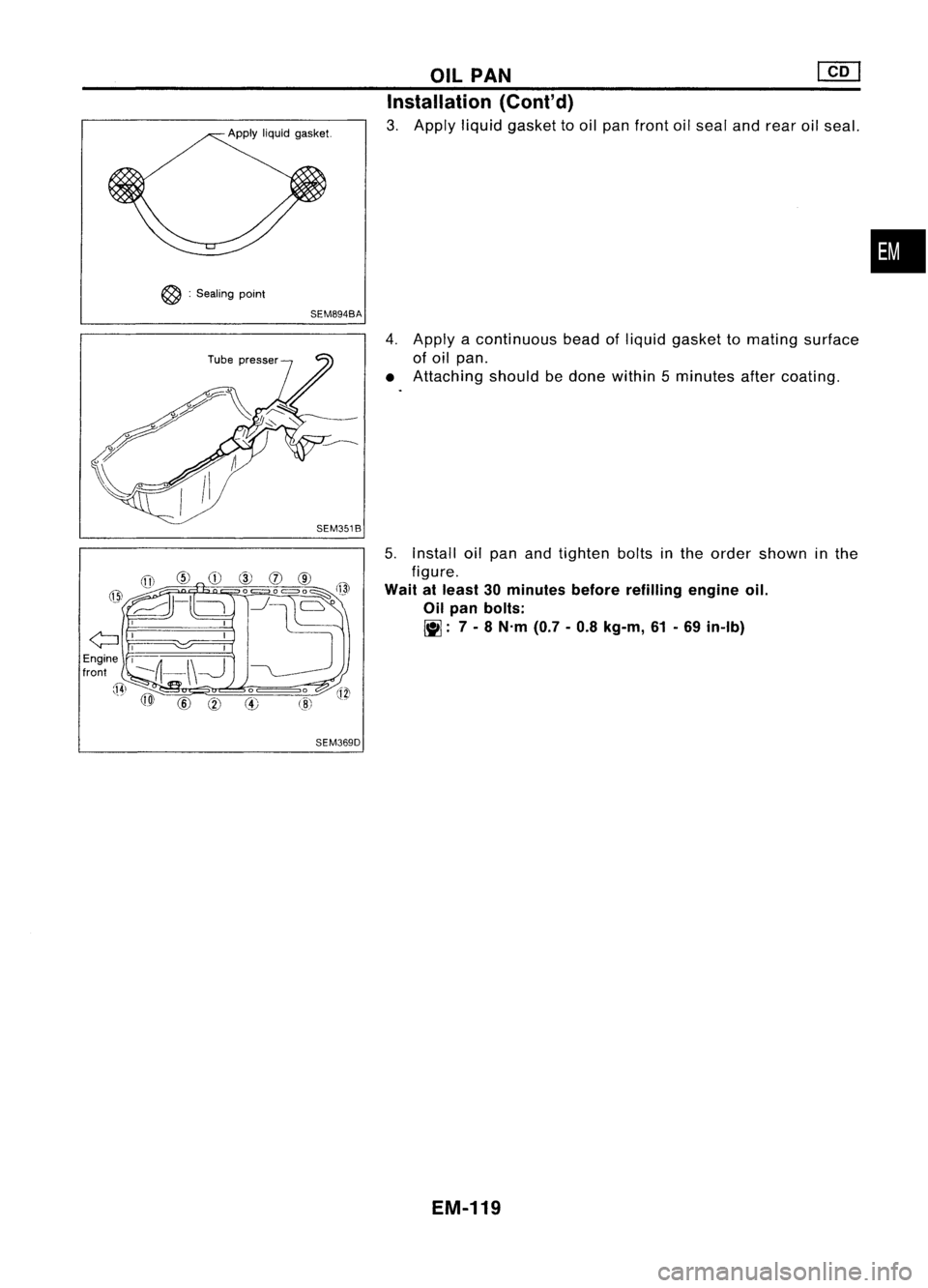

Installation (Cont'd)

3. Apply liquidgasket tooil pan front oilseal andrear oilseal.
4. Apply acontinuous beadofliquid gasket tomating surface
of oil pan.
• Attaching shouldbedone within 5minutes aftercoating.
5. Install oilpan andtighten boltsinthe order shown inthe
figure.

Wait atleast 30minutes beforerefilling engineoil.
Oil pan bolts:

~: 7-
8 N"m (0.7-0.8 kg-m, 61-69 in-Ib)
EM-119
•

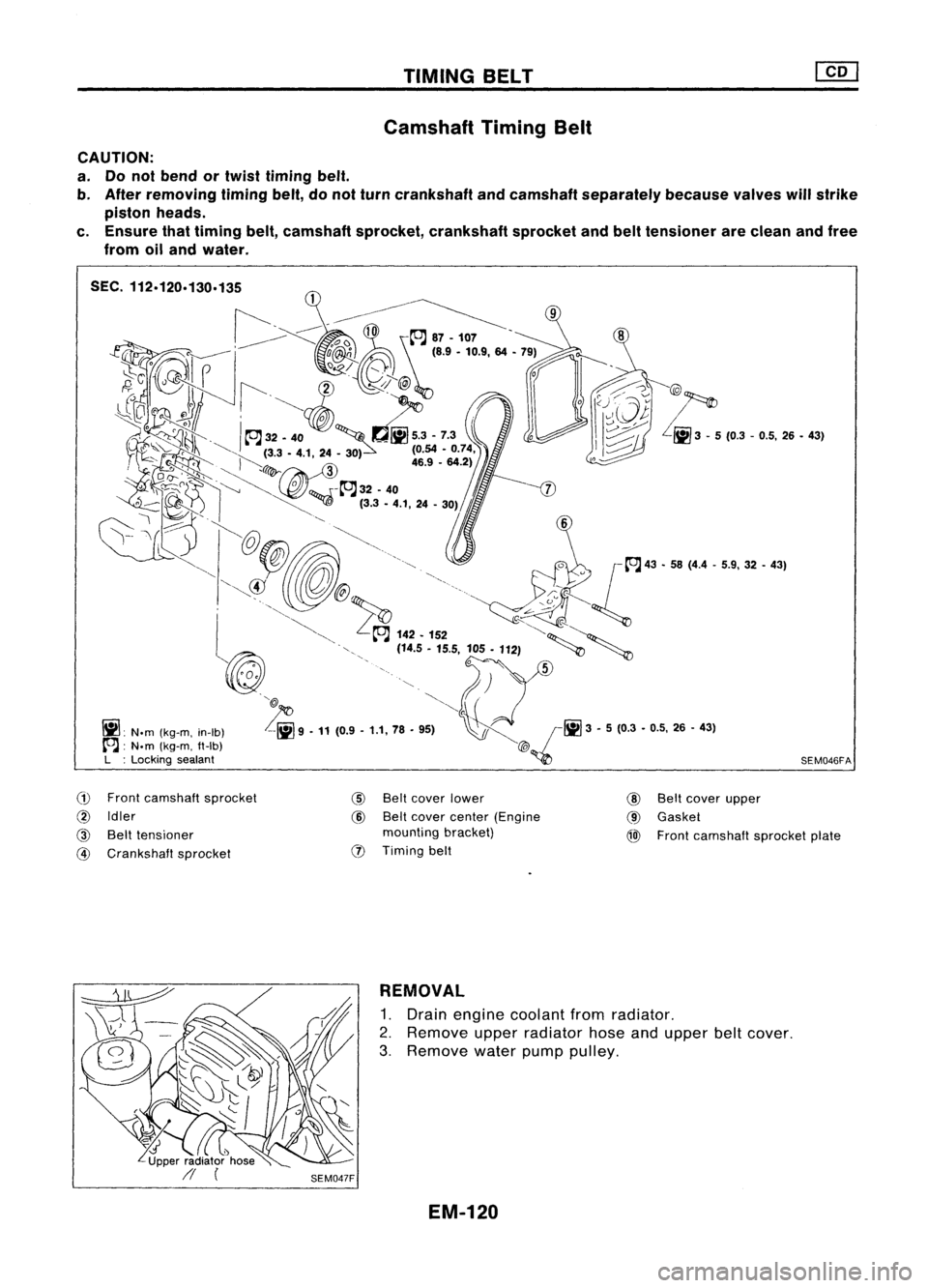

TIMINGBELT
Camshaft TimingBelt
CAUTION:
a. Donot bend ortwist timing belt.
b. After removing timingbelt,donot turn crankshaft andcamshaft separately becausevalveswillstrike
piston heads.
c. Ensure thattiming belt,camshaft sprocket,crankshaft sprocketandbelttensioner areclean andfree
from oiland water.

~: N.m(kg-m, in-Ib)

A:
N.m(kg-m, ft-Ib)
L :Locking sealant

C"O
Front camshaft sprocket

@
Idler

@
Belttensioner

@
Crankshaft sprocket
@

Beltcover lower

@
Beltcover center (Engine
mounting bracket)

(1)
Timing belt
@)

~5 {O.'-0.5, "-
43'

SEM046FA
@
Beltcover upper

@
Gasket

@)
Front camshaft sprocketplate

REMOVAL
1. Drain engine coolant fromradiator.
2. Remove upperradiator hoseandupper beltcover.
3. Remove waterpumppulley.

EM-120

SEM520DSEM515D TIMING
BELT
em

Camshaft TimingBelt(Cont'd)

4. Set NO.1 cylinder atTDC onitscompression stroke.(TDC
is indicated bycrankshaft pulleynotchwithout painted
mark.)
5. Remove startermotor,andinstall ringgear stopper using
mounting boltholes.
6. Remove crankpulley bolt.
7 .. Remove crankpulley usingpuller.

Be sure tosecurely attachpullerjaws.Attach jawsonlyto
the rear sideofpulley.

8. Remove lowerbeltcover.
9. Remove timingbelt.
(1) Loosen tensioner pulleybolt,turntensioner pulleycounter-
clockwise thentighten bolt.
(2) Remove camshaft sprocketplate.
(3) Remove idlerpulley.
(4) Remove timingbeltwith crankshaft sprocket.
(5) Remove tensioner pulleyandreturn spring.

EM-121
•

TIMINGBELT
Camshaft TimingBelt(Cont'd)
INSPECTION
Timing belt

Visually checkthecondition oftiming belt.
Replace ifany abnormality isfound.

Item tocheck
Tooth isbroken/tooth
root iscracked.
Back surface is
cracked/worn. Problem

SEM394A
SEM395A
Cause
• Camshaft jamming
• Distributor jamming
• Damaged camshaft/crankshaft oilseal
• Tensioner jamming

• Overhe
ed
engine
• Interference withbeltcover
Side surface isworn. •
Improper installation ofbelt
• Malfunctioning crankshaftpulleyplate/timing
belt plate
• Belt corners areworn andround.
• Wicks arefrayed andcoming out.
SEM396A

Teeth areworn.

-
Rotating direction
-
•
Poor belt
cover
sealing
• Coolant leakageatwater pump
• Camshaft notfunctioning properly
• Distributor notfunctioning properly
• Excessive belttension
Oil, coolant orwater is
stuck tobelt.
•
Canvas
ontooth faceisworn down.

• Canvas
ontooth isfluffy, rubber layeris
worn down andfaded white, orweft isworn
down andinvisible.
SEM397A
EM-122
•
Poor oilsealing ofeach oilseal
• Coolant leakageatwater pump
• Poor belt
cover
sealing

SEM558
SEM517D
SEM518D TIMING
BELT
[f[]

Camshaft TimingBelt(Cont'd)
Belt tensioner, tensionerspringandidler

1. Check belttensioner andidler forsmooth turning.
2. Check condition oftensioner spring.

Crankshaft sprocketandfront camshaft sprocket

Check teethforabnormal signs.

INSTALLATION
1. Install crankshaft sprocketplateincorrect direction.
2. Confirm thatNO.1 piston isset atTDC onitscompression
stroke. (TDCisindicated bycrankshaft pulleynotchwithout
painted mark.)
3. Install tensioner andreturn spring.

Temporarily tightenboltssothat tensioner isset atthe fully
outside position.

4. Install idlerandtighten bolttothe specified torque.

EM-123
•

TIMINGBELT
@[]

Camshaft TimingBelt(Cont'd)

5. Install timing beltwith crankshaft sprocket.

a. Align white linesontiming beltwith punchmarks oncam-
shaft sprocket andcrankshaft sprocket.
b. Point arrow ontiming belttoward beltcover.

6. Install camshaft sprocketplateandsecure screws withlock-
tite.
7. Adjust timing belttension.
1) Loosen tensioner lockbolttoapply tension totiming belt.
2) Rotate crankshaft clockwisetwoturns toapply thespecified
tension totiming belt.
3) Tighten tensioner lockboltwhile holding tensioner pUlley
with hexagon wrench. .

Belt tension:

147.1 :1:24.5 N(15:1:2.5 kg,33.1 :1:5.5 Ib)
SEM520D Injection PumpTiming Belt

~ .N'm (kg-m, in-Ib)

~ :N.m (kg-m, ft-Ib)

SEC.
130-135

~
-"~

.~\(~[-~~' c~1
Timingbelt

?\~-d
(~K.
c
'0
t£
Tensioner spring

J
J
N
0~lJ'00 ~/ Tensioner

t0
J
l\J~.~l:~
'Gl
~')U
r
r~/~
16-21 (1.6 -2.1,12 -15)

It
I
L~0--~ '
~htiJ

JD/~h~J/ "

'SP/
_-z,}) ~A

[/ ......., ....... InJeclion~
.... ~. -;;, pump@J_
• '~~ sprocket~
"fc;,~~-

@ ~
59-
69-.1

Rear camshaft sprocket .~(6.0•7.0,

1m
43-51)

[O;l
87•107

(8.9 -10.9, 64•79)

SEM225F

REMOVAL
1. Set NO.1 cylinder atTDC onitscompression stroke.(TDC
is indicated bycrankshaft pulleynotchwithout painted
mark.)
2. Remove airduct withresonator andtiming beltcover.

EM-124

InjectionpumppUlley
TIMING
BELT
[fQ]

Injection PumpTiming Belt(Cont'd)

3. Remove timingbelt.
1) Loosen tensioner locknutand turn tensioner clockwise to
free beltfrom tension. Thentemporarily tightentensioner
nut.
2) Remove timingbelt.

INSTAllATION

1. Confirm thatNO.1 piston isset atTDC onitscompression
stroke. (TDCisindicated bycrankshaft pulleynotchwithout
painted mark.)
• Ifinjection pumppulley wasremoved, confirmthatitis
re-installed asillustrated.

Identification ofalignment:
Use mark "A"

2. Set timing belt.

a. Align white linesontiming beltwith punchmarks oncam-
shaft sprocket andinjection pumpsprocket.
b. Point arrow ontiming belttoward beltcover.

3. Adjust belttension.
1) Loosen tensioner locknuttoapply tension totiming belt.
2) Rotate crankshaft clockwisetwoturns.

Do not turn crankshaft bycamshaft sprockets.

3) Tighten tensioner locknutwhile holding tensioner witha
screwdriver.

Belt tension:
147:l:49 N(15:l:5 kg,33:l:11 Ib)

INSPECTION

Refer toINSPECTION in"Camshaft TimingBelt"(EM-122).

INJECTION TIMINGADJUSTMENT

Refer toEC section.

EM-125
•
