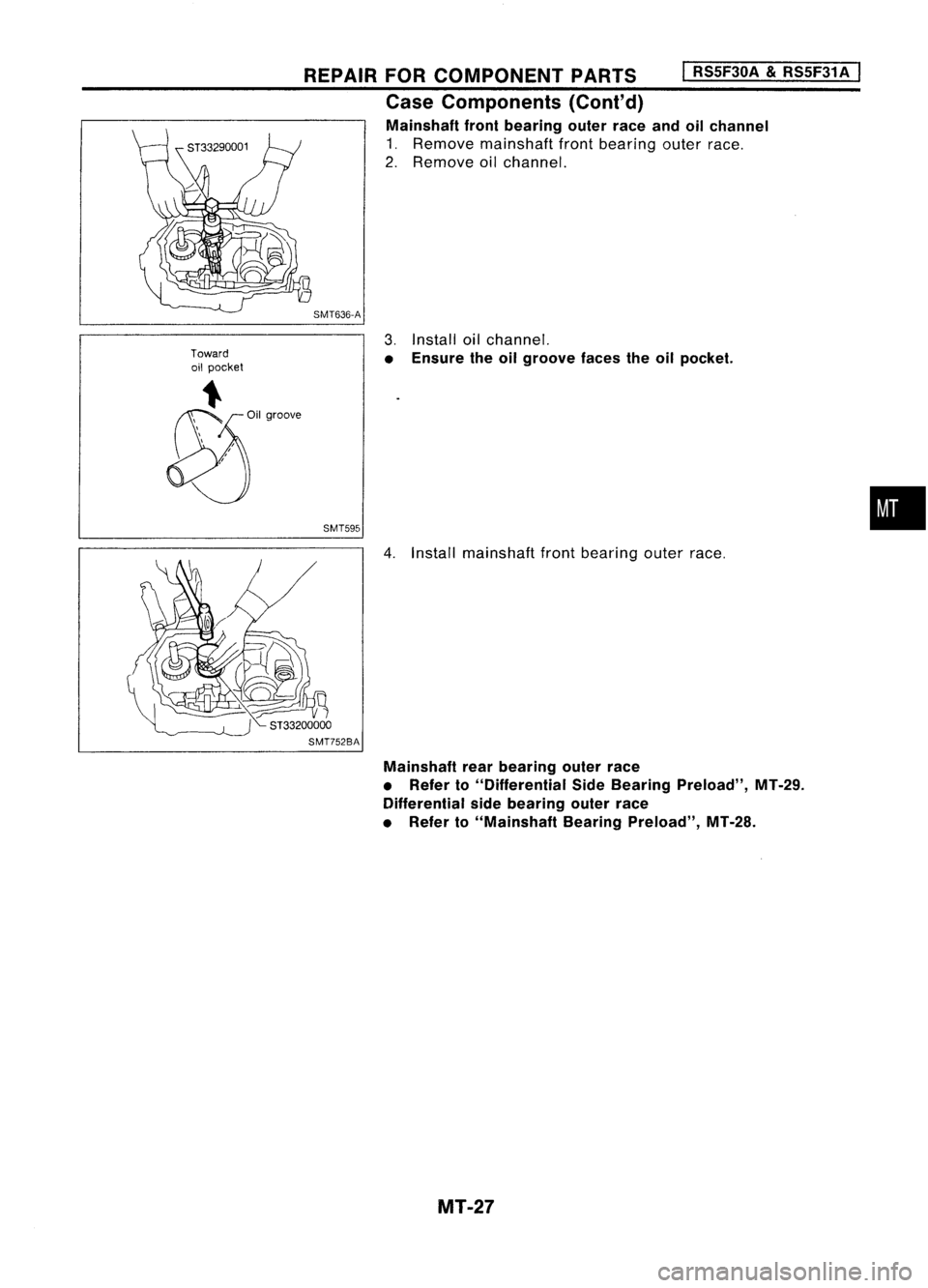

Case Components (Cont'd)
Mainshaft frontbearing outerraceandoilchannel

1. Remove mainshaft frontbearing outerrace.
2. Remove oilchannel.

SMT636-A
3.Install oilchannel.

• Ensure theoilgroove facestheoilpocket.
SMT595
•

4. Install mainshaft frontbearing outerrace.

Mainshaft rearbearing outerrace
• Refer to"Differential SideBearing Preload", MT-29.
Differential sidebearing outerrace
• Refer to"Mainshaft BearingPreload", MT-28.
MT-27

ADJUSTMENT
I

RS5F30A
&
RS5F31 A
I

SMT646-A

I"
KV38106000

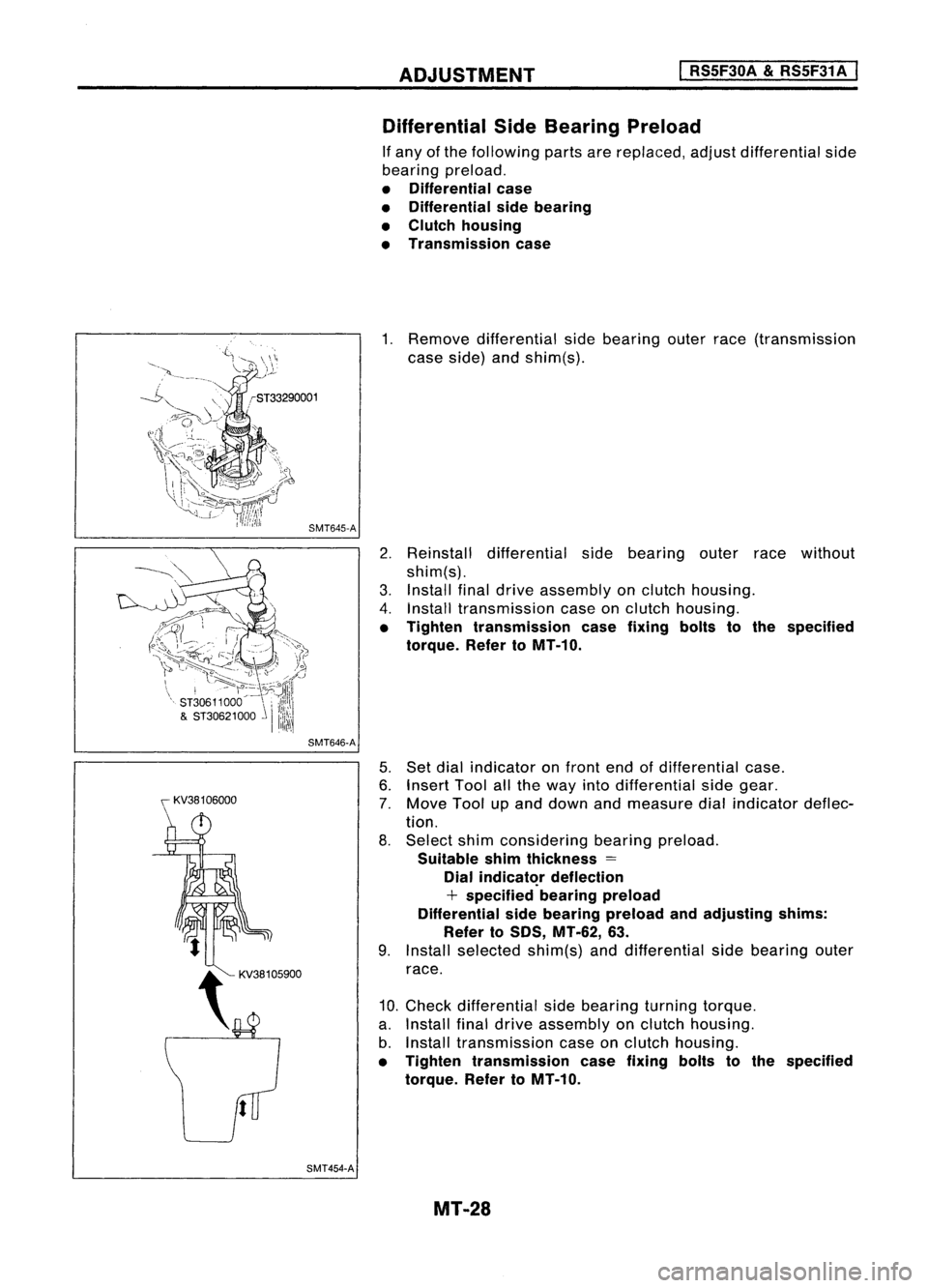

SMT454-ADifferential
SideBearing Preload

If any ofthe following partsarereplaced, adjustdifferential side
bearing preload.

• Differential case
• Differential sidebearing
• Clutch housing
• Transmission case

1. Remove differential sidebearing outerrace(transmission
case side) andshim(s).
2. Reinstall differential sidebearing outerracewithout
shim(s).
3. Install finaldrive assembly onclutch housing.
4. Install transmission caseonclutch housing.

• Tighten transmission casefixing boltstothe specified
torque. RefertoMT-10.

5. Set dial indicator onfront endofdifferential case.
6. Insert Toolallthe way intodifferential sidegear.
7. Move Toolupand down andmeasure dialindicator deflec-
tion.
8. Select shimconsidering bearingpreload.

Suitable shimthickness =
Dial
indicat~r
deflection
+ specified bearingpreload
Differential sidebearing preload andadjusting shims:
Refer to50S, MT-62, 63.

9. Install selected shim(s)anddifferential sidebearing outer
race.
10. Check differential sidebearing turningtorque.
a. Install finaldrive assembly onclutch housing.
b. Install transmission caseonclutch housing.

• Tighten transmission casefixing boltstothe specified
torque. RefertoMT-10.
MT-28

~casecover"U--0-ring
~spacer
Mainshaft rearbearing ~ Mainshaft
outer race ~
0
bearing
- \ adjusting
shim

I ~--

SMT613AA
SMT599 ADJUSTMENT

I
RS5F30A
&
RS5F31A
I

Differential SideBearing Preload(Cont'd)

c. Measure turningtorqueoffinal drive assembly.

Turning torqueoffinal drive assembly
(New bearing):
Refer toSOS, MT-62.
• When oldbearing isused again, turning torquewillbe
slightly lessthan theabove.
• Make suretorque isclose tothe specified range.
• Changes inturning torqueoffinal drive assembly perrev-
olution shouldbewithin 1.0N'm (10kg-em, 8.7in-Ib) with-
out binding.
Mainshaft BearingPreload

If any ofthe following partsarereplaced, adjustmainshaft bear-
il}g preload.

• Mainshaft
• Mainshaft bearings
• Clutch housing
• Transmission case

1. Remove casecover, O-ring, spacer, mainshaft bearing
adjusting shimandmainshaft rearbearing outerracefrom
transmission case.
2. Install mainshaft assemblyonclutch housing.
3. Install transmission caseonclutch housing.

• Tighten transmission casefixing boltstothe specified
torque. RefertoMT-10.

4. Install mainshaft rearbearing outerraceoninner race.
5. Measure distancefromtransmission casetobearing outer
race.

• Make surethatbearing isproperly seated.

6. Select shim.RefertoSDS, MT-62.
7. Check totalturning torqueafterassembling. Referto
"ASSEMBLY", MT-30.

MT-29
•

ASSEMBLY
I

RS5F30A &RS5F31 A
I

SMT648AA

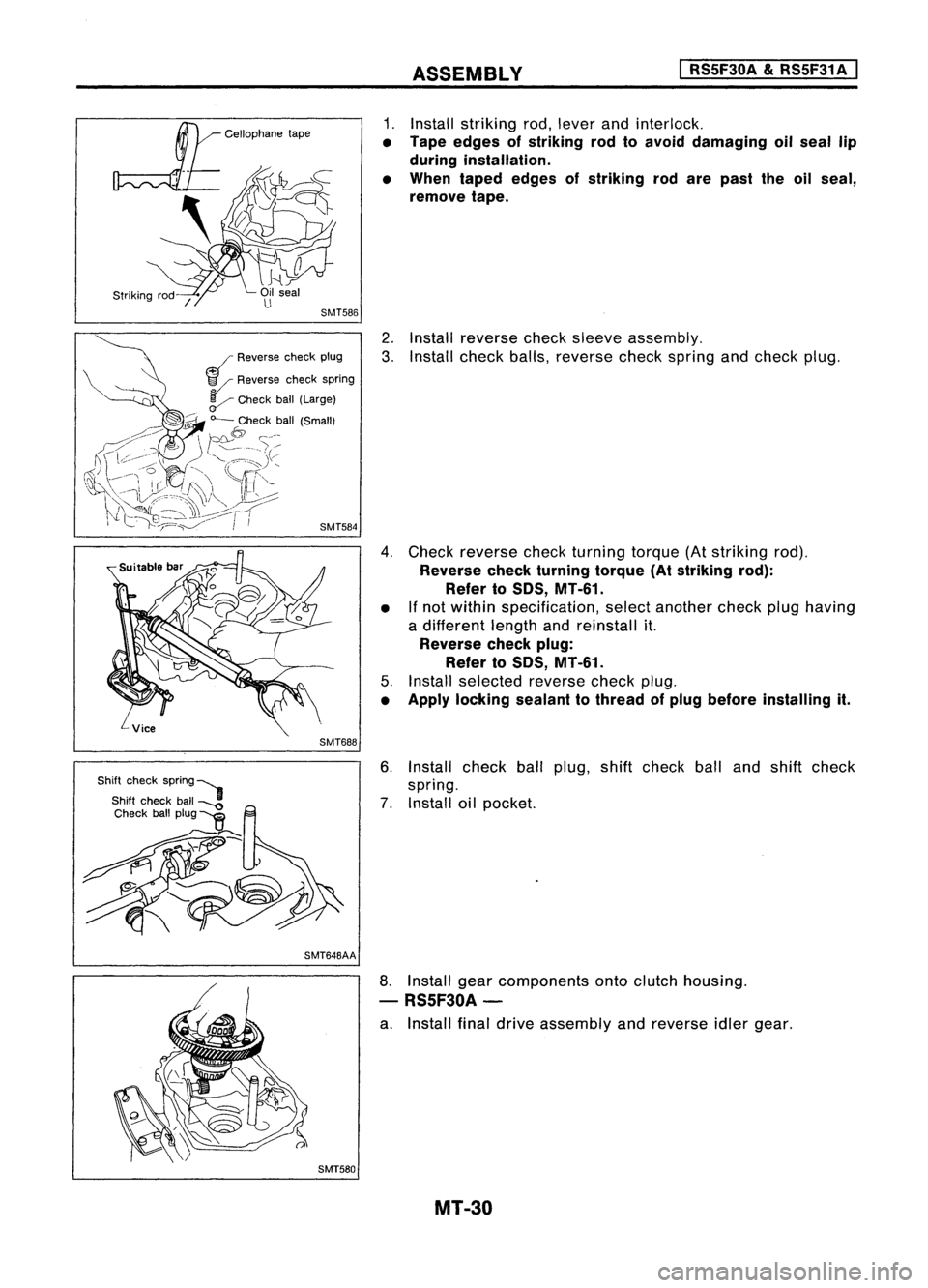

1.
Install striking rod,lever andinterlock.

• Tape edges ofstriking rodtoavoid damaging oilseal lip
during installation.
• When taped edges ofstriking rodare past theoilseal,
remove tape.

2. Install reverse checksleeve assembly.
3. Install check balls,reverse checkspring andcheck plug.
4. Check reverse checkturning torque(Atstriking rod).

Reverse checkturning torque(Atstriking rod):
Refer toSOS, MT-61.

• Ifnot within specification, selectanother checkplughaving
a different lengthandreinstall it.

Reverse checkplug:
Refer toSOS, MT-61.

5. Install selected reversecheckplug.

• Apply locking sealanttothread ofplug before installing it.

6. Install check ballplug, shiftcheck balland shift check
spring.
7. Install oilpocket.

SMT580
8.
Install gearcomponents ontoclutch housing.

- RS5F30A-

a. Install finaldrive assembly andreverse idlergear.

MT-30

ASSEMBLY
I

RS5F30A
&
RS5F31 A
I

Suitable

tool
SMT737A
SMT664
~ "--Soft hammer
SMT614A
Final driveassembly
/{(/
SMT721

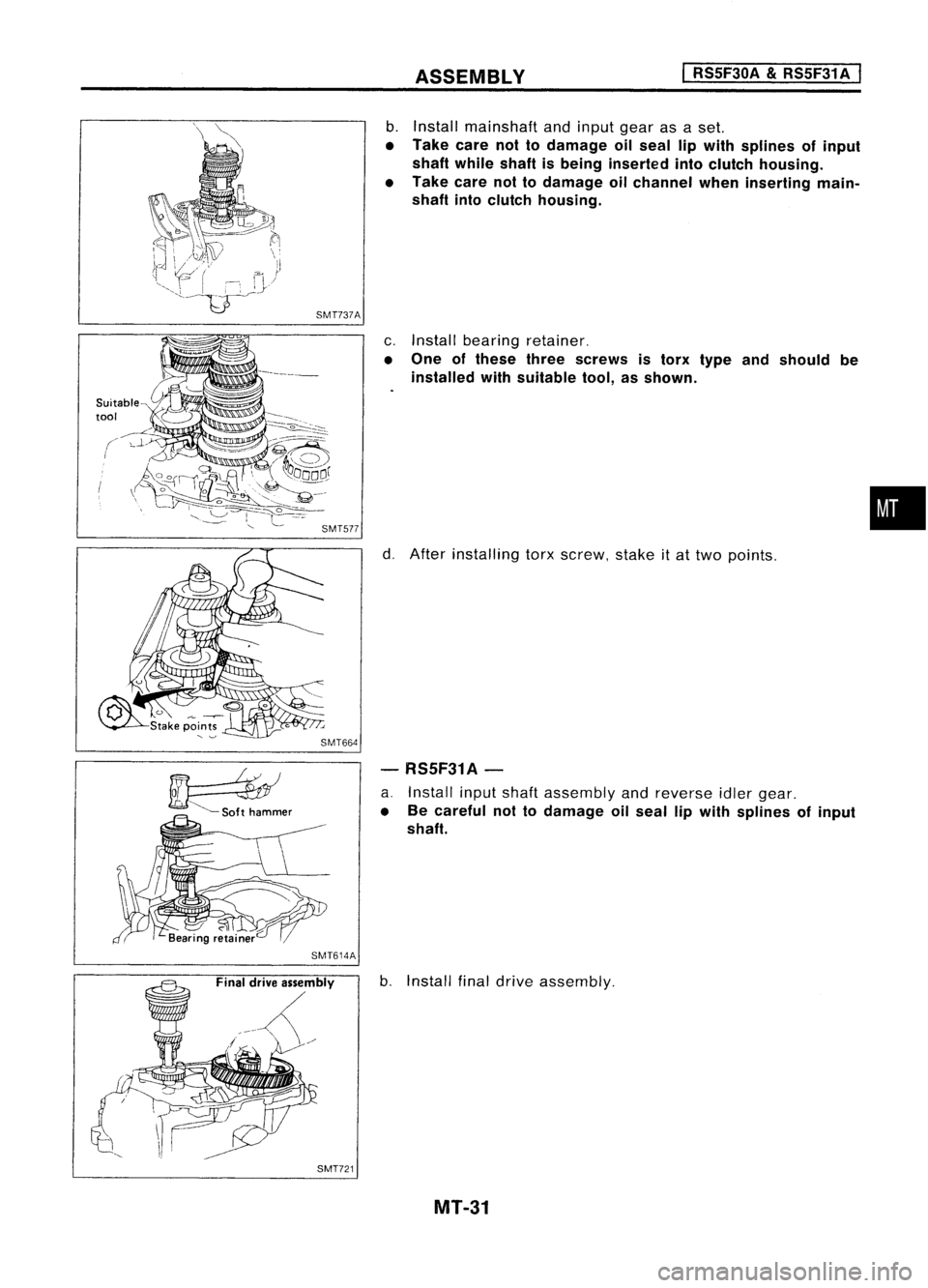

b.
Install mainshaft andinput gearasaset.

• Take carenottodamage oilseal lipwith splines ofinput
shaft while shaftisbeing inserted intoclutch housing.
• Take carenottodamage oilchannel wheninserting main-
shaft intoclutch housing.

c. Install bearing retainer.

• One ofthese threescrews istorx type andshould be
installed withsuitable tool,asshown.

d. After installing torxscrew, stakeitat two points.

- RS5F31A-

a. Install inputshaft assembly andreverse idlergear.

• Becareful nottodamage oilseal lipwith splines ofinput
shaft.

b. Install finaldrive assembly.

MT-31
•

ASSEMBLYI
RSSF30A
&
RSSF31 A
I

SMT720

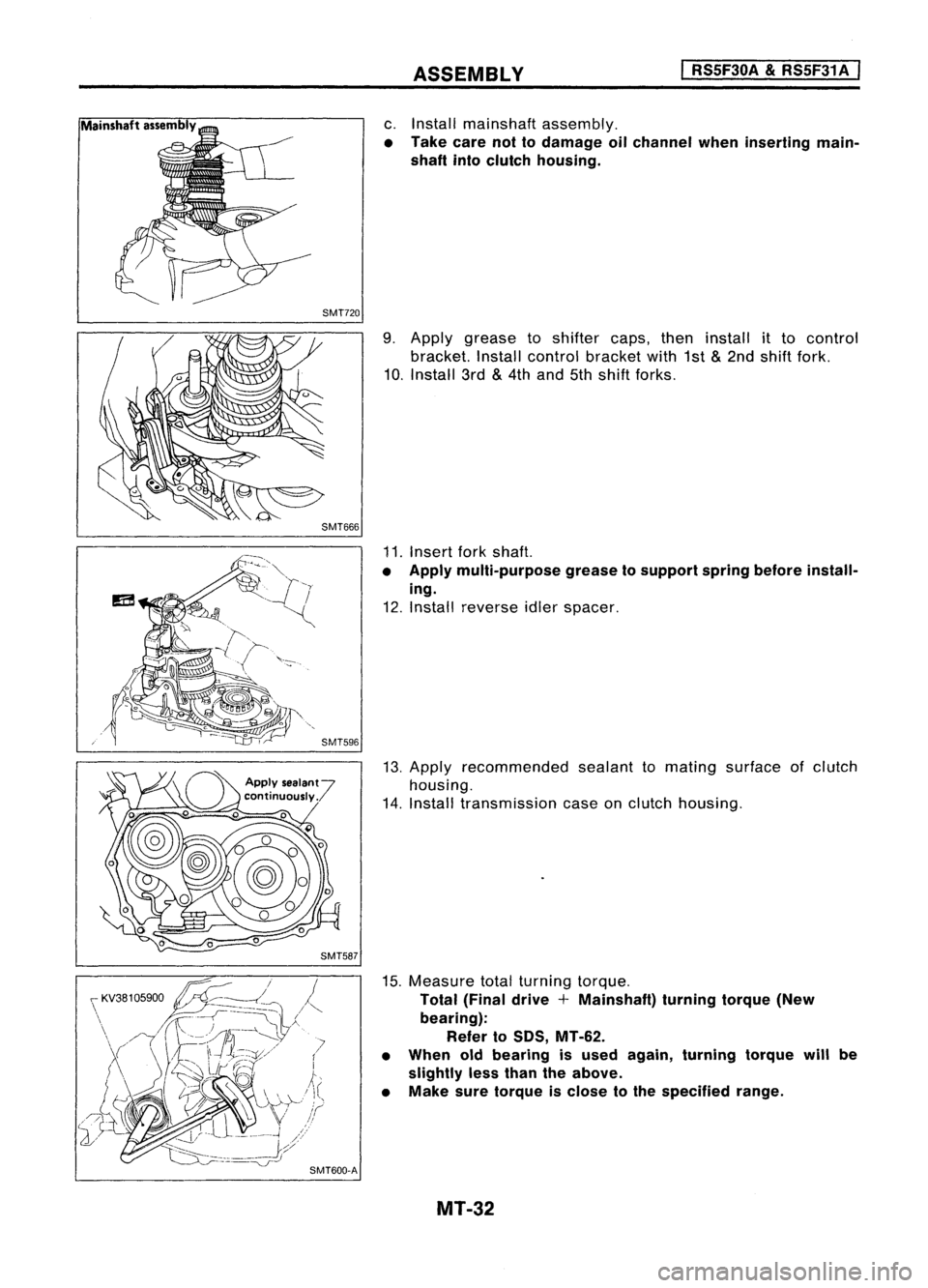

c.
Install mainshaft assembly.

• Take carenottodamage oilchannel wheninserting main-
shaft intoclutch housing.

9. Apply grease toshifter caps,theninstall itto control
bracket. Installcontrol bracket with1st
&
2nd shift fork.
10. Install 3rd
&
4th and 5thshift forks.
11. Insert forkshaft.

• Apply multi-purpose greasetosupport springbefore install-
ing.

12. Install reverse idlerspacer.
13. Apply recommended sealanttomating surface ofclutch
housing.
14. Install transmission caseonclutch housing.
15. Measure totalturning torque.

Total (Final drive+Mainshaft) turningtorque(New
bearing): Refer toSOS, MT-62.
• When oldbearing isused again, turning torquewillbe
slightly lessthan theabove.
• Make suretorque isclose tothe specified range.
MT-32

MAJOROVERHAUL
I

RS5F32A
I

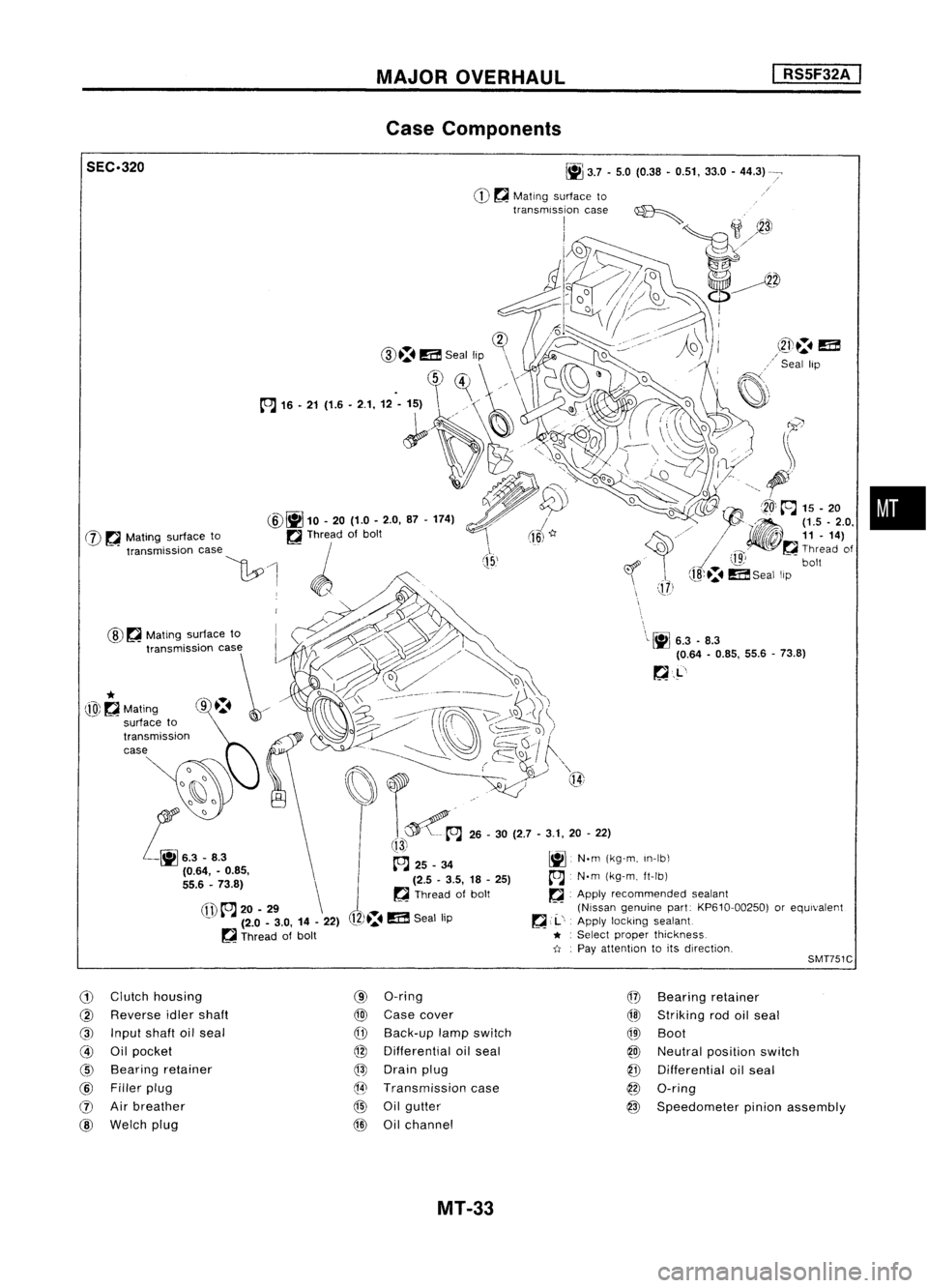

Case Components

•

\
\L~
6.3.8.3
(0.64 -0.85, 55.6-73.8)

~.L'

J

(15,'
~
3.7•5.0 (0.38 •0.51, 33.0-44.3)

CD ~
Mating surface to
transmission case~

I
;1
~3J

1J2»~
o//~

d~~~
!-~~

i~=1D.

(]?

CID.:.
m
Seal lip \

\

.
~)~
//\

1~
~'

(fl)
to.J
20-29 \
- (2.0-3.0, 14-22)

~ Thread ofbolt

@
~
Mating surface to

SEC.320
@~
10.20 (1.0-2.0, 87-174)

W ~
Mating surface to ~Thread ofbolt

"""mi"ioo '""
\1:.0
1 ~ /',

. WO,,~., .,.~

~~~> '\
t,,~~~~
o
I:::t:\ ~___-- __~
j)\~

~i)~/
(ro\~\~)

. ------ ~~,/ ~Q~
I
f""\

~~~ ..~ Q{

t~A
26-30 (2.7 -3.1, 20-22)

!13i

~ 25_34 ~N.m(kg-m, In-Ib\

(2.5 -3.5, 18-25)
A
N.m(kg-m, ft-Ib)
~ Thread ofbolt ~.Apply recommended sealant
(Nissan genuine part:KP610-00250) orequivalent
12)~.
m
Seal lip ~
,.1..',
Apply locking sealant

* :
Select proper thickness.

-tI .
Pay attention toits direction,

*

@~Mating

SMT751C
G)
Clutch housing

@
Reverse idlershaft

@
Input shaftoilseal

@
Oilpocket

@
Bearing retainer

@
Filler plug

(J)
Airbreather

@
Welch plug
(9)

O-ring

@
Case cover

CfD
Back-up lampswitch

@
Differential oilseal

@
Drain plug

@
Transmission case

@
Oilgutter

@
Oilchannel
@

Bearing retainer

@l
Striking rodoilseal

QID
Boot

@
Neutral position switch

@
Differential oilseal

@
O-ring

@
Speedometer pinionassembly

MT-33

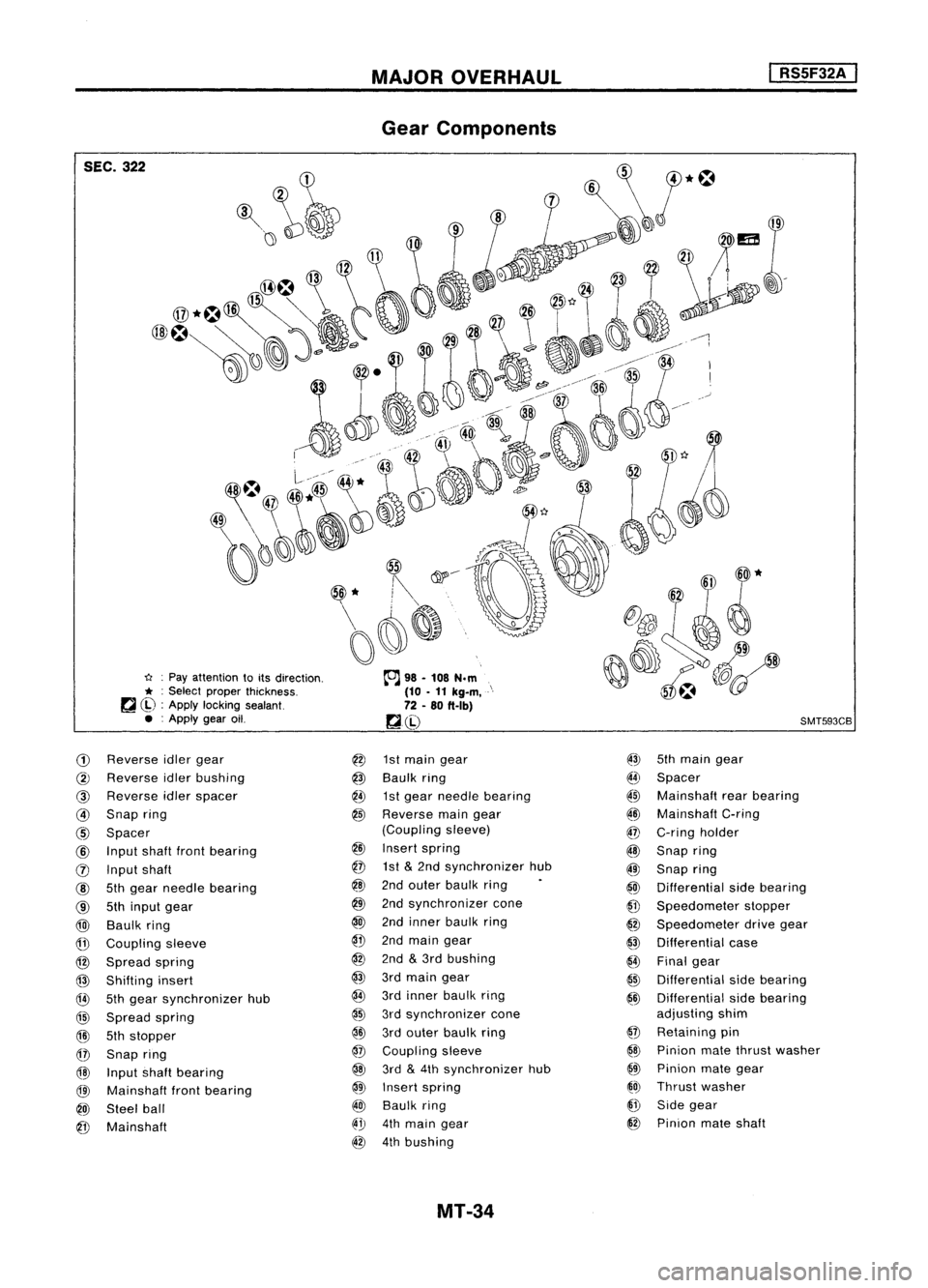

SEC.322

u:Pay attention toits direction.

* :
Select proper thickness.
~ ~) :Apply locking sealant.
• :Apply gearoil.

CD
Reverse idlergear

@
Reverse idlerbushing

@
Reverse idlerspacer

@
Snap ring

@
Spacer

@
Input shaftfrontbearing
(j) Input shaft

@
5thgear needle bearing

@
5thinput gear

@)
Baulk ring

@
Coupling sleeve

@
Spread spring

@
Shifting insert

@
5thgear synchronizer hub

@
Spread spring

@l
5thstopper

@
Snap ring

@
Input shaftbearing

@l
Mainshaft frontbearing

@)
Steel ball

@
Mainshaft
MAJOR
OVERHAUL
Gear Components
@
1stmain gear

@
Baulk ring

@
1stgear needle bearing

@
Reverse maingear
(Coupling sleeve)

@
Insert spring

@
1st
&
2nd synchronizer hub

@
2ndouter baulk ring

@
2ndsynchronizer cone

@
2ndinner baulk ring

@
2ndmain gear

@
2nd
&
3rd bushing

@
3rdmain gear

@
3rdinner baulk ring

@
3rdsynchronizer cone

@ID
3rdouter baulk ring

@
Coupling sleeve

@
3rd
&
4th synchronizer hub

@
Insert spring

@
Baulk ring

@".!J
4thmain gear

@
4thbushing

MT-34
I

RS5F32A
I

SMT593CB

@
5thmain gear

I[~
Spacer
~~ Mainshaft rearbearing

~ID
Mainshaft C-ring

@
C-ring holder

@
Snap ring

@
Snap ring

@
Differential sidebearing

@
Speedometer stopper

@
Speedometer drivegear

@
Differential case

{4)
Final gear

@
Differential sidebearing

@
Differential sidebearing
adjusting shim

@
Retaining pin

@
Pinion matethrust washer

@
Pinion mategear

~O)
Thrust washer

@
Side gear

@
Pinion mateshaft
