TROUBLEDIAGNOSIS -General Description
Sensors
~ ECMActuators
~~.~ MEF036D
SEF234G Introduction

The engine hasanECM tocontrol majorsystems suchasfuel
control, ignitioncontrol, idleaircontrol system, etc.The ECM
accepts inputsignals fromsensors andinstantly drivesactua-
tors. Itis essential thatboth input andoutput signals areproper
and stable. Atthe same time,itis important thatthere areno
problems suchasvacuum leaks,fouled sparkplugs, orother
problems withtheengine.
It is much moredifficult todiagnose aproblem thatoccurs
intermittently ratherthancontinuously. Mostintermittent prob-
lems arecaused bypoor electric connections orimproper wir-
ing. Inthis case, careful checking ofsuspected circuitsmay
help prevent thereplacement ofgood parts.
A visual checkonlymaynotfind thecause ofthe problems. A
road testwith CONSULT oracircuit testerconnected shouldbe
performed. Followthe"Work Flow"onthe next page.
Before undertaking actualchecks, takejustafew minutes to
talk with acustomer whoapproaches withadriveability com-
plaint. Thecustomer cansupply goodinformation aboutsuch
problems, especially intermittent ones.Findoutwhat symptoms
are present andunder whatconditions theyoccur. A"Diagnos-
tic Worksheet" liketheexample onEC-61 should beused.
Start yourdiagnosis bylooking for"conventional" problems
first. Thiswillhelp troubleshoot driveabilityproblemsonan
electronically controlledenginevehicle.

EC-58

TROUBLEDIAGNOSIS -General Description
Sensors

~ ECMActuators

~~.~ MEF036D
SEF234G Introduction

The engine hasanECM tocontrol majorsystems suchasfuel
control, ignitioncontrol, idleaircontrol system, etc.The ECM
accepts inputsignals fromsensors andinstantly drivesactua-
tors. Itis essential thatboth input andoutput signals areproper
and stable. Atthe same time,itis important thatthere areno
problems suchasvacuum leaks,fouled sparkplugs, orother
problems withtheengine.
It is much moredifficult todiagnose aproblem thatoccurs
intermittently ratherthancontinuously. Mostintermittent prob-
lems arecaused bypoor electric connections orimproper wir-
ing. Inthis case, careful checking ofsuspected circuitsmay
help prevent thereplacement ofgood parts.
A visual checkonlymaynotfind thecause ofthe problems. A
road testwith CONSULT oracircuit testerconnected shouldbe
performed. Followthe"Work Flow"onthe next page.
Before undertaking actualchecks, takejustafew minutes to
talk with acustomer whoapproaches withadriveability com-
plaint. Thecustomer cansupply goodinformation aboutsuch
problems, especially intermittent ones.Findoutwhat symptoms
are present andunder whatconditions theyoccur. A"Diagnos-
tic Worksheet" liketheexample onEC-267 shouldbeused.
Start yourdiagnosis bylooking for"conventional" problems
first. Thiswillhelp troubleshoot driveabilityproblemsonan
electronically controlledenginevehicle.

EC-264

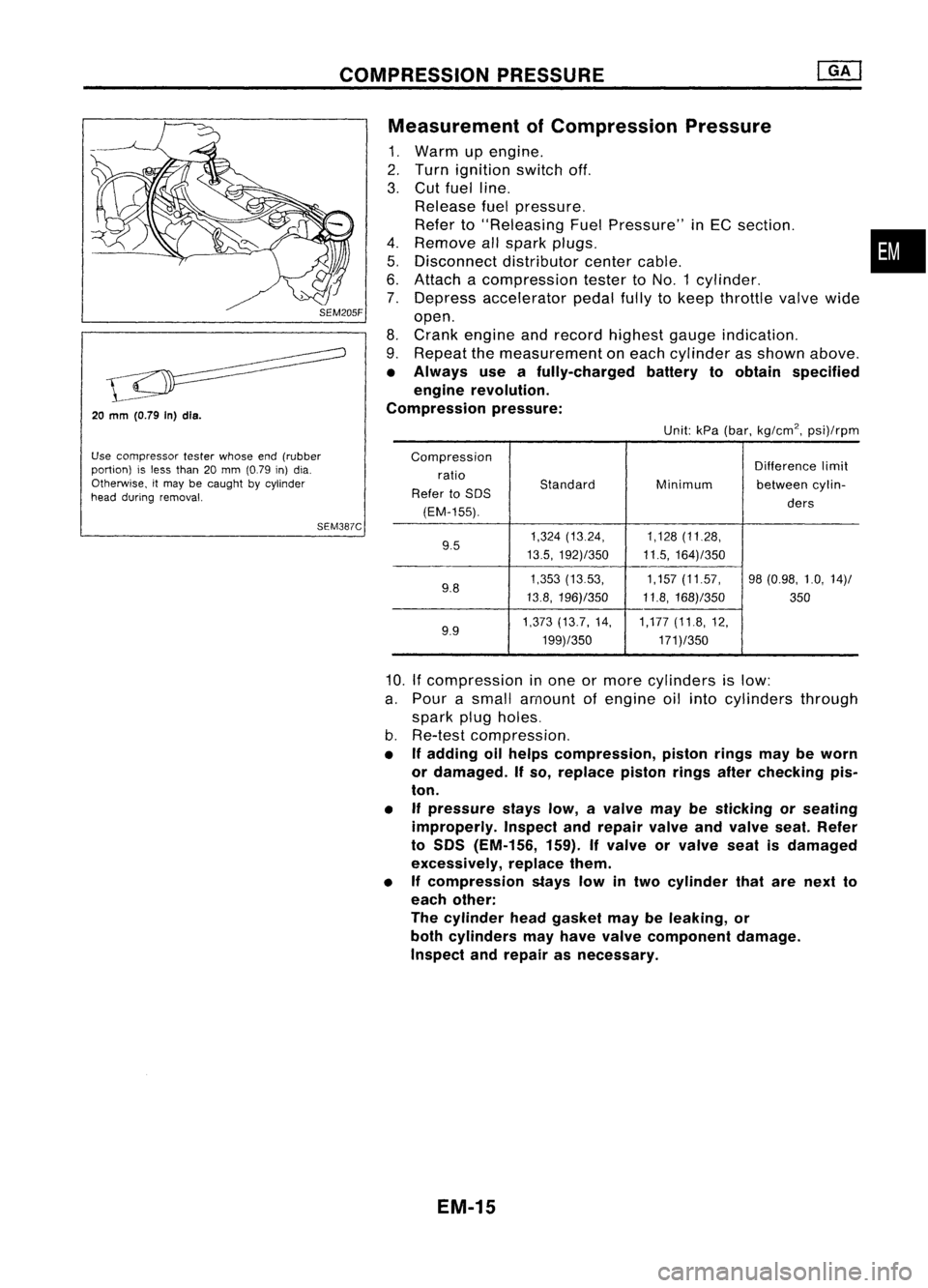

COMPRESSIONPRESSURE

20
mm
(O.79 In)dls.

Use compressor testerwhose end(rubber
portion) isless than 20mm (0.79 in)dia.
Otherwise, itmay becaught bycylinder
head during removal.

SEM387CMeasurement
ofCompression Pressure

1. Warm upengine.
2. Turn ignition switchoff.
3. Cut fuel line.
Release fuelpressure.
Refer to"Releasing FuelPressure" inEC section. •
4. Remove allspark plugs.
5. Disconnect distributorcentercable.
6. Attach acompression testertoNO.1 cylinder.
7. Depress accelerator pedalfullytokeep throttle valvewide
open.
8. Crank engine andrecord highest gaugeindication.
9. Repeat themeasurement oneach cylinder asshown above.

• Always useafully-charged batterytoobtain specified
engine revolution.
Compression pressure:
Unit:kPa(bar, kg/cm
2,
psi)/rpm
Compression Differencelimit
ratio
Standard
Refer toSOS Minimum
betweencylin-
(EM-155). ders
9.5 1,324
(13.24, 1,128(11.28,
13.5, 192)/350 11.5,164)/350
9.8 1,353
(1353, 1,157(11.57, 98(0.98, 1.0,14)/
13.8, 196)/350 11.8,168)/350
350
9.9 1,373
(13.7, 14, 1,177(11.8,12,
199)/350 171)/350

10.
If
compression inone ormore cylinders islow:
a. Pour asmall amount ofengine oilinto cylinders through
spark plugholes.
b. Re-test compression,

• Ifadding oilhelps compression, pistonringsmaybeworn
or damaged. Ifso, replace pistonringsafterchecking pis-
ton.
• Ifpressure stayslow,avalve maybesticking orseating
improperly. Inspectandrepair valveandvalve seat.Refer
to SOS (EM-156, 159).Ifvalve orvalve seatisdamaged
excessively, replacethem.
• Ifcompression stayslowintwo cylinder thatarenext to
each other:
The cylinder headgasket maybeleaking, or
both cylinders mayhave valve component damage.
Inspect andrepair asnecessary.
EM-15

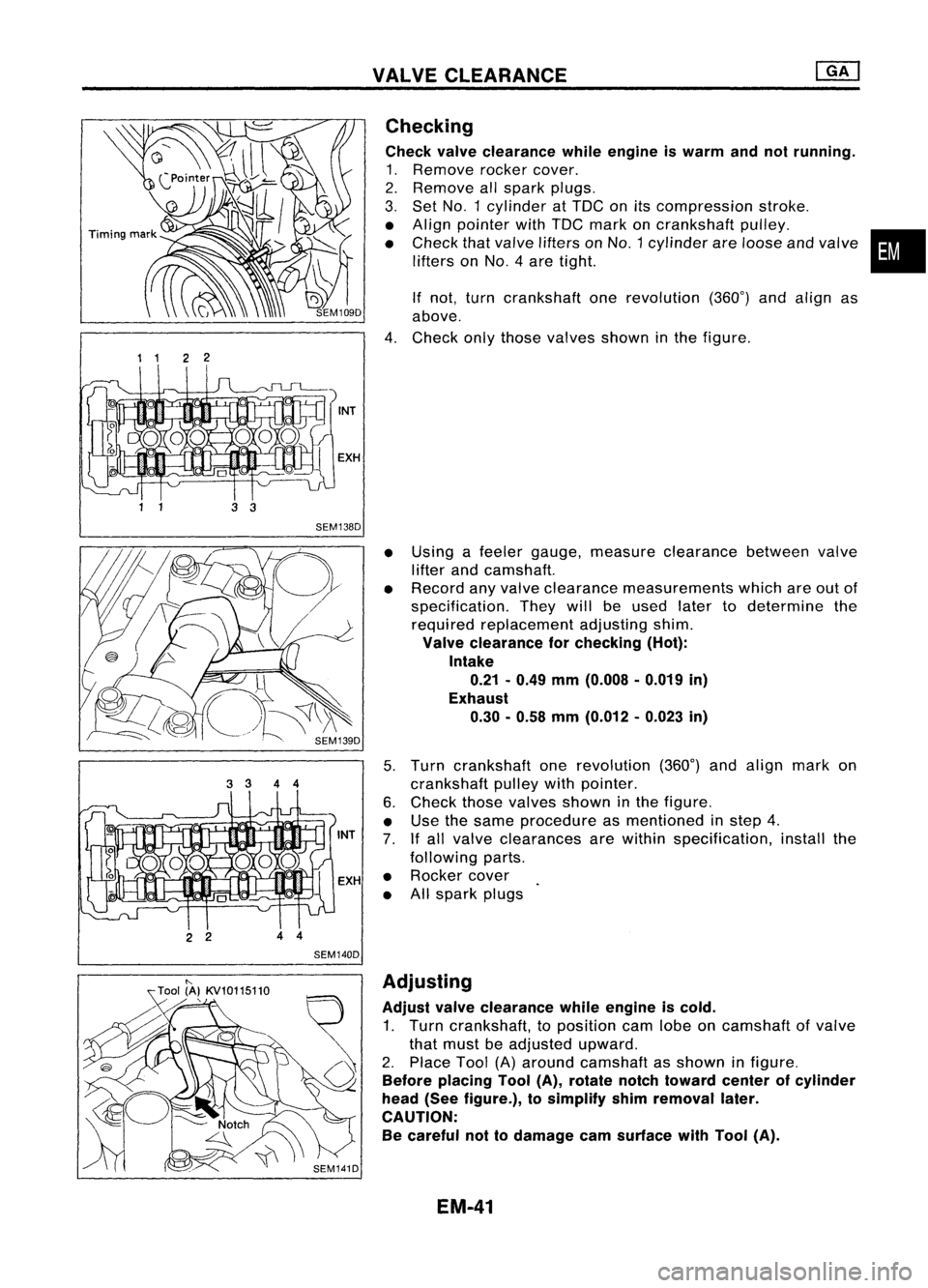

VALVECLEARANCE
1 1 22
2 2 44
SEM140D Checking
Check valveclearance whileengine iswarm andnotrunning.

1. Remove rockercover.
2. Remove allspark plugs.
3. Set
NO.1
cylinder atTOC onitscompression stroke.
• Align pointer withTOC mark oncrankshaft pulley.
• Check thatvalve lifters on
NO.1
cylinder areloose andvalve
lifters on
NO.4
aretight.
If not, turn crankshaft onerevolution (360°)andalign as
above.
4. Check onlythose valves showninthe figure.
• Using afeeler gauge, measure clearance betweenvalve
lifter andcamshaft.
• Record anyvalve clearance measurements whichareoutof
specification. Theywillbeused latertodetermine the
required replacement adjustingshim.

Valve clearance forchecking (Hot):
Intake 0.21 -0.49 mm(0.008 .0.019 in)
Exhaust 0.30. 0.58mm(0.012 -0.023 in)

5. Turn crankshaft onerevolution (360°)andalign markon
crankshaft pulleywithpointer.
6. Check thosevalves shown inthe figure.
• Use thesame procedure asmentioned instep 4.
7. Ifall valve clearances arewithin specification, installthe
following parts.
• Rocker cover
• Allspark plugs
•

"-

Tool (A}KV10115110

,

SEM141DAdjusting
Adjust valveclearance whileengine iscold.

1. Turn crankshaft, toposition camlobeoncamshaft ofvalve
that must beadjusted upward.
2. Place Tool(A)around camshaft asshown infigure.

Before placing Tool(A),rotate notchtoward centerofcylinder
head (Seefigure.), tosimplify shimremoval later.
CAUTION: Be careful nottodamage camsurface withTool (A).
EM-41

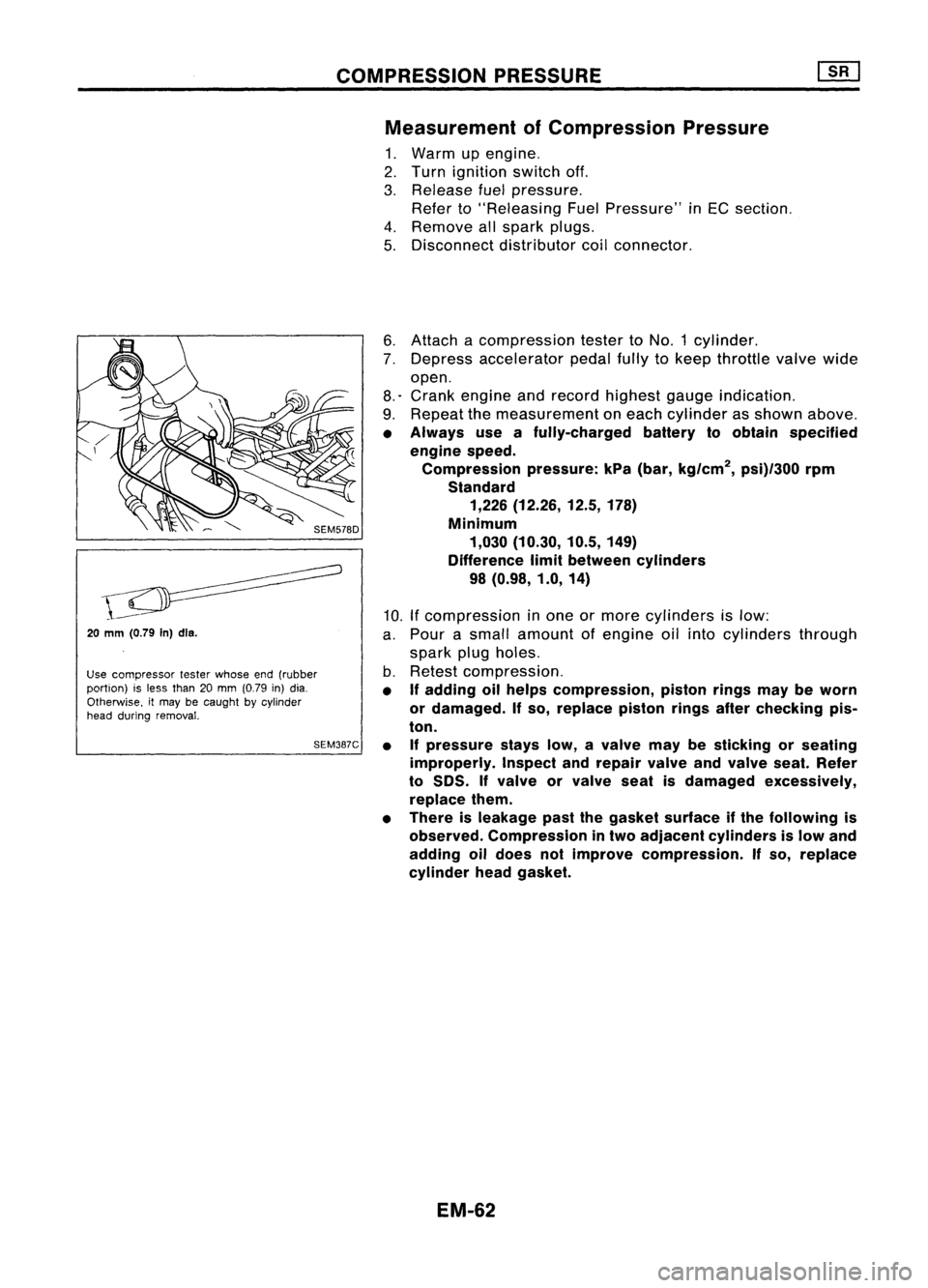

COMPRESSIONPRESSURE

Measurement ofCompression Pressure

1. Warm upengine.
2. Turn ignition switchoff.
3. Release fuelpressure.
Refer to"Releasing FuelPressure" inEC section.
4. Remove allspark plugs.
5. Disconnect distributorcoilconnector.

20
mm (0.79
In)dls.

Use compressor testerwhose end(rubber
portion) isless than 20mm (0.79 in)dia.
Otherwise. itmay becaught bycylinder
head during removal.

SEM387C6.
Attach acompression testertoNO.1 cylinder.
7. Depress accelerator pedalfullytokeep throttle valvewide
open.
8.' Crank engine andrecord highest gaugeindication.
9. Repeat themeasurement oneach cylinder asshown above.

• Always useafully-charged batterytoobtain specified
engine speed.
Compression pressure:kPa(bar, kg/cm
2,
psi)/300 rpm
Standard 1,226 (12.26, 12.5,178)
Minimum 1,030 (10.30, 10.5,149)
Difference limitbetween cylinders
98 (0.98, 1.0,14)

10. Ifcompression inone ormore cylinders islow:
a. Pour asmall amount ofengine oilinto cylinders through
spark plugholes.
b. Retest compression.
• If
adding oilhelps compression, pistonringsmaybeworn
or damaged.
If
so, replace pistonringsafterchecking pis-
ton.
• Ifpressure stayslow,avalve maybesticking orseating
improperly. Inspectandrepair valveandvalve seat.Refer
to
50S.
If
valve orvalve seatisdamaged excessively,
replace them.
• There isleakage pastthegasket surface ifthe following is
observed. Compression intwo adjacent cylinders islow and
adding oildoes notimprove compression.
If
so, replace
cylinder headgasket.

EM-62

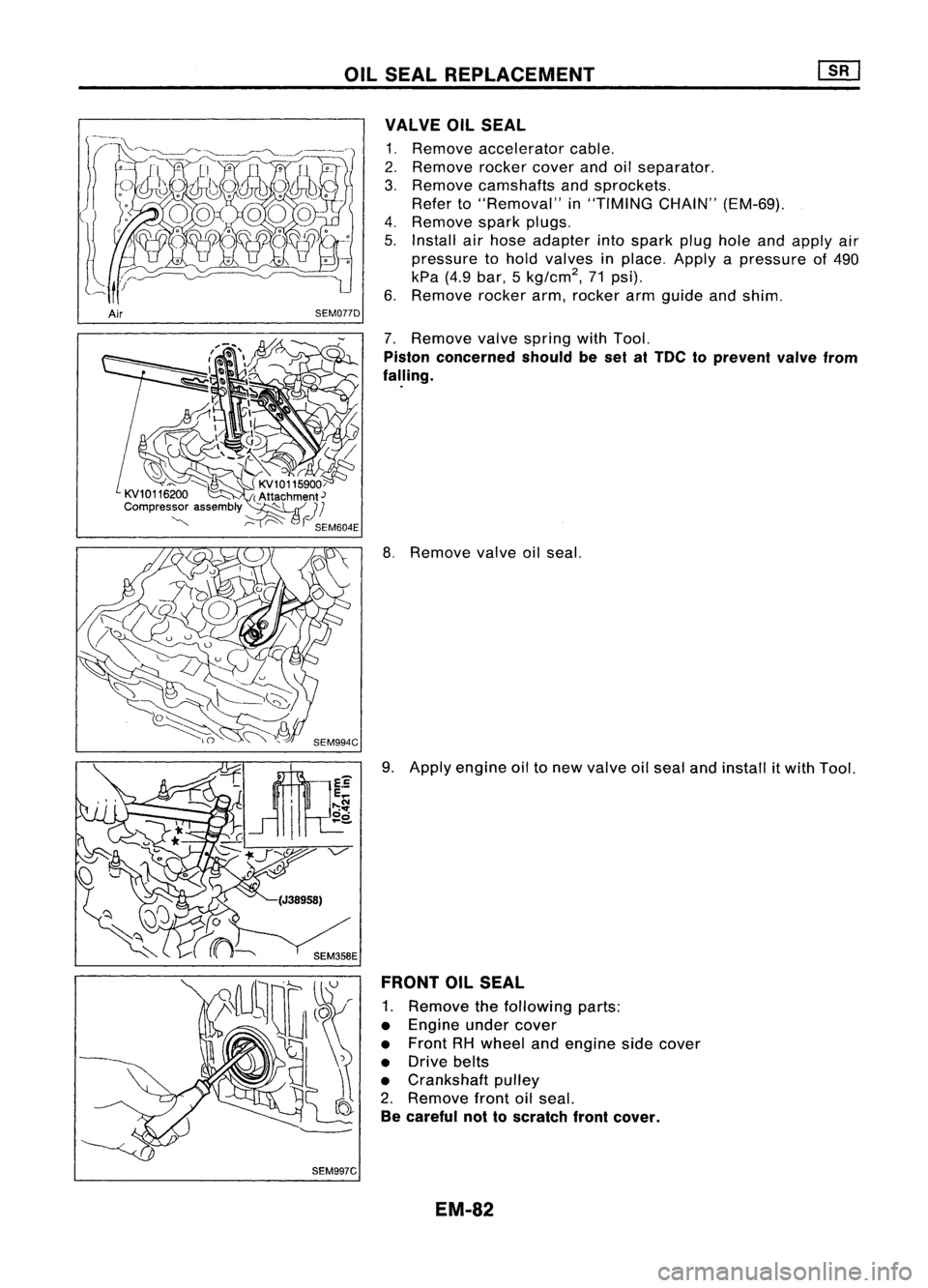

OILSEAL REPLACEMENT
VALVE OILSEAL

1. Remove accelerator cable.
2. Remove rockercoverandoilseparator.
3. Remove camshafts andsprockets.
Refer to"Removal" in"TIMING CHAIN"(EM-69).
4. Remove sparkplugs.
5. Install airhose adapter intospark plugholeandapply air
pressure tohold valves inplace. Applyapressure of490
kPa (4.9bar, 5kg/cm
2,
71psi).
6. Remove rockerarm,rocker armguide andshim.

Air SEM077D

7.Remove valvespring withTool.

Piston concerned shouldbeset atTOe toprevent valvefrom
falling.

8. Remove valveoilseal.
9. Apply engine oiltonew valve oilseal andinstall itwith Tool.

FRONT OILSEAL

1. Remove thefollowing parts:
• Engine undercover
• Front RHwheel andengine sidecover
• Drive belts
• Crankshaft pulley
2. Remove frontoilseal.

Be careful nottoscratch frontcover.
SEM997C EM-82

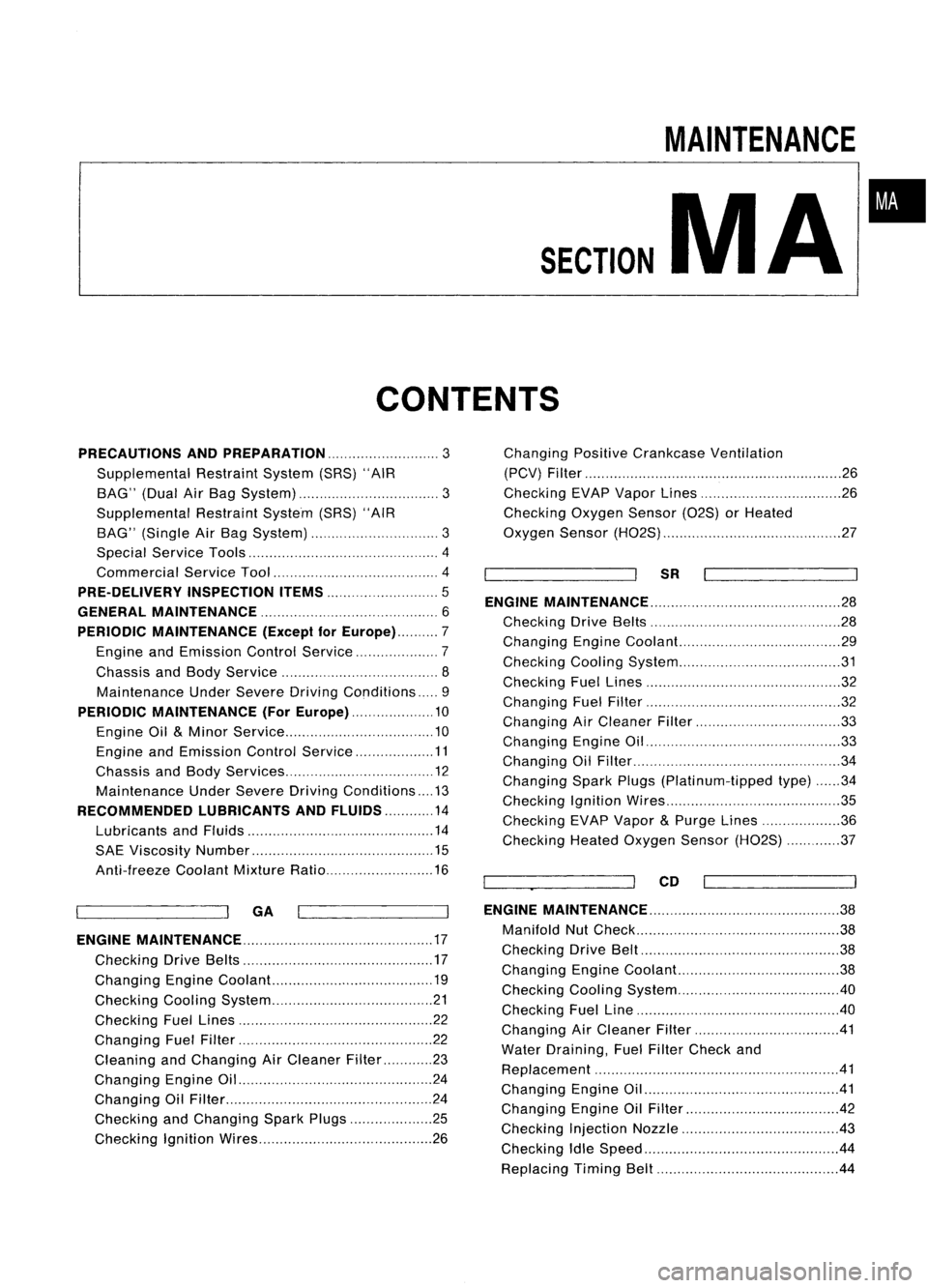

SECTION

CONTENTS
MAINTENANCE

MA
•

PRECAUTIONS ANDPREPARATION
3

Supplemental RestraintSystem(SRS)"AIR
BAG" (DualAirBag System) 3
Supplemental RestraintSystem(SRS)"AIR
BAG" (Single AirBag System) 3
Special Service Tools 4
Commercial ServiceTool 4

PRE-DELIVERY INSPECTIONITEMS
5

GENERAL MAINTENANCE 6
PERIODIC MAINTENANCE (Exceptfor
Europe) 7
Engine andEmission ControlService 7
Chassis andBody Service 8
Maintenance UnderSevere DrivingConditions 9

PERIODIC MAINTENANCE (ForEurope) 10

Engine Oil
&
Minor Service 10
Engine andEmission ControlService 11
Chassis andBody Services 12
Maintenance UnderSevere Driving Conditions 13

RECOMMENDED LUBRICANTSANDFLUIDS 14

Lubricants andFluids 14
SAE Viscosity Number 15
Anti-freeze CoolantMixtureRatio 16

~ --ll
GA
I I

ENGINE MAINTENANCE 17

Checking DriveBelts 17
Changing EngineCoolant... 19
Checking CoolingSystem 21
Checking FuelLines 22
Changing FuelFilter 22
Cleaning andChanging AirCleaner Filter 23
Changing EngineOil 24
Changing OilFilter 24
Checking andChanging SparkPlugs 25
Checking IgnitionWires 26Changing
PositiveCrankcase Ventilation
(PCV) Filter 26
Checking EVAPVapor Lines 26
Checking OxygenSensor(02S)orHeated
Oxygen Sensor(H02S) 27

~ --ll
SR
I I

ENGINE MAINTENANCE 28

Checking DriveBelts 28
Changing EngineCoolant... 29
Checking CoolingSystem 31
Checking FuelLines 32
Changing FuelFilter 32
Changing AirCleaner Filter 33
Changing EngineOil 33
Changing OilFilter 34
Changing SparkPlugs(Platinum-tipped type)34
Checking IgnitionWires 35
Checking EVAPVapor
&
Purge Lines 36
Checking HeatedOxygen Sensor(H02S) 37

~_~ ..-JI
CD
I I

ENGINE MAINTENANCE
38
Manifold NutCheck 38
Checking DriveBelt 38
Changing EngineCoolant. 38
Checking CoolingSystem .40
Checking FuelLine .40
Changing AirCleaner Filter 41
Water Draining, FuelFilter Check and
Replacement 41
Changing EngineOil .41
Changing EngineOilFilter 42
Checking InjectionNozzle 43
Checking IdleSpeed .44
Replacing TimingBelt 44

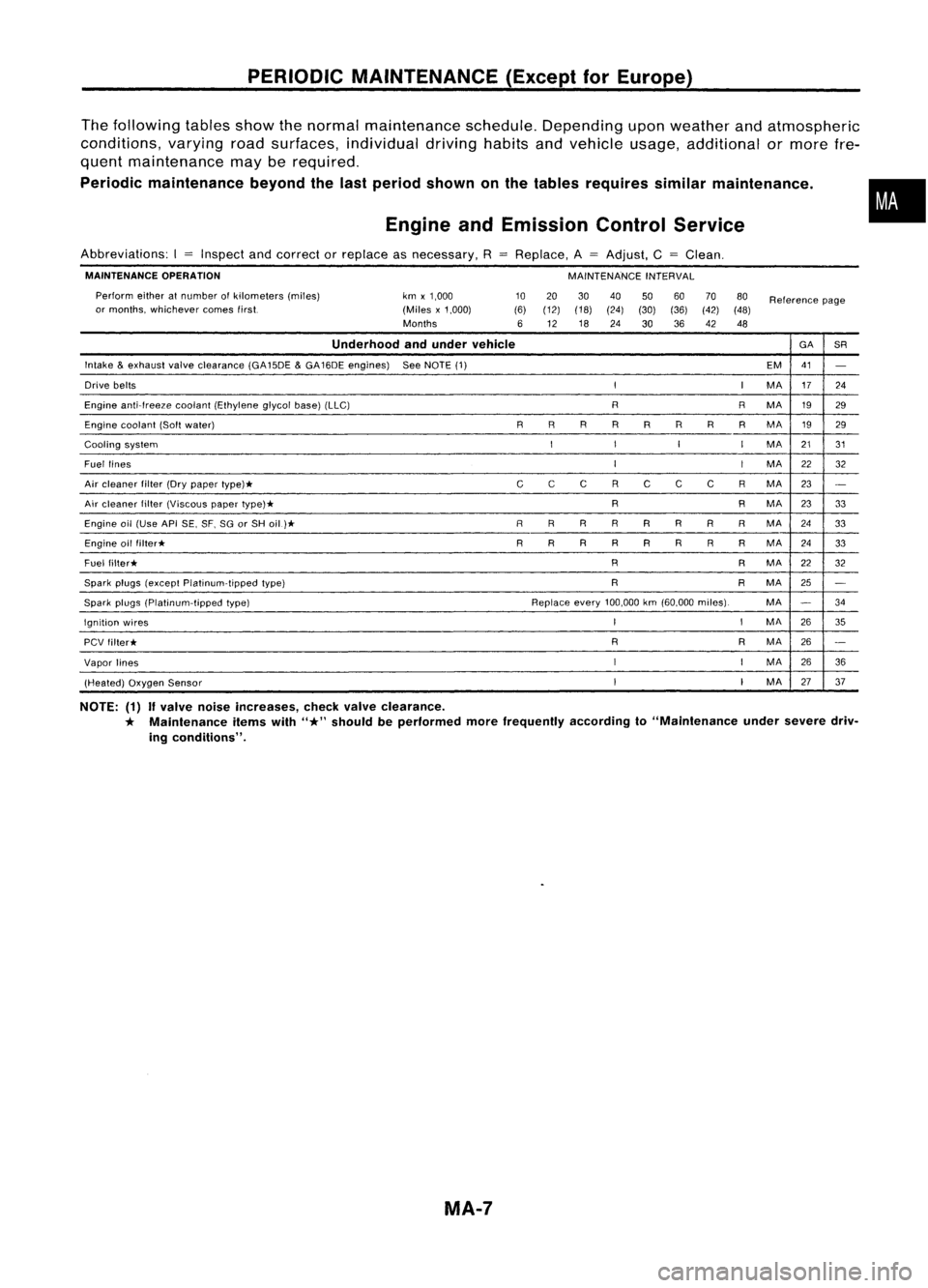

PERIODICMAINTENANCE (ExceptforEurope)

The following tablesshowthenormal maintenance schedule.Depending uponweather andatmospheric
conditions, varyingroadsurfaces, individual drivinghabitsandvehicle usage,additional ormore fre-
quent maintenance mayberequired.

Periodic maintenance beyondthelast period shown onthe tables requires similarmaintenance .
Engine andEmission ControlService

•

Abbreviations: I
=
Inspect andcorrect orreplace asnecessary. R

MAINTENANCE OPERATION

Perform eitheratnumber ofkilometers (miles)
or months, whichever comestirst. km
x1,000
(Miles x1,000)
Months
Replace.
A
=
Adjust, C
=
Clean.

MAINTENANCE INTERVAL
10 20 3040
506070
80
Reference page
(6) (12) (18)
(24)(30)(36)(42)(48)
6 12 18
24
3036
42 48
Underhood andunder vehicle GA
SR
Intake
&
exhaust valveclearance (GA15DE
&
GA16DE engines) SeeNOTE (1)
EM41
-

Drive belts
II
MA 17
24
Engine anti-Ireeze coolant(Ethylene glycolbase)(LLC) RRMA 1929
Engine coolant (Softwater) RRR
R

R R

R
RMA
1929
Cooling system
I
I

I
I
MA 2131
Fuel lines
I
I
MA
22
32
Air cleaner filter(Drypaper type)*
CC
C RC CC RMA 23

-

Air cleaner filter(Viscous papertype)* R
RMA
2333
Engine oil(Use APISE,SF.SGorSH oil)*
R

RRRR R
RR
MA 24
33
Engine oilfilter* R
R R
R
R RRRMA
2433
Fuel filter* R
RMA
22
32
Spark plugs(except Platinum-tipped type) R
RMA
25

-

Spark plugs(platinum-tipped type) Replaceevery100,000 km(60.000 miles). MA

-
34
Ignition wires
I

I
MA
2635
PCV filter* R
RMA
26

-

Vapor lines
I

I
MA
26
36
(Heated) OxygenSensor
I

I

MA 2737
NOTE: (1)
If
valve noiseincreases, checkvalveclearance.

*
Maintenance itemswith
"*"
should beperformed morefrequently accordingto"Maintenance undersevere driv-
ing conditions".

MA-7
