1995 NISSAN ALMERA N15 Service Manual

4-doorsedan

SEC. 880
SEAT

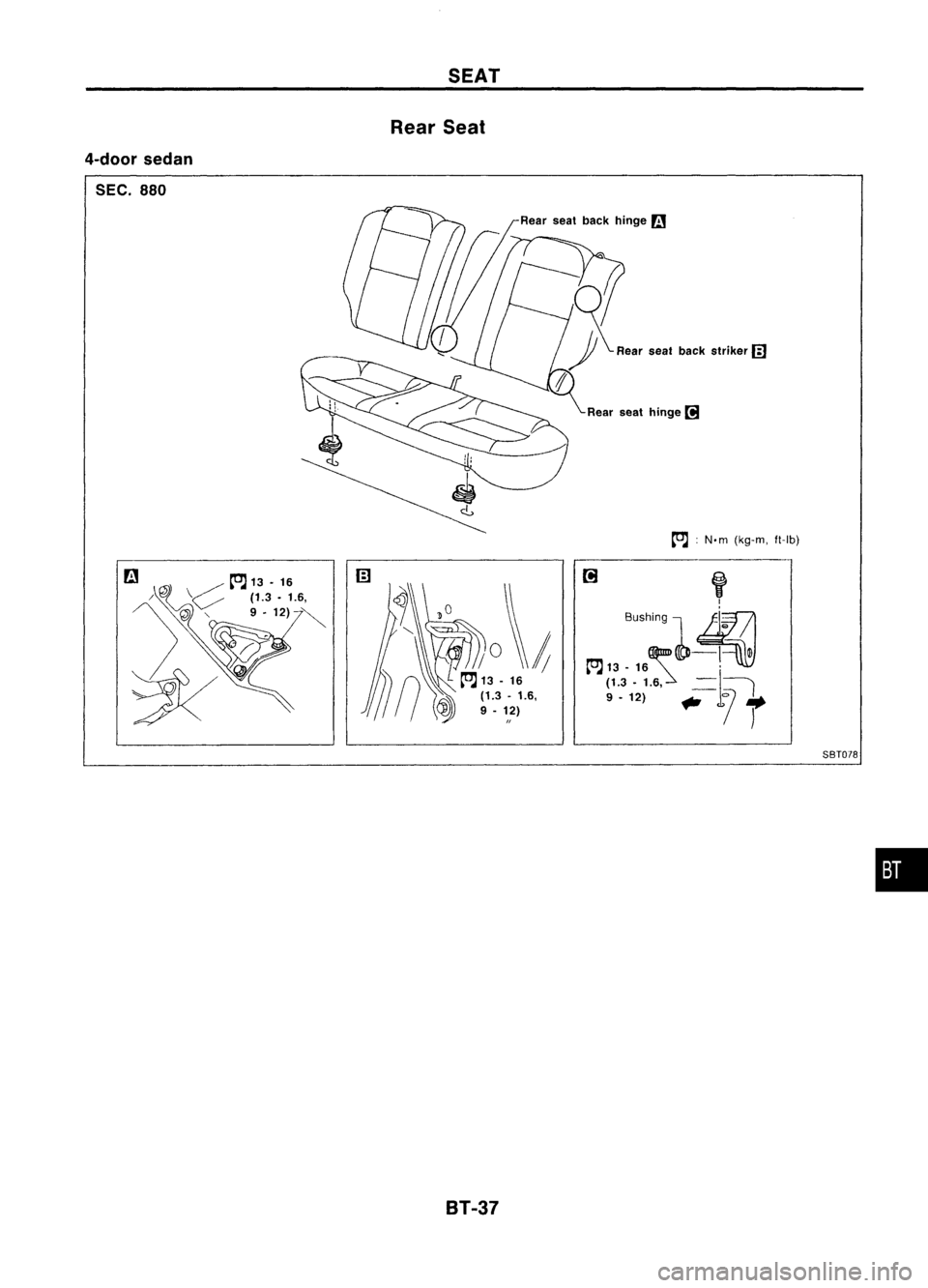

Rear Seat
8T-37
Rear
seathinge
[!J

~ :N.m (kg-m, ft-Ib)

if
I

Bushing
l~';'

~«tD-1
Ol

~ 13-16 '
(1.3 -1.6,
-=\----,

9 -12) ..
/
t

SBT078

•

HatchbackType-l
SEC. 880

~ ;N. m (kg-m, ft-Ib)

Type-2 SEC. 880 SEAT

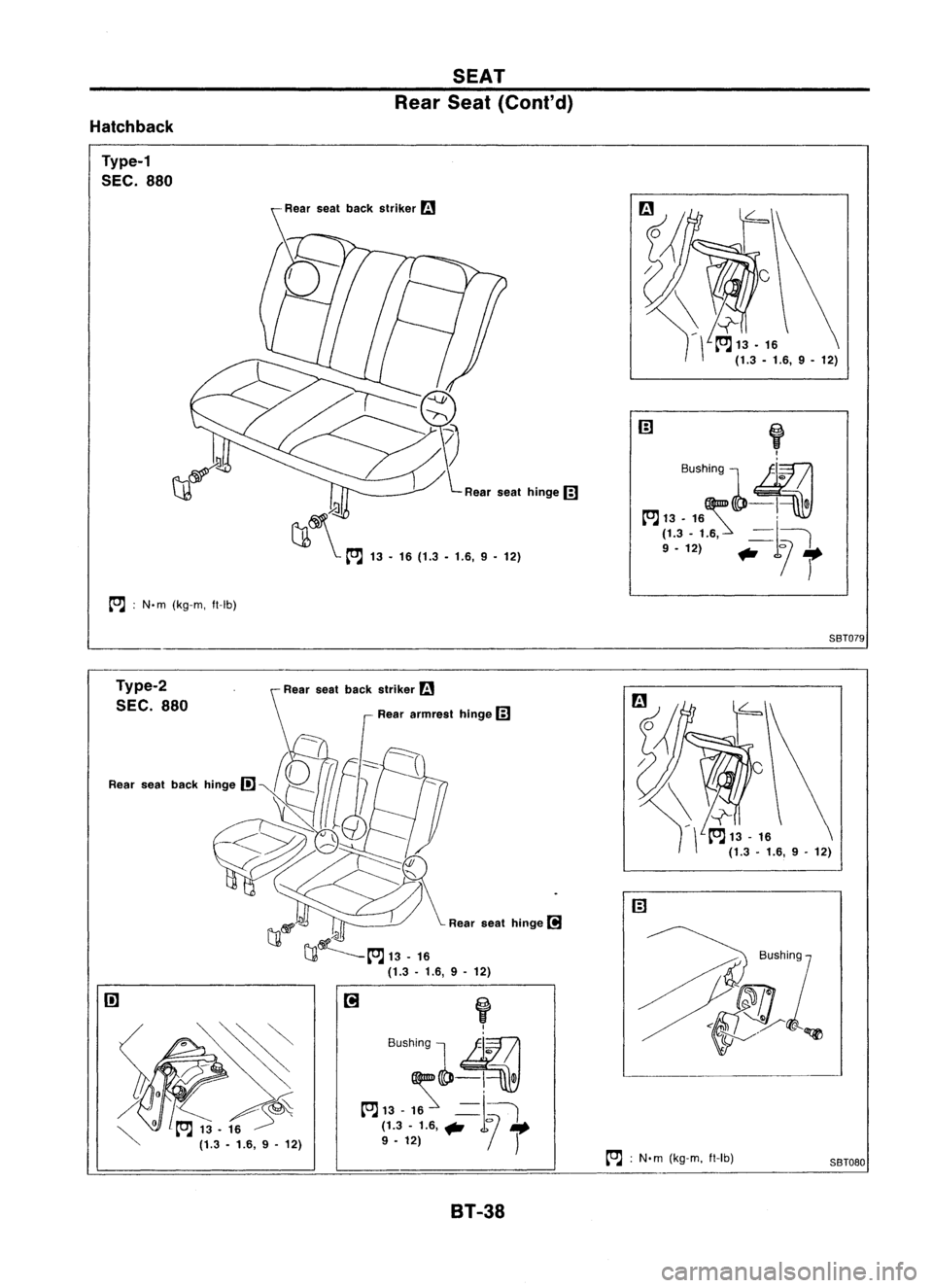

Rear Seat(Cont'd)

Rear seathinge
m

Rear seatback striker
r.i.1

Rear armrest h'
r-'I

mge~

,

Bushing
l
N7I

~~-~

~13 -16~
-I'

(1.3 -1.6,
.--! ')

9 •12) ~~~

)

BT-38
~
;N'm (kg-m, fHb)
SBT079
SBT080

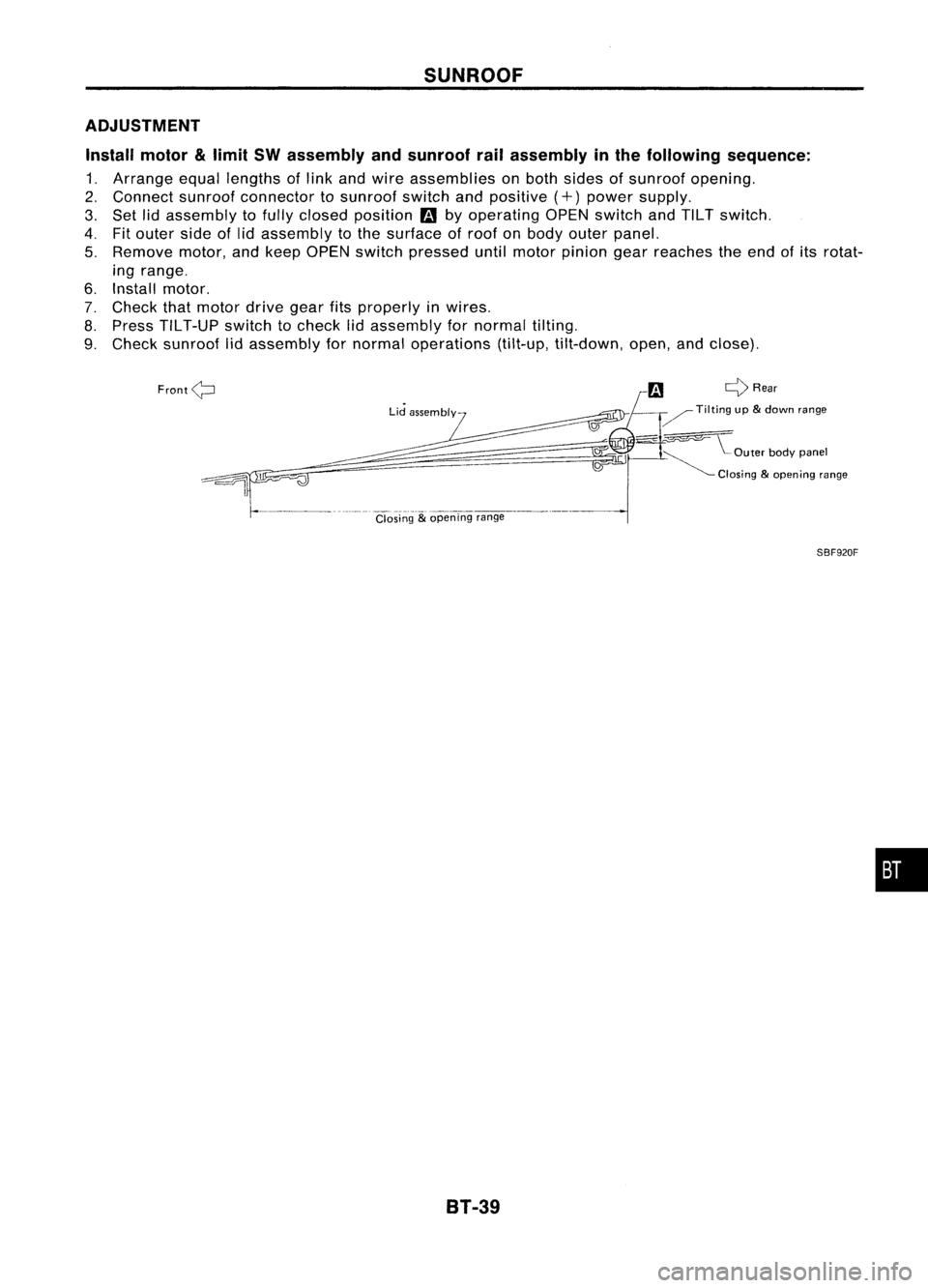

SUNROOF
ADJUSTMENT Install motor
&
limit SWassembly andsunroof railassembly inthe following sequence:

1. Arrange equallengths oflink and wire assemblies onboth sides ofsunroof opening.
2. Connect sunroofconnector tosunroof switchandpositive
(+)
power supply.
3. Set lidassembly tofully closed position
m
byoperating OPENswitch andTILT switch.
4. Fitouter sideoflid assembly tothe surface ofroof onbody outer panel.
5. Remove motor,andkeep OPEN switch pressed untilmotor pinion gearreaches theend ofits rotat-
ing range.
6. Install motor.
7. Check thatmotor drivegearfitsproperly inwires.
8. Press TILT-UP switchtocheck lidassembly fornormal tilting.
9. Check sunroof lidassembly fornormal operations (tilt-up,tilt-down, open,andclose).

FrontQ
Closing
&
opening range

81-39
ri1

9
Rear

/ Tilting up&down range

- ;:: u~
Outer bodypanel
~ Closing
&
opening range

SBF920F

•

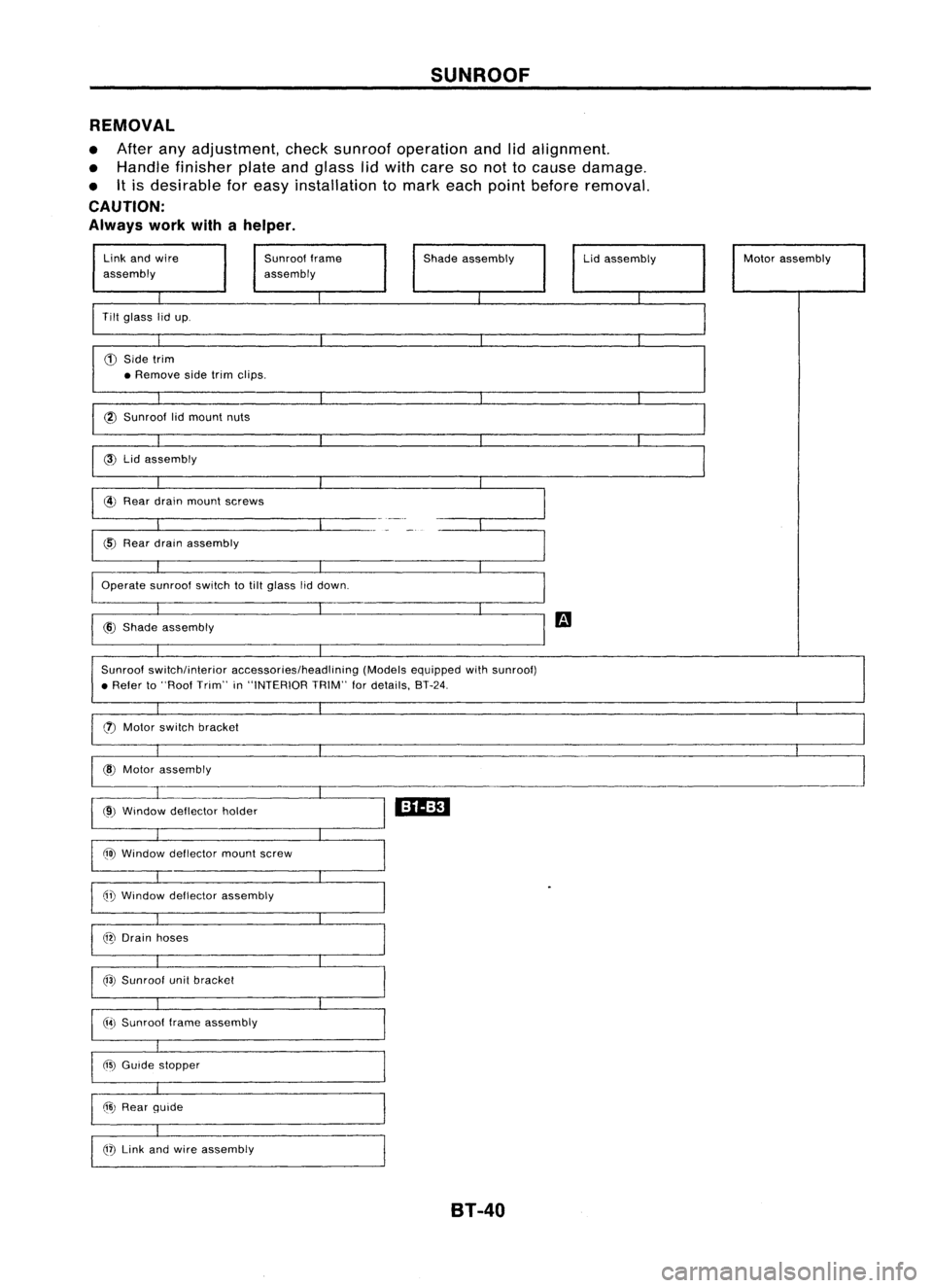

SUNROOF
REMOVAL

• After anyadjustment, checksunroof operation andlidalignment.
• Handle finisher plateandglass lidwith care sonot tocause damage.
• Itis desirable foreasy installation tomark eachpoint before removal.

CAUTION:
Always workwithahelper.

Link andwire
assembly Sunroof
frame
assembly Shade
assembly

~
~

8T-40
Lid
assembly Motorassembly

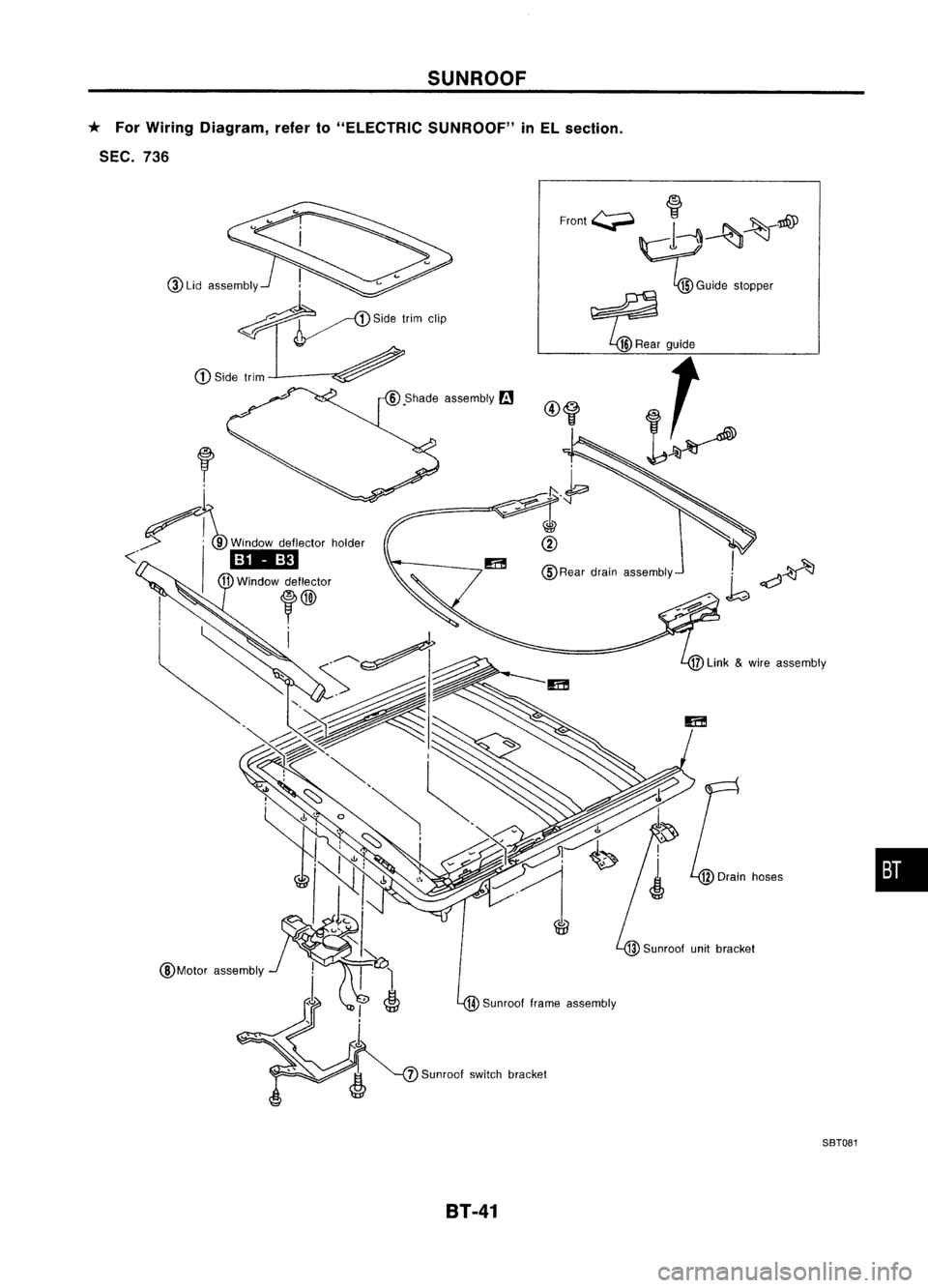

SUNROOF
* For Wiring Diagram, referto"ELECTRIC SUNROOF" inEL section.
SEC. 736

@Motor assembly @Rear
drainassembly
7 Sunroof switchbracket

81-41
SBT081
•

Linkassembly
MBF493B SUNROOF

m

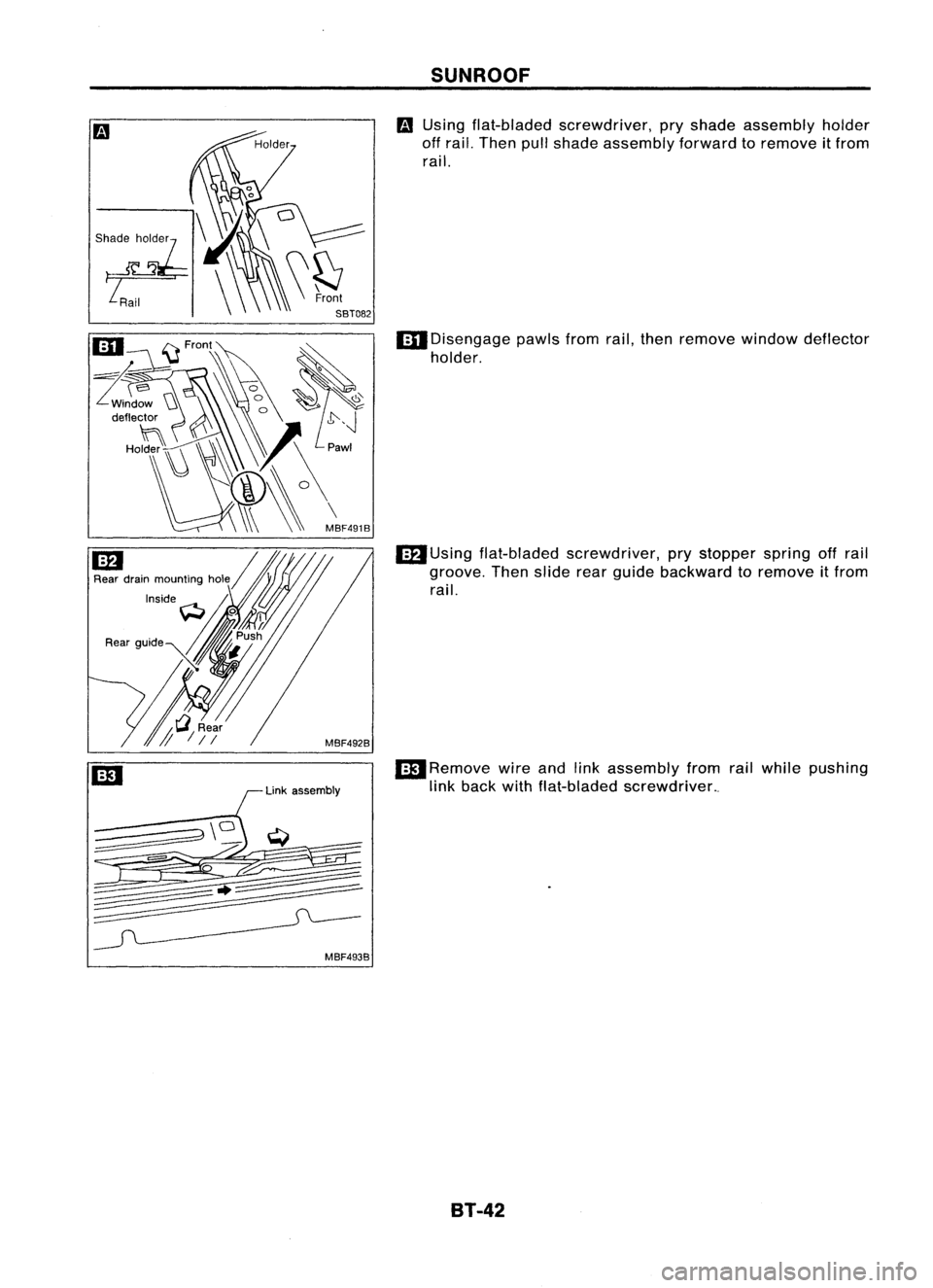

Using flat-bladed screwdriver, pryshade assembly holder
off rail. Then pullshade assembly forwardtoremove itfrom
rail.
I]IIDisengage pawlsfromrail,then remove window deflector
holder.
mUsing flat-bladed screwdriver, prystopper springoffrail
groove. Thensliderearguide backward toremove itfrom
rail.
mRemove wireandlinkassembly fromrailwhile pushing
link back withflat-bladed screwdriver.,
81-42

WINDSHIELDANDWINDOWS

Cutting sealant

SBF034BREMOVAL

After removing moldings, removeglass,
CAUTION: Be careful nottoscratch glasswhen removing.

INSTALLATION

• Use genuine NissanSealant kitorequivalent. Follow
instructions furnishedwithit.
• After installing theglass, thevehicle shouldremain station-
ary until thesealant hardens.
WARNING: Keep heatandopen flames awayasprimers areflammable.
CAUTION:
Advise usernottodrive thevehicle onrough roadsuntilseal-
ant has properly vulcanized.
•. Donot use sealant whichispast itsusable term.
• Donot leave cartridge unattended withitscap open.
• Keep primers andsealant inacool, dryplace. Ideally, they
should bestored inarefrigerator.
• Molding mustbeinstalled securely sothat itis in position
and leaves nogap.

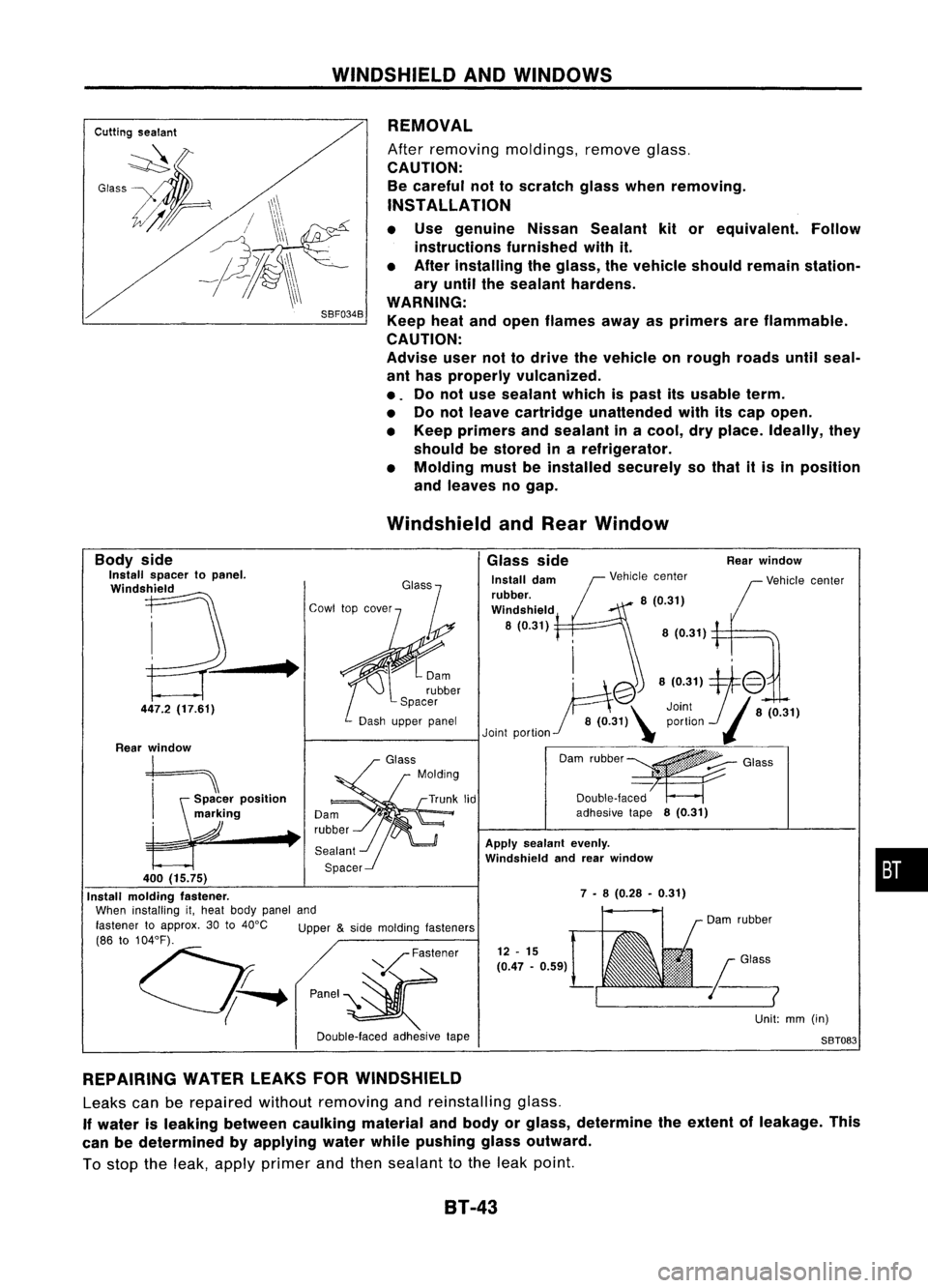

Windshield andRear Window

•

Rear
window

Vehicle center
8 (0.31)

Glass
side

Install dam

rubber.

Windshield

8(0.31)
12 -15

(0.47 -0.59)

Apply
sealant evenly.
Windshield andrear window

7 •8 (0.28 •0.31)
Unit:mm(in)

S8T083

fj
'@8(0.31)1:@

Joint8(0.31)
8 (0.31)\ portion
(J

Joint portion "

O,m ,"bb"~
G,,,,

Double-laced
adhesive tape8(0.31)

V
Fastener

P'""~
Double-laced
adhesive
tape

•

Body
side

Install spacer topanel.
Windshield

447.2 (17.61)

Rear window

t==\
h¥:~'
po"II"

markmg

•

400 (15.75)

Install molding fastener.

When installing it,heat body panel and
fastener toapprox. 30to40°C Upper
&
side molding lasteners
(86 to104°F).

0;-.

REPAIRING WATERLEAKSFORWINDSHIELD

Leaks canberepaired withoutremoving andreinstalling glass.
If water isleaking between caulking materialandbody orglass, determine theextent ofleakage. This
can bedetermined byapplying waterwhilepushing glassoutward.
To stop theleak, apply primer andthen sealant tothe leak point.

81-43

WINDSHIELDANDWINDOWS

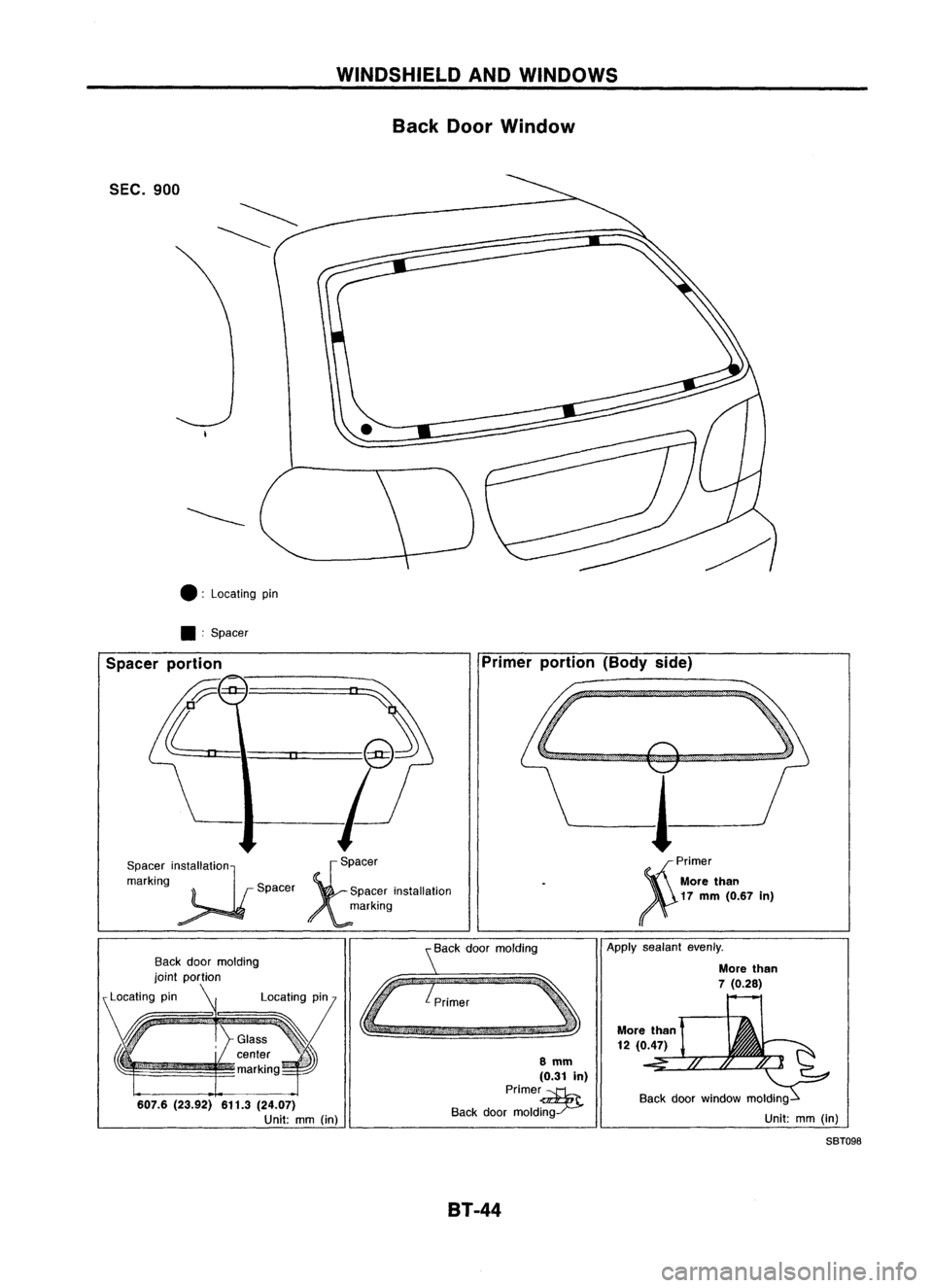

Back DoorWindow

SEC. 900
.: Locating pin
• :Spacer

Spacer portion Primer
portion (Bodyside)

Ii

Spacer in;ltallation
marking S
pacer
:t
pacer
Spacerinstallation
marking
Back doormolding
joint portion
Locating pin

607.6 (23.92) 611.3(24.07)

Unit: mm(in) Back
doormolding

8
mm
(0.31
in)

primer~
Back doormOld~

BT-44
Apply
sealant evenly.

More than

7 (0.28)

Back doorwindow molding
Unit: mm(in)

SBT098
