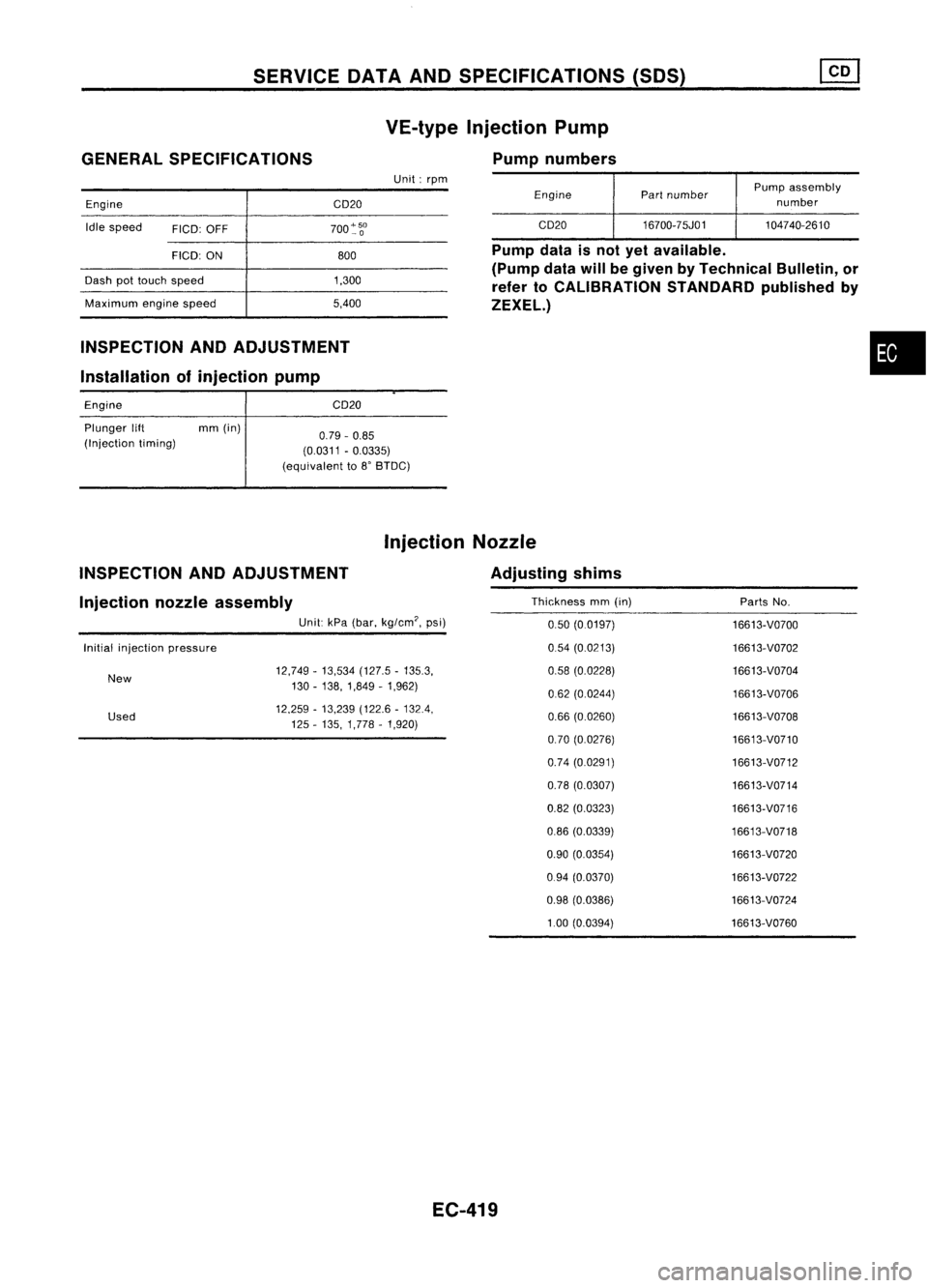

SERVICEOATAAND SPECIFICATIONS (SOS)
GENERAL SPECIFICATIONS
Engine CD20VE-type
Injection Pump
Pump numbers
Unit: rpm
EnginePartnumber Pump
assembly
number
Idle speed
FICO:OFF 700~~O CD20
16700-75J01 104740-2610
INSPECTION ANDADJUSTMENT
Installation ofinjection pump
FICO:
ON
Dash pottouch speed
Maximum enginespeed
Engine
Plunger lift mm(in)
(Injection timing) 800
1,300
5,400
CD20
0.79 -0.85
(0.0311 -0.0335)
(equivalent to8'BTDC) Pump
dataisnot yetavailable.
(Pump data
will
begiven byTechnical Bulletin,or
refer toCALIBRATION STANDARDpublishedby
ZEXEL.)
•
INSPECTION ANDADJUSTMENT Injection
Nozzle
Adjusting shims
Injection nozzleassembly
Unit:kPa(bar, kg/em', psi)
Initial injection pressure
New
Used 12,749
-13,534 (127.5-135.3,
130 -138,1,849 -1,962)
12,259 -13,239 (122.6-132.4,
125 -135, 1,778 -1,920)
EC-419 Thickness
mm(in) PartsNo.
0.50 (0.0197)
16613-V0700
0.54 (0.0213)
16613-V0702
0.58 (0.0228) 16613-V0704
062 (0.0244) 16613-V0706
0.66 (0.0260) 16613-V0708
0.70 (0.0276) 16613-V0710
0.74 (0.0291) 16613-V0712
0.78 (0.0307)
16613-V0714
0.82 (0.0323)
16613-V0716
0.86 (0.0339) 16613-V0718
0.90 (0.0354) 16613-V0720
0.94 (0.0370)
16613-V0722
0.98 (0.0386) 16613-V0724
1.00 (0.0394) 16613-V0760
