ENGINE HOOD/DOOR HOOD
75±3
AVENSIS REPAIR MANUAL (RM1018E)

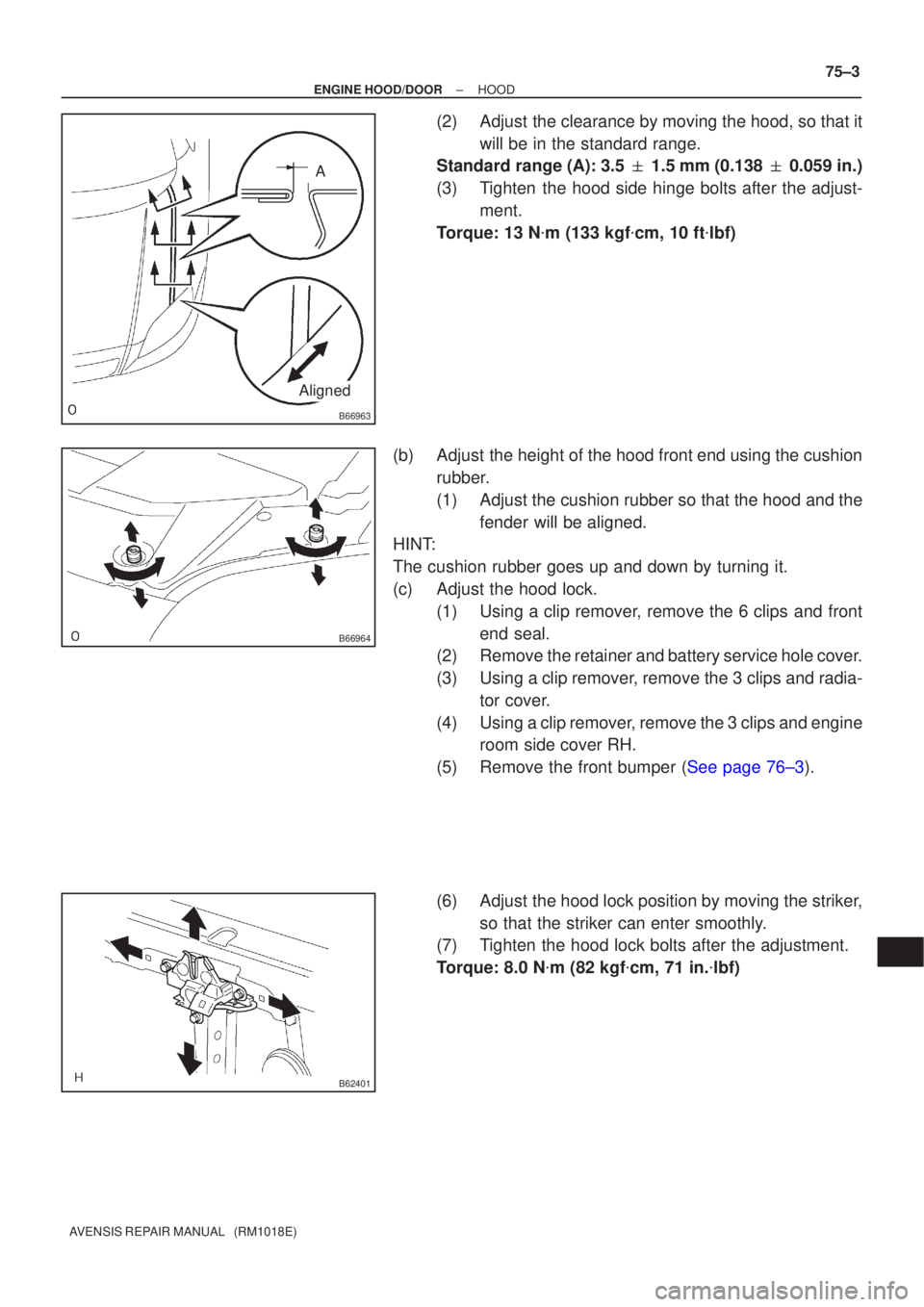

(2)Adjust the clearance by moving the hood, so that it
will be in the standard range.
Standard range (A): 3.5
1.5 mm (0.138
0.059 in.)
(3)Tighten the hood side hinge bolts after the adjust- ment.
Torque: 13 N
m (133 kgf
cm, 10 ft
lbf)
(b)Adjust the height of the hood front end using the cushion rubber.
(1)Adjust the cushion rubber so that the hood and thefender will be aligned.
HINT:
The cushion rubber goes up and down by turning it.
(c)Adjust the hood lock.
(1)Using a clip remover, remove the 6 clips and frontend seal.
(2)Remove the retainer and battery service hole cover.
(3)Using a clip remover, remove the 3 clips and radia-
tor cover.
(4)Using a clip remover, remove the 3 clips and engine room side cover RH.
(5)Remove the front bumper (See page 76±3).
(6) Adjust the hood lock position by moving the striker, so that the striker can enter smoothly.
(7) Tighten the hood lock bolts after the adjustment.
Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)

750N1±01
B66985
Luggage Compartment
Door Panel Sub±assy
Luggage Compartment
Outside Garnish
Licence Plate Lamp Assy Luggage Compartment Door Lock Cylinder Assy
Luggage Compartment Trim Hook No. 2
Rear Floor Finish Plate
Luggage Striker Assy
Rope Hook AssyBack Door Trim Cover
Luggage Compartment Floor CarpetLuggage Compartment
Trim Inner RH
Luggage Compartment
Trim Inner LHLuggage Lock Assy
Clip
4.9 (49, 43 in.´lbf)
5.0 (51, 44 in.´lbf)
5.0 (51, 44 in.´lbf)
Hinge Cover
: Specified torqueN´m (kgf´cm, ft´lbf)
7.0 (71, 62 in.´lbf)
11.5 (120, 8)
75±32
± ENGINE HOOD/DOORLUGGAGE COMPARTMENT DOOR
AVENSIS REPAIR MANUAL (RM1018E)
LUGGAGE COMPARTMENT DOOR

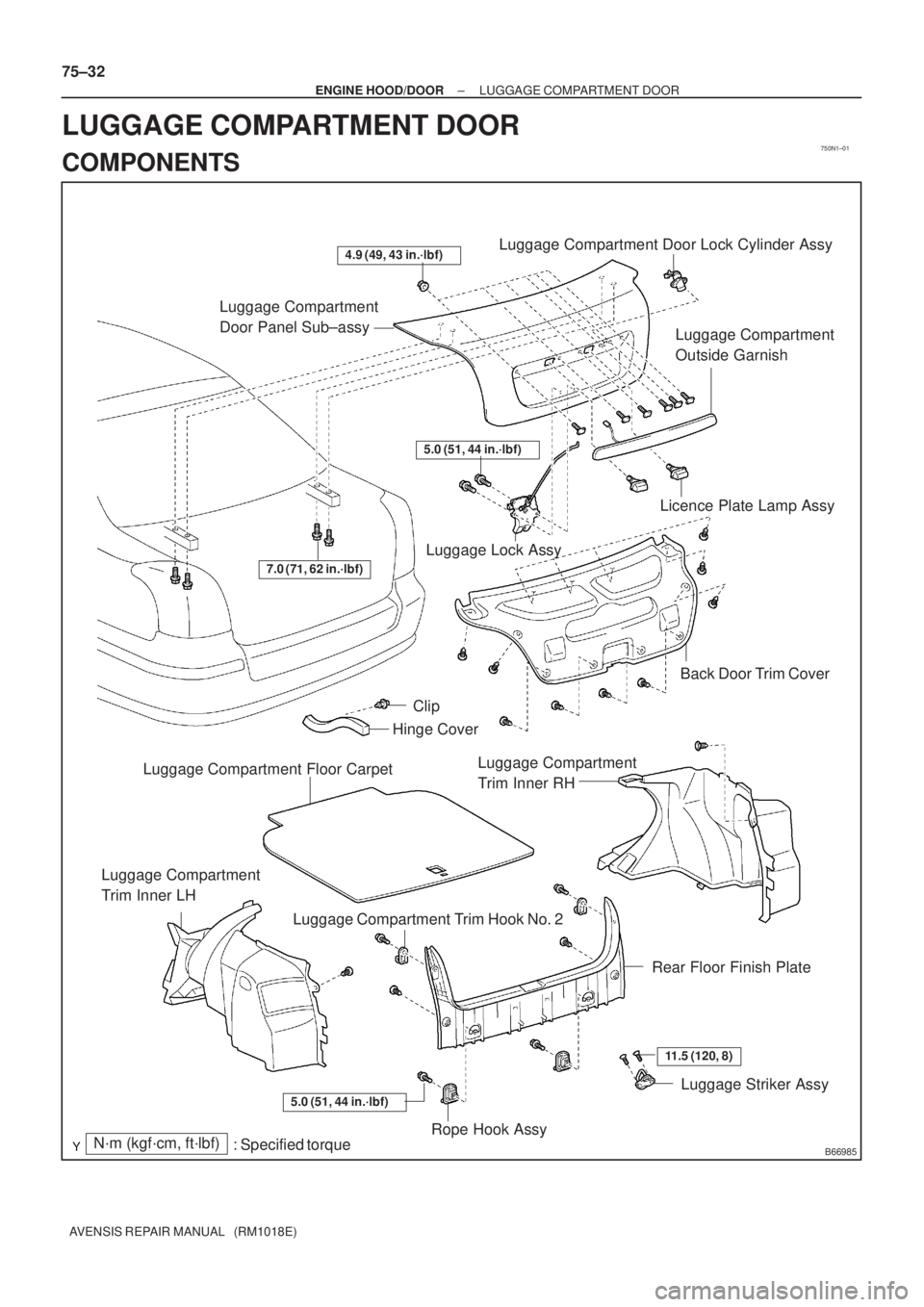

COMPONENTS

750N2±01
B57104
Centering BoltStandard Bolt
B66984
A
B
C
B61457
± ENGINE HOOD/DOORLUGGAGE COMPARTMENT DOOR
75±33
AVENSIS REPAIR MANUAL (RM1018E)
ADJUSTMENT
HINT:
Because a centering bolt is used as a luggage compartment
door mounting bolt, the luggage compartment door can not be
adjusted with it on. Substitute a bolt with a washer for the cen-
tering bolt.
1. INSPECT LUGGAGE COMPARTMENT DOOR PANEL SUB±ASSY
(a) Check that the clearance is within the standard range.
Standard range:
A4.0
1.5 mm (0.157
0.059 in.)
B5.3
1.5 mm (0.209
0.059 in.)
C7.1 ± 1.5 or + 2.5 mm
(0.280 ± 0.059 or + 0.098 in.)
2. ADJUST LUGGAGE COMPARTMENT DOOR PANEL
SUB±ASSY
(a) Using a clip remover, remove the clips and hinge cover.
(b) Using a clip remover, remove the 11 clips and trim cover.
(c) Adjust the door horizontally and vertically by Loosening
the door bolts.
(d) Tighten the door mounting bolts after the adjustment.
Torque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)

B66994
75±34
± ENGINE HOOD/DOORLUGGAGE COMPARTMENT DOOR
AVENSIS REPAIR MANUAL (RM1018E)

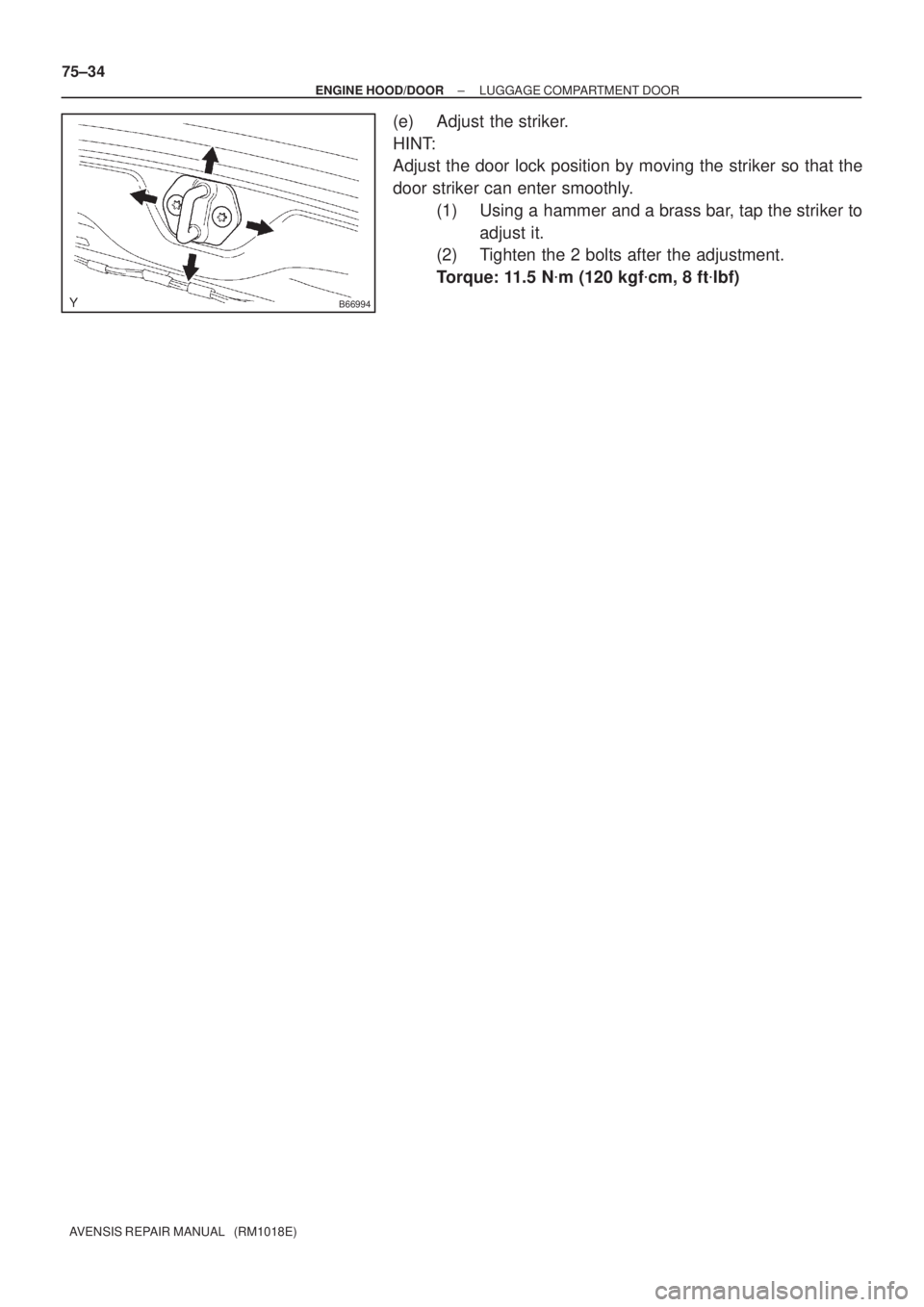

(e) Adjust the striker.
HINT:
Adjust the door lock position by moving the striker so that the
door striker can enter smoothly.
(1) Using a hammer and a brass bar, tap the striker to
adjust it.
(2) Tighten the 2 bolts after the adjustment.
Torque: 11.5 N
m (120 kgf
cm, 8 ft
lbf)

750N3±01
B55944
B55945
± ENGINE HOOD/DOORLUGGAGE DOOR HINGE TORSION BAR
75±35
AVENSIS REPAIR MANUAL (RM1018E)

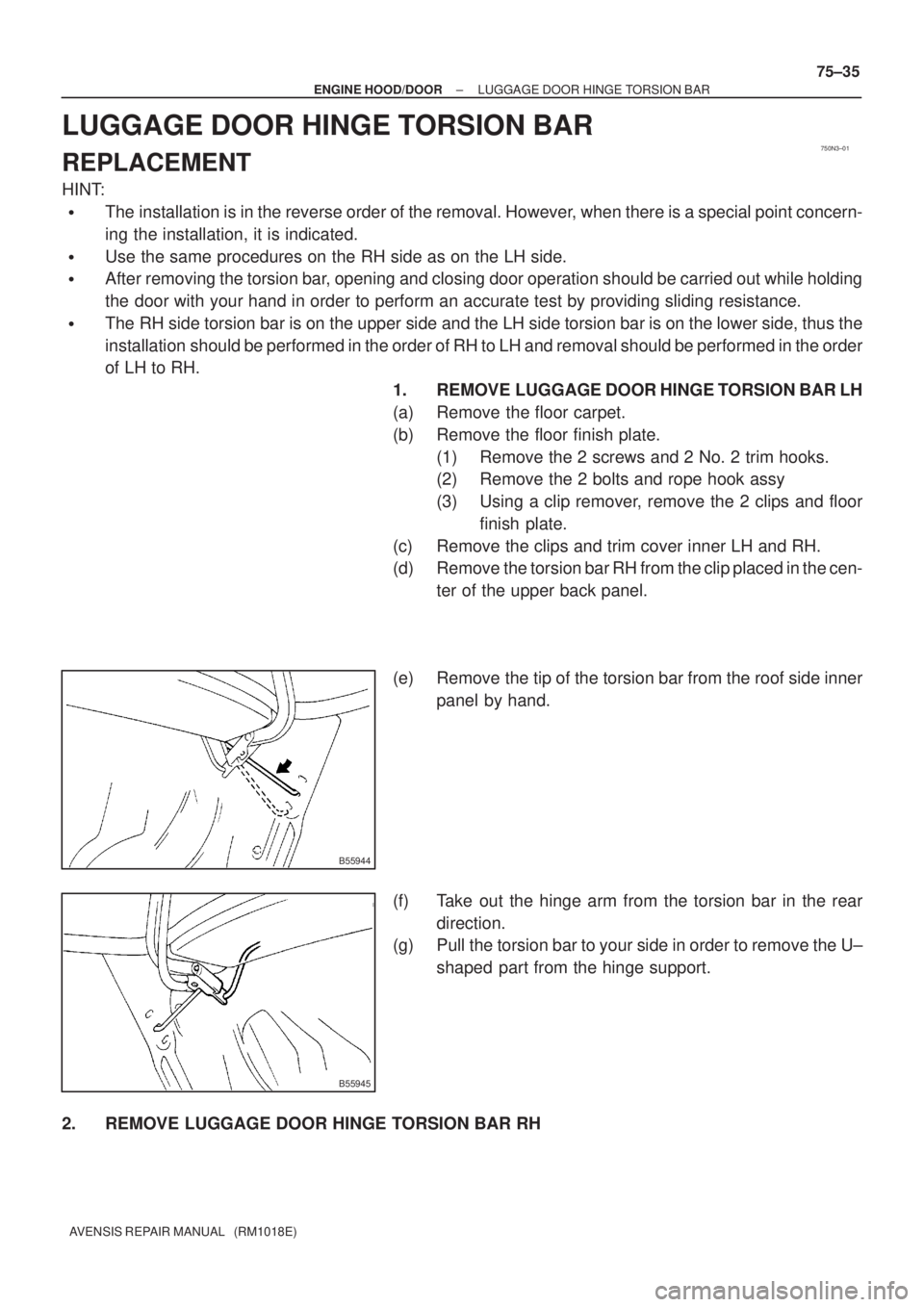

LUGGAGE DOOR HINGE TORSION BAR
REPLACEMENT
HINT:

The installation is in the reverse order of the removal. However, when there is a special point concern-
ing the installation, it is indicated.

Use the same procedures on the RH side as on the LH side.

After removing the torsion bar, opening and closing door operation should be carried out while holding
the door with your hand in order to perform an accurate test by providing sliding resistance.

The RH side torsion bar is on the upper side and the LH side torsion bar is on the lower side, thus the
installation should be performed in the order of RH to LH and removal should be performed in the order
of LH to RH.
1. REMOVE LUGGAGE DOOR HINGE TORSION BAR LH
(a) Remove the floor carpet.
(b) Remove the floor finish plate.
(1) Remove the 2 screws and 2 No. 2 trim hooks.
(2) Remove the 2 bolts and rope hook assy
(3) Using a clip remover, remove the 2 clips and floor
finish plate.
(c) Remove the clips and trim cover inner LH and RH.
(d) Remove the torsion bar RH from the clip placed in the cen-
ter of the upper back panel.
(e) Remove the tip of the torsion bar from the roof side inner
panel by hand.
(f) Take out the hinge arm from the torsion bar in the rear
direction.
(g) Pull the torsion bar to your side in order to remove the U±
shaped part from the hinge support.
2. REMOVE LUGGAGE DOOR HINGE TORSION BAR RH

B56621
Installation Hole
Installation Hole
(For Adjustment)
75±36
± ENGINE HOOD/DOORLUGGAGE DOOR HINGE TORSION BAR
AVENSIS REPAIR MANUAL (RM1018E)
3. INSTALL LUGGAGE DOOR HINGE TORSION BAR LH
(a) Set the tip of the torsion bar in the installation hole placed
in the center part. The holes placed in the upper and lower
parts are used for adjustment.
4. INSTALL LUGGAGE DOOR HINGE TORSION BAR RH

141BG±01
A77322
7.0 (71.62, in.
lbf)
7.0 (71.62, in.
lbf)
Engine Room
Cover Side
Radiator Support
Opening CoverEngine Cover Sub±assy No. 1
Engine Under Cover RH
N´m (kgf´cm, ft´lbf)
: Specified torque 14±168
± ENGINE MECHANICALCAMSHAFT (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

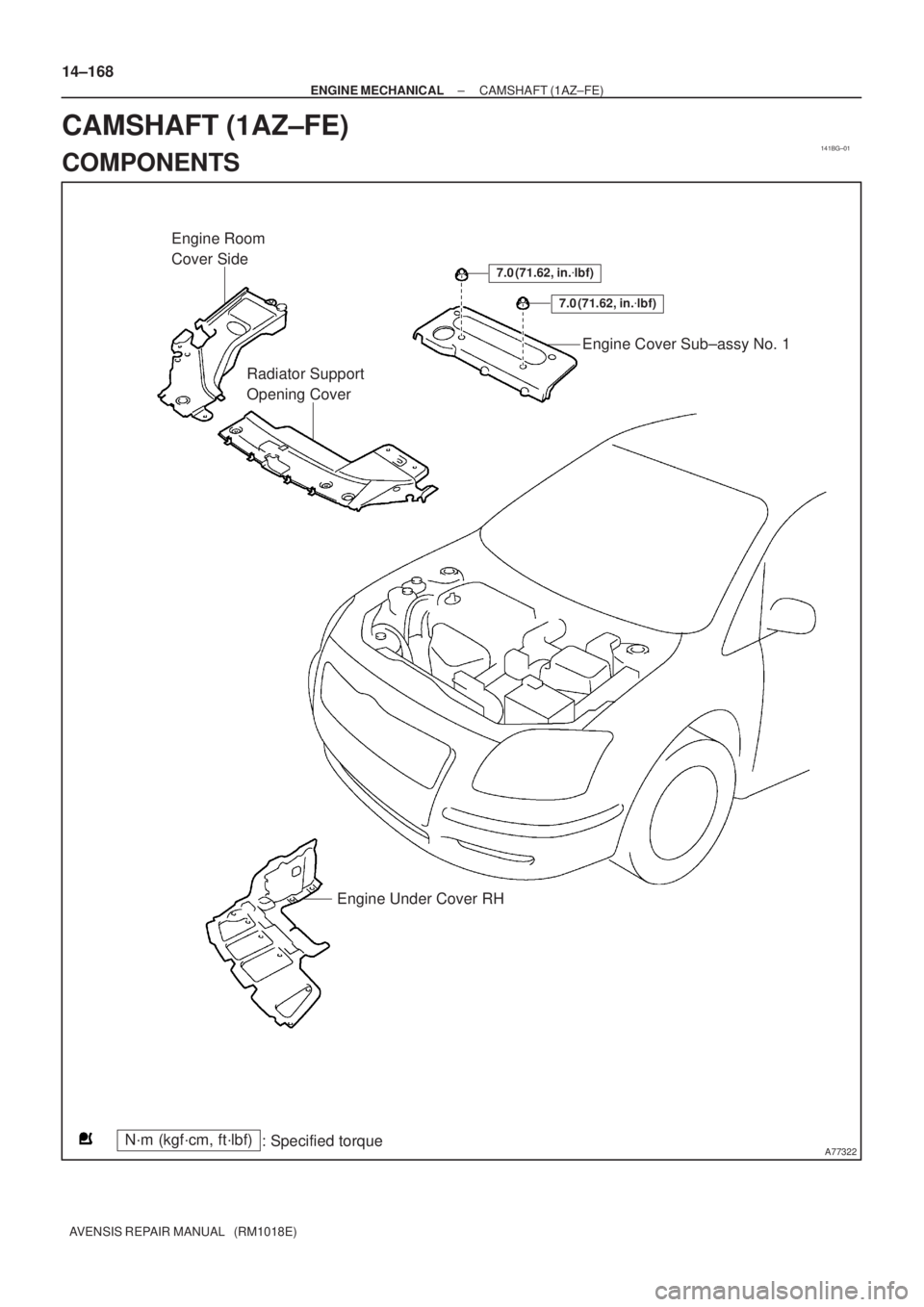

CAMSHAFT (1AZ±FE)
COMPONENTS

A77320
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
Ignition Coil Assy
9.0 (90, 80 in.
lbf)
14 (143, 10)
11 (115, 8.0)
Cylinder Head Cover Sub±assy

Gasket
11 (115, 8.0)
Ventilation Hose No. 2
Ventilation Hose No. 2
± ENGINE MECHANICALCAMSHAFT (1AZ±FE)
