2002 TOYOTA AVENSIS Repair Manual

I35138

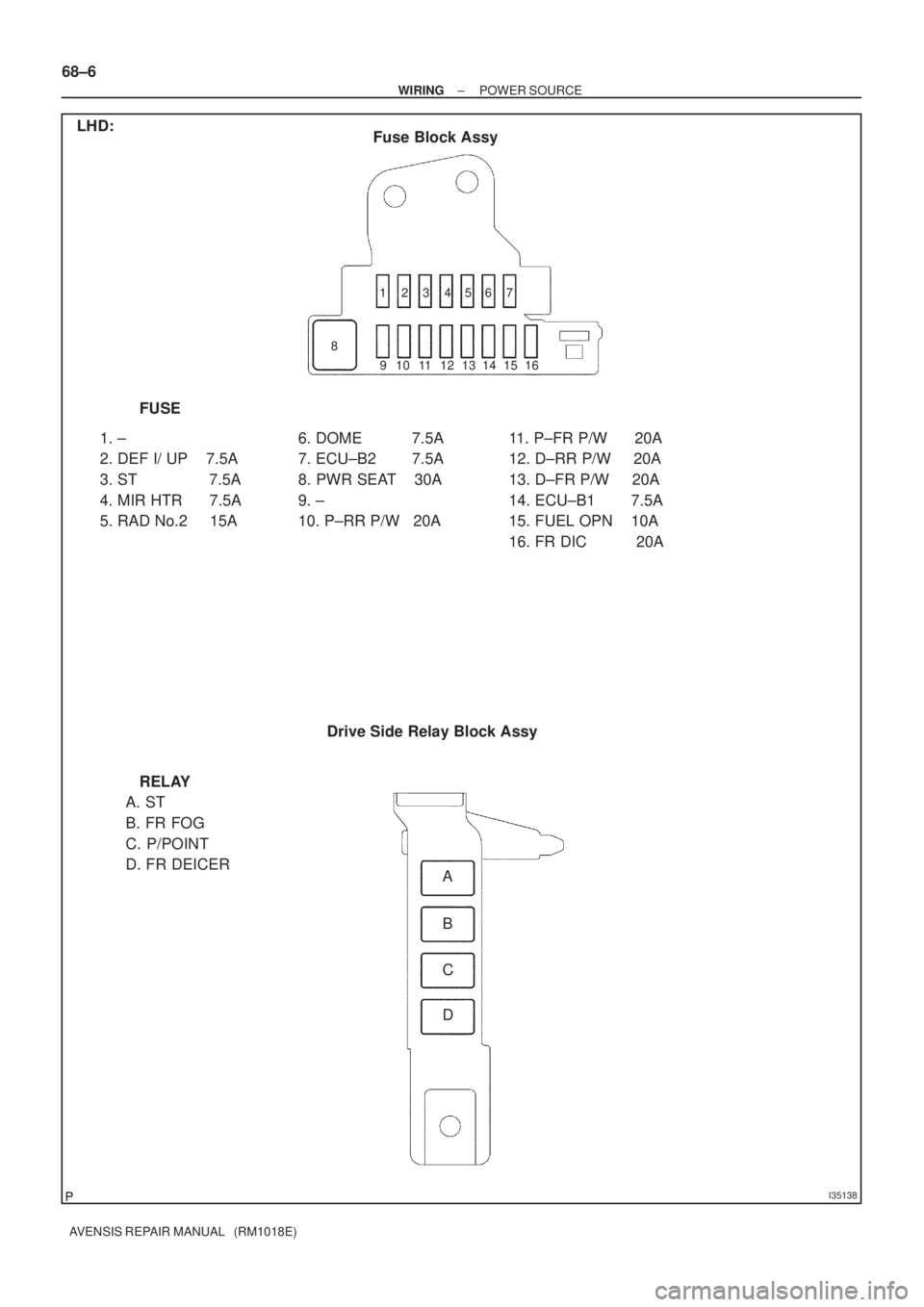

LHD:
FUSE
1. ±
2. DEF I/ UP 7.5A
3. ST 7.5A
4. MIR HTR 7.5A
5. RAD No.2 15A6. DOME 7.5A
7. ECU±B2 7.5A
8. PWR SEAT 30A
9. ±
10. P±RR P/W 20A11. P±FR P/W 20A
12. D±RR P/W 20A
13. D±FR P/W 20A
14. ECU±B1 7.5A
15. FUEL OPN 10A
16. FR DIC 20A
RELAY
A. ST
B. FR FOG
C. P/POINT
D. FR DEICER
A
B
13 14 15 934567
8
C
D
16 11 1 2 10 12
Fuse Block Assy
Drive Side Relay Block Assy 68±6
± WIRINGPOWER SOURCE
AVENSIS REPAIR MANUAL (RM1018E)

I35137
AB
CD
13 14 15 93 456 7
8
16 10 1211 12

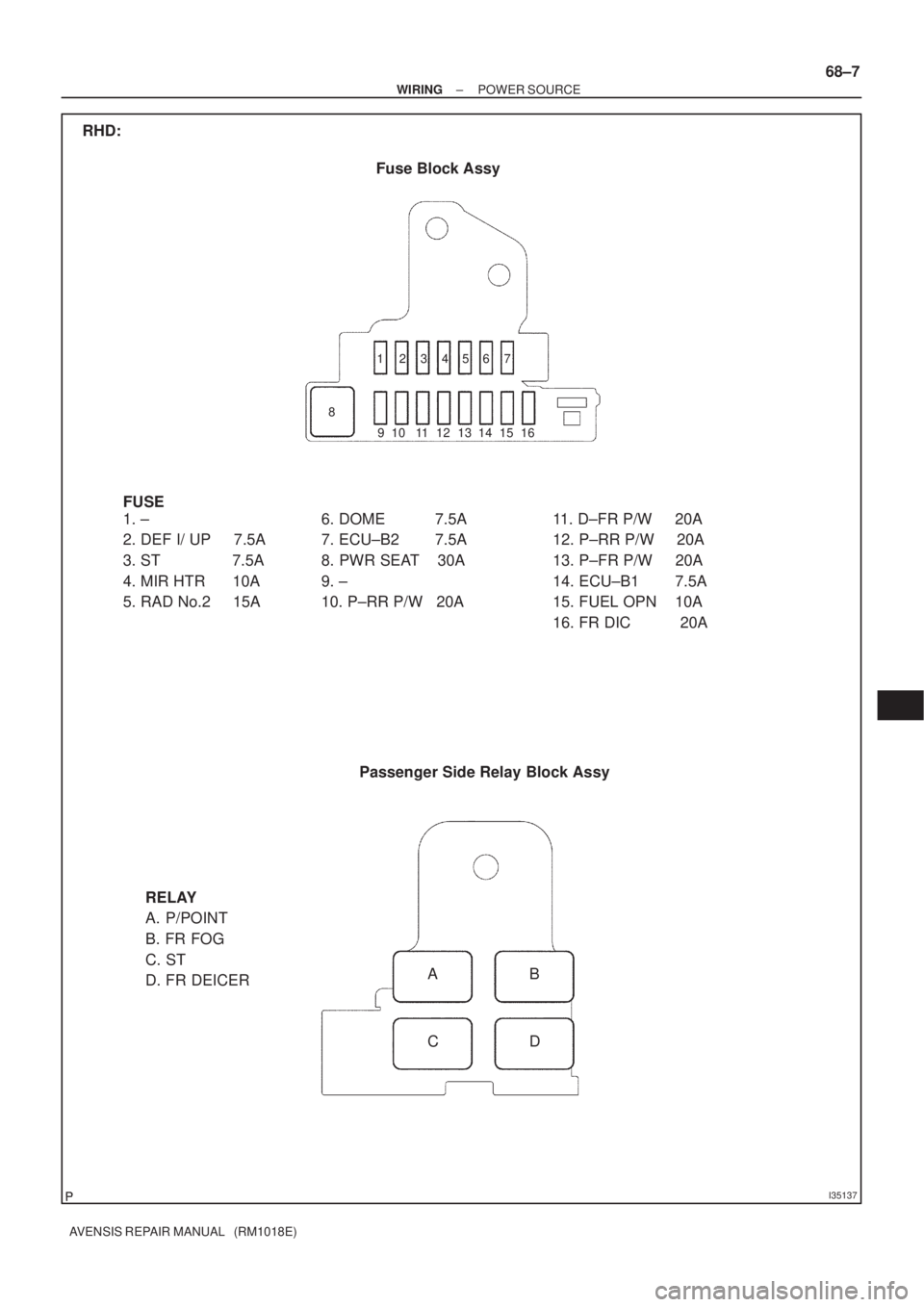

RHD:
Fuse Block Assy
FUSE
1. ±
2. DEF I/ UP 7.5A
3. ST 7.5A
4. MIR HTR 10A
5. RAD No.2 15A6. DOME 7.5A
7. ECU±B2 7.5A
8. PWR SEAT 30A
9. ±
10. P±RR P/W 20A11. D±FR P/W 20A
12. P±RR P/W 20A
13. P±FR P/W 20A
14. ECU±B1 7.5A
15. FUEL OPN 10A
16. FR DIC 20A
Passenger Side Relay Block Assy
RELAY
A. P/POINT
B. FR FOG
C. ST
D. FR DEICER
± WIRINGPOWER SOURCE
68±7
AVENSIS REPAIR MANUAL (RM1018E)
