2002 TOYOTA AVENSIS Repair Manual

D30335
Inward
Outward

D30336
C70126
C53369
Service Bolt

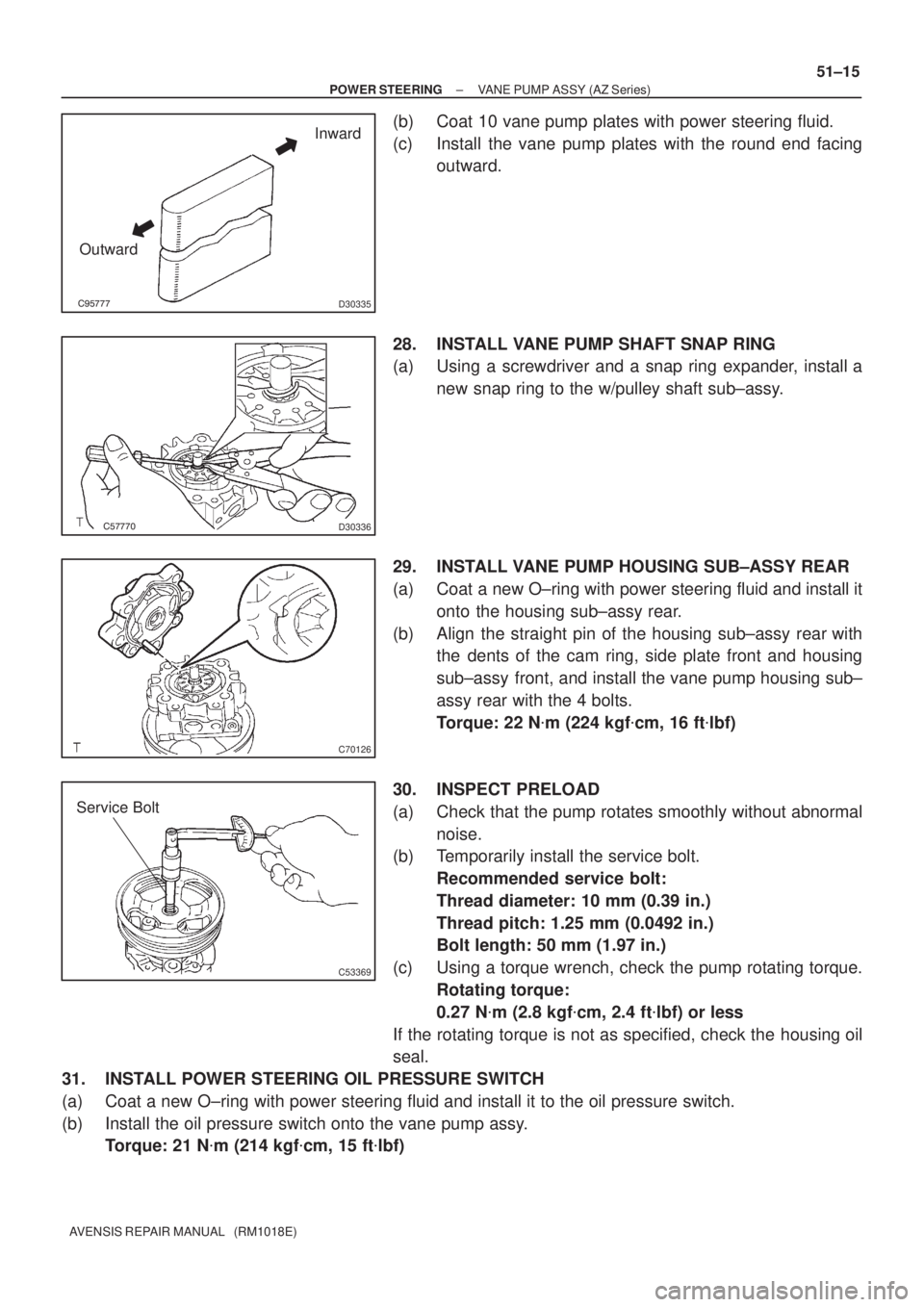

± POWER STEERINGVANE PUMP ASSY (AZ Series)
51±15
AVENSIS REPAIR MANUAL (RM1018E)
(b) Coat 10 vane pump plates with power steering fluid.
(c) Install the vane pump plates with the round end facing
outward.
28. INSTALL VANE PUMP SHAFT SNAP RING
(a) Using a screwdriver and a snap ring expander, install a
new snap ring to the w/pulley shaft sub±assy.
29. INSTALL VANE PUMP HOUSING SUB±ASSY REAR
(a) Coat a new O±ring with power steering fluid and install it
onto the housing sub±assy rear.
(b) Align the straight pin of the housing sub±assy rear with
the dents of the cam ring, side plate front and housing
sub±assy front, and install the vane pump housing sub±
assy rear with the 4 bolts.
Torque: 22 N
m (224 kgf
cm, 16 ft
lbf)
30. INSPECT PRELOAD
(a) Check that the pump rotates smoothly without abnormal
noise.
(b) Temporarily install the service bolt.
Recommended service bolt:
Thread diameter: 10 mm (0.39 in.)
Thread pitch: 1.25 mm (0.0492 in.)
Bolt length: 50 mm (1.97 in.)
(c) Using a torque wrench, check the pump rotating torque.
Rotating torque:
0.27 N
m (2.8 kgf
cm, 2.4 ft
lbf) or less
If the rotating torque is not as specified, check the housing oil
seal.
31. INSTALL POWER STEERING OIL PRESSURE SWITCH
(a) Coat a new O±ring with power steering fluid and install it to the oil pressure switch.
(b) Install the oil pressure switch onto the vane pump assy.
Torque: 21 N
m (214 kgf
cm, 15 ft
lbf)

F42475
F40330
A
SST(s)
BFulcrum Length
F41596
Pressure Feed
Tube Assy
Stopper
51±16

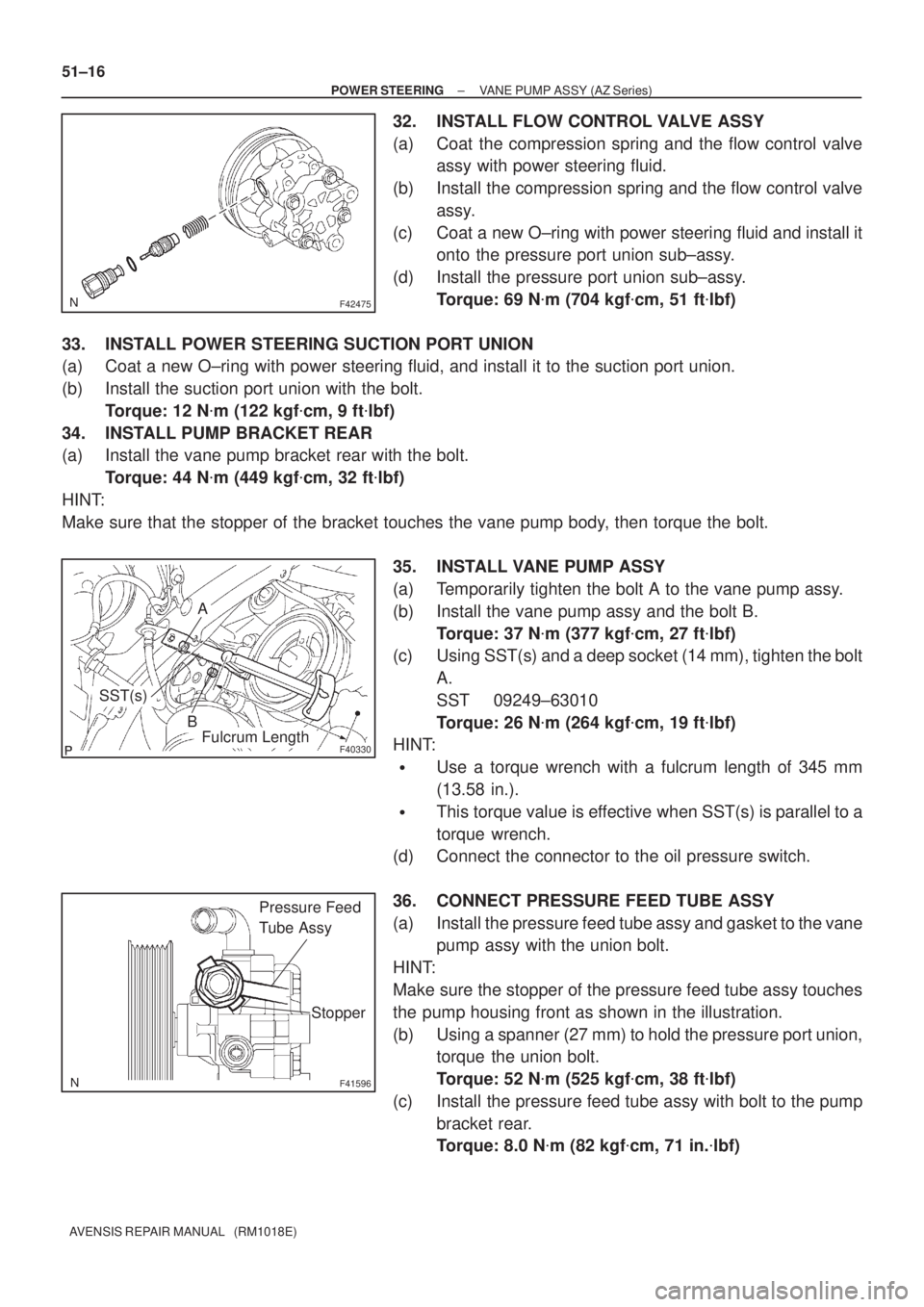

± POWER STEERINGVANE PUMP ASSY (AZ Series)
AVENSIS REPAIR MANUAL (RM1018E)
32. INSTALL FLOW CONTROL VALVE ASSY
(a) Coat the compression spring and the flow control valve
assy with power steering fluid.
(b) Install the compression spring and the flow control valve
assy.
(c) Coat a new O±ring with power steering fluid and install it
onto the pressure port union sub±assy.
(d) Install the pressure port union sub±assy.
Torque: 69 N
m (704 kgf
cm, 51 ft
lbf)
33. INSTALL POWER STEERING SUCTION PORT UNION
(a) Coat a new O±ring with power steering fluid, and install it to the suction port union.
(b) Install the suction port union with the bolt.
Torque: 12 N
m (122 kgf
cm, 9 ft
lbf)
34. INSTALL PUMP BRACKET REAR
(a) Install the vane pump bracket rear with the bolt.
Torque: 44 N
m (449 kgf
cm, 32 ft
lbf)
HINT:
Make sure that the stopper of the bracket touches the vane pump body, then torque the bolt.
35. INSTALL VANE PUMP ASSY
(a) Temporarily tighten the bolt A to the vane pump assy.
(b) Install the vane pump assy and the bolt B.
Torque: 37 N
m (377 kgf
cm, 27 ft
lbf)
(c) Using SST(s) and a deep socket (14 mm), tighten the bolt
A.
SST 09249±63010
Torque: 26 N
m (264 kgf
cm, 19 ft
lbf)
HINT:

Use a torque wrench with a fulcrum length of 345 mm
(13.58 in.).

This torque value is effective when SST(s) is parallel to a
torque wrench.
(d) Connect the connector to the oil pressure switch.
36. CONNECT PRESSURE FEED TUBE ASSY
(a) Install the pressure feed tube assy and gasket to the vane
pump assy with the union bolt.
HINT:
Make sure the stopper of the pressure feed tube assy touches
the pump housing front as shown in the illustration.
(b) Using a spanner (27 mm) to hold the pressure port union,
torque the union bolt.
Torque: 52 N
m (525 kgf
cm, 38 ft
lbf)
(c) Install the pressure feed tube assy with bolt to the pump
bracket rear.
Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)

±

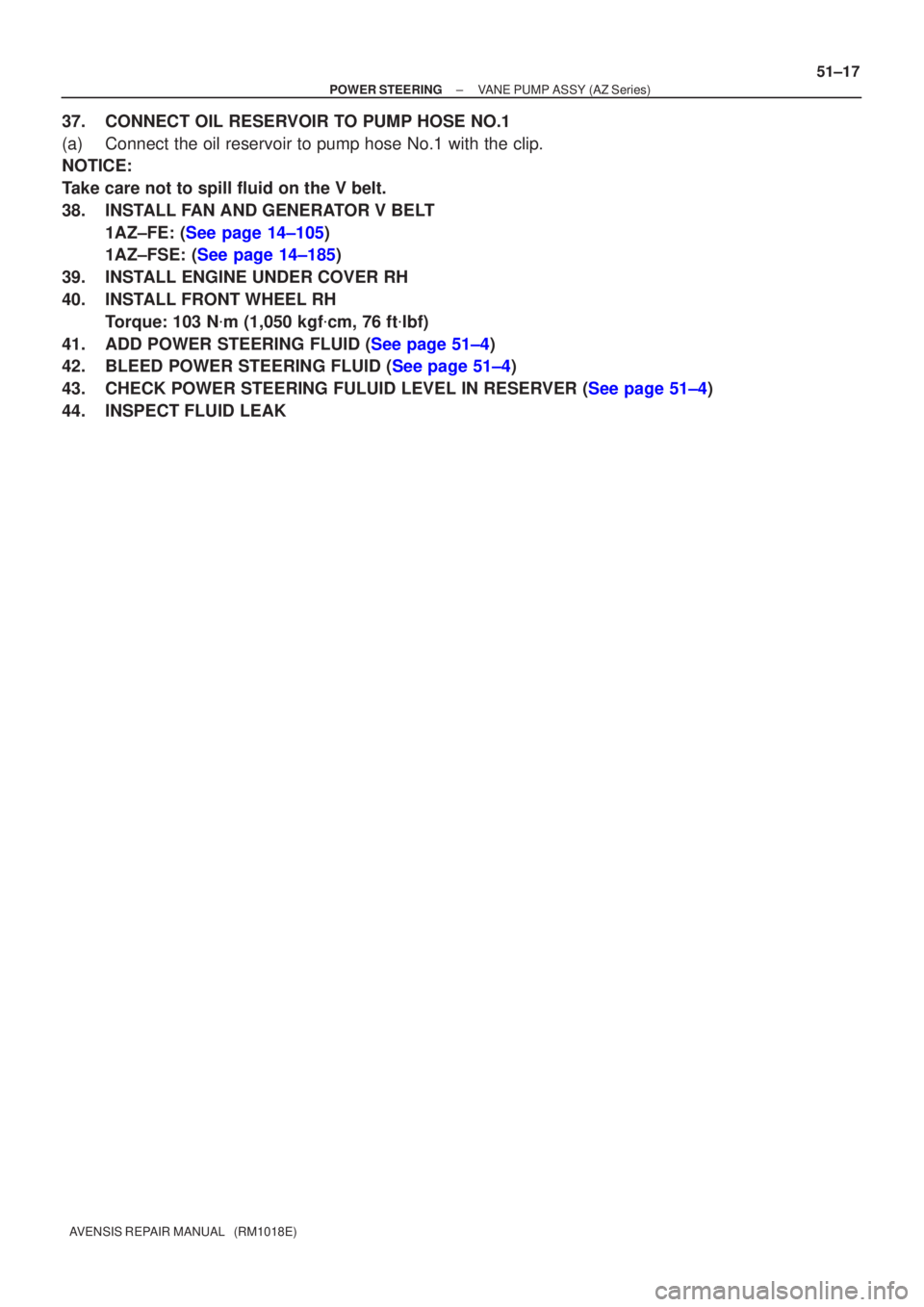

POWER STEERING VANE PUMP ASSY (AZ Series)
51±17
AVENSIS REPAIR MANUAL (RM1018E)
37. CONNECT OIL RESERVOIR TO PUMP HOSE NO.1
(a) Connect the oil reservoir to pump hose No.1 with the clip.
NOTICE:
Take care not to spill fluid on the V belt.
38. INSTALL FAN AND GENERATOR V BELT
1AZ±FE: (See page 14±105)
1AZ±FSE: (See page 14±185)
39. INSTALL ENGINE UNDER COVER RH
40. INSTALL FRONT WHEEL RH Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
41.ADD POWER STEERING FLUID (See page 51±4)
42.BLEED POWER STEERING FLUID (See page 51±4)
43.CHECK POWER STEERING FULUID LEVEL IN RESERVER (See page 51±4)
44. INSPECT FLUID LEAK

022KX±01

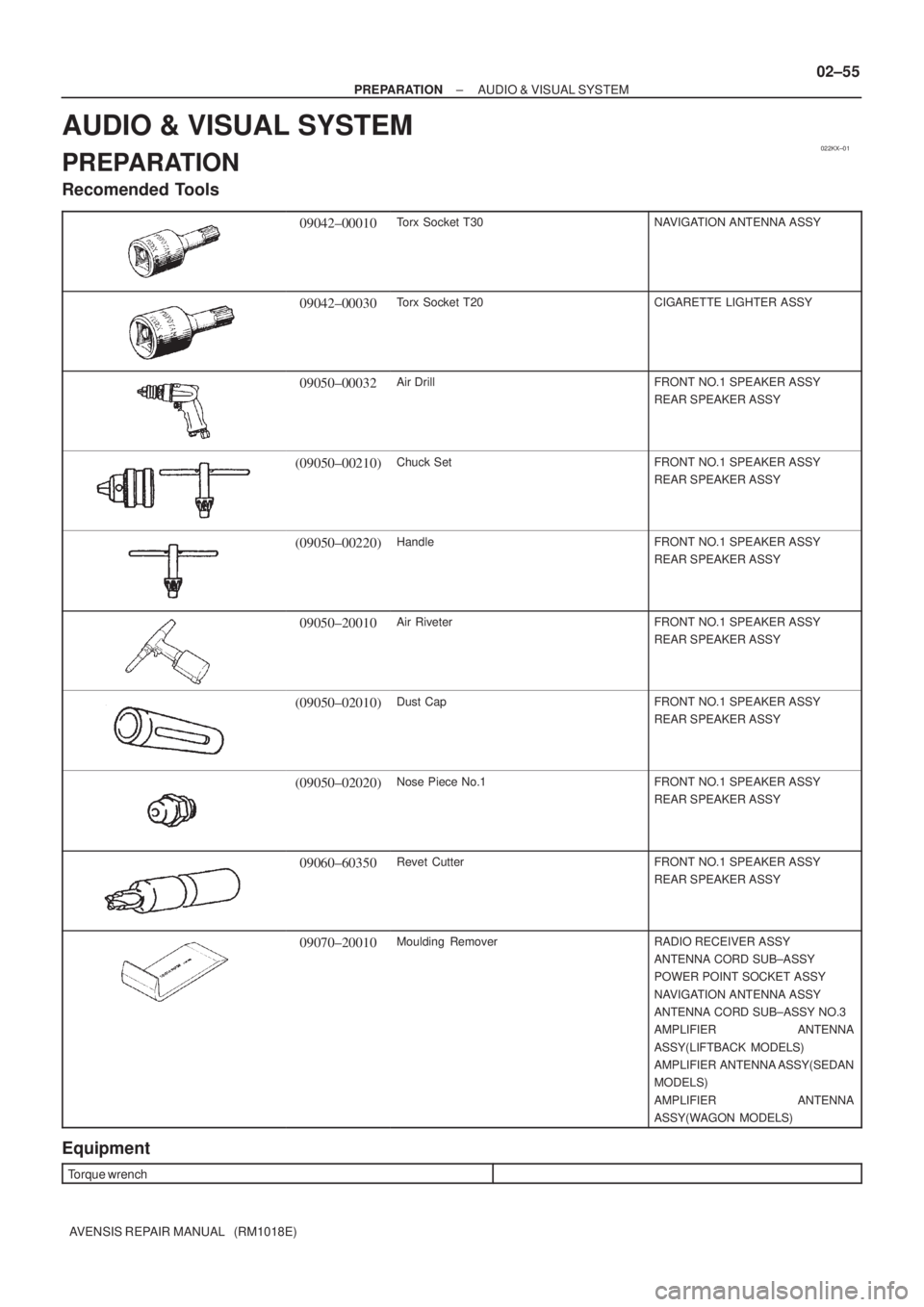

± PREPARATIONAUDIO & VISUAL SYSTEM
02±55
AVENSIS REPAIR MANUAL (RM1018E)
AUDIO & VISUAL SYSTEM
PREPARATION
Recomended Tools
09042±00010Torx Socket T30NAVIGATION ANTENNA ASSY
09042±00030Torx Socket T20CIGARETTE LIGHTER ASSY
09050±00032Air DrillFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
(09050±00210)Chuck SetFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
(09050±00220)HandleFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
09050±20010Air RiveterFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
(09050±02010)Dust CapFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
(09050±02020)Nose Piece No.1FRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
09060±60350Revet CutterFRONT NO.1 SPEAKER ASSY
REAR SPEAKER ASSY
09070±20010Moulding RemoverRADIO RECEIVER ASSY
ANTENNA CORD SUB±ASSY
POWER POINT SOCKET ASSY
NAVIGATION ANTENNA ASSY
ANTENNA CORD SUB±ASSY NO.3
AMPLIFIER ANTENNA
ASSY(LIFTBACK MODELS)
AMPLIFIER ANTENNA ASSY(SEDAN
MODELS)
AMPLIFIER ANTENNA
ASSY(WAGON MODELS)
Equipment
Torque wrench

022L4±02
02±36
± PREPARATIONAUTOMATIC TRANSMISSION / TRANS
AVENSIS REPAIR MANUAL (RM1018E)
AUTOMATIC TRANSMISSION / TRANS
PREPARATION
SST
07110±58060Air Conditioner Service Tool SetTRANSMISSION CONTROL CABLE
ASSY
(07117±58060)Refrigerant Drain Service ValveTRANSMISSION CONTROL CABLE
ASSY
(07117±58070)T±JointTRANSMISSION CONTROL CABLE
ASSY
(07117±58080)Quick Disconnect AdapterTRANSMISSION CONTROL CABLE
ASSY
(07117±58090)Quick Disconnect AdapterTRANSMISSION CONTROL CABLE
ASSY
(07117±78050)Refrigerant Charging GaugeTRANSMISSION CONTROL CABLE
ASSY
(07117±88060)Refrigerant Charging HoseTRANSMISSION CONTROL CABLE
ASSY
(07117±88070)Refrigerant Charging HoseTRANSMISSION CONTROL CABLE
ASSY
(07117±88080)Refrigerant Charging HoseTRANSMISSION CONTROL CABLE
ASSY
09023±12700Union Nut Wrench 17mmAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
09308±00010Oil Seal PullerFRONT DIFFERENTIAL OIL
SEAL(U241E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09316±60011Transmission & Transfer Bearing
ReplacerFRONT DIFFERENTIAL OIL
SEAL(U241E)

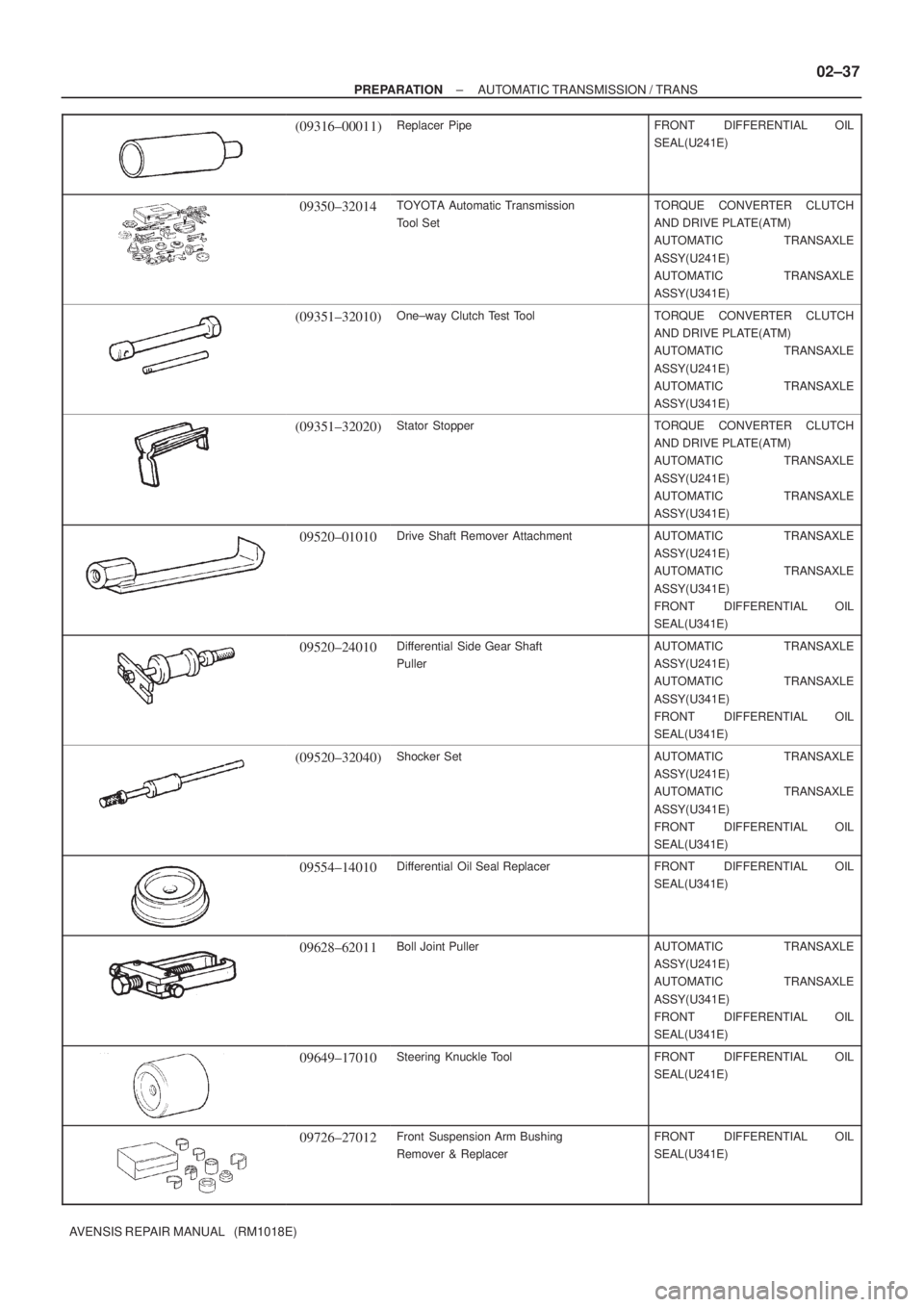

± PREPARATIONAUTOMATIC TRANSMISSION / TRANS
02±37
AVENSIS REPAIR MANUAL (RM1018E)
(09316±00011)Replacer PipeFRONT DIFFERENTIAL OIL
SEAL(U241E)
09350±32014TOYOTA Automatic Transmission
Tool SetTORQUE CONVERTER CLUTCH
AND DRIVE PLATE(ATM)
AUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
(09351±32010)One±way Clutch Test ToolTORQUE CONVERTER CLUTCH
AND DRIVE PLATE(ATM)
AUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
(09351±32020)Stator StopperTORQUE CONVERTER CLUTCH
AND DRIVE PLATE(ATM)
AUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
09520±01010Drive Shaft Remover AttachmentAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09520±24010Differential Side Gear Shaft
PullerAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
(09520±32040)Shocker SetAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09554±14010Differential Oil Seal ReplacerFRONT DIFFERENTIAL OIL
SEAL(U341E)
09628±62011Boll Joint PullerAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09649±17010Steering Knuckle ToolFRONT DIFFERENTIAL OIL
SEAL(U241E)
09726±27012Front Suspension Arm Bushing
Remover & ReplacerFRONT DIFFERENTIAL OIL
SEAL(U341E)

02±38

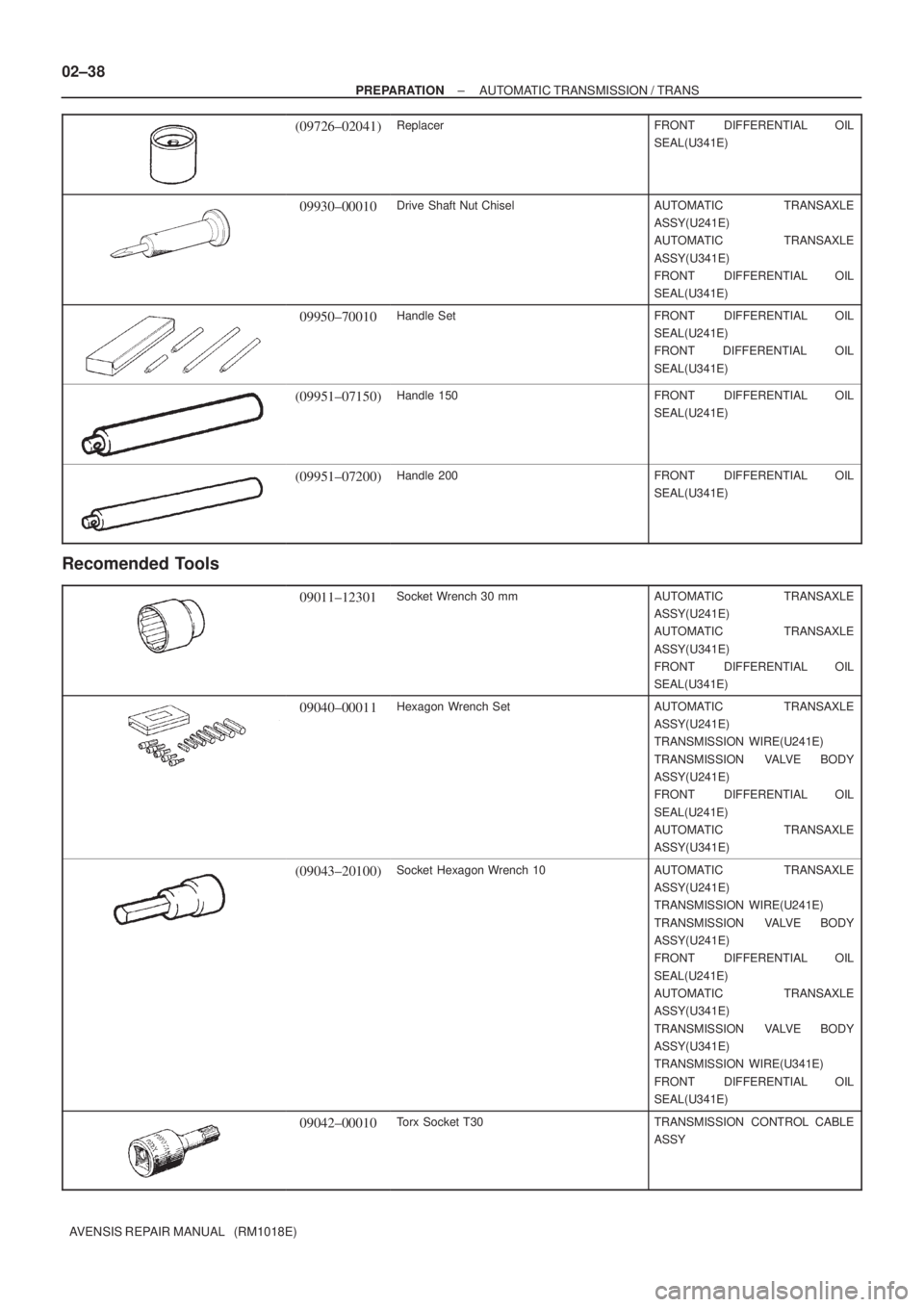

± PREPARATIONAUTOMATIC TRANSMISSION / TRANS
AVENSIS REPAIR MANUAL (RM1018E)
(09726±02041)ReplacerFRONT DIFFERENTIAL OIL
SEAL(U341E)
09930±00010Drive Shaft Nut ChiselAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09950±70010Handle SetFRONT DIFFERENTIAL OIL
SEAL(U241E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
(09951±07150)Handle 150FRONT DIFFERENTIAL OIL
SEAL(U241E)
(09951±07200)Handle 200FRONT DIFFERENTIAL OIL
SEAL(U341E)
Recomended Tools
09011±12301Socket Wrench 30 mmAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09040±00011Hexagon Wrench SetAUTOMATIC TRANSAXLE
ASSY(U241E)
TRANSMISSION WIRE(U241E)
TRANSMISSION VALVE BODY
ASSY(U241E)
FRONT DIFFERENTIAL OIL
SEAL(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
(09043±20100)Socket Hexagon Wrench 10AUTOMATIC TRANSAXLE
ASSY(U241E)
TRANSMISSION WIRE(U241E)
TRANSMISSION VALVE BODY
ASSY(U241E)
FRONT DIFFERENTIAL OIL
SEAL(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
TRANSMISSION VALVE BODY
ASSY(U341E)
TRANSMISSION WIRE(U341E)
FRONT DIFFERENTIAL OIL
SEAL(U341E)
09042±00010Torx Socket T30TRANSMISSION CONTROL CABLE
ASSY

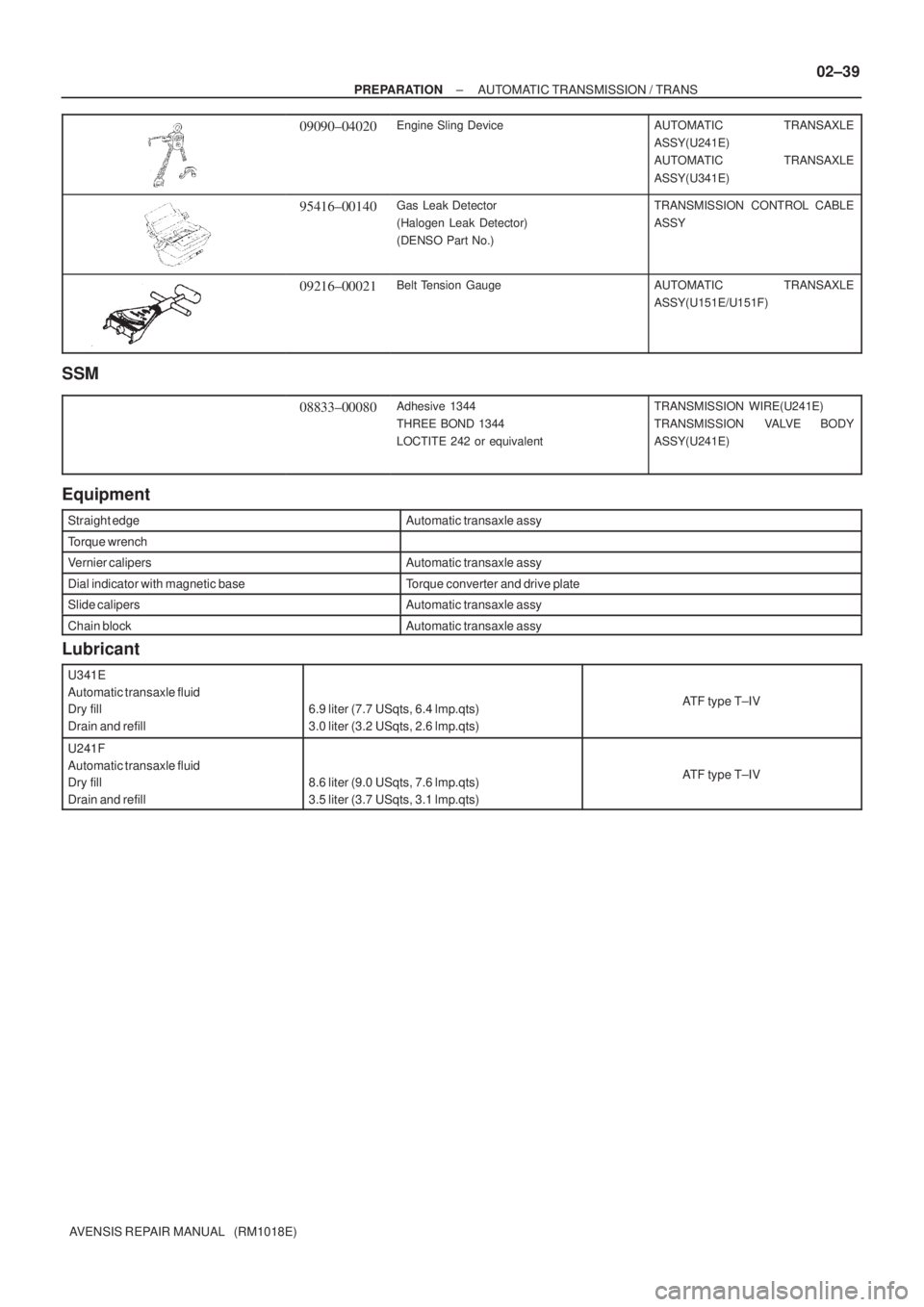

± PREPARATIONAUTOMATIC TRANSMISSION / TRANS
02±39
AVENSIS REPAIR MANUAL (RM1018E)
09090±04020Engine Sling DeviceAUTOMATIC TRANSAXLE
ASSY(U241E)
AUTOMATIC TRANSAXLE
ASSY(U341E)
95416±00140Gas Leak Detector
(Halogen Leak Detector)
(DENSO Part No.)TRANSMISSION CONTROL CABLE
ASSY
09216±00021Belt Tension GaugeAUTOMATIC TRANSAXLE
ASSY(U151E/U151F)
SSM
08833±00080Adhesive 1344
THREE BOND 1344
LOCTITE 242 or equivalentTRANSMISSION WIRE(U241E)
TRANSMISSION VALVE BODY
ASSY(U241E)
Equipment
Straight edgeAutomatic transaxle assy
Torque wrench
Vernier calipersAutomatic transaxle assy
Dial indicator with magnetic baseTorque converter and drive plate
Slide calipersAutomatic transaxle assy
Chain blockAutomatic transaxle assy
Lubricant
U341E
Automatic transaxle fluid
Dry fill
Drain and refill
6.9 liter (7.7 USqts, 6.4 lmp.qts)
3.0 liter (3.2 USqts, 2.6 lmp.qts)ATF type T±IV
U241F
Automatic transaxle fluid
Dry fill
Drain and refill
8.6 liter (9.0 USqts, 7.6 lmp.qts)
3.5 liter (3.7 USqts, 3.1 lmp.qts)ATF type T±IV
