2002 TOYOTA AVENSIS Repair Manual

031GX±01
03±72
± SERVICE SPECIFICATIONSSLIDING ROOF/CONVERTIBLE
AVENSIS REPAIR MANUAL (RM1018E)

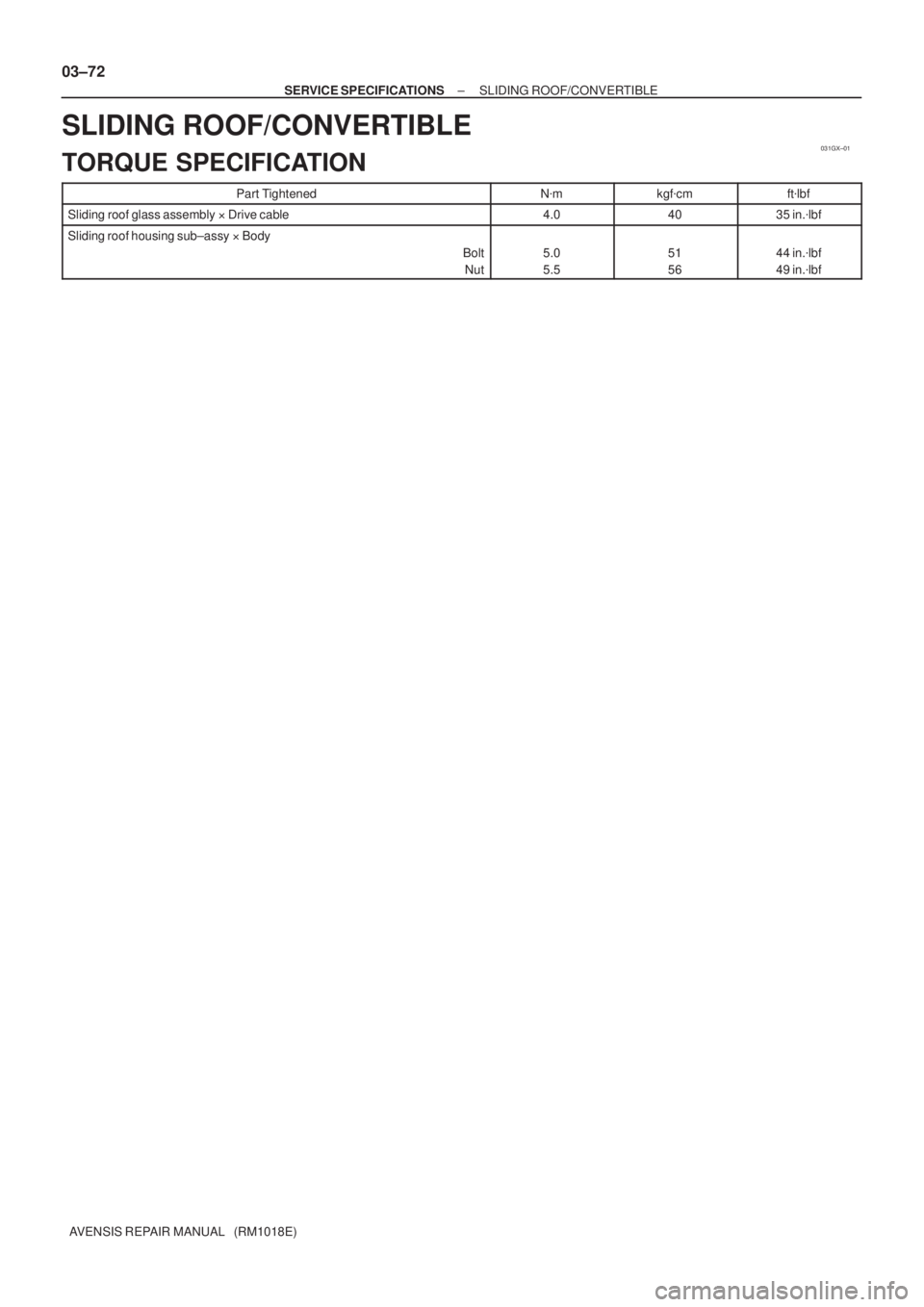

SLIDING ROOF/CONVERTIBLE
TORQUE SPECIFICATION
Part TightenedNmkgfcmftlbf
Sliding roof glass assemblyDrive cable4.04035 in.lbf
Sliding roof housing sub±assyBody
Bolt
Nut
5.0
5.551
5644 in.lbf
49 in.lbf

030LK±05
4
5
6
7
8
9
10
11
B06431
Bolt Type
Hexagon Head Bolt
Normal Recess Bolt Deep Recess BoltStud Bolt Weld BoltClass
4T
5T
6T
7T
8T
9T
10T
11 T
No Mark
w/ WasherNo MarkNo Mark
w/ Washer
± SERVICE SPECIFICATIONSSTANDARD BOLT
03±1
AVENSIS REPAIR MANUAL (RM1018E)

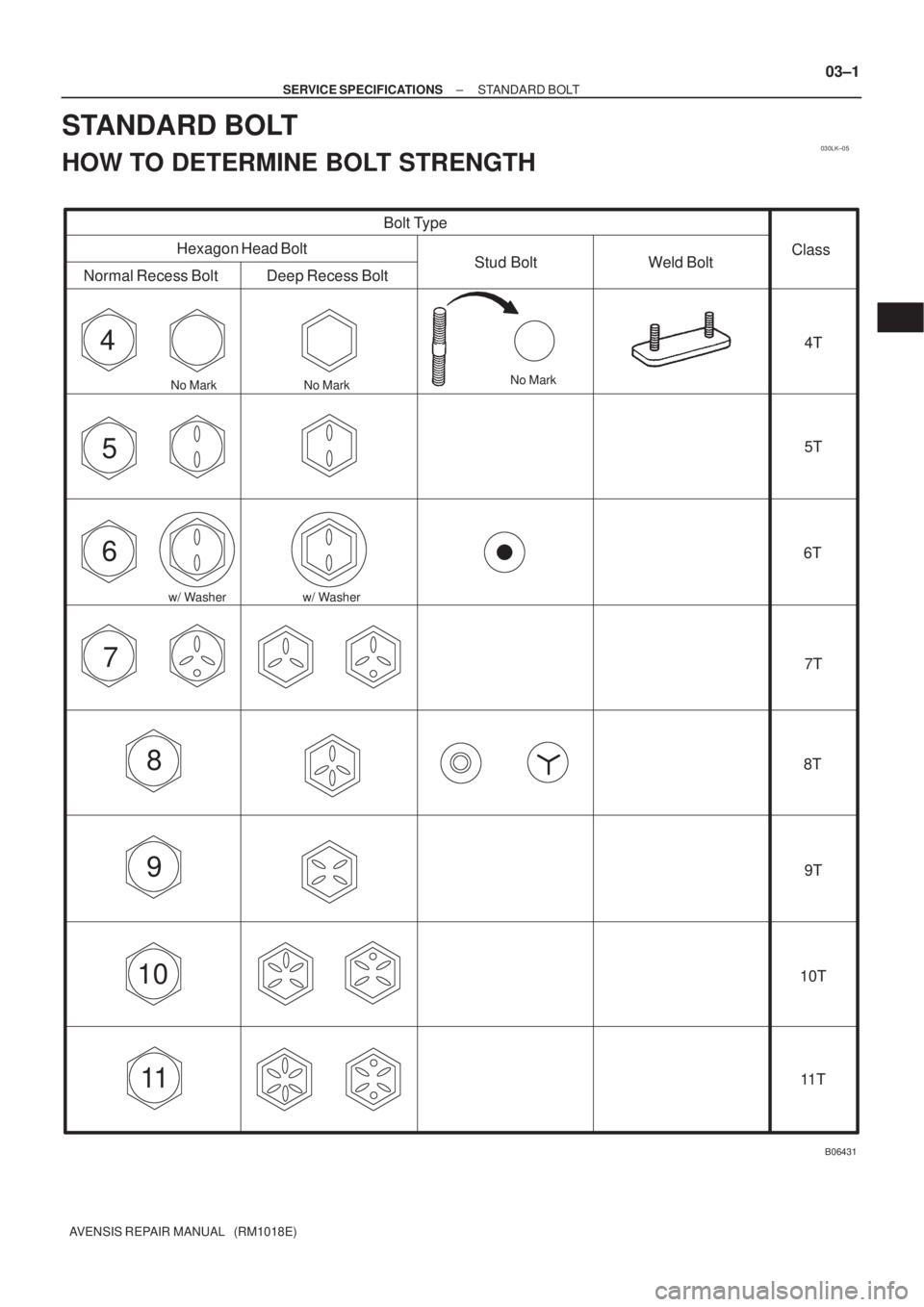

STANDARD BOLT
HOW TO DETERMINE BOLT STRENGTH

030LM±05
6N
8N
10N
11 N
12N
B06432
Nut Type
Present Standard
Hexagon Nut
Cold Forging Nut Cutting Processed NutClass
4N
5N (4T)
6N
7N (5T)
8N
10N (7T)
11 N
12N Old Standard Hexagon Nut
No Mark (w/ Washer)No Mark
*
No Mark (w/ Washer)
No Mark
No Mark
*: Nut with 1 or more marks on one side surface of the nut.
± SERVICE SPECIFICATIONSSTANDARD BOLT
03±3
AVENSIS REPAIR MANUAL (RM1018E)

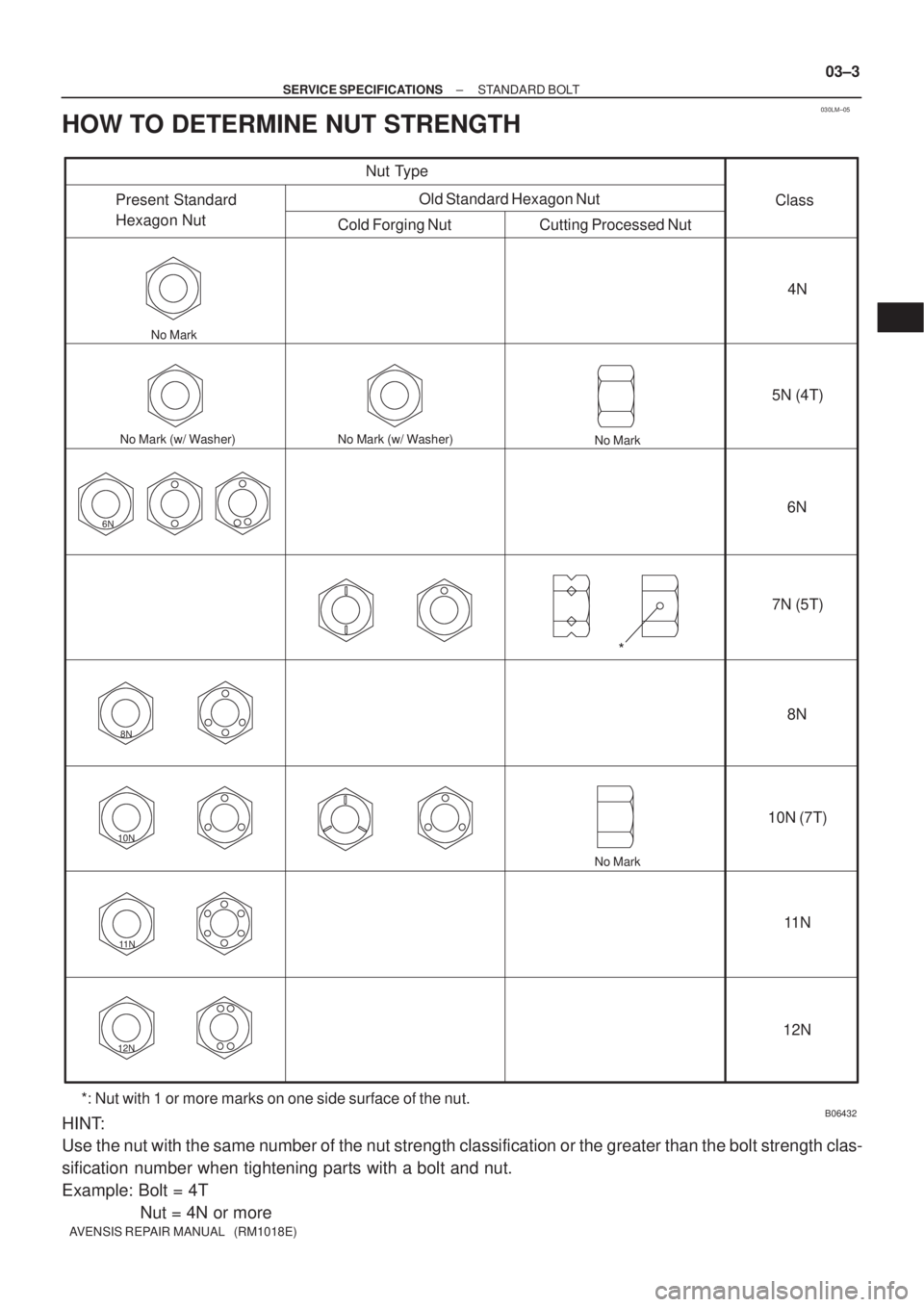

HOW TO DETERMINE NUT STRENGTH
HINT:
Use the nut with the same number of the nut strength classification or the greater than the bolt strength clas-
sification number when tightening parts with a bolt and nut.
Example: Bolt = 4T
Nut = 4N or more

030LL±05
03±2
± SERVICE SPECIFICATIONSSTANDARD BOLT
AVENSIS REPAIR MANUAL (RM1018E)

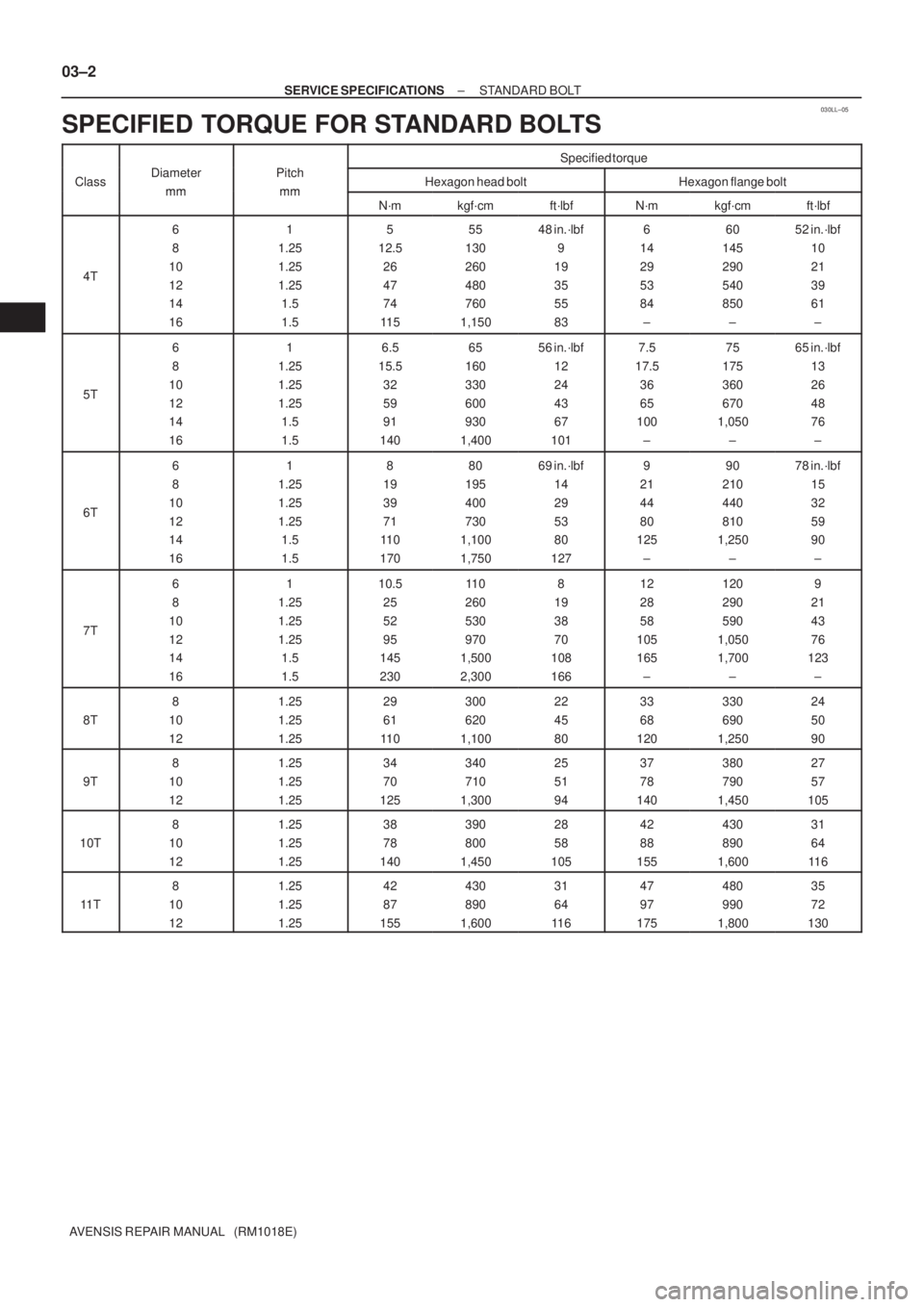

SPECIFIED TORQUE FOR STANDARD BOLTS
Specified torque
ClassDiameter
mm
Pitch
mmHexagon head boltHexagon flange boltmmmmN´mkgf´cmft´lbfN´mkgf´cmft´lbf
4T
6
8
10
12
14
161
1.25
1.25
1.25
1.5
1.55
12.5
26
47
74
11 555
130
260
480
760
1,15048 in.´lbf
9
19
35
55
836
14
29
53
84
±60
145
290
540
850
±52 in.´lbf
10
21
39
61
±
5T
6
8
10
12
14
161
1.25
1.25
1.25
1.5
1.56.5
15.5
32
59
91
14065
160
330
600
930
1,40056 in.´lbf
12
24
43
67
1017.5
17.5
36
65
100
±75
175
360
670
1,050
±65 in.´lbf
13
26
48
76
±
6T
6
8
10
12
14
161
1.25
1.25
1.25
1.5
1.58
19
39
71
11 0
17080
195
400
730
1,100
1,75069 in.´lbf
14
29
53
80
1279
21
44
80
125
±90
210
440
810
1,250
±78 in.´lbf
15
32
59
90
±
7T
6
8
10
12
14
161
1.25
1.25
1.25
1.5
1.510.5
25
52
95
145
23011 0
260
530
970
1,500
2,3008
19
38
70
108
16612
28
58
105
165
±120
290
590
1,050
1,700
±9
21
43
76
123
±
8T
8
10
121.25
1.25
1.2529
61
11 0300
620
1,10022
45
8033
68
120330
690
1,25024
50
90
9T
8
10
121.25
1.25
1.2534
70
125340
710
1,30025
51
9437
78
140380
790
1,45027
57
105
10T
8
10
121.25
1.25
1.2538
78
140390
800
1,45028
58
10542
88
155430
890
1,60031
64
11 6
11 T
8
10
121.25
1.25
1.2542
87
155430
890
1,60031
64
11 647
97
175480
990
1,80035
72
130

031E6±01
03±32
± SERVICE SPECIFICATIONSSTARTING & CHARGING
AVENSIS REPAIR MANUAL (RM1018E)

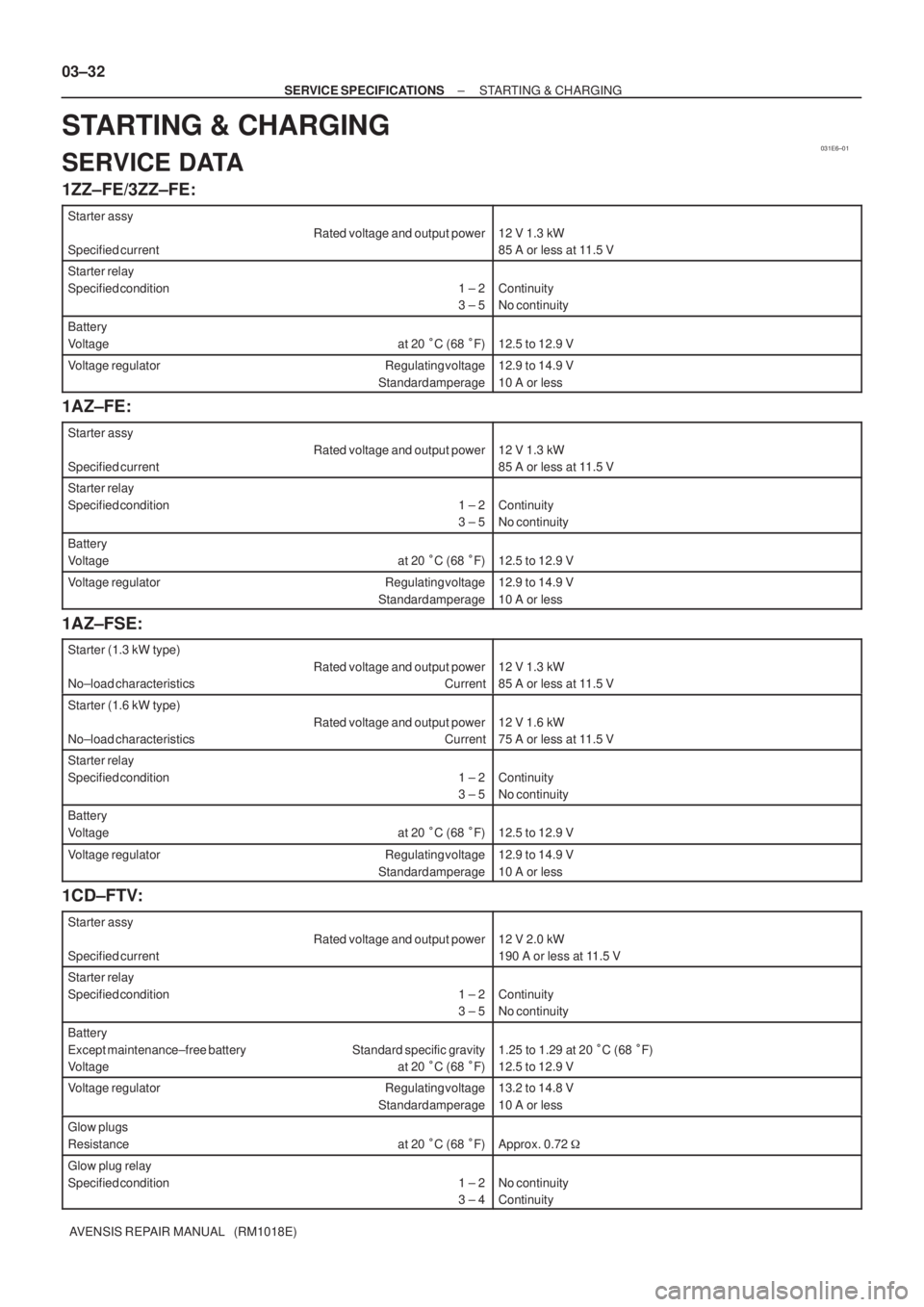

STARTING & CHARGING
SERVICE DATA
1ZZ±FE/3ZZ±FE:
Starter assy
Rated voltage and output power
Specified current
12 V 1.3 kW
85 A or less at 11.5 V
Starter relay
Specified condition 1 ± 2
3 ± 5
Continuity
No continuity
Battery
Voltage at 20
C (68
F)
12.5 to 12.9 V
Voltage regulator Regulating voltage
Standard amperage12.9 to 14.9 V
10 A or less
1AZ±FE:
Starter assy
Rated voltage and output power
Specified current
12 V 1.3 kW
85 A or less at 11.5 V
Starter relay
Specified condition 1 ± 2
3 ± 5
Continuity
No continuity
Battery
Voltage at 20
C (68
F)
12.5 to 12.9 V
Voltage regulator Regulating voltage
Standard amperage12.9 to 14.9 V
10 A or less
1AZ±FSE:
Starter (1.3 kW type)
Rated voltage and output power
No±load characteristics Current
12 V 1.3 kW
85 A or less at 11.5 V
Starter (1.6 kW type)
Rated voltage and output power
No±load characteristics Current
12 V 1.6 kW
75 A or less at 11.5 V
Starter relay
Specified condition 1 ± 2
3 ± 5
Continuity
No continuity
Battery
Voltage at 20
C (68
F)
12.5 to 12.9 V
Voltage regulator Regulating voltage
Standard amperage12.9 to 14.9 V
10 A or less
1CD±FTV:
Starter assy
Rated voltage and output power
Specified current
12 V 2.0 kW
190 A or less at 11.5 V
Starter relay
Specified condition 1 ± 2
3 ± 5
Continuity
No continuity
Battery
Except maintenance±free battery Standard specific gravity
Voltage at 20
C (68
F)
1.25 to 1.29 at 20
C (68
F)
12.5 to 12.9 V
Voltage regulator Regulating voltage
Standard amperage13.2 to 14.8 V
10 A or less
Glow plugs
Resistance at 20
C (68
F)
Approx. 0.72

Glow plug relay
Specified condition 1 ± 2
3 ± 4
No continuity
Continuity

031E7±03
± SERVICE SPECIFICATIONSSTARTING & CHARGING
03±33
AVENSIS REPAIR MANUAL (RM1018E)

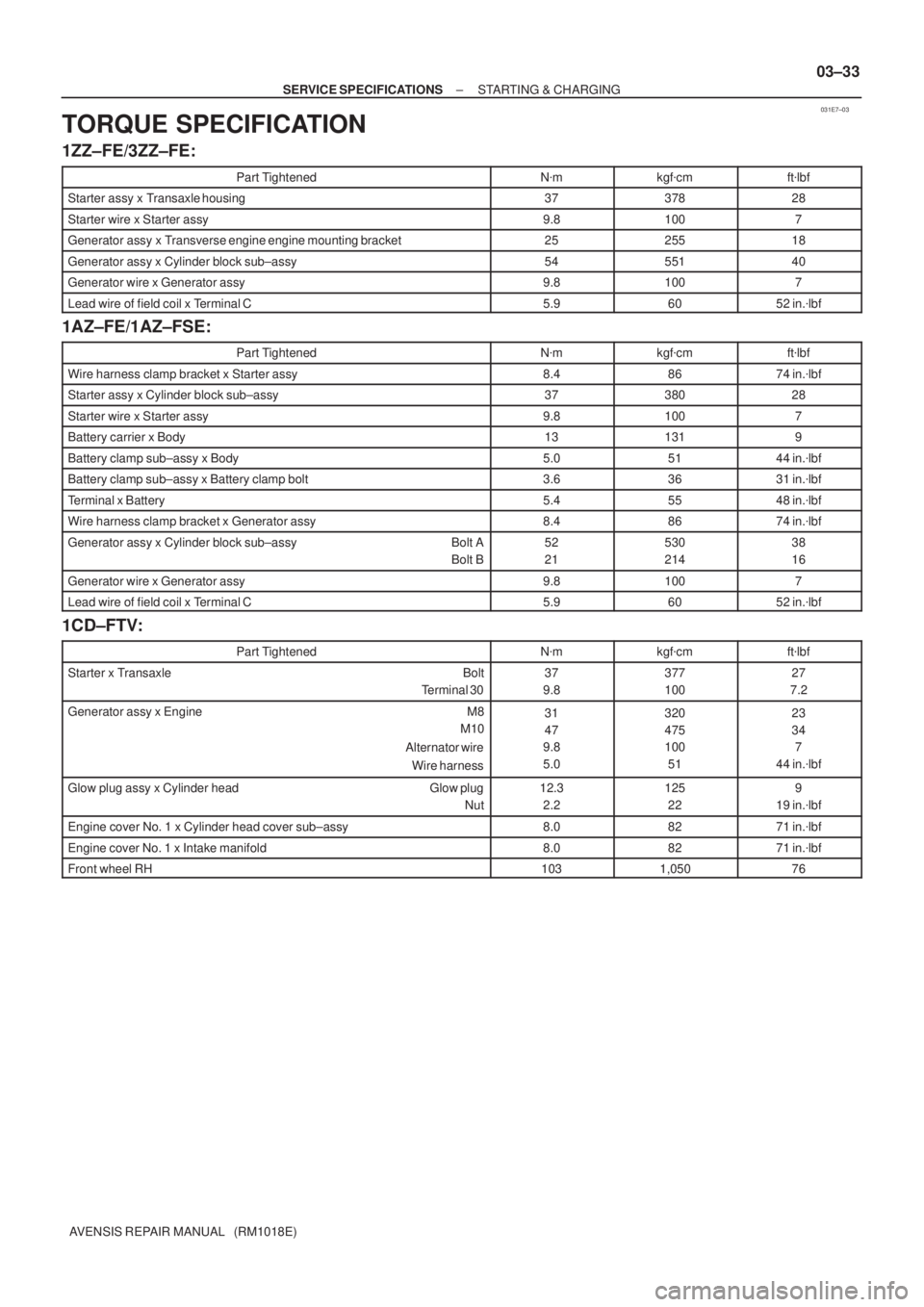

TORQUE SPECIFICATION
1ZZ±FE/3ZZ±FE:
Part TightenedN
mkgf
cmft
lbf
Starter assy x Transaxle housing3737828
Starter wire x Starter assy9.81007
Generator assy x Transverse engine engine mounting bracket2525518
Generator assy x Cylinder block sub±assy5455140
Generator wire x Generator assy9.81007
Lead wire of field coil x Terminal C5.96052 in.
lbf
1AZ±FE/1AZ±FSE:
Part TightenedN
mkgf
cmft
lbf
Wire harness clamp bracket x Starter assy8.48674 in.
lbf
Starter assy x Cylinder block sub±assy3738028
Starter wire x Starter assy9.81007
Battery carrier x Body131319
Battery clamp sub±assy x Body5.05144 in.
lbf
Battery clamp sub±assy x Battery clamp bolt3.63631 in.
lbf
Terminal x Battery5.45548 in.
lbf
Wire harness clamp bracket x Generator assy8.48674 in.
lbf
Generator assy x Cylinder block sub±assy Bolt A
Bolt B52
21530
21438
16
Generator wire x Generator assy9.81007
Lead wire of field coil x Terminal C5.96052 in.
lbf
1CD±FTV:
Part TightenedN
mkgf
cmft
lbf
Starter x Transaxle Bolt
Terminal 3037
9.8377
10027
7.2
Generator assy x Engine M8
M10
Alternator wire
Wire harness31
47
9.8
5.0320
475
100
5123
34
7
44 in.
lbf
Glow plug assy x Cylinder head Glow plug
Nut12.3
2.2125
229
19 in.
lbf
Engine cover No. 1 x Cylinder head cover sub±assy8.08271 in.
lbf
Engine cover No. 1 x Intake manifold8.08271 in.
lbf
Front wheel RH1031,05076

031FX±01
± SERVICE SPECIFICATIONSSTEERING COLUMN
03±57
AVENSIS REPAIR MANUAL (RM1018E)

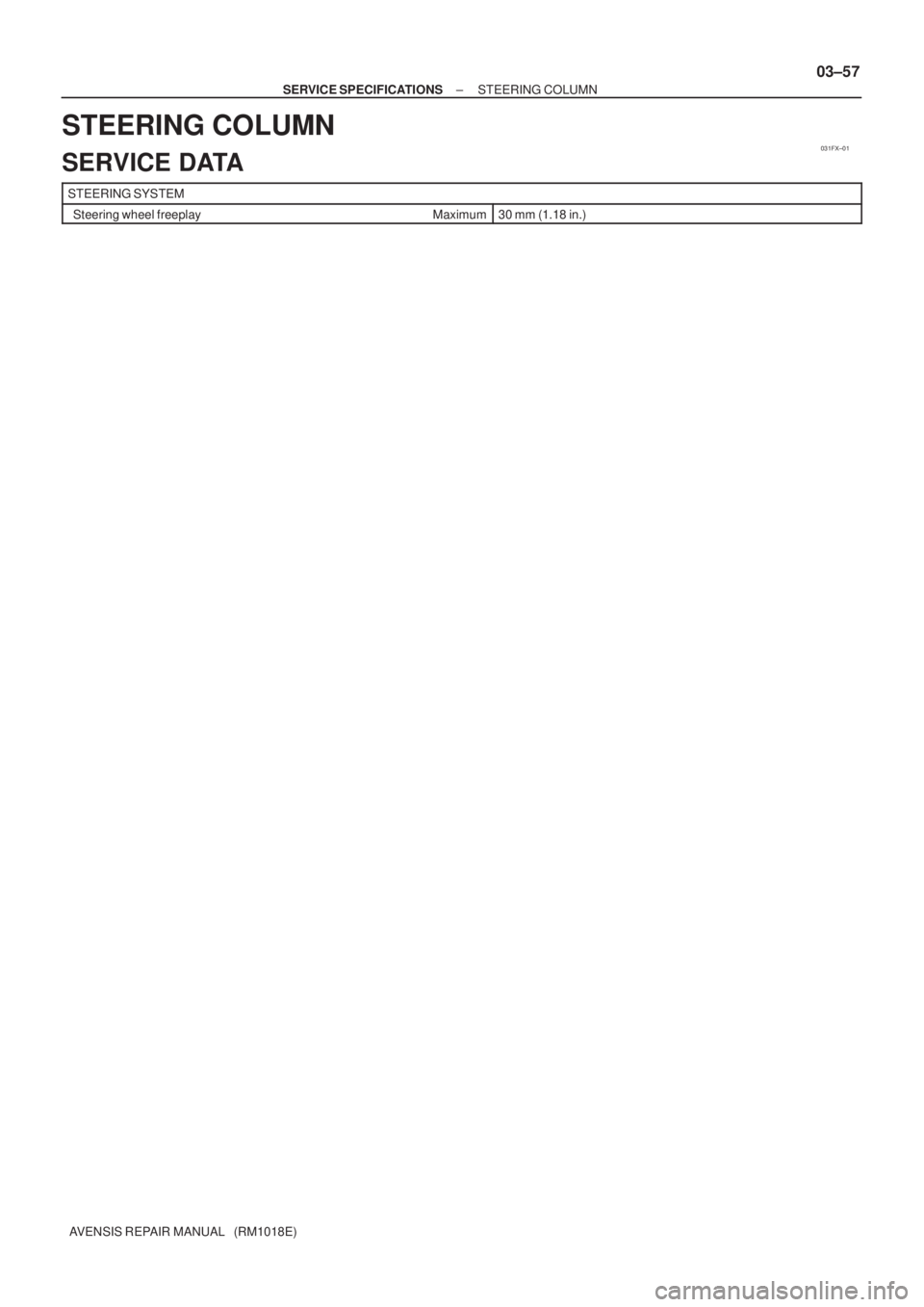

STEERING COLUMN
SERVICE DATA
STEERING SYSTEM
Steering wheel freeplay Maximum30 mm (1.18 in.)

031FZ±01
03±58
± SERVICE SPECIFICATIONSSTEERING COLUMN
AVENSIS REPAIR MANUAL (RM1018E)

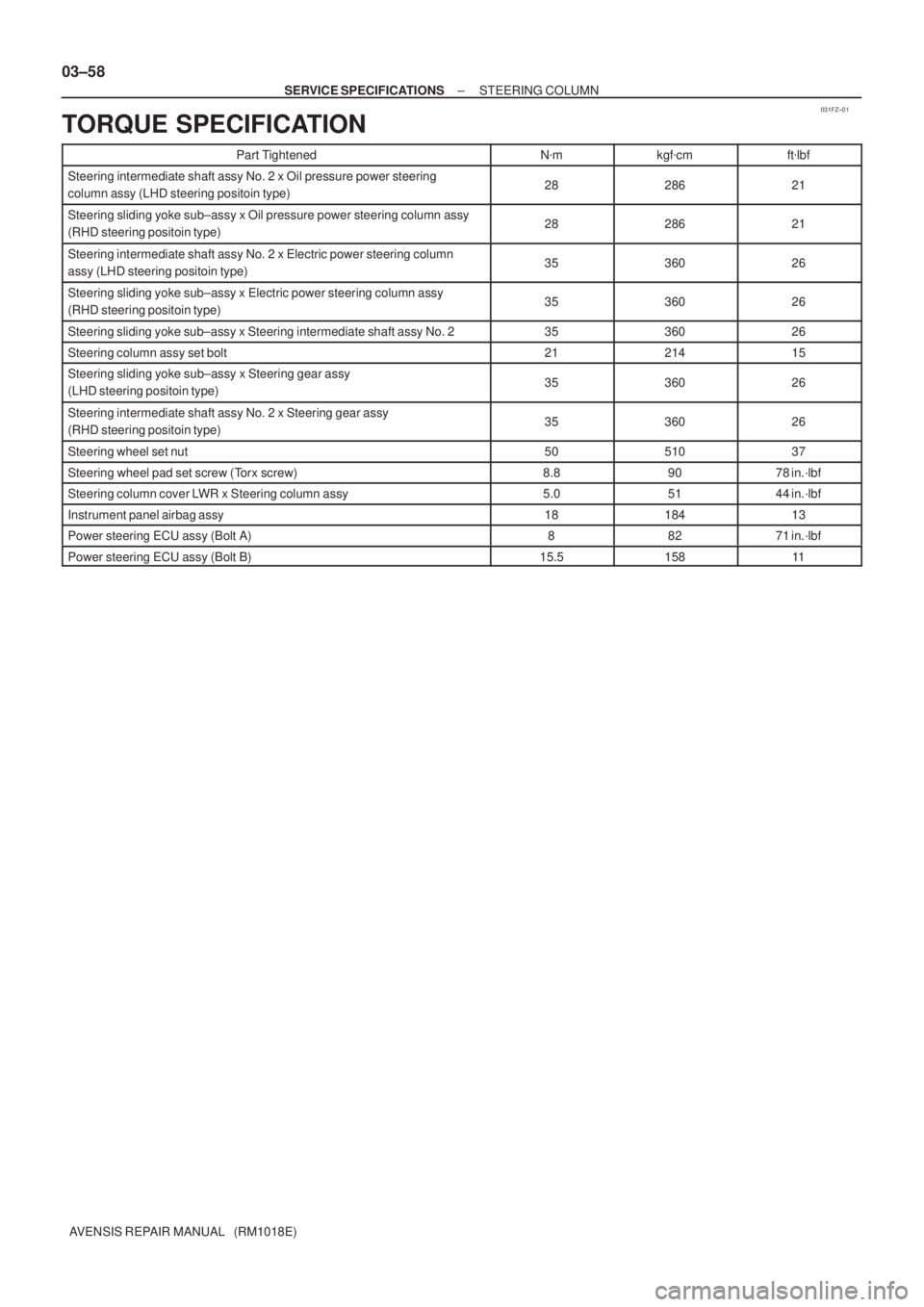

TORQUE SPECIFICATION
Part TightenedN
mkgf
cmft
lbf
Steering intermediate shaft assy No. 2 x Oil pressure power steering
column assy (LHD steering positoin type)2828621
Steering sliding yoke sub±assy x Oil pressure power steering column assy
(RHD steering positoin type)2828621
Steering intermediate shaft assy No. 2 x Electric power steering column
assy (LHD steering positoin type)3536026
Steering sliding yoke sub±assy x Electric power steering column assy
(RHD steering positoin type)3536026
Steering sliding yoke sub±assy x Steering intermediate shaft assy No. 23536026
Steering column assy set bolt2121415
Steering sliding yoke sub±assy x Steering gear assy
(LHD steering positoin type)3536026
Steering intermediate shaft assy No. 2 x Steering gear assy
(RHD steering positoin type)3536026
Steering wheel set nut5051037
Steering wheel pad set screw (Torx screw)8.89078 in.´lbf
Steering column cover LWR x Steering column assy5.05144 in.´lbf
Instrument panel airbag assy1818413
Power steering ECU assy (Bolt A)88271 in.´lbf
Power steering ECU assy (Bolt B)15.515811
