2002 TOYOTA AVENSIS Repair Manual

F40021
Wooden Block
C82119
C80809
C80805
32±28
± BRAKEBRAKE BOOSTER ASSY (RHD)
AVENSIS REPAIR MANUAL (RM1018E)

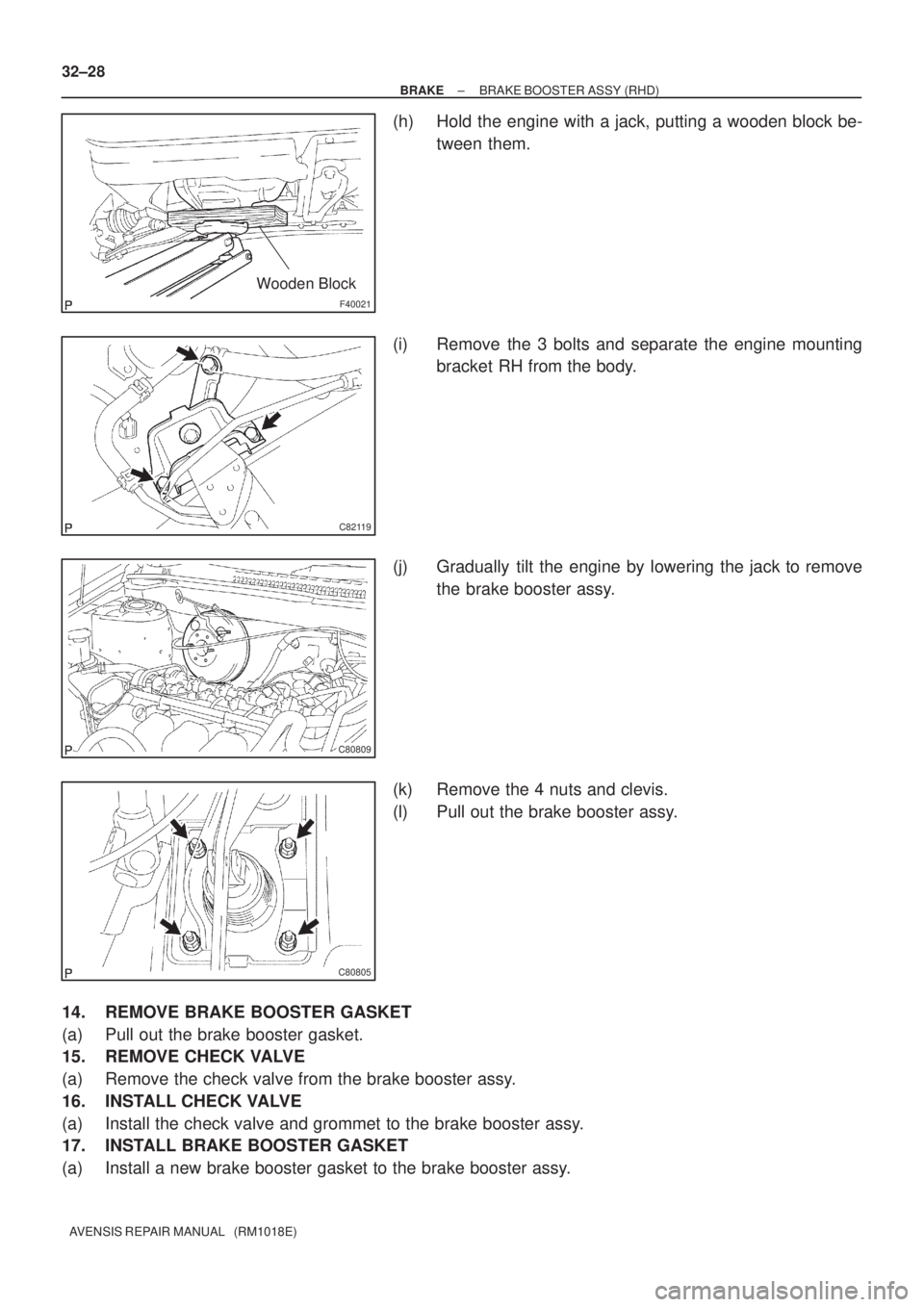

(h) Hold the engine with a jack, putting a wooden block be-
tween them.
(i) Remove the 3 bolts and separate the engine mounting
bracket RH from the body.
(j) Gradually tilt the engine by lowering the jack to remove
the brake booster assy.
(k) Remove the 4 nuts and clevis.
(l) Pull out the brake booster assy.
14. REMOVE BRAKE BOOSTER GASKET
(a) Pull out the brake booster gasket.
15. REMOVE CHECK VALVE
(a) Remove the check valve from the brake booster assy.
16. INSTALL CHECK VALVE
(a) Install the check valve and grommet to the brake booster assy.
17. INSTALL BRAKE BOOSTER GASKET
(a) Install a new brake booster gasket to the brake booster assy.

C80805
C82119
C81275
C81274
F45367
± BRAKEBRAKE BOOSTER ASSY (RHD)
32±29
AVENSIS REPAIR MANUAL (RM1018E)

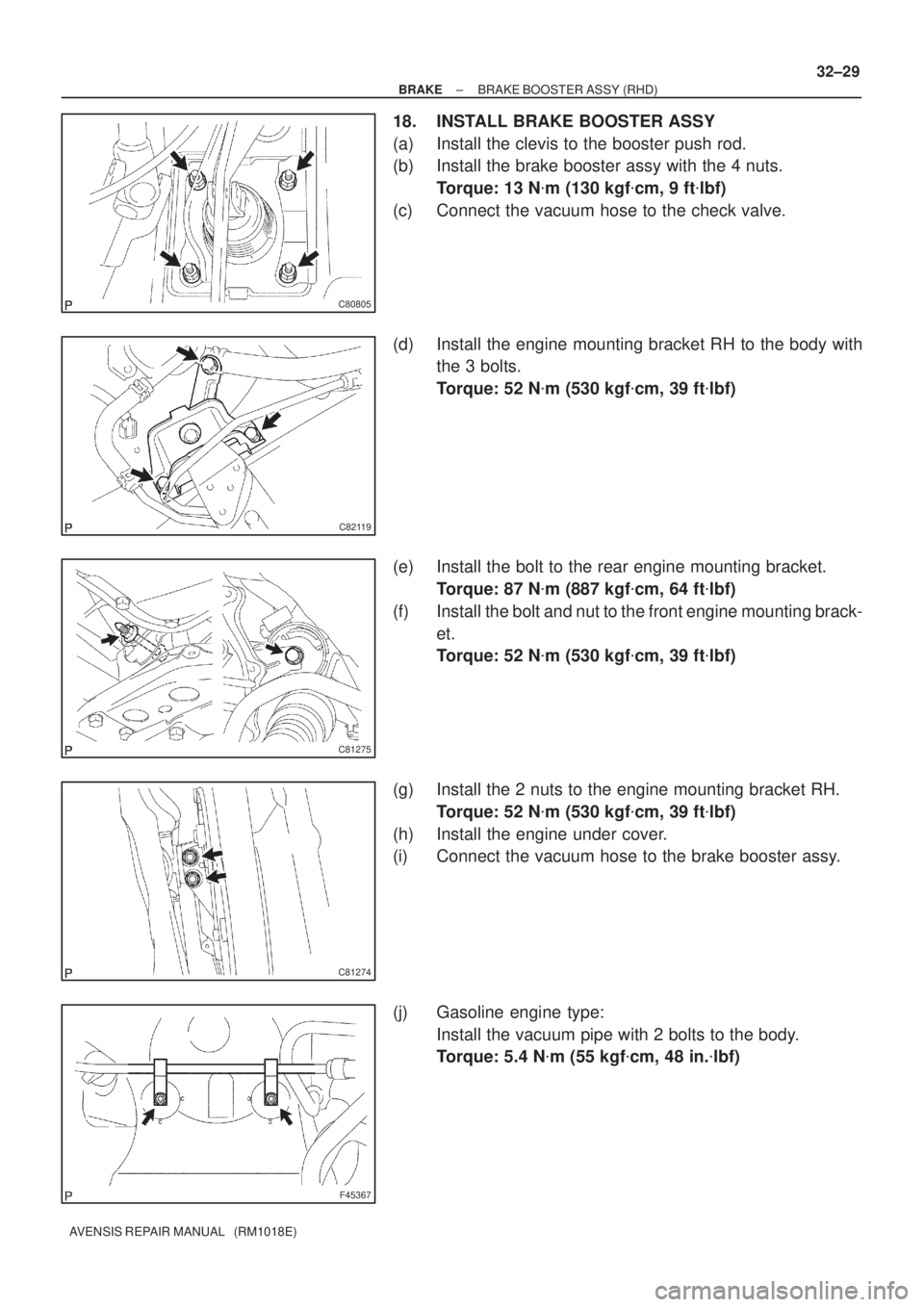

18. INSTALL BRAKE BOOSTER ASSY
(a) Install the clevis to the booster push rod.
(b) Install the brake booster assy with the 4 nuts.
Torque: 13 N
m (130 kgf
cm, 9 ft
lbf)
(c) Connect the vacuum hose to the check valve.
(d) Install the engine mounting bracket RH to the body with
the 3 bolts.
Torque: 52 N
m (530 kgf
cm, 39 ft
lbf)
(e) Install the bolt to the rear engine mounting bracket.
Torque: 87 N
m (887 kgf
cm, 64 ft
lbf)
(f) Install the bolt and nut to the front engine mounting brack-
et.
Torque: 52 N
m (530 kgf
cm, 39 ft
lbf)
(g) Install the 2 nuts to the engine mounting bracket RH.
Torque: 52 N
m (530 kgf
cm, 39 ft
lbf)
(h) Install the engine under cover.
(i) Connect the vacuum hose to the brake booster assy.
(j) Gasoline engine type:
Install the vacuum pipe with 2 bolts to the body.
Torque: 5.4 N
m (55 kgf
cm, 48 in.
lbf)

F45363Vacuum tank
F45362
F45361
C80802
32±30
± BRAKEBRAKE BOOSTER ASSY (RHD)
AVENSIS REPAIR MANUAL (RM1018E)

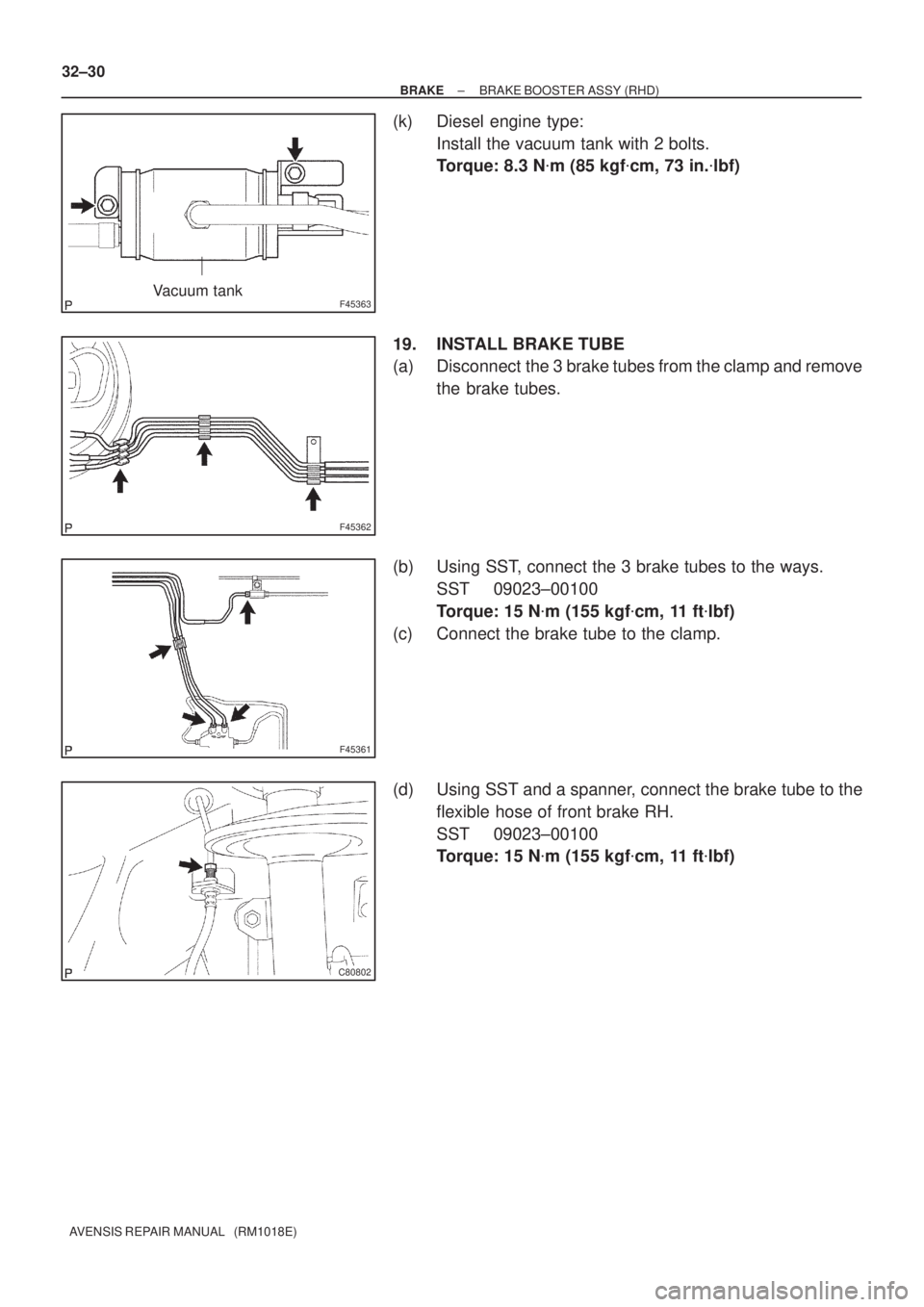

(k) Diesel engine type:
Install the vacuum tank with 2 bolts.
Torque: 8.3 N
m (85 kgf
cm, 73 in.
lbf)
19. INSTALL BRAKE TUBE
(a) Disconnect the 3 brake tubes from the clamp and remove
the brake tubes.
(b) Using SST, connect the 3 brake tubes to the ways.
SST 09023±00100
Torque: 15 N
m (155 kgf
cm, 11 ft
lbf)
(c) Connect the brake tube to the clamp.
(d) Using SST and a spanner, connect the brake tube to the
flexible hose of front brake RH.
SST 09023±00100
Torque: 15 N
m (155 kgf
cm, 11 ft
lbf)

F45057
w/o VSC:
w/ VSC:
To Master
Cylinder Rear
To
Master
Cylinder
Front
To Rear Wheel
RH
To Front Wheel LH
To Front Wheel RH
To Rear Wheel
LH
A
To
Master
Cylinder
FrontTo Master
Cylinder
Rear
To Rear
Wheel RH
To Front Wheel LHTo Front Wheel RH
To Rear
Wheel LH
AA
AA
BB
C80806
±
BRAKE BRAKE BOOSTER ASSY (RHD)
32±31
AVENSIS REPAIR MANUAL (RM1018E)
(e) w/o VSC:
Using SST, connect the 6 brake tubes to the brake actua-
tor, as shown in the illustration.
SST 09023±00100
Torque: 15 N
m (155 kgf
cm, 11 ft
lbf)
(f) w/ VSC: Using SST, connect the 6 brake tubes to the brake actua-
tor as shown in the illustration.
SST 09023±00100, 09023±38400
Torque:
A: 15 N
m (155 kgf
cm, 11 ft
lbf)
B: 29 N
m (296 kgf
cm, 21 ft
lbf)
(g) Install the brake tube clamps with the 2 bolts. Torque: 5.4 N
m (55 kgf
cm, 48 in.
lbf)
20. INSTALL FRONT WHEEL RH
21.INSTALL CYLINDER HEAD COVER SUB±ASSY (GASOLINE ENGINE TYPE) (See page 14±81)
22.INSTALL IGNITION COIL ASSY (GASOLINE ENGINE TYPE) (See page 14±81)
23.INSTALL INJECTOR ASSY (DIESEL ENGINE TYPE) (See page 14±318)
24.INSTALL CYLINDER HEAD COVER SUB±ASSY (DIESEL ENGINE TYPE) (See page 14±318)
25.INSTALL TIMING BELT NO.2 COVER (DIESEL ENGINE TYPE) (See page 14±307)

32±32
±
BRAKE BRAKE BOOSTER ASSY (RHD)
AVENSIS REPAIR MANUAL (RM1018E)

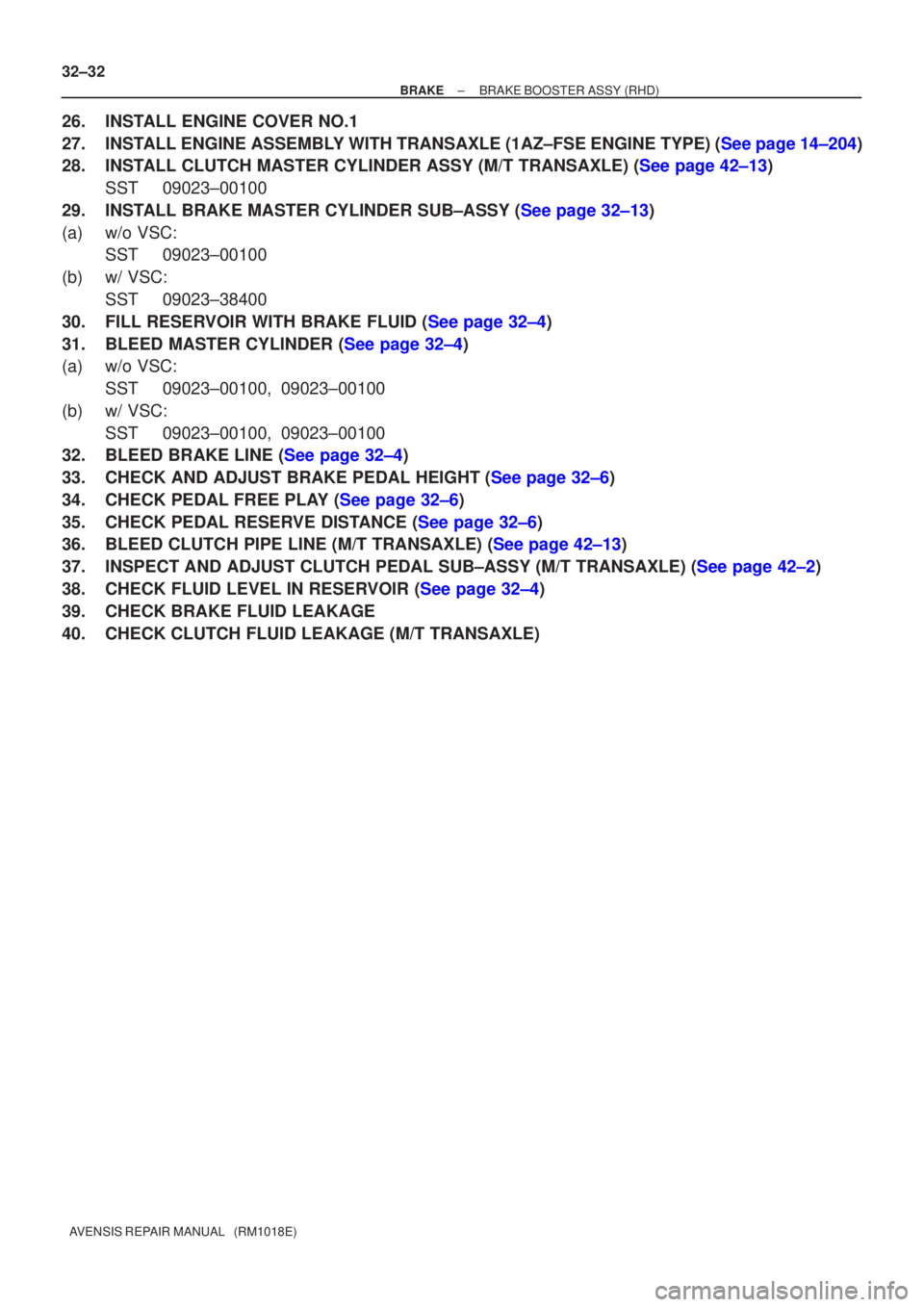

26. INSTALL ENGINE COVER NO.1
27.INSTALL ENGINE ASSEMBLY WITH TRANSAXLE (1AZ±FSE ENGINE TYPE) (See page 14±204)
28.INSTALL CLUTCH MASTER CYLINDER ASSY (M/T TRANSAXLE) (See page 42±13) SST 09023±00100
29.INSTALL BRAKE MASTER CYLINDER SUB±ASSY (See page 32±13)
(a) w/o VSC: SST 09023±00100
(b) w/ VSC: SST 09023±38400
30.FILL RESERVOIR WITH BRAKE FLUID (See page 32±4)
31.BLEED MASTER CYLINDER (See page 32±4)
(a) w/o VSC: SST 09023±00100, 09023±00100
(b) w/ VSC: SST 09023±00100, 09023±00100
32.BLEED BRAKE LINE (See page 32±4)
33.CHECK AND ADJUST BRAKE PEDAL HEIGHT (See page 32±6)
34.CHECK PEDAL FREE PLAY (See page 32±6)
35.CHECK PEDAL RESERVE DISTANCE (See page 32±6)
36.BLEED CLUTCH PIPE LINE (M/T TRANSAXLE) (See page 42±13)
37.INSPECT AND ADJUST CLUTCH PEDAL SUB±ASSY (M/T TRANSAXLE) (See page 42±2)
38.CHECK FLUID LEVEL IN RESERVOIR (See page 32±4)
39. CHECK BRAKE FLUID LEAKAGE
40. CHECK CLUTCH FLUID LEAKAGE (M/T TRANSAXLE)

3201C±08
G24222
G24223
G24224
32±4
± BRAKEBRAKE FLUID
AVENSIS REPAIR MANUAL (RM1018E)
BRAKE FLUID
BLEEDING
NOTICE:
Wash the brake fluid off immediately if it adheres to any painted surfaces.
HINT:
When working on the brake system or when air in the brake lines is suspected, bleed the air from the system.
1. FILL RESERVOIR WITH BRAKE FLUID
Fluid: SAE J1704 or FMVSS No. 116 DOT4
2. BLEED MASTER CYLINDER
HINT:
After disassembling the master cylinder or when the reservoir
becomes empty, bleed the air out of the brake master cylinder.
(a) w/o VSC:
Using SST, Disconnect the brake lines from the brake
master cylinder.
SST 09023±00100
(b) w/ VSC:
Using SST, Disconnect the brake lines from the brake
master cylinder.
SST 09023±38400
(c) Slowly depress and hold the brake pedal it.
(d) Cover off the outer holes with your fingers, and release
the brake pedal.
(e) Repeat (b) and (c) 3 or 4 times.

F42258
G24222
± BRAKEBRAKE FLUID
32±5
AVENSIS REPAIR MANUAL (RM1018E)

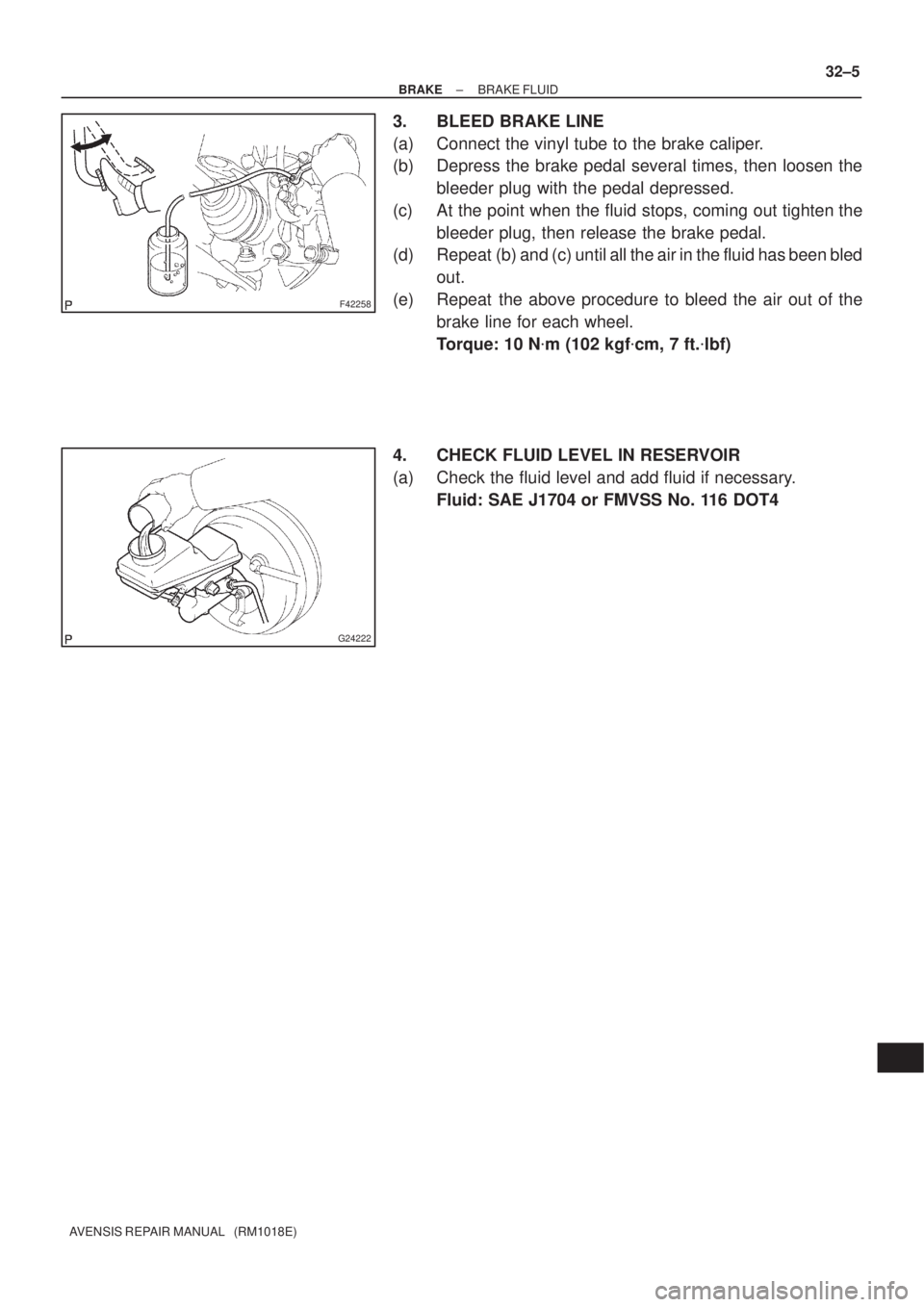

3. BLEED BRAKE LINE
(a) Connect the vinyl tube to the brake caliper.
(b) Depress the brake pedal several times, then loosen the
bleeder plug with the pedal depressed.
(c) At the point when the fluid stops, coming out tighten the
bleeder plug, then release the brake pedal.
(d) Repeat (b) and (c) until all the air in the fluid has been bled
out.
(e) Repeat the above procedure to bleed the air out of the
brake line for each wheel.
Torque: 10 N
m (102 kgf
cm, 7 ft.
lbf)
4. CHECK FLUID LEVEL IN RESERVOIR
(a) Check the fluid level and add fluid if necessary.
Fluid: SAE J1704 or FMVSS No. 116 DOT4

320W5±01
G24285
LHD Steering Position Type:
Charcoal Canister Assy
Brake Fluid Level
Switch Connector
Clutch Reservoir
Tube M/T Transaxle:Brake Booster Assy
Clip
Way
20 (204, 15)
15 (155, 11)
15 (155, 11)*1
29 (296, 21)*2
15 (155, 11)*1
29 (296, 21)*2
Brake Master
Cylinder Sub±assy
20 (204, 15)
Engin Room Relay Block
RHD Steering Position Type:Air Cleaner Cap Sub±assy
Brake Fluid Level
Switch ConnectorBrake Master
Cylinder Sub±assy
Clip
Accelerator Control
Cable Support
20 (204, 15)
*1

w/ ABS:*2 w/ VSC:N
m (kgf
cm, ft
lbf) : Specified torque
15 (155, 11)*1
29 (296, 21)*2
15 (155, 11)*1
29 (296, 21)*2
Clutch Reservoir
Tube M/T Transaxle:
Brake Booster Assy
5.4 (55, 48 in.
lbf)
Fuel Filter Assy Diesel Engin Type:
± BRAKEBRAKE MASTER CYLINDER SUB±ASSY
32±11
AVENSIS REPAIR MANUAL (RM1018E)

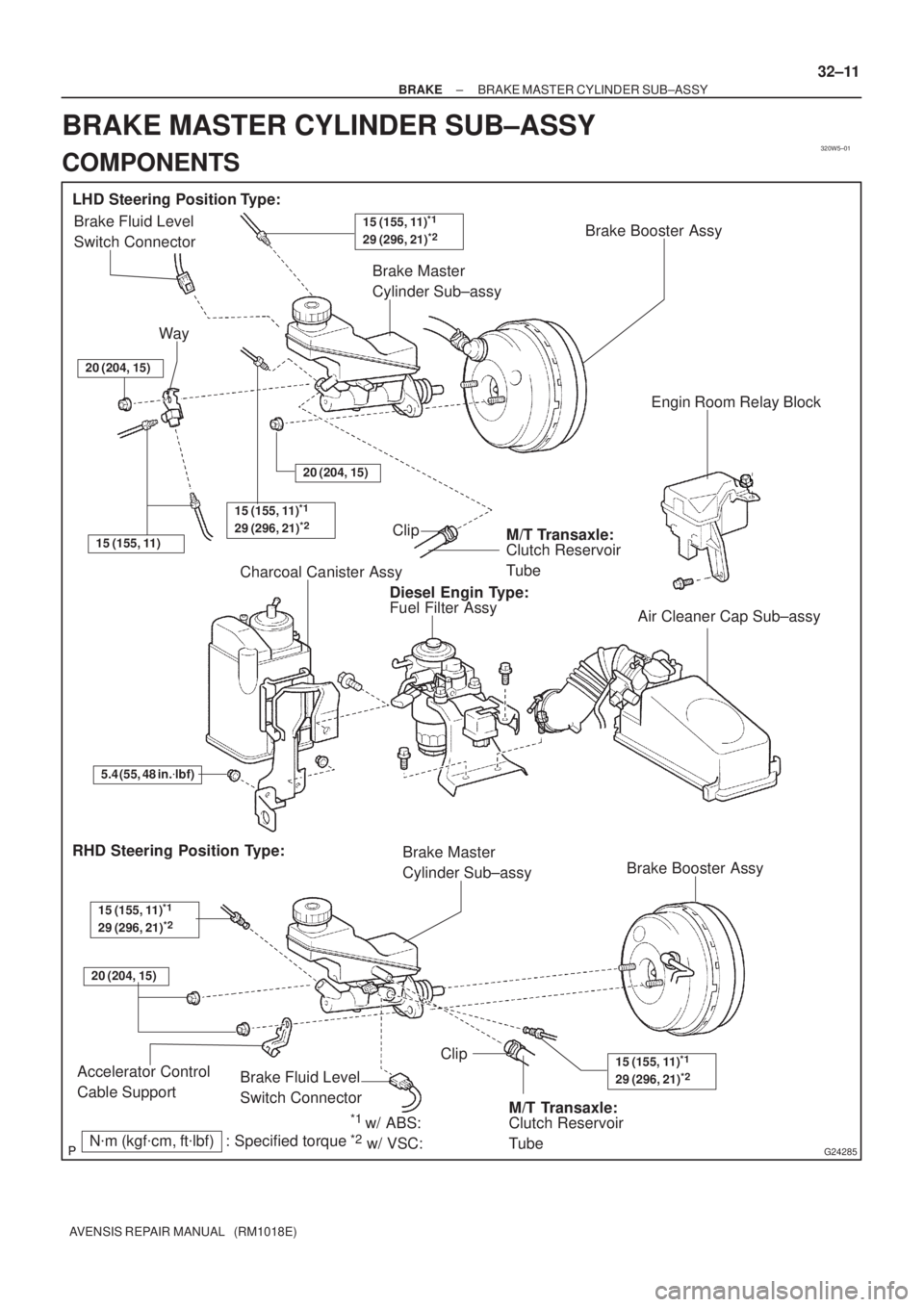

BRAKE MASTER CYLINDER SUB±ASSY
COMPONENTS
