2002 TOYOTA AVENSIS Repair Manual

031HM±01
± SERVICE SPECIFICATIONSSUPPLEMENTAL RESTRAINT SYSTEM
03±63
AVENSIS REPAIR MANUAL (RM1018E)

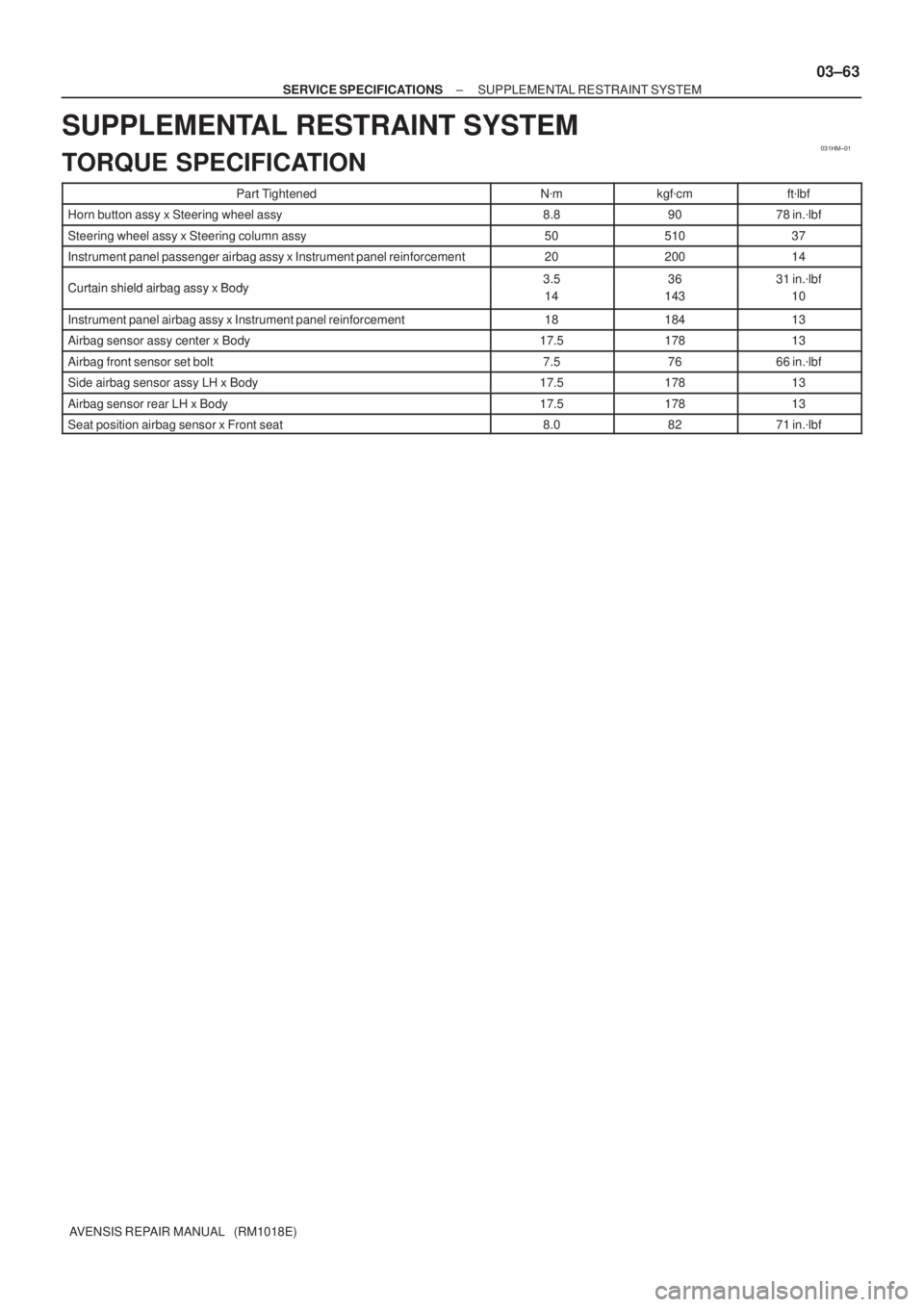

SUPPLEMENTAL RESTRAINT SYSTEM
TORQUE SPECIFICATION
Part TightenedN
mkgf
cmft
lbf
Horn button assy x Steering wheel assy8.89078 in.
lbf
Steering wheel assy x Steering column assy5051037
Instrument panel passenger airbag assy x Instrument panel reinforcement2020014
Curtain shield airbag assy x Body3.53631 in.
lbfCurtain shield airbag assy x Body3.5
14
36
143
31 in.lbf
10
Instrument panel airbag assy x Instrument panel reinforcement1818413
Airbag sensor assy center x Body17.517813
Airbag front sensor set bolt7.57666 in.
lbf
Side airbag sensor assy LH x Body17.517813
Airbag sensor rear LH x Body17.517813
Seat position airbag sensor x Front seat8.08271 in.
lbf

0313C±05
03±38
± SERVICE SPECIFICATIONSTIRE & WHEEL
AVENSIS REPAIR MANUAL (RM1018E)

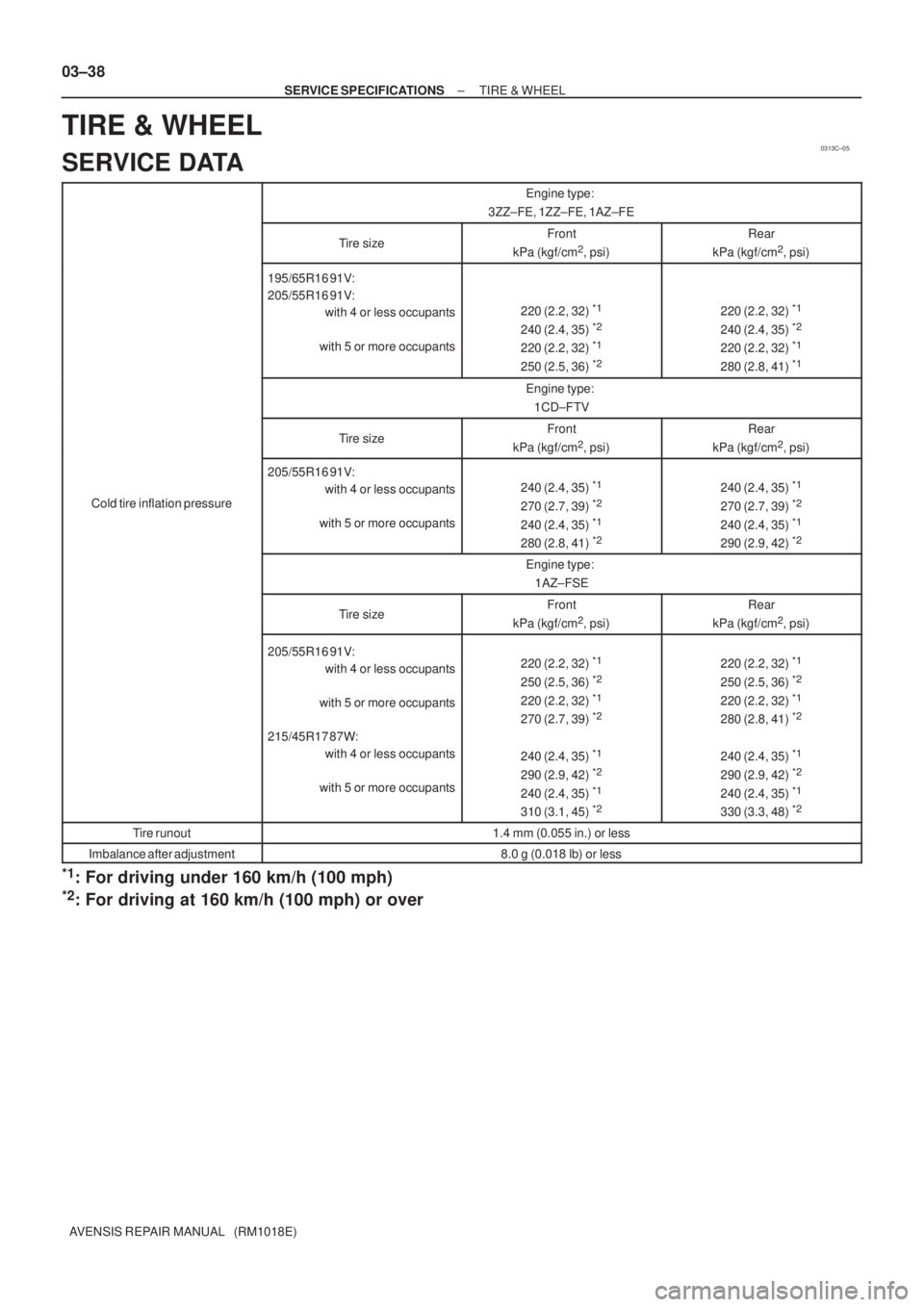

TIRE & WHEEL
SERVICE DATA
Engine type:
3ZZ±FE, 1ZZ±FE, 1AZ±FE
Tire sizeFront
kPa (kgf/cm2, psi)
Rear
kPa (kgf/cm2, psi)
195/65R16 91V:
205/55R16 91V:
with 4 or less occupants
with 5 or more occupants
220 (2.2, 32) *1
240 (2.4, 35) *2
220 (2.2, 32) *1
250 (2.5, 36) *2
220 (2.2, 32) *1
240 (2.4, 35) *2
220 (2.2, 32) *1
280 (2.8, 41) *1
Engine type:
1CD±FTV
Tire sizeFront
kPa (kgf/cm2, psi)
Rear
kPa (kgf/cm2, psi)
Cold tire inflation pressure
205/55R16 91V:
with 4 or less occupants
with 5 or more occupants
240 (2.4, 35) *1
270 (2.7, 39) *2
240 (2.4, 35) *1
280 (2.8, 41) *2
240 (2.4, 35) *1
270 (2.7, 39) *2
240 (2.4, 35) *1
290 (2.9, 42) *2
Engine type:
1AZ±FSE
Tire sizeFront
kPa (kgf/cm2, psi)
Rear
kPa (kgf/cm2, psi)
205/55R16 91V:
with 4 or less occupants
with 5 or more occupants
215/45R17 87W:
with 4 or less occupants
with 5 or more occupants220 (2.2, 32) *1
250 (2.5, 36) *2
220 (2.2, 32) *1
270 (2.7, 39) *2
240 (2.4, 35) *1
290 (2.9, 42) *2
240 (2.4, 35) *1
310 (3.1, 45) *2
220 (2.2, 32) *1
250 (2.5, 36) *2
220 (2.2, 32) *1
280 (2.8, 41) *2
240 (2.4, 35) *1
290 (2.9, 42) *2
240 (2.4, 35) *1
330 (3.3, 48) *2
Tire runout1.4 mm (0.055 in.) or less
Imbalance after adjustment8.0 g (0.018 lb) or less
*1: For driving under 160 km/h (100 mph)
*2: For driving at 160 km/h (100 mph) or over

031HO±01
± SERVICE SPECIFICATIONSWINDSHIELD/WINDOWGLASS/MIRROR
03±69
AVENSIS REPAIR MANUAL (RM1018E)

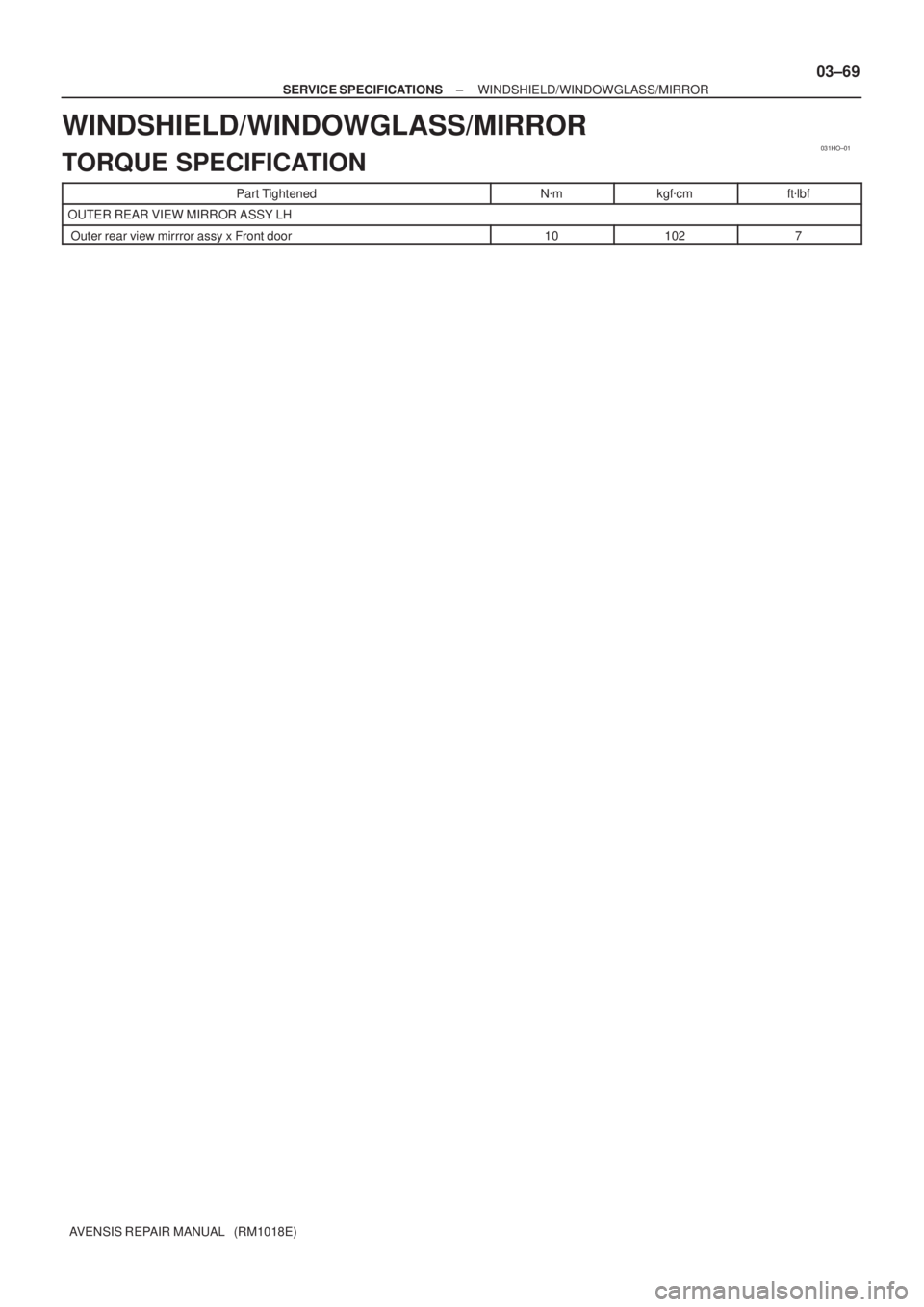

WINDSHIELD/WINDOWGLASS/MIRROR
TORQUE SPECIFICATION
Part TightenedN
mkgf
cmft
lbf
OUTER REAR VIEW MIRROR ASSY LH
Outer rear view mirrror assy x Front door101027

031HA±01
03±66
± SERVICE SPECIFICATIONSWIPER & WASHER
AVENSIS REPAIR MANUAL (RM1018E)

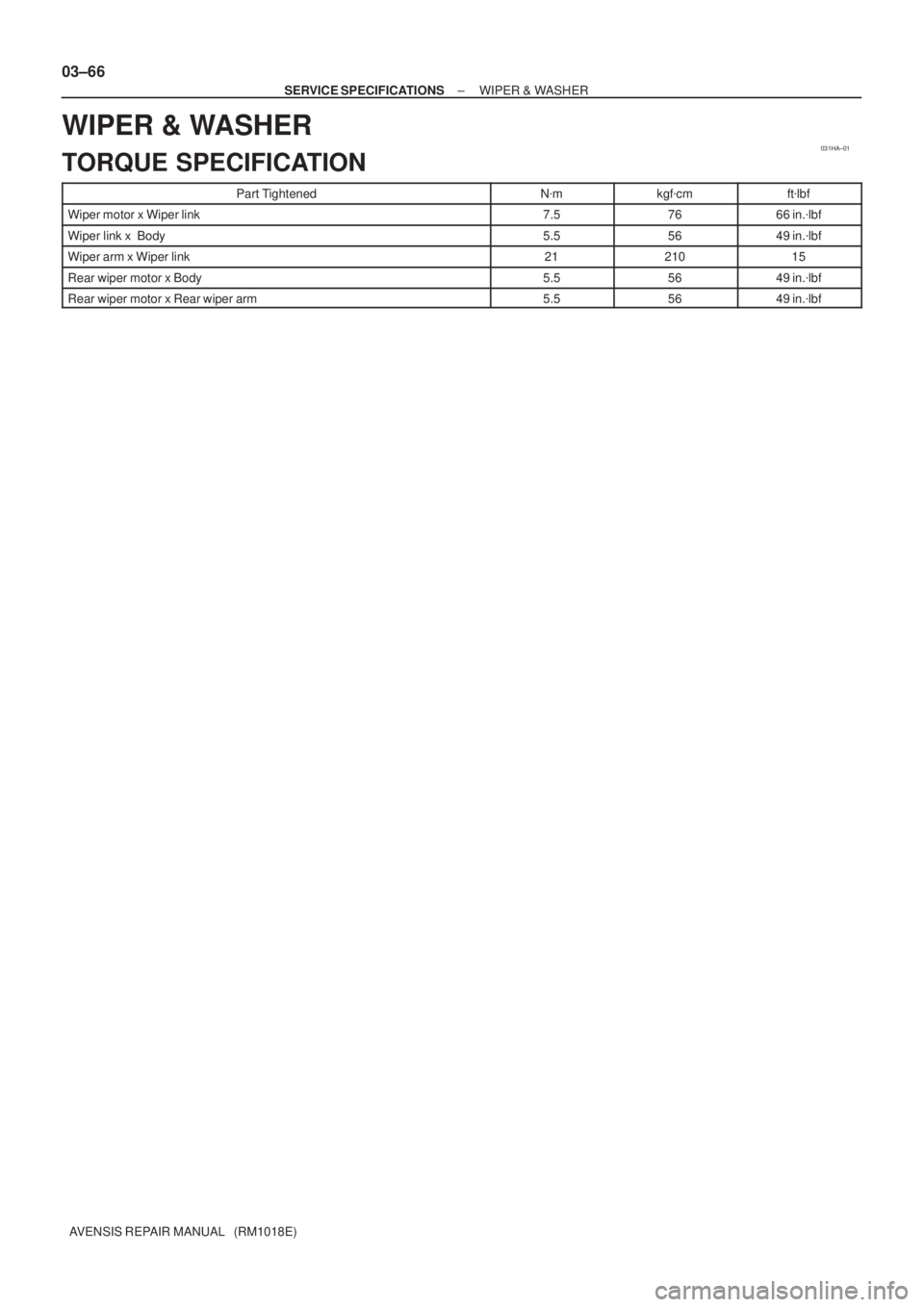

WIPER & WASHER
TORQUE SPECIFICATION
Part TightenedN
mkgf
cmft
lbf
Wiper motor x Wiper link7.57666 in.
lbf
Wiper link x Body5.55649 in.
lbf
Wiper arm x Wiper link2121015
Rear wiper motor x Body5.55649 in.
lbf
Rear wiper motor x Rear wiper arm5.55649 in.
lbf

7408X±01
B66561
Roof Side Garnish Inner RH
Front Pillar Garnish RH
Front Door Opening Trim Weatherstrip RH
Center Pillar Garnish RH
Rear Door Opening Trim Weatherstrip RH
Front Door
Scuff Plate RH
Rear Door Scuff
Plate RH
Cowl Side Trim Board RH
41.2 (420, 30)
Center Pillar Garnish
Lower RH
Front Pillar Garnish LH
Front Door Opening Trim
Weatherstrip LH
Cowl Side Trim Board LH
Front Door Scuff Plate LH
Center Pillar Garnish Lower LH
Rear Door Scuff Plate LH
Center Pillar Garnish LH
Rear Door Opening Trim
Weatherstrip LH
Roof Side Garnish Inner LH
Package Tray
Trim Panel Assy
N
m (kgf
cm ft
lbf): Specified torque
41.2 (420, 30)
74±8
± SLIDING ROOF/CONVERTIBLESLIDING ROOF
AVENSIS REPAIR MANUAL (RM1018E)
SLIDING ROOF
COMPONENTS

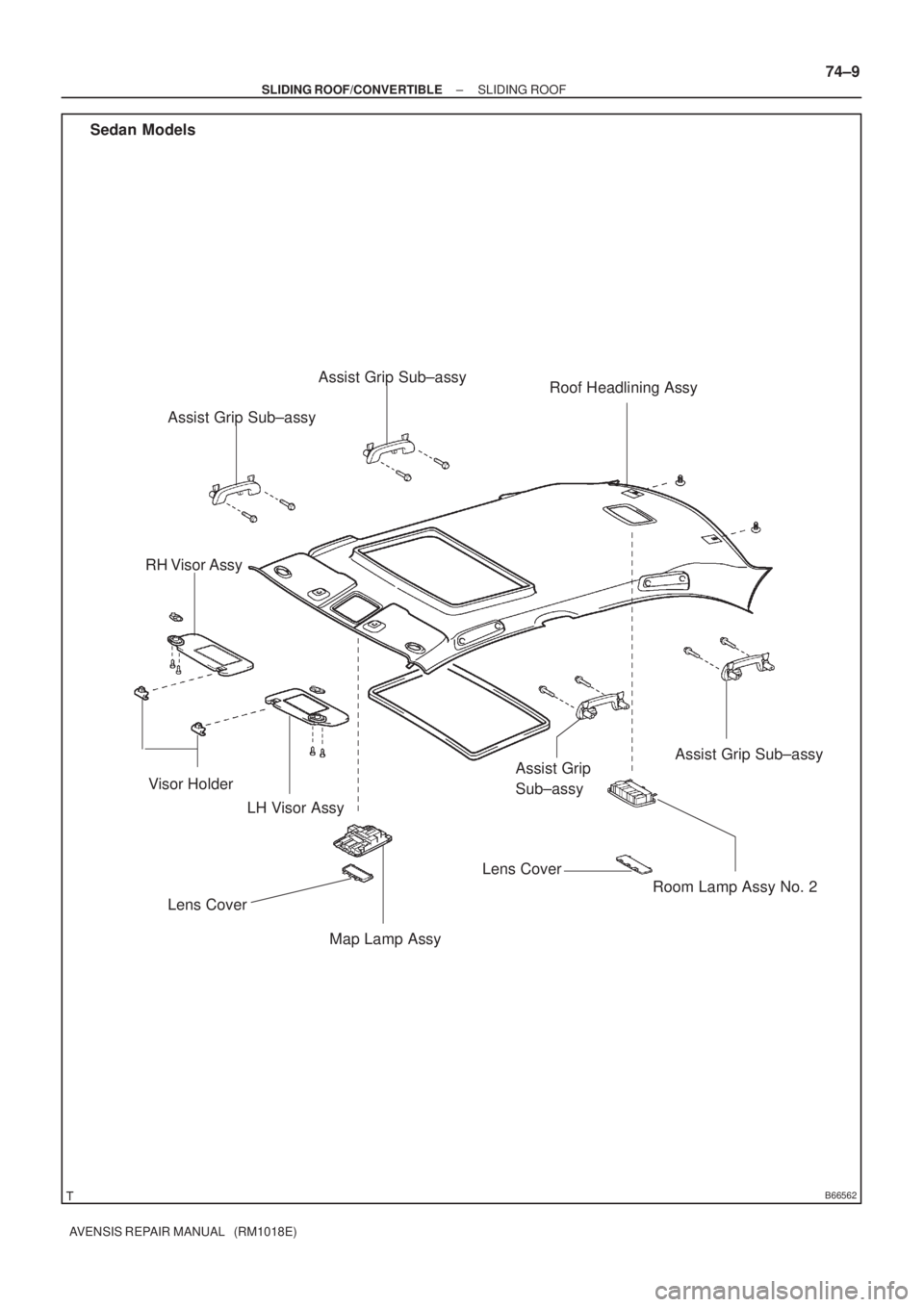

B66562
LH Visor Assy Visor HolderRoof Headlining Assy
RH Visor Assy
Map Lamp AssyRoom Lamp Assy No. 2
Lens Cover
Assist Grip
Sub±assy
Lens CoverAssist Grip Sub±assy
Assist Grip Sub±assy
Assist Grip Sub±assy
Sedan Models
± SLIDING ROOF/CONVERTIBLESLIDING ROOF
74±9
AVENSIS REPAIR MANUAL (RM1018E)

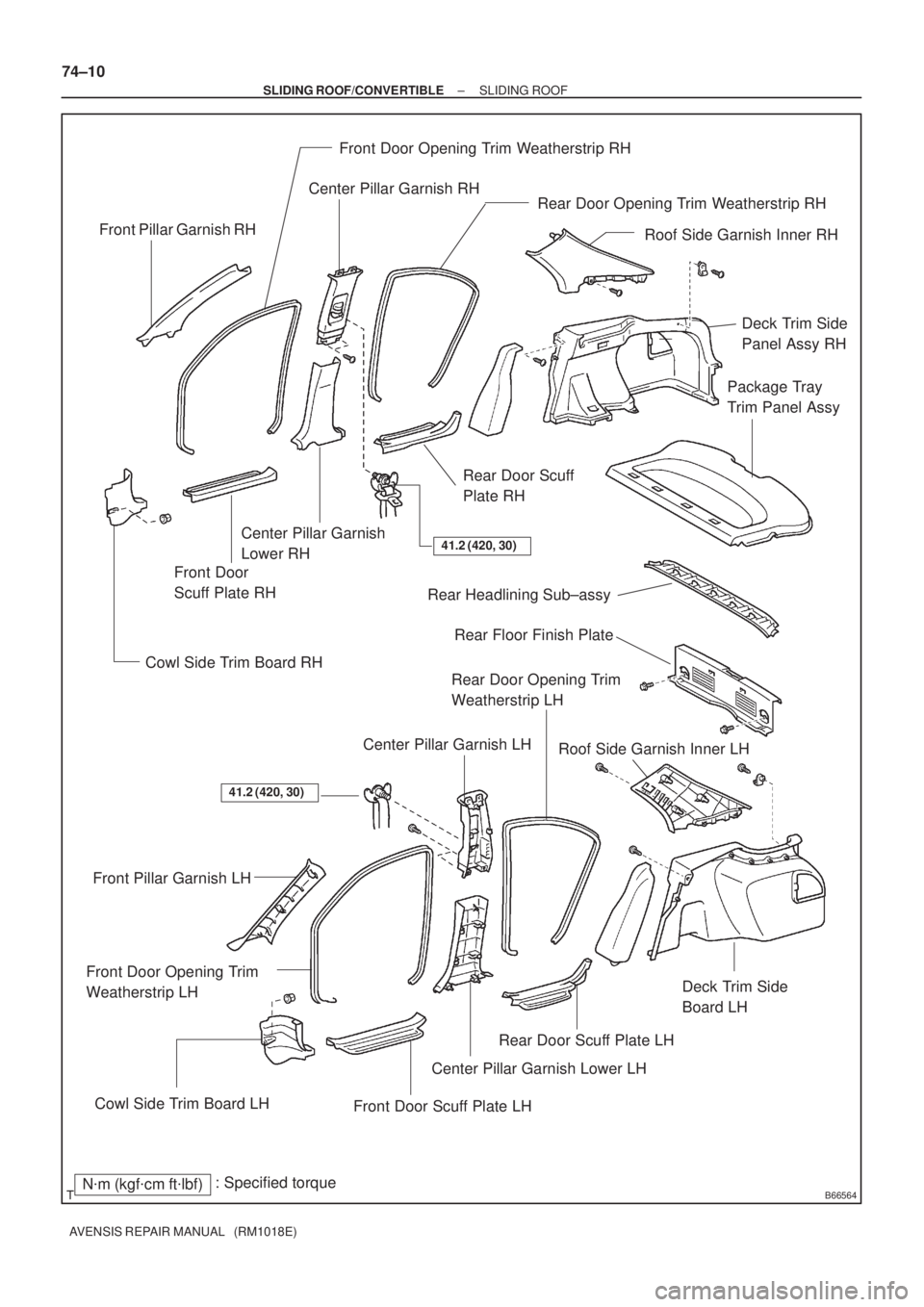

B66564
Roof Side Garnish Inner RHFront Pillar Garnish RH
Front Door Opening Trim Weatherstrip RH
Center Pillar Garnish RH
Rear Door Opening Trim Weatherstrip RH
Front Door
Scuff Plate RH
Rear Door Scuff
Plate RH
Cowl Side Trim Board RH
41.2 (420, 30)Center Pillar Garnish
Lower RH
Front Pillar Garnish LH
Front Door Opening Trim
Weatherstrip LH
Cowl Side Trim Board LHFront Door Scuff Plate LH
Center Pillar Garnish Lower LH
Rear Door Scuff Plate LH
Center Pillar Garnish LHRear Door Opening Trim
Weatherstrip LHRoof Side Garnish Inner LHPackage Tray
Trim Panel Assy
N
m (kgf
cm ft
lbf): Specified torque
41.2 (420, 30)
Rear Floor Finish Plate
Deck Trim Side
Panel Assy RH
Deck Trim Side
Board LH
Rear Headlining Sub±assy
74±10
± SLIDING ROOF/CONVERTIBLESLIDING ROOF
AVENSIS REPAIR MANUAL (RM1018E)

B66565
LH Visor Assy Visor HolderRoof Headlining Assy
RH Visor Assy
Map Lamp AssyRoom Lamp Assy No. 2
Lens Cover
Assist Grip
Sub±assy
Lens CoverAssist Grip Sub±assy
Assist Grip Sub±assy
Assist Grip Sub±assy
Liftback Models
± SLIDING ROOF/CONVERTIBLESLIDING ROOF
74±11
AVENSIS REPAIR MANUAL (RM1018E)
