2002 TOYOTA AVENSIS Repair Manual

SST
A09583
Inward
Angle Sensor
±
LUBRICATION OIL PUMP ASSY(1CD±FTV)
17±29
AVENSIS REPAIR MANUAL (RM1018E)

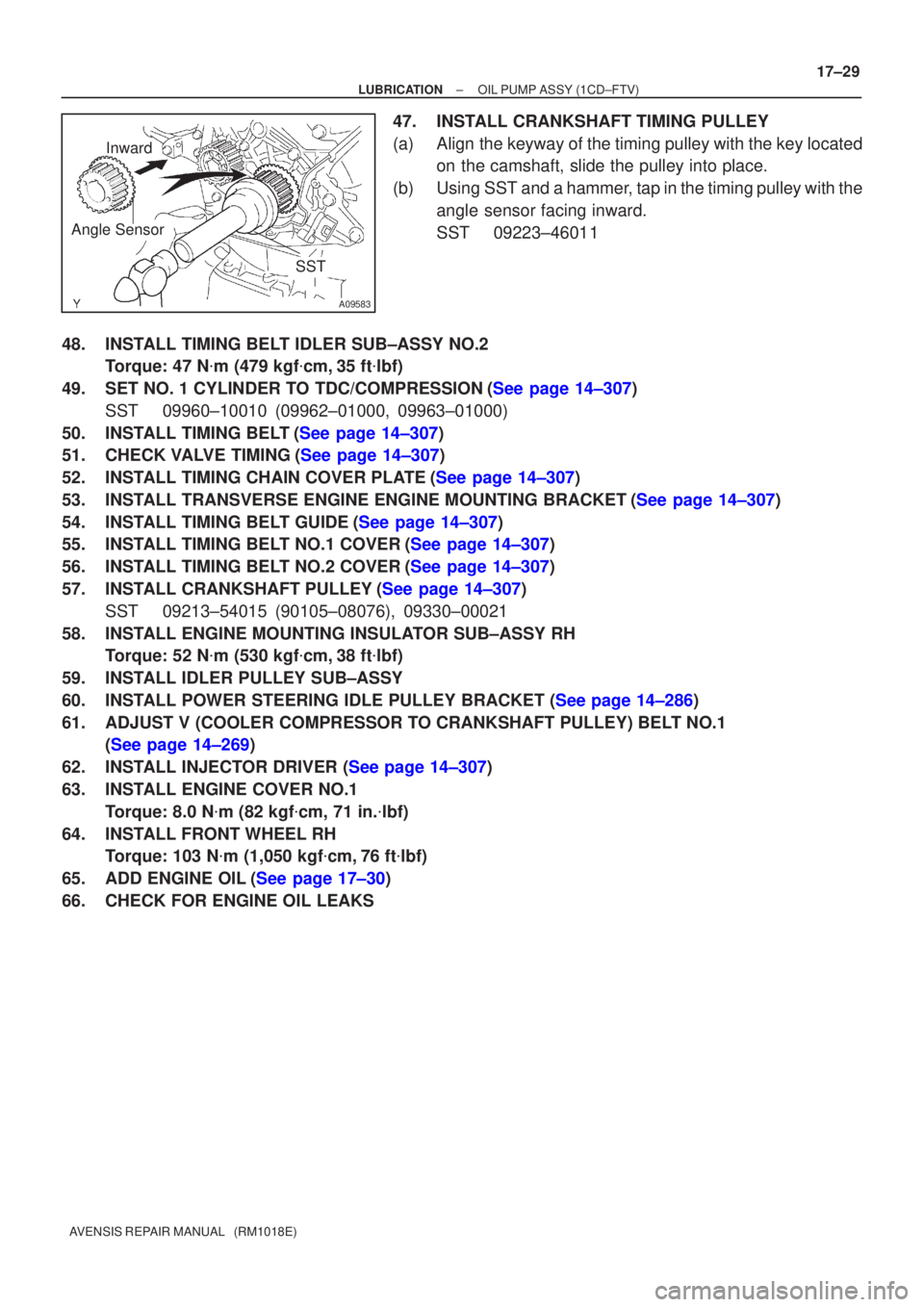

47.INSTALL CRANKSHAFT TIMING PULLEY
(a)Align the keyway of the timing pulley with the key located
on the camshaft, slide the pulley into place.
(b)Using SST and a hammer, tap in the timing pulley with the angle sensor facing inward.
SST09223±46011
48.INSTALL TIMING BELT IDLER SUB±ASSY NO.2 Torque: 47 N
m (479 kgf
cm,35 ft
lbf)
49.SET NO. 1 CYLINDER TO TDC/COMPRESSION(See page 14±307) SST 09960±10010 (09962±01000, 09963±01000)
50.INSTALL TIMING BELT(See page 14±307)
51.CHECK VALVE TIMING(See page 14±307)
52.INSTALL TIMING CHAIN COVER PLATE(See page 14±307)
53.INSTALL TRANSVERSE ENGINE ENGINE MOUNTING BRACKET(See page 14±307)
54.INSTALL TIMING BELT GUIDE(See page 14±307)
55.INSTALL TIMING BELT NO.1 COVER(See page 14±307)
56.INSTALL TIMING BELT NO.2 COVER(See page 14±307)
57.INSTALL CRANKSHAFT PULLEY(See page 14±307) SST 09213±54015 (90105±08076), 09330±00021
58. INSTALL ENGINE MOUNTING INSULATOR SUB±ASSY RH Torque: 52 N
m (530 kgf
cm, 38 ft
lbf)
59. INSTALL IDLER PULLEY SUB±ASSY
60.INSTALL POWER STEERING IDLE PULLEY BRACKET (See page 14±286)
61. ADJUST V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See page 14±269)
62.INSTALL INJECTOR DRIVER (See page 14±307)
63. INSTALL ENGINE COVER NO.1 Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)
64. INSTALL FRONT WHEEL RH Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
65.ADD ENGINE OIL(See page 17±30)
66. CHECK FOR ENGINE OIL LEAKS

170FR±01
B08737
A30890
±
LUBRICATION OIL PUMP ASSY(1ZZ±FE/3ZZ±FE)
17±3
AVENSIS REPAIR MANUAL (RM1018E)
OIL PUMP ASSY(1ZZ±FE/3ZZ±FE)
REPLACEMENT
1.DRAIN ENGINE OIL
(a)Remove the oil pan drain plug and drain engine oil.
2.REMOVAL & INSTALLATION CHAIN SUB±ASSY (See page 14±49)
3.REMOVE CHAIN VIBRATION DAMPER NO.1
(a)Remove the 2 bolts and the chain vibration damper No. 1.
4.REMOVE OIL PUMP ASSY
(a)Remove the 5 bolts.
(b)Remove the oil pump assy and the gasket.
5.INSTALL OIL PUMP ASSY
(a)Place a new gasket on the cylinder block.
(b)Align the keyway of the oil pump drive rotor with the rect-angular portion of the crankshaft and slide the oil pump
into place.
(c)Install the oil pump with the 5 bolts. Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
6.INSTALL CHAIN VIBRATION DAMPER NO.1
(a)Install the chain vibration damper No. 1 with 2 bolts. Torque: 9.0 N
m (92 kgf
cm,8.0 in.
lbf)
7.INSTALL OIL PAN DRAIN PLUG
(a)Clean and install the oil pan drain plug with a new gasket.
Torque: 37 N
m (377 kgf
cm,27 ft
lbf)
8.ADD ENGINE OIL (See page 17±4)
9.ADD ENGINE COOLANT (See page 16±7)
10. CHECK FOR ENGINE OIL LEAKS
11.CHECK FOR ENGINE COOLANT LEAKS (See page 16±1)

4105U±03
D30489
Gasoline Engine:
Front Floor
Heat Insulator No.1
Console Box Carpet
Floor Shift Lever Knob
Sub±assy
Console Panel Sub±assy Upper
Console Panel Sub±assy Lower
Console Box Sub±assy Rear
Clip
Clip
Clip
5.0 (51, 44 in.
lbf)
5.0 (51, 44 in.
lbf)
ClipClip
12 (122, 9)
Floor Shift Shift Lever Assy
12 (122, 9)
N´m (kgf´cm, ft´lbf): Specified torque
5.5 (56, 49 in.
lbf)
Transmission Control Cable Assy
41±10
± MANUAL TRANSMISSION/TRANSAXLEFLOOR SHIFT SHIFT LEVER ASSY (MTM)
AVENSIS REPAIR MANUAL (RM1018E)
FLOOR SHIFT SHIFT LEVER ASSY (MTM)
COMPONENTS

410DR±01
D26893
D26895
D30474
D30474
±
MANUAL TRANSMISSION/TRANSAXLE FLOOR SHIFT SHIFT LEVER ASSY (MTM)
41±11
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.REMOVE FLOOR SHIFT SHIFT LEVER KNOB SUB±ASSY (See page 71±11)
2.REMOVE CONSOLE PANEL UPPER (See page 71±11)
3.REMOVE CONSOLE PANEL SUB±ASSY LOWER (See page 71±11)
4.REMOVE CONSOLE BOX ASSY REAR (See page 71±11)
5. SEPARATE TRANSMISSION CONTROL CABLE ASSY
(a) Remove the 2 clips, separate the cable ends of the controlcable assy.
(b) Release the claws, separate the control cable assy.
6. REMOVE FLOOR SHIFT SHIFT LEVER ASSY
(a) Remove the 4 bolts and shift lever assy.
7. INSTALL FLOOR SHIFT SHIFT LEVER ASSY
(a) Install the shift lever assy with the 4 bolts. Torque: 12 N
m (122 kgf
cm, 9 ft
lbf)

D26972
D26894
Serrate Part 41±12
± MANUAL TRANSMISSION/TRANSAXLEFLOOR SHIFT SHIFT LEVER ASSY (MTM)
AVENSIS REPAIR MANUAL (RM1018E)

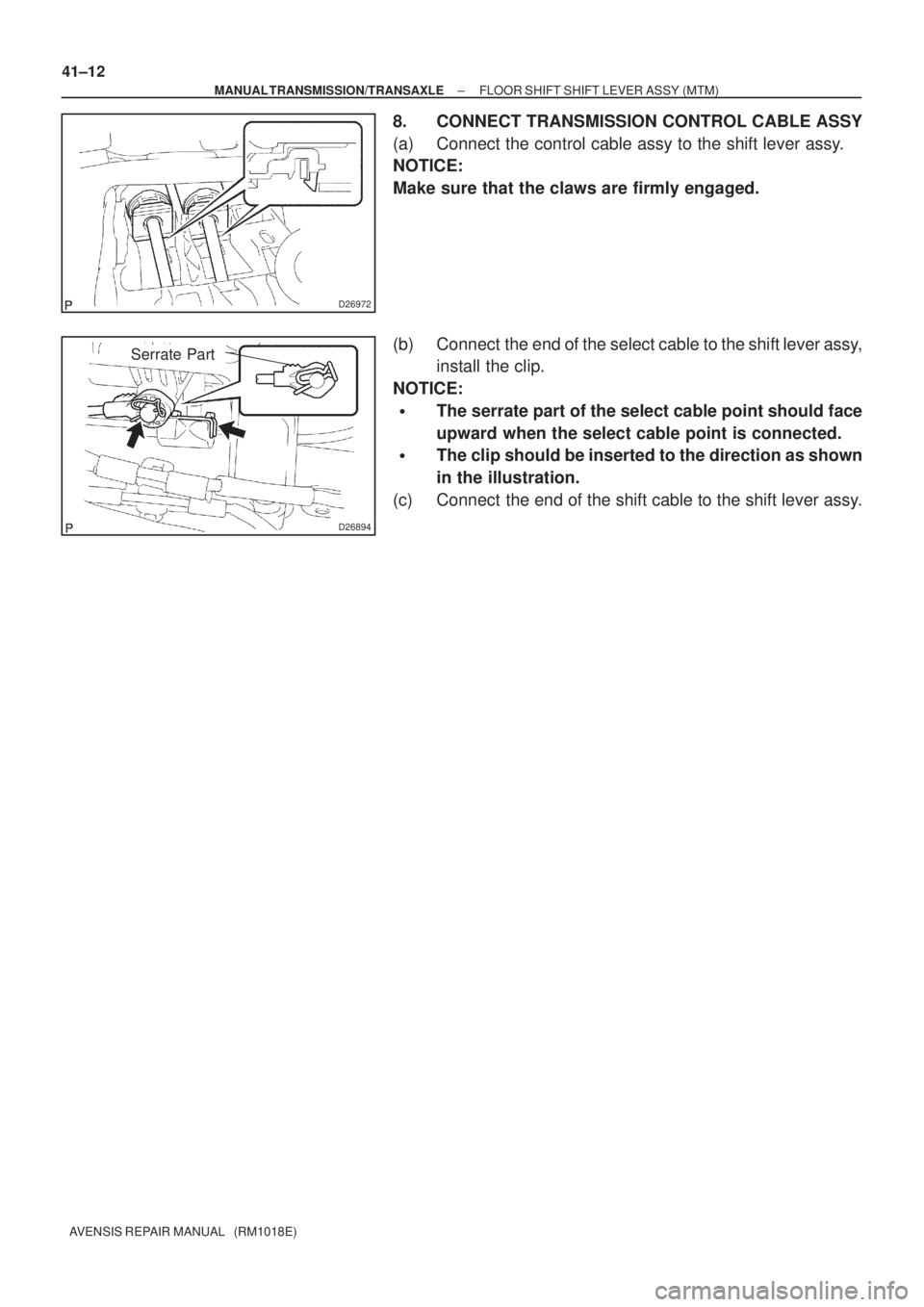

8. CONNECT TRANSMISSION CONTROL CABLE ASSY
(a) Connect the control cable assy to the shift lever assy.
NOTICE:
Make sure that the claws are firmly engaged.
(b) Connect the end of the select cable to the shift lever assy,
install the clip.
NOTICE:

The serrate part of the select cable point should face
upward when the select cable point is connected.

The clip should be inserted to the direction as shown
in the illustration.
(c) Connect the end of the shift cable to the shift lever assy.

41046±11
C94266
SST(s)
D25305
SST(s)
D25722
SST(s)
±
MANUAL TRANSMISSION/TRANSAXLE FRONT DIFFERENTIAL OIL SEAL (C50/C250)
41±3
AVENSIS REPAIR MANUAL (RM1018E)

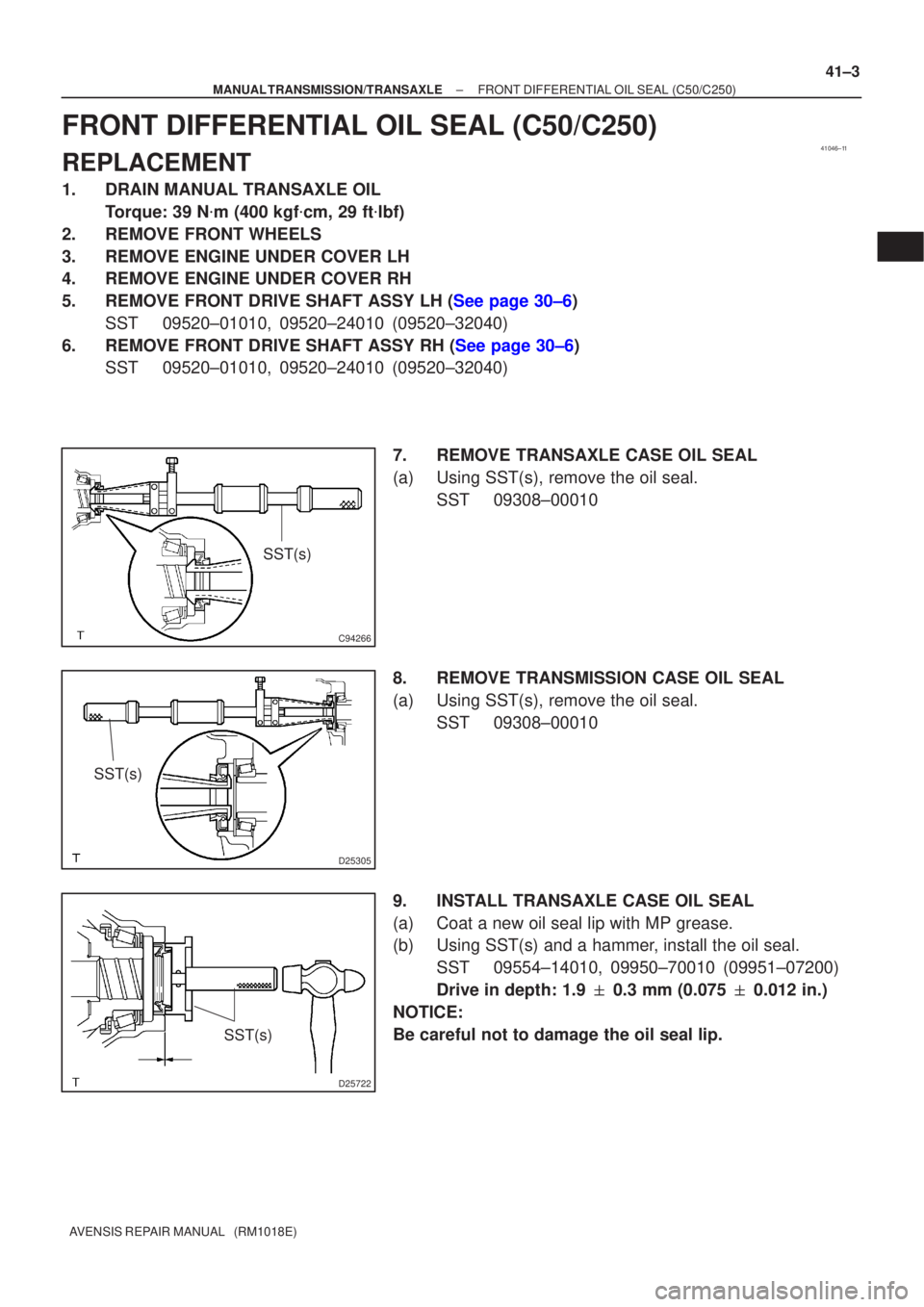

FRONT DIFFERENTIAL OIL SEAL (C50/C250)
REPLACEMENT
1. DRAIN MANUAL TRANSAXLE OIL
Torque: 39 N
m (400 kgf
cm, 29 ft
lbf)
2. REMOVE FRONT WHEELS
3. REMOVE ENGINE UNDER COVER LH
4. REMOVE ENGINE UNDER COVER RH
5.REMOVE FRONT DRIVE SHAFT ASSY LH (See page 30±6) SST 09520±01010, 09520±24010 (09520±32040)
6.REMOVE FRONT DRIVE SHAFT ASSY RH (See page 30±6) SST 09520±01010, 09520±24010 (09520±32040)
7. REMOVE TRANSAXLE CASE OIL SEAL
(a) Using SST(s), remove the oil seal.SST 09308±00010
8. REMOVE TRANSMISSION CASE OIL SEAL
(a) Using SST(s), remove the oil seal. SST 09308±00010
9. INSTALL TRANSAXLE CASE OIL SEAL
(a) Coat a new oil seal lip with MP grease.
(b) Using SST(s) and a hammer, install the oil seal. SST 09554±14010, 09950±70010 (09951±07200)
Drive in depth: 1.9
0.3 mm (0.075
0.012 in.)
NOTICE:
Be careful not to damage the oil seal lip.

D26133
SST(s)
D25304
0 to 5 mm
(0 to 0.20 in.)
41±4
±
MANUAL TRANSMISSION/TRANSAXLE FRONT DIFFERENTIAL OIL SEAL (C50/C250)
AVENSIS REPAIR MANUAL (RM1018E)

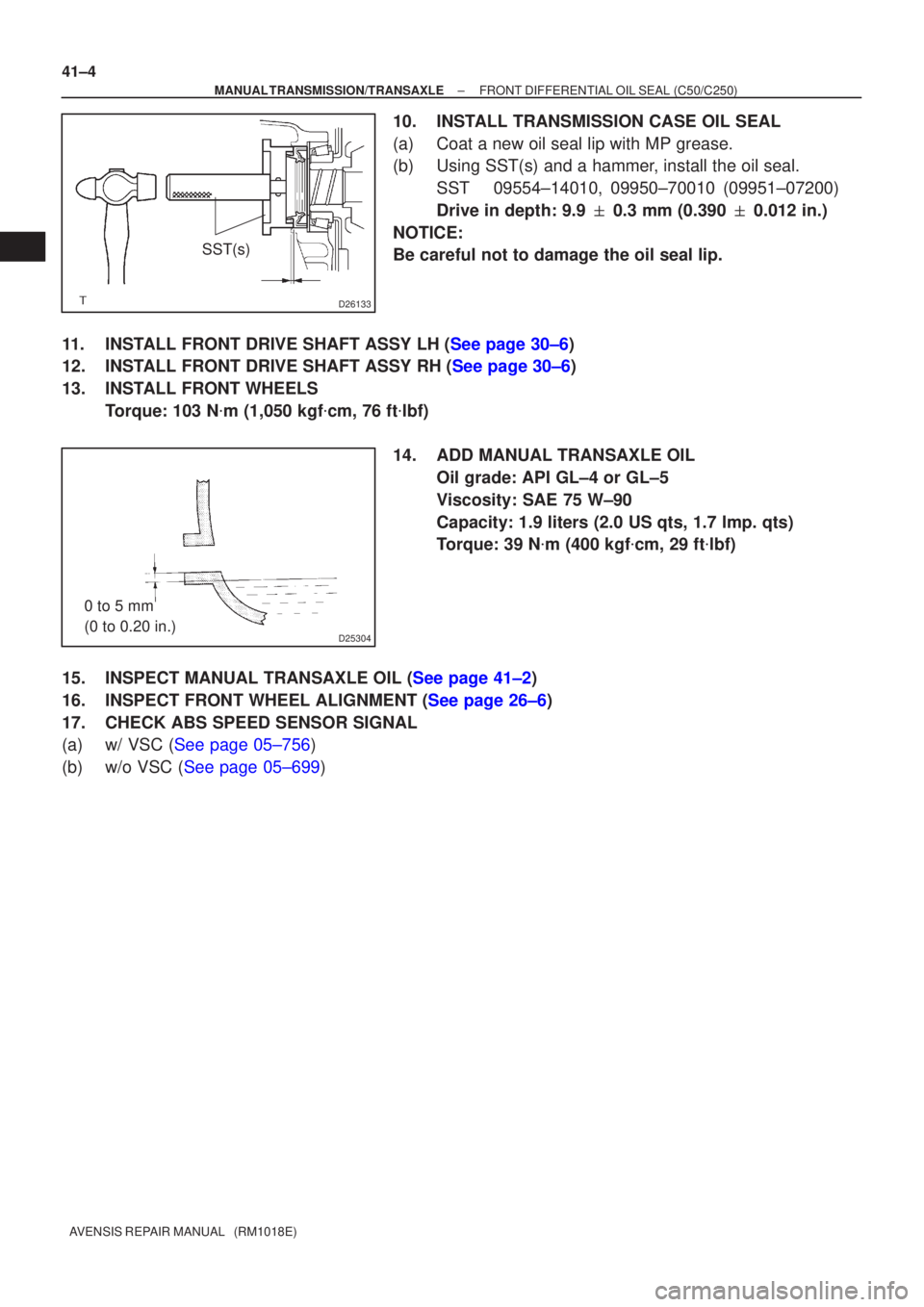

10. INSTALL TRANSMISSION CASE OIL SEAL
(a) Coat a new oil seal lip with MP grease.
(b) Using SST(s) and a hammer, install the oil seal. SST 09554±14010, 09950±70010 (09951±07200)
Drive in depth: 9.9
0.3 mm (0.390
0.012 in.)
NOTICE:
Be careful not to damage the oil seal lip.
11.INSTALL FRONT DRIVE SHAFT ASSY LH (See page 30±6)
12.INSTALL FRONT DRIVE SHAFT ASSY RH (See page 30±6)
13. INSTALL FRONT WHEELS Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
14. ADD MANUAL TRANSAXLE OIL Oil grade: API GL±4 or GL±5
Viscosity: SAE 75 W±90
Capacity: 1.9 liters (2.0 US qts, 1.7 lmp. qts)
Torque: 39 N
m (400 kgf
cm, 29 ft
lbf)
15.INSPECT MANUAL TRANSAXLE OIL (See page 41±2)
16.INSPECT FRONT WHEEL ALIGNMENT (See page 26±6)
17. CHECK ABS SPEED SENSOR SIGNAL
(a)w/ VSC (See page 05±756)
(b)w/o VSC (See page 05±699)

41046±12
C94266
SST(s)
D25305
SST(s)
D25722
SST(s)
±
MANUAL TRANSMISSION/TRANSAXLE FRONT DIFFERENTIAL OIL SEAL (E354/E357)
41±5
AVENSIS REPAIR MANUAL (RM1018E)

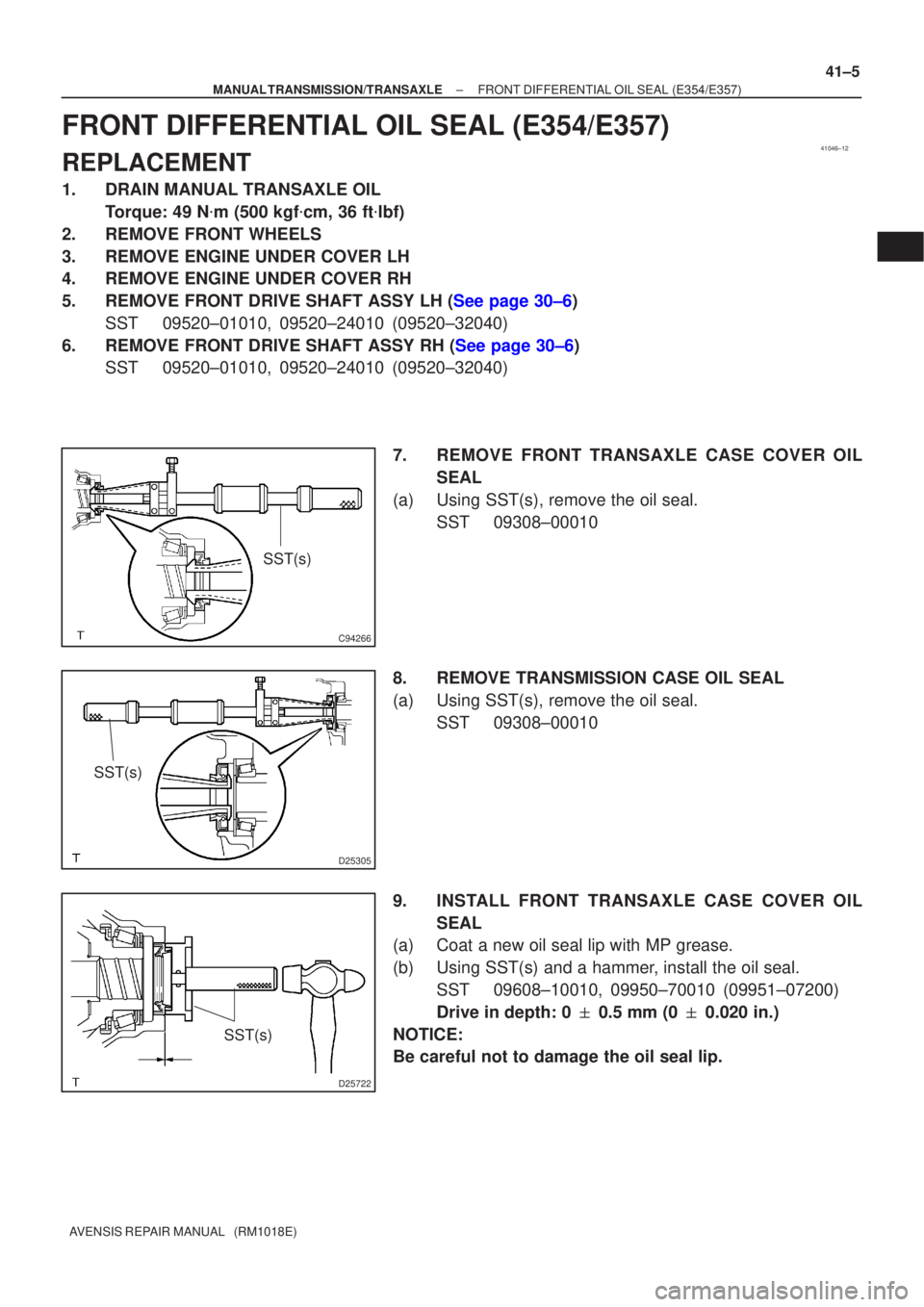

FRONT DIFFERENTIAL OIL SEAL (E354/E357)
REPLACEMENT
1. DRAIN MANUAL TRANSAXLE OIL
Torque: 49 N
m (500 kgf
cm, 36 ft
lbf)
2. REMOVE FRONT WHEELS
3. REMOVE ENGINE UNDER COVER LH
4. REMOVE ENGINE UNDER COVER RH
5.REMOVE FRONT DRIVE SHAFT ASSY LH (See page 30±6) SST 09520±01010, 09520±24010 (09520±32040)
6.REMOVE FRONT DRIVE SHAFT ASSY RH (See page 30±6) SST 09520±01010, 09520±24010 (09520±32040)
7. REMOVE FRONT TRANSAXLE CASE COVER OILSEAL
(a) Using SST(s), remove the oil seal. SST 09308±00010
8. REMOVE TRANSMISSION CASE OIL SEAL
(a) Using SST(s), remove the oil seal. SST 09308±00010
9. INSTALL FRONT TRANSAXLE CASE COVER OIL SEAL
(a) Coat a new oil seal lip with MP grease.
(b) Using SST(s) and a hammer, install the oil seal.
SST 09608±10010, 09950±70010 (09951±07200)
Drive in depth: 0
0.5 mm (0
0.020 in.)
NOTICE:
Be careful not to damage the oil seal lip.
