2002 TOYOTA AVENSIS Repair Manual

1209H±02
A62250
Port A
Port BPort C
A60562
Cylinder Head Side
A60563
Intake Manifold Side
Gasket
B11870
± EMISSION CONTROLEMISSION CONTROL SYSTEM (1AZ±FSE)
12±13
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION
1. INSPECT CHARCOAL CANISTER ASSY
(a) Inspect charcoal canister operation.
(1) Check the charcoal canister operation according to
the table below.
SST 09992±00242
Checking methodResult
Close ports B and C, then apply vacuum
to port ANo leaks
Close port C, then apply vacuum to port
AAir flows from port B
Close port C, then blow air into port AAir flows from port B
Blow air into port AAir flows from ports B and C
2. INSPECT VENTILATION VALVE SUB±ASSY
(a) Install clean hose to the PCV valve.
(b) Inspect the PCV valve operation.
(1) Blow air into the cylinder head side, and check that
air passes through easily.
CAUTION:
Do not suck air through the valve. If contains petroleum
substances and is harmful.
(2) Blow air into the intake manifold side, and check
that air passes through with difficulty.
If operation is not as specified, replace the PCV valve.
(c) Remove clean hose from the PCV valve.
3. INSPECT FUEL TANK CAP ASSY
(a) Visually check if the cap or gasket is deformed or dam-
aged.
If necessary, repair or replace the cap.

A77115
Ohmmeter
Resistance
A77116
Ohmmeter
No continuity
A77117
Air E F
A77118
Air E
F
Battery
A64543
+B
Bank 2 Sensor 1:
HT
E1
12±14
± EMISSION CONTROLEMISSION CONTROL SYSTEM (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)

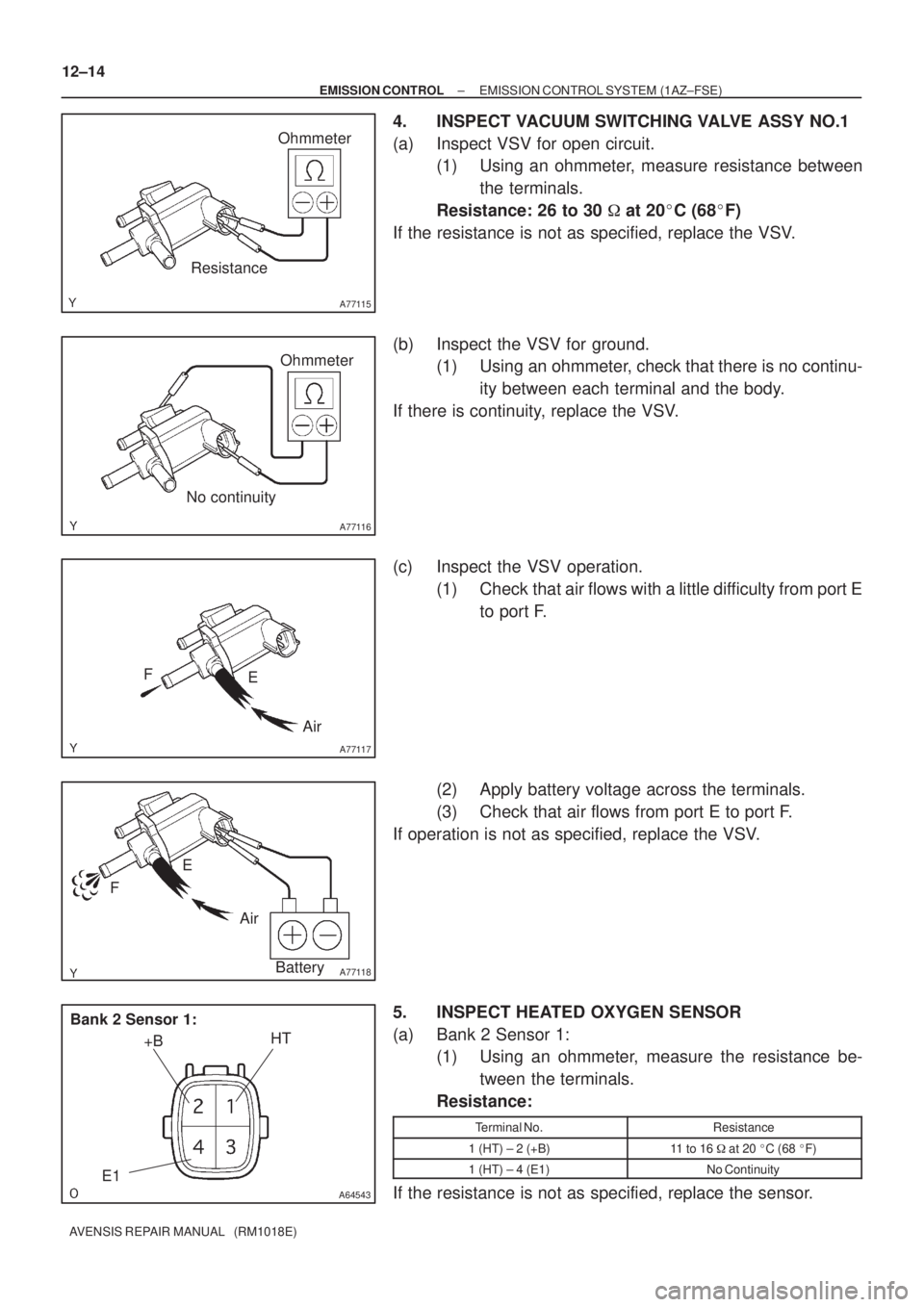

4. INSPECT VACUUM SWITCHING VALVE ASSY NO.1
(a) Inspect VSV for open circuit.
(1) Using an ohmmeter, measure resistance between
the terminals.
Resistance: 26 to 30
at 20
C (68
F)
If the resistance is not as specified, replace the VSV.
(b) Inspect the VSV for ground.
(1) Using an ohmmeter, check that there is no continu-
ity between each terminal and the body.
If there is continuity, replace the VSV.
(c) Inspect the VSV operation.
(1) Check that air flows with a little difficulty from port E
to port F.
(2) Apply battery voltage across the terminals.
(3) Check that air flows from port E to port F.
If operation is not as specified, replace the VSV.
5. INSPECT HEATED OXYGEN SENSOR
(a) Bank 2 Sensor 1:
(1) Using an ohmmeter, measure the resistance be-
tween the terminals.
Resistance:
Terminal No.Resistance
1 (HT) ± 2 (+B)11 to 16
at 20
C (68
F)
1 (HT) ± 4 (E1)No Continuity
If the resistance is not as specified, replace the sensor.

A62378
+B
HT
E1



Bank 2 Sensor 2:
A62378
+B
HT
E1



Bank 1 Sensor 1, 2:
± EMISSION CONTROLEMISSION CONTROL SYSTEM (1AZ±FSE)
12±15
AVENSIS REPAIR MANUAL (RM1018E)

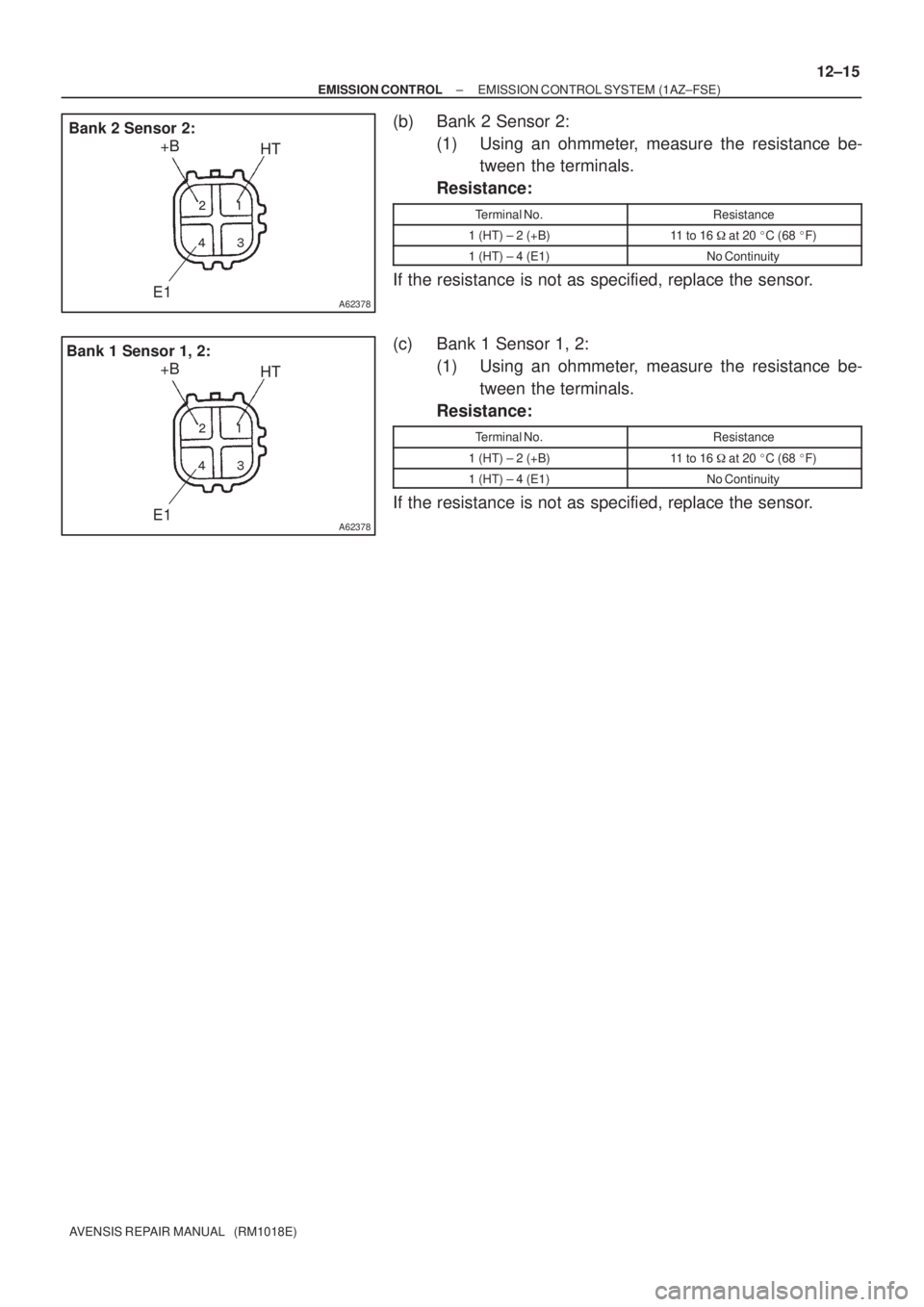

(b) Bank 2 Sensor 2:
(1) Using an ohmmeter, measure the resistance be-
tween the terminals.
Resistance:
Terminal No.Resistance
1 (HT) ± 2 (+B)11 to 16
at 20
C (68
F)
1 (HT) ± 4 (E1)No Continuity
If the resistance is not as specified, replace the sensor.
(c) Bank 1 Sensor 1, 2:
(1) Using an ohmmeter, measure the resistance be-
tween the terminals.
Resistance:
Terminal No.Resistance
1 (HT) ± 2 (+B)11 to 16
at 20
C (68
F)
1 (HT) ± 4 (E1)No Continuity
If the resistance is not as specified, replace the sensor.

1209G±02
A59588
E1
OX1AOX1B
OX2B OX2A
ECM
A77114
± EMISSION CONTROLEMISSION CONTROL SYSTEM (1AZ±FSE)
12±11
AVENSIS REPAIR MANUAL (RM1018E)
EMISSION CONTROL SYSTEM (1AZ±FSE)
ON±VEHICLE INSPECTION

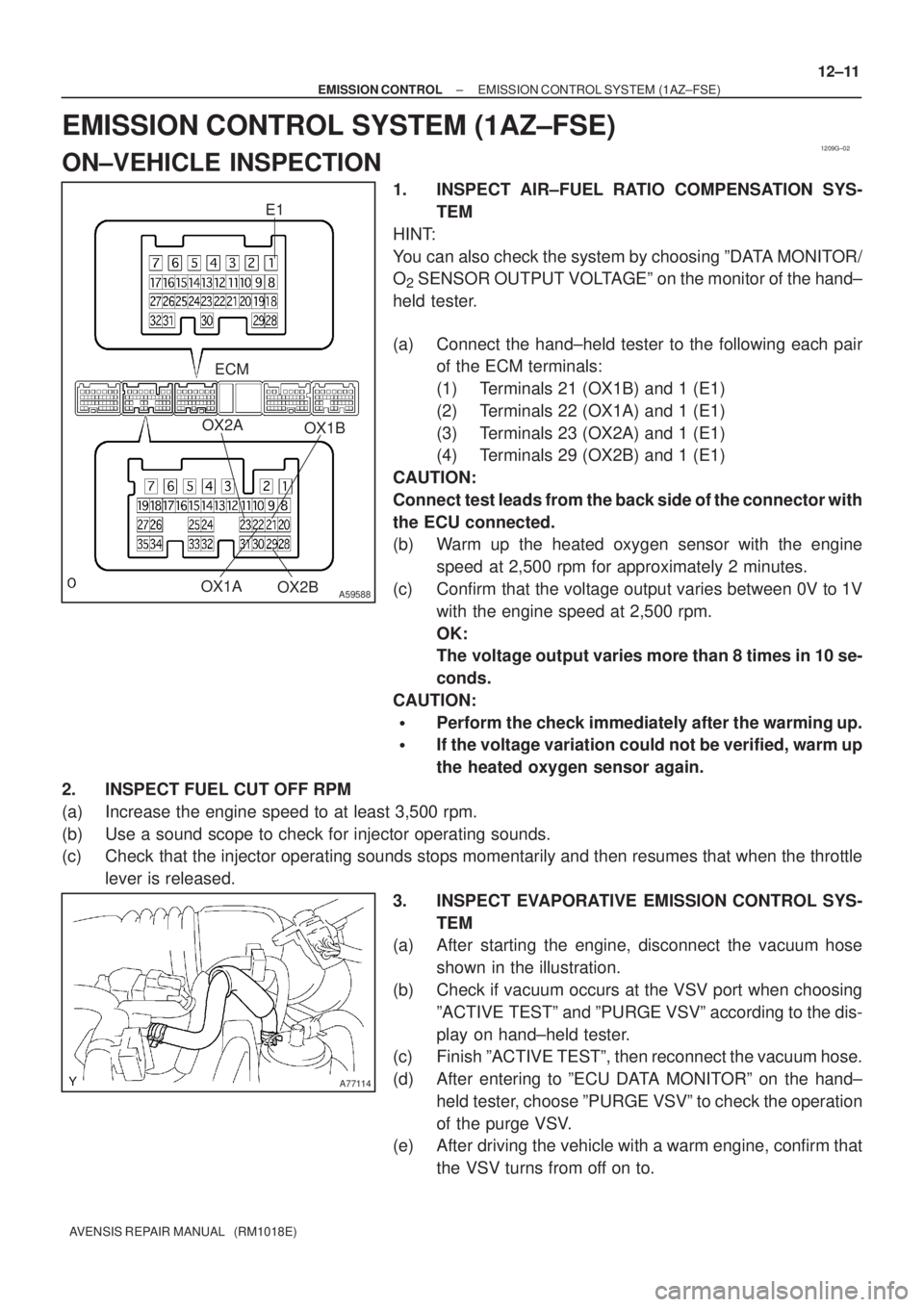

1. INSPECT AIR±FUEL RATIO COMPENSATION SYS-
TEM
HINT:
You can also check the system by choosing ºDATA MONITOR/
O
2 SENSOR OUTPUT VOLTAGEº on the monitor of the hand±
held tester.
(a) Connect the hand±held tester to the following each pair
of the ECM terminals:
(1) Terminals 21 (OX1B) and 1 (E1)
(2) Terminals 22 (OX1A) and 1 (E1)
(3) Terminals 23 (OX2A) and 1 (E1)
(4) Terminals 29 (OX2B) and 1 (E1)
CAUTION:
Connect test leads from the back side of the connector with
the ECU connected.
(b) Warm up the heated oxygen sensor with the engine
speed at 2,500 rpm for approximately 2 minutes.
(c) Confirm that the voltage output varies between 0V to 1V
with the engine speed at 2,500 rpm.
OK:
The voltage output varies more than 8 times in 10 se-
conds.
CAUTION:

Perform the check immediately after the warming up.

If the voltage variation could not be verified, warm up
the heated oxygen sensor again.
2. INSPECT FUEL CUT OFF RPM
(a) Increase the engine speed to at least 3,500 rpm.
(b) Use a sound scope to check for injector operating sounds.
(c) Check that the injector operating sounds stops momentarily and then resumes that when the throttle
lever is released.
3. INSPECT EVAPORATIVE EMISSION CONTROL SYS-
TEM
(a) After starting the engine, disconnect the vacuum hose
shown in the illustration.
(b) Check if vacuum occurs at the VSV port when choosing
ºACTIVE TESTº and ºPURGE VSVº according to the dis-
play on hand±held tester.
(c) Finish ºACTIVE TESTº, then reconnect the vacuum hose.
(d) After entering to ºECU DATA MONITORº on the hand±
held tester, choose ºPURGE VSVº to check the operation
of the purge VSV.
(e) After driving the vehicle with a warm engine, confirm that
the VSV turns from off on to.

B11449
12±12
± EMISSION CONTROLEMISSION CONTROL SYSTEM (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)

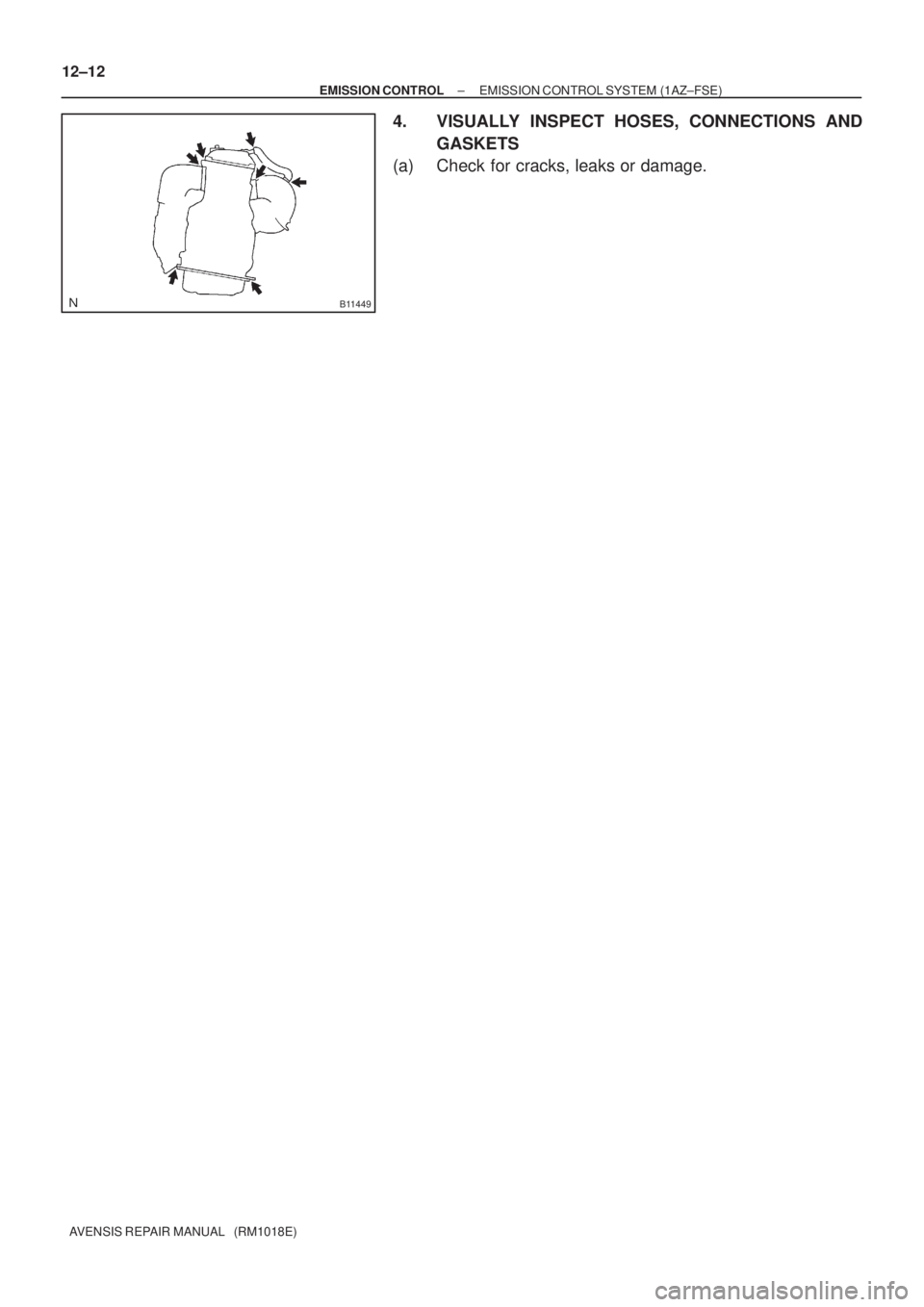

4. VISUALLY INSPECT HOSES, CONNECTIONS AND
GASKETS
(a) Check for cracks, leaks or damage.

1203V±03
B08075
12±16
± EMISSION CONTROLEMISSION CONTROL SYSTEM (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
EMISSION CONTROL SYSTEM (1CD±FTV)
ON±VEHICLE INSPECTION
1. VISUALLY INSPECT HOSES, CONNECTIONS AND
GASKETS
(a) Check for cracks, leak or damage.
HINT:
Separation of the engine oil dipstick, oil filler cap, PCV hose,
etc. may cause the engine to run improperly. Disconnection,
looseness or cracks in the parts of the air induction system be-
tween the throttle body and cylinder head will allow air suction
and cause the engine to run improperly.

1209D±02
A62250
Port A
Port BPort C
A77115
Ohmmeter
Resistance
A77116
Ohmmeter
No continuity
A77117
Air E F
± EMISSION CONTROLEMISSION CONTROL SYSTEM (1ZZ±FE/3ZZ±FE)
12±3
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION

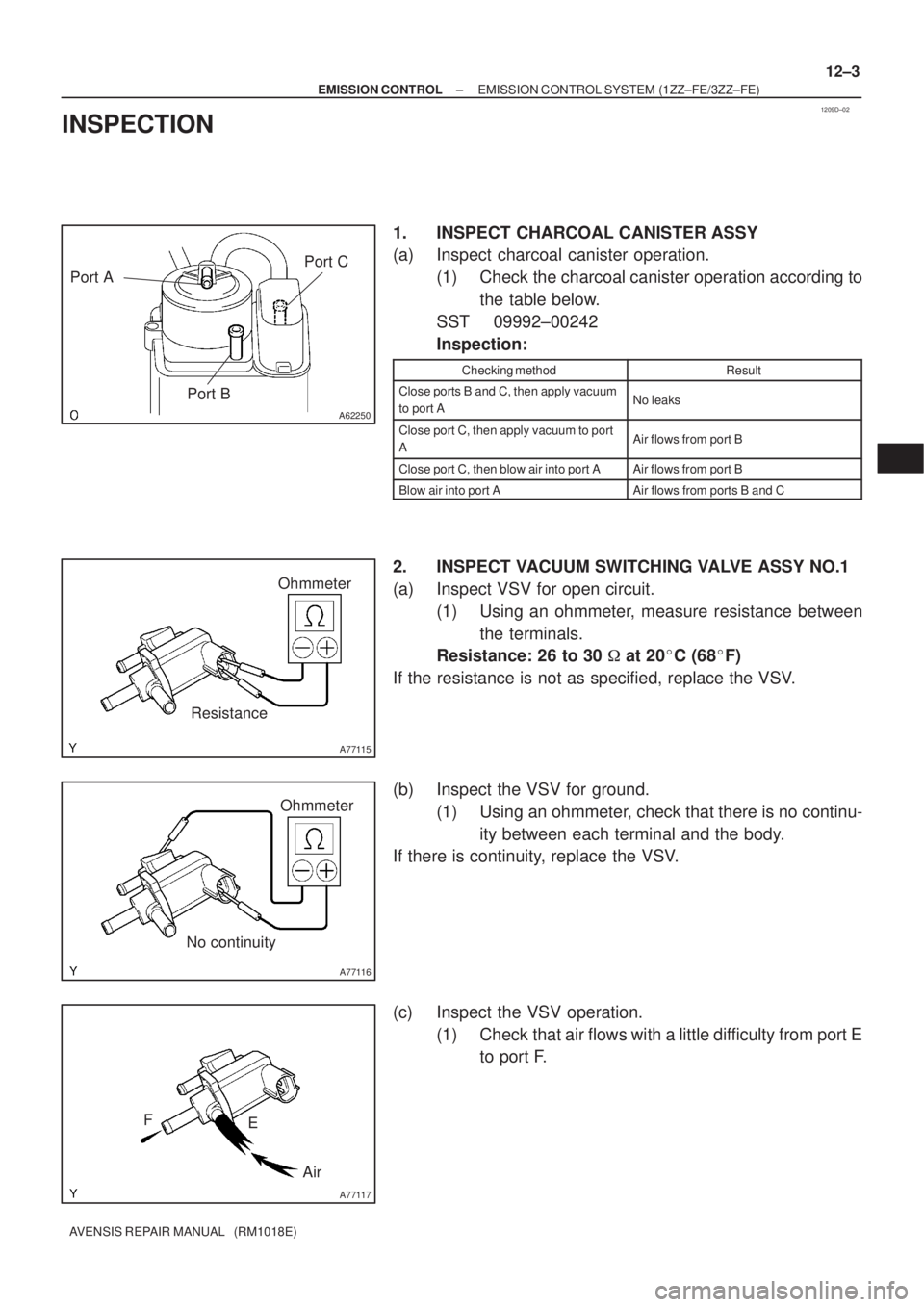

1. INSPECT CHARCOAL CANISTER ASSY
(a) Inspect charcoal canister operation.
(1) Check the charcoal canister operation according to
the table below.
SST 09992±00242
Inspection:
Checking methodResult
Close ports B and C, then apply vacuum
to port ANo leaks
Close port C, then apply vacuum to port
AAir flows from port B
Close port C, then blow air into port AAir flows from port B
Blow air into port AAir flows from ports B and C
2. INSPECT VACUUM SWITCHING VALVE ASSY NO.1
(a) Inspect VSV for open circuit.
(1) Using an ohmmeter, measure resistance between
the terminals.
Resistance: 26 to 30
at 20
C (68
F)
If the resistance is not as specified, replace the VSV.
(b) Inspect the VSV for ground.
(1) Using an ohmmeter, check that there is no continu-
ity between each terminal and the body.
If there is continuity, replace the VSV.
(c) Inspect the VSV operation.
(1) Check that air flows with a little difficulty from port E
to port F.

A77118
Air E
F
Battery
A60562
Cylinder Head Side
A60563
Intake Manifold Side
A64543
+B
Bank 1 Sensor 1:
HT1A
E1
A77126
HT +B
Bank 1 Sensor 2:
E1 12±4
± EMISSION CONTROLEMISSION CONTROL SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

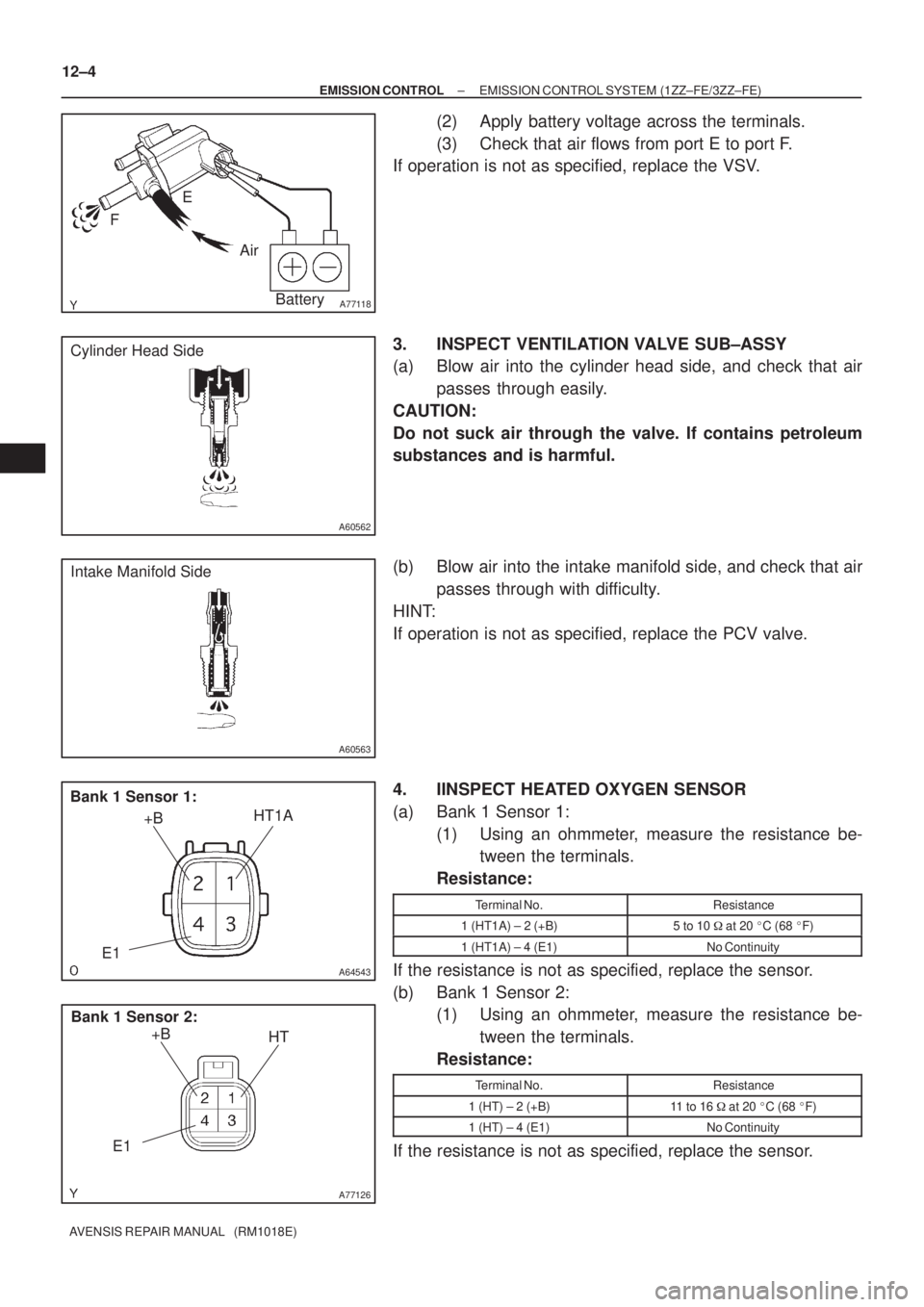

(2) Apply battery voltage across the terminals.
(3) Check that air flows from port E to port F.
If operation is not as specified, replace the VSV.
3. INSPECT VENTILATION VALVE SUB±ASSY
(a) Blow air into the cylinder head side, and check that air
passes through easily.
CAUTION:
Do not suck air through the valve. If contains petroleum
substances and is harmful.
(b) Blow air into the intake manifold side, and check that air
passes through with difficulty.
HINT:
If operation is not as specified, replace the PCV valve.
4. IINSPECT HEATED OXYGEN SENSOR
(a) Bank 1 Sensor 1:
(1) Using an ohmmeter, measure the resistance be-
tween the terminals.
Resistance:
Terminal No.Resistance
1 (HT1A) ± 2 (+B)5 to 10
at 20
C (68
F)
1 (HT1A) ± 4 (E1)No Continuity
If the resistance is not as specified, replace the sensor.
(b) Bank 1 Sensor 2:
(1) Using an ohmmeter, measure the resistance be-
tween the terminals.
Resistance:
Terminal No.Resistance
1 (HT) ± 2 (+B)11 to 16
at 20
C (68
F)
1 (HT) ± 4 (E1)No Continuity
If the resistance is not as specified, replace the sensor.
