2002 TOYOTA AVENSIS Repair Manual

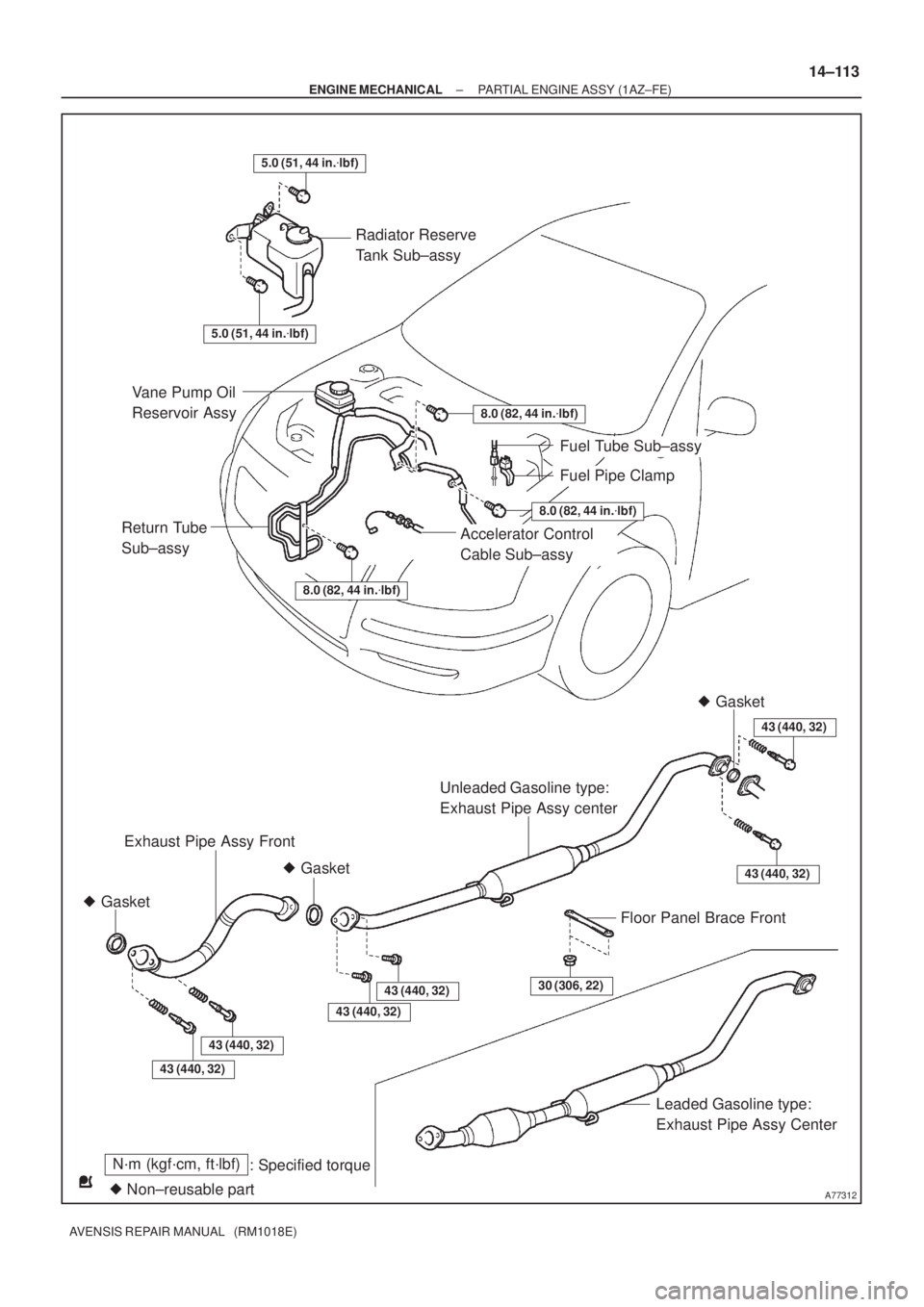

A77312
30 (306, 22)
Radiator Reserve
Tank Sub±assy
Fuel Tube Sub±assy
Unleaded Gasoline type:
Exhaust Pipe Assy center

Gasket

Gasket
Gasket
Floor Panel Brace Front
Leaded Gasoline type:
Exhaust Pipe Assy Center Vane Pump Oil
Reservoir Assy
Accelerator Control
Cable Sub±assy
Fuel Pipe Clamp
Exhaust Pipe Assy Front
8.0 (82, 44 in.
lbf)
8.0 (82, 44 in.
lbf)
8.0 (82, 44 in.
lbf)
Return Tube
Sub±assy
43 (440, 32)
5.0 (51, 44 in.
lbf)
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
43 (440, 32)
43 (440, 32)
43 (440, 32)
43 (440, 32)
43 (440, 32)
5.0 (51, 44 in.
lbf)
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1AZ±FE)
14±113
AVENSIS REPAIR MANUAL (RM1018E)

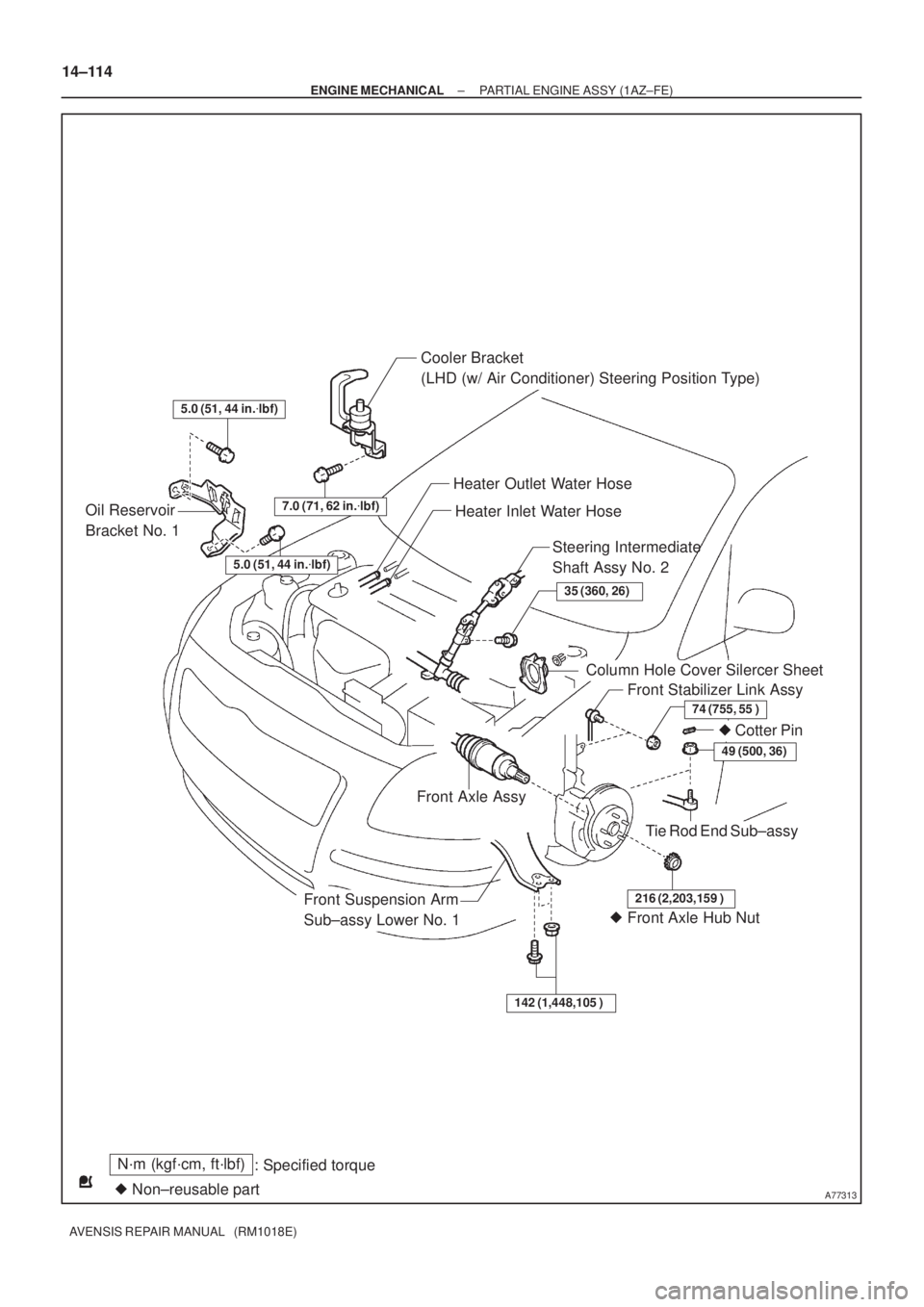

A77313
Cooler Bracket
(LHD (w/ Air Conditioner) Steering Position Type)
Oil Reservoir
Bracket No. 1Heater Outlet Water Hose
Heater Inlet Water Hose
Steering Intermediate
Shaft Assy No. 2
Column Hole Cover Silercer Sheet
Front Stabilizer Link Assy
Front Axle Assy
35 (360, 26)
7.0 (71, 62 in.
lbf)
74 (755, 55 )
216 (2,203,159 )
142 (1,448,105 )
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
Front Axle Hub Nut
Tie Rod End Sub±assy
5.0 (51, 44 in.
lbf)
5.0 (51, 44 in.
lbf)

Cotter Pin
49 (500, 36)
Front Suspension Arm
Sub±assy Lower No. 1
14±114
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

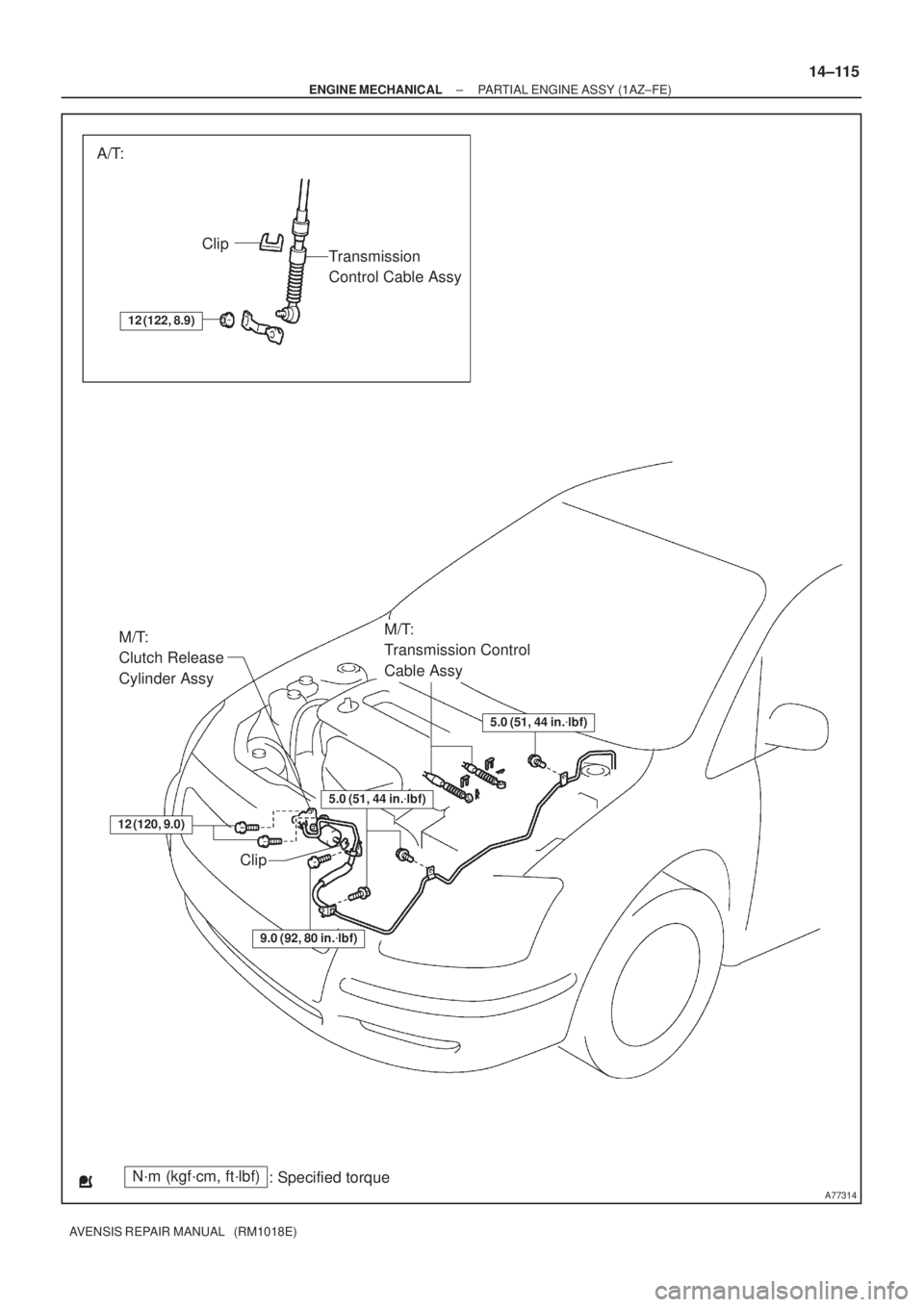

A77314
A/T:
Clip
Transmission
Control Cable Assy
N´m (kgf´cm, ft´lbf)
: Specified torque
M/T:
Transmission Control
Cable Assy
5.0 (51, 44 in.
lbf)
12 (120, 9.0)
M/T:
Clutch Release
Cylinder Assy
12 (122, 8.9)
Clip
5.0 (51, 44 in.
lbf)
9.0 (92, 80 in.
lbf)
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1AZ±FE)
14±115
AVENSIS REPAIR MANUAL (RM1018E)

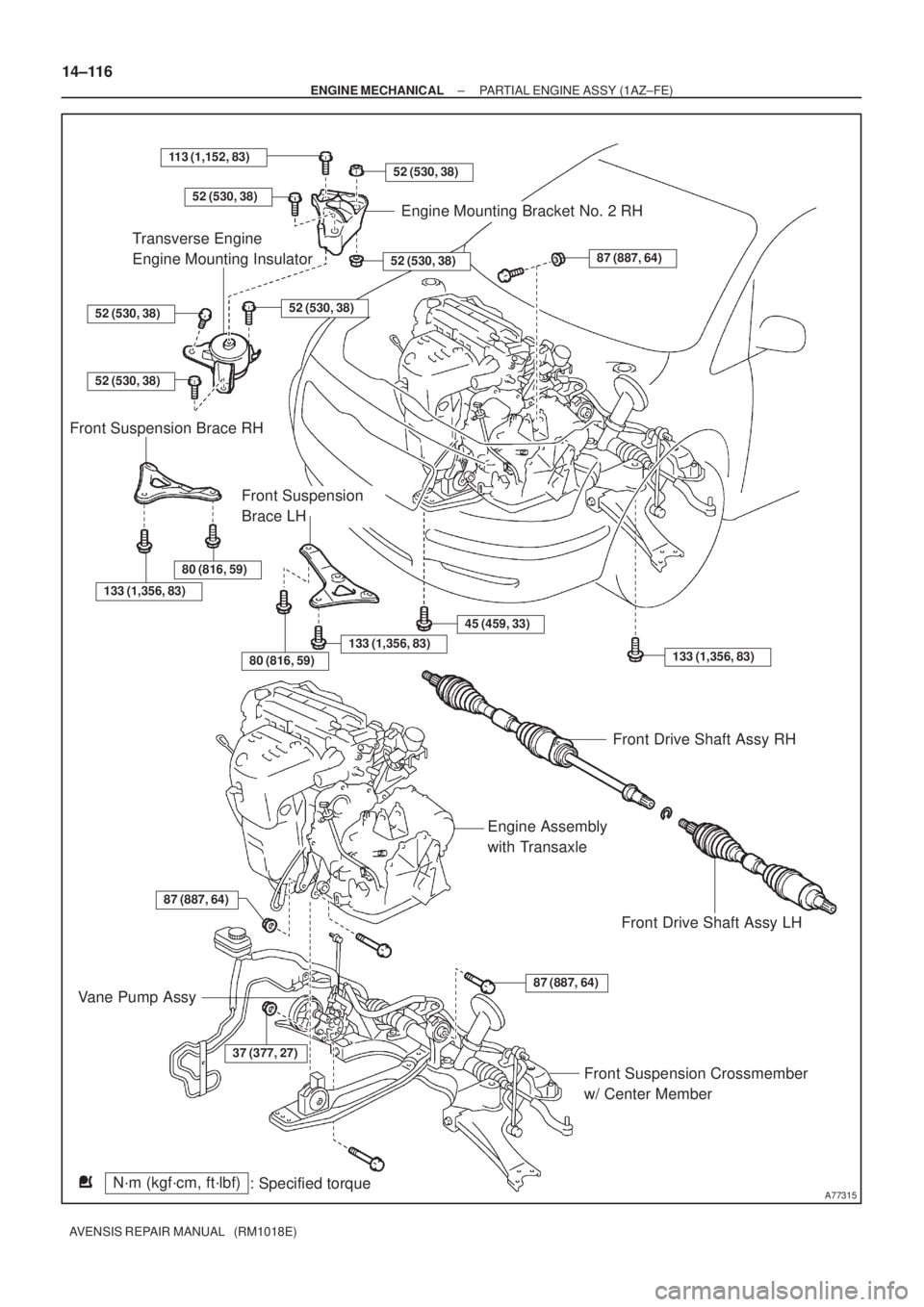

A77315
87 (887, 64)
37 (377, 27)
52 (530, 38)
87 (887, 64)52 (530, 38)
52 (530, 38)
52 (530, 38)52 (530, 38)
52 (530, 38)
133 (1,356, 83)
80 (816, 59)
80 (816, 59)
133 (1,356, 83)
45 (459, 33)
133 (1,356, 83)
Engine Mounting Bracket No. 2 RH
Transverse Engine
Engine Mounting Insulator
Front Suspension Brace RH
Front Suspension
Brace LH
Front Drive Shaft Assy RH
Front Drive Shaft Assy LH Engine Assembly
with Transaxle
Front Suspension Crossmember
w/ Center Member
N´m (kgf´cm, ft´lbf)
: Specified torque
Vane Pump Assy
113 (1,152, 83)
87 (887, 64)
14±116
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

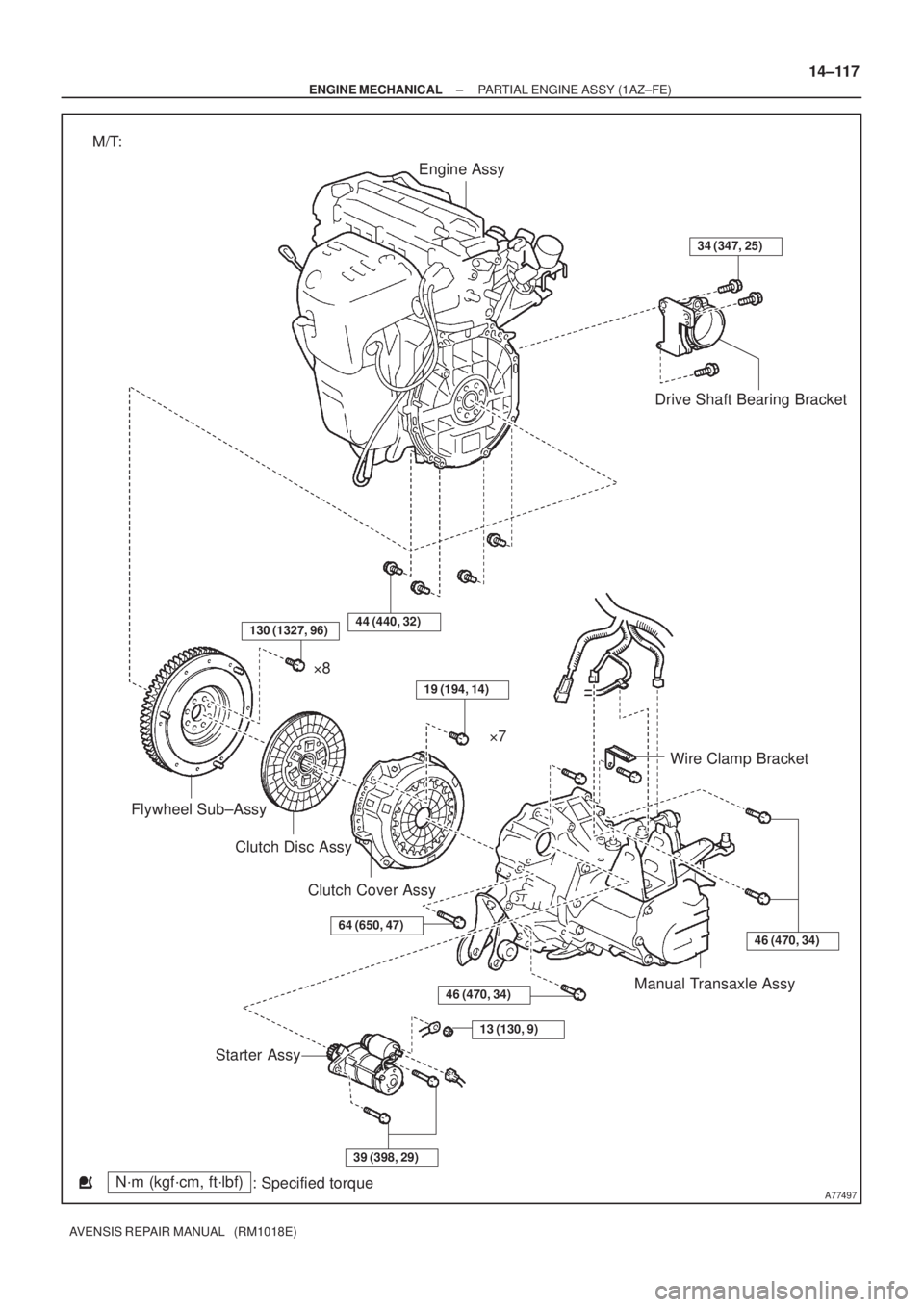

A77497
Engine Assy
Drive Shaft Bearing Bracket
Wire Clamp Bracket
Manual Transaxle Assy
Starter AssyClutch Disc Assy Flywheel Sub±Assy
8

7
Clutch Cover Assy
N´m (kgf´cm, ft´lbf)
: Specified torque M/T:
34 (347, 25)
46 (470, 34)
13 (130, 9)
39 (398, 29)
64 (650, 47)
19 (194, 14)
44 (440, 32)
46 (470, 34)
130 (1327, 96)
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1AZ±FE)
14±117
AVENSIS REPAIR MANUAL (RM1018E)

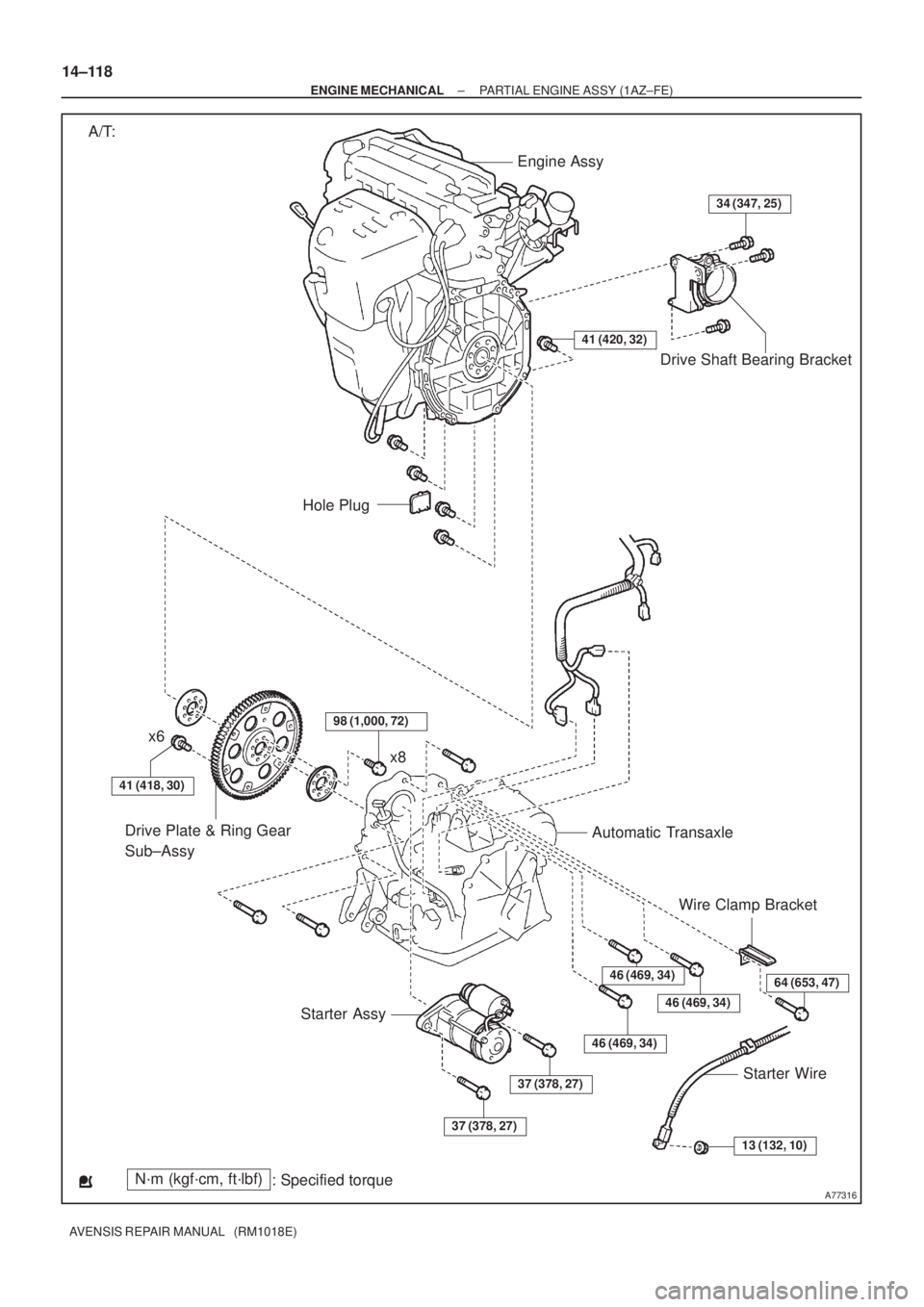

A77316
Engine Assy
Drive Shaft Bearing Bracket
Hole Plug
Drive Plate & Ring Gear
Sub±Assyx6
Wire Clamp Bracket
Starter Wire Starter Assy
34 (347, 25)
41 (420, 32)
98 (1,000, 72)
46 (469, 34)
13 (132, 10)
x8
N´m (kgf´cm, ft´lbf)
: Specified torque A/T:
Automatic Transaxle
46 (469, 34)
46 (469, 34)
37 (378, 27)
37 (378, 27)
64 (653, 47)
41 (418, 30)
14±118
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

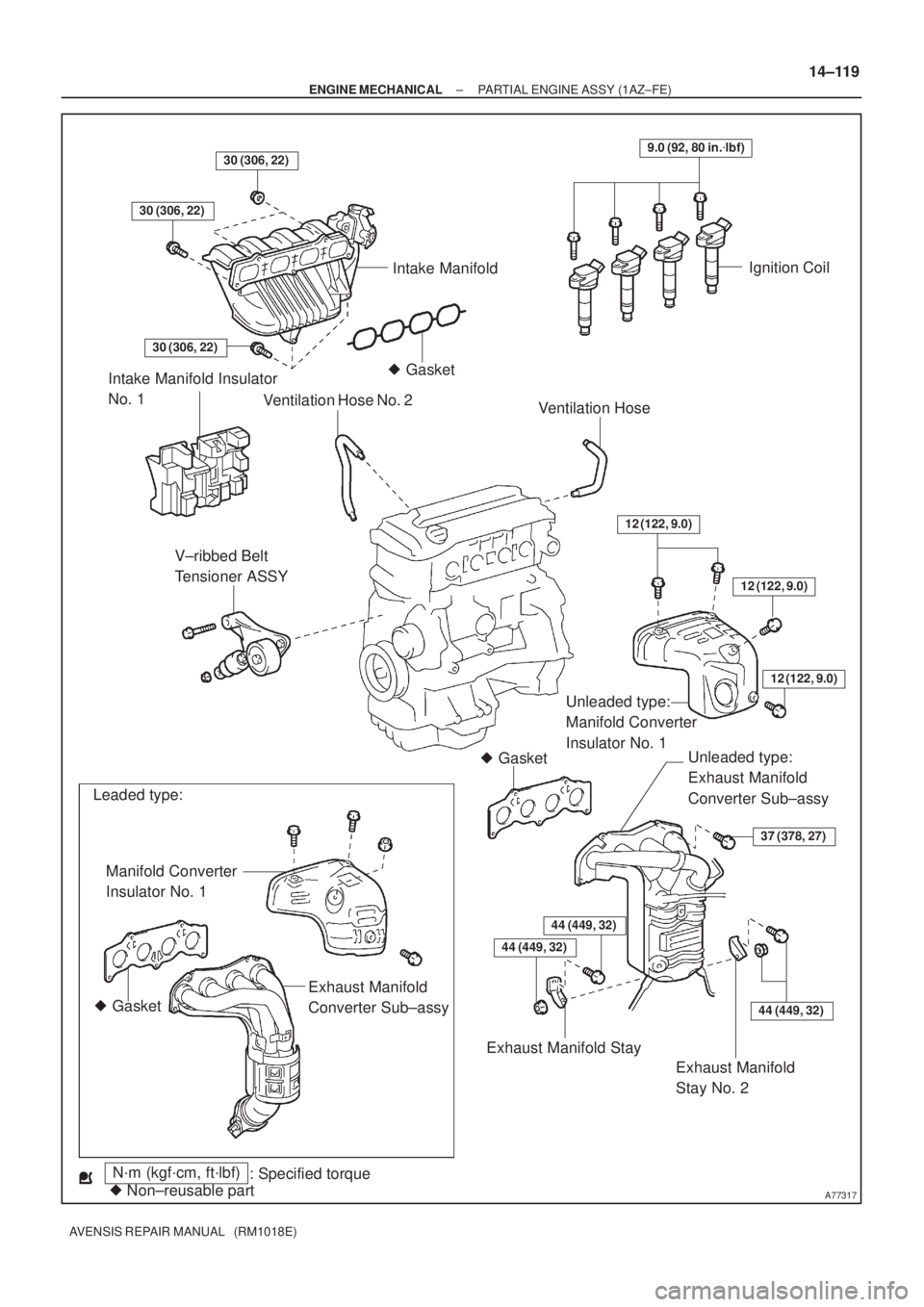

A77317
Intake ManifoldIgnition Coil
Ventilation Hose No. 2
Ventilation Hose
Unleaded type:
Manifold Converter
Insulator No. 1 Intake Manifold Insulator
No. 1
V±ribbed Belt
Tensioner ASSY
Unleaded type:
Exhaust Manifold
Converter Sub±assy
Exhaust Manifold Stay
Exhaust Manifold
Stay No. 2 Manifold Converter
Insulator No. 1
Exhaust Manifold
Converter Sub±assy
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
9.0 (92, 80 in.
lbf)

Gasket
Gasket
12 (122, 9.0)
12 (122, 9.0)
37 (378, 27)
44 (449, 32)
44 (449, 32)
44 (449, 32)

Gasket
Leaded type:
30 (306, 22)
30 (306, 22)
30 (306, 22)
12 (122, 9.0)
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1AZ±FE)
14±119
AVENSIS REPAIR MANUAL (RM1018E)

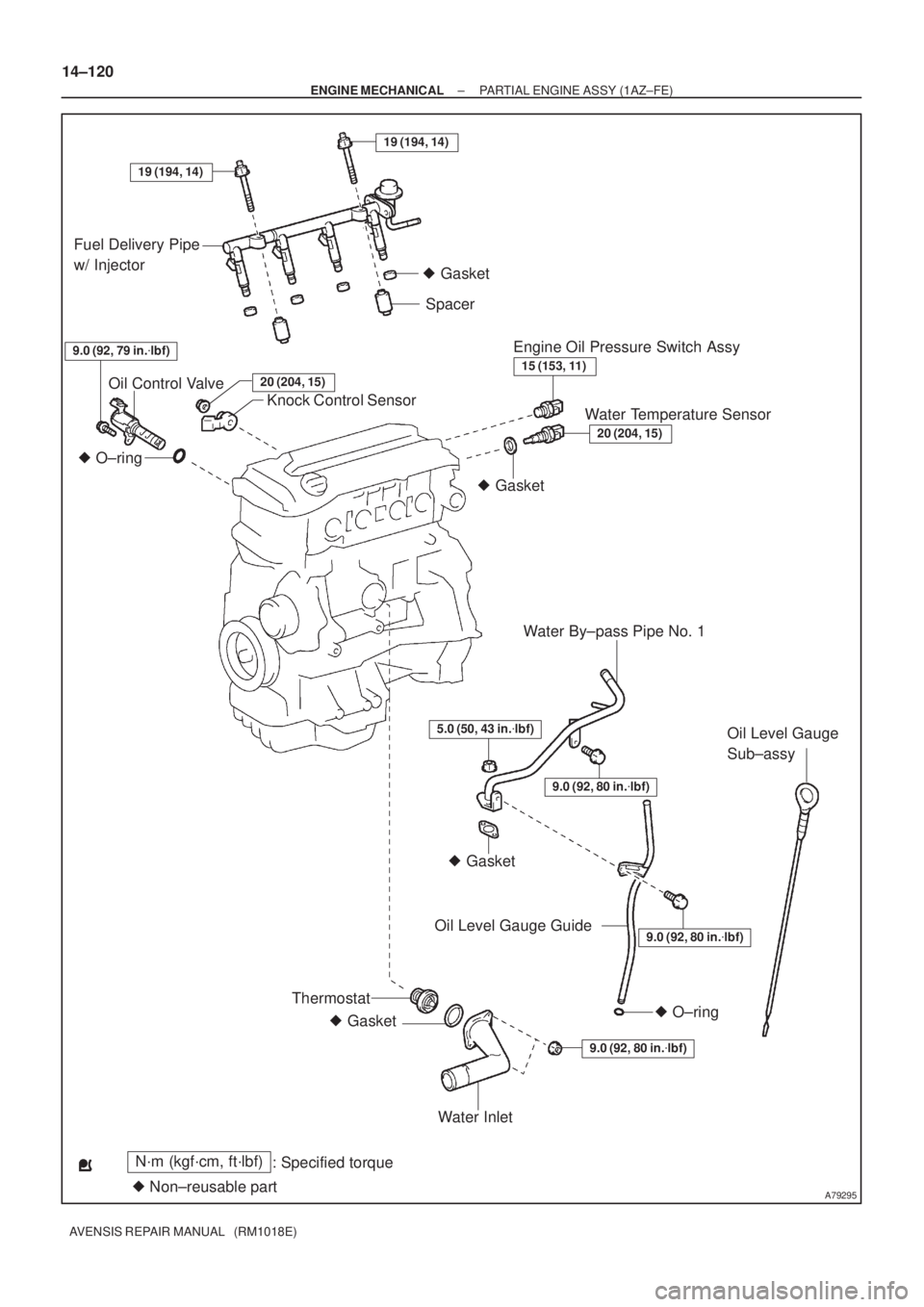

A79295
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
5.0 (50, 43 in.
lbf)

O±ring

Gasket
Gasket
Gasket
Gasket

O±ring
15 (153, 11)
20 (204, 15)
9.0 (92, 80 in.
lbf)
9.0 (92, 80 in.
lbf)
Fuel Delivery Pipe
w/ Injector
Oil Control Valve
Knock Control SensorSpacer
Water By±pass Pipe No. 1
Oil Level Gauge
Sub±assy
Oil Level Gauge Guide
Water Inlet
9.0 (92, 79 in.
lbf)Engine Oil Pressure Switch Assy
Water Temperature Sensor
Thermostat
9.0 (92, 80 in.
lbf)
19 (194, 14)
19 (194, 14)
20 (204, 15)
14±120
± ENGINE MECHANICALPARTIAL ENGINE ASSY (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
