2002 TOYOTA AVENSIS Repair Manual

D30074
(a)
(b)
(a)
(b)
D30076
D26918
A
B
CD
E
D30073
D30072
A
A
A
A
B
A
± MANUAL TRANSMISSION/TRANSAXLEMANUAL TRANSAXLE ASSY (1CD±FTV)
41±37
AVENSIS REPAIR MANUAL (RM1018E)

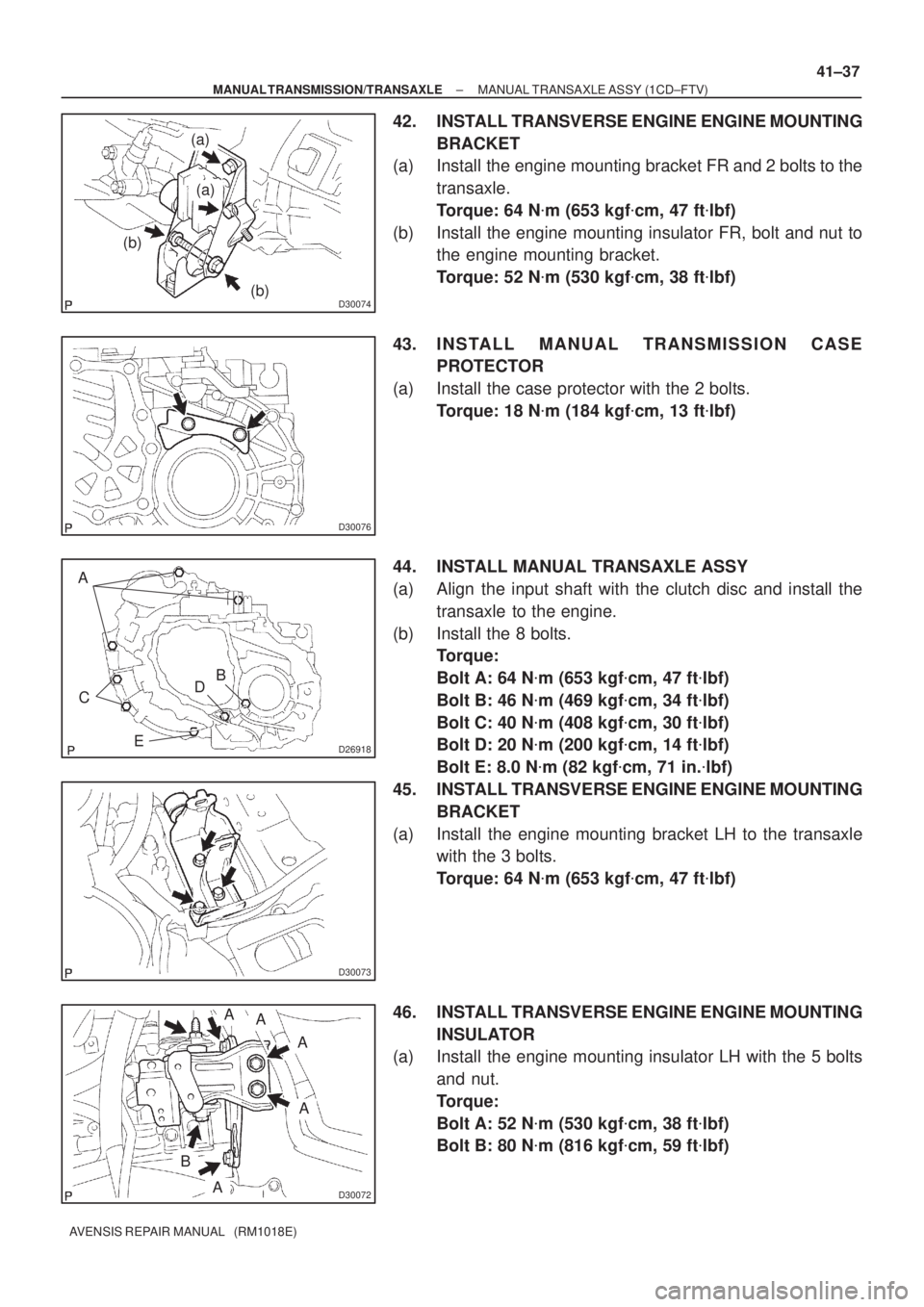

42. INSTALL TRANSVERSE ENGINE ENGINE MOUNTING
BRACKET
(a) Install the engine mounting bracket FR and 2 bolts to the
transaxle.
Torque: 64 N
m (653 kgf
cm, 47 ft
lbf)
(b) Install the engine mounting insulator FR, bolt and nut to
the engine mounting bracket.
Torque: 52 N
m (530 kgf
cm, 38 ft
lbf)
43. INSTALL MANUAL TRANSMISSION CASE
PROTECTOR
(a) Install the case protector with the 2 bolts.
Torque: 18 N
m (184 kgf
cm, 13 ft
lbf)
44. INSTALL MANUAL TRANSAXLE ASSY
(a) Align the input shaft with the clutch disc and install the
transaxle to the engine.
(b) Install the 8 bolts.
Torque:
Bolt A: 64 N
m (653 kgf
cm, 47 ft
lbf)
Bolt B: 46 N
m (469 kgf
cm, 34 ft
lbf)
Bolt C: 40 N
m (408 kgf
cm, 30 ft
lbf)
Bolt D: 20 N
m (200 kgf
cm, 14 ft
lbf)
Bolt E: 8.0 N
m (82 kgf
cm, 71 in.
lbf)
45. INSTALL TRANSVERSE ENGINE ENGINE MOUNTING
BRACKET
(a) Install the engine mounting bracket LH to the transaxle
with the 3 bolts.
Torque: 64 N
m (653 kgf
cm, 47 ft
lbf)
46. INSTALL TRANSVERSE ENGINE ENGINE MOUNTING
INSULATOR
(a) Install the engine mounting insulator LH with the 5 bolts
and nut.
Torque:
Bolt A: 52 N
m (530 kgf
cm, 38 ft
lbf)
Bolt B: 80 N
m (816 kgf
cm, 59 ft
lbf)

G24413
G24412
AB
D26905
41±38
±
MANUAL TRANSMISSION/TRANSAXLE MANUAL TRANSAXLE ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

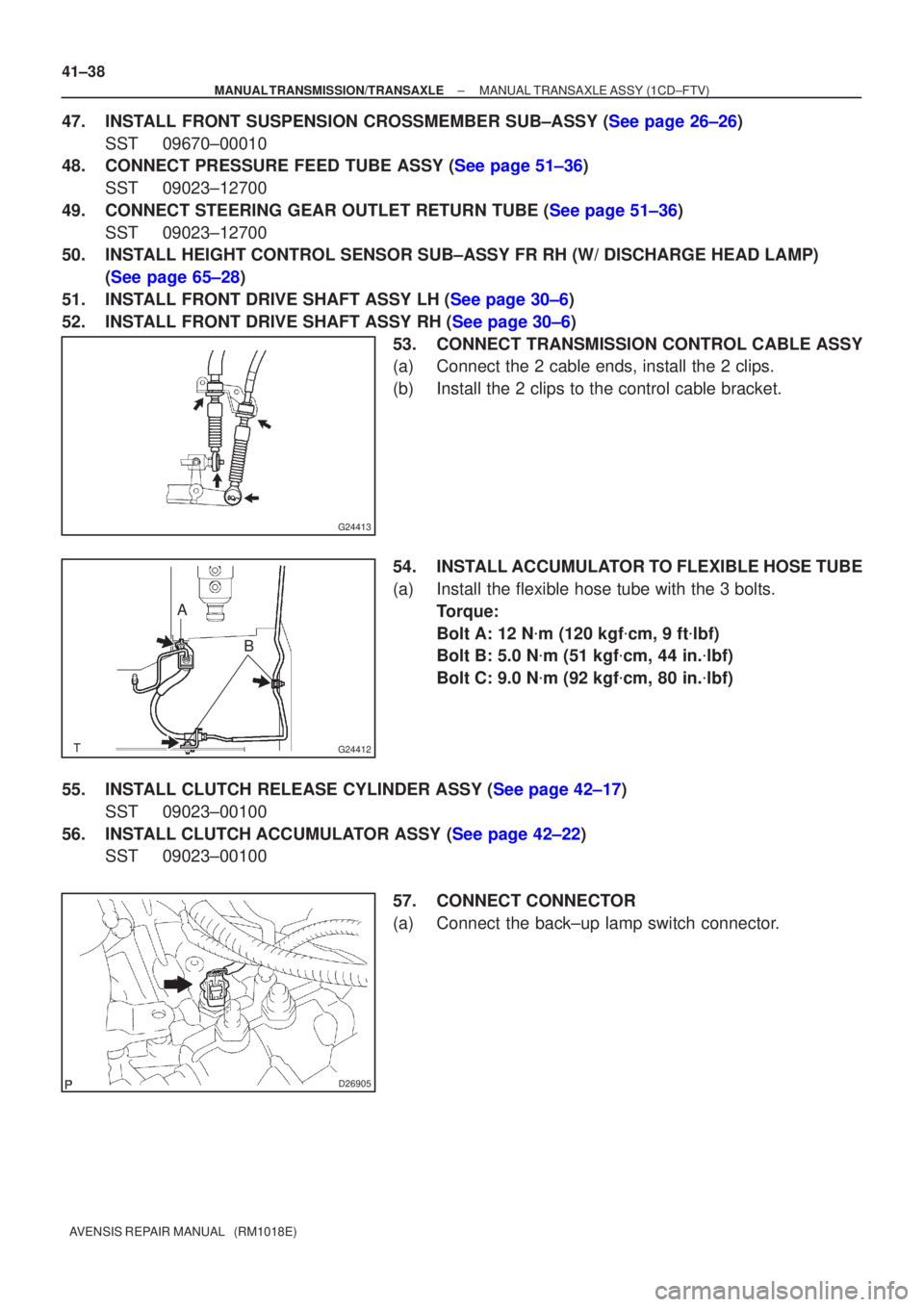

47.INSTALL FRONT SUSPENSION CROSSMEMBER SUB±ASSY (See page 26±26) SST 09670±00010
48.CONNECT PRESSURE FEED TUBE ASSY (See page 51±36)
SST 09023±12700
49.CONNECT STEERING GEAR OUTLET RETURN TUBE (See page 51±36) SST 09023±12700
50. INSTALL HEIGHT CONTROL SENSOR SUB±ASSY FR RH (W/ DISCHARGE HEAD LAMP)
(See page 65±28)
51.INSTALL FRONT DRIVE SHAFT ASSY LH (See page 30±6)
52.INSTALL FRONT DRIVE SHAFT ASSY RH (See page 30±6) 53. CONNECT TRANSMISSION CONTROL CABLE ASSY
(a) Connect the 2 cable ends, install the 2 clips.
(b) Install the 2 clips to the control cable bracket.
54. INSTALL ACCUMULATOR TO FLEXIBLE HOSE TUBE
(a) Install the flexible hose tube with the 3 bolts.Torque:
Bolt A: 12 N
m (120 kgf
cm, 9 ft
lbf)
Bolt B: 5.0 N
m (51 kgf
cm, 44 in.
lbf)
Bolt C: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
55.INSTALL CLUTCH RELEASE CYLINDER ASSY (See page 42±17) SST 09023±00100
56.INSTALL CLUTCH ACCUMULATOR ASSY (See page 42±22) SST 09023±00100
57. CONNECT CONNECTOR
(a) Connect the back±up lamp switch connector.

D30815
(b)(a)
D26903
D26902
±
MANUAL TRANSMISSION/TRANSAXLE MANUAL TRANSAXLE ASSY (1CD±FTV)
41±39
AVENSIS REPAIR MANUAL (RM1018E)

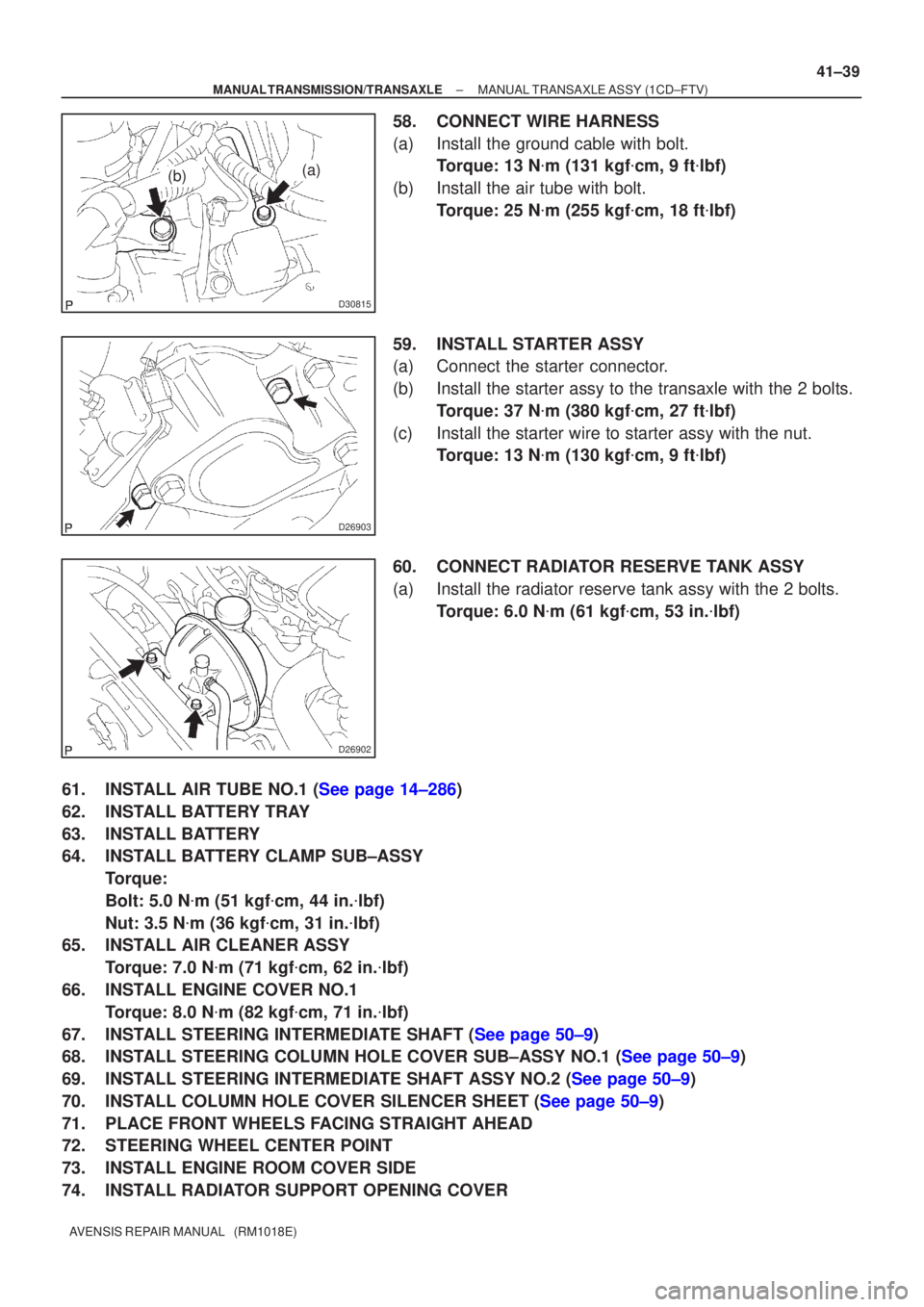

58. CONNECT WIRE HARNESS
(a) Install the ground cable with bolt.
Torque: 13 N
m (131 kgf
cm, 9 ft
lbf)
(b) Install the air tube with bolt. Torque: 25 N
m (255 kgf
cm, 18 ft
lbf)
59. INSTALL STARTER ASSY
(a) Connect the starter connector.
(b) Install the starter assy to the transaxle with the 2 bolts. Torque: 37 N
m (380 kgf
cm, 27 ft
lbf)
(c) Install the starter wire to starter assy with the nut. Torque: 13 N
m (130 kgf
cm, 9 ft
lbf)
60. CONNECT RADIATOR RESERVE TANK ASSY
(a) Install the radiator reserve tank assy with the 2 bolts. Torque: 6.0 N
m (61 kgf
cm, 53 in.
lbf)
61.INSTALL AIR TUBE NO.1 (See page 14±286)
62. INSTALL BATTERY TRAY
63. INSTALL BATTERY
64. INSTALL BATTERY CLAMP SUB±ASSY Torque:
Bolt: 5.0 N
m (51 kgf
cm, 44 in.
lbf)
Nut: 3.5 N
m (36 kgf
cm, 31 in.
lbf)
65. INSTALL AIR CLEANER ASSY
Torque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)
66. INSTALL ENGINE COVER NO.1 Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)
67.INSTALL STEERING INTERMEDIATE SHAFT (See page 50±9)
68.INSTALL STEERING COLUMN HOLE COVER SUB±ASSY NO.1 (See page 50±9)
69.INSTALL STEERING INTERMEDIATE SHAFT ASSY NO.2 (See page 50±9)
70.INSTALL COLUMN HOLE COVER SILENCER SHEET (See page 50±9)
71. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
72. STEERING WHEEL CENTER POINT
73. INSTALL ENGINE ROOM COVER SIDE
74. INSTALL RADIATOR SUPPORT OPENING COVER

41±40
±
MANUAL TRANSMISSION/TRANSAXLE MANUAL TRANSAXLE ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

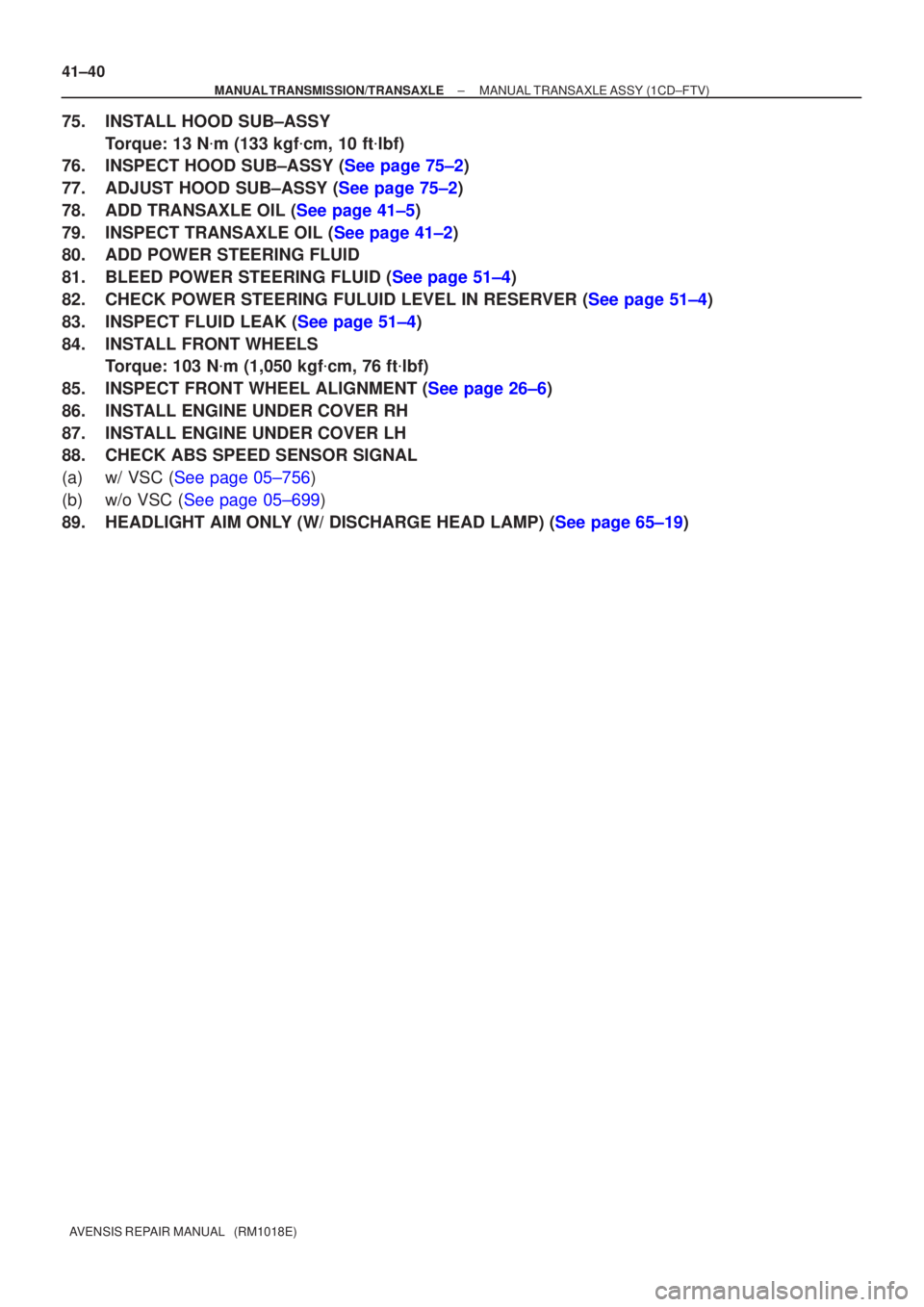

75. INSTALL HOOD SUB±ASSY Torque: 13 N
m (133 kgf
cm, 10 ft
lbf)
76.INSPECT HOOD SUB±ASSY (See page 75±2)
77.ADJUST HOOD SUB±ASSY (See page 75±2)
78.ADD TRANSAXLE OIL (See page 41±5)
79.INSPECT TRANSAXLE OIL (See page 41±2)
80. ADD POWER STEERING FLUID
81.BLEED POWER STEERING FLUID (See page 51±4)
82.CHECK POWER STEERING FULUID LEVEL IN RESERVER (See page 51±4)
83.INSPECT FLUID LEAK (See page 51±4)
84. INSTALL FRONT WHEELS Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
85.INSPECT FRONT WHEEL ALIGNMENT (See page 26±6)
86. INSTALL ENGINE UNDER COVER RH
87. INSTALL ENGINE UNDER COVER LH
88. CHECK ABS SPEED SENSOR SIGNAL
(a)w/ VSC (See page 05±756)
(b)w/o VSC (See page 05±699)
89.HEADLIGHT AIM ONLY (W/ DISCHARGE HEAD LAMP) (See page 65±19)

410DS±01
D30478
Battery Clamp Sub±assy
Battery Tray
Charcoal Canister Assy Battery Carrier
Transmission Control Cable AssyClipAir Cleaner Assy
Hood Sub±assy
Cylinder Head Cover No.2
Starter AssyBack±up Lamp
SwitchConnector
Transverse Engine
Engine Mounting Bracket
Clip
Clip
ClipClip
37 (380, 27)
Starter Connector
Transverse Engine
Engine Mounting Insulator
52 (530, 38)
52 (530, 38)
Ground Cable
Gasket
7.0 (71, 62 in.
lbf)
Filler Plug
37 (380, 27)
23 (230, 17)
47 (479, 35)
N´m (kgf´cm, ft´lbf) : Specified torque
19 (195, 14)
13 (130, 9)
64 (653, 47)
64 (653, 47)
5.0 (51, 44 in.
lbf)

Non±reusable part
5.0 (51, 44 in.
lbf)
14 (141, 10)
13 (133, 10)
13 (131, 9)
5.0 (51, 44 in.
lbf)
26 (260, 19)
25 (255, 18)
80 (816, 59)
26 (260, 19)
23 (230, 17)
Engine Room Cover Side
Radiator Support Opening Cover
40 (410, 30)
39 (400, 29)
Manual Transaxle Assy
64 (653, 47)
Battery
Clutch Release Cylinder Assy
± MANUAL TRANSMISSION/TRANSAXLEMANUAL TRANSAXLE ASSY (1ZZ±FE/3ZZ±FE)
41±13
AVENSIS REPAIR MANUAL (RM1018E)

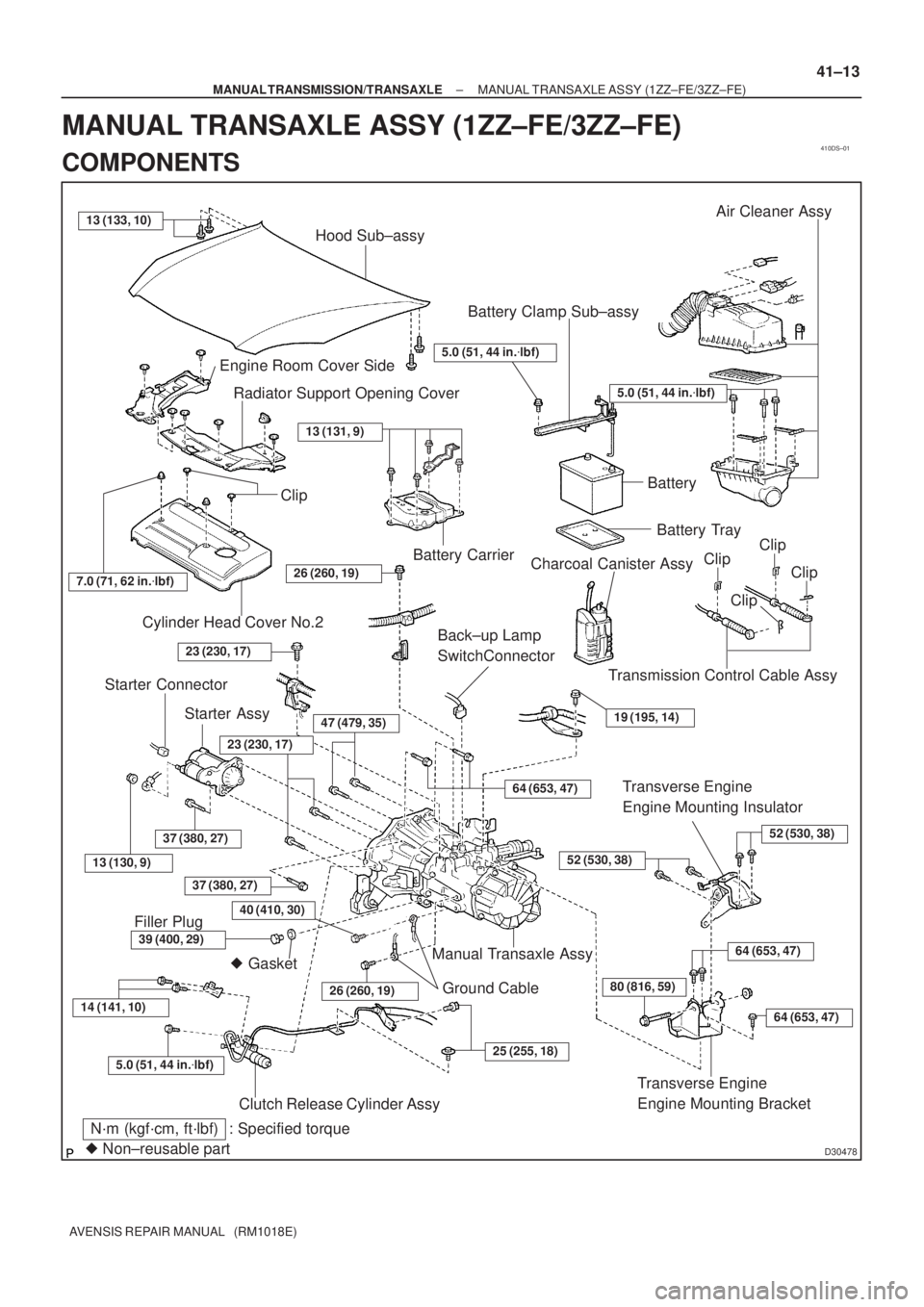

MANUAL TRANSAXLE ASSY (1ZZ±FE/3ZZ±FE)
COMPONENTS

D30479

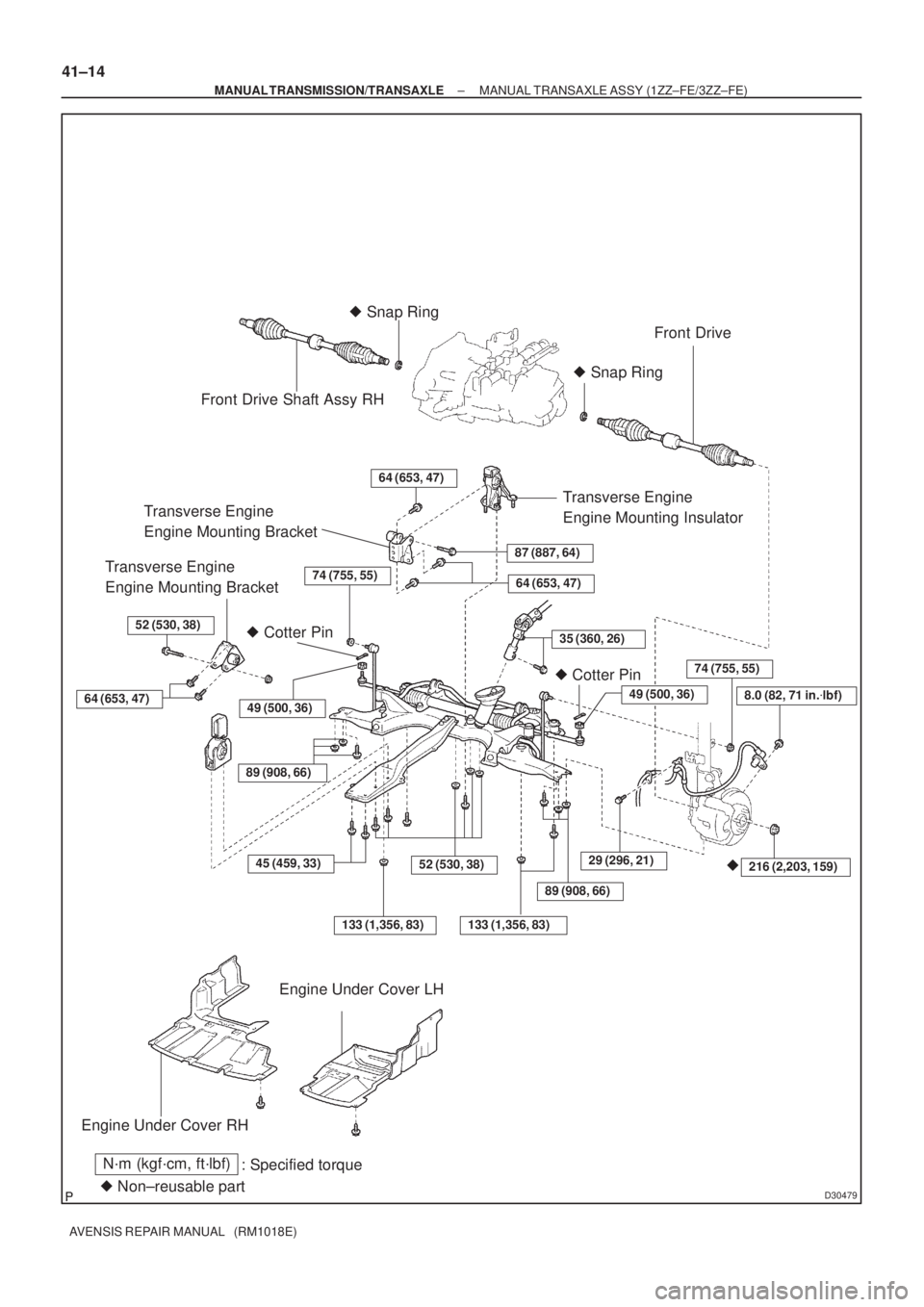

Front Drive Shaft Assy RH
Snap Ring
Front Drive

Snap Ring
Transverse Engine
Engine Mounting BracketTransverse Engine
Engine Mounting Insulator
64 (653, 47)
87 (887, 64)Transverse Engine
Engine Mounting Bracket

Cotter Pin
64 (653, 47)
52 (530, 38)

Cotter Pin
Engine Under Cover RH

Non±reusable part
N´m (kgf´cm, ft´lbf)
: Specified torque
64 (653, 47)

216 (2,203, 159)45 (459, 33)
Engine Under Cover LH
35 (360, 26)
74 (755, 55)
52 (530, 38)
49 (500, 36)
133 (1,356, 83)
29 (296, 21)
49 (500, 36)
74 (755, 55)
89 (908, 66)
8.0 (82, 71 in.
lbf)
133 (1,356, 83)
89 (908, 66)
41±14
± MANUAL TRANSMISSION/TRANSAXLEMANUAL TRANSAXLE ASSY (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

4100Z±05
D25304
0 to 5 mm
(0 to 0.20 in.) 41±2
± MANUAL TRANSMISSION/TRANSAXLEMANUAL TRANSAXLE OIL (MTM)
AVENSIS REPAIR MANUAL (RM1018E)
MANUAL TRANSAXLE OIL (MTM)
ON±VEHICLE INSPECTION
1. INSPECT TRANSAXLE OIL
(a) Stop the vehicle on the level place.
(b) Remove the transmission filler plug and gasket.
(c) Check that the oil surface is within 5 mm (0.20 in.) from the
lowest position of the inner surface of the transmission fill-
er plug opening.
NOTICE:

Excessively large or small amount of oil may cause
troubles.

After replacing oil, drive the vehicle and check the oil
level.
(d) Check for oil leakage when the oil level is low.
(e) Install the transmission filler plug and new gasket.
Torque:
C50, C250: 39 N
m (400 kgf
cm, 29 ft
lbf)
E354, E357: 49 N
m (500 kgf
cm, 36 ft
lbf)

4100Y±05
±
MANUAL TRANSMISSION/TRANSAXLE MANUAL TRANSAXLE SYSTEM (MTM)
41±1
AVENSIS REPAIR MANUAL (RM1018E)

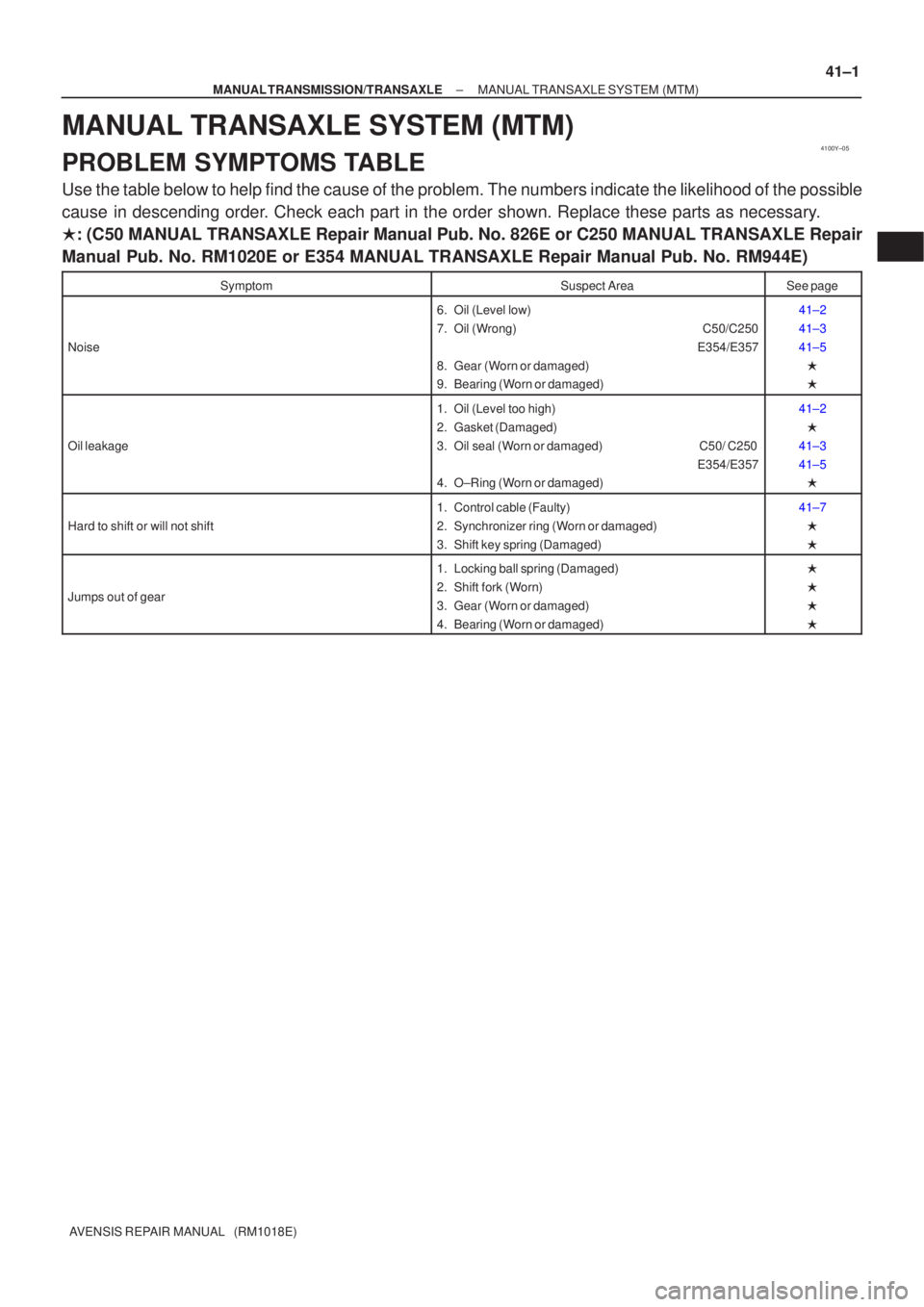

MANUAL TRANSAXLE SYSTEM (MTM)
PROBLEM SYMPTOMS TABLE
Use the table below to help find the cause of the problem. The numbers indi\
cate the likelihood of the possible
cause in descending order. Check each part in the order shown. Replace these parts as necessary.

: (C50 MANUAL TRANSAXLE Repair Manual Pub. No. 826E or C250 MANUAL TRANS\
AXLE Repair
Manual Pub. No. RM1020E or E354 MANUAL TRANSAXLE Repair Manual Pub. No. RM944E\
)
SymptomSuspect AreaSee page
Noise
6. Oil (Level low)
7. Oil (Wrong) C50/C250
E354/E357
8. Gear (Worn or damaged)
9. Bearing (Worn or damaged)41±2
41±3
41±5



Oil leakage
1. Oil (Level too high)
2. Gasket (Damaged)
3. Oil seal (Worn or damaged) C50/ C250 E354/E357
4. O±Ring (Worn or damaged)41±2


41±3
41±5

Hard to shift or will not shift
1. Control cable (Faulty)
2. Synchronizer ring (Worn or damaged)
3. Shift key spring (Damaged)41±7




Jumps out of gear
1. Locking ball spring (Damaged)
2. Shift fork (Worn)
3. Gear (Worn or damaged)
4. Bearing (Worn or damaged)
