2002 TOYOTA AVENSIS Repair Manual

022L7±01
± PREPARATIONWINDSHIELD/WINDOWGLASS/MIRROR
02±57
AVENSIS REPAIR MANUAL (RM1018E)

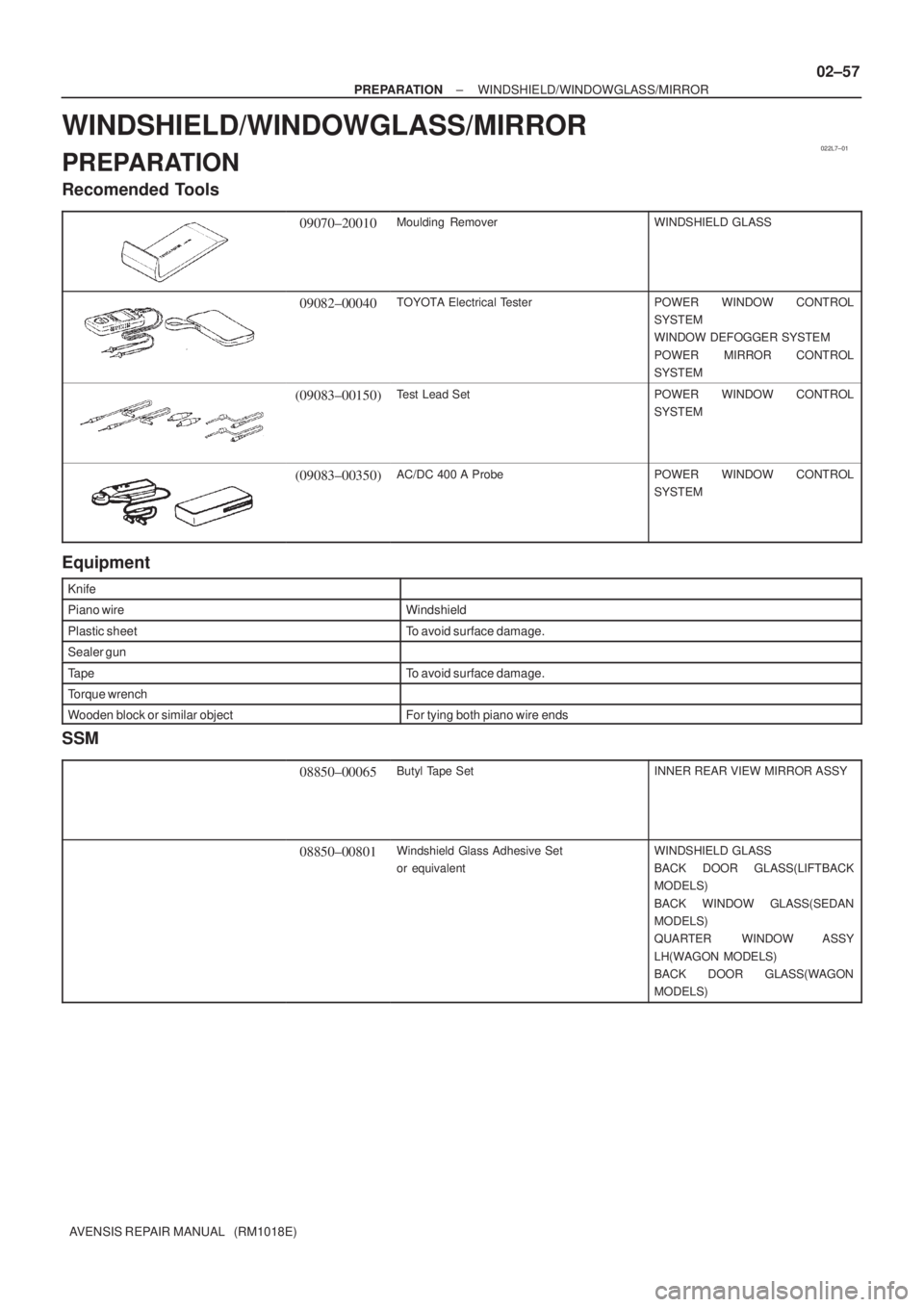

WINDSHIELD/WINDOWGLASS/MIRROR
PREPARATION
Recomended Tools
09070±20010Moulding RemoverWINDSHIELD GLASS
09082±00040TOYOTA Electrical TesterPOWER WINDOW CONTROL
SYSTEM
WINDOW DEFOGGER SYSTEM
POWER MIRROR CONTROL
SYSTEM
(09083±00150)Test Lead SetPOWER WINDOW CONTROL
SYSTEM
(09083±00350)AC/DC 400 A ProbePOWER WINDOW CONTROL
SYSTEM
Equipment
Knife
Piano wireWindshield
Plastic sheetTo avoid surface damage.
Sealer gun
TapeTo avoid surface damage.
Torque wrench
Wooden block or similar objectFor tying both piano wire ends
SSM
08850±00065Butyl Tape SetINNER REAR VIEW MIRROR ASSY
08850±00801Windshield Glass Adhesive Set
or equivalentWINDSHIELD GLASS
BACK DOOR GLASS(LIFTBACK
MODELS)
BACK WINDOW GLASS(SEDAN
MODELS)
QUARTER WINDOW ASSY
LH(WAGON MODELS)
BACK DOOR GLASS(WAGON
MODELS)

022KW±01
02±54
± PREPARATIONWIPER & WASHER
AVENSIS REPAIR MANUAL (RM1018E)

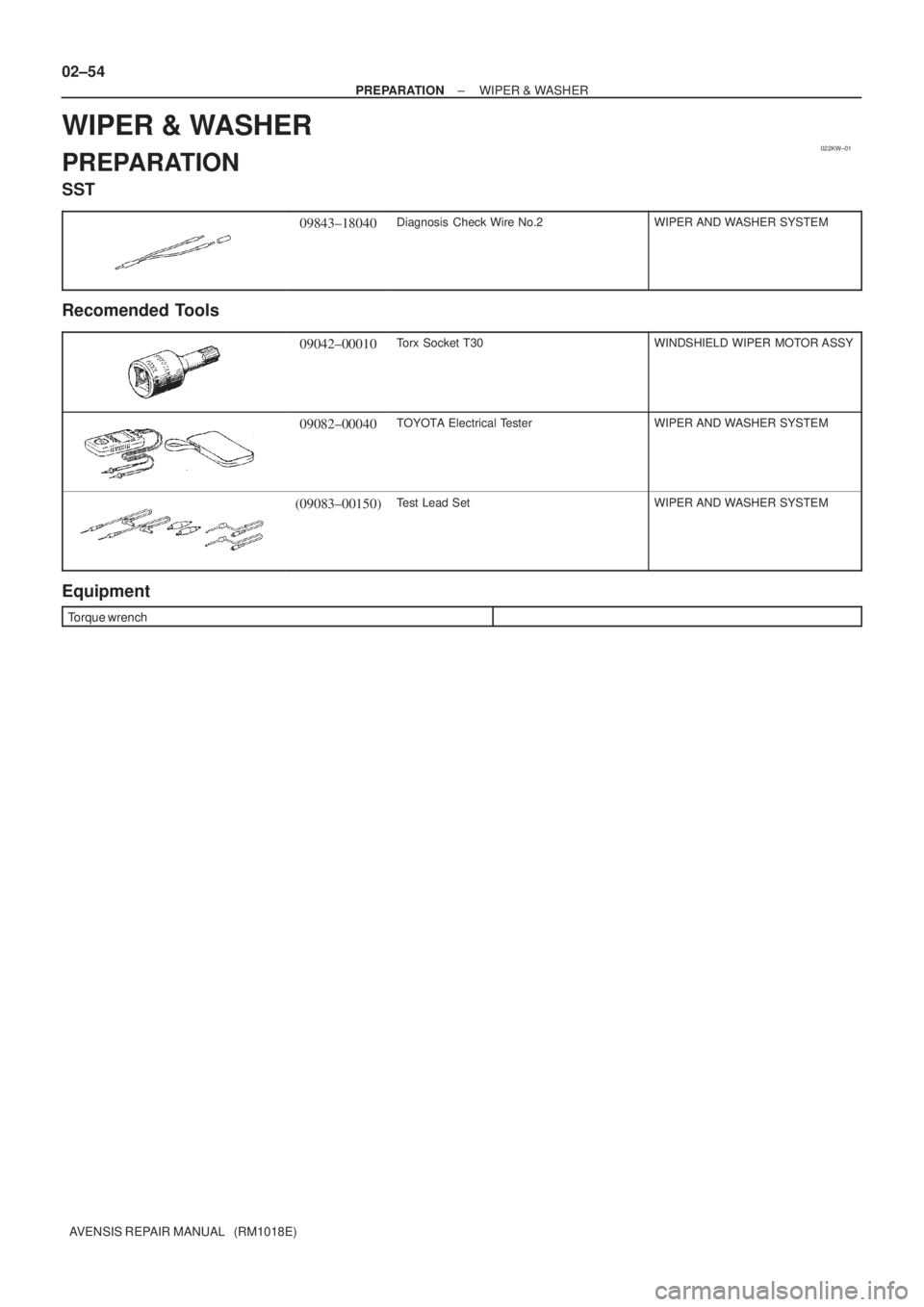

WIPER & WASHER
PREPARATION
SST
09843±18040Diagnosis Check Wire No.2WIPER AND WASHER SYSTEM
Recomended Tools
09042±00010Torx Socket T30WINDSHIELD WIPER MOTOR ASSY
09082±00040TOYOTA Electrical TesterWIPER AND WASHER SYSTEM
(09083±00150)Test Lead SetWIPER AND WASHER SYSTEM
Equipment
Torque wrench

270E4±01
G23906
G25775
G23871

G25777
27±24
±
REAR SUSPENSION LOWER CONTROL ARM ASSY LH
AVENSIS REPAIR MANUAL (RM1018E)
LOWER CONTROL ARM ASSY LH
REPLACEMENT
HINT:
COMPONENTS: See page 27±2.
1. REMOVE REAR WHEEL 2. REMOVE LOWER CONTROL ARM ASSY LH
(a) RH side (w/ Height control sensor):Remove the nut, and separate the height control sensor
sub±assy from the lower control arm assy RH.
(b) Support the rear suspension arm assy No.1 LH.
(c) Remove the bolt, and separate the member side lower control arm assy LH.
(d) Remove the clip and nut.


G23882
SST
G22395
G23871
G25777
±
REAR SUSPENSION LOWER CONTROL ARM ASSY LH
27±25
AVENSIS REPAIR MANUAL (RM1018E)

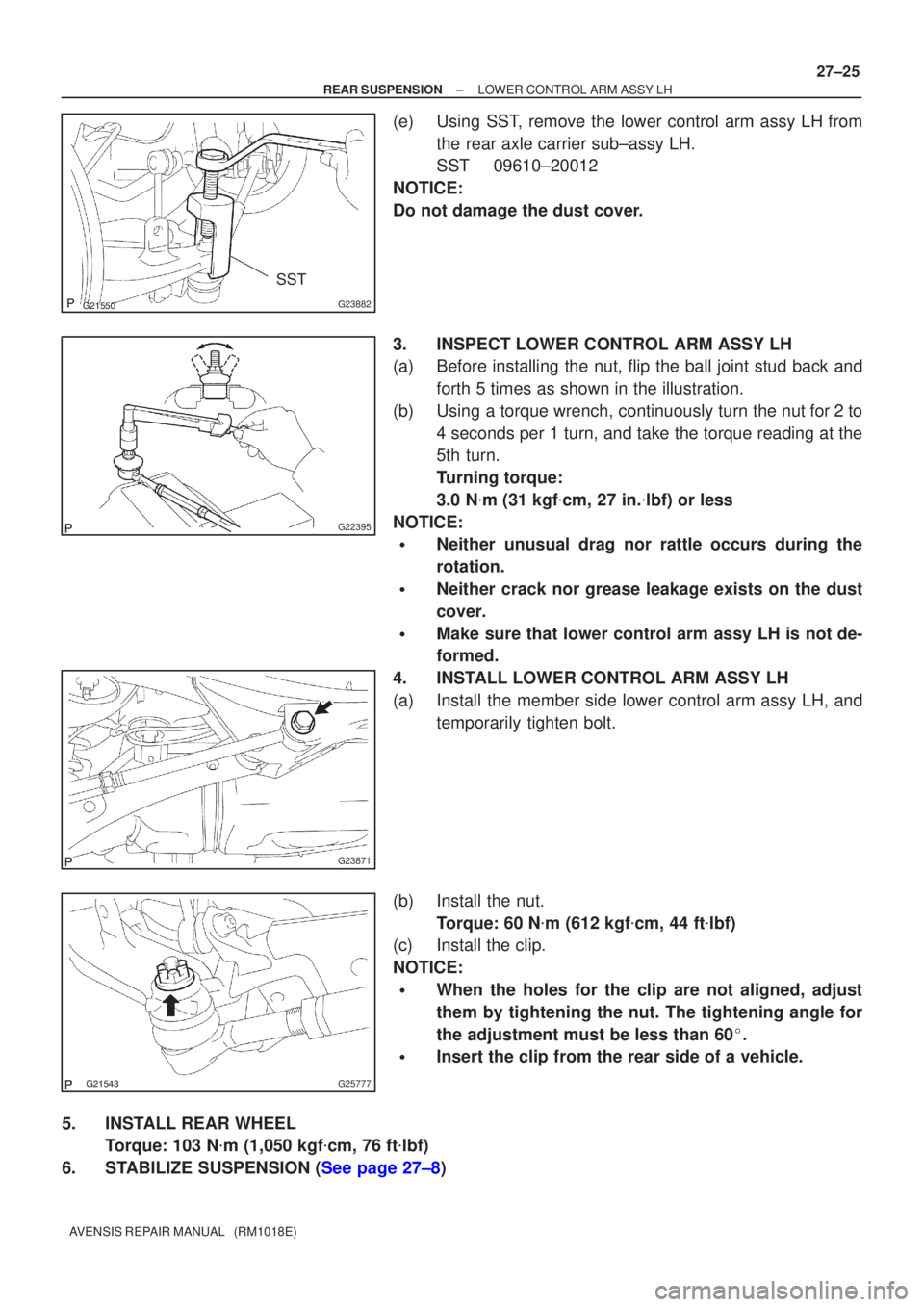

(e) Using SST, remove the lower control arm assy LH from
the rear axle carrier sub±assy LH.
SST 09610±20012
NOTICE:
Do not damage the dust cover.
3. INSPECT LOWER CONTROL ARM ASSY LH
(a) Before installing the nut, flip the ball joint stud back and forth 5 times as shown in the illustration.
(b) Using a torque wrench, continuously turn the nut for 2 to 4 seconds per 1 turn, and take the torque reading at the
5th turn.
Turning torque:
3.0 N
m (31 kgf
cm, 27 in.
lbf) or less
NOTICE:

Neither unusual drag nor rattle occurs during the
rotation.

Neither crack nor grease leakage exists on the dust
cover.

Make sure that lower control arm assy LH is not de-
formed.
4. INSTALL LOWER CONTROL ARM ASSY LH
(a) Install the member side lower control arm assy LH, and temporarily tighten bolt.
(b) Install the nut. Torque: 60 N
m (612 kgf
cm, 44 ft
lbf)
(c) Install the clip.
NOTICE:

When the holes for the clip are not aligned, adjust
them by tightening the nut. The tightening angle for
the adjustment must be less than 60 .

Insert the clip from the rear side of a vehicle.
5. INSTALL REAR WHEEL Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
6.STABILIZE SUSPENSION (See page 27±8)

G23871
G23906
27±26
±
REAR SUSPENSION LOWER CONTROL ARM ASSY LH
AVENSIS REPAIR MANUAL (RM1018E)

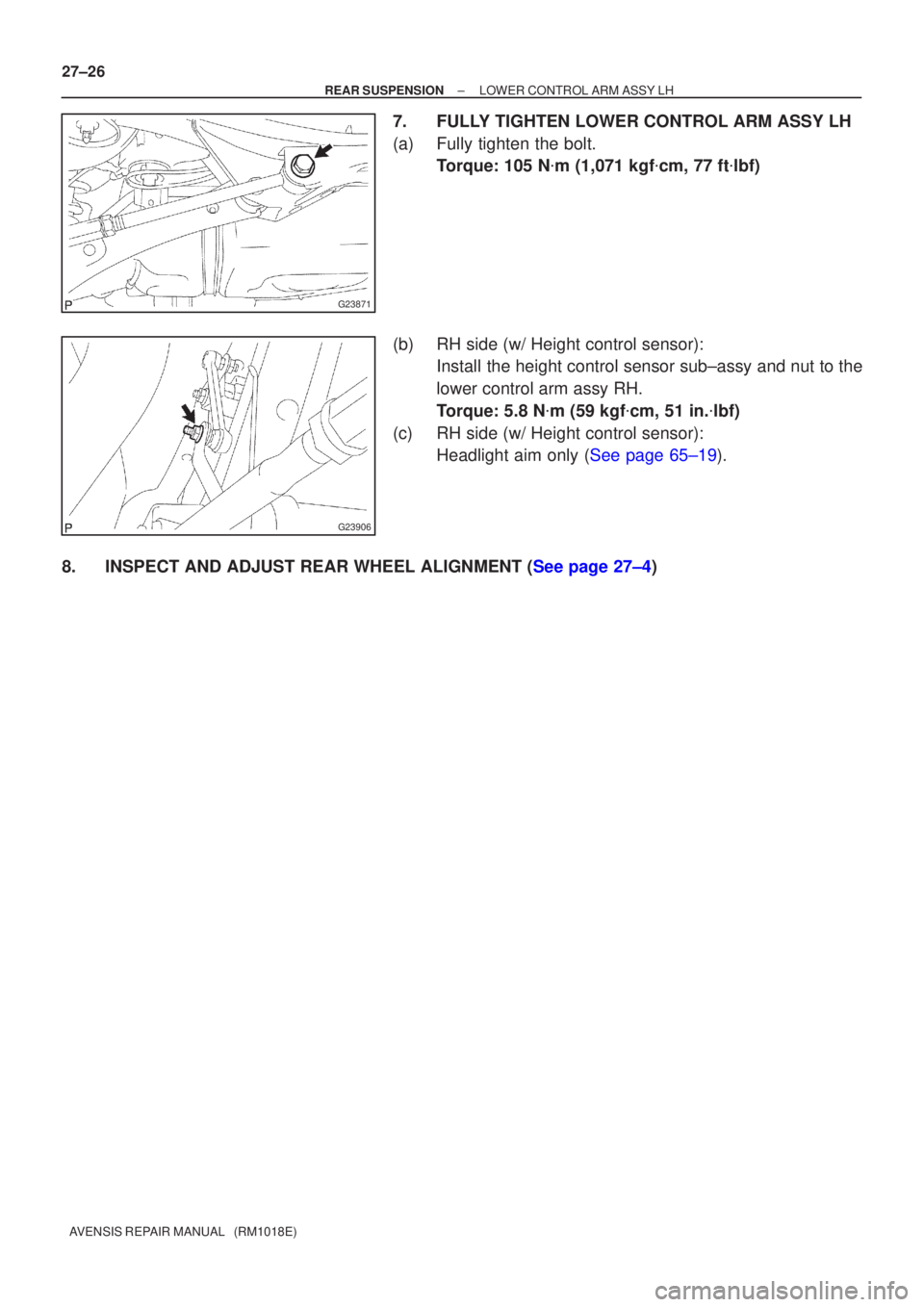

7. FULLY TIGHTEN LOWER CONTROL ARM ASSY LH
(a) Fully tighten the bolt. Torque: 105 N
m (1,071 kgf
cm, 77 ft
lbf)
(b) RH side (w/ Height control sensor): Install the height control sensor sub±assy and nut to the
lower control arm assy RH.
Torque: 5.8 N
m (59 kgf
cm, 51 in.
lbf)
(c) RH side (w/ Height control sensor): Headlight aim only (See page 65±19).
8.INSPECT AND ADJUST REAR WHEEL ALIGNMENT (See page 27±4)

270E8±01
G25771
G25772
27±8
±
REAR SUSPENSION REAR SHOCK ABSORBER WITH COIL SPRING
AVENSIS REPAIR MANUAL (RM1018E)
REAR SHOCK ABSORBER WITH COIL SPRING
OVERHAUL
HINT:
COMPONENTS: See page 27±2.
1. REMOVE REAR DOOR SCUFF PLATE LH
2. REMOVE REAR SEAT CUSHION ASSEMBLY
(a)40/60 FOLDING FLIP±UP CUSHION (See page 72±21)
(b)40/60 FOLDING (See page 72±27)
(c)UNITED FIXED (See page 72±32)
3. REMOVE REAR SEATBACK ASSY
(a)40/60 FOLDING FLIP±UP CUSHION (See page 72±21)
(b)40/60 FOLDING (See page 72±27)
(c)UNITED FIXED (See page 72±32)
4. REMOVE REAR FLOOR FINISH PLATE (SEDAN MODELS)
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LH (SEDAN MODELS)
6. REMOVE REAR FLOOR FINISH PLATE (LIFTBACK MODELS)
7.REMOVE DECK TRIM SIDE BOARD LH (LIFTBACK MODELS) (See page 76±45)
8. REMOVE REAR FLOOR FINISH PLATE (WAGON MODELS)
9.REMOVE DECK TRIM SIDE PANEL ASSY LH (WAGON MODELS) (See page 76±54)
10. REMOVE REAR WHEEL 11. DISCONNECT SKID CONTROL SENSOR WIRE
(a) Disconnect the skid control sensor connector.
(b) Remove the bolt and wire bracket.
12. SEPARATE REAR STABILIZER LINK ASSY LH
(a) Remove the nut, and separate the rear stabilizer link assyLH.
HINT:
If the ball joint turns together with the nut, use a hexagon (5 mm)
wrench to hold the stud.
13. SEPARATE REAR STABILIZER LINK ASSY RH
HINT:
Separate the RH side by the same procedures as the LH side.

G25775
G23865
G23866
G23867
G23868
± REAR SUSPENSIONREAR SHOCK ABSORBER WITH COIL SPRING
27±9
AVENSIS REPAIR MANUAL (RM1018E)

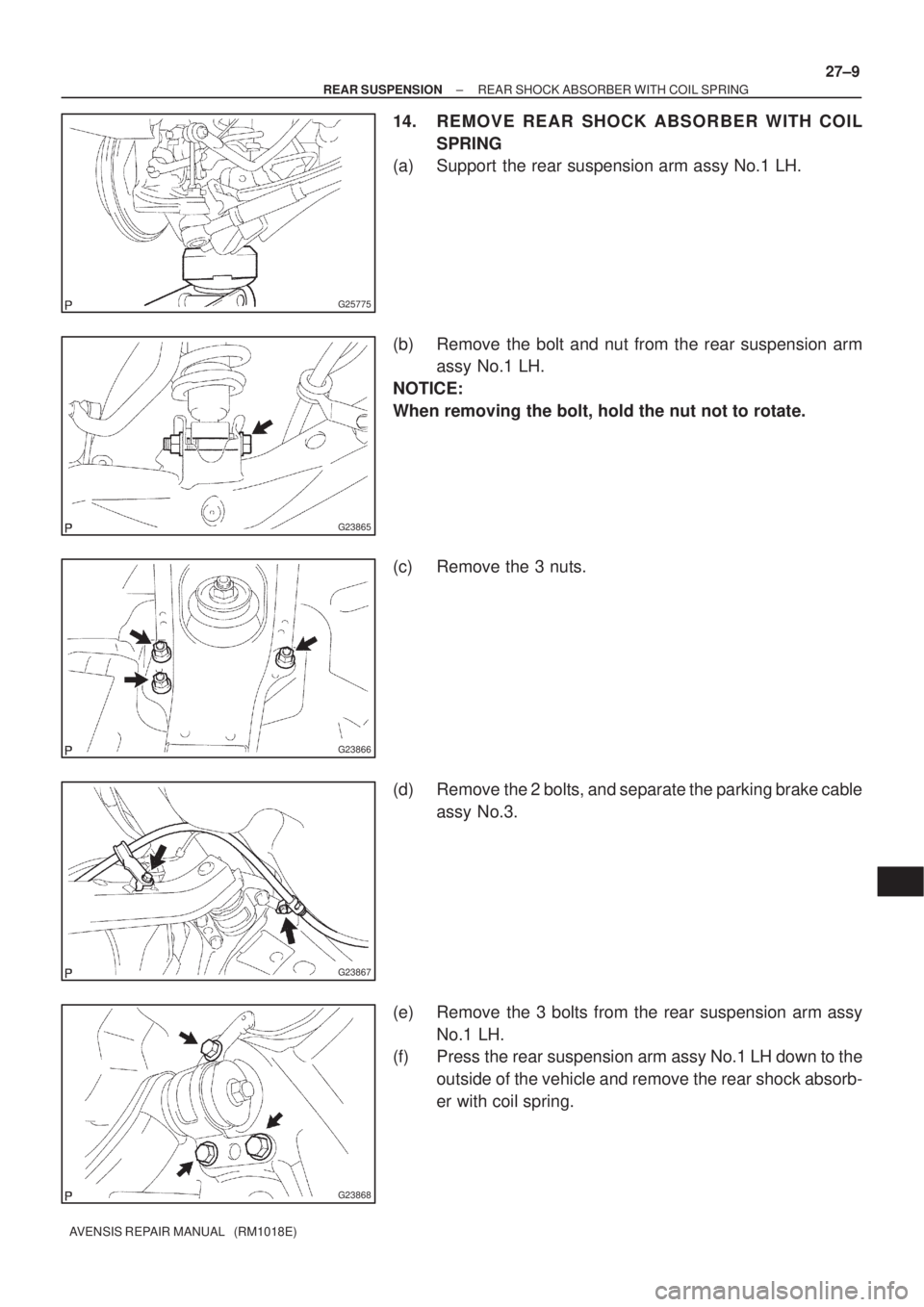

14. REMOVE REAR SHOCK ABSORBER WITH COIL
SPRING
(a) Support the rear suspension arm assy No.1 LH.
(b) Remove the bolt and nut from the rear suspension arm
assy No.1 LH.
NOTICE:
When removing the bolt, hold the nut not to rotate.
(c) Remove the 3 nuts.
(d) Remove the 2 bolts, and separate the parking brake cable
assy No.3.
(e) Remove the 3 bolts from the rear suspension arm assy
No.1 LH.
(f) Press the rear suspension arm assy No.1 LH down to the
outside of the vehicle and remove the rear shock absorb-
er with coil spring.

C95735SST

C95736




G24415
Rear shock
absorber
cushion
No.1
Rear
suspension
support
assy LH
G23869
F40128
SST 27±10
± REAR SUSPENSIONREAR SHOCK ABSORBER WITH COIL SPRING
AVENSIS REPAIR MANUAL (RM1018E)

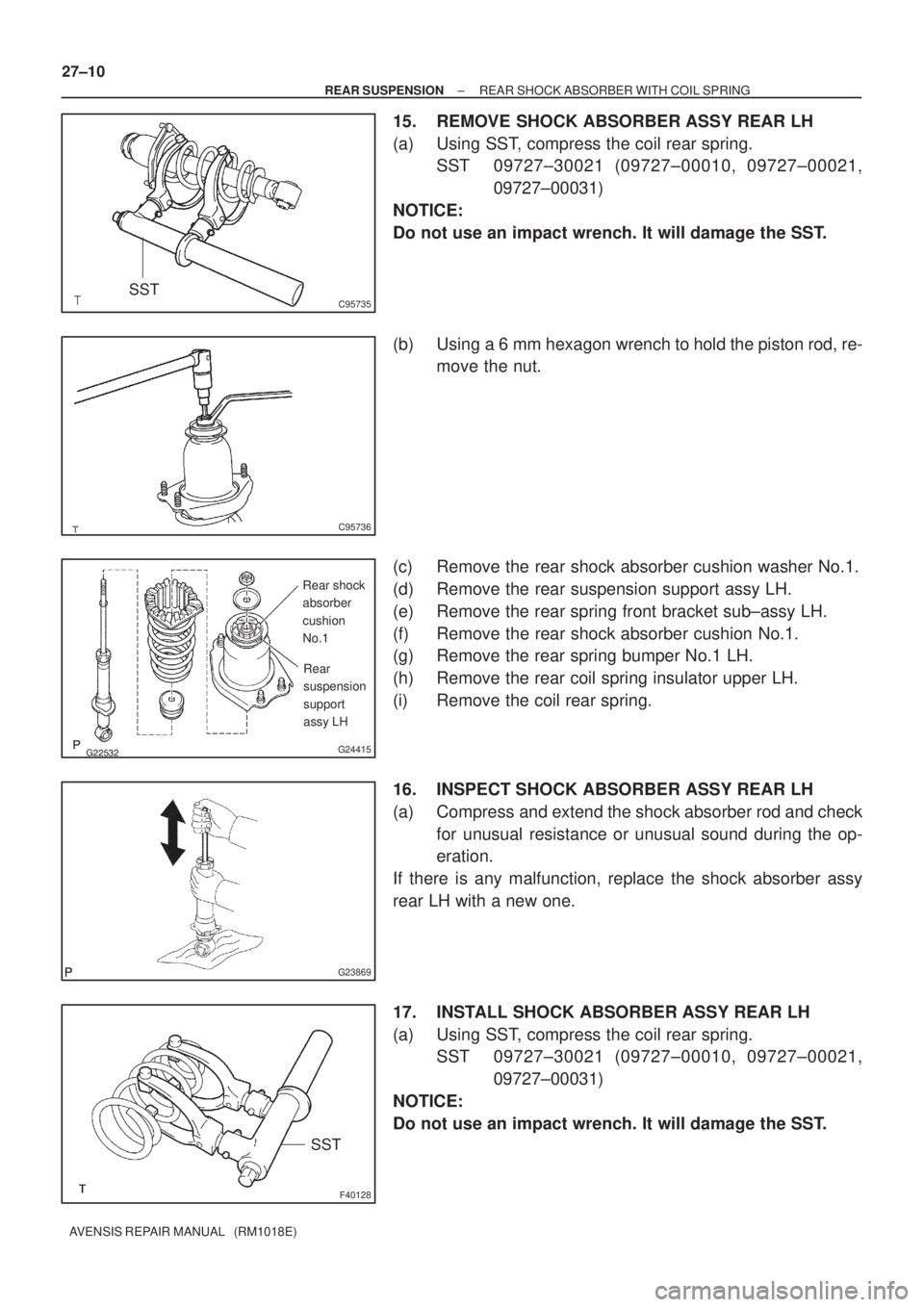

15. REMOVE SHOCK ABSORBER ASSY REAR LH
(a) Using SST, compress the coil rear spring.
SST 09727±30021 (09727±00010, 09727±00021,
09727±00031)
NOTICE:
Do not use an impact wrench. It will damage the SST.
(b) Using a 6 mm hexagon wrench to hold the piston rod, re-
move the nut.
(c) Remove the rear shock absorber cushion washer No.1.
(d) Remove the rear suspension support assy LH.
(e) Remove the rear spring front bracket sub±assy LH.
(f) Remove the rear shock absorber cushion No.1.
(g) Remove the rear spring bumper No.1 LH.
(h) Remove the rear coil spring insulator upper LH.
(i) Remove the coil rear spring.
16. INSPECT SHOCK ABSORBER ASSY REAR LH
(a) Compress and extend the shock absorber rod and check
for unusual resistance or unusual sound during the op-
eration.
If there is any malfunction, replace the shock absorber assy
rear LH with a new one.
17. INSTALL SHOCK ABSORBER ASSY REAR LH
(a) Using SST, compress the coil rear spring.
SST 09727±30021 (09727±00010, 09727±00021,
09727±00031)
NOTICE:
Do not use an impact wrench. It will damage the SST.
