2002 TOYOTA AVENSIS Repair Manual

700TH±01
B59702
Left/Right Adjustment Switch
Mirror
Switch
No Pin UP
OFF
DOWN LEFT RIGHTLEFT
RIGHT
No Pin
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER MIRROR CONTROL SYSTEM
70±59
AVENSIS REPAIR MANUAL (RM1018E)

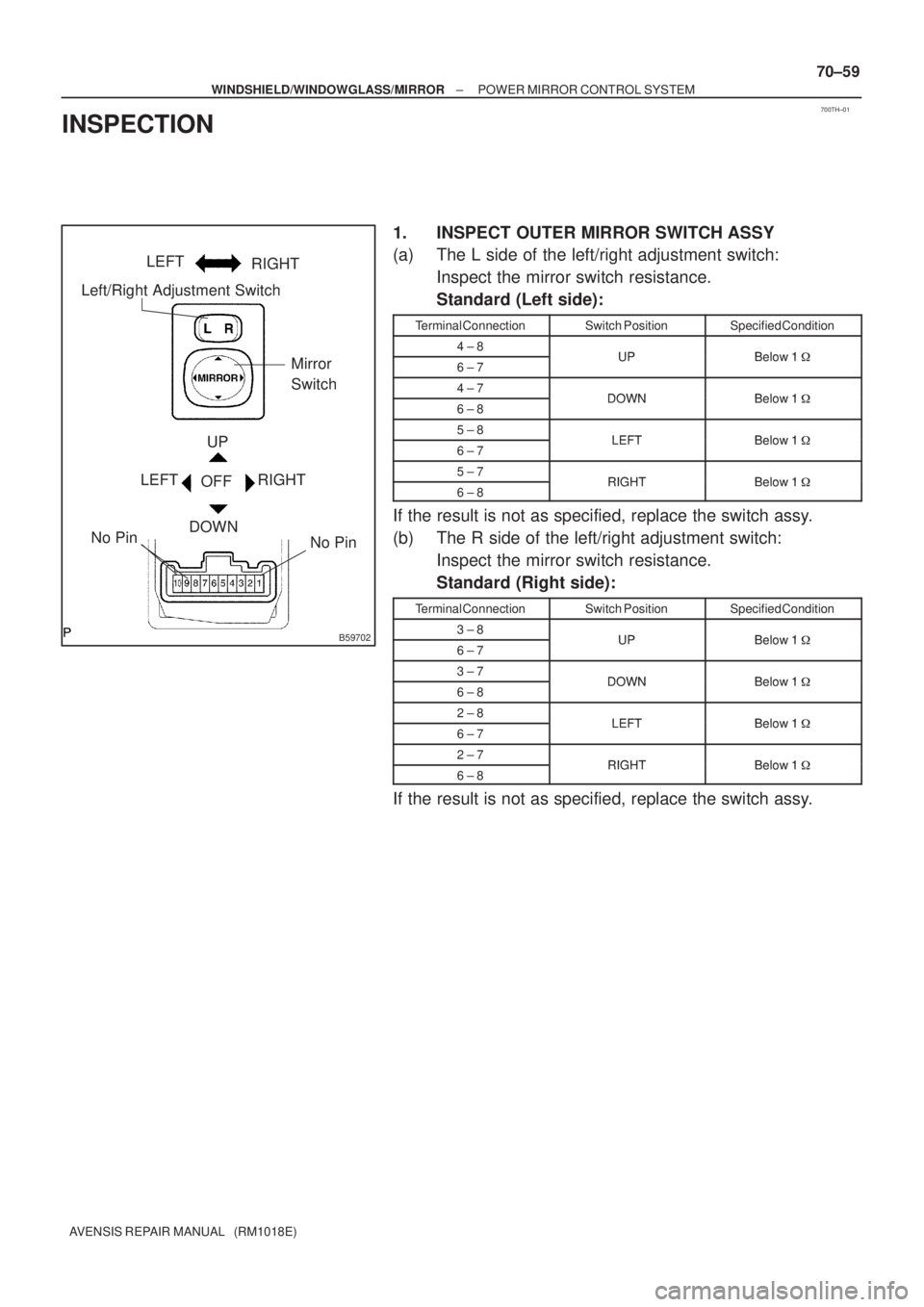

INSPECTION
1. INSPECT OUTER MIRROR SWITCH ASSY
(a) The L side of the left/right adjustment switch:
Inspect the mirror switch resistance.
Standard (Left side):
Terminal ConnectionSwitch PositionSpecified Condition
4 ± 8UPBelow 1
6 ± 7UPBelow 1

4 ± 7DOWNBelow 1
6 ± 8DOWNBelow 1

5 ± 8LEFTBelow 1
6 ± 7LEFTBelow 1

5 ± 7RIGHTBelow 1
6 ± 8RIGHTBelow 1

If the result is not as specified, replace the switch assy.
(b) The R side of the left/right adjustment switch:
Inspect the mirror switch resistance.
Standard (Right side):
Terminal ConnectionSwitch PositionSpecified Condition
3 ± 8UPBelow 1
6 ± 7UPBelow 1

3 ± 7DOWNBelow 1
6 ± 8DOWNBelow 1

2 ± 8LEFTBelow 1
6 ± 7LEFTBelow 1

2 ± 7RIGHTBelow 1
6 ± 8RIGHTBelow 1

If the result is not as specified, replace the switch assy.

B64822
Left/Right Adjustment SwitchRetract Switch
Mirror
Switch
No Pin
UP
OFF
DOWN LEFT RIGHT
LEFT RIGHT
70±60
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER MIRROR CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

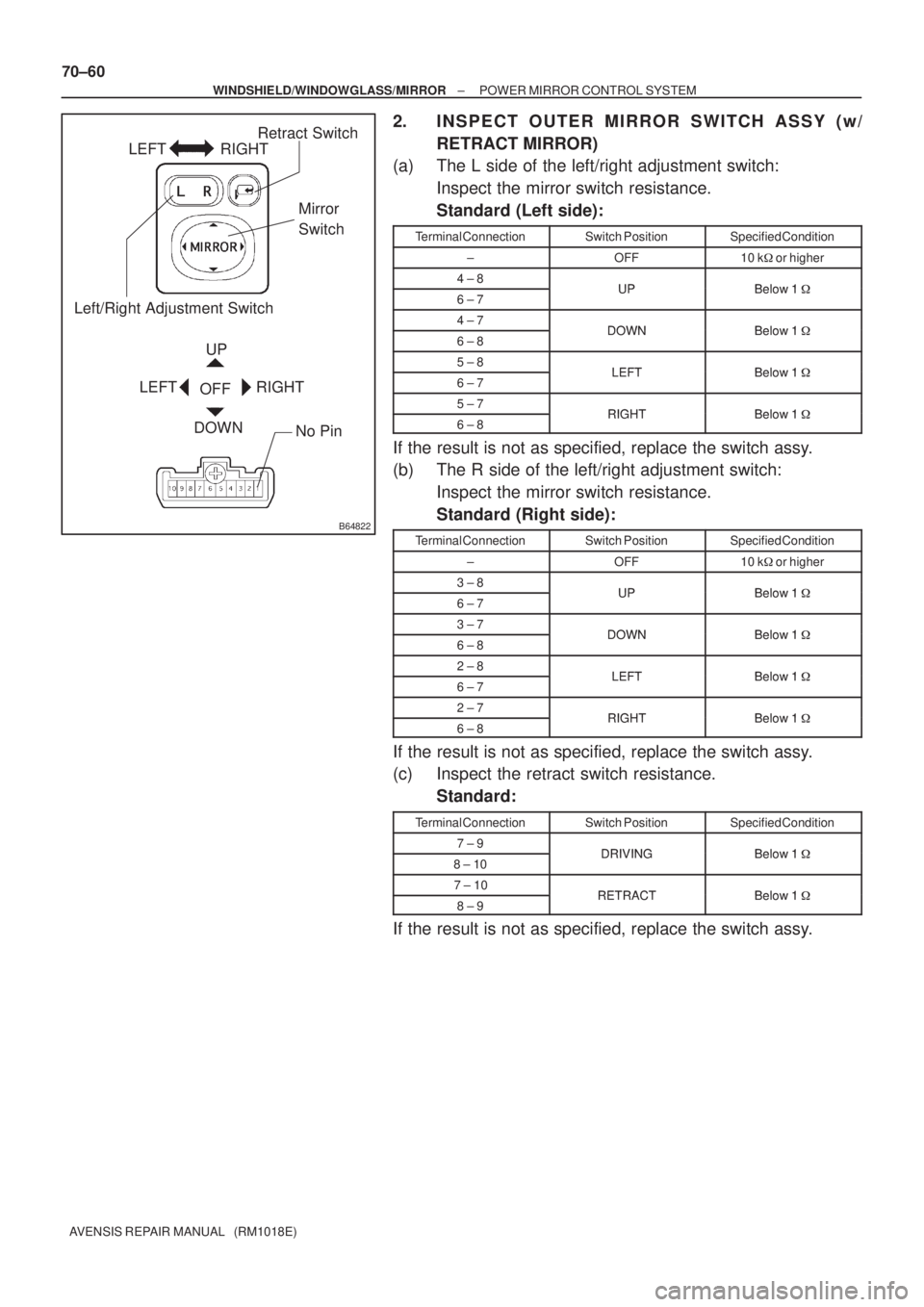

2. INSPECT OUTER MIRROR SWITCH ASSY (w/
RETRACT MIRROR)
(a) The L side of the left/right adjustment switch:
Inspect the mirror switch resistance.
Standard (Left side):
Terminal ConnectionSwitch PositionSpecified Condition
±OFF10 k
or higher
4 ± 8UPBelow 1
6 ± 7UPBelow 1

4 ± 7DOWNBelow 1
6 ± 8DOWNBelow 1

5 ± 8LEFTBelow 1
6 ± 7LEFTBelow 1

5 ± 7RIGHTBelow 1
6 ± 8RIGHTBelow 1

If the result is not as specified, replace the switch assy.
(b) The R side of the left/right adjustment switch:
Inspect the mirror switch resistance.
Standard (Right side):
Terminal ConnectionSwitch PositionSpecified Condition
±OFF10 k
or higher
3 ± 8UPBelow 1
6 ± 7UPBelow 1

3 ± 7DOWNBelow 1
6 ± 8DOWNBelow 1

2 ± 8LEFTBelow 1
6 ± 7LEFTBelow 1

2 ± 7RIGHTBelow 1
6 ± 8RIGHTBelow 1

If the result is not as specified, replace the switch assy.
(c) Inspect the retract switch resistance.
Standard:
Terminal ConnectionSwitch PositionSpecified Condition
7 ± 9DRIVINGBelow 1
8 ± 10DRIVINGBelow 1

7 ± 10RETRACTBelow 1
8 ± 9RETRACTBelow 1

If the result is not as specified, replace the switch assy.

B68232
(A)
(D) (C)
(B)
1 2 3
4 5 6
7
B64818
LH Side
A: Forward Position
C: Driving Position
E: Retracted Position BA
C
D
E
1 2 36
7
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER MIRROR CONTROL SYSTEM
70±61
AVENSIS REPAIR MANUAL (RM1018E)

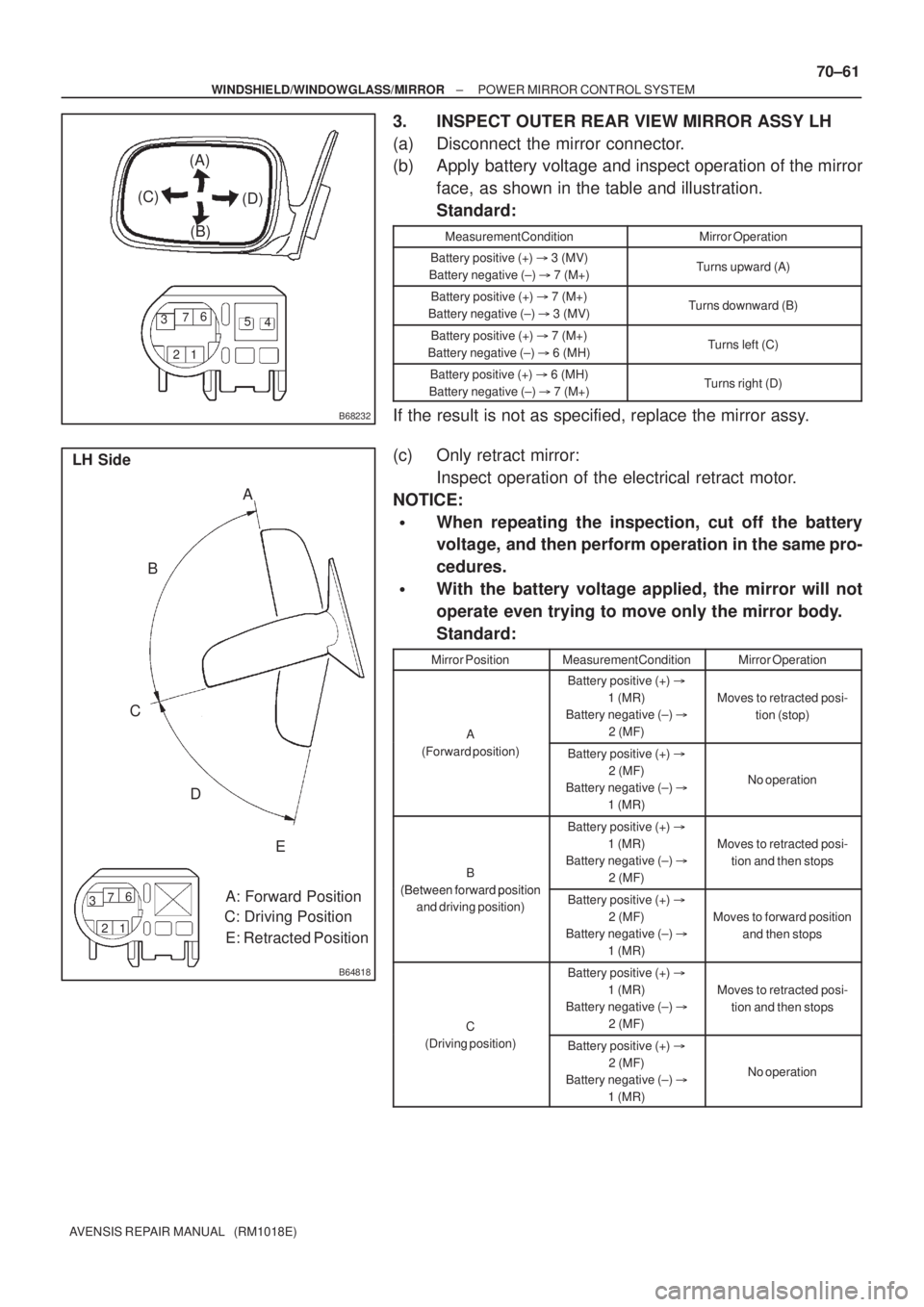

3. INSPECT OUTER REAR VIEW MIRROR ASSY LH
(a) Disconnect the mirror connector.
(b) Apply battery voltage and inspect operation of the mirror
face, as shown in the table and illustration.
Standard:
Measurement ConditionMirror Operation
Battery positive (+)
3 (MV)
Battery negative (±)
7 (M+)Turns upward (A)
Battery positive (+)
7 (M+)
Battery negative (±)
3 (MV)Turns downward (B)
Battery positive (+)
7 (M+)
Battery negative (±)
6 (MH)Turns left (C)
Battery positive (+)
6 (MH)
Battery negative (±)
7 (M+)Turns right (D)
If the result is not as specified, replace the mirror assy.
(c) Only retract mirror:
Inspect operation of the electrical retract motor.
NOTICE:

When repeating the inspection, cut off the battery
voltage, and then perform operation in the same pro-
cedures.

With the battery voltage applied, the mirror will not
operate even trying to move only the mirror body.
Standard:
Mirror PositionMeasurement ConditionMirror Operation
A
Battery positive (+)

1 (MR)
Battery negative (±)

2 (MF)
Moves to retracted posi-
tion (stop)
A
(Forward position)Battery positive (+)

2 (MF)
Battery negative (±)

1 (MR)
No operation
B
(Between forwardposition
Battery positive (+)

1 (MR)
Battery negative (±)

2 (MF)
Moves to retracted posi-
tion and then stops
(Between forward position
and driving position)Battery positive (+)

2 (MF)
Battery negative (±)

1 (MR)
Moves to forward position
and then stops
C
Battery positive (+)

1 (MR)
Battery negative (±)

2 (MF)
Moves to retracted posi-
tion and then stops
C
(Driving position)Battery positive (+)

2 (MF)
Battery negative (±)

1 (MR)
No operation

B68233
(A)
(D) (C)
(B)
1 2 3
4 5 6
7
70±62
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER MIRROR CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)Mirror Position Mirror OperationMeasurement Condition
D
(Between drivingposition
Battery positive (+)

1 (MR)
Battery negative (±)

2 (MF)
Moves to retracted posi-
tion and then stops
(Between driving position
and retracted position)Battery positive (+)

2 (MF)
Battery negative (±)

1 (MR)
Moves to driving position
and then stops
E
Battery positive (+)

1 (MR)
Battery negative (±)

2 (MF)
No operation
E
(Retracted position)Battery positive (+)

2 (MF)
Battery negative (±)

1 (MR)
Moves to driving position
and then stops
If the result is not as specified, replace the mirror assy.

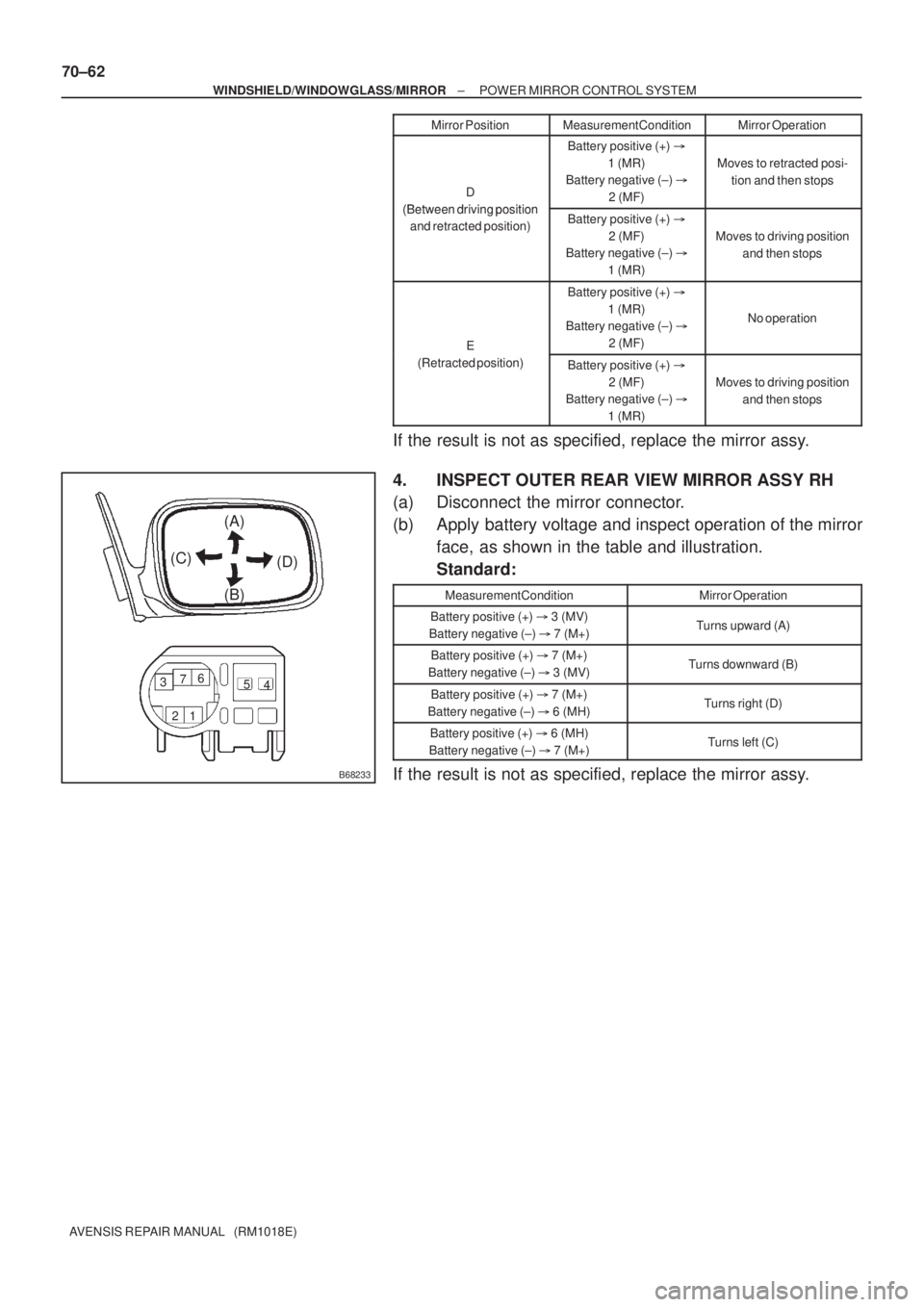

4. INSPECT OUTER REAR VIEW MIRROR ASSY RH
(a) Disconnect the mirror connector.
(b) Apply battery voltage and inspect operation of the mirror
face, as shown in the table and illustration.
Standard:
Measurement ConditionMirror Operation
Battery positive (+)
3 (MV)
Battery negative (±)
7 (M+)Turns upward (A)
Battery positive (+)
7 (M+)
Battery negative (±)
3 (MV)Turns downward (B)
Battery positive (+)
7 (M+)
Battery negative (±)
6 (MH)Turns right (D)
Battery positive (+)
6 (MH)
Battery negative (±)
7 (M+)Turns left (C)
If the result is not as specified, replace the mirror assy.

B64819
RH Side
A: Forward Position
C: Driving Position
E: Retracted PositionB A
C
D
E
1 2 36
7
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER MIRROR CONTROL SYSTEM
70±63
AVENSIS REPAIR MANUAL (RM1018E)

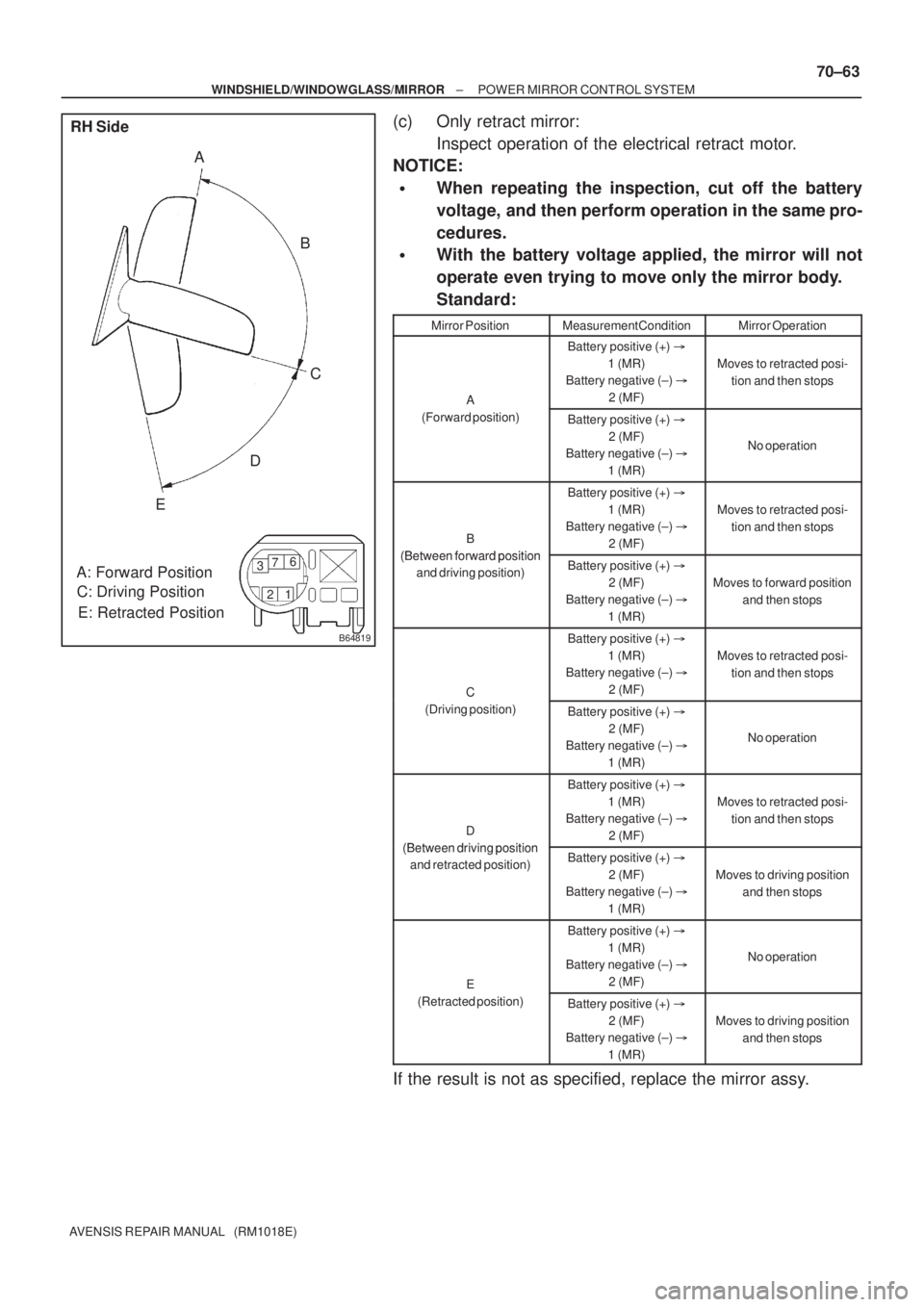

(c) Only retract mirror:
Inspect operation of the electrical retract motor.
NOTICE:

When repeating the inspection, cut off the battery
voltage, and then perform operation in the same pro-
cedures.

With the battery voltage applied, the mirror will not
operate even trying to move only the mirror body.
Standard:
Mirror PositionMeasurement ConditionMirror Operation
A
Battery positive (+)

1 (MR)
Battery negative (±)

2 (MF)
Moves to retracted posi-
tion and then stops
A
(Forward position)Battery positive (+)

2 (MF)
Battery negative (±)

1 (MR)
No operation
B
(Between forwardposition
Battery positive (+)

1 (MR)
Battery negative (±)

2 (MF)
Moves to retracted posi-
tion and then stops
(Between forward position
and driving position)Battery positive (+)

2 (MF)
Battery negative (±)

1 (MR)
Moves to forward position
and then stops
C
Battery positive (+)

1 (MR)
Battery negative (±)

2 (MF)
Moves to retracted posi-
tion and then stops
C
(Driving position)Battery positive (+)

2 (MF)
Battery negative (±)

1 (MR)
No operation
D
(Between drivingposition
Battery positive (+)

1 (MR)
Battery negative (±)

2 (MF)
Moves to retracted posi-
tion and then stops
(Between driving position
and retracted position)Battery positive (+)

2 (MF)
Battery negative (±)

1 (MR)
Moves to driving position
and then stops
E
Battery positive (+)

1 (MR)
Battery negative (±)

2 (MF)
No operation
E
(Retracted position)Battery positive (+)

2 (MF)
Battery negative (±)

1 (MR)
Moves to driving position
and then stops
If the result is not as specified, replace the mirror assy.

700S7±01
B66761
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER WINDOW CONTROL SYSTEM
70±1
AVENSIS REPAIR MANUAL (RM1018E)

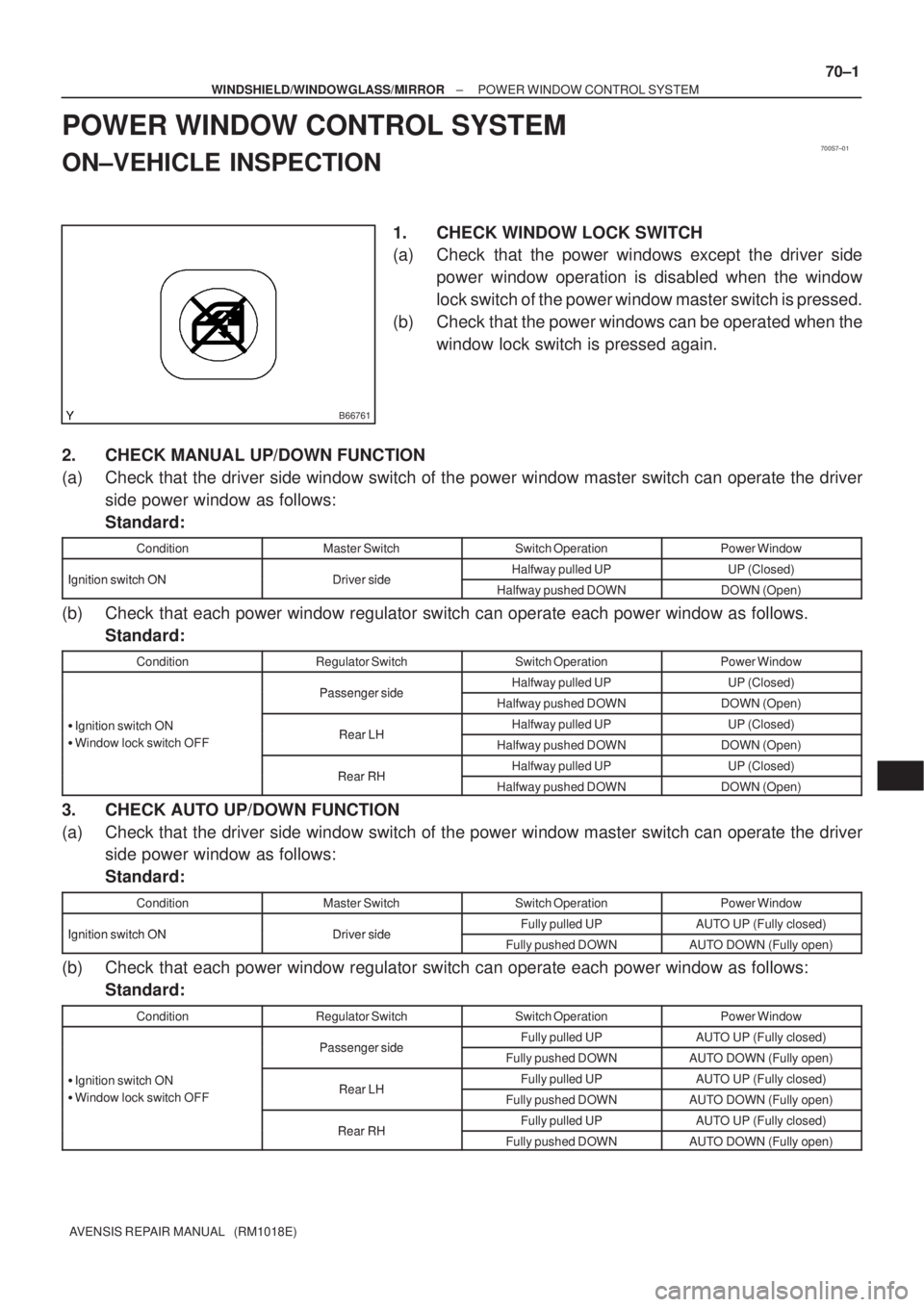

POWER WINDOW CONTROL SYSTEM
ON±VEHICLE INSPECTION
1. CHECK WINDOW LOCK SWITCH
(a) Check that the power windows except the driver side
power window operation is disabled when the window
lock switch of the power window master switch is pressed.
(b) Check that the power windows can be operated when the
window lock switch is pressed again.
2. CHECK MANUAL UP/DOWN FUNCTION
(a) Check that the driver side window switch of the power window master switch can operate the driver
side power window as follows:
Standard:
ConditionMaster SwitchSwitch OperationPower Window
Ignition switch ONDriver sideHalfway pulled UPUP (Closed)Ignition switch ONDriver sideHalfway pushed DOWNDOWN (Open)
(b) Check that each power window regulator switch can operate each power window as follows.
Standard:
ConditionRegulator SwitchSwitch OperationPower Window
Passenger sideHalfway pulled UPUP (Closed)Passenger sideHalfway pushed DOWNDOWN (Open)

Ignition switch ONRear LHHalfway pulled UPUP (Closed)Ignition switch ON

Window lock switch OFFRear LHHalfway pushed DOWNDOWN (Open)
Rear RHHalfway pulled UPUP (Closed)Rear RHHalfway pushed DOWNDOWN (Open)
3. CHECK AUTO UP/DOWN FUNCTION
(a) Check that the driver side window switch of the power window master switch can operate the driver
side power window as follows:
Standard:
ConditionMaster SwitchSwitch OperationPower Window
Ignition switch ONDriver sideFully pulled UPAUTO UP (Fully closed)Ignition switch ONDriver sideFully pushed DOWNAUTO DOWN (Fully open)
(b) Check that each power window regulator switch can operate each power window as follows:
Standard:
ConditionRegulator SwitchSwitch OperationPower Window
Passenger sideFully pulled UPAUTO UP (Fully closed)Passenger sideFully pushed DOWNAUTO DOWN (Fully open)

Ignition switch ONRear LHFully pulled UPAUTO UP (Fully closed)Ignition switch ON

Window lock switch OFFRear LHFully pushed DOWNAUTO DOWN (Fully open)
Rear RHFully pulled UPAUTO UP (Fully closed)Rear RHFully pushed DOWNAUTO DOWN (Fully open)

B51853
Hammer 70±2
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER WINDOW CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

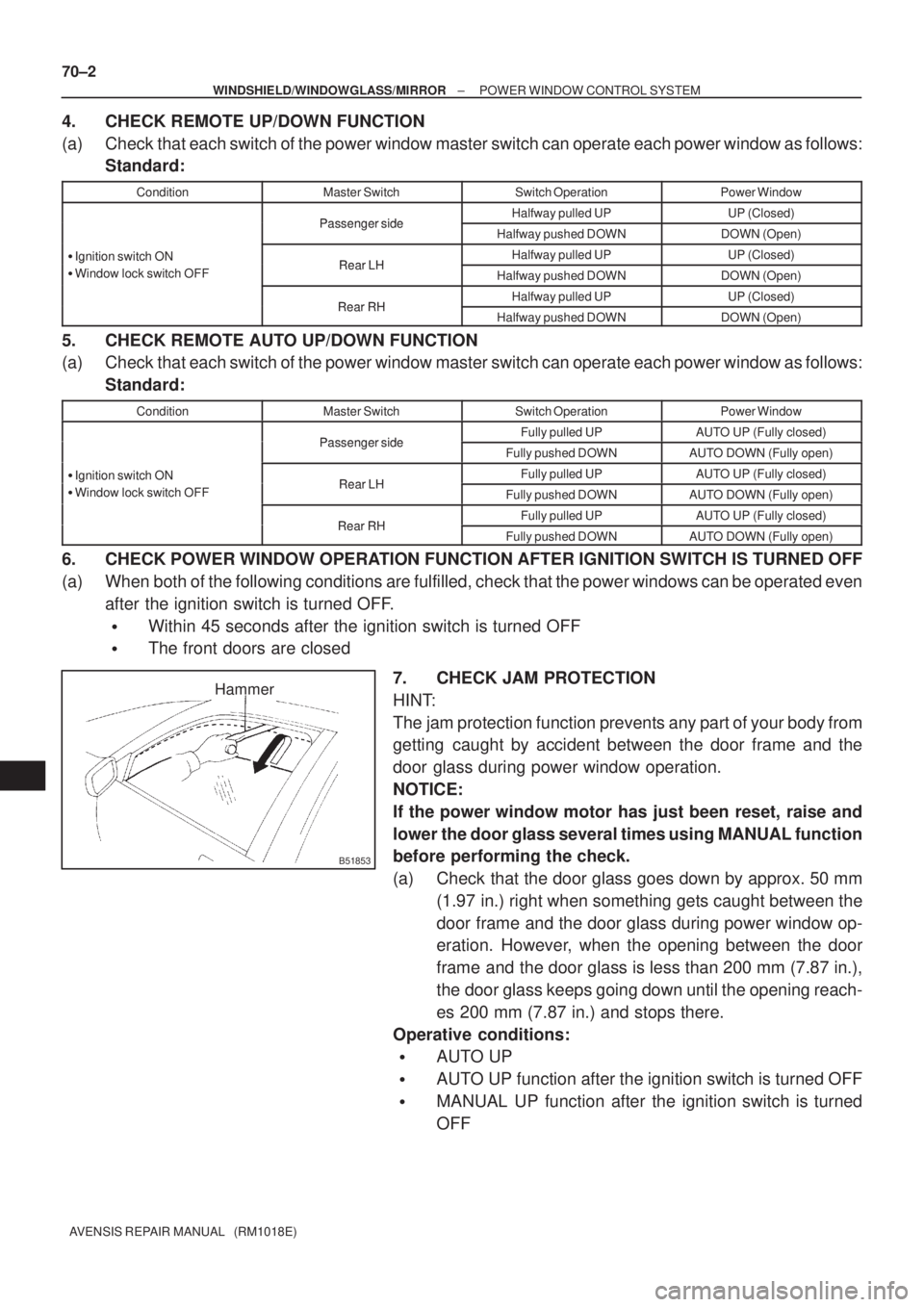

4. CHECK REMOTE UP/DOWN FUNCTION
(a) Check that each switch of the power window master switch can operate each power window as follows:
Standard:
ConditionMaster SwitchSwitch OperationPower Window
Passenger sideHalfway pulled UPUP (Closed)Passenger sideHalfway pushed DOWNDOWN (Open)

Ignition switch ONRear LHHalfway pulled UPUP (Closed)Ignition switch ON

Window lock switch OFFRear LHHalfway pushed DOWNDOWN (Open)
Rear RHHalfway pulled UPUP (Closed)Rear RHHalfway pushed DOWNDOWN (Open)
5. CHECK REMOTE AUTO UP/DOWN FUNCTION
(a) Check that each switch of the power window master switch can operate each power window as follows:
Standard:
ConditionMaster SwitchSwitch OperationPower Window
Passenger sideFully pulled UPAUTO UP (Fully closed)Passenger sideFully pushed DOWNAUTO DOWN (Fully open)

Ignition switch ONRear LHFully pulled UPAUTO UP (Fully closed)Ignition switch ON

Window lock switch OFFRear LHFully pushed DOWNAUTO DOWN (Fully open)
Rear RHFully pulled UPAUTO UP (Fully closed)Rear RHFully pushed DOWNAUTO DOWN (Fully open)
6. CHECK POWER WINDOW OPERATION FUNCTION AFTER IGNITION SWITCH IS TURNED OFF
(a) When both of the following conditions are fulfilled, check that the power windows can be operated even
after the ignition switch is turned OFF.

Within 45 seconds after the ignition switch is turned OFF

The front doors are closed
7. CHECK JAM PROTECTION
HINT:
The jam protection function prevents any part of your body from
getting caught by accident between the door frame and the
door glass during power window operation.
NOTICE:
If the power window motor has just been reset, raise and
lower the door glass several times using MANUAL function
before performing the check.
(a) Check that the door glass goes down by approx. 50 mm
(1.97 in.) right when something gets caught between the
door frame and the door glass during power window op-
eration. However, when the opening between the door
frame and the door glass is less than 200 mm (7.87 in.),
the door glass keeps going down until the opening reach-
es 200 mm (7.87 in.) and stops there.
Operative conditions:

AUTO UP

AUTO UP function after the ignition switch is turned OFF

MANUAL UP function after the ignition switch is turned
OFF

700S8±01
B67299
Instrument Panel J/B Assy

Integration Relay

IG1 Relay
Instrument Panel J/B Assy

Integration Relay

IG1 Relay
LHD Models
RHD Models
± WINDSHIELD/WINDOWGLASS/MIRRORPOWER WINDOW CONTROL SYSTEM
70±3
AVENSIS REPAIR MANUAL (RM1018E)
LOCATION
