2002 TOYOTA AVENSIS Repair Manual

B00540
A75980
Disconnect Wire
from Terminal B
Generator
Voltmeter BatteryAmmeter
± STARTING & CHARGINGCHARGING SYSTEM (1AZ±FSE)
19±19
AVENSIS REPAIR MANUAL (RM1018E)

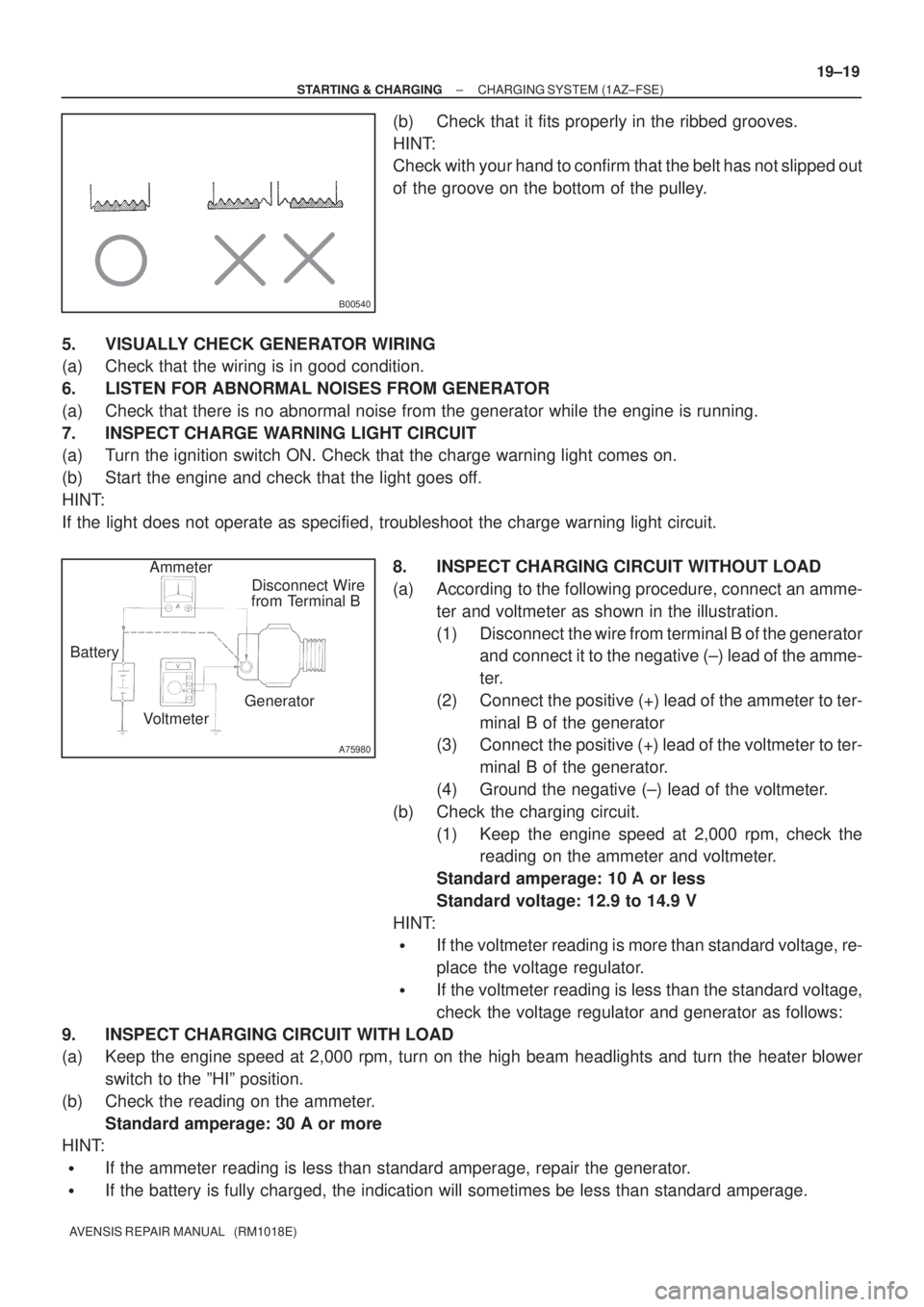

(b) Check that it fits properly in the ribbed grooves.
HINT:
Check with your hand to confirm that the belt has not slipped out
of the groove on the bottom of the pulley.
5. VISUALLY CHECK GENERATOR WIRING
(a) Check that the wiring is in good condition.
6. LISTEN FOR ABNORMAL NOISES FROM GENERATOR
(a) Check that there is no abnormal noise from the generator while the engine is running.
7. INSPECT CHARGE WARNING LIGHT CIRCUIT
(a) Turn the ignition switch ON. Check that the charge warning light comes on.
(b) Start the engine and check that the light goes off.
HINT:
If the light does not operate as specified, troubleshoot the charge warning light circuit.
8. INSPECT CHARGING CIRCUIT WITHOUT LOAD
(a) According to the following procedure, connect an amme-
ter and voltmeter as shown in the illustration.
(1) Disconnect the wire from terminal B of the generator
and connect it to the negative (±) lead of the amme-
ter.
(2) Connect the positive (+) lead of the ammeter to ter-
minal B of the generator
(3) Connect the positive (+) lead of the voltmeter to ter-
minal B of the generator.
(4) Ground the negative (±) lead of the voltmeter.
(b) Check the charging circuit.
(1) Keep the engine speed at 2,000 rpm, check the
reading on the ammeter and voltmeter.
Standard amperage: 10 A or less
Standard voltage: 12.9 to 14.9 V
HINT:

If the voltmeter reading is more than standard voltage, re-
place the voltage regulator.

If the voltmeter reading is less than the standard voltage,
check the voltage regulator and generator as follows:
9. INSPECT CHARGING CIRCUIT WITH LOAD
(a) Keep the engine speed at 2,000 rpm, turn on the high beam headlights and turn the heater blower
switch to the ºHIº position.
(b) Check the reading on the ammeter.
Standard amperage: 30 A or more
HINT:

If the ammeter reading is less than standard amperage, repair the generator.

If the battery is fully charged, the indication will sometimes be less than standard amperage.

190NM±01

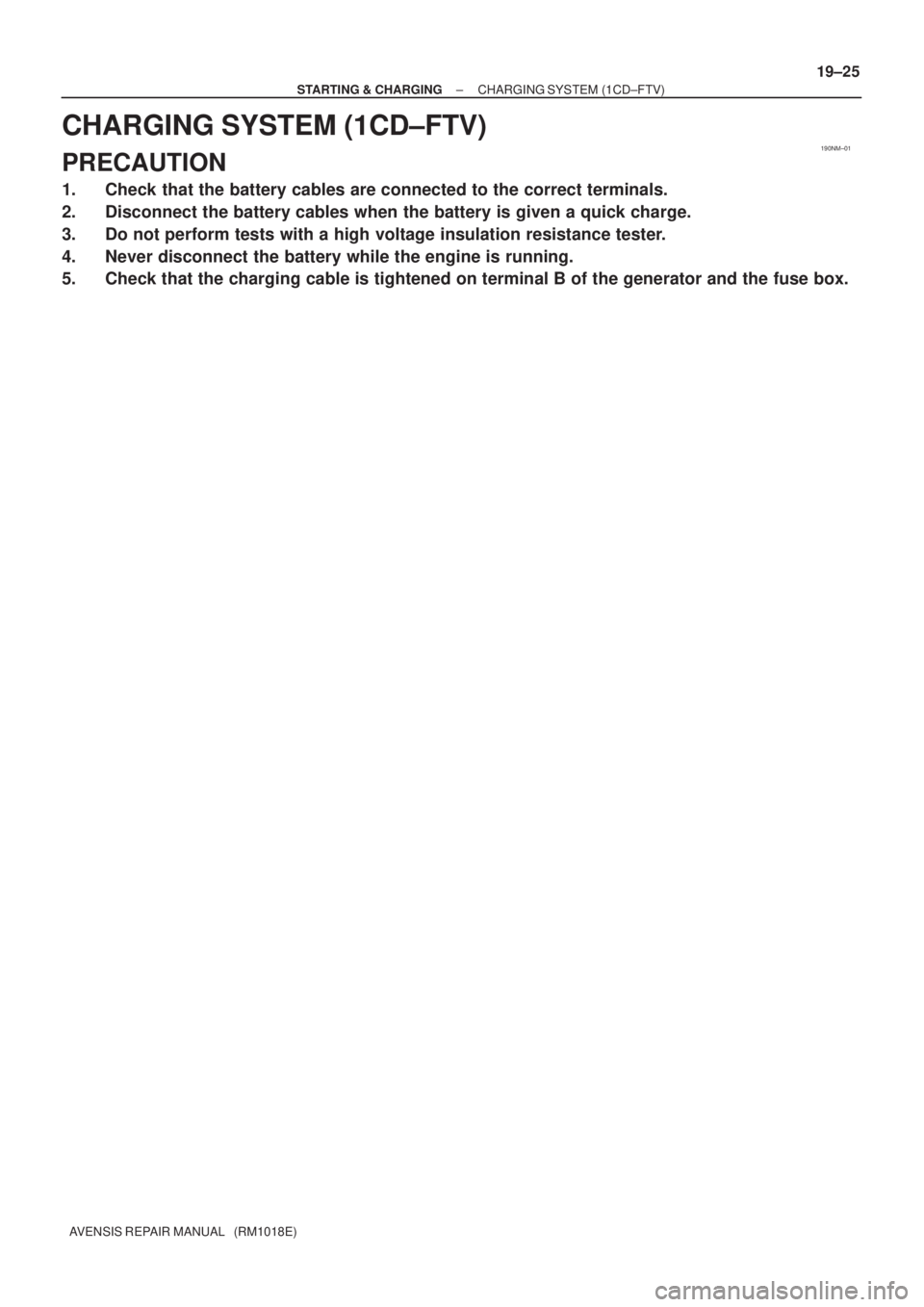

± STARTING & CHARGINGCHARGING SYSTEM (1CD±FTV)
19±25
AVENSIS REPAIR MANUAL (RM1018E)
CHARGING SYSTEM (1CD±FTV)
PRECAUTION
1. Check that the battery cables are connected to the correct terminals.
2. Disconnect the battery cables when the battery is given a quick charge.
3. Do not perform tests with a high voltage insulation resistance tester.
4. Never disconnect the battery while the engine is running.
5. Check that the charging cable is tightened on terminal B of the generator and the fuse box.

190NN±01
A81051
A81052


A82936
Type A
Type B
BlueWhite
Red Green DarkClear or
light yellow 19±26
± STARTING & CHARGINGCHARGING SYSTEM (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

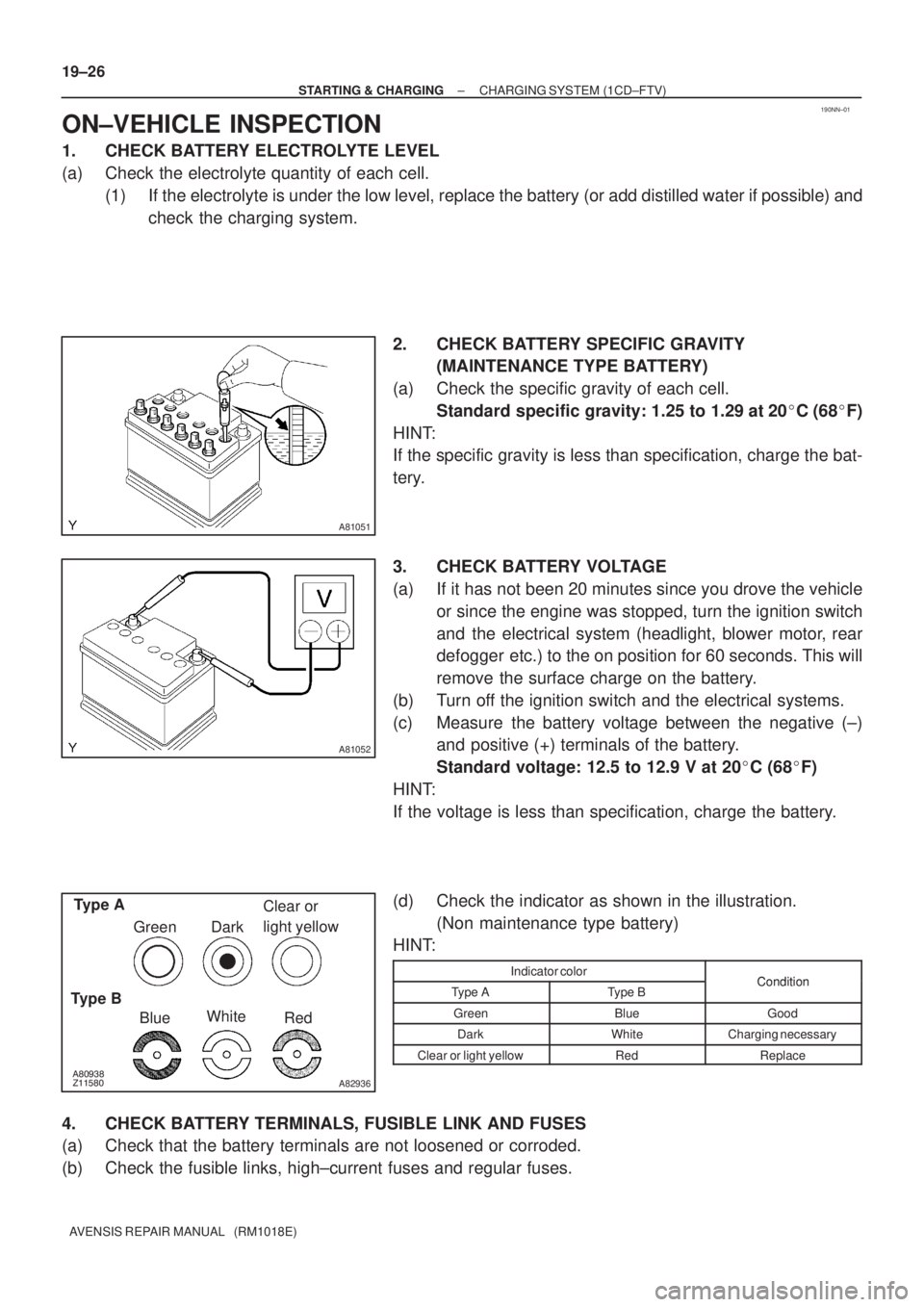

ON±VEHICLE INSPECTION
1. CHECK BATTERY ELECTROLYTE LEVEL
(a) Check the electrolyte quantity of each cell.
(1) If the electrolyte is under the low level, replace the battery (or add distilled water if possible) and
check the charging system.
2. CHECK BATTERY SPECIFIC GRAVITY
(MAINTENANCE TYPE BATTERY)
(a) Check the specific gravity of each cell.
Standard specific gravity: 1.25 to 1.29 at 20
C (68
F)
HINT:
If the specific gravity is less than specification, charge the bat-
tery.
3. CHECK BATTERY VOLTAGE
(a) If it has not been 20 minutes since you drove the vehicle
or since the engine was stopped, turn the ignition switch
and the electrical system (headlight, blower motor, rear
defogger etc.) to the on position for 60 seconds. This will
remove the surface charge on the battery.
(b) Turn off the ignition switch and the electrical systems.
(c) Measure the battery voltage between the negative (±)
and positive (+) terminals of the battery.
Standard voltage: 12.5 to 12.9 V at 20
C (68
F)
HINT:
If the voltage is less than specification, charge the battery.
(d) Check the indicator as shown in the illustration.
(Non maintenance type battery)
HINT:
Indicator colorConditionType AType BCondition
GreenBlueGood
DarkWhiteCharging necessary
Clear or light yellowRedReplace
4. CHECK BATTERY TERMINALS, FUSIBLE LINK AND FUSES
(a) Check that the battery terminals are not loosened or corroded.
(b) Check the fusible links, high±current fuses and regular fuses.

B00543
B00540
A75980
Disconnect Wire
from Terminal B
Generator
Voltmeter BatteryAmmeter
± STARTING & CHARGINGCHARGING SYSTEM (1CD±FTV)
19±27
AVENSIS REPAIR MANUAL (RM1018E)
5. INSPECT DRIVE BELT
(a) Visually check the belt for excessive wear, frayed cords
etc.
HINT:

If any defect found, replace the drive belt.

Cracks on the rib side of a belt are considered acceptable.
If the belt has chunks missing from the ribs, it should be
replaced.
(b) Check that it fits properly in the ribbed grooves.
HINT:
Check with your hand to confirm that the belt has not slipped out
of the groove on the bottom of the pulley.
6. VISUALLY CHECK GENERATOR WIRING
(a) Check that the wiring is in good condition.
7. LISTEN FOR ABNORMAL NOISES FROM GENERATOR
(a) Check that there is no abnormal noise from the generator while the engine is running.
8. INSPECT CHARGE WARNING LIGHT CIRCUIT
(a) Turn the ignition switch ON. Check that the charge warning light comes on.
(b) Start the engine and check that the light goes off.
HINT:
If the light does not operate as specified, troubleshoot the charge warning light circuit.
9. INSPECT CHARGING CIRCUIT WITHOUT LOAD
(a) According to the following procedure, connect an amme-
ter and voltmeter as shown in the illustration.
(1) Disconnect to the wire from terminal B of the gener-
ator and connect it to the negative (±) lead of the
ammeter.
(2) Connect the positive (+) lead of the ammeter to ter-
minal B of the generator
(3) Connect the positive (+) lead of the voltmeter to ter-
minal B of the generator.
(4) Ground the negative (±) lead of the voltmeter.
(b) Check the charging circuit.
(1) Keep the engine speed at 2,000 rpm, check the
reading on the ammeter and voltmeter.
Standard amperage: 10 A or less
Standard voltage: 13.2 to 14.8 V

19±28
± STARTING & CHARGINGCHARGING SYSTEM (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

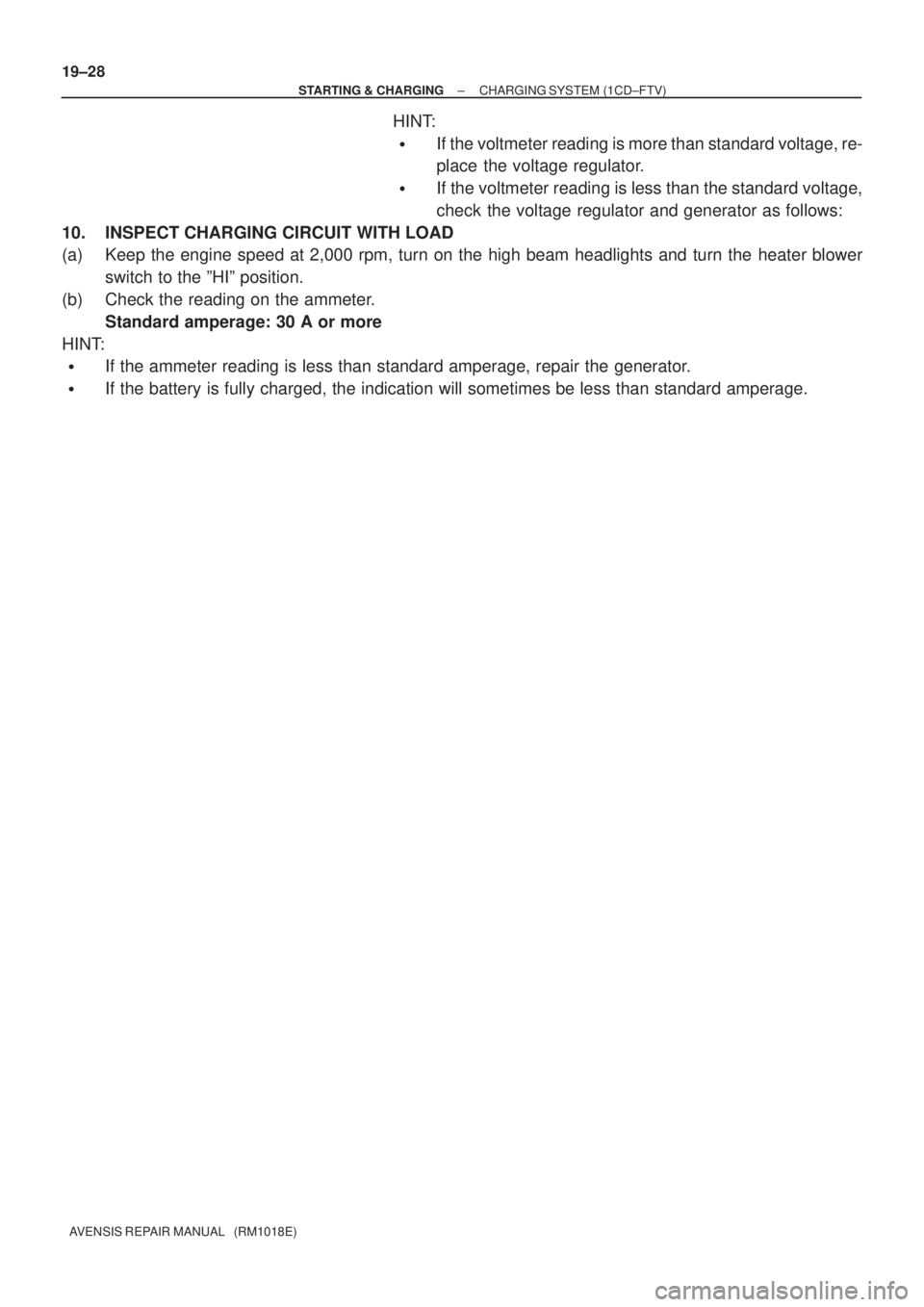

HINT:

If the voltmeter reading is more than standard voltage, re-
place the voltage regulator.

If the voltmeter reading is less than the standard voltage,
check the voltage regulator and generator as follows:
10. INSPECT CHARGING CIRCUIT WITH LOAD
(a) Keep the engine speed at 2,000 rpm, turn on the high beam headlights and turn the heater blower
switch to the ºHIº position.
(b) Check the reading on the ammeter.
Standard amperage: 30 A or more
HINT:

If the ammeter reading is less than standard amperage, repair the generator.

If the battery is fully charged, the indication will sometimes be less than standard amperage.

190NP±01
19±4
± STARTING & CHARGINGCHARGING SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

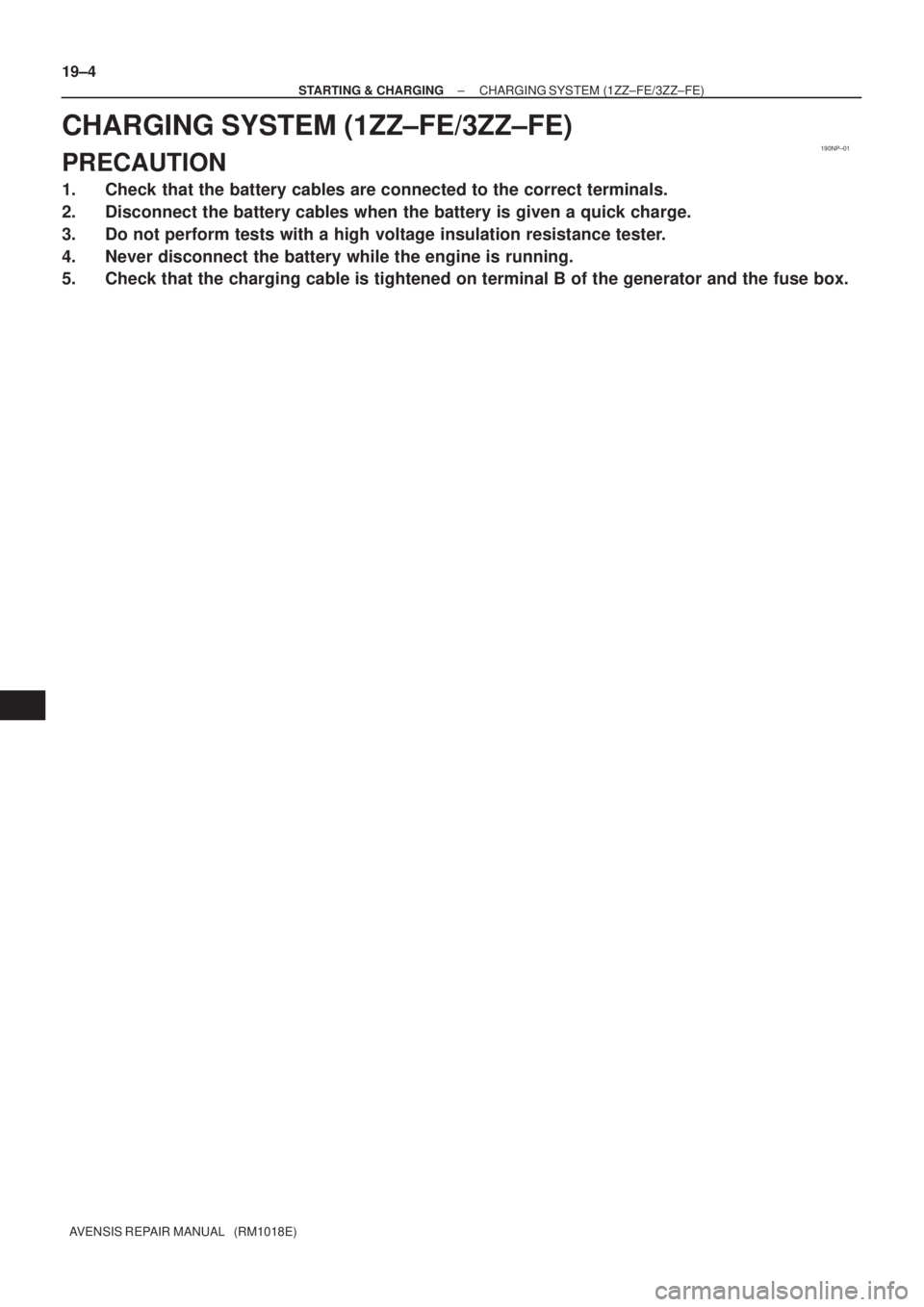

CHARGING SYSTEM (1ZZ±FE/3ZZ±FE)
PRECAUTION
1. Check that the battery cables are connected to the correct terminals.
2. Disconnect the battery cables when the battery is given a quick charge.
3. Do not perform tests with a high voltage insulation resistance tester.
4. Never disconnect the battery while the engine is running.
5. Check that the charging cable is tightened on terminal B of the generator and the fuse box.

190NQ±01
A81052


A82936
Type A
Type B
BlueWhite
Red Green DarkClear or
light yellow
B00543
± STARTING & CHARGINGCHARGING SYSTEM (1ZZ±FE/3ZZ±FE)
19±5
AVENSIS REPAIR MANUAL (RM1018E)

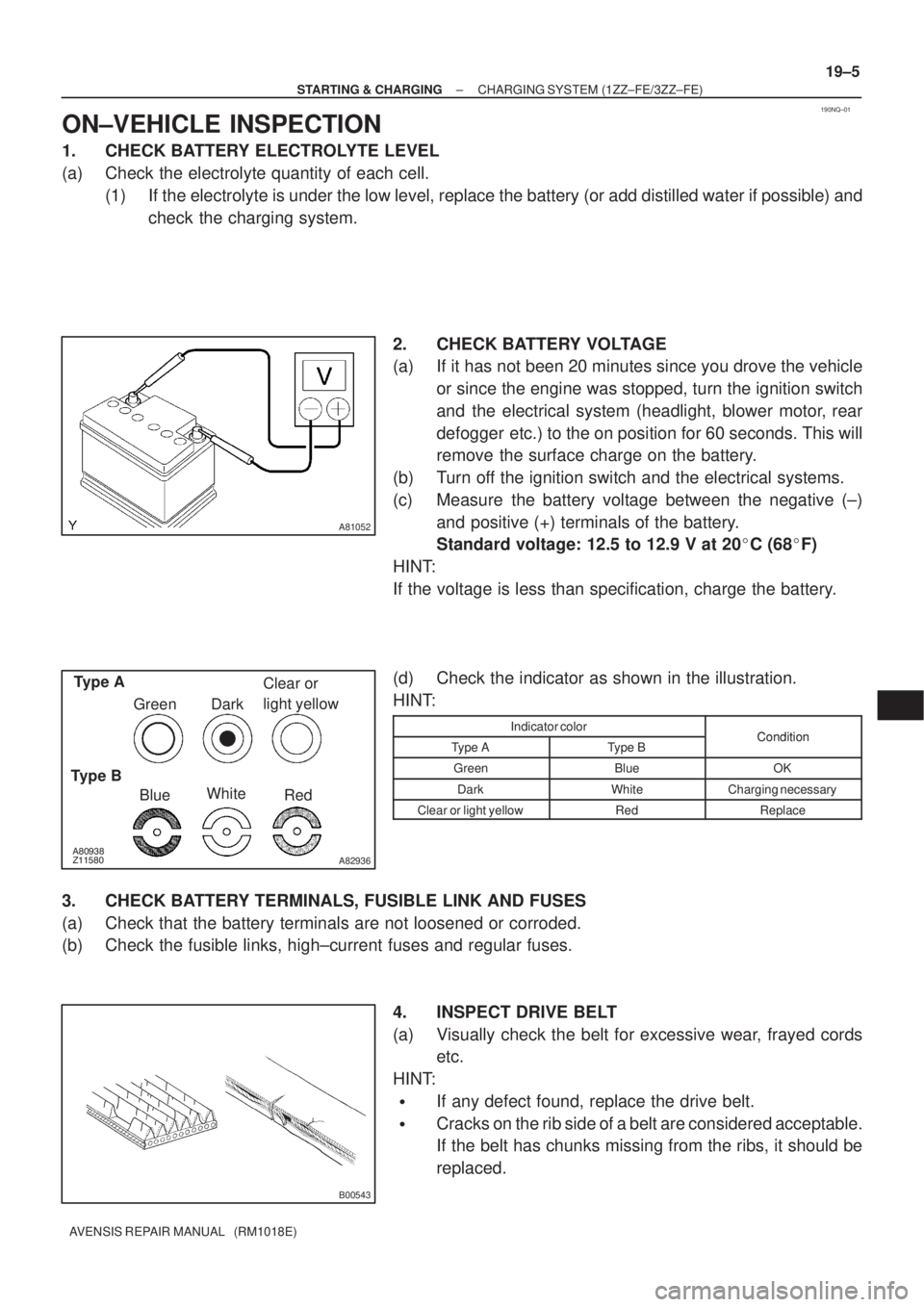

ON±VEHICLE INSPECTION
1. CHECK BATTERY ELECTROLYTE LEVEL
(a) Check the electrolyte quantity of each cell.
(1) If the electrolyte is under the low level, replace the battery (or add distilled water if possible) and
check the charging system.
2. CHECK BATTERY VOLTAGE
(a) If it has not been 20 minutes since you drove the vehicle
or since the engine was stopped, turn the ignition switch
and the electrical system (headlight, blower motor, rear
defogger etc.) to the on position for 60 seconds. This will
remove the surface charge on the battery.
(b) Turn off the ignition switch and the electrical systems.
(c) Measure the battery voltage between the negative (±)
and positive (+) terminals of the battery.
Standard voltage: 12.5 to 12.9 V at 20C (68F)
HINT:
If the voltage is less than specification, charge the battery.
(d) Check the indicator as shown in the illustration.
HINT:
Indicator colorConditionType AType BCondition
GreenBlueOK
DarkWhiteCharging necessary
Clear or light yellowRedReplace
3. CHECK BATTERY TERMINALS, FUSIBLE LINK AND FUSES
(a) Check that the battery terminals are not loosened or corroded.
(b) Check the fusible links, high±current fuses and regular fuses.
4. INSPECT DRIVE BELT
(a) Visually check the belt for excessive wear, frayed cords
etc.
HINT:

If any defect found, replace the drive belt.

Cracks on the rib side of a belt are considered acceptable.
If the belt has chunks missing from the ribs, it should be
replaced.

B00540
A75980
Disconnect Wire
from Terminal B
Generator
Voltmeter BatteryAmmeter 19±6
± STARTING & CHARGINGCHARGING SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

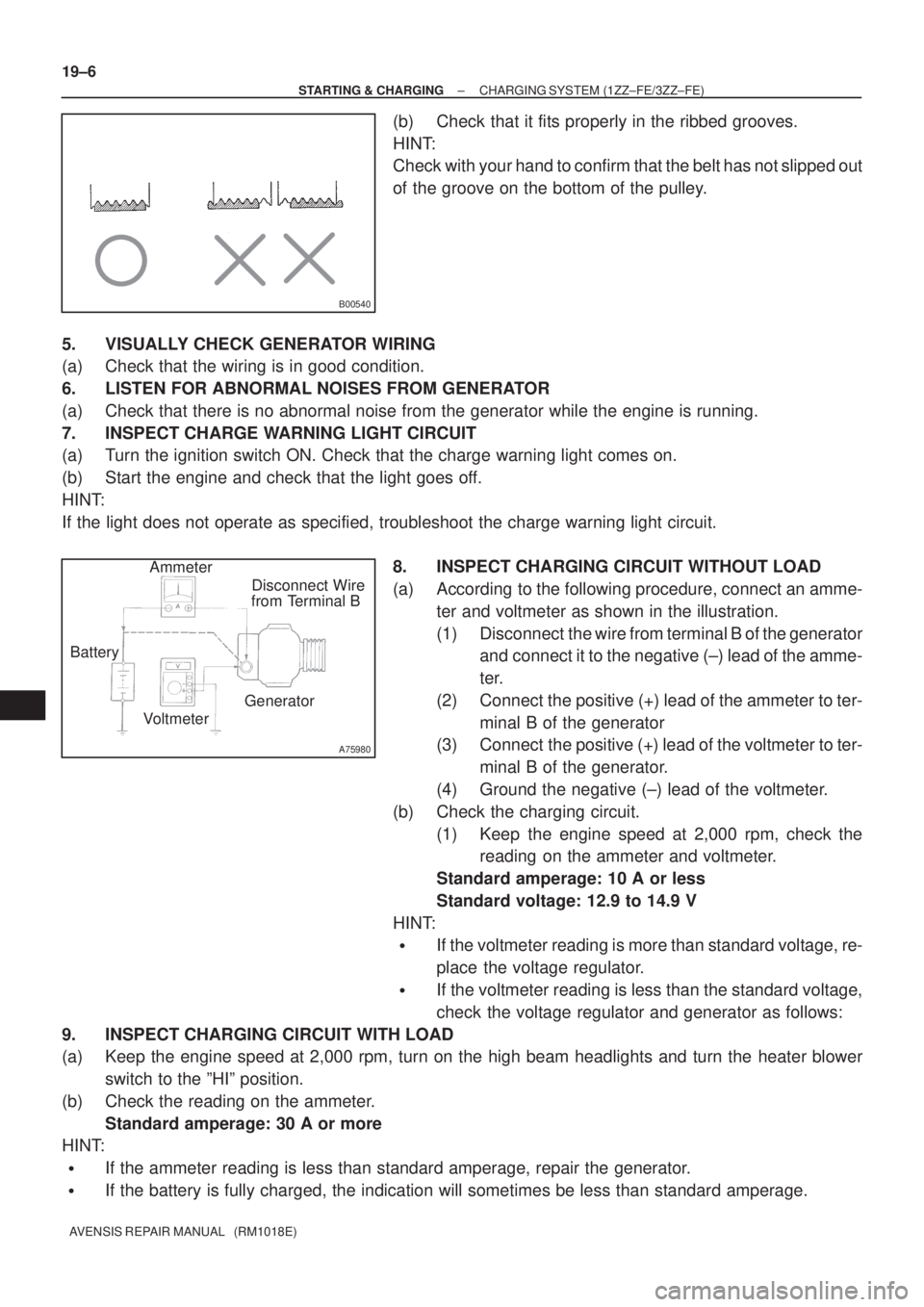

(b) Check that it fits properly in the ribbed grooves.
HINT:
Check with your hand to confirm that the belt has not slipped out
of the groove on the bottom of the pulley.
5. VISUALLY CHECK GENERATOR WIRING
(a) Check that the wiring is in good condition.
6. LISTEN FOR ABNORMAL NOISES FROM GENERATOR
(a) Check that there is no abnormal noise from the generator while the engine is running.
7. INSPECT CHARGE WARNING LIGHT CIRCUIT
(a) Turn the ignition switch ON. Check that the charge warning light comes on.
(b) Start the engine and check that the light goes off.
HINT:
If the light does not operate as specified, troubleshoot the charge warning light circuit.
8. INSPECT CHARGING CIRCUIT WITHOUT LOAD
(a) According to the following procedure, connect an amme-
ter and voltmeter as shown in the illustration.
(1) Disconnect the wire from terminal B of the generator
and connect it to the negative (±) lead of the amme-
ter.
(2) Connect the positive (+) lead of the ammeter to ter-
minal B of the generator
(3) Connect the positive (+) lead of the voltmeter to ter-
minal B of the generator.
(4) Ground the negative (±) lead of the voltmeter.
(b) Check the charging circuit.
(1) Keep the engine speed at 2,000 rpm, check the
reading on the ammeter and voltmeter.
Standard amperage: 10 A or less
Standard voltage: 12.9 to 14.9 V
HINT:

If the voltmeter reading is more than standard voltage, re-
place the voltage regulator.

If the voltmeter reading is less than the standard voltage,
check the voltage regulator and generator as follows:
9. INSPECT CHARGING CIRCUIT WITH LOAD
(a) Keep the engine speed at 2,000 rpm, turn on the high beam headlights and turn the heater blower
switch to the ºHIº position.
(b) Check the reading on the ammeter.
Standard amperage: 30 A or more
HINT:

If the ammeter reading is less than standard amperage, repair the generator.

If the battery is fully charged, the indication will sometimes be less than standard amperage.
