2002 TOYOTA AVENSIS Repair Manual

140KR±02
A62199
TCCG
A62200
±
ENGINE MECHANICAL ENGINE(1ZZ±FE/3ZZ±FE)
14±1
AVENSIS REPAIR MANUAL (RM1018E)

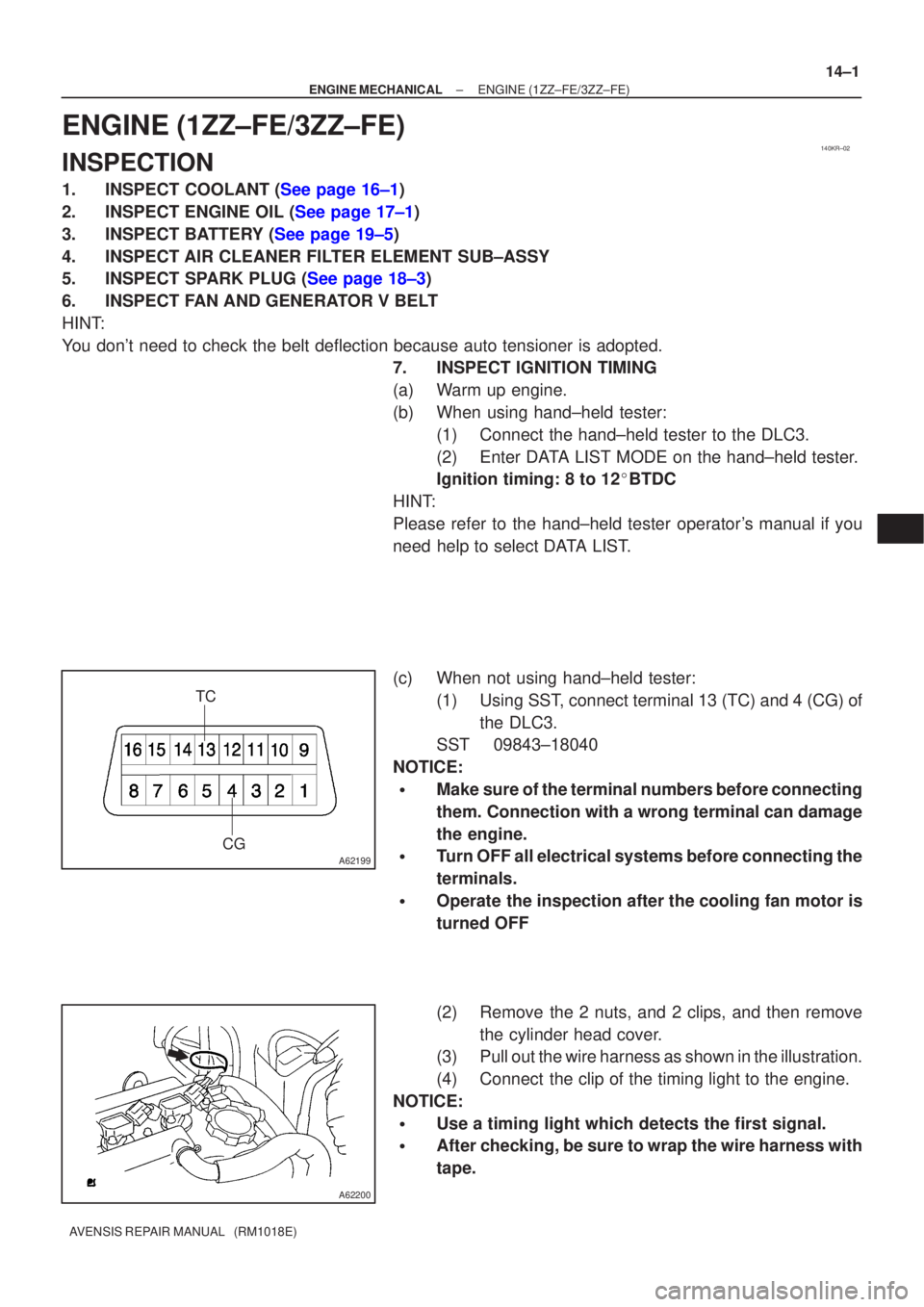

ENGINE(1ZZ±FE/3ZZ±FE)
INSPECTION
1.INSPECT COOLANT (See page 16±1)
2.INSPECT ENGINE OIL (See page 17±1)
3.INSPECT BATTERY (See page 19±5)
4.INSPECT AIR CLEANER FILTER ELEMENT SUB±ASSY
5.INSPECT SPARK PLUG (See page 18±3)
6.INSPECT FAN AND GENERATOR V BELT
HINT:
You don't need to check the belt deflection because auto tensioner is ado\
pted.
7.INSPECT IGNITION TIMING
(a)Warm up engine.
(b)When using hand±held tester:
(1)Connect the hand±held tester to the DLC3.
(2)Enter DATA LIST MODE on the hand±held tester.
Ignition timing: 8 to 12 BTDC
HINT:
Please refer to the hand±held tester operator's manual if you
need help to select DATA LIST.
(c) When not using hand±held tester: (1) Using SST, connect terminal 13 (TC) and 4 (CG) ofthe DLC3.
SST 09843±18040
NOTICE:

Make sure of the terminal numbers before connecting
them. Connection with a wrong terminal can damage
the engine.

Turn OFF all electrical systems before connecting the
terminals.

Operate the inspection after the cooling fan motor is
turned OFF
(2) Remove the 2 nuts, and 2 clips, and then remove the cylinder head cover.
(3) Pull out the wire harness as shown in the illustration.
(4) Connect the clip of the timing light to the engine.
NOTICE:

Use a timing light which detects the first signal.

After checking, be sure to wrap the wire harness with
tape.

TA C
A52006
A01037
14±2
± ENGINE MECHANICALENGINE (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

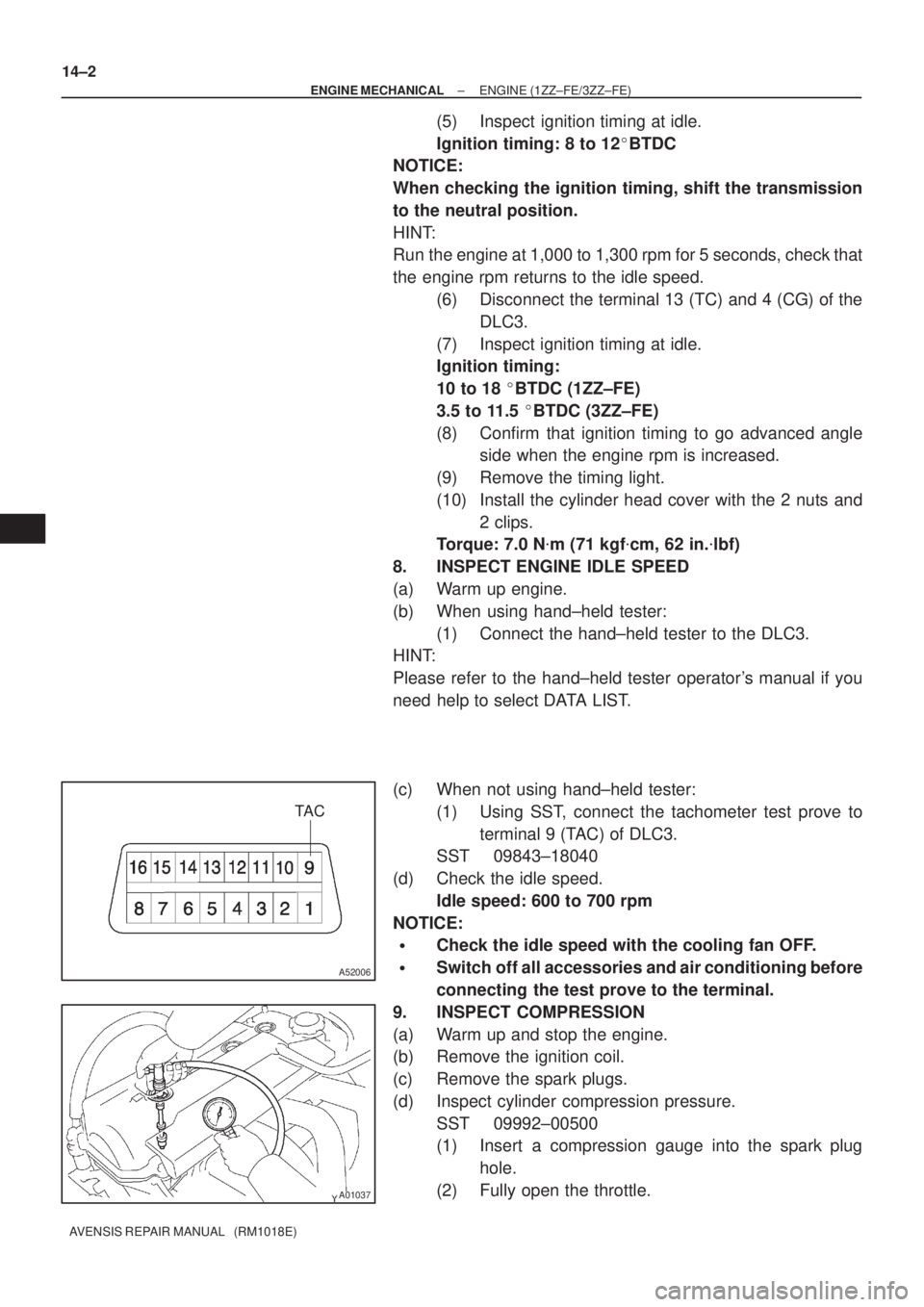

(5) Inspect ignition timing at idle.
Ignition timing: 8 to 12BTDC
NOTICE:
When checking the ignition timing, shift the transmission
to the neutral position.
HINT:
Run the engine at 1,000 to 1,300 rpm for 5 seconds, check that
the engine rpm returns to the idle speed.
(6) Disconnect the terminal 13 (TC) and 4 (CG) of the
DLC3.
(7) Inspect ignition timing at idle.
Ignition timing:
10 to 18 BTDC (1ZZ±FE)
3.5 to 11.5 BTDC (3ZZ±FE)
(8) Confirm that ignition timing to go advanced angle
side when the engine rpm is increased.
(9) Remove the timing light.
(10) Install the cylinder head cover with the 2 nuts and
2 clips.
Torque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)
8. INSPECT ENGINE IDLE SPEED
(a) Warm up engine.
(b) When using hand±held tester:
(1) Connect the hand±held tester to the DLC3.
HINT:
Please refer to the hand±held tester operator's manual if you
need help to select DATA LIST.
(c) When not using hand±held tester:
(1) Using SST, connect the tachometer test prove to
terminal 9 (TAC) of DLC3.
SST 09843±18040
(d) Check the idle speed.
Idle speed: 600 to 700 rpm
NOTICE:

Check the idle speed with the cooling fan OFF.

Switch off all accessories and air conditioning before
connecting the test prove to the terminal.
9. INSPECT COMPRESSION
(a) Warm up and stop the engine.
(b) Remove the ignition coil.
(c) Remove the spark plugs.
(d) Inspect cylinder compression pressure.
SST 09992±00500
(1) Insert a compression gauge into the spark plug
hole.
(2) Fully open the throttle.

± ENGINE MECHANICALENGINE (1ZZ±FE/3ZZ±FE)
14±3
AVENSIS REPAIR MANUAL (RM1018E)

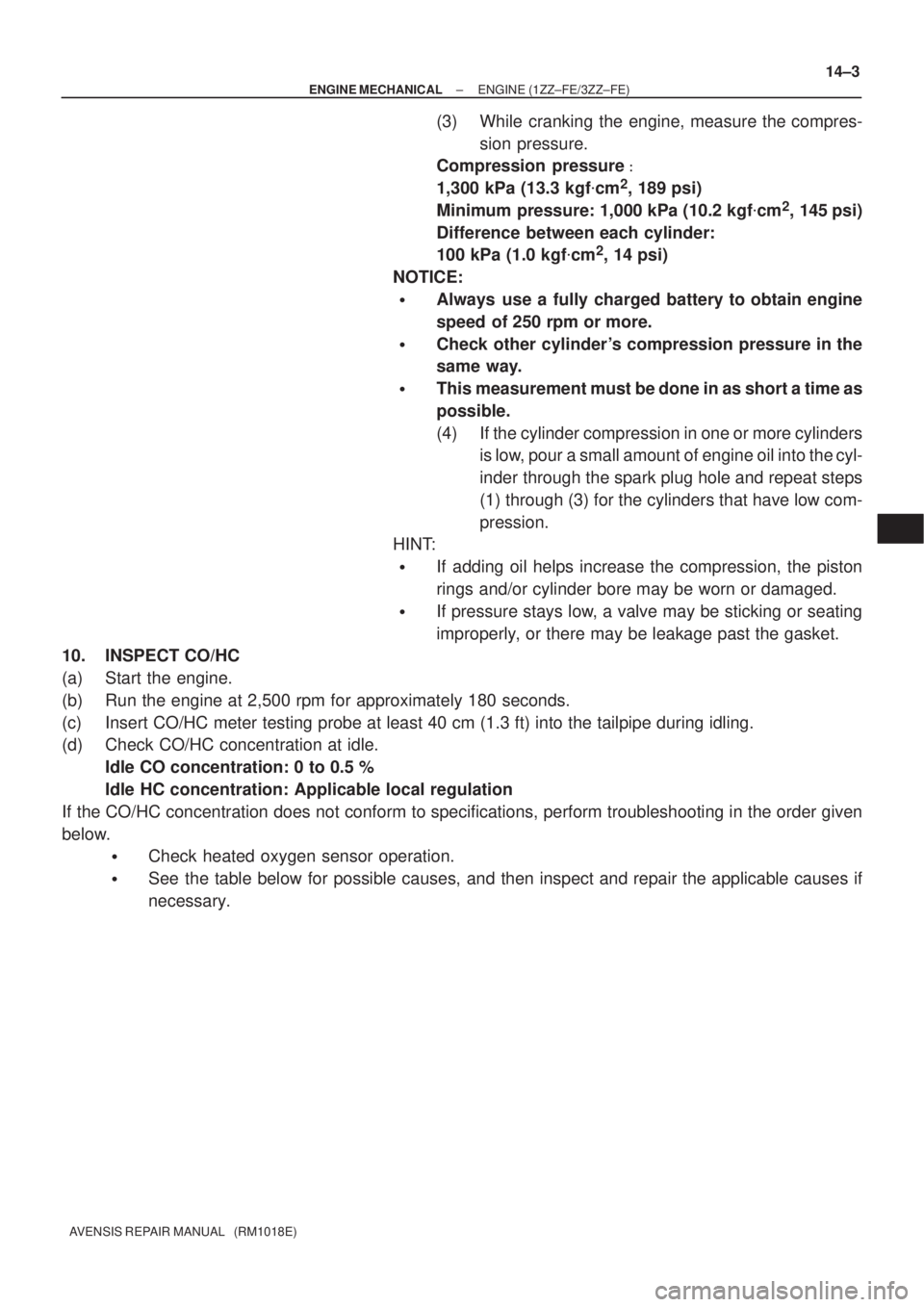

(3) While cranking the engine, measure the compres-
sion pressure.
Compression pressure


1,300 kPa (13.3 kgf
cm
2, 189 psi)
Minimum pressure: 1,000 kPa (10.2 kgf
cm
2, 145 psi)
Difference between each cylinder:
100 kPa (1.0 kgf
cm
2, 14 psi)
NOTICE:

Always use a fully charged battery to obtain engine
speed of 250 rpm or more.

Check other cylinder's compression pressure in the
same way.

This measurement must be done in as short a time as
possible.
(4) If the cylinder compression in one or more cylinders
is low, pour a small amount of engine oil into the cyl-
inder through the spark plug hole and repeat steps
(1) through (3) for the cylinders that have low com-
pression.
HINT:

If adding oil helps increase the compression, the piston
rings and/or cylinder bore may be worn or damaged.

If pressure stays low, a valve may be sticking or seating
improperly, or there may be leakage past the gasket.
10. INSPECT CO/HC
(a) Start the engine.
(b) Run the engine at 2,500 rpm for approximately 180 seconds.
(c) Insert CO/HC meter testing probe at least 40 cm (1.3 ft) into the tailpipe during idling.
(d) Check CO/HC concentration at idle.
Idle CO concentration: 0 to 0.5 %
Idle HC concentration: Applicable local regulation
If the CO/HC concentration does not conform to specifications, perform troubleshooting in the order given
below.

Check heated oxygen sensor operation.

See the table below for possible causes, and then inspect and repair the applicable causes if
necessary.

14±4
± ENGINE MECHANICALENGINE (1ZZ±FE/3ZZ±FE)

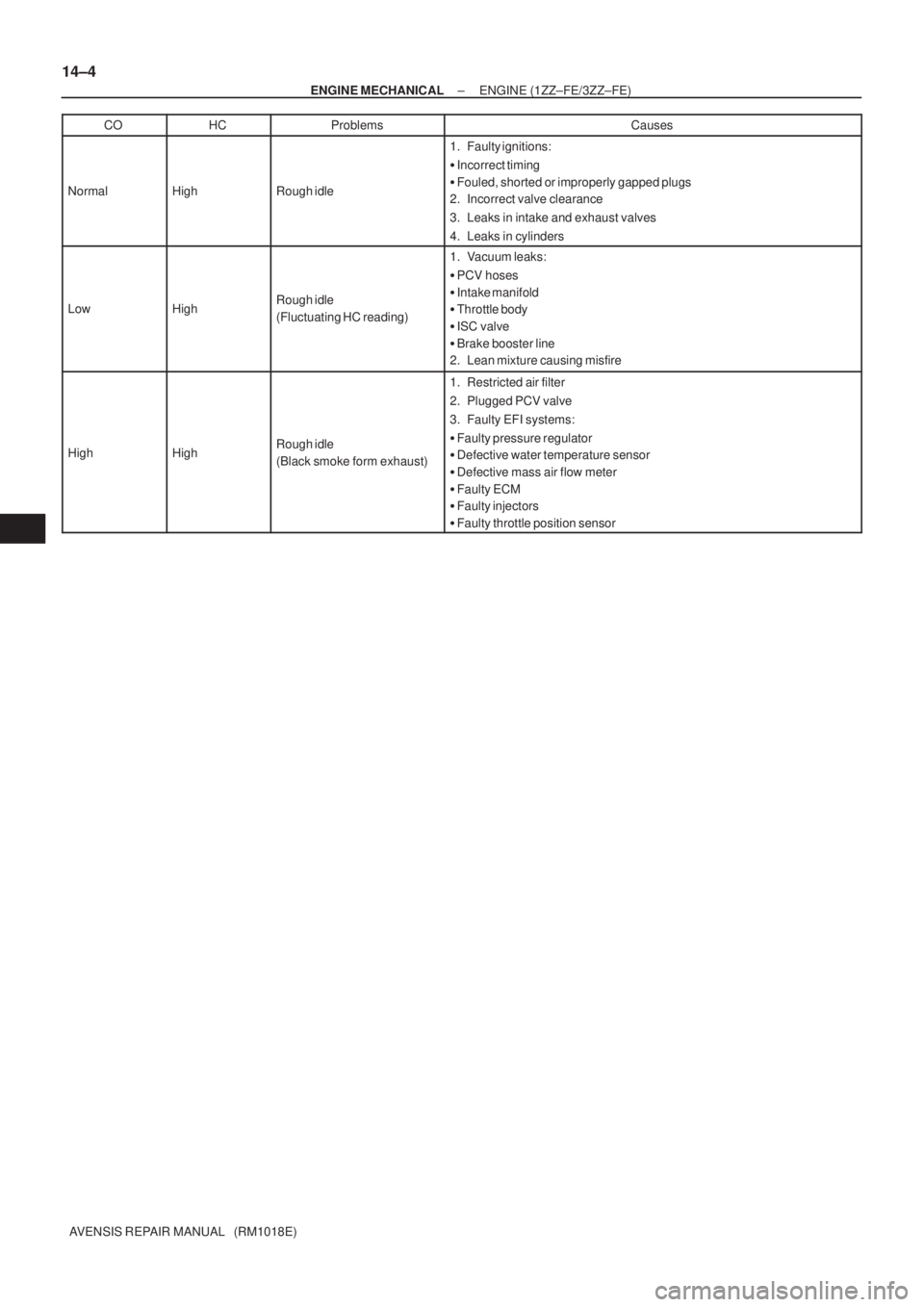

AVENSIS REPAIR MANUAL (RM1018E)CO
HCProblemsCauses
NormalHighRough idle
1. Faulty ignitions:

Incorrect timing

Fouled, shorted or improperly gapped plugs
2. Incorrect valve clearance
3. Leaks in intake and exhaust valves
4. Leaks in cylinders
LowHighRough idle
(Fluctuating HC reading)
1. Vacuum leaks:

PCV hoses

Intake manifold

Throttle body

ISC valve

Brake booster line
2. Lean mixture causing misfire
HighHighRough idle
(Black smoke form exhaust)
1. Restricted air filter
2. Plugged PCV valve
3. Faulty EFI systems:

Faulty pressure regulator

Defective water temperature sensor

Defective mass air flow meter

Faulty ECM

Faulty injectors

Faulty throttle position sensor

141BI±01
A77421
Cut Position
A77422SST
14±180
±
ENGINE MECHANICAL ENGINE REAR OIL SEAL(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

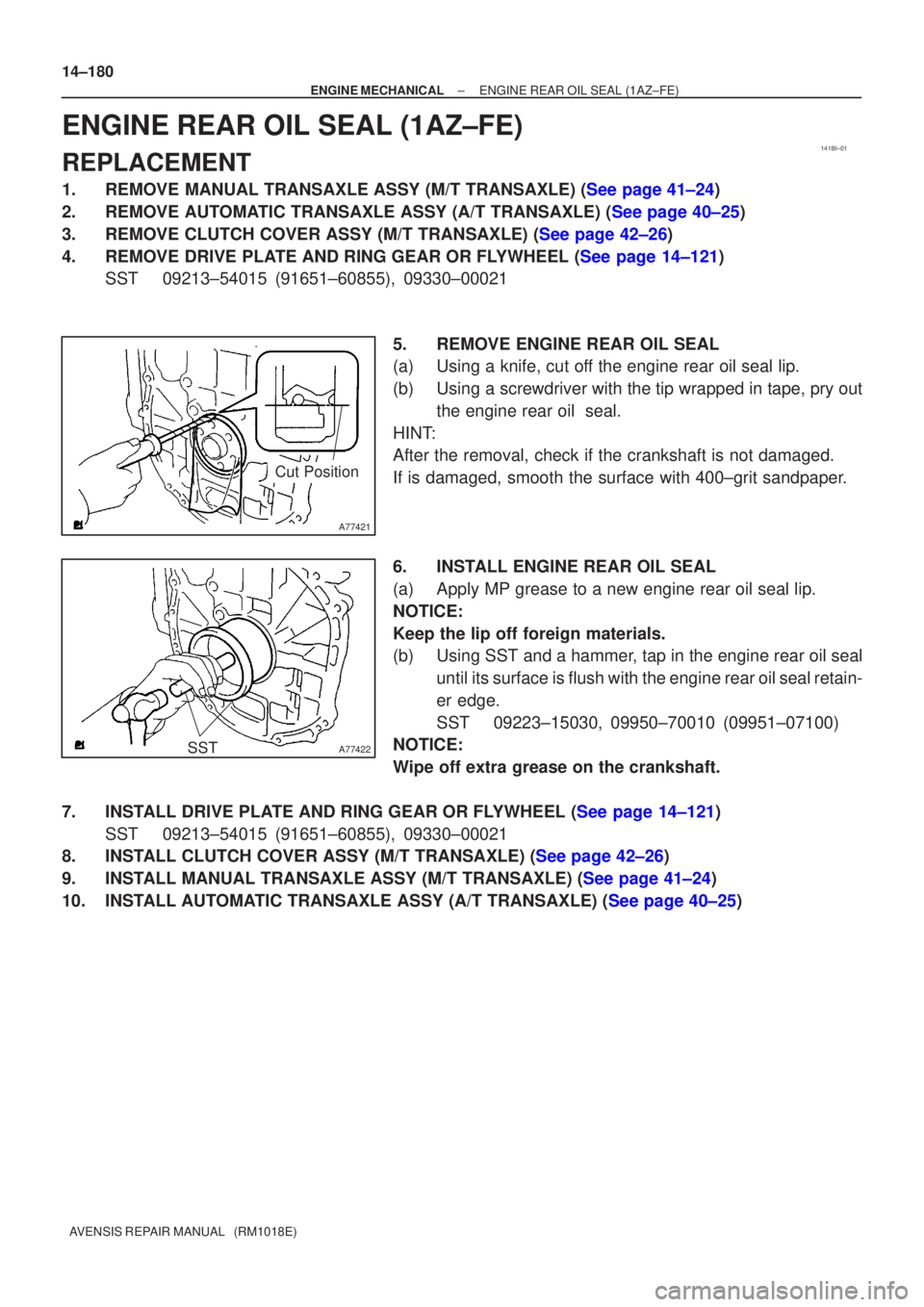

ENGINE REAR OIL SEAL(1AZ±FE)
REPLACEMENT
1.REMOVE MANUAL TRANSAXLE ASSY (M/T TRANSAXLE) (See page 41±24)
2.REMOVE AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE) (See page 40±25)
3.REMOVE CLUTCH COVER ASSY (M/T TRANSAXLE) (See page 42±26)
4.REMOVE DRIVE PLATE AND RING GEAR OR FLYWHEEL (See page 14±121) SST09213±54015 (91651±60855), 09330±00021
5.REMOVE ENGINE REAR OIL SEAL
(a)Using a knife, cut off the engine rear oil seal lip.
(b)Using a screwdriver with the tip wrapped in tape, pry outthe engine rear oil seal.
HINT:
After the removal, check if the crankshaft is not damaged.
If is damaged, smooth the surface with 400±grit sandpaper.
6.INSTALL ENGINE REAR OIL SEAL
(a)Apply MP grease to a new engine rear oil seal lip.
NOTICE:
Keep the lip off foreign materials.
(b)Using SST and a hammer, tap in the engine rear oil seal until its surface is flush with the engine rear oil seal retain-
er edge.
SST09223±15030, 09950±70010 (09951±07100)
NOTICE:
Wipe off extra grease on the crankshaft.
7.INSTALL DRIVE PLATE AND RING GEAR OR FLYWHEEL (See page 14±121) SST09213±54015 (91651±60855), 09330±00021
8.INSTALL CLUTCH COVER ASSY (M/T TRANSAXLE) (See page 42±26)
9.INSTALL MANUAL TRANSAXLE ASSY (M/T TRANSAXLE) (See page 41±24)
10.INSTALL AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE) (See page 40±25)

141BS±01
A77421
Cut Position
A77422SST
±
ENGINE MECHANICAL ENGINE REAR OIL SEAL(1AZ±FSE)
14±265
AVENSIS REPAIR MANUAL (RM1018E)

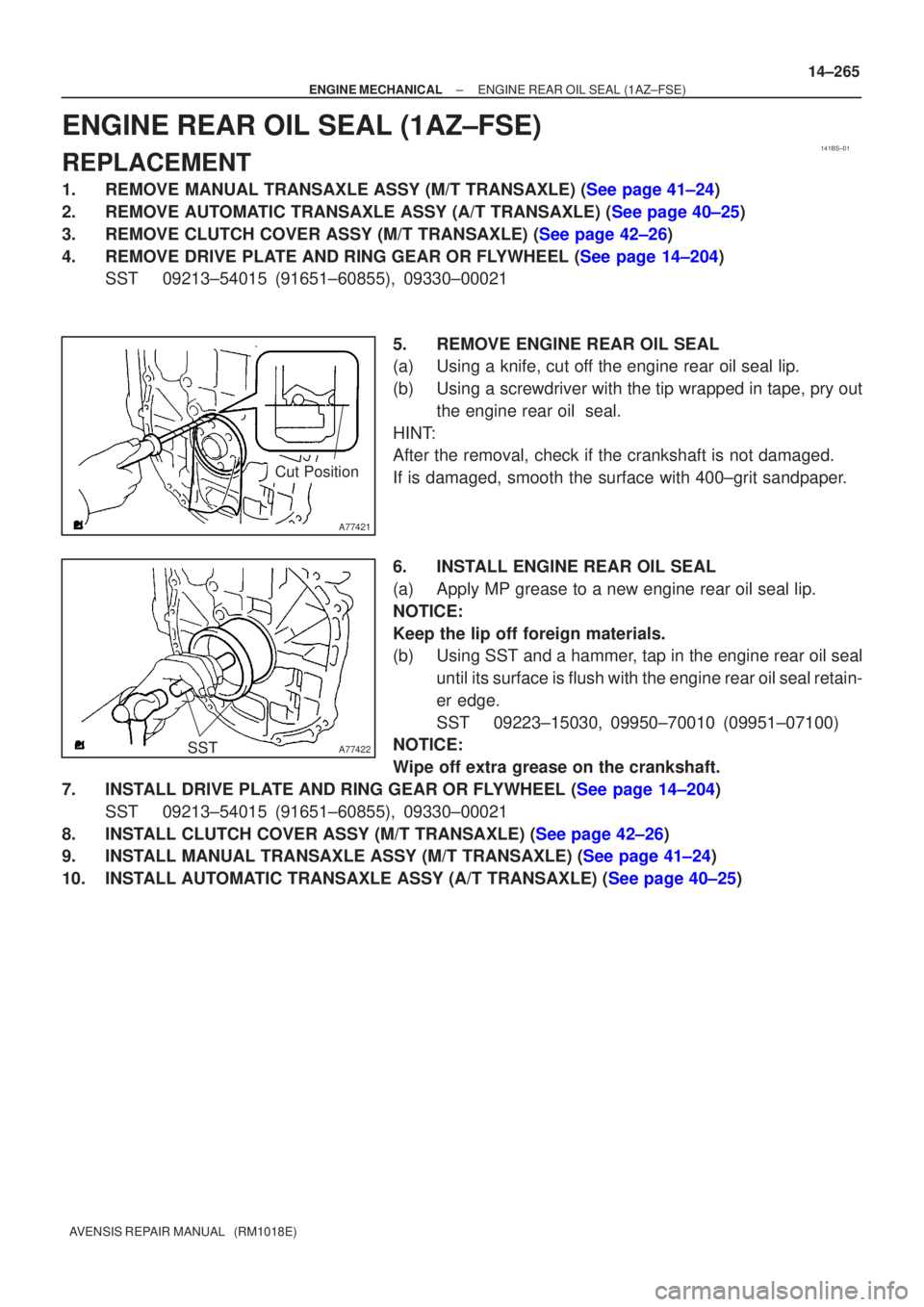

ENGINE REAR OIL SEAL(1AZ±FSE)
REPLACEMENT
1.REMOVE MANUAL TRANSAXLE ASSY (M/T TRANSAXLE) (See page 41±24)
2.REMOVE AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE) (See page 40±25)
3.REMOVE CLUTCH COVER ASSY (M/T TRANSAXLE) (See page 42±26)
4.REMOVE DRIVE PLATE AND RING GEAR OR FLYWHEEL (See page 14±204)
SST09213±54015 (91651±60855), 09330±00021
5.REMOVE ENGINE REAR OIL SEAL
(a)Using a knife, cut off the engine rear oil seal lip.
(b)Using a screwdriver with the tip wrapped in tape, pry outthe engine rear oil seal.
HINT:
After the removal, check if the crankshaft is not damaged.
If is damaged, smooth the surface with 400±grit sandpaper.
6.INSTALL ENGINE REAR OIL SEAL
(a)Apply MP grease to a new engine rear oil seal lip.
NOTICE:
Keep the lip off foreign materials.
(b)Using SST and a hammer, tap in the engine rear oil seal until its surface is flush with the engine rear oil seal retain-
er edge.
SST09223±15030, 09950±70010 (09951±07100)
NOTICE:
Wipe off extra grease on the crankshaft.
7.INSTALL DRIVE PLATE AND RING GEAR OR FLYWHEEL (See page 14±204) SST 09213±54015 (91651±60855), 09330±00021
8.INSTALL CLUTCH COVER ASSY (M/T TRANSAXLE) (See page 42±26)
9.INSTALL MANUAL TRANSAXLE ASSY (M/T TRANSAXLE) (See page 41±24)
10.INSTALL AUTOMATIC TRANSAXLE ASSY (A/T TRANSAXLE) (See page 40±25)

141CC±01
A61182
SST
A09447
SST
A09448
±
ENGINE MECHANICAL ENGINE REAR OIL SEAL(1CD±FTV)
14±345
AVENSIS REPAIR MANUAL (RM1018E)

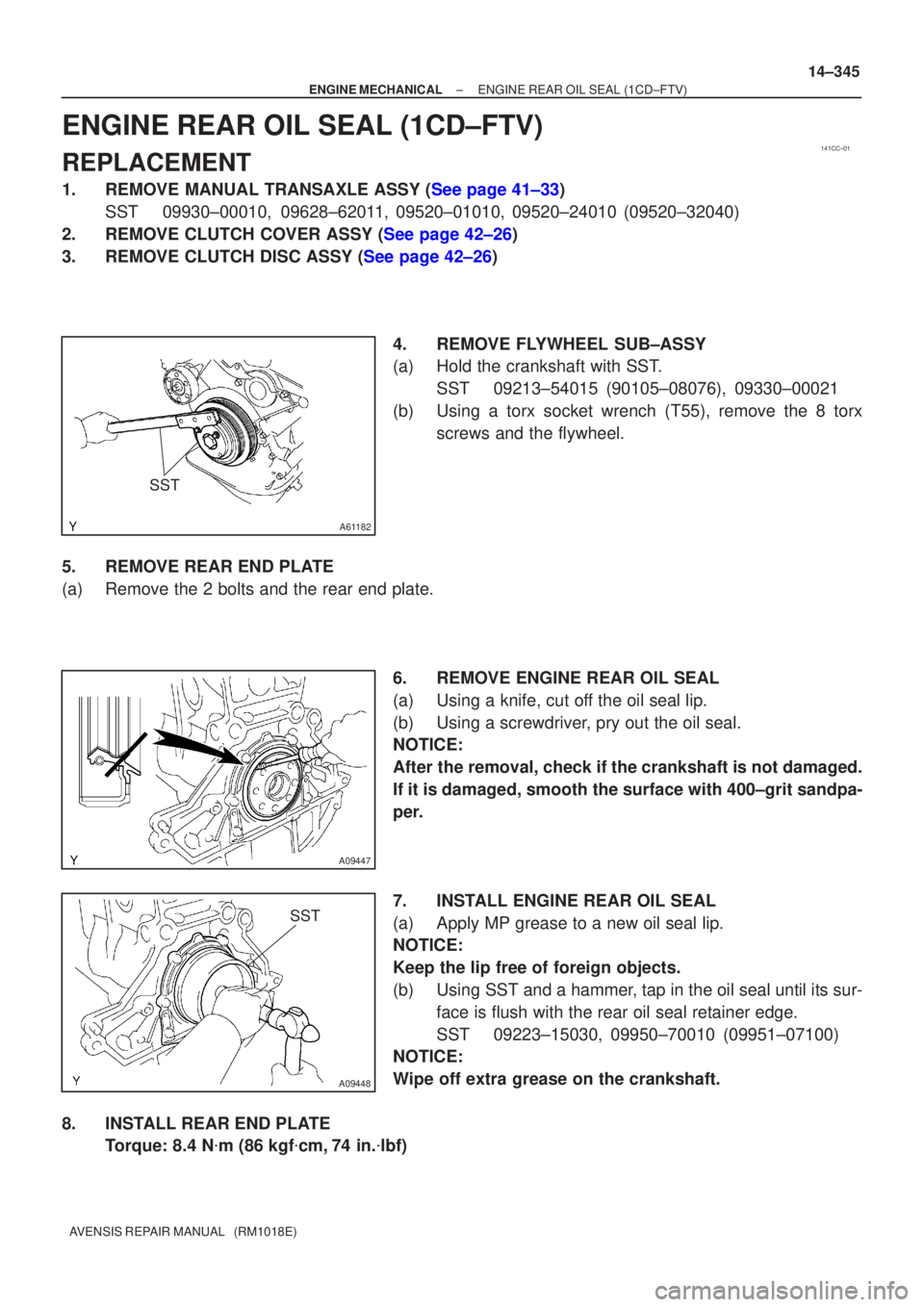

ENGINE REAR OIL SEAL(1CD±FTV)
REPLACEMENT
1.REMOVE MANUAL TRANSAXLE ASSY (See page 41±33)
SST 09930±00010, 09628±62011, 09520±01010, 09520±24010 (09520±32040)
2.REMOVE CLUTCH COVER ASSY (See page 42±26)
3.REMOVE CLUTCH DISC ASSY (See page 42±26)
4. REMOVE FLYWHEEL SUB±ASSY
(a) Hold the crankshaft with SST.SST 09213±54015 (90105±08076), 09330±00021
(b) Using a torx socket wrench (T55), remove the 8 torx screws and the flywheel.
5. REMOVE REAR END PLATE
(a) Remove the 2 bolts and the rear end plate. 6. REMOVE ENGINE REAR OIL SEAL
(a) Using a knife, cut off the oil seal lip.
(b) Using a screwdriver, pry out the oil seal.
NOTICE:
After the removal, check if the crankshaft is not damaged.
If it is damaged, smooth the surface with 400±grit sandpa-
per.
7. INSTALL ENGINE REAR OIL SEAL
(a) Apply MP grease to a new oil seal lip.
NOTICE:
Keep the lip free of foreign objects.
(b) Using SST and a hammer, tap in the oil seal until its sur-face is flush with the rear oil seal retainer edge.
SST 09223±15030, 09950±70010 (09951±07100)
NOTICE:
Wipe off extra grease on the crankshaft.
8. INSTALL REAR END PLATE Torque: 8.4 N
m (86 kgf
cm, 74 in.
lbf)

A61186
SST
A79183
1
7
5
8
4
3
26
14±346
±
ENGINE MECHANICAL ENGINE REAR OIL SEAL(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

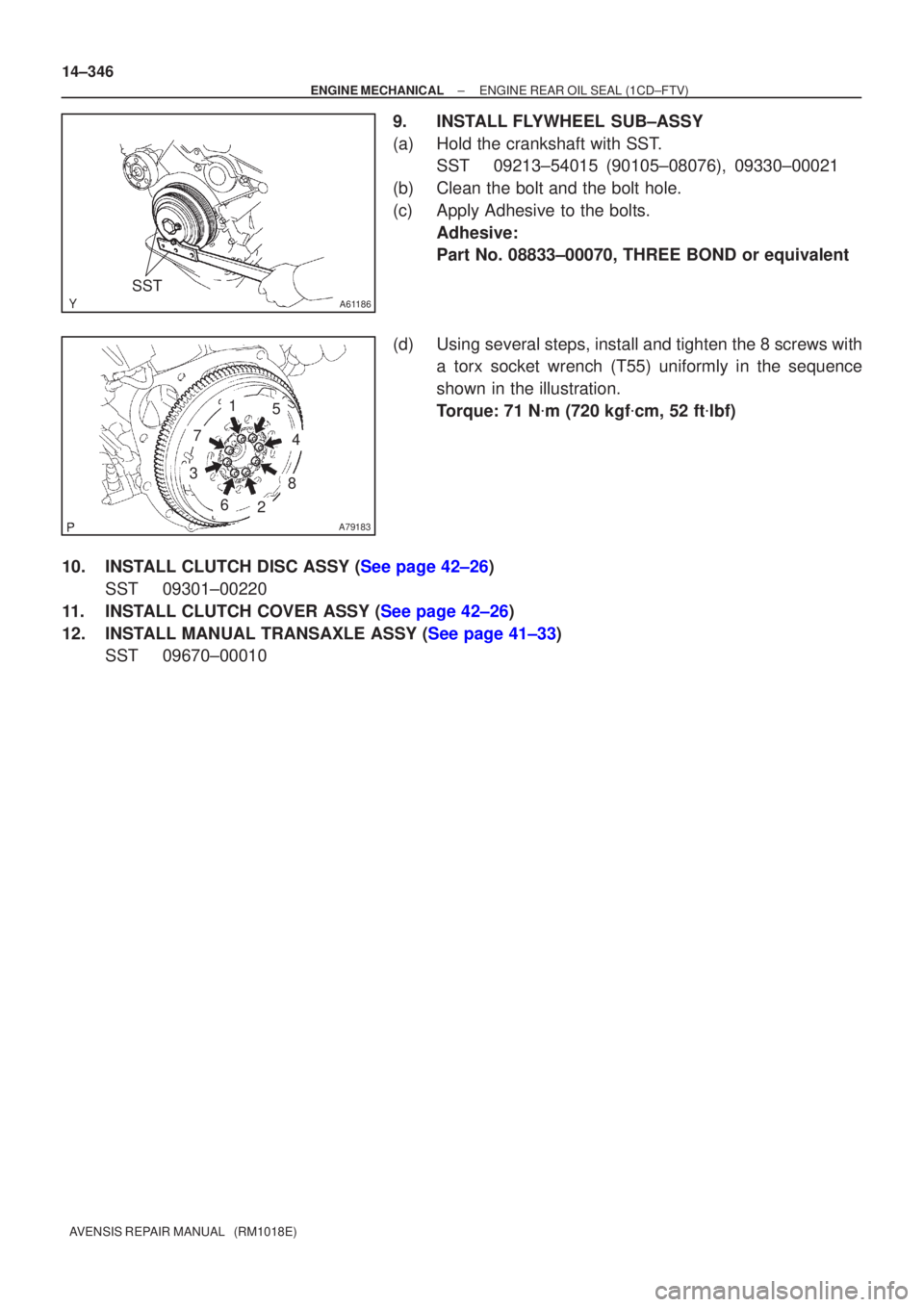

9.INSTALL FLYWHEEL SUB±ASSY
(a)Hold the crankshaft with SST. SST09213±54015 (90105±08076), 09330±00021
(b)Clean the bolt and the bolt hole.
(c)Apply Adhesive to the bolts. Adhesive:
Part No. 08833±00070, THREE BOND or equivalent
(d)Using several steps, install and tighten the 8 screws with a torx socket wrench (T55) uniformly in the sequence
shown in the illustration.
Torque: 71 N
m (720 kgf
cm, 52 ft
lbf)
10.INSTALL CLUTCH DISC ASSY (See page 42±26) SST 09301±00220
11.INSTALL CLUTCH COVER ASSY (See page 42±26)
12.INSTALL MANUAL TRANSAXLE ASSY (See page 41±33) SST 09670±00010
