2002 TOYOTA AVENSIS Repair Manual

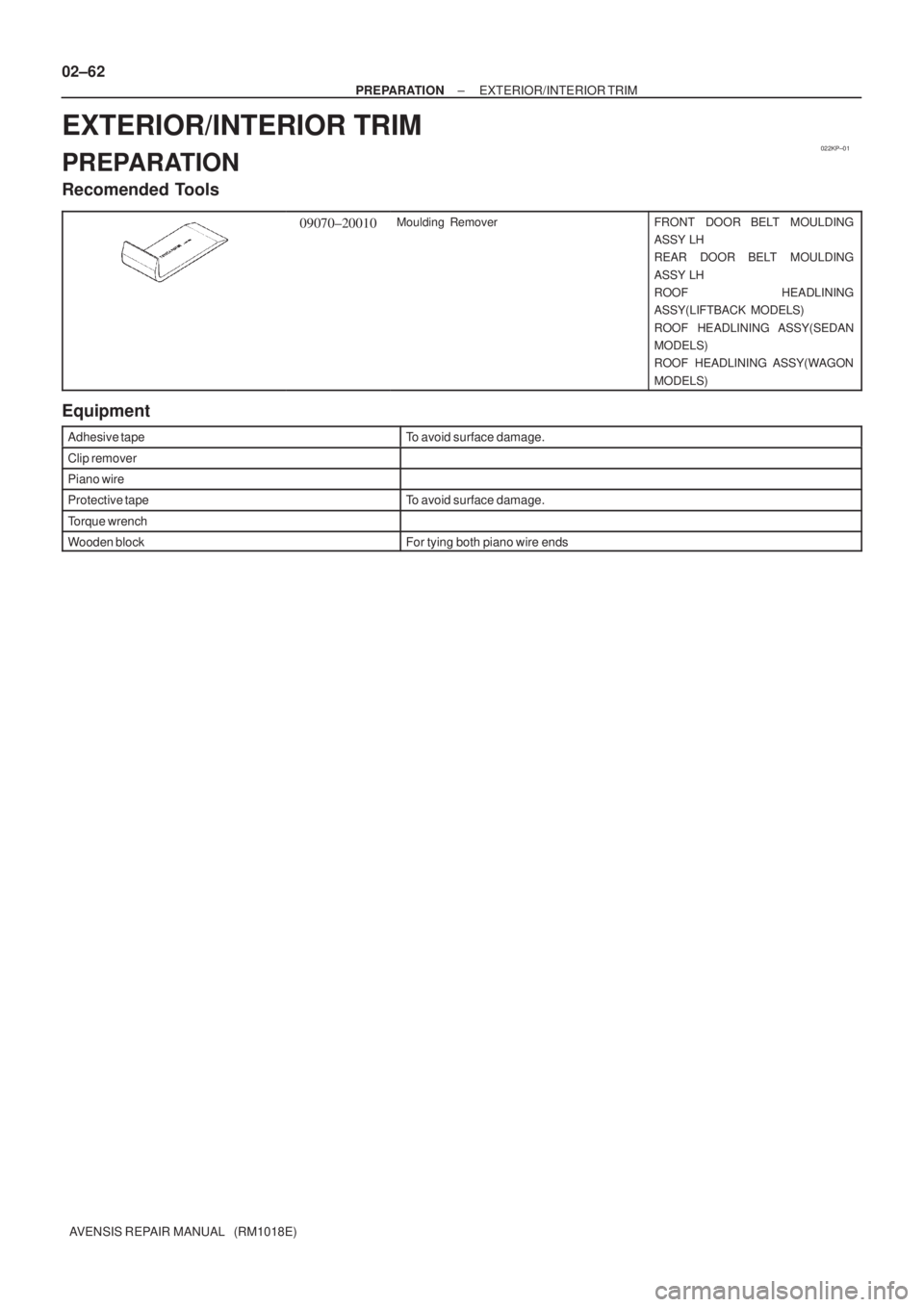

022KP±01
02±62
± PREPARATIONEXTERIOR/INTERIOR TRIM
AVENSIS REPAIR MANUAL (RM1018E)
EXTERIOR/INTERIOR TRIM
PREPARATION
Recomended Tools
09070±20010Moulding RemoverFRONT DOOR BELT MOULDING
ASSY LH
REAR DOOR BELT MOULDING
ASSY LH
ROOF HEADLINING
ASSY(LIFTBACK MODELS)
ROOF HEADLINING ASSY(SEDAN
MODELS)
ROOF HEADLINING ASSY(WAGON
MODELS)
Equipment
Adhesive tapeTo avoid surface damage.
Clip remover
Piano wire
Protective tapeTo avoid surface damage.
Torque wrench
Wooden blockFor tying both piano wire ends

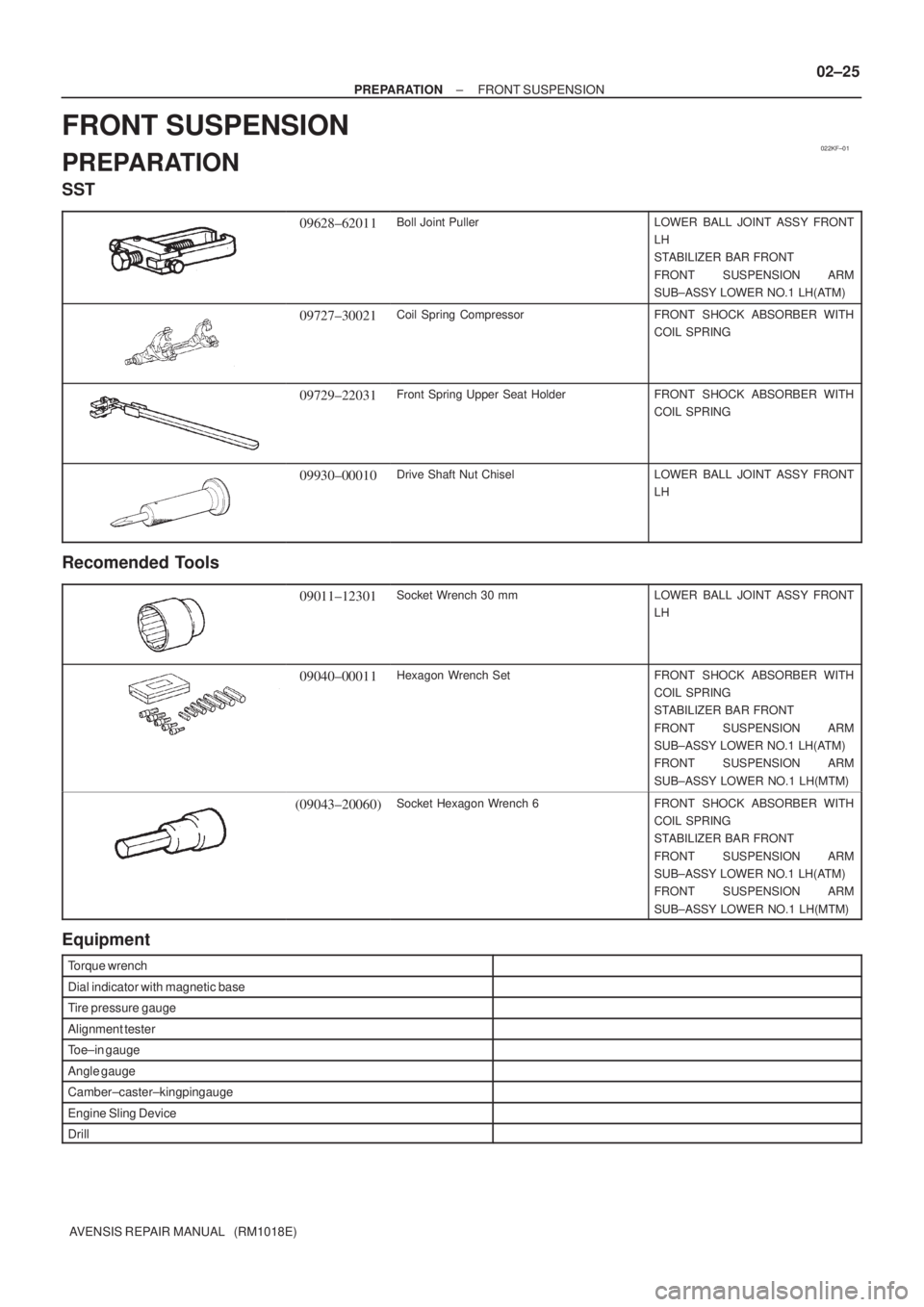

022KF±01
± PREPARATIONFRONT SUSPENSION
02±25
AVENSIS REPAIR MANUAL (RM1018E)
FRONT SUSPENSION
PREPARATION
SST
09628±62011Boll Joint PullerLOWER BALL JOINT ASSY FRONT
LH
STABILIZER BAR FRONT
FRONT SUSPENSION ARM
SUB±ASSY LOWER NO.1 LH(ATM)
09727±30021Coil Spring CompressorFRONT SHOCK ABSORBER WITH
COIL SPRING
09729±22031Front Spring Upper Seat HolderFRONT SHOCK ABSORBER WITH
COIL SPRING
09930±00010Drive Shaft Nut ChiselLOWER BALL JOINT ASSY FRONT
LH
Recomended Tools
09011±12301Socket Wrench 30 mmLOWER BALL JOINT ASSY FRONT
LH
09040±00011Hexagon Wrench SetFRONT SHOCK ABSORBER WITH
COIL SPRING
STABILIZER BAR FRONT
FRONT SUSPENSION ARM
SUB±ASSY LOWER NO.1 LH(ATM)
FRONT SUSPENSION ARM
SUB±ASSY LOWER NO.1 LH(MTM)
(09043±20060)Socket Hexagon Wrench 6FRONT SHOCK ABSORBER WITH
COIL SPRING
STABILIZER BAR FRONT
FRONT SUSPENSION ARM
SUB±ASSY LOWER NO.1 LH(ATM)
FRONT SUSPENSION ARM
SUB±ASSY LOWER NO.1 LH(MTM)
Equipment
Torque wrench
Dial indicator with magnetic base
Tire pressure gauge
Alignment tester
Toe±in gauge
Angle gauge
Camber±caster±kingpin gauge
Engine Sling Device
Drill

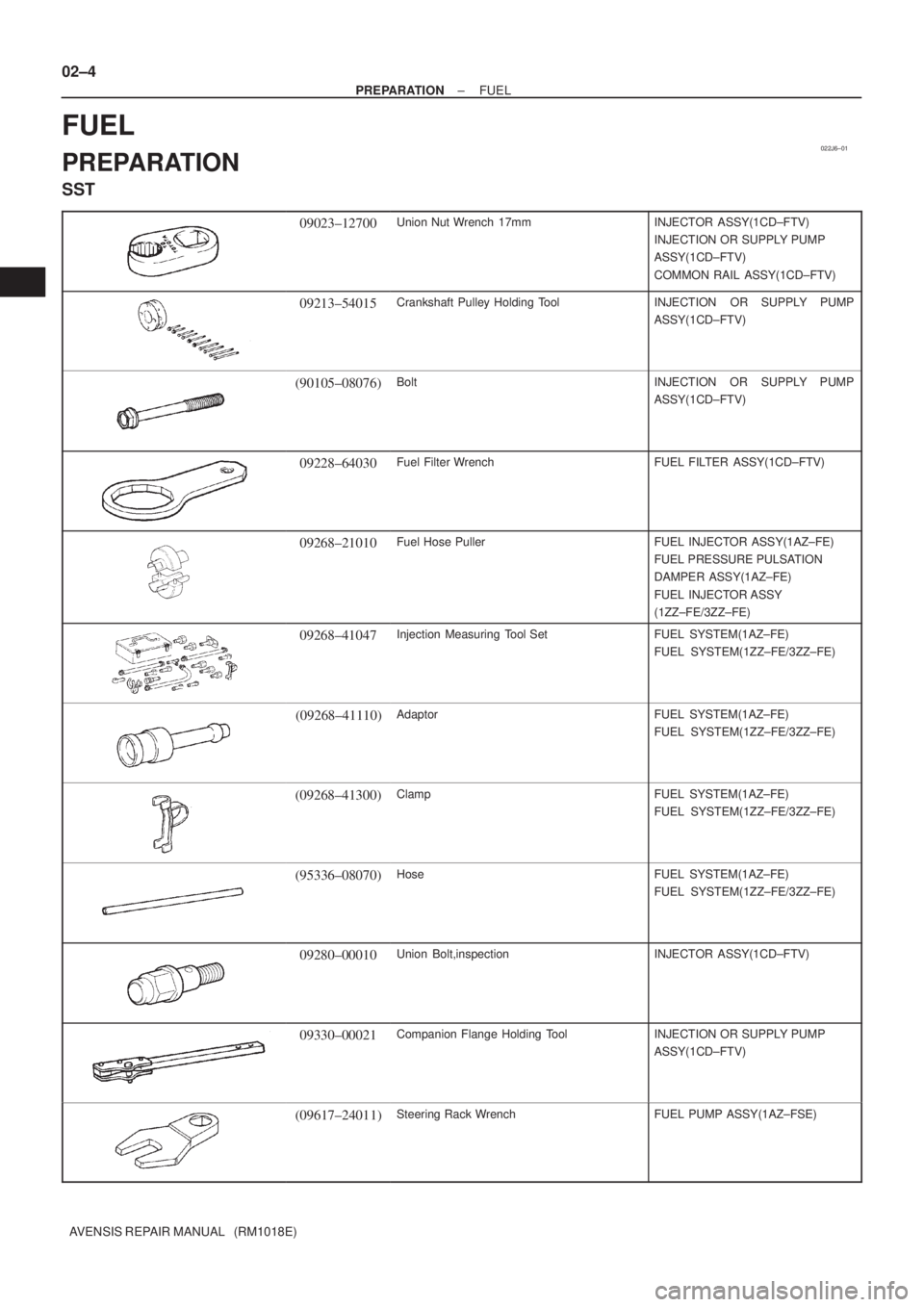

022J6±01
02±4
± PREPARATIONFUEL
AVENSIS REPAIR MANUAL (RM1018E)
FUEL
PREPARATION
SST
09023±12700Union Nut Wrench 17mmINJECTOR ASSY(1CD±FTV)
INJECTION OR SUPPLY PUMP
ASSY(1CD±FTV)
COMMON RAIL ASSY(1CD±FTV)
09213±54015Crankshaft Pulley Holding ToolINJECTION OR SUPPLY PUMP
ASSY(1CD±FTV)
(90105±08076)BoltINJECTION OR SUPPLY PUMP
ASSY(1CD±FTV)
09228±64030Fuel Filter WrenchFUEL FILTER ASSY(1CD±FTV)
09268±21010Fuel Hose PullerFUEL INJECTOR ASSY(1AZ±FE)
FUEL PRESSURE PULSATION
DAMPER ASSY(1AZ±FE)
FUEL INJECTOR ASSY
(1ZZ±FE/3ZZ±FE)
09268±41047Injection Measuring Tool SetFUEL SYSTEM(1AZ±FE)
FUEL SYSTEM(1ZZ±FE/3ZZ±FE)
(09268±41110)AdaptorFUEL SYSTEM(1AZ±FE)
FUEL SYSTEM(1ZZ±FE/3ZZ±FE)
(09268±41300)ClampFUEL SYSTEM(1AZ±FE)
FUEL SYSTEM(1ZZ±FE/3ZZ±FE)
(95336±08070)HoseFUEL SYSTEM(1AZ±FE)
FUEL SYSTEM(1ZZ±FE/3ZZ±FE)
09280±00010Union Bolt,inspectionINJECTOR ASSY(1CD±FTV)
09330±00021Companion Flange Holding ToolINJECTION OR SUPPLY PUMP
ASSY(1CD±FTV)
(09617±24011)Steering Rack WrenchFUEL PUMP ASSY(1AZ±FSE)

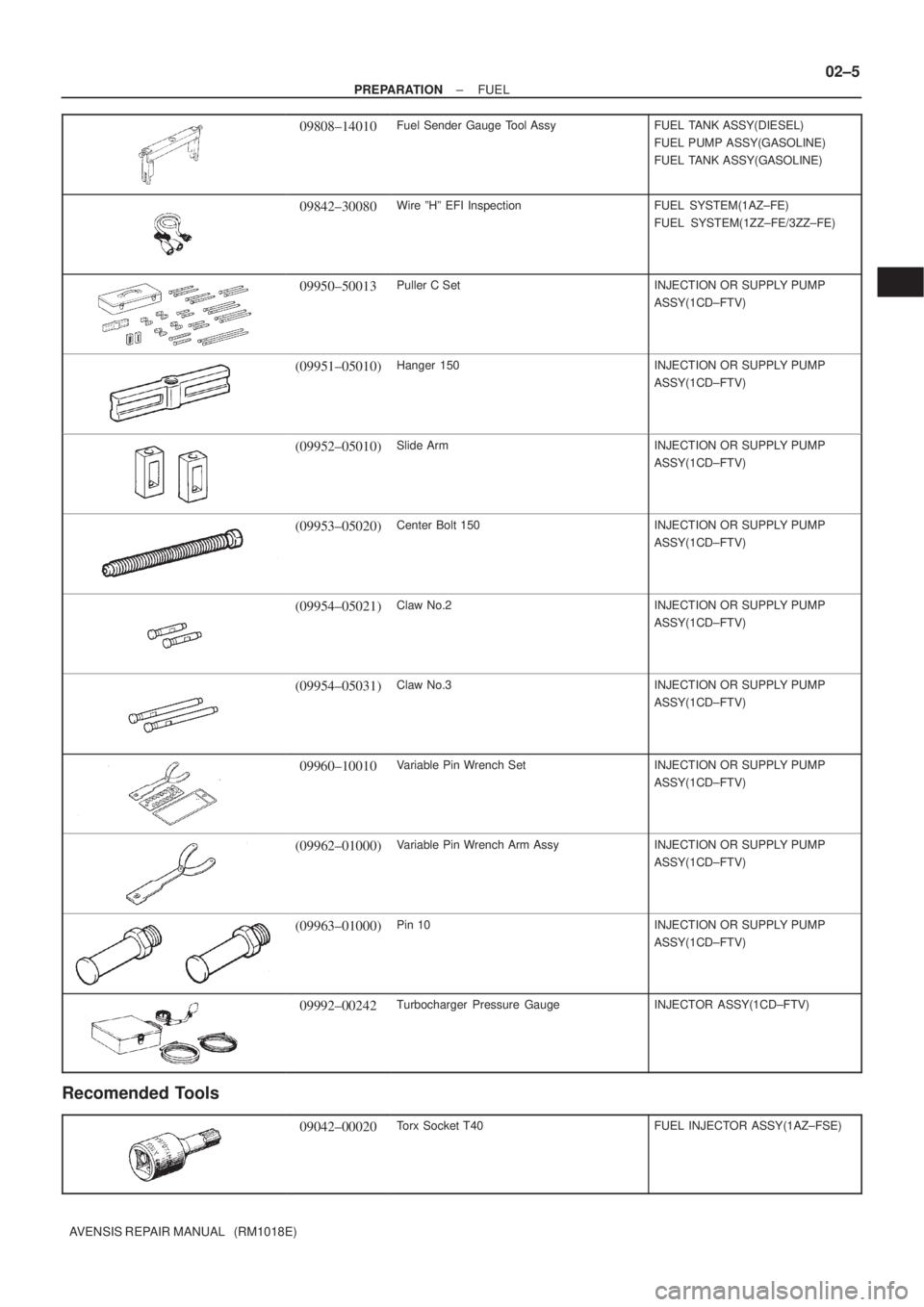

± PREPARATIONFUEL
02±5
AVENSIS REPAIR MANUAL (RM1018E)
09808±14010Fuel Sender Gauge Tool AssyFUEL TANK ASSY(DIESEL)
FUEL PUMP ASSY(GASOLINE)
FUEL TANK ASSY(GASOLINE)
09842±30080Wire ºHº EFI InspectionFUEL SYSTEM(1AZ±FE)
FUEL SYSTEM(1ZZ±FE/3ZZ±FE)
09950±50013Puller C SetINJECTION OR SUPPLY PUMP
ASSY(1CD±FTV)
(09951±05010)Hanger 150INJECTION OR SUPPLY PUMP
ASSY(1CD±FTV)
(09952±05010)Slide ArmINJECTION OR SUPPLY PUMP
ASSY(1CD±FTV)
(09953±05020)Center Bolt 150INJECTION OR SUPPLY PUMP
ASSY(1CD±FTV)
(09954±05021)Claw No.2INJECTION OR SUPPLY PUMP
ASSY(1CD±FTV)
(09954±05031)Claw No.3INJECTION OR SUPPLY PUMP
ASSY(1CD±FTV)
09960±10010Variable Pin Wrench SetINJECTION OR SUPPLY PUMP
ASSY(1CD±FTV)
(09962±01000)Variable Pin Wrench Arm AssyINJECTION OR SUPPLY PUMP
ASSY(1CD±FTV)
(09963±01000)Pin 10INJECTION OR SUPPLY PUMP
ASSY(1CD±FTV)
09992±00242Turbocharger Pressure GaugeINJECTOR ASSY(1CD±FTV)
Recomended Tools
09042±00020Torx Socket T40FUEL INJECTOR ASSY(1AZ±FSE)

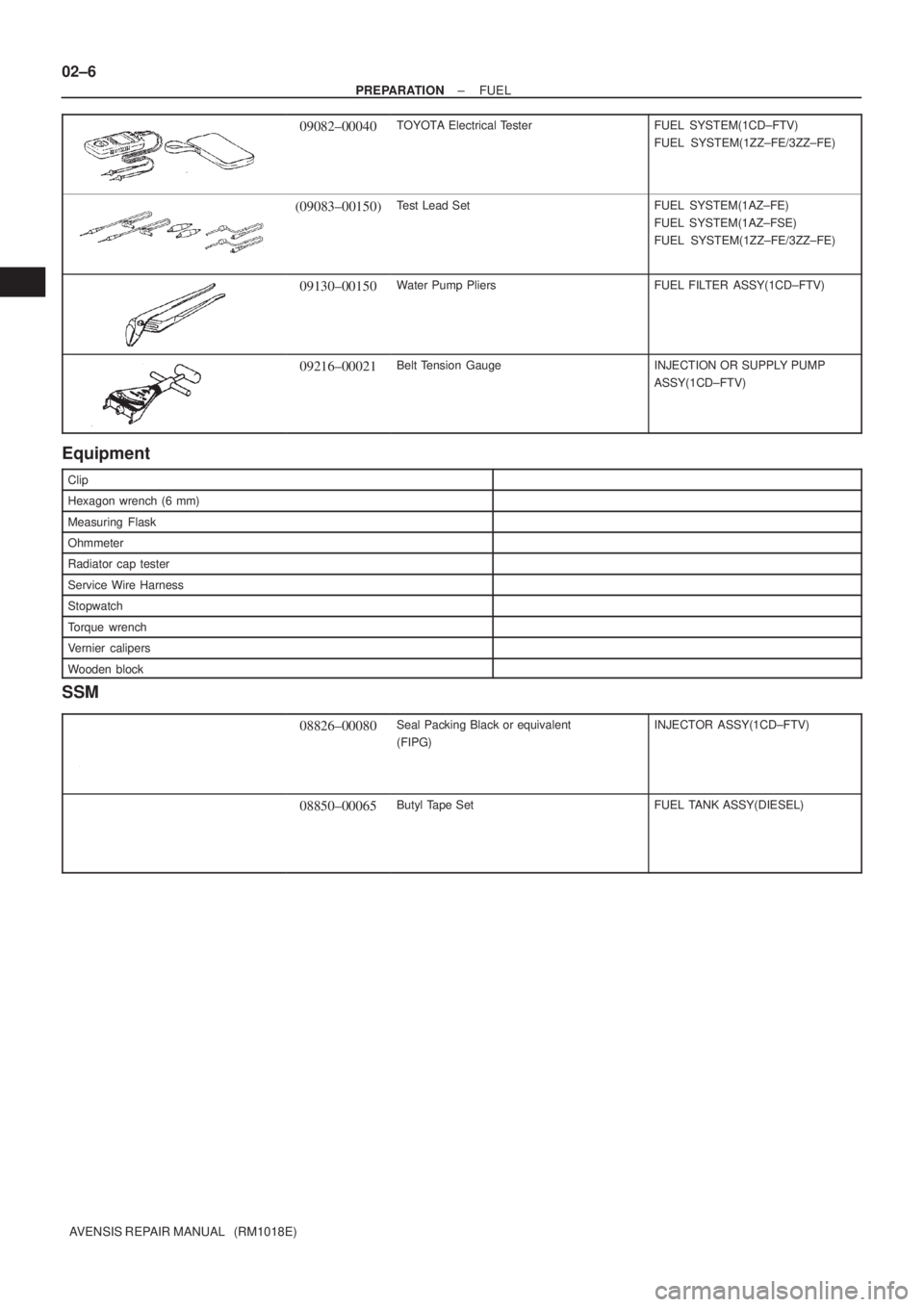

02±6
± PREPARATIONFUEL
AVENSIS REPAIR MANUAL (RM1018E)
09082±00040TOYOTA Electrical TesterFUEL SYSTEM(1CD±FTV)
FUEL SYSTEM(1ZZ±FE/3ZZ±FE)
(09083±00150)Test Lead SetFUEL SYSTEM(1AZ±FE)
FUEL SYSTEM(1AZ±FSE)
FUEL SYSTEM(1ZZ±FE/3ZZ±FE)
09130±00150Water Pump PliersFUEL FILTER ASSY(1CD±FTV)
09216±00021Belt Tension GaugeINJECTION OR SUPPLY PUMP
ASSY(1CD±FTV)
Equipment
Clip
Hexagon wrench (6 mm)
Measuring Flask
Ohmmeter
Radiator cap tester
Service Wire Harness
Stopwatch
Torque wrench
Vernier calipers
Wooden block
SSM
08826±00080Seal Packing Black or equivalent
(FIPG)INJECTOR ASSY(1CD±FTV)
08850±00065Butyl Tape SetFUEL TANK ASSY(DIESEL)

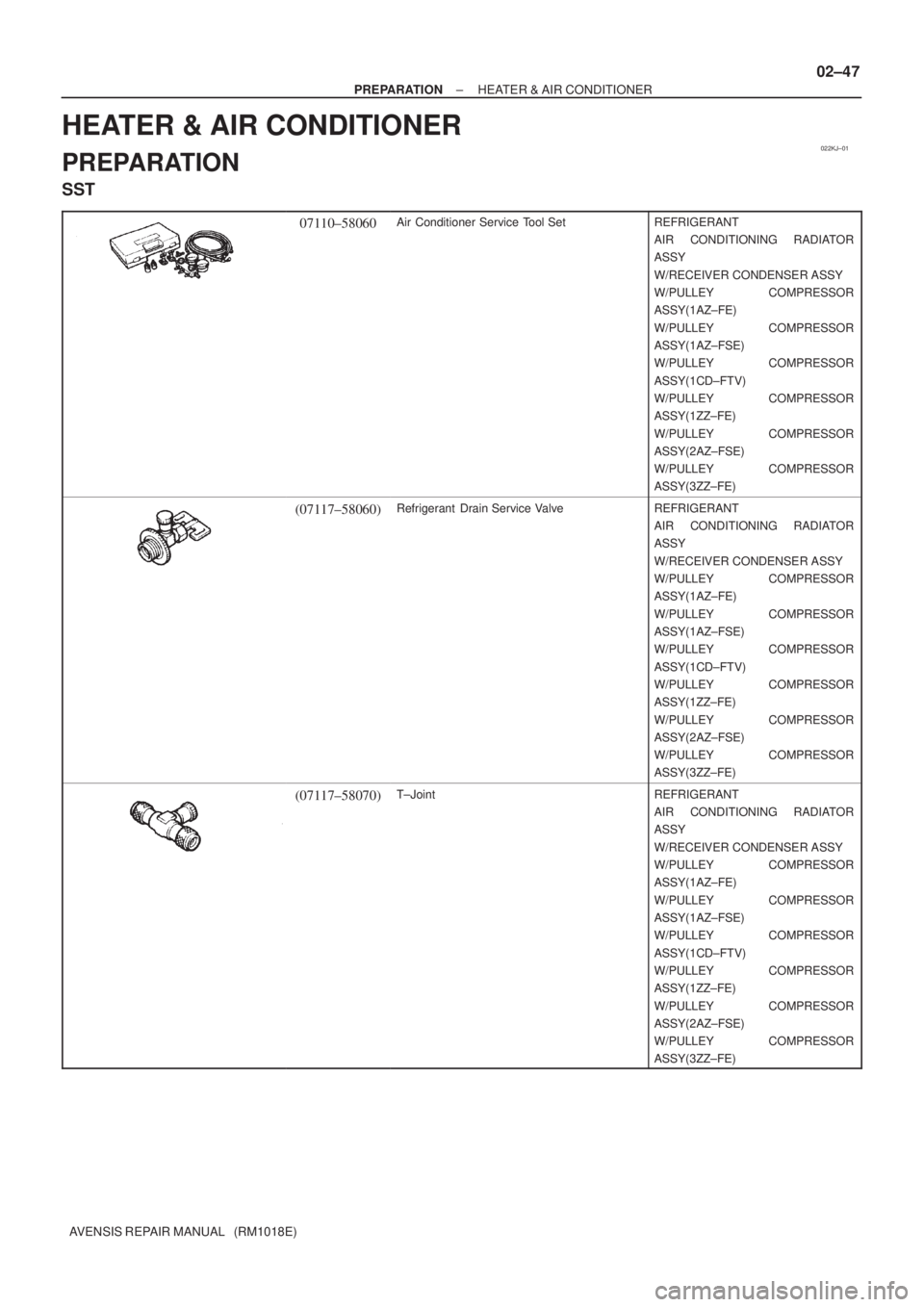

022KJ±01
± PREPARATIONHEATER & AIR CONDITIONER
02±47
AVENSIS REPAIR MANUAL (RM1018E)
HEATER & AIR CONDITIONER
PREPARATION
SST
07110±58060Air Conditioner Service Tool SetREFRIGERANT
AIR CONDITIONING RADIATOR
ASSY
W/RECEIVER CONDENSER ASSY
W/PULLEY COMPRESSOR
ASSY(1AZ±FE)
W/PULLEY COMPRESSOR
ASSY(1AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(1CD±FTV)
W/PULLEY COMPRESSOR
ASSY(1ZZ±FE)
W/PULLEY COMPRESSOR
ASSY(2AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(3ZZ±FE)
(07117±58060)Refrigerant Drain Service ValveREFRIGERANT
AIR CONDITIONING RADIATOR
ASSY
W/RECEIVER CONDENSER ASSY
W/PULLEY COMPRESSOR
ASSY(1AZ±FE)
W/PULLEY COMPRESSOR
ASSY(1AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(1CD±FTV)
W/PULLEY COMPRESSOR
ASSY(1ZZ±FE)
W/PULLEY COMPRESSOR
ASSY(2AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(3ZZ±FE)
(07117±58070)T±JointREFRIGERANT
AIR CONDITIONING RADIATOR
ASSY
W/RECEIVER CONDENSER ASSY
W/PULLEY COMPRESSOR
ASSY(1AZ±FE)
W/PULLEY COMPRESSOR
ASSY(1AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(1CD±FTV)
W/PULLEY COMPRESSOR
ASSY(1ZZ±FE)
W/PULLEY COMPRESSOR
ASSY(2AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(3ZZ±FE)

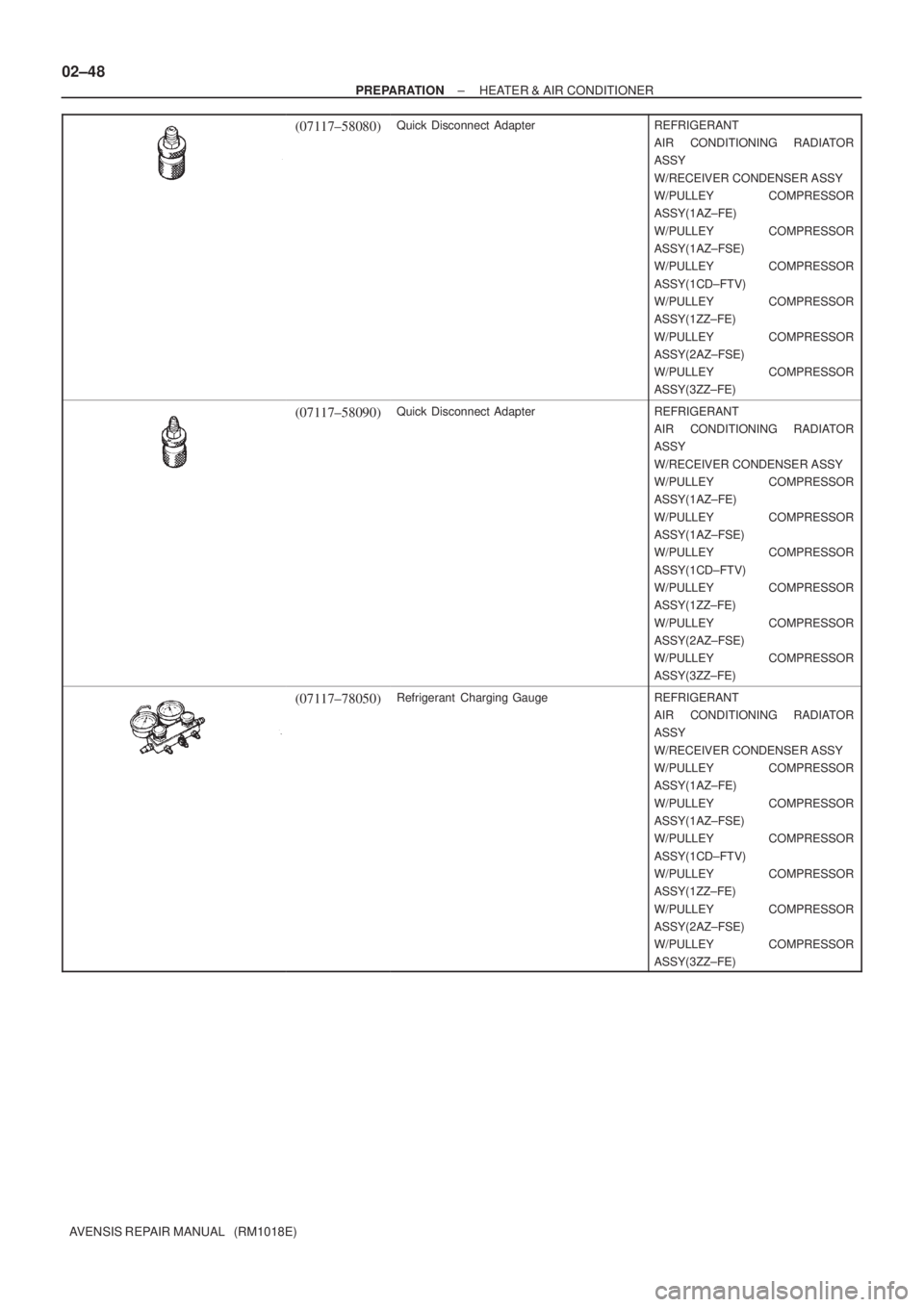

02±48
± PREPARATIONHEATER & AIR CONDITIONER
AVENSIS REPAIR MANUAL (RM1018E)
(07117±58080)Quick Disconnect AdapterREFRIGERANT
AIR CONDITIONING RADIATOR
ASSY
W/RECEIVER CONDENSER ASSY
W/PULLEY COMPRESSOR
ASSY(1AZ±FE)
W/PULLEY COMPRESSOR
ASSY(1AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(1CD±FTV)
W/PULLEY COMPRESSOR
ASSY(1ZZ±FE)
W/PULLEY COMPRESSOR
ASSY(2AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(3ZZ±FE)
(07117±58090)Quick Disconnect AdapterREFRIGERANT
AIR CONDITIONING RADIATOR
ASSY
W/RECEIVER CONDENSER ASSY
W/PULLEY COMPRESSOR
ASSY(1AZ±FE)
W/PULLEY COMPRESSOR
ASSY(1AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(1CD±FTV)
W/PULLEY COMPRESSOR
ASSY(1ZZ±FE)
W/PULLEY COMPRESSOR
ASSY(2AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(3ZZ±FE)
(07117±78050)Refrigerant Charging GaugeREFRIGERANT
AIR CONDITIONING RADIATOR
ASSY
W/RECEIVER CONDENSER ASSY
W/PULLEY COMPRESSOR
ASSY(1AZ±FE)
W/PULLEY COMPRESSOR
ASSY(1AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(1CD±FTV)
W/PULLEY COMPRESSOR
ASSY(1ZZ±FE)
W/PULLEY COMPRESSOR
ASSY(2AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(3ZZ±FE)

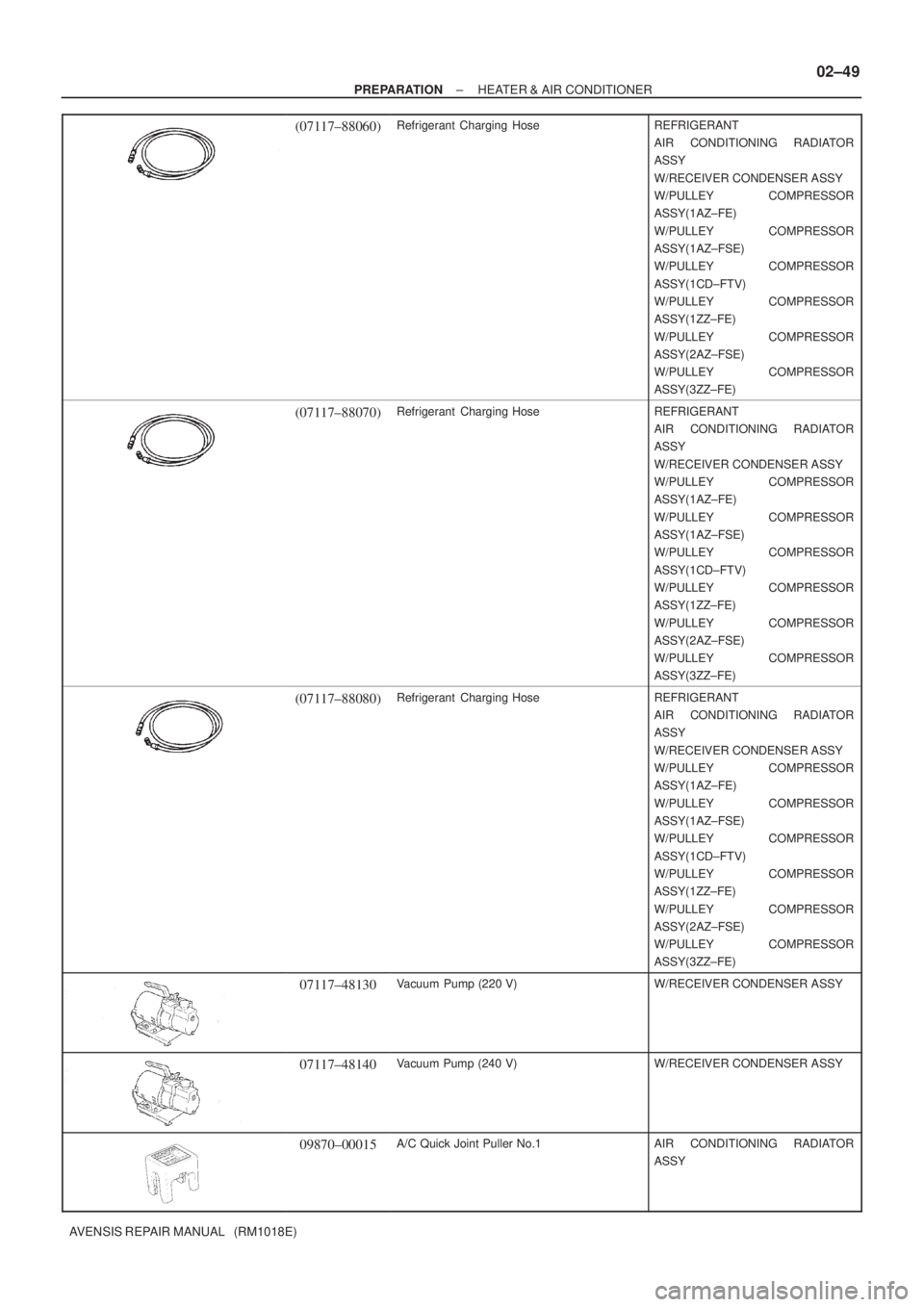

± PREPARATIONHEATER & AIR CONDITIONER
02±49
AVENSIS REPAIR MANUAL (RM1018E)
(07117±88060)Refrigerant Charging HoseREFRIGERANT
AIR CONDITIONING RADIATOR
ASSY
W/RECEIVER CONDENSER ASSY
W/PULLEY COMPRESSOR
ASSY(1AZ±FE)
W/PULLEY COMPRESSOR
ASSY(1AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(1CD±FTV)
W/PULLEY COMPRESSOR
ASSY(1ZZ±FE)
W/PULLEY COMPRESSOR
ASSY(2AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(3ZZ±FE)
(07117±88070)Refrigerant Charging HoseREFRIGERANT
AIR CONDITIONING RADIATOR
ASSY
W/RECEIVER CONDENSER ASSY
W/PULLEY COMPRESSOR
ASSY(1AZ±FE)
W/PULLEY COMPRESSOR
ASSY(1AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(1CD±FTV)
W/PULLEY COMPRESSOR
ASSY(1ZZ±FE)
W/PULLEY COMPRESSOR
ASSY(2AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(3ZZ±FE)
(07117±88080)Refrigerant Charging HoseREFRIGERANT
AIR CONDITIONING RADIATOR
ASSY
W/RECEIVER CONDENSER ASSY
W/PULLEY COMPRESSOR
ASSY(1AZ±FE)
W/PULLEY COMPRESSOR
ASSY(1AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(1CD±FTV)
W/PULLEY COMPRESSOR
ASSY(1ZZ±FE)
W/PULLEY COMPRESSOR
ASSY(2AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(3ZZ±FE)
07117±48130Vacuum Pump (220 V)W/RECEIVER CONDENSER ASSY
07117±48140Vacuum Pump (240 V)W/RECEIVER CONDENSER ASSY
09870±00015A/C Quick Joint Puller No.1AIR CONDITIONING RADIATOR
ASSY
