2002 TOYOTA AVENSIS Repair Manual

B04812
Gasket
± EMISSION CONTROLEMISSION CONTROL SYSTEM (1ZZ±FE/3ZZ±FE)
12±5
AVENSIS REPAIR MANUAL (RM1018E)

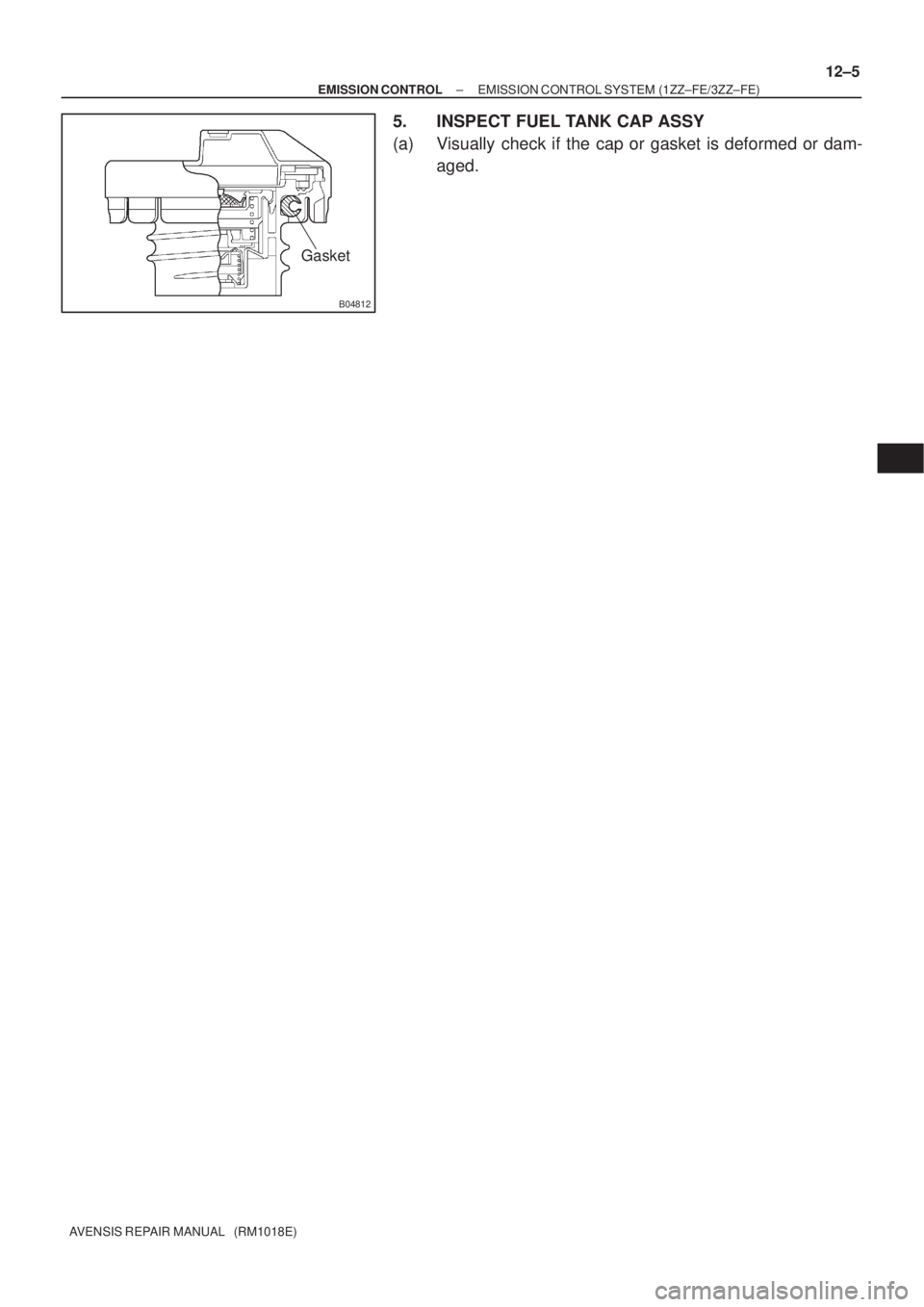

5. INSPECT FUEL TANK CAP ASSY
(a) Visually check if the cap or gasket is deformed or dam-
aged.

1209C±02
A65749
E1
OX1AOX1B
ECM
A66059
± EMISSION CONTROLEMISSION CONTROL SYSTEM (1ZZ±FE/3ZZ±FE)
12±1
AVENSIS REPAIR MANUAL (RM1018E)
EMISSION CONTROL SYSTEM (1ZZ±FE/3ZZ±FE)
ON±VEHICLE INSPECTION
1. INSPECT AIR±FUEL RATIO COMPENSATION SYS-
TEM
HINT:
You can also check the system by choosing ºDATA MONITOR/
O
2 SENSOR OUTPUT VOLTAGEº on the monitor of the hand±
held tester.
(a) Connect the hand±held tester to the terminals 21 (OX1B)
and 7 (E1) and to terminals 23 (OX1A) and 7 (E1) of the
ECM.
CAUTION:
Connect test leads from the back side of the connector with
the ECM connected.
(b) Warm up the heated oxygen sensor with the engine
speed at 2,500 rpm for approximately 2 minutes.
(c) Confirm that the voltage varies output between 0V to 1V
with the engine speed at 2,500 rpm.
OK:
The voltage output varies more than 8 times in 10 se-
conds.
CAUTION:

Perform the check immediately after the warming up.

If the voltage variation could not be verified, warm up
the heated oxygen sensor again.
2. INSPECT FUEL CUT OFF RPM
(a) Increase the engine speed to at least 3,500 rpm.
(b) Use a sound scope to check for injector operating sounds.
(c) Check that injector operating sounds stops momentarily and then resumes when the throttle lever is
released.
3. INSPECT EVAPORATIVE EMISSION CONTROL SYS-
TEM
(a) After starting the engine, disconnect the vacuum hose
shown in the illustration.
(b) Check if vacuum occurs at the VSV port when choosing
ºACTIVE TESTº and ºPURGE VSVº according to the dis-
play on hand±held tester.
(c) Finish ºACTIVE TESTº, then reconnect the vacuum.
(d) After entering to ºECU DATA MONITORº on the hand±
held tester, choose ºPURGE VSVº to check the operation
of the purge VSV.
(e) After driving the vehicle with a warm engine, confirm that
the VSV turns from off to on.

A62836
1ZZ±FE
3ZZ±FE
12±2
± EMISSION CONTROLEMISSION CONTROL SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

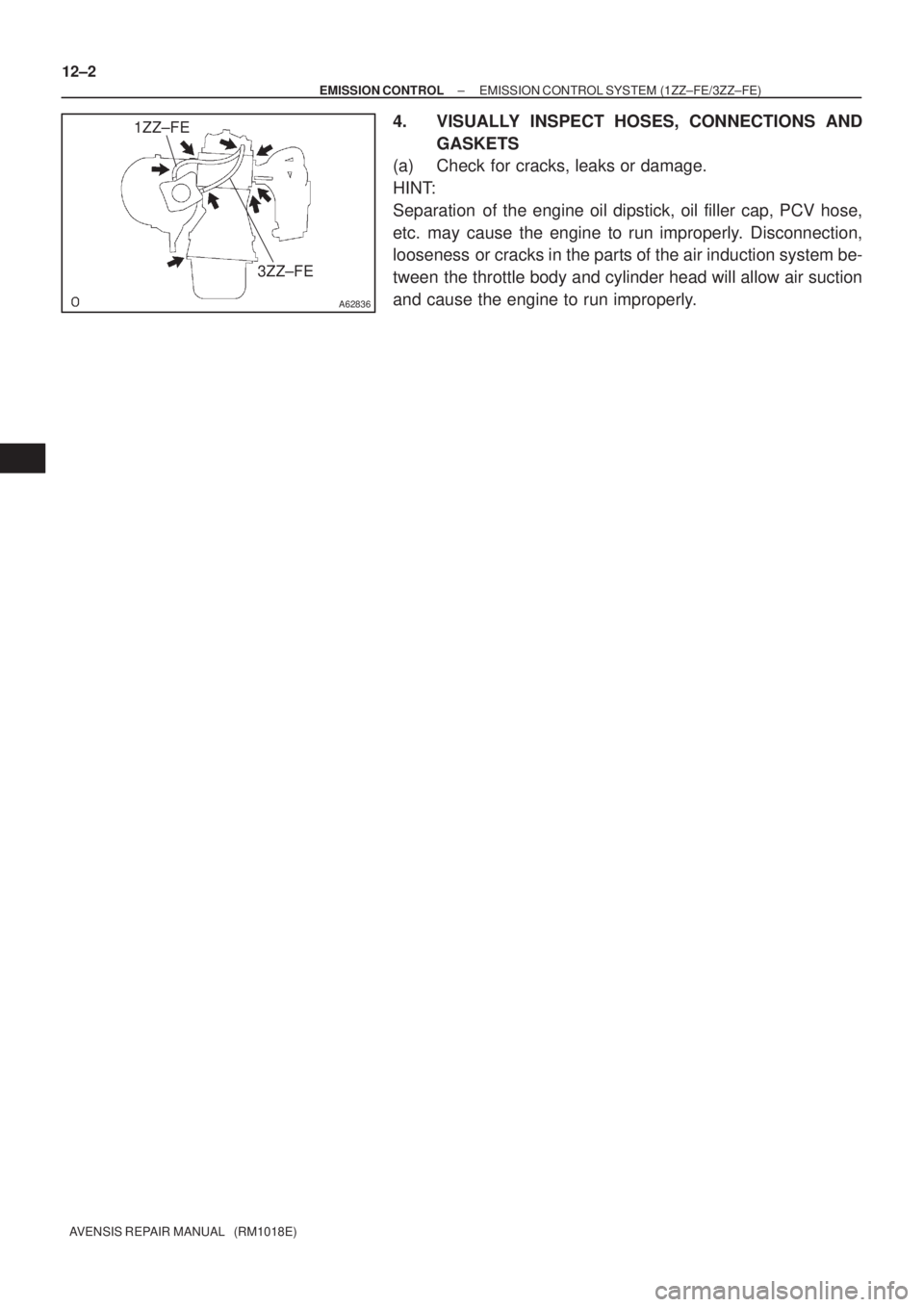

4. VISUALLY INSPECT HOSES, CONNECTIONS AND
GASKETS
(a) Check for cracks, leaks or damage.
HINT:
Separation of the engine oil dipstick, oil filler cap, PCV hose,
etc. may cause the engine to run improperly. Disconnection,
looseness or cracks in the parts of the air induction system be-
tween the throttle body and cylinder head will allow air suction
and cause the engine to run improperly.

100FM±02
A78489
A78490
10±66
± ENGINE CONTROL SYSTEMACCELERATOR PEDAL ASSY (1AZ±FSE/1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
ACCELERATOR PEDAL ASSY (1AZ±FSE/1CD±FTV)
REPLACEMENT
1. REMOVE ACCELERATOR PEDAL
(a) Using a clip remover, remove the clip.
(b) Open the floor carpet.
(c) Disconnect the accelerator position sensor connector.
(d) Remove the 2 bolts, and then remove the accelerator
pedal.
2. INSTALL ACCELERATOR PEDAL
Torque: 5.4 N
m (55 kgf
cm, 48 in.
lbf)

100FP±01
A79139
A79141
± ENGINE CONTROL SYSTEMCAMSHAFT POSITION SENSOR (1CD±FTV)
10±63
AVENSIS REPAIR MANUAL (RM1018E)
CAMSHAFT POSITION SENSOR (1CD±FTV)
REPLACEMENT
1. SEPARATE RETURN TUBE SUB±ASSY
(a) Remove the bolt and separate the return tube sub±assy.
2. REMOVE CAMSHAFT POSITION SENSOR
(a) Remove the bolt and disconnect the wire harness.
(b) Disconnect the connector, remove the bolt and the cam-
shaft position sensor.
3. INSTALL CAMSHAFT POSITION SENSOR
Torque:
8.8 N
m (90 kgf
cm, 79 in.
lbf) for camshaft position sensor
5.0 N
m (51 kgf
cm, 44 in.
lbf) for wire harness
4. INSTALL RETURN TUBE SUB±ASSY
Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)

100FQ±01
A79142
10±64
± ENGINE CONTROL SYSTEMCRANKSHAFT POSITION SENSOR (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
CRANKSHAFT POSITION SENSOR (1CD±FTV)
REPLACEMENT
1. REMOVE ENGINE UNDER COVER RH
2. REMOVE CRANKSHAFT POSITION SENSOR
(a) Disconnect the connector, remove the bolt and the crank-
shaft position sensor.
3. INSTALL CRANKSHAFT POSITION SENSOR
Torque: 8.8 N
m (90 kgf
cm, 78 in.
lbf)

100F0±02
321 4 5
±20
020 40 60
80100 0.1 0.2 0.3 0.51 235 1020 30
TEMPERATURE
C(
F)
RESISTANCE k

(±4) (32) (80) (140)(104) (212)(176)
A56275
VG
E2G
THA +B E2 Air
A31135
10±56
± ENGINE CONTROL SYSTEMECD SYSTEM (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION
1. INSPECT MASS AIR FLOW METER
(a) Output voltage inspection.
(1) Apply battery voltage across terminals 3 (+B) and 4
(E2G)
(2) Using a voltmeter, connect the positive (+) tester
probe to terminal VG, and negative (±) tester probe
to terminal E2G.
(3) Blow air into the air flow meter, and check that the
voltage fluctuates.
(b) Resistance inspection.
(1) Using an ohmmeter, measure the resistance be-
tween terminals 2 (THA) and 1 (E2).
Resistance:
±20
C (±4
F) 12.5 to 16.9 k

20
C (68
F) 2.19 to 2.67 k

60
C (140
F) 0.50 to 0.68 k

2. INSPECT INTAKE SHUTTER ASSY
(a) Resistance inspection (Throttle control motor)
(1) Using an ohmmeter, measure the resistance be-
tween terminals.
Resistance:
TerminalsTemperatureResistance
2 ± 1, 3at 20
C (68
F)18 to 22 k

5 ± 4, 6at 20
C (68
F)18 to 22 k




30
20
10
5
3
02040 0.11
0.3
0.2 0.52
60 80 100 ±20
(±4) (104) (140) (176)(32) (68) (212)
Z17274
Ohmmeter
Acceptable
Temperature
C (
F)
Resistance k

THF E2
A30331
30
20
10




0.5
0.3
0.2
0.1
±20

20 4060
80 100
F14741(±4) (104) (140) (176)(32) (68) (212)
A56276
Temperature
C (
F)
Resistance k

± ENGINE CONTROL SYSTEMECD SYSTEM (1CD±FTV)
10±57
AVENSIS REPAIR MANUAL (RM1018E)

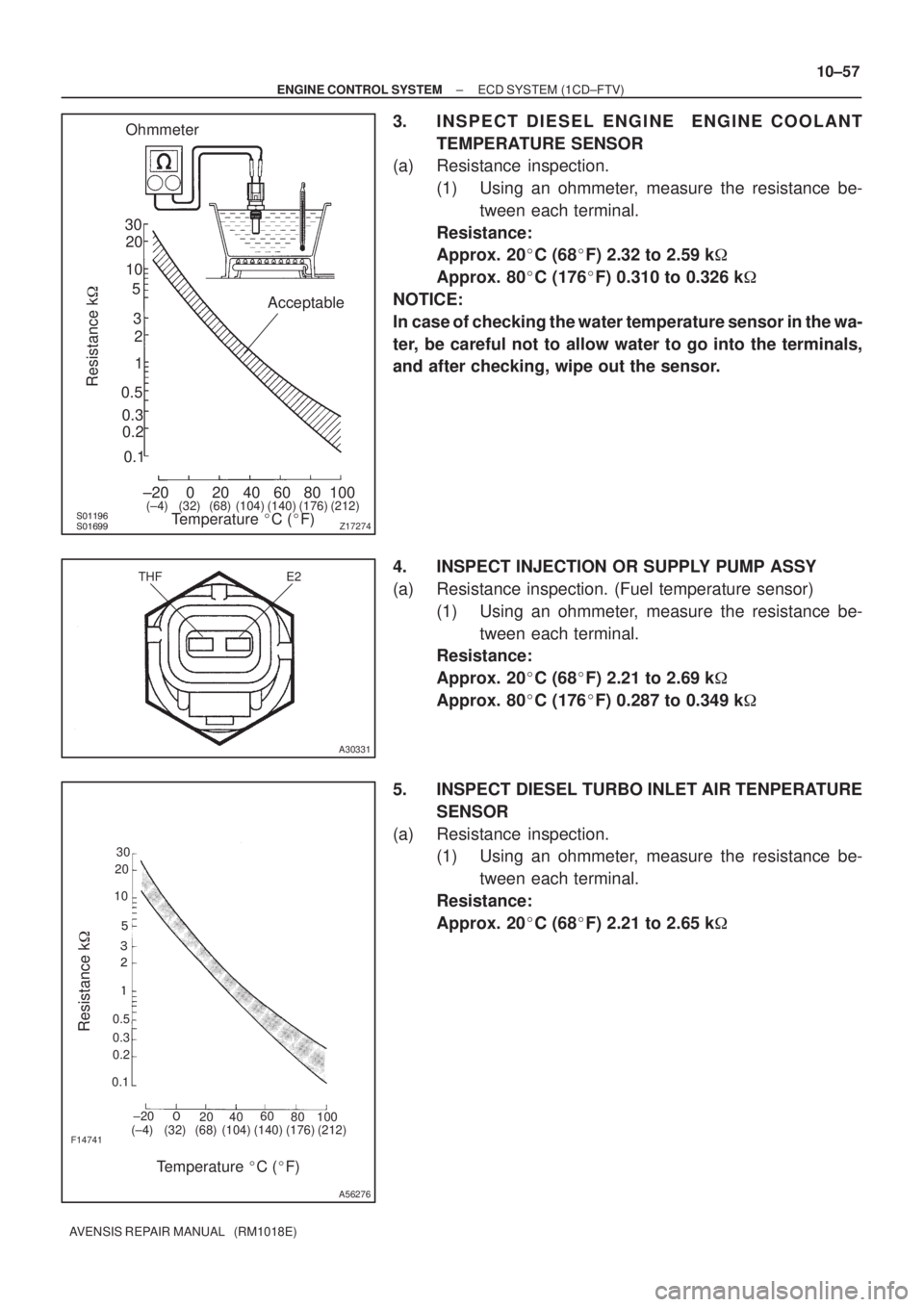

3. INSPECT DIESEL ENGINE ENGINE COOLANT
TEMPERATURE SENSOR
(a) Resistance inspection.
(1) Using an ohmmeter, measure the resistance be-
tween each terminal.
Resistance:
Approx. 20
C (68
F) 2.32 to 2.59 k

Approx. 80
C (176
F) 0.310 to 0.326 k

NOTICE:
In case of checking the water temperature sensor in the wa-
ter, be careful not to allow water to go into the terminals,
and after checking, wipe out the sensor.
4. INSPECT INJECTION OR SUPPLY PUMP ASSY
(a) Resistance inspection. (Fuel temperature sensor)
(1) Using an ohmmeter, measure the resistance be-
tween each terminal.
Resistance:
Approx. 20
C (68
F) 2.21 to 2.69 k

Approx. 80
C (176
F) 0.287 to 0.349 k

5. INSPECT DIESEL TURBO INLET AIR TENPERATURE
SENSOR
(a) Resistance inspection.
(1) Using an ohmmeter, measure the resistance be-
tween each terminal.
Resistance:
Approx. 20
C (68
F) 2.21 to 2.65 k
