2002 TOYOTA AVENSIS Repair Manual

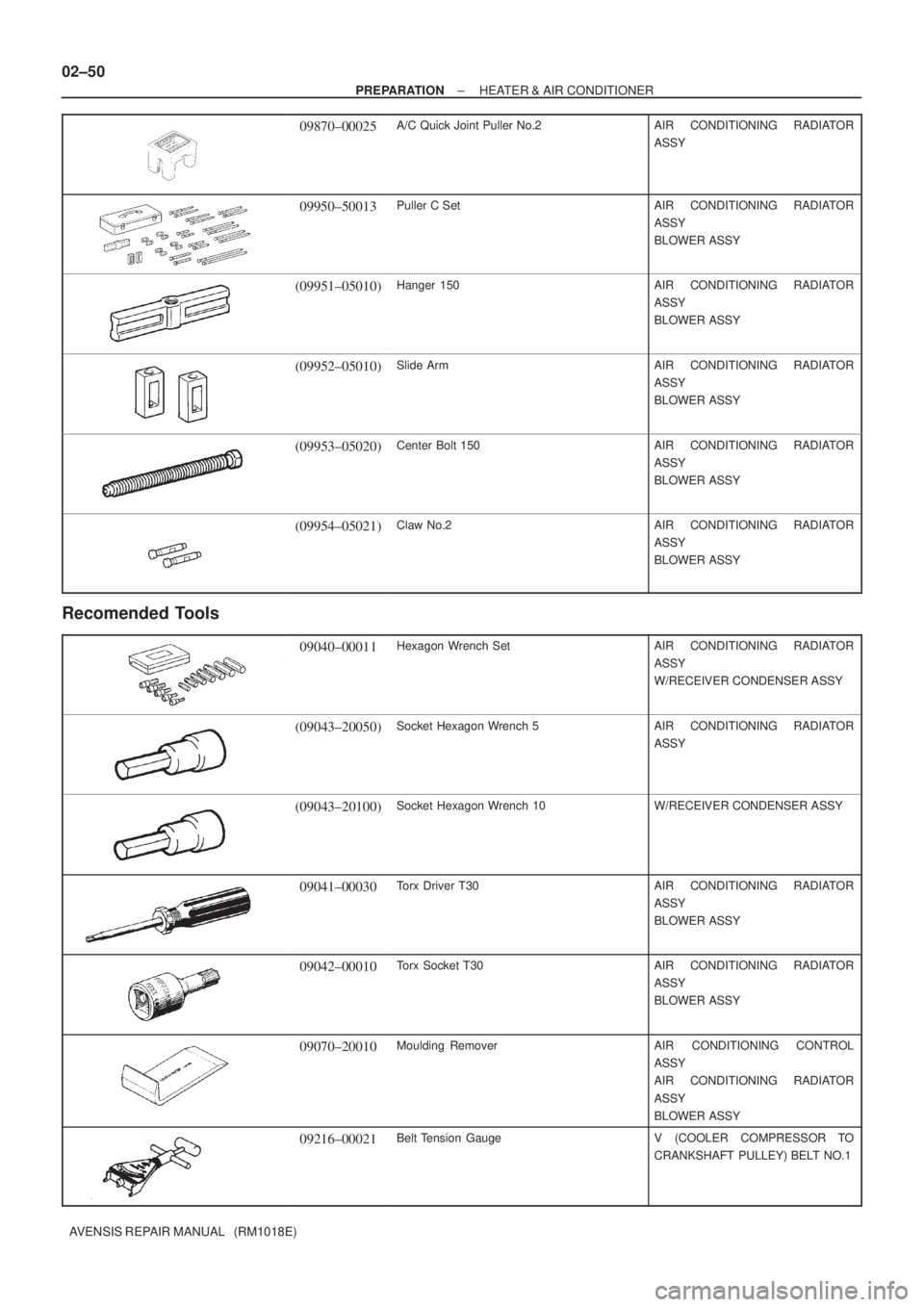

02±50
± PREPARATIONHEATER & AIR CONDITIONER
AVENSIS REPAIR MANUAL (RM1018E)
09870±00025A/C Quick Joint Puller No.2AIR CONDITIONING RADIATOR
ASSY
09950±50013Puller C SetAIR CONDITIONING RADIATOR
ASSY
BLOWER ASSY
(09951±05010)Hanger 150AIR CONDITIONING RADIATOR
ASSY
BLOWER ASSY
(09952±05010)Slide ArmAIR CONDITIONING RADIATOR
ASSY
BLOWER ASSY
(09953±05020)Center Bolt 150AIR CONDITIONING RADIATOR
ASSY
BLOWER ASSY
(09954±05021)Claw No.2AIR CONDITIONING RADIATOR
ASSY
BLOWER ASSY
Recomended Tools
09040±00011Hexagon Wrench SetAIR CONDITIONING RADIATOR
ASSY
W/RECEIVER CONDENSER ASSY
(09043±20050)Socket Hexagon Wrench 5AIR CONDITIONING RADIATOR
ASSY
(09043±20100)Socket Hexagon Wrench 10W/RECEIVER CONDENSER ASSY
09041±00030Torx Driver T30AIR CONDITIONING RADIATOR
ASSY
BLOWER ASSY
09042±00010Torx Socket T30AIR CONDITIONING RADIATOR
ASSY
BLOWER ASSY
09070±20010Moulding RemoverAIR CONDITIONING CONTROL
ASSY
AIR CONDITIONING RADIATOR
ASSY
BLOWER ASSY
09216±00021Belt Tension GaugeV (COOLER COMPRESSOR TO
CRANKSHAFT PULLEY) BELT NO.1

± PREPARATIONHEATER & AIR CONDITIONER

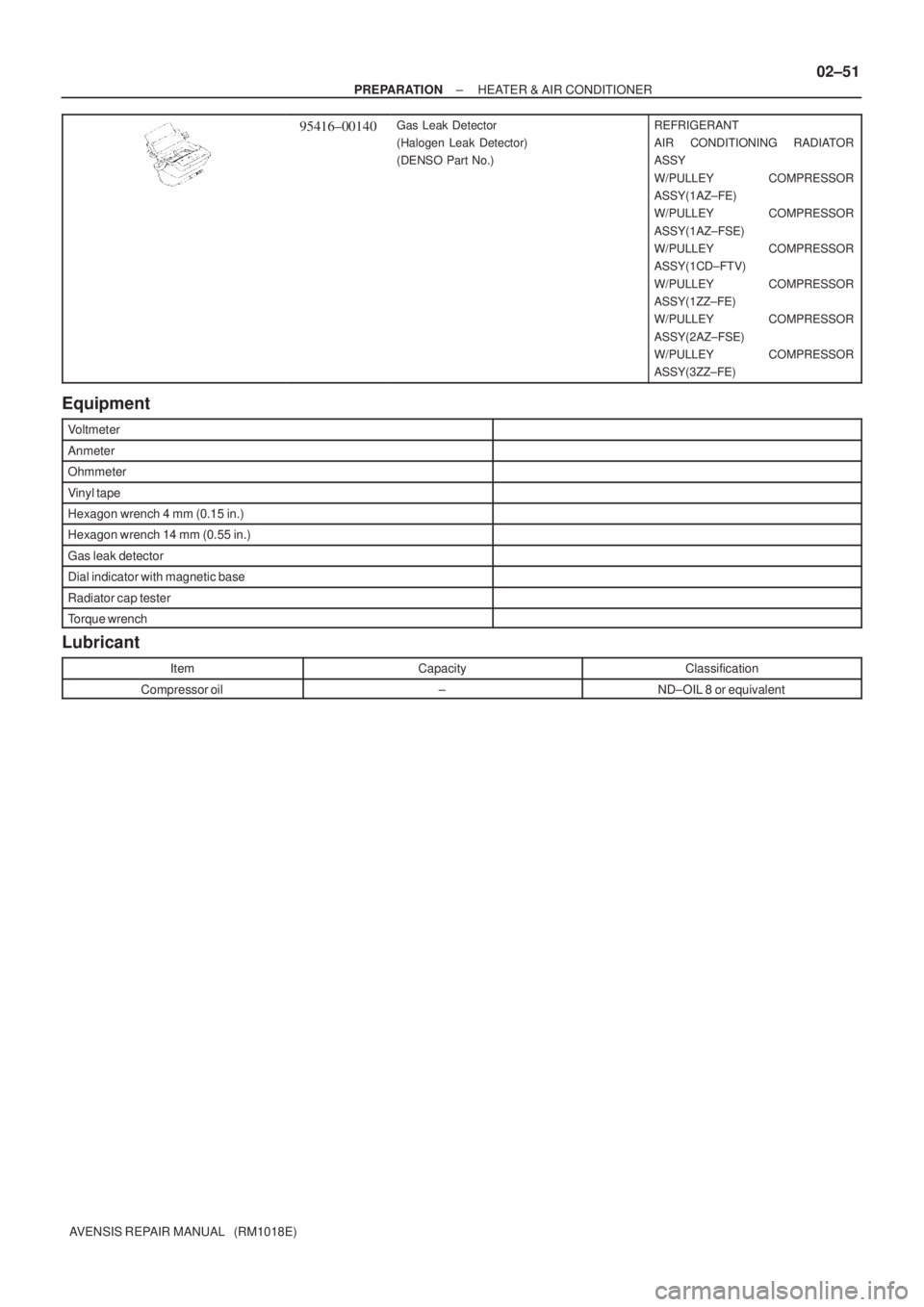

02±51
AVENSIS REPAIR MANUAL (RM1018E)
95416±00140Gas Leak Detector
(Halogen Leak Detector)
(DENSO Part No.)REFRIGERANT
AIR CONDITIONING RADIATOR
ASSY
W/PULLEY COMPRESSOR
ASSY(1AZ±FE)
W/PULLEY COMPRESSOR
ASSY(1AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(1CD±FTV)
W/PULLEY COMPRESSOR
ASSY(1ZZ±FE)
W/PULLEY COMPRESSOR
ASSY(2AZ±FSE)
W/PULLEY COMPRESSOR
ASSY(3ZZ±FE)
Equipment
Voltmeter
Anmeter
Ohmmeter
Vinyl tape
Hexagon wrench 4 mm (0.15 in.)
Hexagon wrench 14 mm (0.55 in.)
Gas leak detector
Dial indicator with magnetic base
Radiator cap tester
Torque wrench
Lubricant
ItemCapacityClassification
Compressor oil±ND±OIL 8 or equivalent

022J8±01

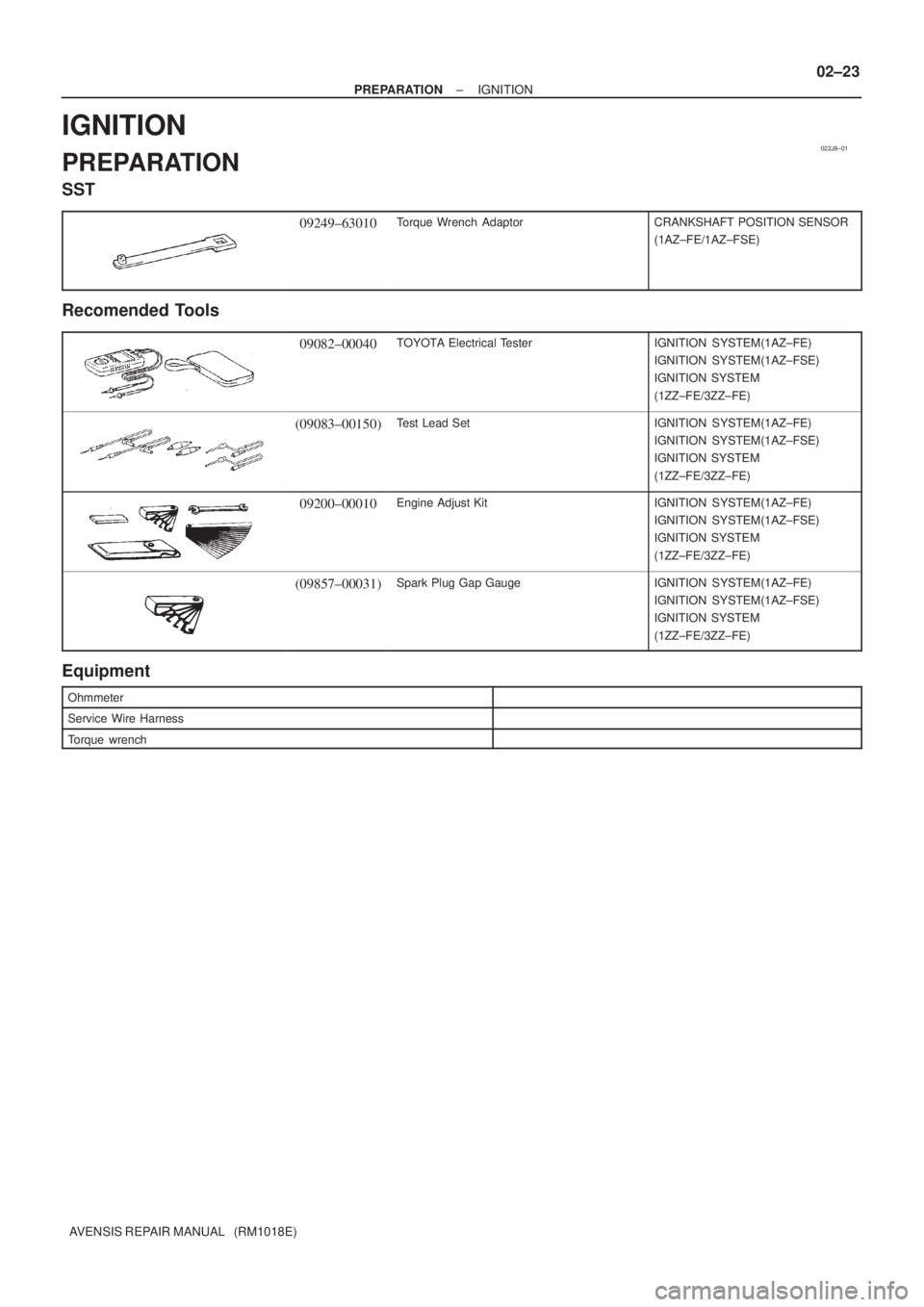

± PREPARATIONIGNITION
02±23
AVENSIS REPAIR MANUAL (RM1018E)
IGNITION
PREPARATION
SST
09249±63010Torque Wrench AdaptorCRANKSHAFT POSITION SENSOR
(1AZ±FE/1AZ±FSE)
Recomended Tools
09082±00040TOYOTA Electrical TesterIGNITION SYSTEM(1AZ±FE)
IGNITION SYSTEM(1AZ±FSE)
IGNITION SYSTEM
(1ZZ±FE/3ZZ±FE)
(09083±00150)Test Lead SetIGNITION SYSTEM(1AZ±FE)
IGNITION SYSTEM(1AZ±FSE)
IGNITION SYSTEM
(1ZZ±FE/3ZZ±FE)
09200±00010Engine Adjust KitIGNITION SYSTEM(1AZ±FE)
IGNITION SYSTEM(1AZ±FSE)
IGNITION SYSTEM
(1ZZ±FE/3ZZ±FE)
(09857±00031)Spark Plug Gap GaugeIGNITION SYSTEM(1AZ±FE)
IGNITION SYSTEM(1AZ±FSE)
IGNITION SYSTEM
(1ZZ±FE/3ZZ±FE)
Equipment
Ohmmeter
Service Wire Harness
Torque wrench

022G7±01

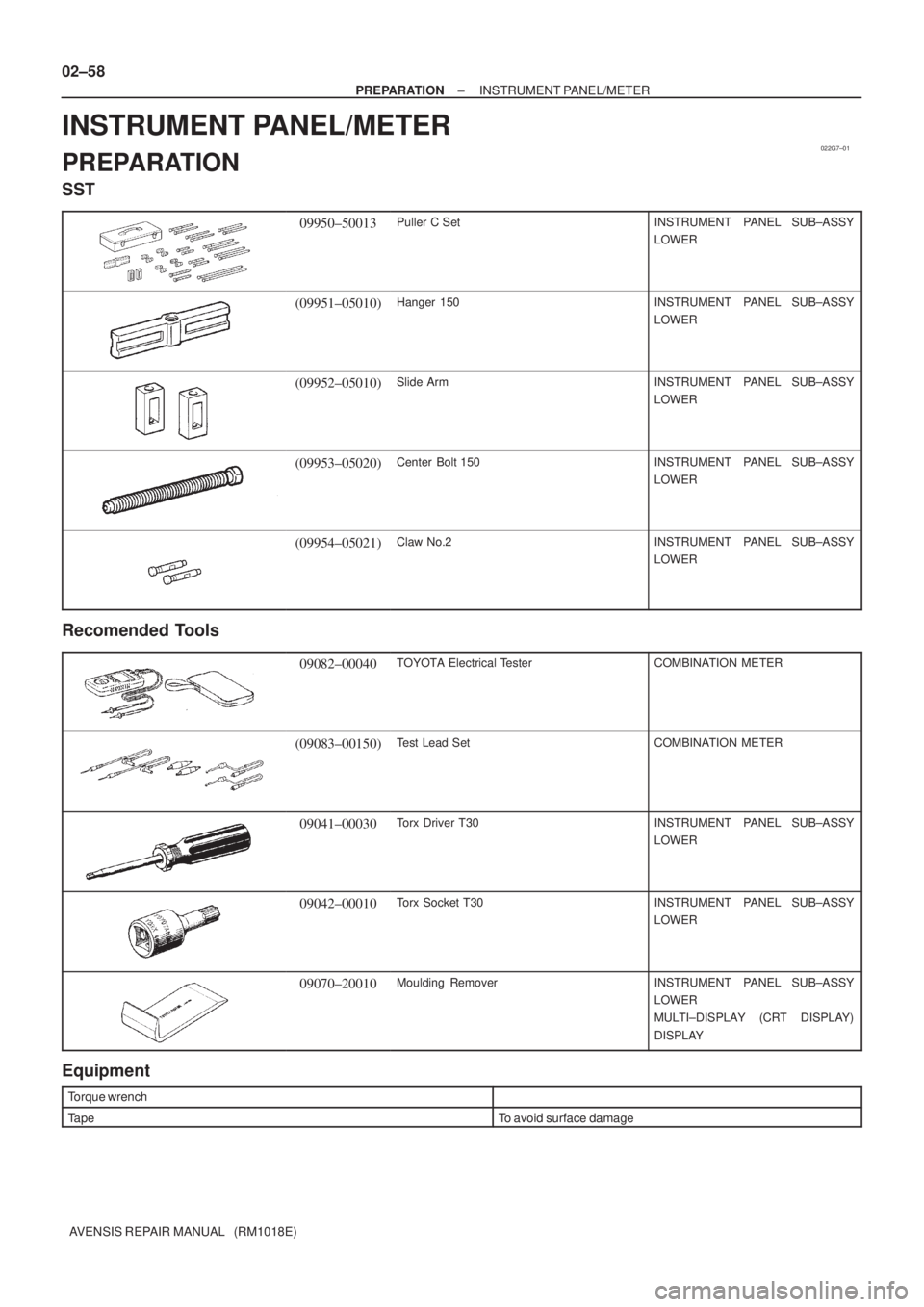

02±58
± PREPARATIONINSTRUMENT PANEL/METER
AVENSIS REPAIR MANUAL (RM1018E)
INSTRUMENT PANEL/METER
PREPARATION
SST
09950±50013Puller C SetINSTRUMENT PANEL SUB±ASSY
LOWER
(09951±05010)Hanger 150INSTRUMENT PANEL SUB±ASSY
LOWER
(09952±05010)Slide ArmINSTRUMENT PANEL SUB±ASSY
LOWER
(09953±05020)Center Bolt 150INSTRUMENT PANEL SUB±ASSY
LOWER
(09954±05021)Claw No.2INSTRUMENT PANEL SUB±ASSY
LOWER
Recomended Tools
09082±00040TOYOTA Electrical TesterCOMBINATION METER
(09083±00150)Test Lead SetCOMBINATION METER
09041±00030Torx Driver T30INSTRUMENT PANEL SUB±ASSY
LOWER
09042±00010Torx Socket T30INSTRUMENT PANEL SUB±ASSY
LOWER
09070±20010Moulding RemoverINSTRUMENT PANEL SUB±ASSY
LOWER
MULTI±DISPLAY (CRT DISPLAY)
DISPLAY
Equipment
Torque wrench
TapeTo avoid surface damage

022KR±01

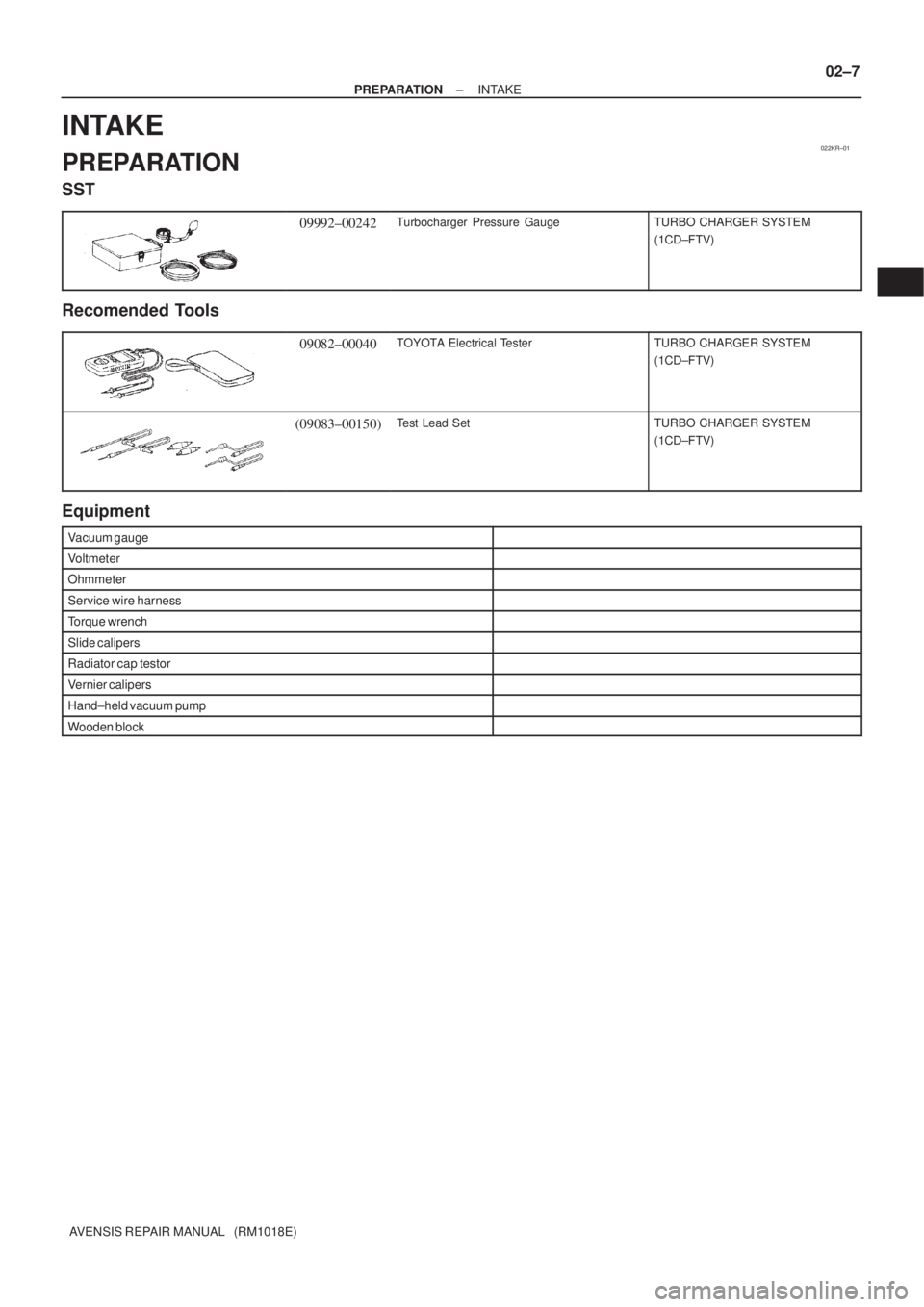

± PREPARATIONINTAKE
02±7
AVENSIS REPAIR MANUAL (RM1018E)
INTAKE
PREPARATION
SST
09992±00242Turbocharger Pressure GaugeTURBO CHARGER SYSTEM
(1CD±FTV)
Recomended Tools
09082±00040TOYOTA Electrical TesterTURBO CHARGER SYSTEM
(1CD±FTV)
(09083±00150)Test Lead SetTURBO CHARGER SYSTEM
(1CD±FTV)
Equipment
Vacuum gauge
Voltmeter
Ohmmeter
Service wire harness
Torque wrench
Slide calipers
Radiator cap testor
Vernier calipers
Hand±held vacuum pump
Wooden block

022K9±01

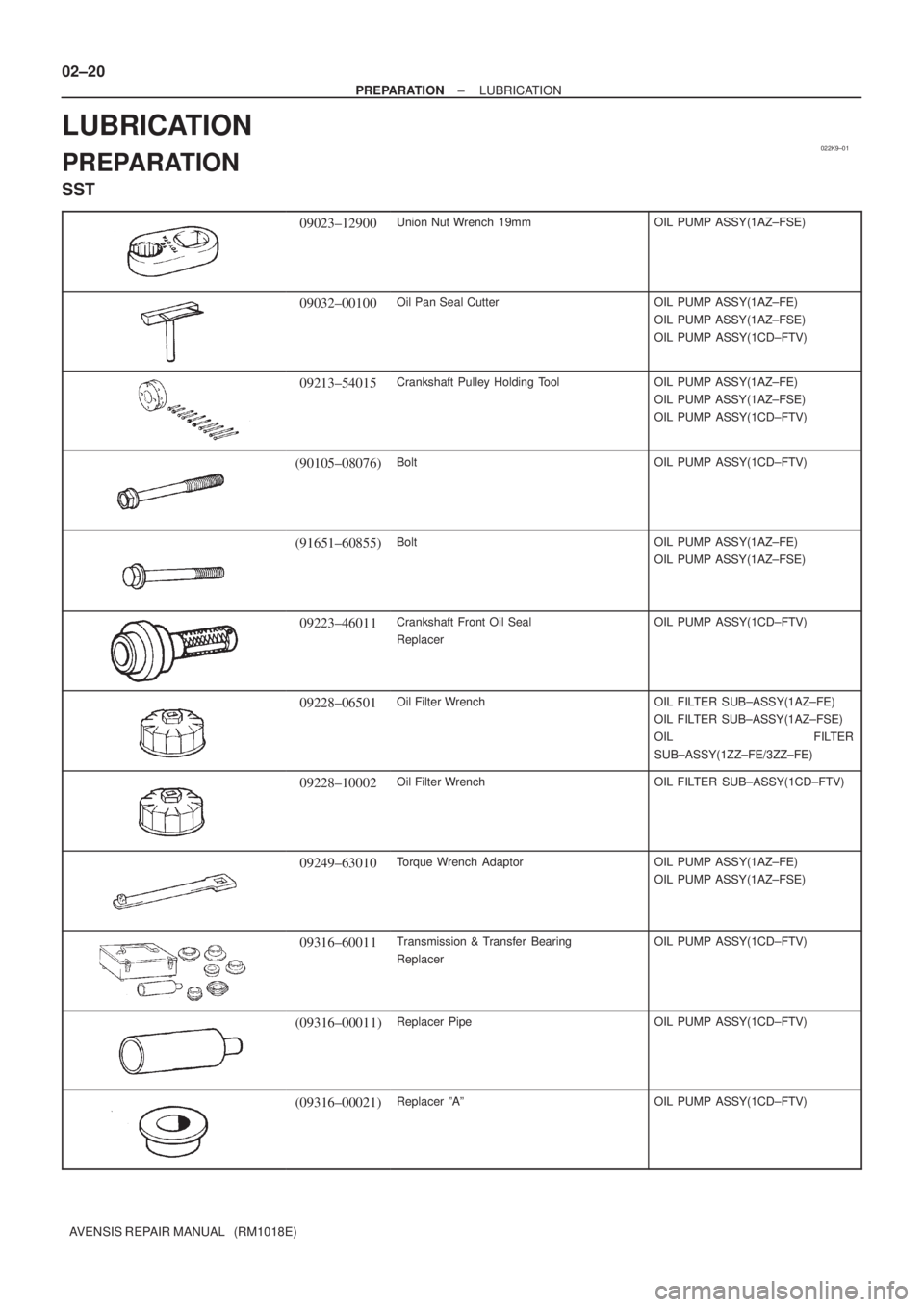

02±20
± PREPARATIONLUBRICATION
AVENSIS REPAIR MANUAL (RM1018E)
LUBRICATION
PREPARATION
SST
09023±12900Union Nut Wrench 19mmOIL PUMP ASSY(1AZ±FSE)
09032±00100Oil Pan Seal CutterOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
09213±54015Crankshaft Pulley Holding ToolOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(90105±08076)BoltOIL PUMP ASSY(1CD±FTV)
(91651±60855)BoltOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
09223±46011Crankshaft Front Oil Seal
ReplacerOIL PUMP ASSY(1CD±FTV)
09228±06501Oil Filter WrenchOIL FILTER SUB±ASSY(1AZ±FE)
OIL FILTER SUB±ASSY(1AZ±FSE)
OIL FILTER
SUB±ASSY(1ZZ±FE/3ZZ±FE)
09228±10002Oil Filter WrenchOIL FILTER SUB±ASSY(1CD±FTV)
09249±63010Torque Wrench AdaptorOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
09316±60011Transmission & Transfer Bearing
ReplacerOIL PUMP ASSY(1CD±FTV)
(09316±00011)Replacer PipeOIL PUMP ASSY(1CD±FTV)
(09316±00021)Replacer ºAºOIL PUMP ASSY(1CD±FTV)

± PREPARATIONLUBRICATION

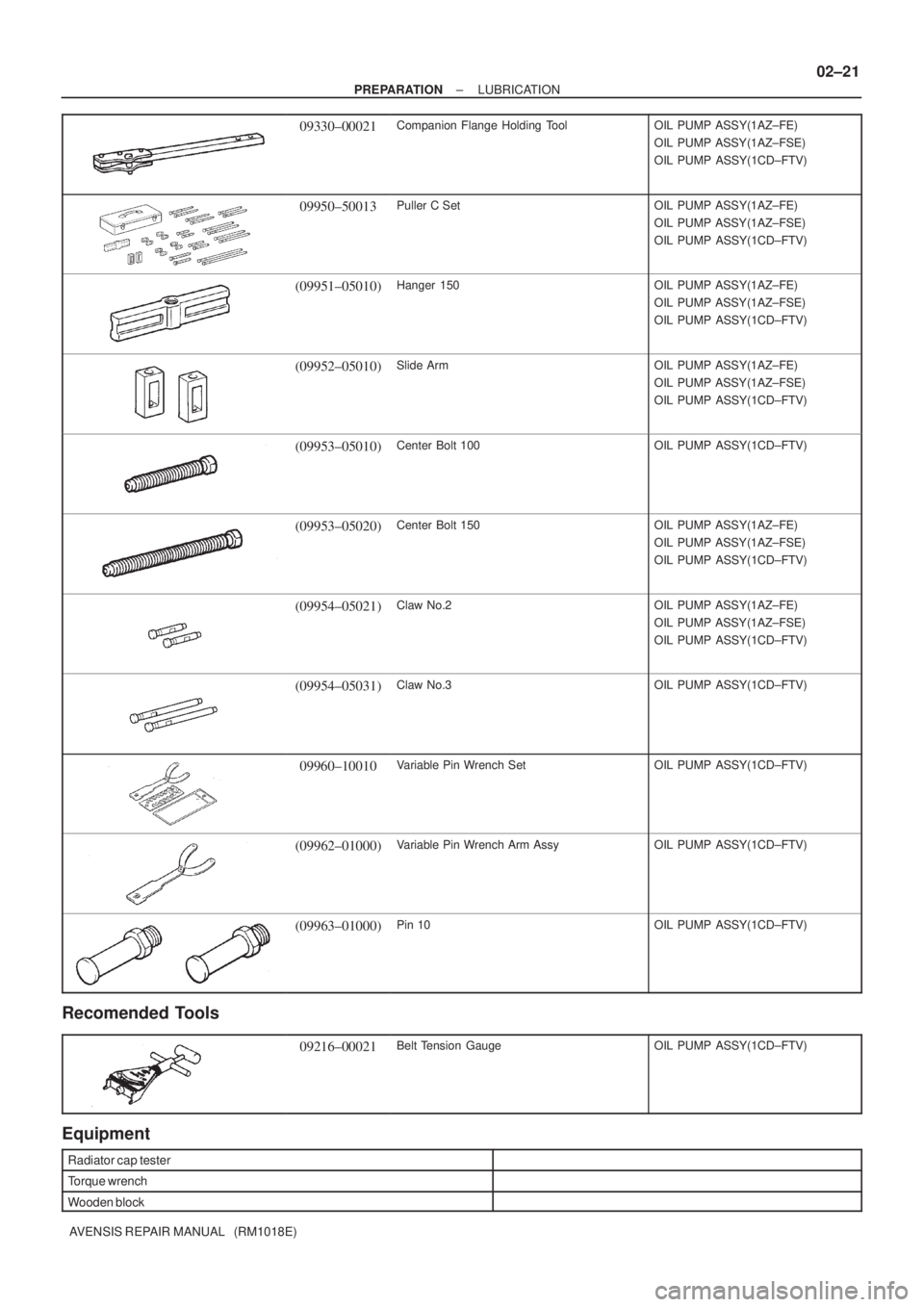

02±21
AVENSIS REPAIR MANUAL (RM1018E)
09330±00021Companion Flange Holding ToolOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
09950±50013Puller C SetOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(09951±05010)Hanger 150OIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(09952±05010)Slide ArmOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(09953±05010)Center Bolt 100OIL PUMP ASSY(1CD±FTV)
(09953±05020)Center Bolt 150OIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(09954±05021)Claw No.2OIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(09954±05031)Claw No.3OIL PUMP ASSY(1CD±FTV)
09960±10010Variable Pin Wrench SetOIL PUMP ASSY(1CD±FTV)
(09962±01000)Variable Pin Wrench Arm AssyOIL PUMP ASSY(1CD±FTV)
(09963±01000)Pin 10OIL PUMP ASSY(1CD±FTV)
Recomended Tools
09216±00021Belt Tension GaugeOIL PUMP ASSY(1CD±FTV)
Equipment
Radiator cap tester
Torque wrench
Wooden block

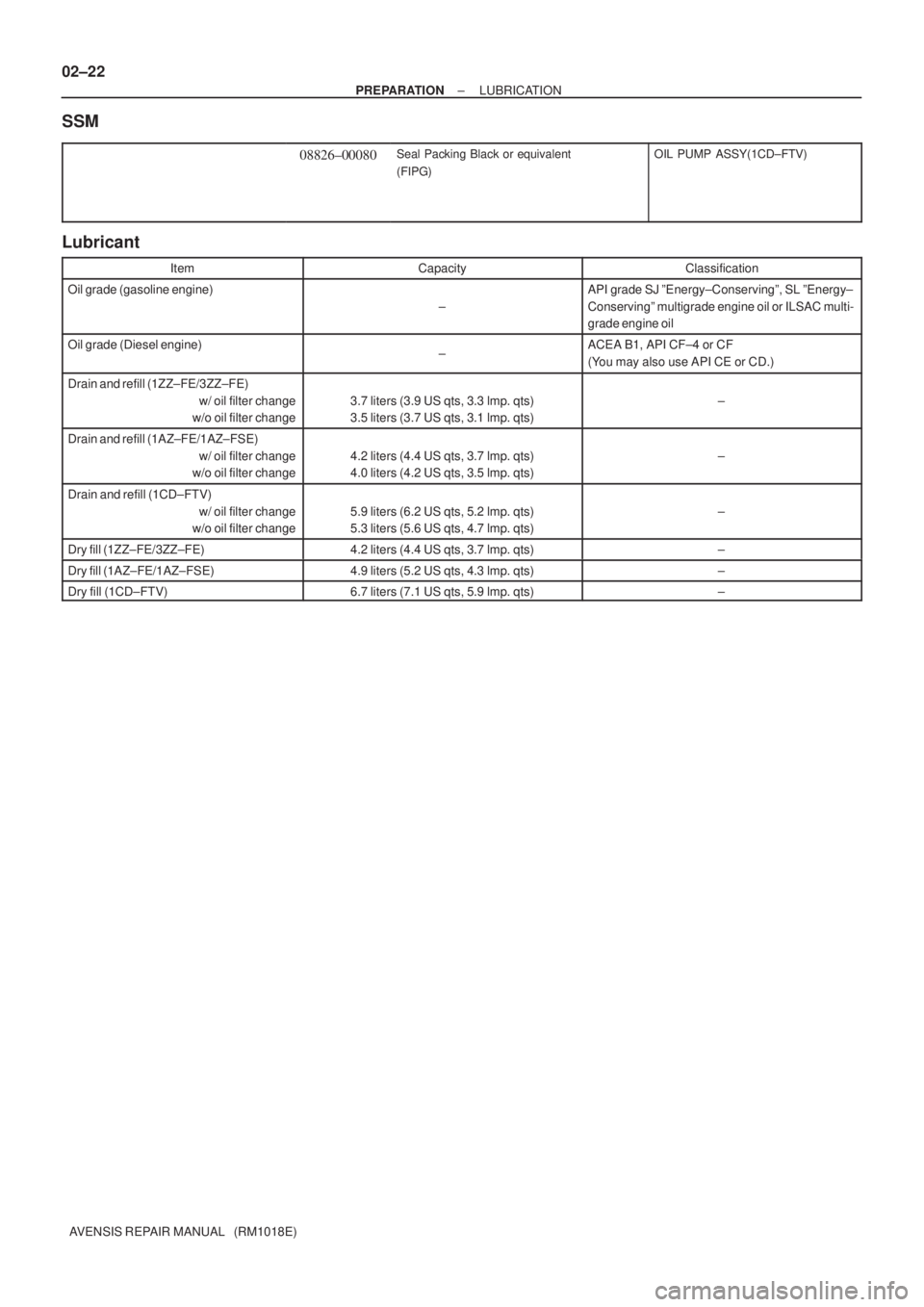

02±22
± PREPARATIONLUBRICATION
AVENSIS REPAIR MANUAL (RM1018E)
SSM
08826±00080Seal Packing Black or equivalent
(FIPG)OIL PUMP ASSY(1CD±FTV)
Lubricant
ItemCapacityClassification
Oil grade (gasoline engine)
±
API grade SJ ºEnergy±Conservingº, SL ºEnergy±
Conservingº multigrade engine oil or ILSAC multi-
grade engine oil
Oil grade (Diesel engine)±ACEA B1, API CF±4 or CF
(You may also use API CE or CD.)
Drain and refill (1ZZ±FE/3ZZ±FE)
w/ oil filter change
w/o oil filter change
3.7 liters (3.9 US qts, 3.3 lmp. qts)
3.5 liters (3.7 US qts, 3.1 lmp. qts)±
Drain and refill (1AZ±FE/1AZ±FSE)
w/ oil filter change
w/o oil filter change
4.2 liters (4.4 US qts, 3.7 lmp. qts)
4.0 liters (4.2 US qts, 3.5 lmp. qts)±
Drain and refill (1CD±FTV)
w/ oil filter change
w/o oil filter change
5.9 liters (6.2 US qts, 5.2 lmp. qts)
5.3 liters (5.6 US qts, 4.7 lmp. qts)±
Dry fill (1ZZ±FE/3ZZ±FE)4.2 liters (4.4 US qts, 3.7 lmp. qts)±
Dry fill (1AZ±FE/1AZ±FSE)4.9 liters (5.2 US qts, 4.3 lmp. qts)±
Dry fill (1CD±FTV)6.7 liters (7.1 US qts, 5.9 lmp. qts)±
