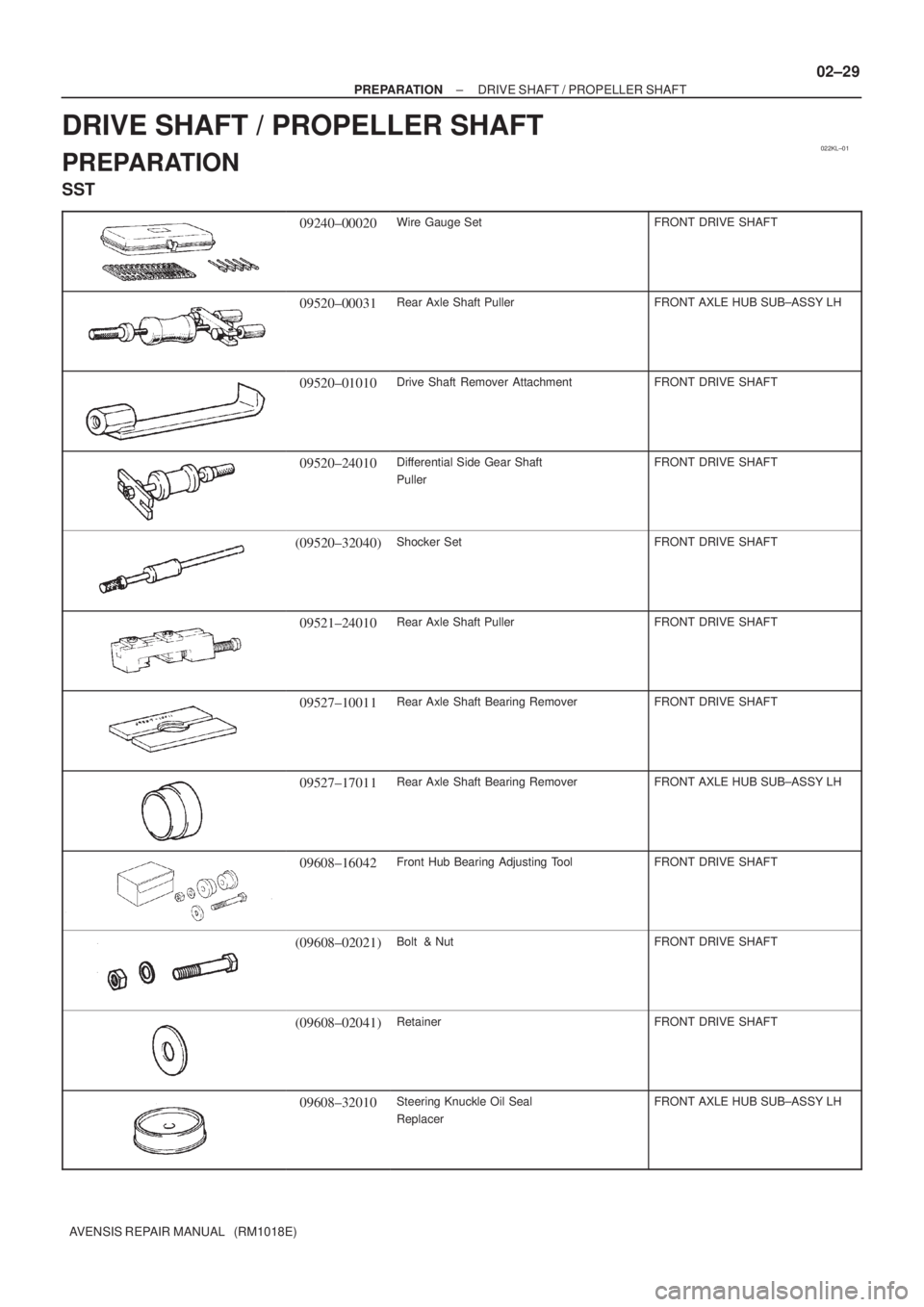

2002 TOYOTA AVENSIS Repair Manual

022KL±01
± PREPARATIONDRIVE SHAFT / PROPELLER SHAFT
02±29
AVENSIS REPAIR MANUAL (RM1018E)
DRIVE SHAFT / PROPELLER SHAFT
PREPARATION
SST
09240±00020Wire Gauge SetFRONT DRIVE SHAFT
09520±00031Rear Axle Shaft PullerFRONT AXLE HUB SUB±ASSY LH
09520±01010Drive Shaft Remover AttachmentFRONT DRIVE SHAFT
09520±24010Differential Side Gear Shaft
PullerFRONT DRIVE SHAFT
(09520±32040)Shocker SetFRONT DRIVE SHAFT
09521±24010Rear Axle Shaft PullerFRONT DRIVE SHAFT
09527±10011Rear Axle Shaft Bearing RemoverFRONT DRIVE SHAFT
09527±17011Rear Axle Shaft Bearing RemoverFRONT AXLE HUB SUB±ASSY LH
09608±16042Front Hub Bearing Adjusting ToolFRONT DRIVE SHAFT
(09608±02021)Bolt & NutFRONT DRIVE SHAFT
(09608±02041)RetainerFRONT DRIVE SHAFT
09608±32010Steering Knuckle Oil Seal
ReplacerFRONT AXLE HUB SUB±ASSY LH

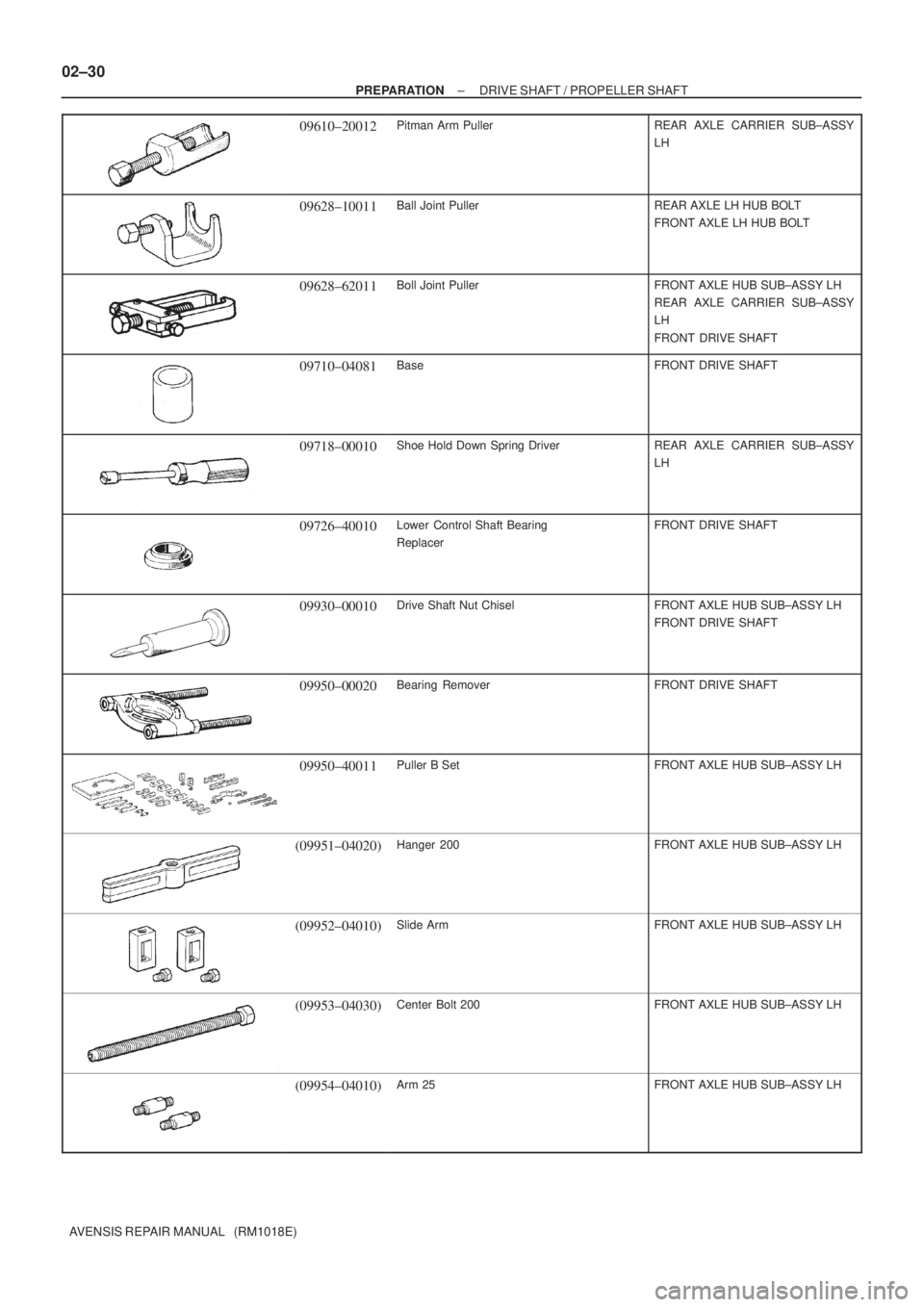

02±30
± PREPARATIONDRIVE SHAFT / PROPELLER SHAFT
AVENSIS REPAIR MANUAL (RM1018E)
09610±20012Pitman Arm PullerREAR AXLE CARRIER SUB±ASSY
LH
09628±10011Ball Joint PullerREAR AXLE LH HUB BOLT
FRONT AXLE LH HUB BOLT
09628±62011Boll Joint PullerFRONT AXLE HUB SUB±ASSY LH
REAR AXLE CARRIER SUB±ASSY
LH
FRONT DRIVE SHAFT
09710±04081BaseFRONT DRIVE SHAFT
09718±00010Shoe Hold Down Spring DriverREAR AXLE CARRIER SUB±ASSY
LH
09726±40010Lower Control Shaft Bearing
ReplacerFRONT DRIVE SHAFT
09930±00010Drive Shaft Nut ChiselFRONT AXLE HUB SUB±ASSY LH
FRONT DRIVE SHAFT
09950±00020Bearing RemoverFRONT DRIVE SHAFT
09950±40011Puller B SetFRONT AXLE HUB SUB±ASSY LH
(09951±04020)Hanger 200FRONT AXLE HUB SUB±ASSY LH
(09952±04010)Slide ArmFRONT AXLE HUB SUB±ASSY LH
(09953±04030)Center Bolt 200FRONT AXLE HUB SUB±ASSY LH
(09954±04010)Arm 25FRONT AXLE HUB SUB±ASSY LH

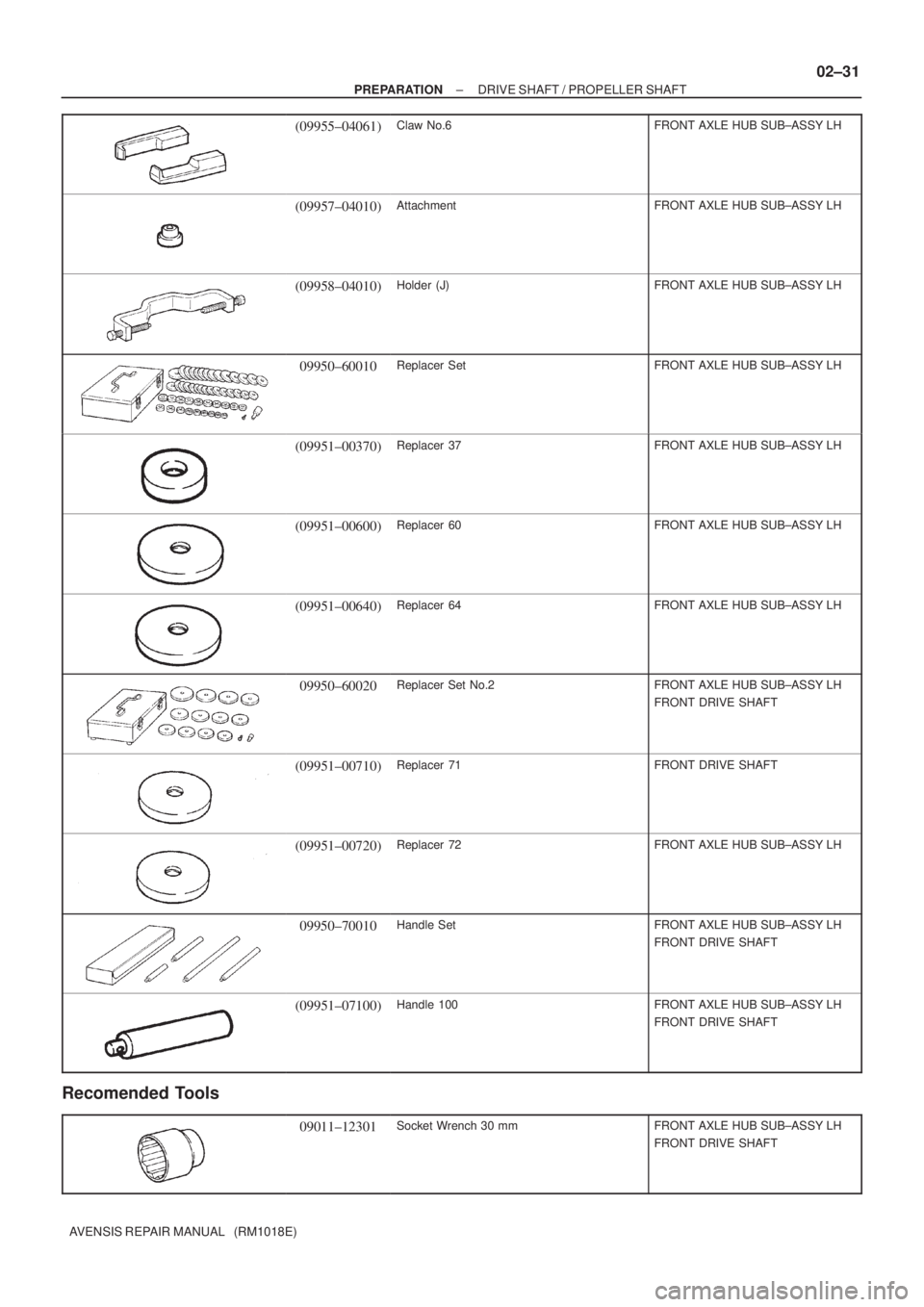

± PREPARATIONDRIVE SHAFT / PROPELLER SHAFT
02±31
AVENSIS REPAIR MANUAL (RM1018E)
(09955±04061)Claw No.6FRONT AXLE HUB SUB±ASSY LH
(09957±04010)AttachmentFRONT AXLE HUB SUB±ASSY LH
(09958±04010)Holder (J)FRONT AXLE HUB SUB±ASSY LH
09950±60010Replacer SetFRONT AXLE HUB SUB±ASSY LH
(09951±00370)Replacer 37FRONT AXLE HUB SUB±ASSY LH
(09951±00600)Replacer 60FRONT AXLE HUB SUB±ASSY LH
(09951±00640)Replacer 64FRONT AXLE HUB SUB±ASSY LH
09950±60020Replacer Set No.2FRONT AXLE HUB SUB±ASSY LH
FRONT DRIVE SHAFT
(09951±00710)Replacer 71FRONT DRIVE SHAFT
(09951±00720)Replacer 72FRONT AXLE HUB SUB±ASSY LH
09950±70010Handle SetFRONT AXLE HUB SUB±ASSY LH
FRONT DRIVE SHAFT
(09951±07100)Handle 100FRONT AXLE HUB SUB±ASSY LH
FRONT DRIVE SHAFT
Recomended Tools
09011±12301Socket Wrench 30 mmFRONT AXLE HUB SUB±ASSY LH
FRONT DRIVE SHAFT

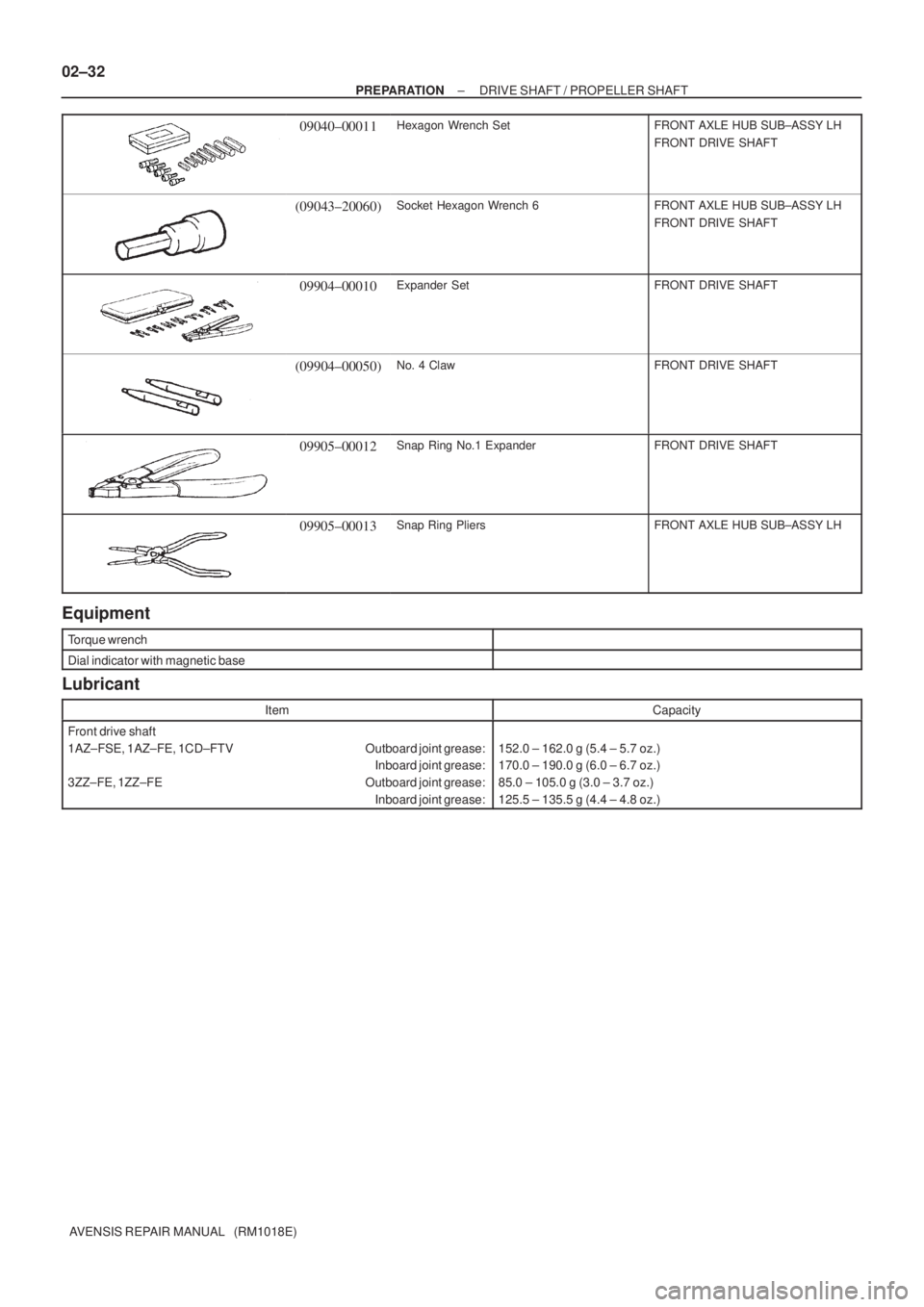

02±32
± PREPARATIONDRIVE SHAFT / PROPELLER SHAFT
AVENSIS REPAIR MANUAL (RM1018E)
09040±00011Hexagon Wrench SetFRONT AXLE HUB SUB±ASSY LH
FRONT DRIVE SHAFT
(09043±20060)Socket Hexagon Wrench 6FRONT AXLE HUB SUB±ASSY LH
FRONT DRIVE SHAFT
09904±00010Expander SetFRONT DRIVE SHAFT
(09904±00050)No. 4 ClawFRONT DRIVE SHAFT
09905±00012Snap Ring No.1 ExpanderFRONT DRIVE SHAFT
09905±00013Snap Ring PliersFRONT AXLE HUB SUB±ASSY LH
Equipment
Torque wrench
Dial indicator with magnetic base
Lubricant
ItemCapacity
Front drive shaft
1AZ±FSE, 1AZ±FE, 1CD±FTV Outboard joint grease:
Inboard joint grease:
3ZZ±FE, 1ZZ±FE Outboard joint grease:
Inboard joint grease:
152.0 ± 162.0 g (5.4 ± 5.7 oz.)
170.0 ± 190.0 g (6.0 ± 6.7 oz.)
85.0 ± 105.0 g (3.0 ± 3.7 oz.)
125.5 ± 135.5 g (4.4 ± 4.8 oz.)

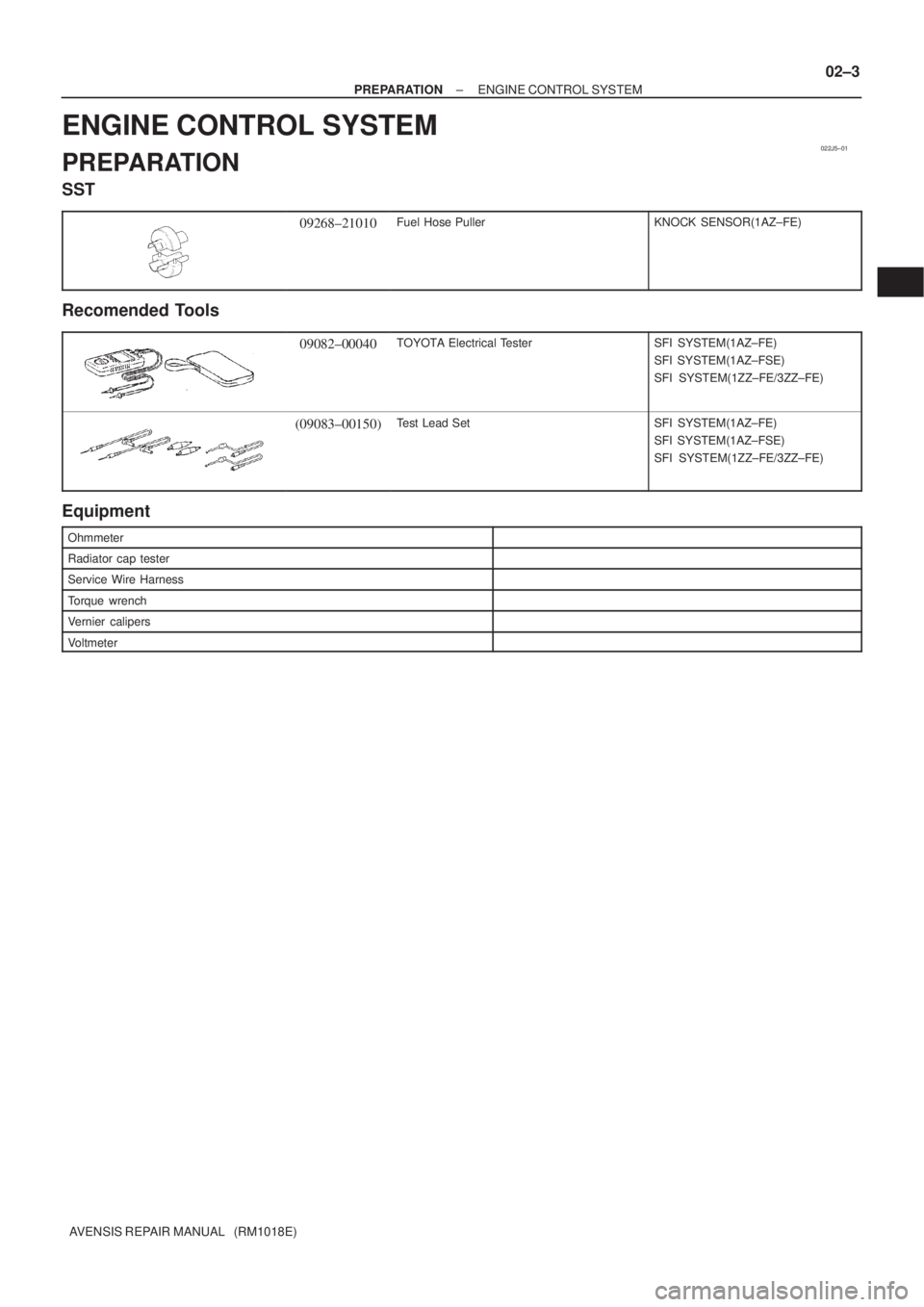

022J5±01
± PREPARATIONENGINE CONTROL SYSTEM
02±3
AVENSIS REPAIR MANUAL (RM1018E)
ENGINE CONTROL SYSTEM
PREPARATION
SST
09268±21010Fuel Hose PullerKNOCK SENSOR(1AZ±FE)
Recomended Tools
09082±00040TOYOTA Electrical TesterSFI SYSTEM(1AZ±FE)
SFI SYSTEM(1AZ±FSE)
SFI SYSTEM(1ZZ±FE/3ZZ±FE)
(09083±00150)Test Lead SetSFI SYSTEM(1AZ±FE)
SFI SYSTEM(1AZ±FSE)
SFI SYSTEM(1ZZ±FE/3ZZ±FE)
Equipment
Ohmmeter
Radiator cap tester
Service Wire Harness
Torque wrench
Vernier calipers
Voltmeter

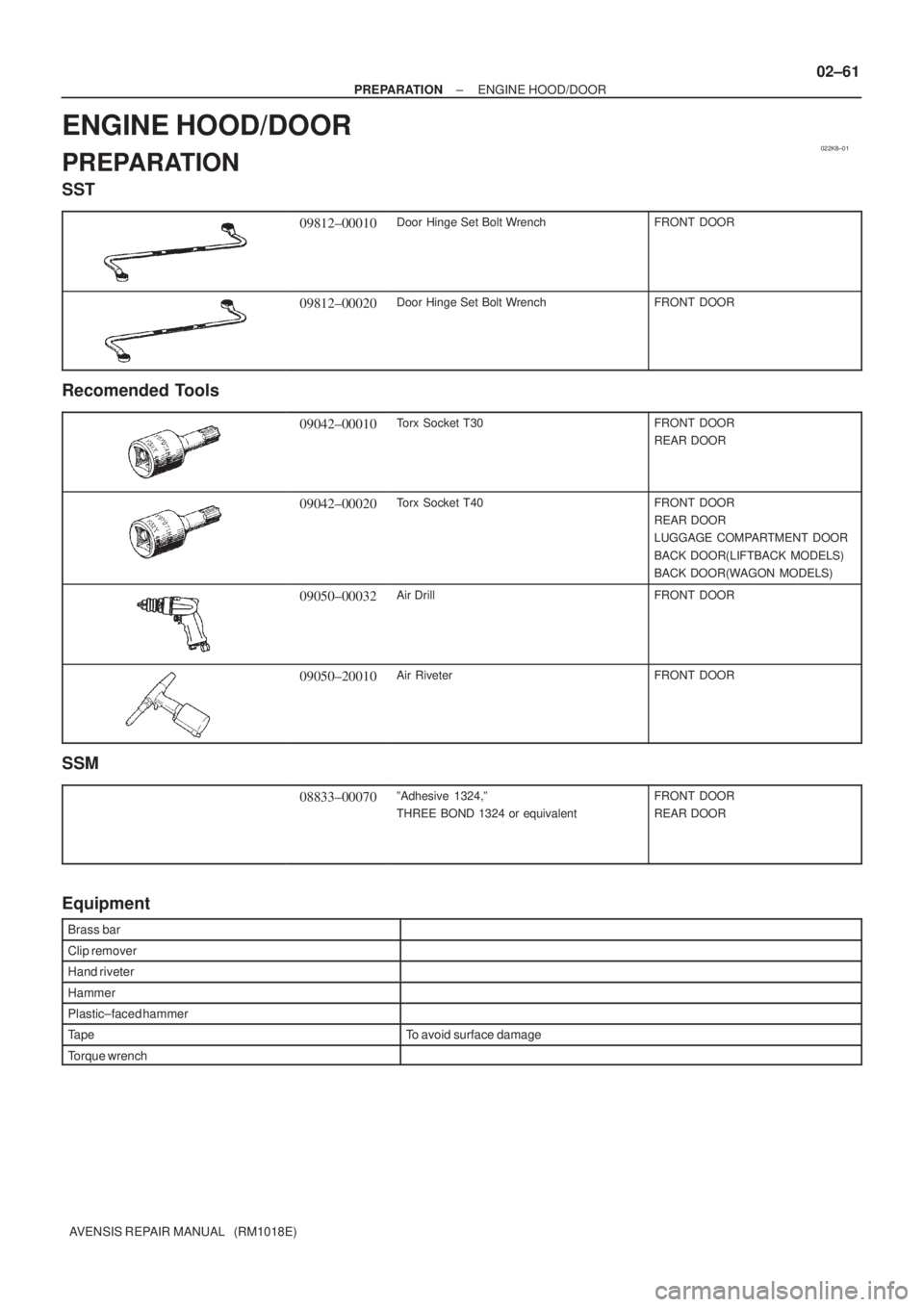

022K8±01
± PREPARATIONENGINE HOOD/DOOR
02±61
AVENSIS REPAIR MANUAL (RM1018E)
ENGINE HOOD/DOOR
PREPARATION
SST
09812±00010Door Hinge Set Bolt WrenchFRONT DOOR
09812±00020Door Hinge Set Bolt WrenchFRONT DOOR
Recomended Tools
09042±00010Torx Socket T30FRONT DOOR
REAR DOOR
09042±00020Torx Socket T40FRONT DOOR
REAR DOOR
LUGGAGE COMPARTMENT DOOR
BACK DOOR(LIFTBACK MODELS)
BACK DOOR(WAGON MODELS)
09050±00032Air DrillFRONT DOOR
09050±20010Air RiveterFRONT DOOR
SSM
08833±00070ºAdhesive 1324,º
THREE BOND 1324 or equivalentFRONT DOOR
REAR DOOR
Equipment
Brass bar
Clip remover
Hand riveter
Hammer
Plastic±faced hammer
TapeTo avoid surface damage
Torque wrench

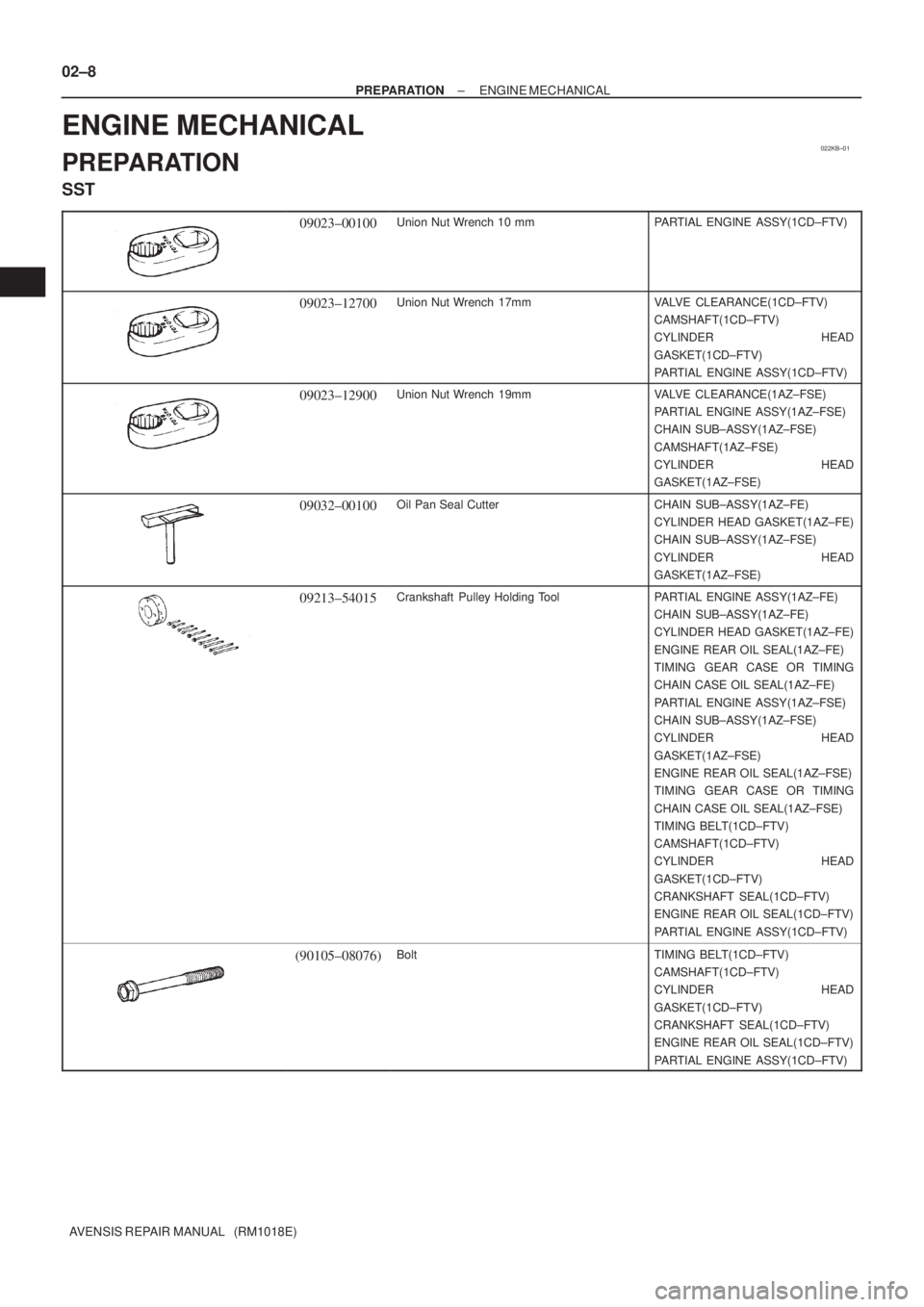

022KB±01
02±8
± PREPARATIONENGINE MECHANICAL
AVENSIS REPAIR MANUAL (RM1018E)
ENGINE MECHANICAL
PREPARATION
SST
09023±00100Union Nut Wrench 10 mmPARTIAL ENGINE ASSY(1CD±FTV)
09023±12700Union Nut Wrench 17mmVALVE CLEARANCE(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
09023±12900Union Nut Wrench 19mmVALVE CLEARANCE(1AZ±FSE)
PARTIAL ENGINE ASSY(1AZ±FSE)
CHAIN SUB±ASSY(1AZ±FSE)
CAMSHAFT(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
09032±00100Oil Pan Seal CutterCHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
09213±54015Crankshaft Pulley Holding ToolPARTIAL ENGINE ASSY(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
ENGINE REAR OIL SEAL(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
PARTIAL ENGINE ASSY(1AZ±FSE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
ENGINE REAR OIL SEAL(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
ENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
(90105±08076)BoltTIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
ENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)

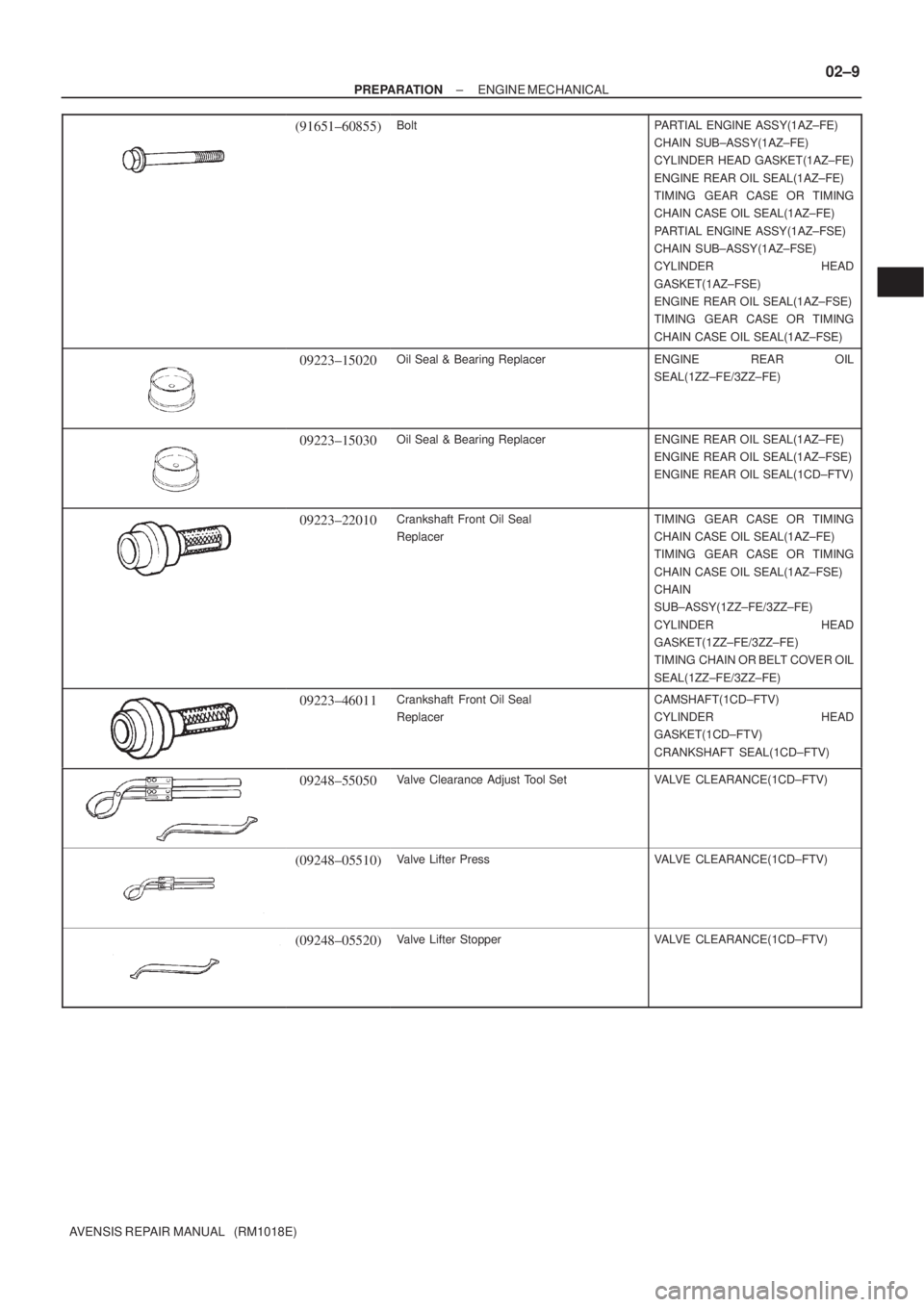

± PREPARATIONENGINE MECHANICAL
02±9
AVENSIS REPAIR MANUAL (RM1018E)
(91651±60855)BoltPARTIAL ENGINE ASSY(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
ENGINE REAR OIL SEAL(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
PARTIAL ENGINE ASSY(1AZ±FSE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
ENGINE REAR OIL SEAL(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
09223±15020Oil Seal & Bearing ReplacerENGINE REAR OIL
SEAL(1ZZ±FE/3ZZ±FE)
09223±15030Oil Seal & Bearing ReplacerENGINE REAR OIL SEAL(1AZ±FE)
ENGINE REAR OIL SEAL(1AZ±FSE)
ENGINE REAR OIL SEAL(1CD±FTV)
09223±22010Crankshaft Front Oil Seal
ReplacerTIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
CHAIN
SUB±ASSY(1ZZ±FE/3ZZ±FE)
CYLINDER HEAD
GASKET(1ZZ±FE/3ZZ±FE)
TIMING CHAIN OR BELT COVER OIL
SEAL(1ZZ±FE/3ZZ±FE)
09223±46011Crankshaft Front Oil Seal
ReplacerCAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
09248±55050Valve Clearance Adjust Tool SetVALVE CLEARANCE(1CD±FTV)
(09248±05510)Valve Lifter PressVALVE CLEARANCE(1CD±FTV)
(09248±05520)Valve Lifter StopperVALVE CLEARANCE(1CD±FTV)
