2002 TOYOTA AVENSIS Repair Manual

600K0±01
H42754N
m (kgf
cm, ft
lbf) : Specified torqueCurtain Shield Airbag Assy LH
3.5 (36, 31 in.
lbf)
14 (143, 10)3.5 (36, 31 in.
lbf)
14 (143, 10)
Sedan/Liftback Models: 60±36
± SUPPLEMENTAL RESTRAINT SYSTEMCURTAIN SHIELD AIR BAG ASSY LH
AVENSIS REPAIR MANUAL (RM1018E)
CURTAIN SHIELD AIR BAG ASSY LH
COMPONENTS

H42756N
m (kgf
cm, ft
lbf) : Specified torqueCurtain Shield Airbag Assy LH
3.5 (36, 31 in.
lbf)
14 (143, 10)
3.5 (36, 31 in.
lbf)
14 (143, 10)

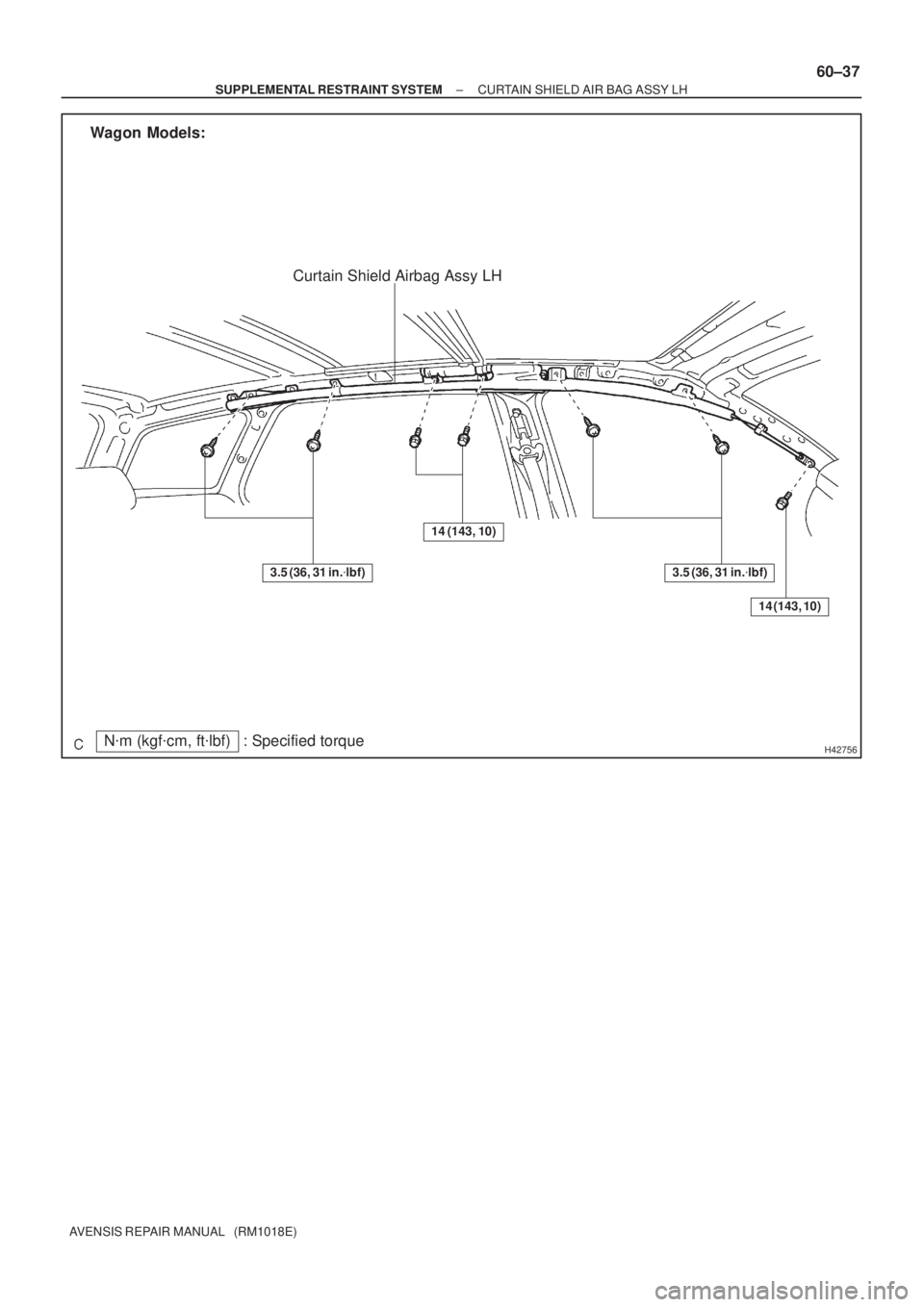

Wagon Models:
± SUPPLEMENTAL RESTRAINT SYSTEMCURTAIN SHIELD AIR BAG ASSY LH
60±37
AVENSIS REPAIR MANUAL (RM1018E)

600K1±01
H43005
H42755
Sedan/Liftback Models:
A
B
C
E
D F
G
60±38
±
SUPPLEMENTAL RESTRAINT SYSTEM CURTAIN SHIELD AIR BAG ASSY LH
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
Replacement procedure of the RH side is the same as that for with LH side.
1.PRECAUTION (See page 60±1)
2.DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60±1)
3.REMOVE ROOF HEADLINING ASSY (SEDAN MODELS) (See page 76±36)
4.REMOVE ROOF HEADLINING ASSY (LIFTBACK MODELS) (See page 76±45)
5.REMOVE ROOF HEADLINING ASSY (WAGON MODELS) (See page 76±54) 6. REMOVE CURTAIN SHIELD AIR BAG ASSY LH(SEDAN/LIFTBACK MODELS)
(a) Using a screwdriver, disconnect the connector of the cur- tain shield airbag assy LH.
(b) After removing the 4 screws and the 3 bolts in order as fol- lows, remove the curtain shield airbag assy LH.
A  B  C  D  E  F  G

H43005
H42757
Wagon Models:
A B
C
E
DFG
H42755
A B C
E
DFG
Sedan/Liftback Models:
± SUPPLEMENTAL RESTRAINT SYSTEMCURTAIN SHIELD AIR BAG ASSY LH
60±39
AVENSIS REPAIR MANUAL (RM1018E)

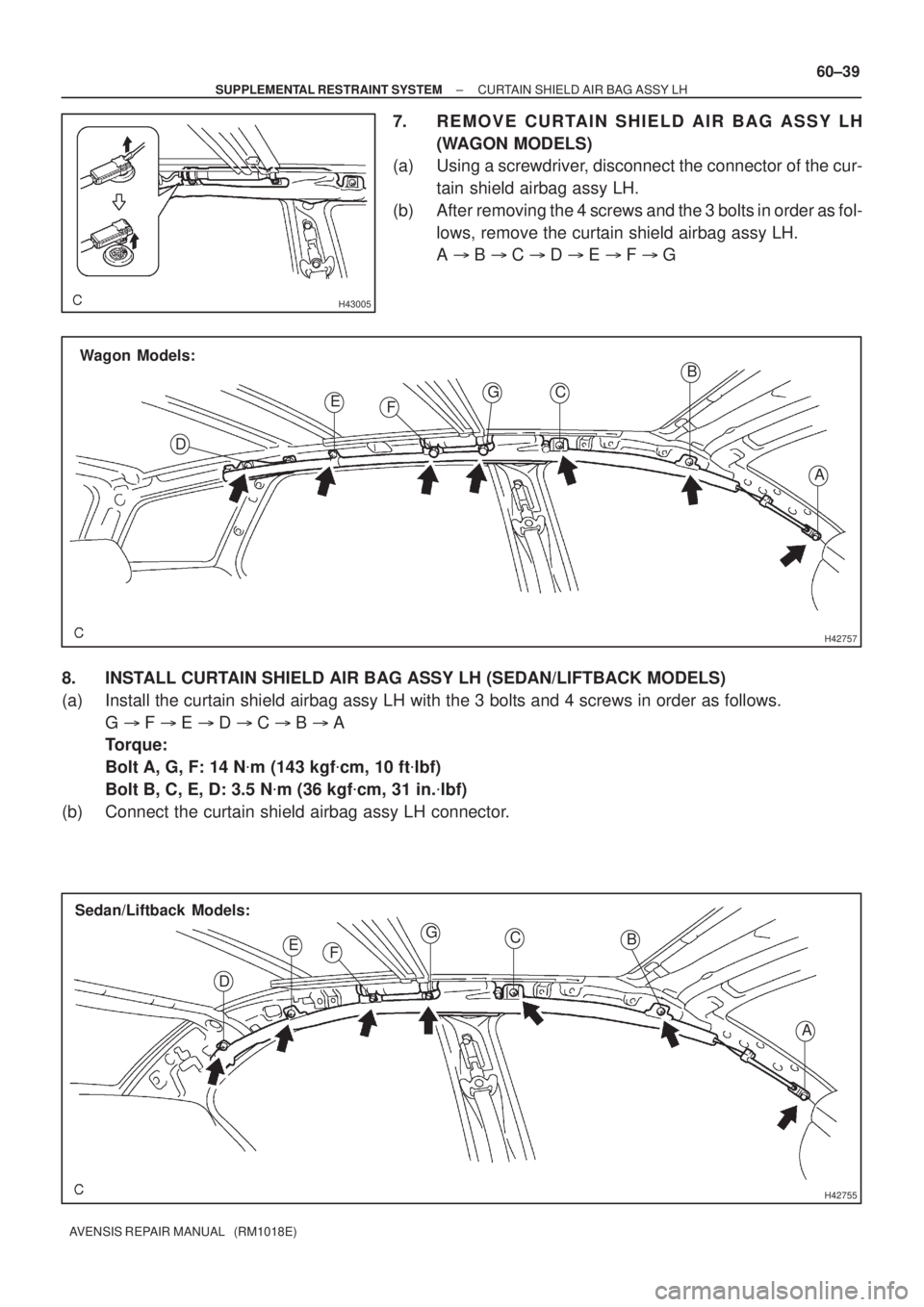

7. REMOVE CURTAIN SHIELD AIR BAG ASSY LH
(WAGON MODELS)
(a) Using a screwdriver, disconnect the connector of the cur-
tain shield airbag assy LH.
(b) After removing the 4 screws and the 3 bolts in order as fol-
lows, remove the curtain shield airbag assy LH.
A B C D E F G
8. INSTALL CURTAIN SHIELD AIR BAG ASSY LH (SEDAN/LIFTBACK MODELS)
(a) Install the curtain shield airbag assy LH with the 3 bolts and 4 screws in order as follows.
G F E D C B A
Torque:
Bolt A, G, F: 14 Nm (143 kgfcm, 10 ftlbf)
Bolt B, C, E, D: 3.5 Nm (36 kgfcm, 31 in.lbf)
(b) Connect the curtain shield airbag assy LH connector.

H42757
A
B
C
E
D F
G
Wagon Models:
60±40
±
SUPPLEMENTAL RESTRAINT SYSTEM CURTAIN SHIELD AIR BAG ASSY LH
AVENSIS REPAIR MANUAL (RM1018E)

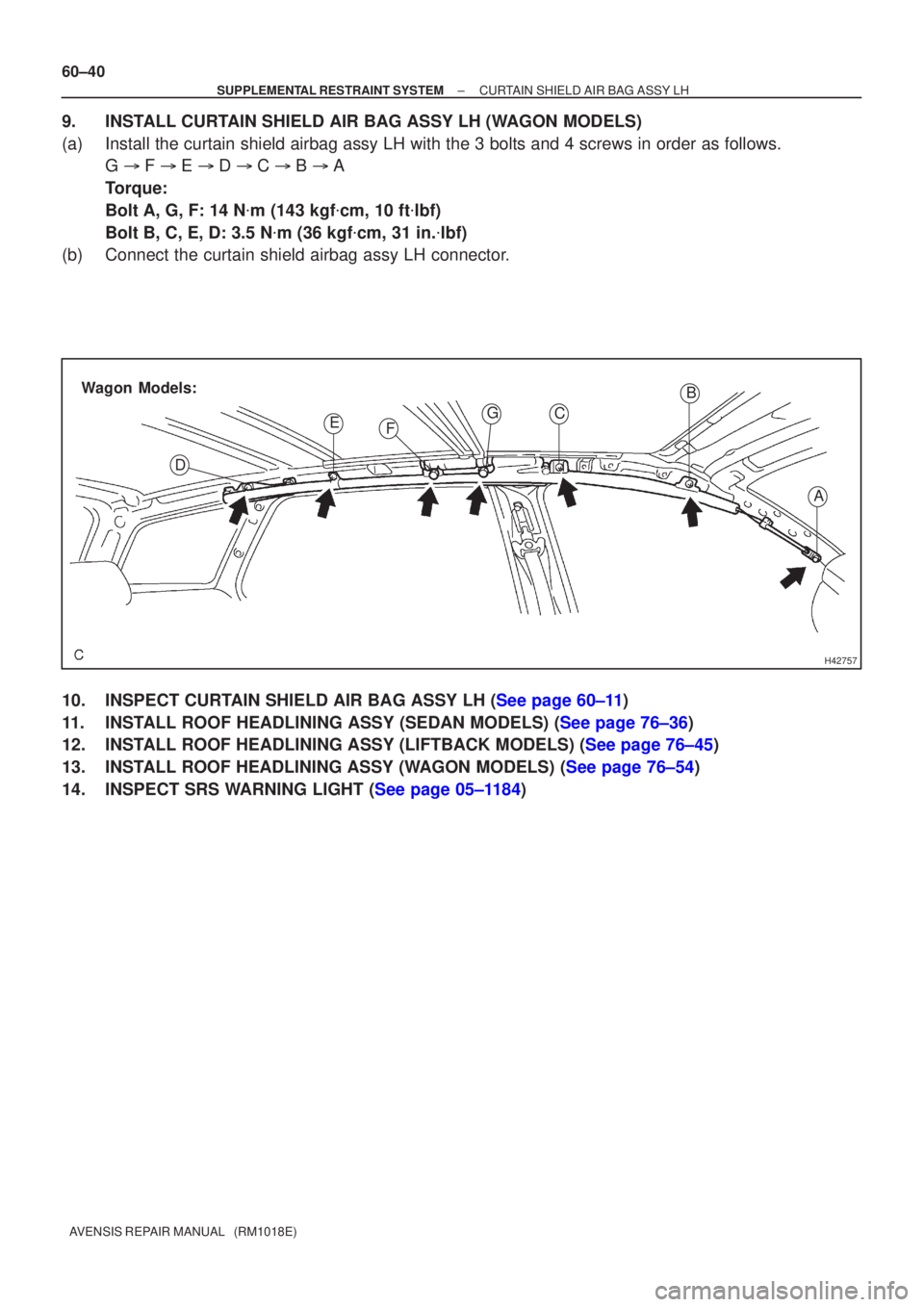

9. INSTALL CURTAIN SHIELD AIR BAG ASSY LH (WAGON MODELS)
(a) Install the curtain shield airbag assy LH with the 3 bolts and 4 screws \
in order as follows. G  F  E  D  C  B  A
Torque:
Bolt A, G, F: 14 N m (143 kgf cm, 10 ft lbf)
Bolt B, C, E, D: 3.5 N m (36 kgf cm, 31 in. lbf)
(b) Connect the curtain shield airbag assy LH connector.
10.INSPECT CURTAIN SHIELD AIR BAG ASSY LH (See page 60±11)
11.INSTALL ROOF HEADLINING ASSY (SEDAN MODELS) (See page 76±36)
12.INSTALL ROOF HEADLINING ASSY (LIFTBACK MODELS) (See page 76±45)
13.INSTALL ROOF HEADLINING ASSY (WAGON MODELS) (See page 76±54)
14.INSPECT SRS WARNING LIGHT (See page 05±1184)

6009Y±02
H40004
SST(s)
H40005
Battery
SST(s)
±
SUPPLEMENTAL RESTRAINT SYSTEM CURTAIN SHIELD AIR BAG ASSY LH
60±41
AVENSIS REPAIR MANUAL (RM1018E)
DISPOSAL
HINT:

Disposal procedure of the RH side is the same as that for the LH side.

When scrapping a vehicle equipped with SRS or disposing of the curtain shield airbag assy LH, be sure
to deploy the airbag first in accordance with the procedure described belo\
w. If any abnormality occurs
with the airbag deployment, contact the SERVICE DEPT. of TOYOTA MOTOR SALES, U.S.A., INC.
CAUTION:

Never dispose of the curtain shield airbag assy LH
that has an undeployed airbag.

The airbag produces an exploding sound when it is
deployed, so perform the operation outdoors and
where it will not create a nuisance to nearby resi-
dents.

When deploying the airbag, always use the specified
SST(s) (SRS Airbag Deployment Tool). Perform the
operation in a place away from electrical noise.

When deploying the airbag, perform the operation at
least 10 m (33 ft) away from the curtain shield airbag
assy LH.

The curtain shield airbag assy LH is extremely hot
when the airbag is deployed, so do not touch it for at
least 30 minutes after deployment.

Use gloves and safety glasses when handling the cur-
tain shield airbag assy LH with the deployed airbag.

Do not apply water, etc. to the curtain shield airbag
assy LH with the deployed airbag.

Always wash your hands with water after completing
the operation.
1. DISPOSE OF CURTAIN SHIELD AIR BAG ASSY LH (WHEN SCRAPPING VEHICLE DEPLOYMENT
METHOD)
HINT:
Prepare a battery as the power source to deploy the airbag.
(a)Check the function of the SST(s) (See step 1±(a) on page
60±17).
(b) Disconnect the airbag connector.
(1) Sedan Models:Remove the roof headlining assy (See page
76±36).
(2) Liftback Models: Remove the roof headlining assy (See page
76±45).
(3) Wagon Models: Remove the roof headlining assy (See page
76±54).
(4) Using a screwdriver, disconnect the curtain shield airbag LH connector.

H42758SST(s)
H41078
10 m (33 ft) or more
SST(s)Battery 60±42
± SUPPLEMENTAL RESTRAINT SYSTEMCURTAIN SHIELD AIR BAG ASSY LH
AVENSIS REPAIR MANUAL (RM1018E)

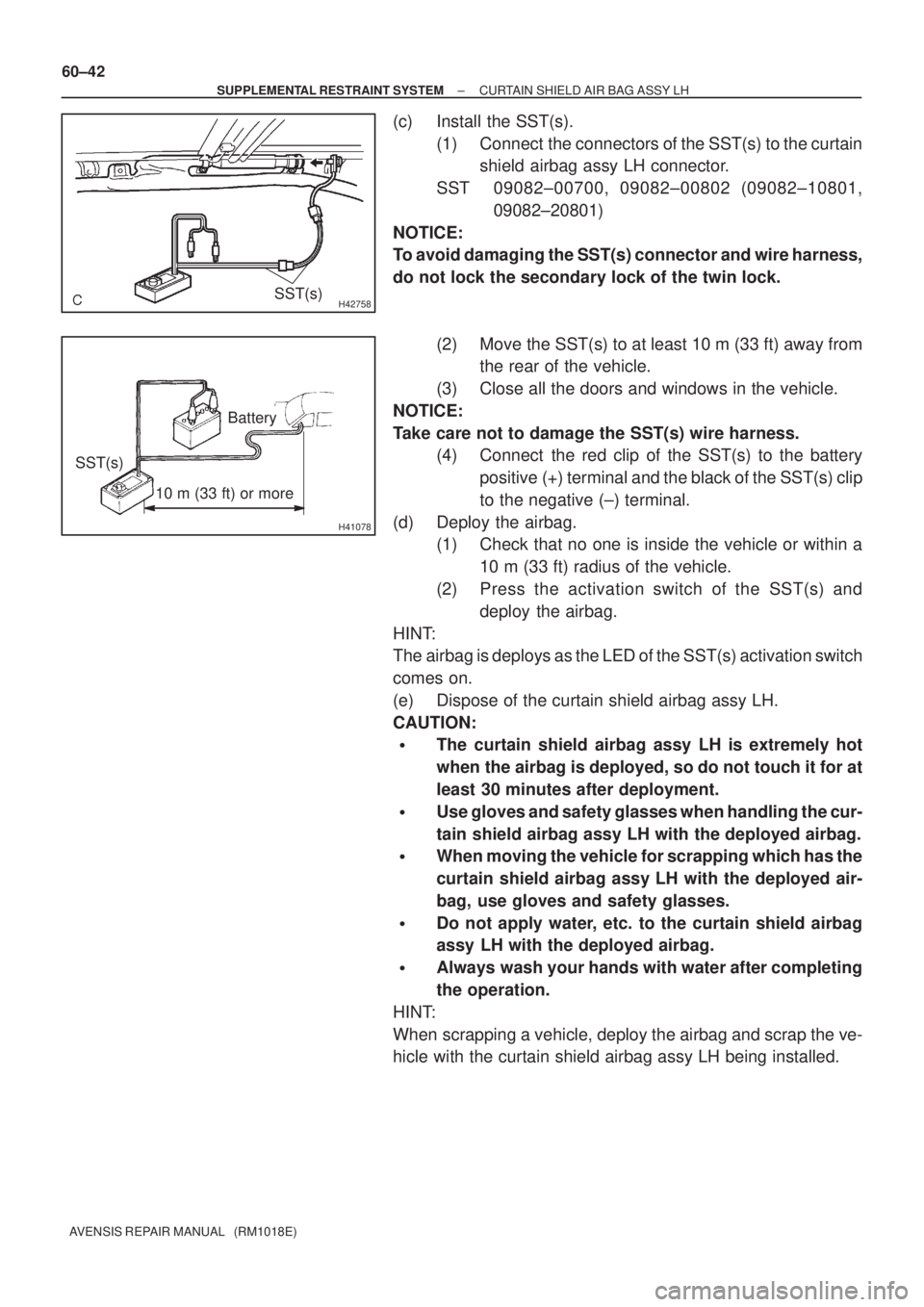

(c) Install the SST(s).
(1) Connect the connectors of the SST(s) to the curtain
shield airbag assy LH connector.
SST 09082±00700, 09082±00802 (09082±10801,
09082±20801)
NOTICE:
To avoid damaging the SST(s) connector and wire harness,
do not lock the secondary lock of the twin lock.
(2) Move the SST(s) to at least 10 m (33 ft) away from
the rear of the vehicle.
(3) Close all the doors and windows in the vehicle.
NOTICE:
Take care not to damage the SST(s) wire harness.
(4) Connect the red clip of the SST(s) to the battery
positive (+) terminal and the black of the SST(s) clip
to the negative (±) terminal.
(d) Deploy the airbag.
(1) Check that no one is inside the vehicle or within a
10 m (33 ft) radius of the vehicle.
(2) Press the activation switch of the SST(s) and
deploy the airbag.
HINT:
The airbag is deploys as the LED of the SST(s) activation switch
comes on.
(e) Dispose of the curtain shield airbag assy LH.
CAUTION:

The curtain shield airbag assy LH is extremely hot
when the airbag is deployed, so do not touch it for at
least 30 minutes after deployment.

Use gloves and safety glasses when handling the cur-
tain shield airbag assy LH with the deployed airbag.

When moving the vehicle for scrapping which has the
curtain shield airbag assy LH with the deployed air-
bag, use gloves and safety glasses.

Do not apply water, etc. to the curtain shield airbag
assy LH with the deployed airbag.

Always wash your hands with water after completing
the operation.
HINT:
When scrapping a vehicle, deploy the airbag and scrap the ve-
hicle with the curtain shield airbag assy LH being installed.

H40005
Battery
SST(s)
H42759
H42760
±
SUPPLEMENTAL RESTRAINT SYSTEM CURTAIN SHIELD AIR BAG ASSY LH
60±43
AVENSIS REPAIR MANUAL (RM1018E)

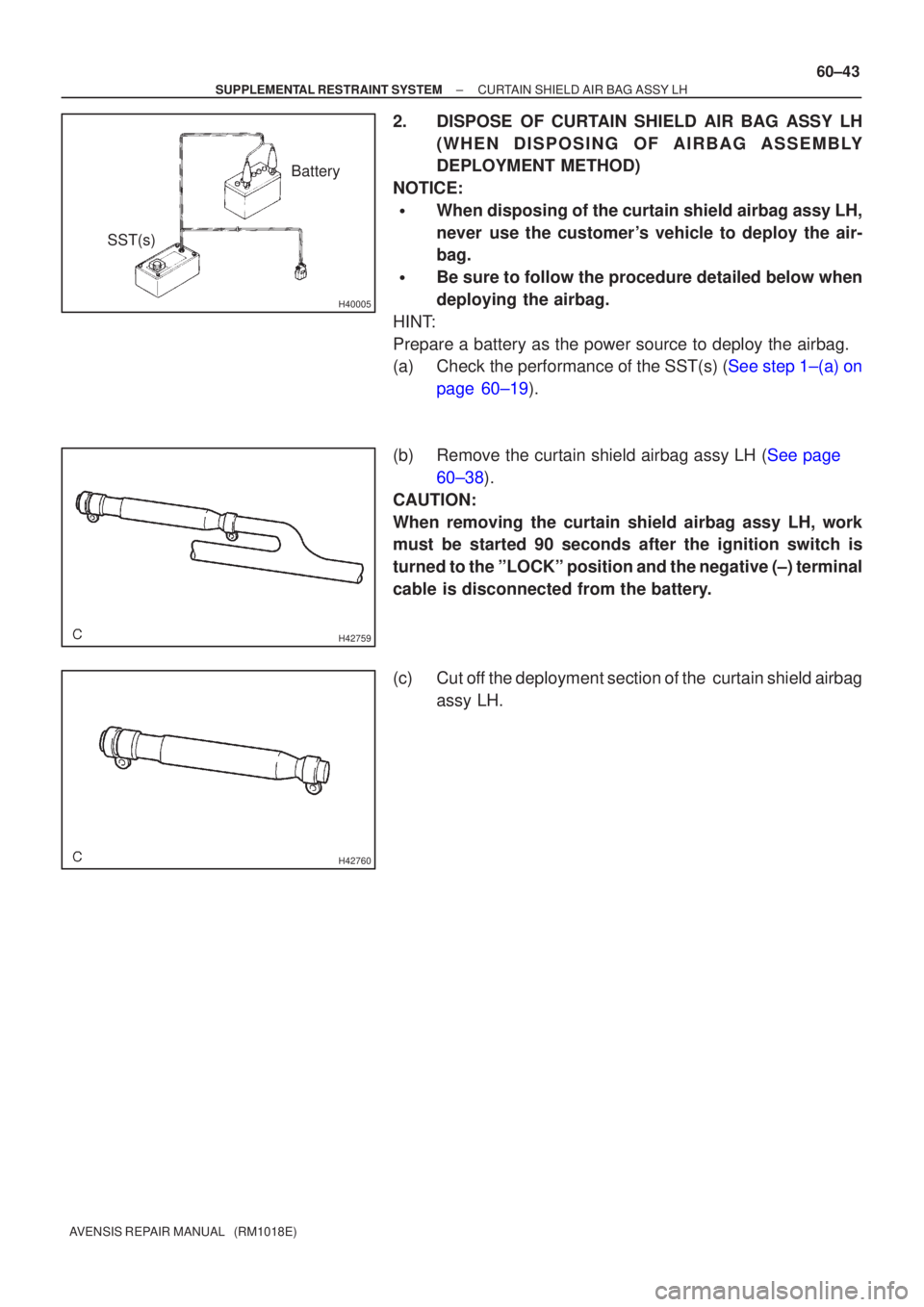

2. DISPOSE OF CURTAIN SHIELD AIR BAG ASSY LH
(WHEN DISPOSING OF AIRBAG A SSEMBLY
DEPLOYMENT METHOD)
NOTICE:

When disposing of the curtain shield airbag assy LH,
never use the customer's vehicle to deploy the air-
bag.

Be sure to follow the procedure detailed below when
deploying the airbag.
HINT:
Prepare a battery as the power source to deploy the airbag.
(a)Check the performance of the SST(s) (See step 1±(a) on page 60±19).
(b)Remove the curtain shield airbag assy LH (See page 60±38).
CAUTION:
When removing the curtain shield airbag assy LH, work
must be started 90 seconds after the ignition switch is
turned to the ºLOCKº position and the negative (±) terminal
cable is disconnected from the battery.
(c) Cut off the deployment section of the curtain shield airbag assy LH.
