2002 TOYOTA AVENSIS Repair Manual

33±12
±
PARKING BRAKE PARKING BRAKE CABLE ASSY NO.3
AVENSIS REPAIR MANUAL (RM1018E)

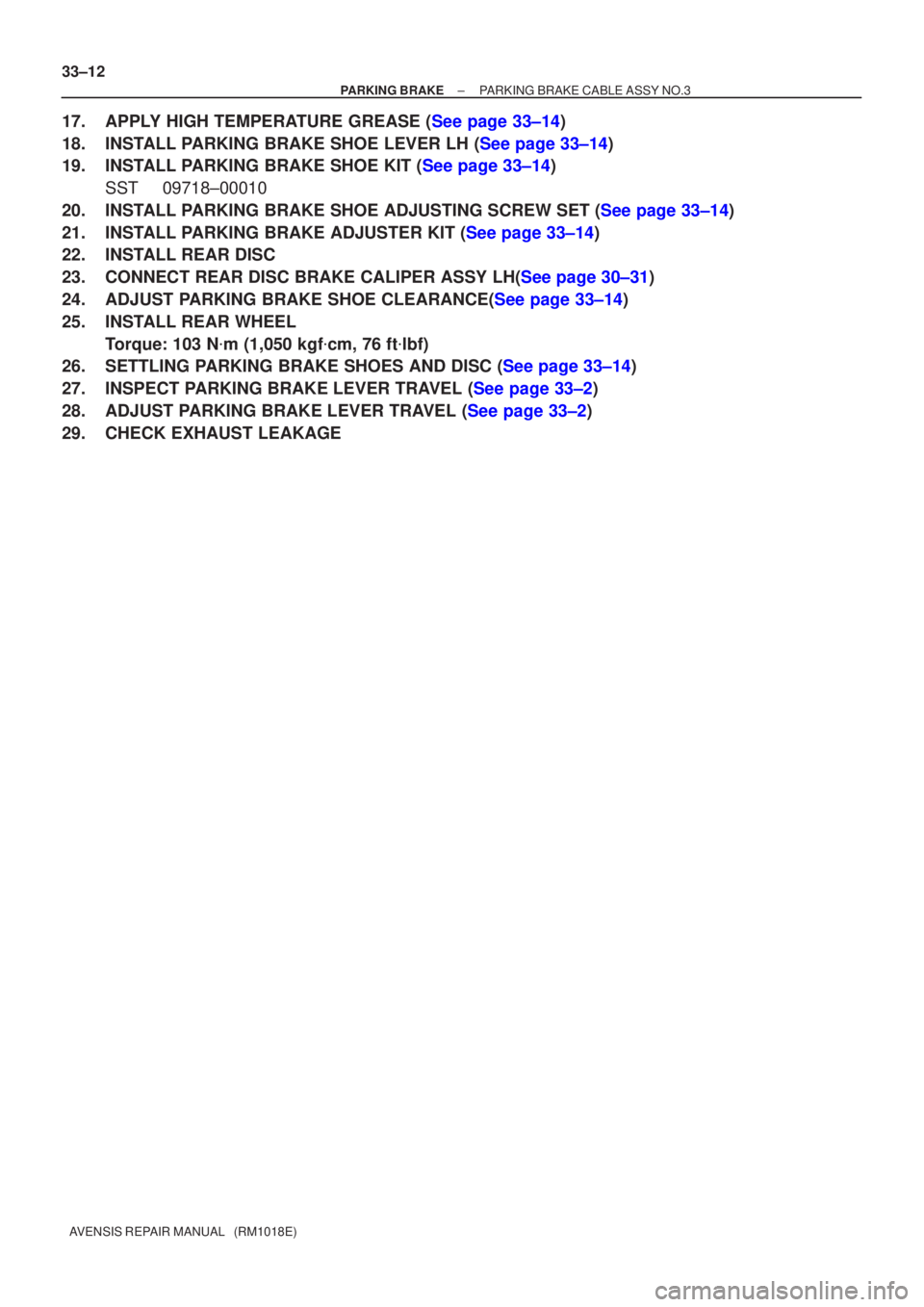

17.APPLY HIGH TEMPERATURE GREASE (See page 33±14)
18.INSTALL PARKING BRAKE SHOE LEVER LH (See page 33±14)
19.INSTALL PARKING BRAKE SHOE KIT (See page 33±14) SST 09718±00010
20.INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET (See page 33±14)
21.INSTALL PARKING BRAKE ADJUSTER KIT (See page 33±14)
22. INSTALL REAR DISC
23.CONNECT REAR DISC BRAKE CALIPER ASSY LH(See page 30±31)
24.ADJUST PARKING BRAKE SHOE CLEARANCE(See page 33±14)
25. INSTALL REAR WHEEL Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
26.SETTLING PARKING BRAKE SHOES AND DISC (See page 33±14)
27.INSPECT PARKING BRAKE LEVER TRAVEL (See page 33±2)
28.ADJUST PARKING BRAKE LEVER TRAVEL (See page 33±2)
29. CHECK EXHAUST LEAKAGE

33068±03
F44809
Console Box Assy RR
Lock Nut
Adjusting Nut
Parking BrakeLever Sub±assy Parking Brake Switch Assy
Parking Brake Switch Connector
Parking BrakeCable No.1
N
m (kgf
cm, ft
lbf)
: Specified torqueScrew
13 (127, 9)
A/T TRANSAXLE:
Floor Shift Shift
Lever Knob
Sub±Assy
Console Panel Sub±Assy Upper
Console Panel Sub±Assy Lower
A/T Transaxle
M/T Transaxle M/T TRANSAXLE:
Console Panel
Sub±Assy Upper
5.0 (51, 44 in.
lbf)
M/T Transaxle
± PARKING BRAKEPARKING BRAKE LEVER SUB±ASSY
33±3
AVENSIS REPAIR MANUAL (RM1018E)
PARKING BRAKE LEVER SUB±ASSY
COMPONENTS

330C6±01
F44810
F41838
F44811
F44812
33±4
±
PARKING BRAKE PARKING BRAKE LEVER SUB±ASSY
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1. REMOVE FLOOR SHIFT SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) (See page 41±11)
2.REMOVE CONSOLE PANEL SUB±ASSY UPPER (See page 71±11)
3.REMOVE CONSOLE PANEL SUB±ASSY LOWER (See page 71±11)
4.REMOVE CONSOLE BOX ASSY RR (See page 71±11)
5. REMOVE PARKING BRAKE LEVER SUB±ASSY
(a) Disconnect the parking brake switch connector from theparking brake switch.
(b) Remove the lock nut and adjusting nut from the parking brake cable assy No.1.
(c) Remove the 2 bolts.
(d) Using a screwdriver, raise the pick on the parking brake lever, and remove the parking brake cable assy No.1 from
the parking brake lever.
(e) Remove the parking brake lever from the body.
6. REMOVE PARKING BRAKE SWITCH ASSY
(a) Remove the screw and parking brake switch.

F44812
F44813
F41838
F44810
±
PARKING BRAKE PARKING BRAKE LEVER SUB±ASSY
33±5
AVENSIS REPAIR MANUAL (RM1018E)

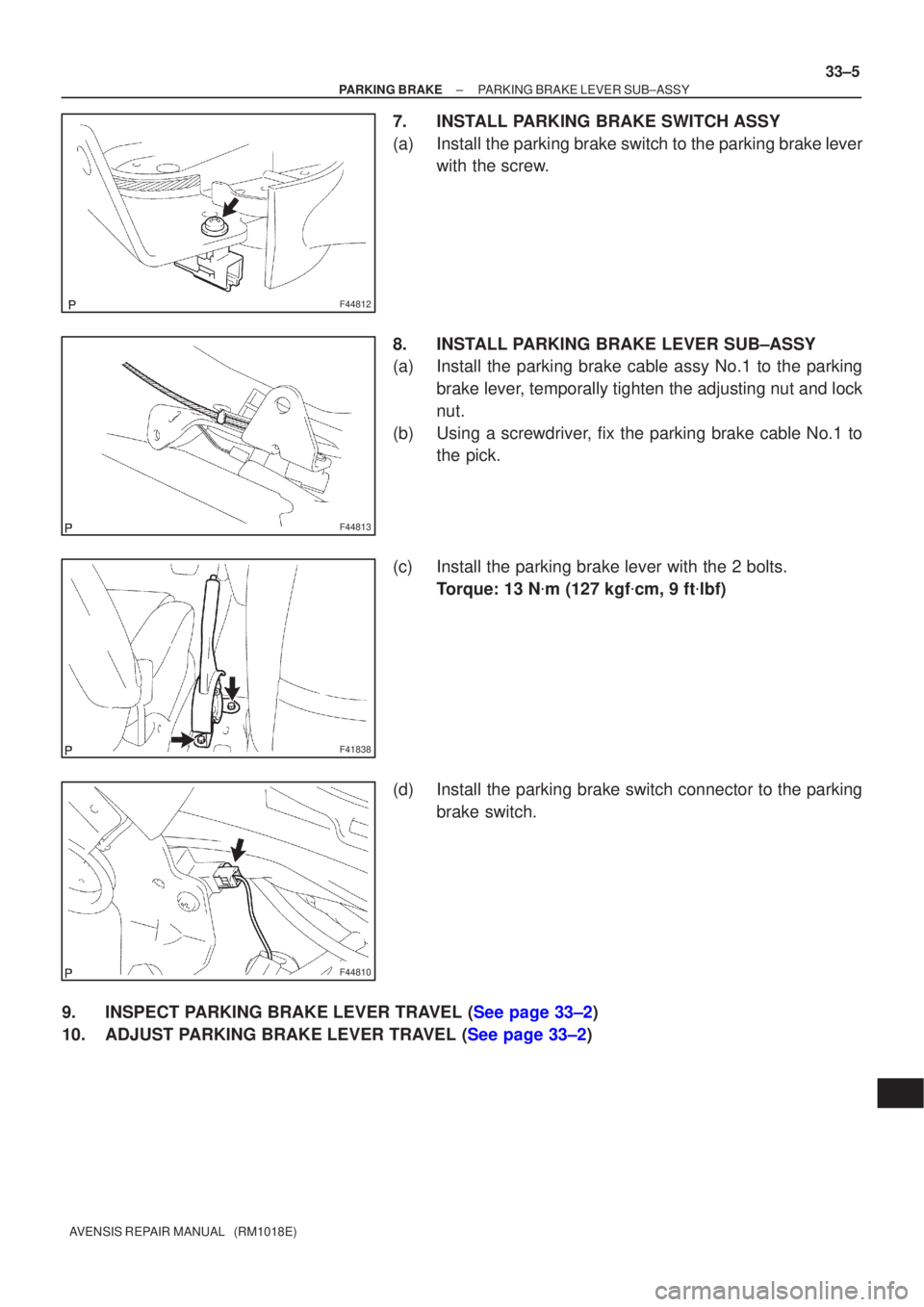

7. INSTALL PARKING BRAKE SWITCH ASSY
(a) Install the parking brake switch to the parking brake lever
with the screw.
8. INSTALL PARKING BRAKE LEVER SUB±ASSY
(a) Install the parking brake cable assy No.1 to the parking brake lever, temporally tighten the adjusting nut and lock
nut.
(b) Using a screwdriver, fix the parking brake cable No.1 to the pick.
(c) Install the parking brake lever with the 2 bolts. Torque: 13 N
m (127 kgf
cm, 9 ft
lbf)
(d) Install the parking brake switch connector to the parking brake switch.
9.INSPECT PARKING BRAKE LEVER TRAVEL (See page 33±2)
10.ADJUST PARKING BRAKE LEVER TRAVEL (See page 33±2)

3300E±07
±
PARKING BRAKE PARKING BRAKE SYSTEM
33±1
AVENSIS REPAIR MANUAL (RM1018E)
PARKING BRAKE SYSTEM

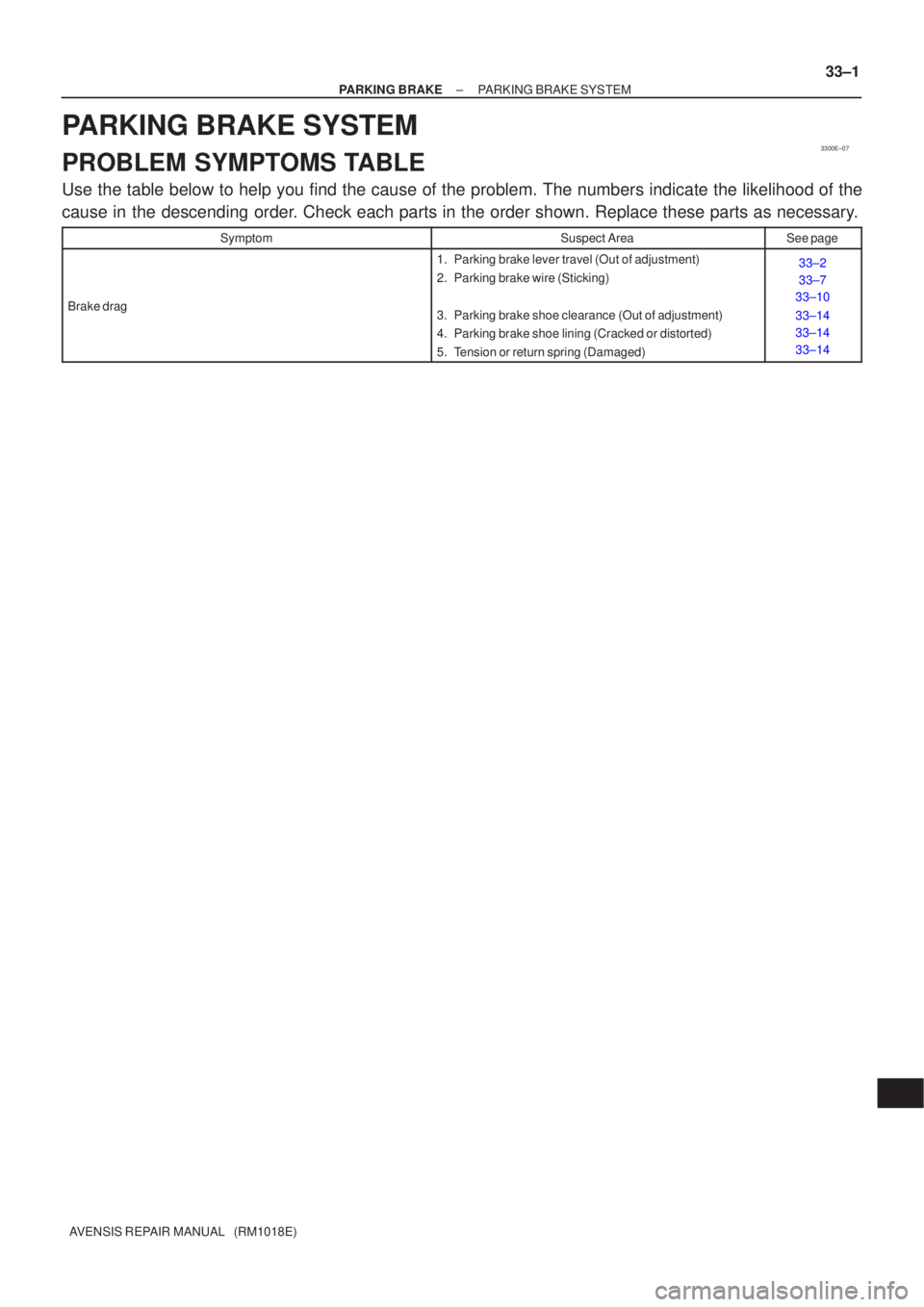

PROBLEM SYMPTOMS TABLE
Use the table below to help you find the cause of the problem. The numbers \
indicate the likelihood of the
cause in the descending order. Check each parts in the order shown. Replace these parts as necessary.
SymptomSuspect AreaSee page
Brake drag
1. Parking brake lever travel (Out of adjustment)
2. Parking brake wire (Sticking)
3. Parking brake shoe clearance (Out of adjustment)
4. Parking brake shoe lining (Cracked or distorted)
5. Tension or return spring (Damaged)33±2
33±7
33±10
33±14
33±14
33±14

3300F±07
F44808
Lock NutAdjusting Nut
33±2
±
PARKING BRAKE PARKING BRAKE SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

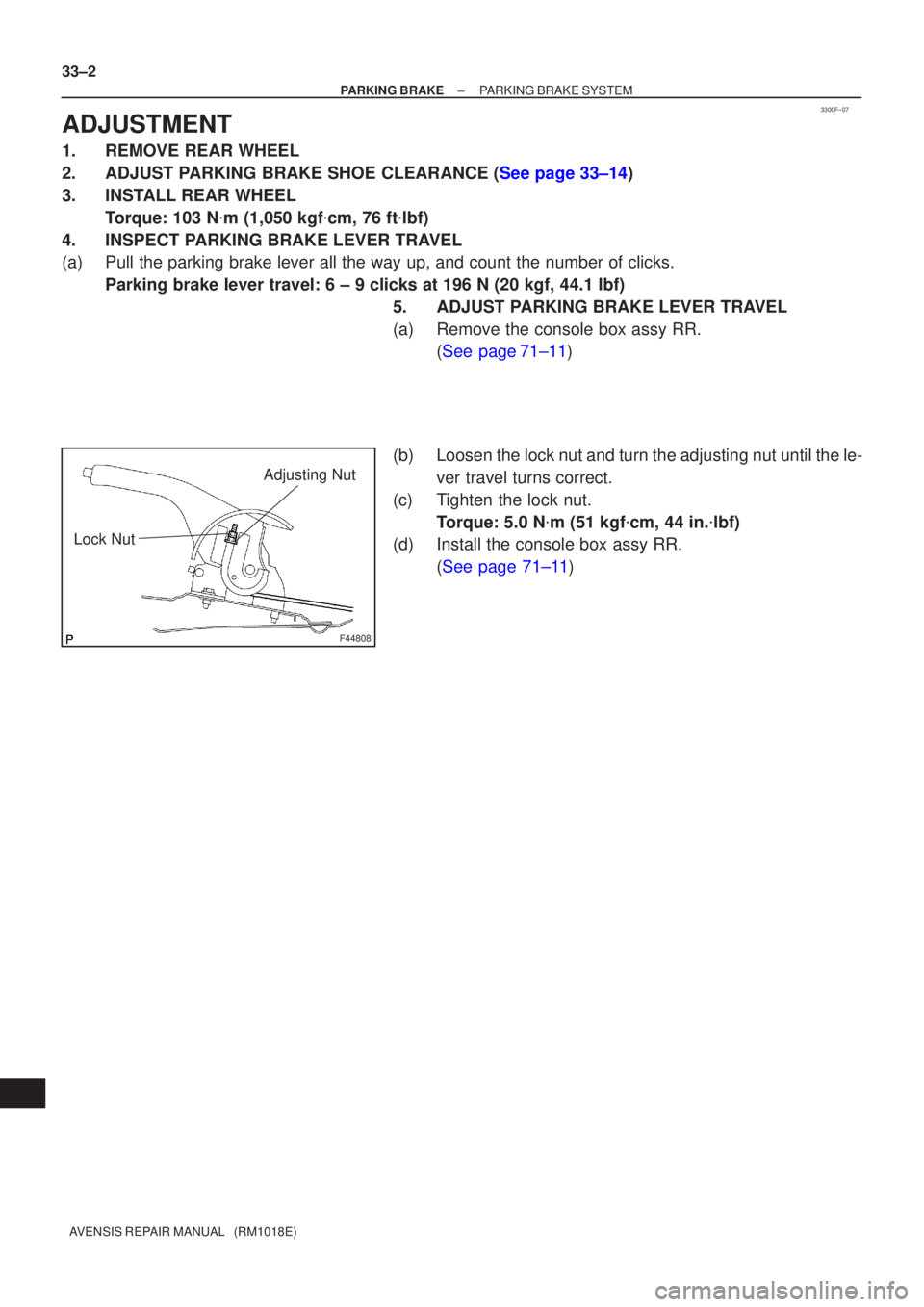

ADJUSTMENT
1. REMOVE REAR WHEEL
2.ADJUST PARKING BRAKE SHOE CLEARANCE (See page 33±14)
3. INSTALL REAR WHEEL Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
4. INSPECT PARKING BRAKE LEVER TRAVEL
(a) Pull the parking brake lever all the way up, and count the number of cli\
cks. Parking brake lever travel: 6 ± 9 clicks at 196 N (20 kgf, 44.1 lbf)\
5. ADJUST PARKING BRAKE LEVER TRAVEL
(a) Remove the console box assy RR.(See page71±11)
(b) Loosen the lock nut and turn the adjusting nut until the le- ver travel turns correct.
(c) Tighten the lock nut. Torque: 5.0 N
m (51 kgf
cm, 44 in.
lbf)
(d) Install the console box assy RR.
(See page 71±11)

5100F±06
±
POWER STEERING POWER STEERING SYSTEM
51±1
AVENSIS REPAIR MANUAL (RM1018E)
POWER STEERING SYSTEM

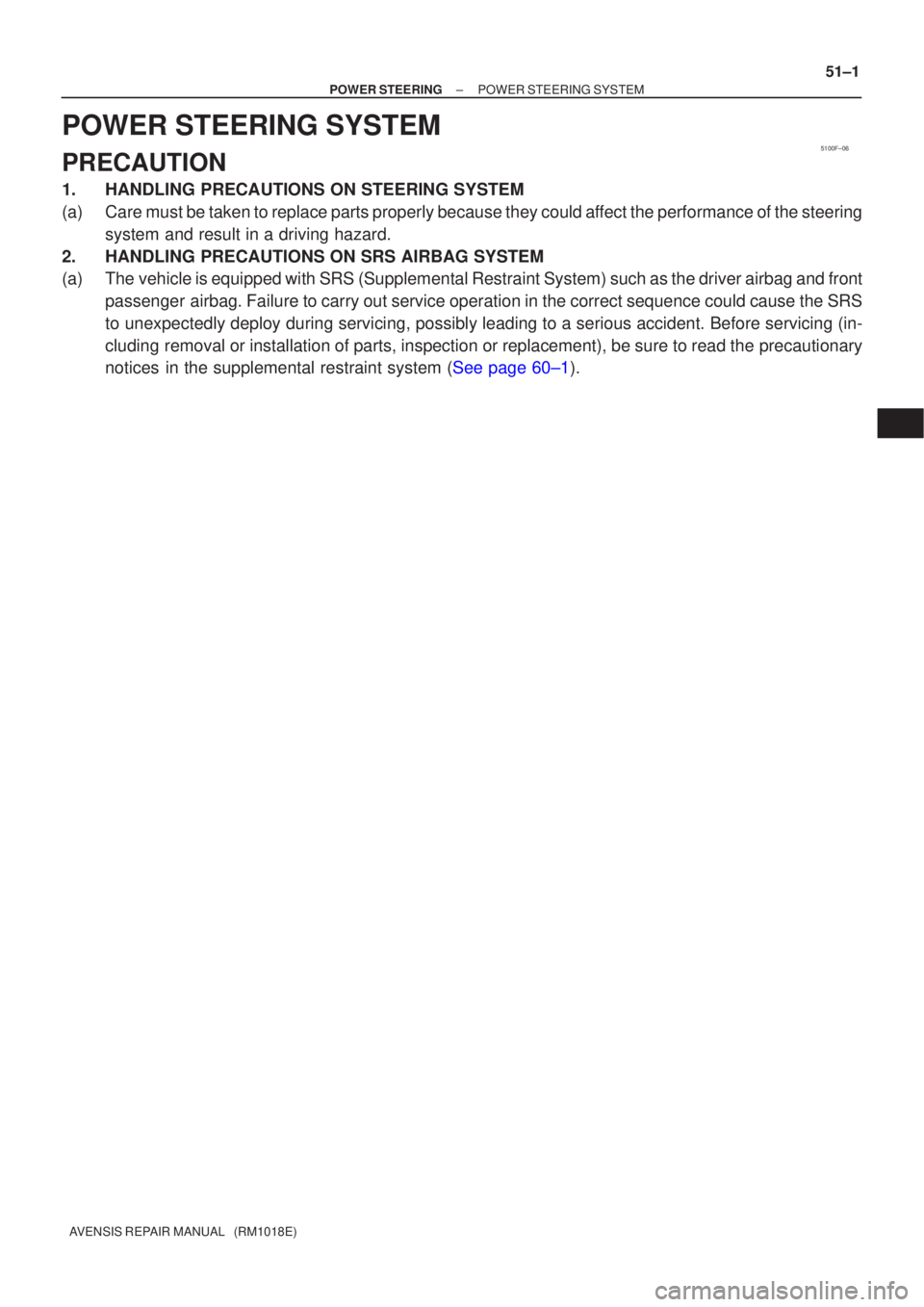

PRECAUTION
1. HANDLING PRECAUTIONS ON STEERING SYSTEM
(a) Care must be taken to replace parts properly because they could affect the performance of the steering
system and result in a driving hazard.
2. HANDLING PRECAUTIONS ON SRS AIRBAG SYSTEM
(a) The vehicle is equipped with SRS (Supplemental Restraint System) such as \
the driver airbag and front passenger airbag. Failure to carry out service operation in the correct sequence \
could cause the SRS
to unexpectedly deploy during servicing, possibly leading to a serious acc\
ident. Before servicing (in-
cluding removal or installation of parts, inspection or replacement), be sure \
to read the precautionary
notices in the supplemental restraint system (See page 60±1).

5100G±06
51±2
±
POWER STEERING POWER STEERING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

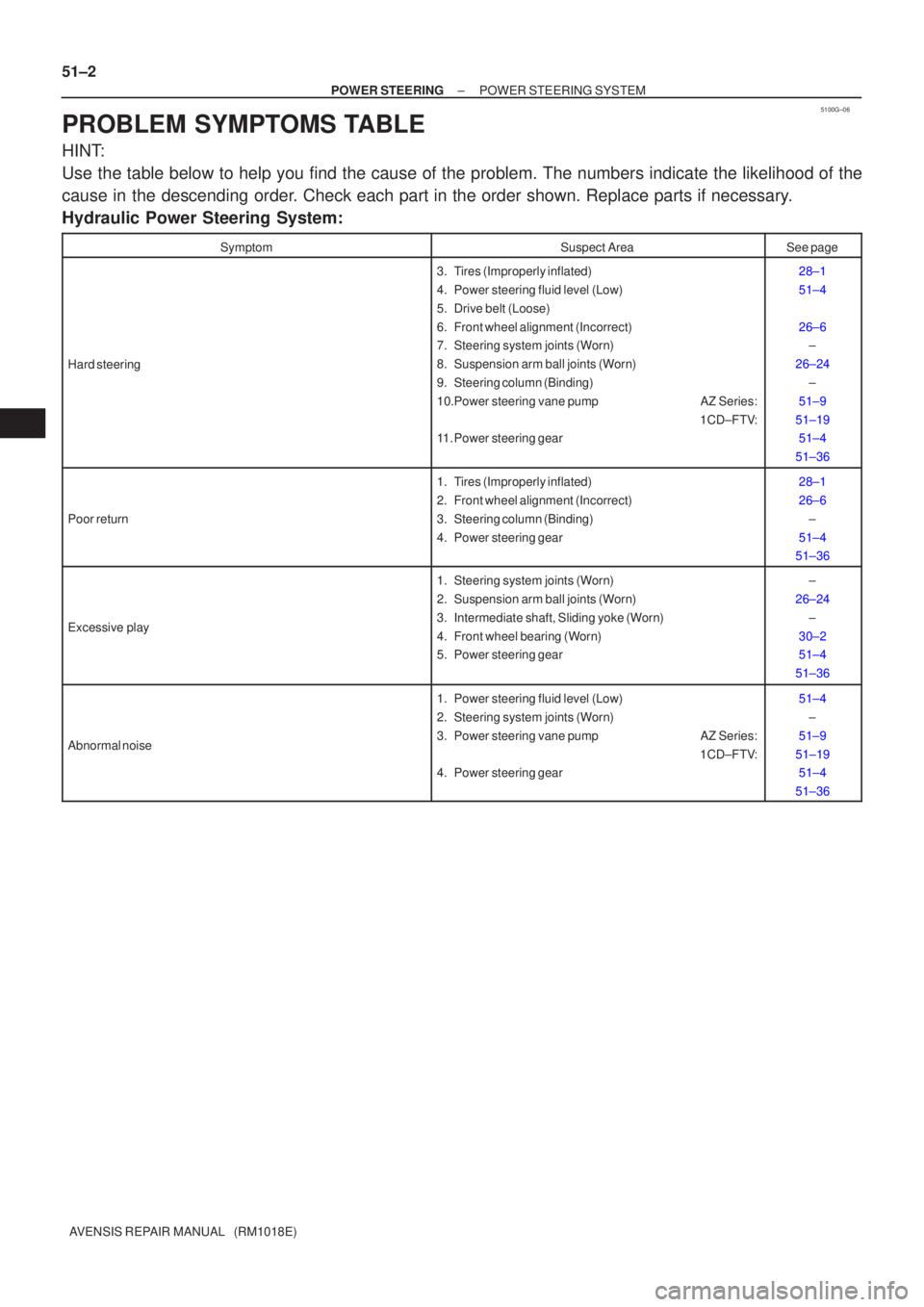

PROBLEM SYMPTOMS TABLE
HINT:
Use the table below to help you find the cause of the problem. The numbers \
indicate the likelihood of the
cause in the descending order. Check each part in the order shown. Replace parts if necessary.
Hydraulic Power Steering System:
SymptomSuspect AreaSee page
Hard steering
3. Tires (Improperly inflated)
4. Power steering fluid level (Low)
5. Drive belt (Loose)
6. Front wheel alignment (Incorrect)
7. Steering system joints (Worn)
8. Suspension arm ball joints (Worn)
9. Steering column (Binding)
10.Power steering vane pump AZ Series: 1CD±FTV:
11. Power steering gear28±1
51±4
26±6 ±
26±24 ±
51±9
51±19 51±4
51±36
Poor return
1. Tires (Improperly inflated)
2. Front wheel alignment (Incorrect)
3. Steering column (Binding)
4. Power steering gear28±1
26±6 ±
51±4
51±36
Excessive play
1. Steering system joints (Worn)
2. Suspension arm ball joints (Worn)
3. Intermediate shaft, Sliding yoke (Worn)
4. Front wheel bearing (Worn)
5. Power steering gear±
26±24 ±
30±2
51±4
51±36
Abnormal noise
1. Power steering fluid level (Low)
2. Steering system joints (Worn)
3. Power steering vane pump AZ Series: 1CD±FTV:
4. Power steering gear51±4
±
51±9
51±19 51±4
51±36
