2002 TOYOTA AVENSIS Repair Manual

670SG±02
67±24
±
AUDIO & VISUAL SYSTEM ANTENNA CORD SUB±ASSY NO.3
AVENSIS REPAIR MANUAL (RM1018E)

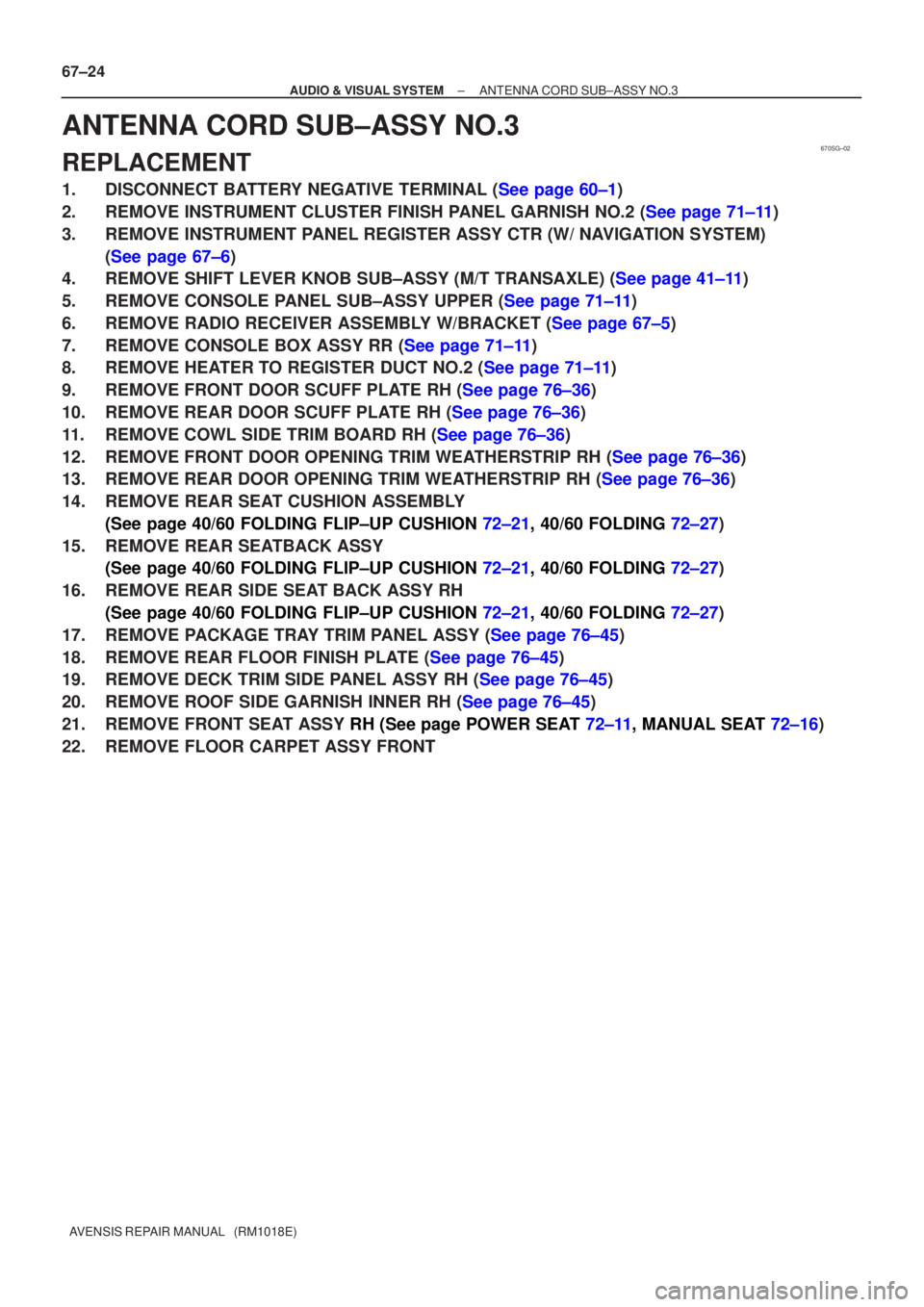

ANTENNA CORD SUB±ASSY NO.3
REPLACEMENT
1 . DISCONNEC T B ATTE RY NEG ATIVE TERMINAL ( See page 60±1)
2 . REMOVE INSTRUMENT CLUSTER FINISH P ANEL GARNISH NO.2 ( See page 71±11 )
3. REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (W/ NAVIGATION SYSTEM) (See page 67±6 )
4 . REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) ( See page 41±11 )
5 . REMOVE CONSOLE PANEL SUB±ASSY UPPER ( See page 71±11 )
6 . REMOVE RADIO RECEIVER ASSEMB LY W/BRACKET ( See page 67±5)
7 . REMOVE CONSOLE BOX ASSY RR ( See page 71±11 )
8 . REMOVE HE ATER T O REGISTER DUCT NO.2 ( See page 71±11 )
9 . REMOVE FRONT DOOR SCUFF PL ATE RH ( See page 76±36 )
10 . REMOVE REAR DOOR SCUFF PL ATE RH ( See page 76±36 )
1 1 . REMOVE COWL SIDE TRIM BOARD RH ( See page 76±36)
12 . REMOVE FRONT DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
13 . REMOVE REAR DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
14. REMOVE REAR SEAT CUSHION ASSEMBLY (See page 40/60 FOLDING FLIP±UP CUSHION 72±21 , 40/60 FOLDING 72±27 )
15. REMOVE REAR SEATBACK ASSY (See page 40/60 FOLDING FLIP±UP CUSHION 72±21 , 40/60 FOLDING 72±27 )
16. REMOVE REAR SIDE SEAT BACK ASSY RH (See page 40/60 FOLDING FLIP±UP CUSHION 72±21 , 40/60 FOLDING 72±27 )
17 . REMOVE P ACKAGE TR AY TRIM P ANEL ASSY ( See page 76±45 )
18 . REMOVE REAR FLOOR FINISH PL ATE ( See page 76±45 )
19 . REMOVE DECK TRIM SIDE P ANEL ASSY RH ( See page 76±45)
20 . REMOVE ROOF SIDE GARNISH INNER RH ( See page 76±45)
21 . REMOVE FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )
22. REMOVE FLOOR CARPET ASSY FRONT

I35217Clamps
w/ Navigation:
w/ Navigation:
± AUDIO & VISUAL SYSTEMANTENNA CORD SUB±ASSY NO.3
67±25
AVENSIS REPAIR MANUAL (RM1018E)

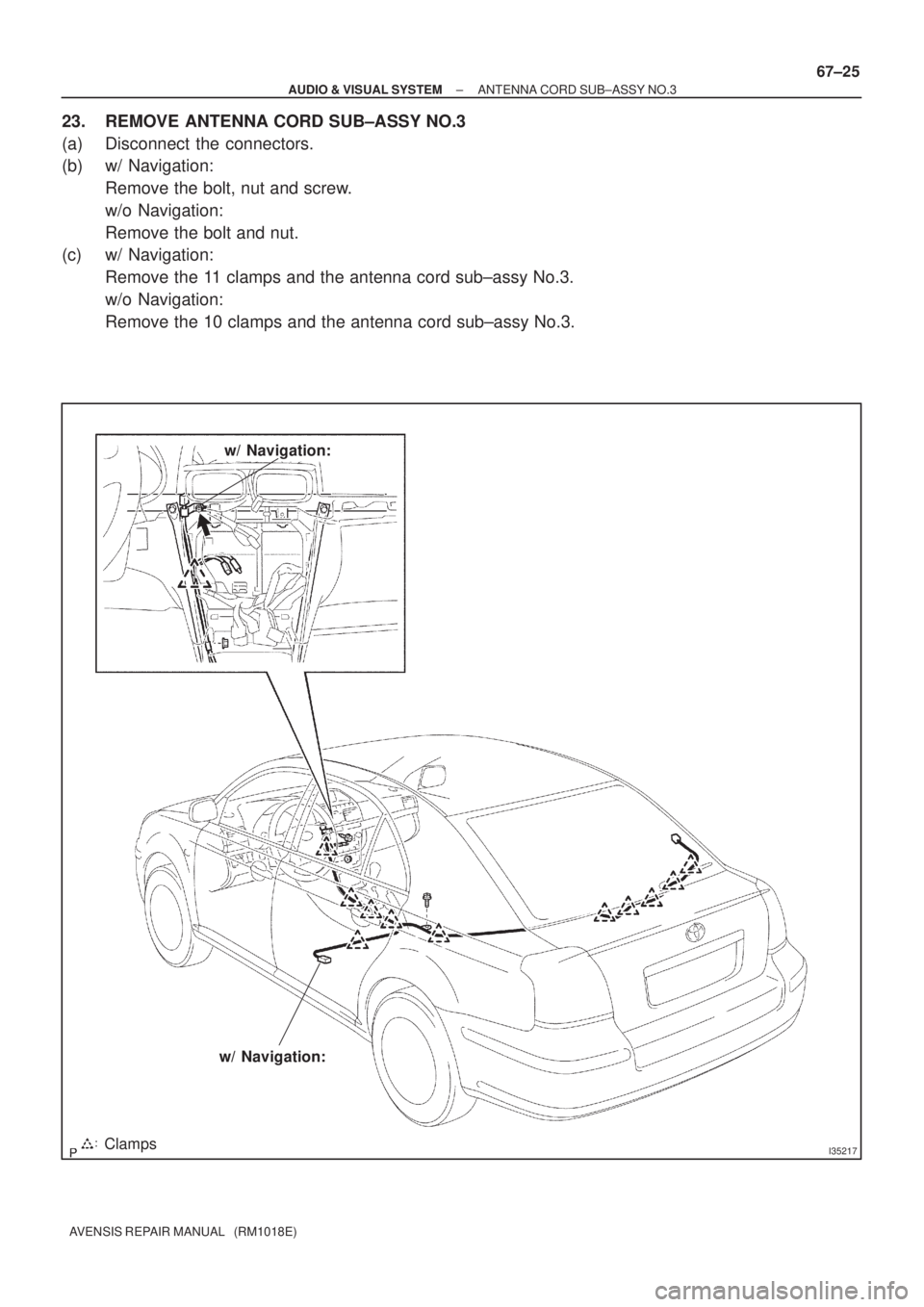

23. REMOVE ANTENNA CORD SUB±ASSY NO.3
(a) Disconnect the connectors.
(b) w/ Navigation:
Remove the bolt, nut and screw.
w/o Navigation:
Remove the bolt and nut.
(c) w/ Navigation:
Remove the 11 clamps and the antenna cord sub±assy No.3.
w/o Navigation:
Remove the 10 clamps and the antenna cord sub±assy No.3.

67±26
±
AUDI O & VISUAL SYSTE MANTENNA CORD SUB±ASSY NO.3
A VENSIS RE PAIR MANUAL (RM1018E)

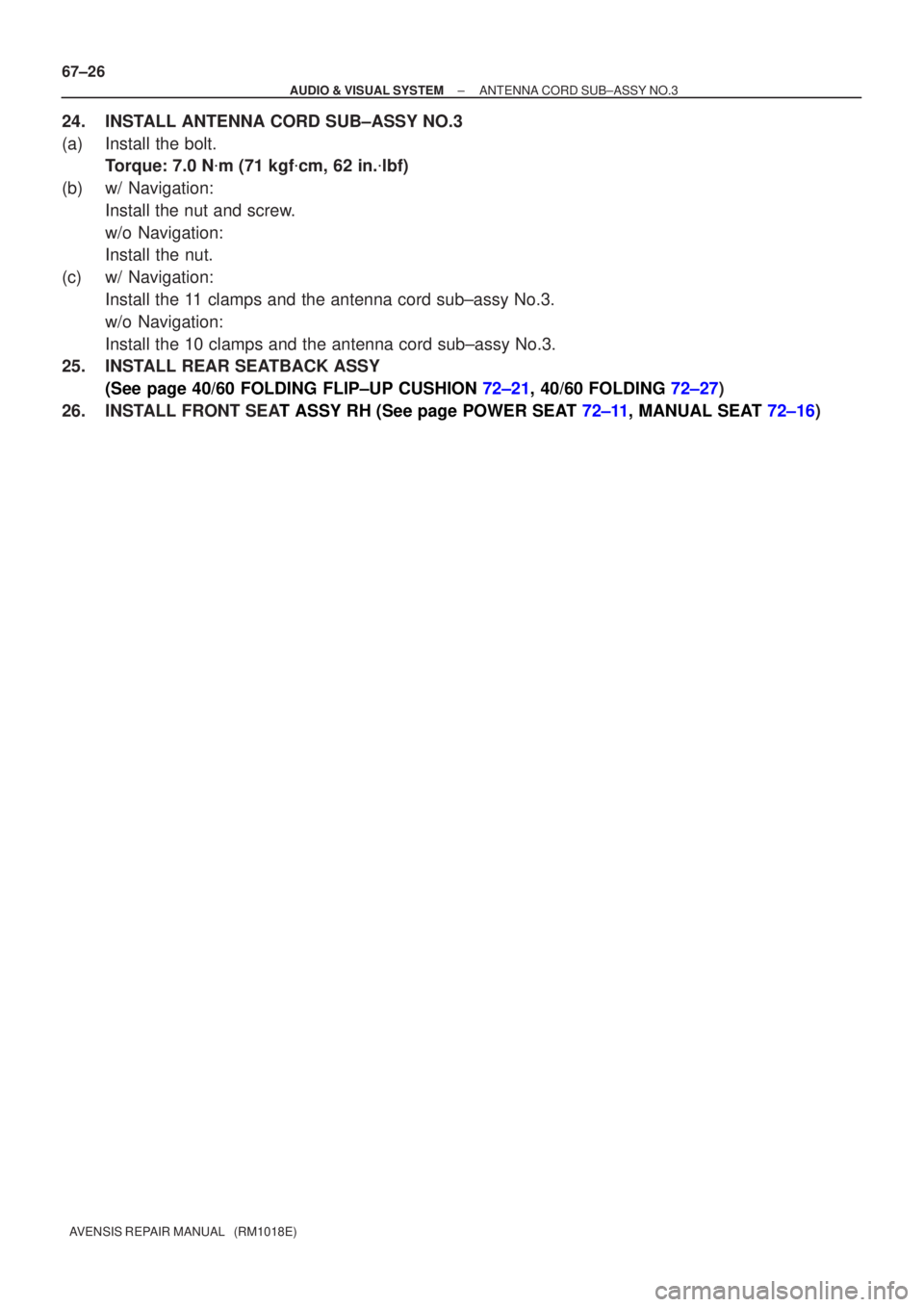

24 . INS TALL ANTENNA CORD SUB±ASSY NO.3
(a ) Install the bolt.
T orque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)
(b ) w/ Navigation:
Install the nut and scre w.
w/o Navigation:
Install the nut.
(c ) w/ Navigation:
Install the 11 clamps and the antenna cord sub±assy No.3.
w/o Navigation:
Install the 10 clamps and the antenna cord sub±assy No.3.
25 . INS TALL REAR SE ATBACK ASSY
( See page 40/60 FOLDING FLIP±UP CUSHION 72±21 , 40/60 FOLDING 72±27 )
26 . INS TALL FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )

670S4±01
± AUDIO & VISUAL SYSTEMAUDIO & VISUAL SYSTEM
67±1
AVENSIS REPAIR MANUAL (RM1018E)
AUDIO & VISUAL SYSTEM

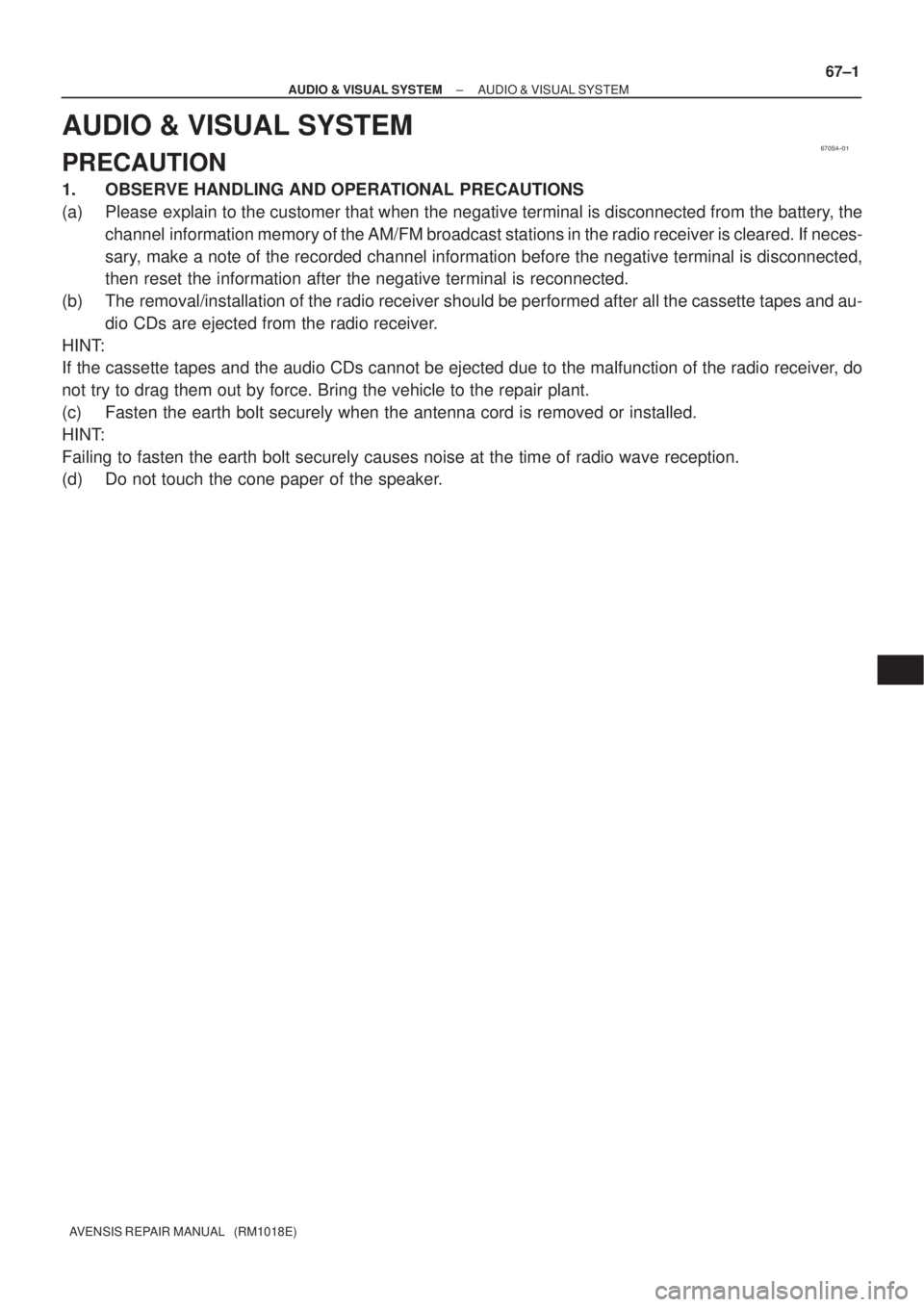

PRECAUTION
1. OBSERVE HANDLING AND OPERATIONAL PRECAUTIONS
(a) Please explain to the customer that when the negative terminal is disconnected from the battery, the
channel information memory of the AM/FM broadcast stations in the radio receiver is cleared. If neces-
sary, make a note of the recorded channel information before the negative terminal is disconnected,
then reset the information after the negative terminal is reconnected.
(b) The removal/installation of the radio receiver should be performed after all the cassette tapes and au-
dio CDs are ejected from the radio receiver.
HINT:
If the cassette tapes and the audio CDs cannot be ejected due to the malfunction of the radio receiver, do
not try to drag them out by force. Bring the vehicle to the repair plant.
(c) Fasten the earth bolt securely when the antenna cord is removed or installed.
HINT:
Failing to fasten the earth bolt securely causes noise at the time of radio wave reception.
(d) Do not touch the cone paper of the speaker.

670S5±01
I35223
Instrument Cluster Finish Panel Garnish No.2
Radio Bracket No.2Radio Receiver Assy
Instrument Panel
Register Assy CTR
Air Conditioning Control AssyConsole Panel
Sub±assy Upper
Navigation System:Navigation Computer Cover
Instrument Panel
Support No.3 Instrument Panel
Support No.1Instrument Panel
Support No.2
Door Control Motor
Door Control Switch
Assy (TILT)
Instrument Cluster Finish Panel AssyDoor Control Switch Instrument Cluster Finish
Upper PanelMulti±display Instrument Panel Box
Door CoverRadio Bracket No.1
Instrument Panel
Register Control Gear
Control Knob
Protector No.1
Position Sensor
67±2
± AUDIO & VISUAL SYSTEMAUDIO & VISUAL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

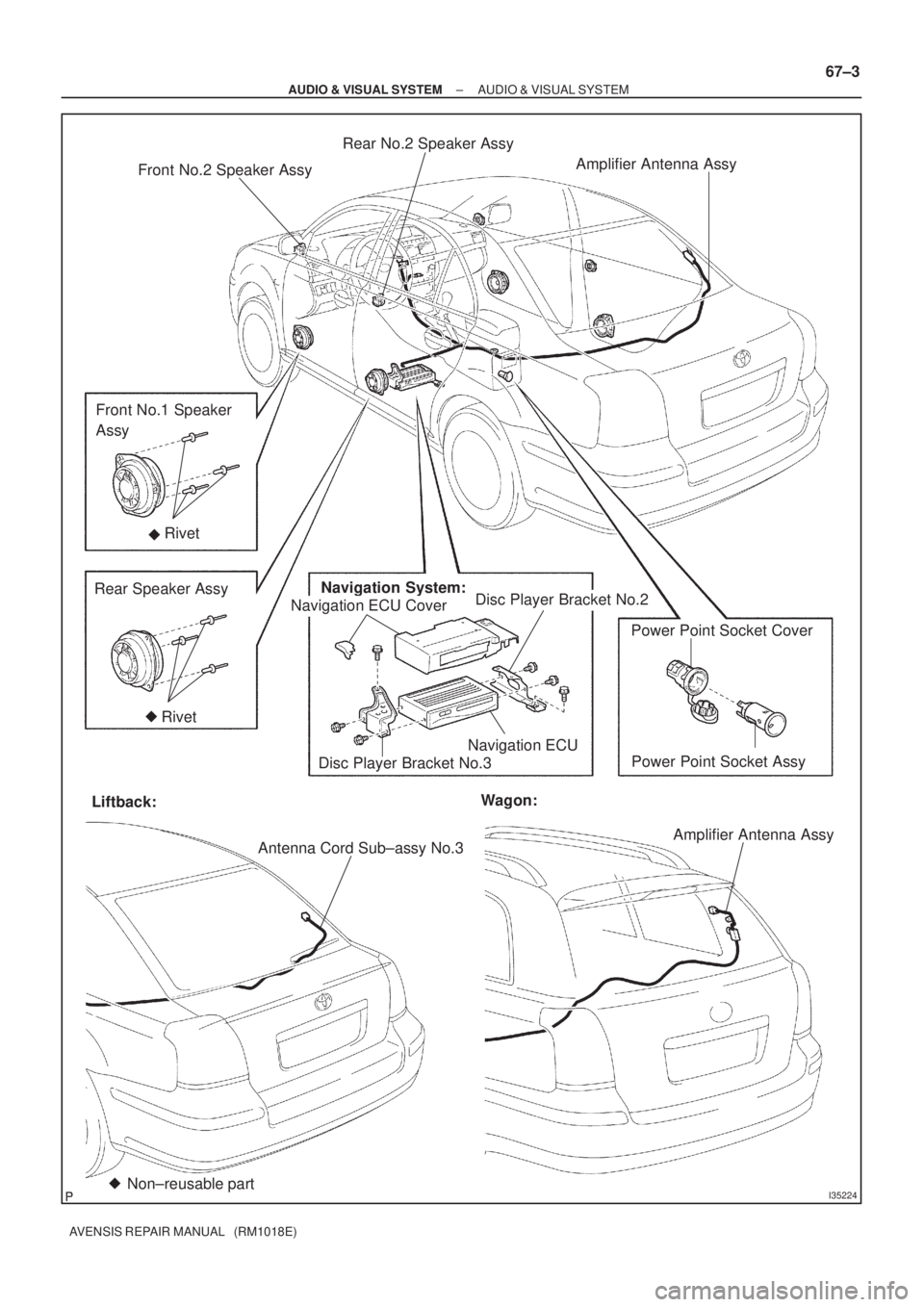

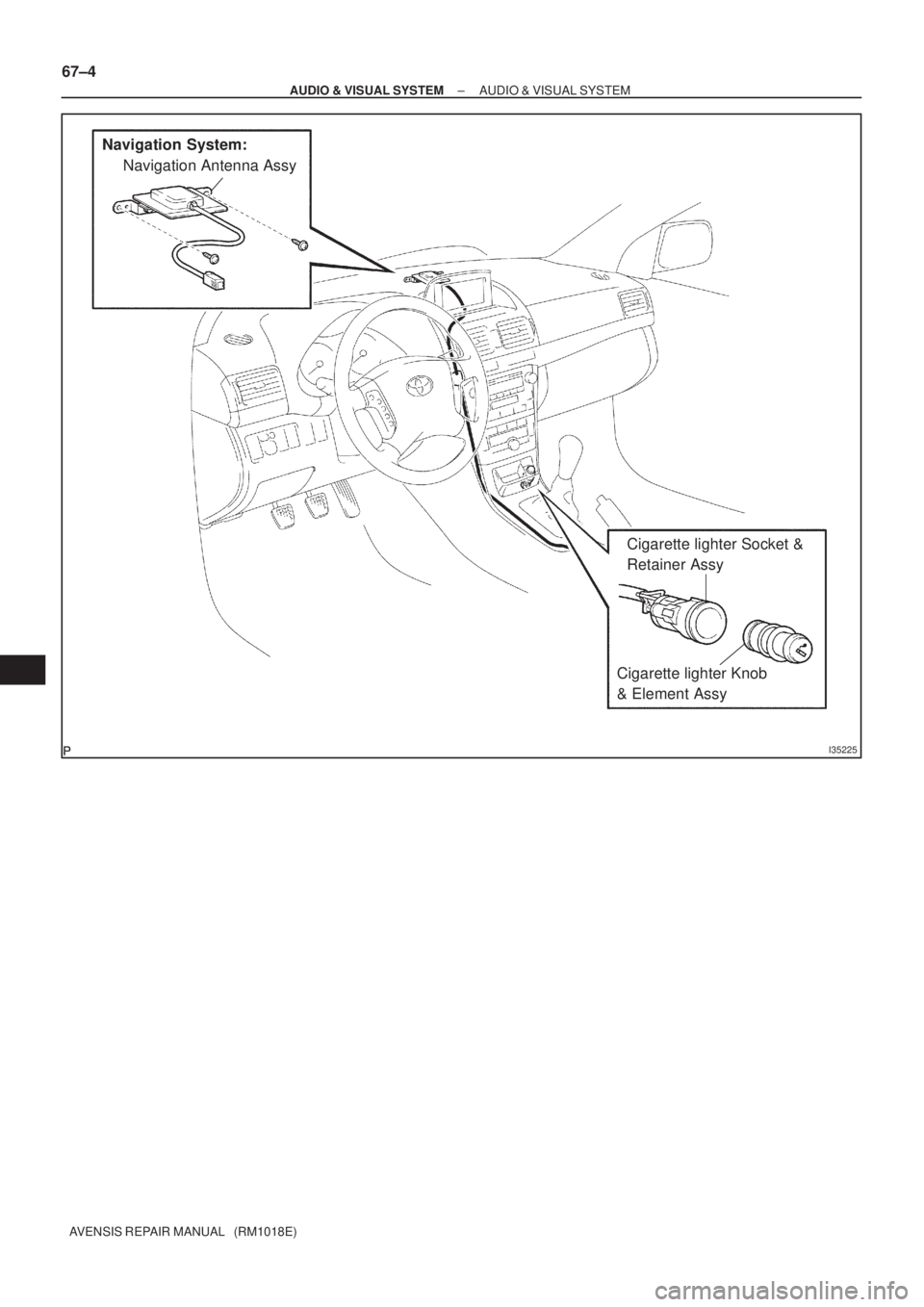

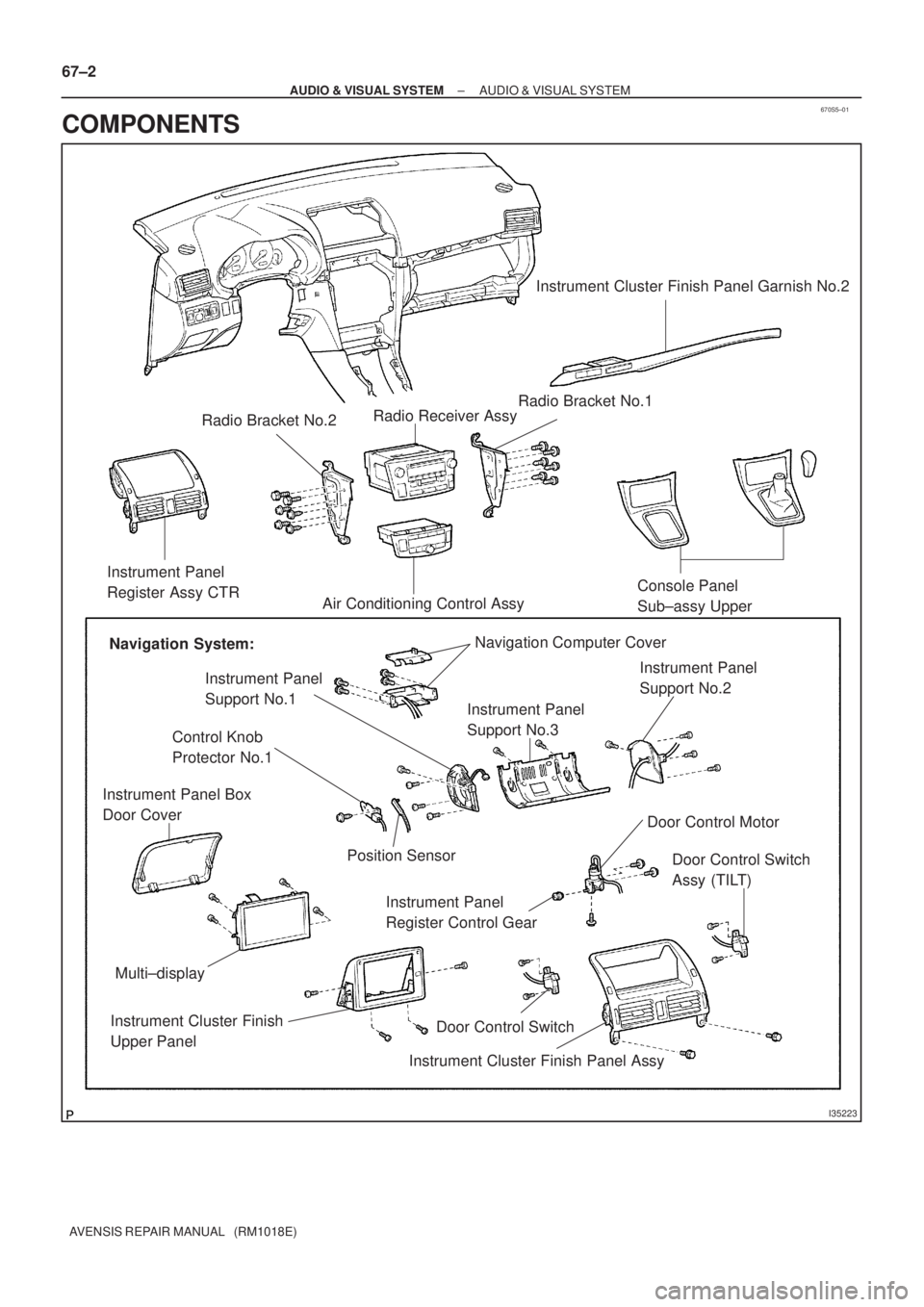

COMPONENTS

I35224
Front No.2 Speaker AssyAmplifier Antenna Assy
Front No.1 Speaker
Assy
Rear Speaker AssyNavigation System:
Disc Player Bracket No.2 Rivet
Navigation ECUPower Point Socket Cover
Power Point Socket Assy
Liftback:
Antenna Cord Sub±assy No.3Amplifier Antenna Assy Wagon:
Non±reusable part


Disc Player Bracket No.3
Rivet

Rear No.2 Speaker Assy
Navigation ECU Cover
± AUDIO & VISUAL SYSTEMAUDIO & VISUAL SYSTEM
67±3
AVENSIS REPAIR MANUAL (RM1018E)

I35225
Navigation System:
Navigation Antenna Assy
Cigarette lighter Socket &
Retainer Assy
Cigarette lighter Knob
& Element Assy 67±4
± AUDIO & VISUAL SYSTEMAUDIO & VISUAL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

670SJ±01
I35195
I35197Claw
I35196
I35205
±
AUDIO & VISUAL SYSTEM CIGARETTE LIGHTER ASSY
67±29
AVENSIS REPAIR MANUAL (RM1018E)
CIGARETTE LIGHTER ASSY
REPLACEMENT
1.REMOVE CONSOLE PANEL SUB±ASSY UPPER (See page 71±11)
2. REMOVE FRONT ASH RECEPTACLE ASSY
(a) Using a torx socket wrench (T20), remove the 4 screwsand front ash receptacle assy.
3. RE MO V E FRO NT AS H RE CE P TACLE RE TAINE R SUB±ASSY
(a) Disengage the claw and disconnect the connector.
(b) Push up the corner of the outer case open and remove the retainer assy as shown in the illustration.
4. REMOVE CIGARETTE LIGHTER ASSY
(a) Remove the 2 springs.
