± FRONT SUSPENSIONFRONT SHOCK ABSORBER WITH COIL SPRING
26±13
AVENSIS REPAIR MANUAL (RM1018E)

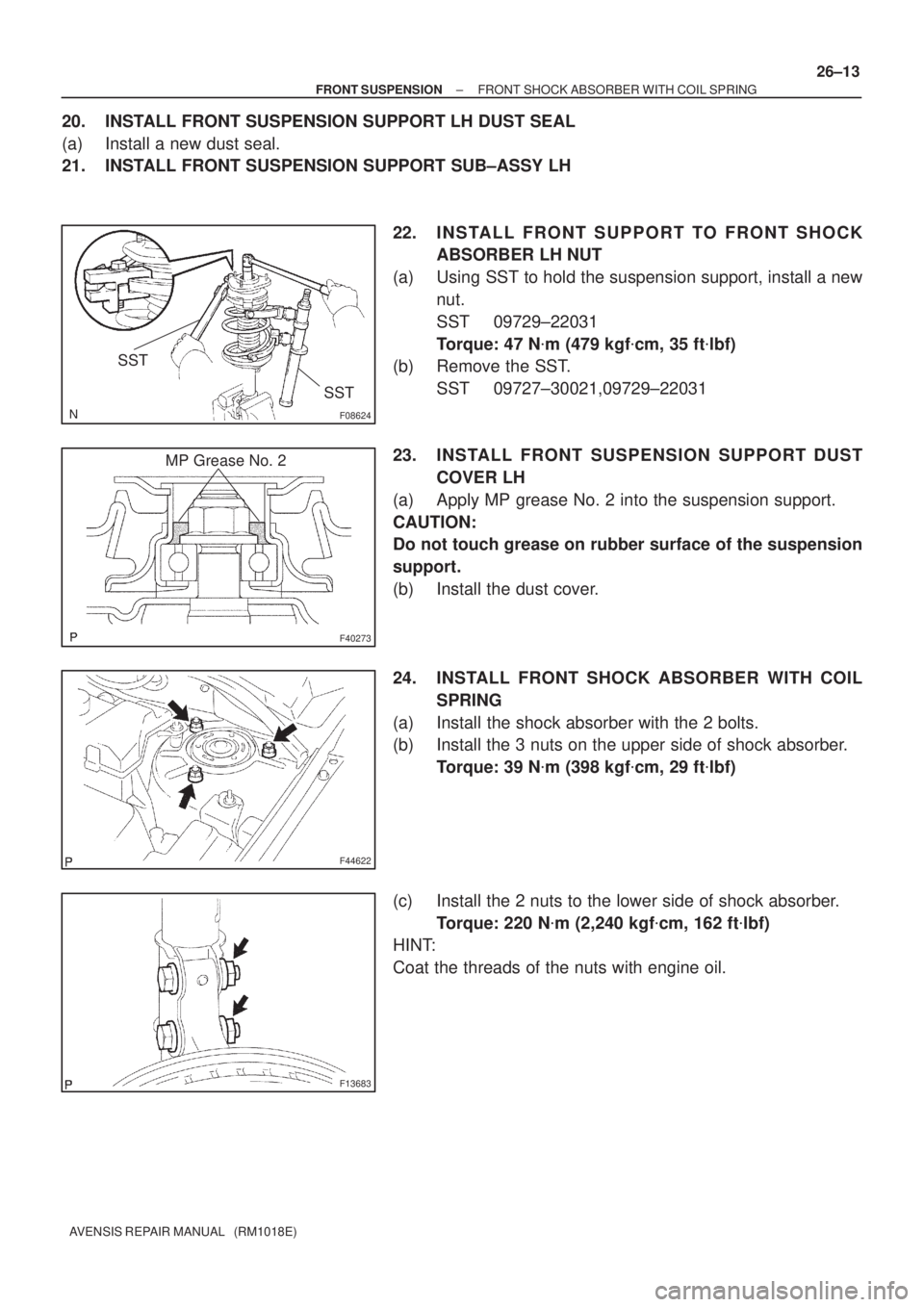

20. INSTALL FRONT SUSPENSION SUPPORT LH DUST SEAL
(a) Install a new dust seal.
21. INSTALL FRONT SUSPENSION SUPPORT SUB±ASSY LH
22. I N S TA L L F R O N T S U P P O R T TO F R O N T S H O C K
ABSORBER LH NUT
(a) Using SST to hold the suspension support, install a new
nut.
SST 09729±22031
Torque: 47 N
m (479 kgf
cm, 35 ft
lbf)
(b) Remove the SST.
SST 09727±30021,09729±22031
23. INSTALL FRONT SUSPENSION SUPPORT DUST
COVER LH
(a) Apply MP grease No. 2 into the suspension support.
CAUTION:
Do not touch grease on rubber surface of the suspension
support.
(b) Install the dust cover.
24. INSTALL FRONT SHOCK ABSORBER WITH COIL
SPRING
(a) Install the shock absorber with the 2 bolts.
(b) Install the 3 nuts on the upper side of shock absorber.
Torque: 39 N
m (398 kgf
cm, 29 ft
lbf)
(c) Install the 2 nuts to the lower side of shock absorber.
Torque: 220 N
m (2,240 kgf
cm, 162 ft
lbf)
HINT:
Coat the threads of the nuts with engine oil.

C80880
F13686
26±14
±
FRONT SUSPENSION FRONT SHOCK ABSORBER WITH COIL SPRING
AVENSIS REPAIR MANUAL (RM1018E)

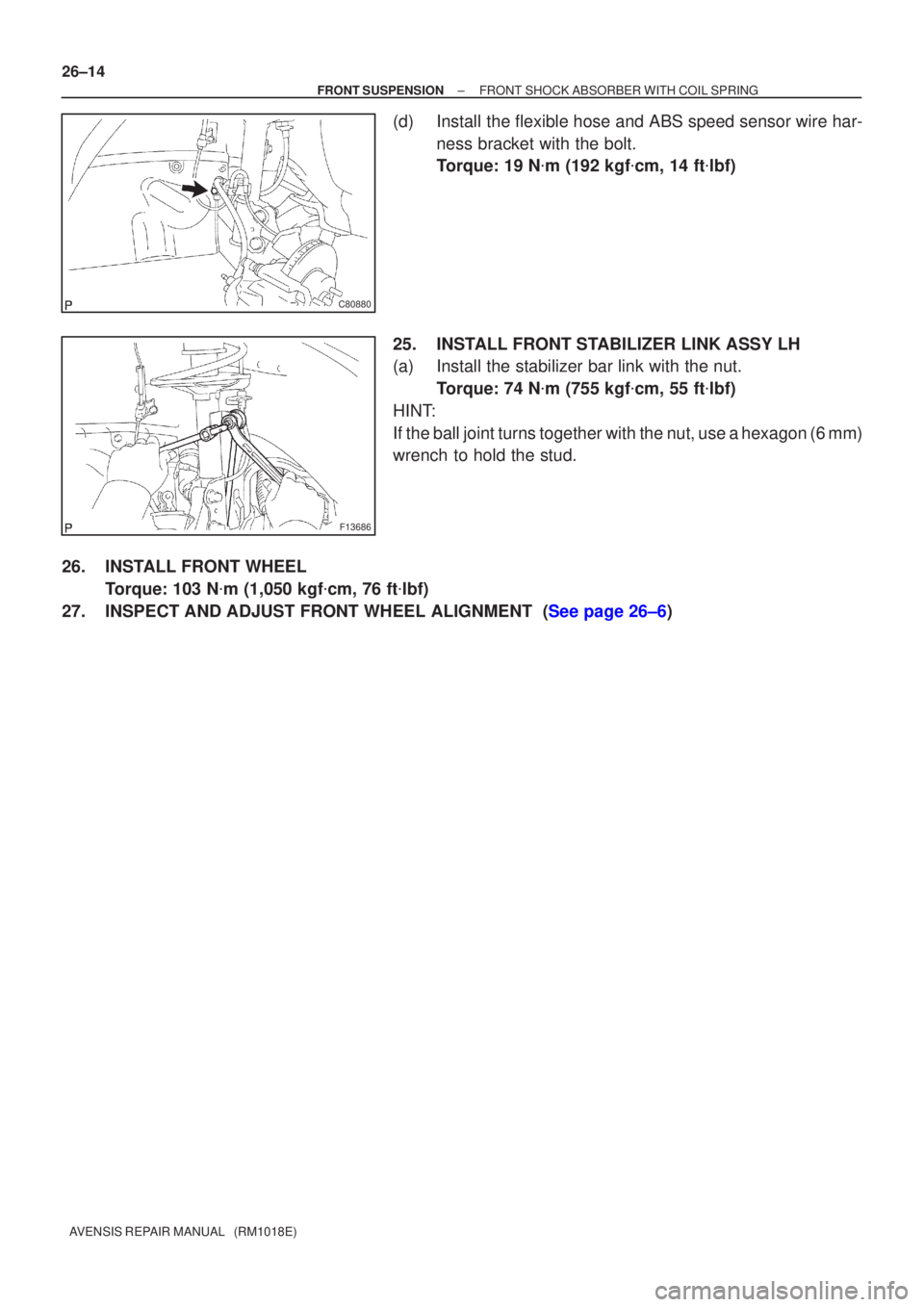

(d) Install the flexible hose and ABS speed sensor wire har- ness bracket with the bolt.
Torque: 19 N
m (192 kgf
cm, 14 ft
lbf)
25. INSTALL FRONT STABILIZER LINK ASSY LH
(a) Install the stabilizer bar link with the nut. Torque: 74 N
m (755 kgf
cm, 55 ft
lbf)
HINT:
If the ball joint turns together with the nut, use a hexagon (6 mm)
wrench to hold the stud.
26. INSTALL FRONT WHEEL Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
27.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See page 26±6)

2600N±04


F45774
± FRONT SUSPENSIONFRONT SHOCK ABSORBER WITH COIL SPRING
26±15
AVENSIS REPAIR MANUAL (RM1018E)
DISPOSAL
HINT:
Dispose the RH side by the same procedures as the LH side.
1. DISPOSE OF SHOCK ABSORBER ASSY FRONT LH
(a) Fully extend the shock absorber rod.
(b) Using a drill, make a hole in the cylinder as shown in the
illustration to discharge the gas inside.
CAUTION:

When drilling, chips may fly out. Work carefully.

The gas is colorless, odorless and non±poisonous.

260DP±01
F44614

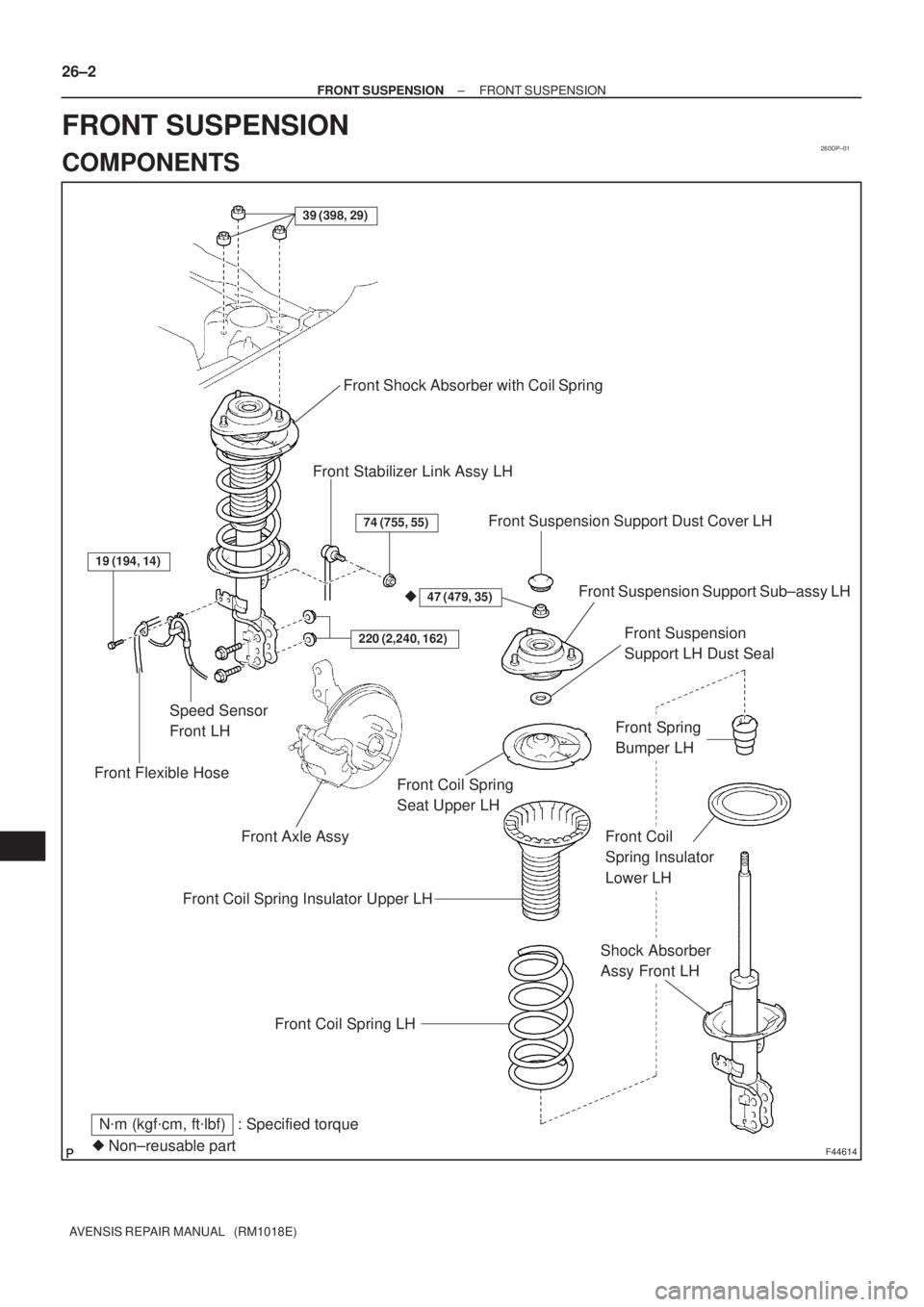

Front Shock Absorber with Coil Spring
Front Stabilizer Link Assy LH
47 (479, 35)
220 (2,240, 162)
74 (755, 55)
19 (194, 14)
Speed Sensor
Front LH
Front Flexible Hose
Front Suspension Support Dust Cover LH
Front Suspension Support Sub±assy LH
Front Suspension
Support LH Dust Seal
Front Coil Spring
Seat Upper LH
Front Axle Assy
Front Coil Spring Insulator Upper LH
Front Coil Spring LH
N
m (kgf
cm, ft
lbf) : Specified torque

Non±reusable part
Front Spring
Bumper LH
Front Coil
Spring Insulator
Lower LH
Shock Absorber
Assy Front LH
39 (398, 29)

26±2
± FRONT SUSPENSIONFRONT SUSPENSION
AVENSIS REPAIR MANUAL (RM1018E)
FRONT SUSPENSION

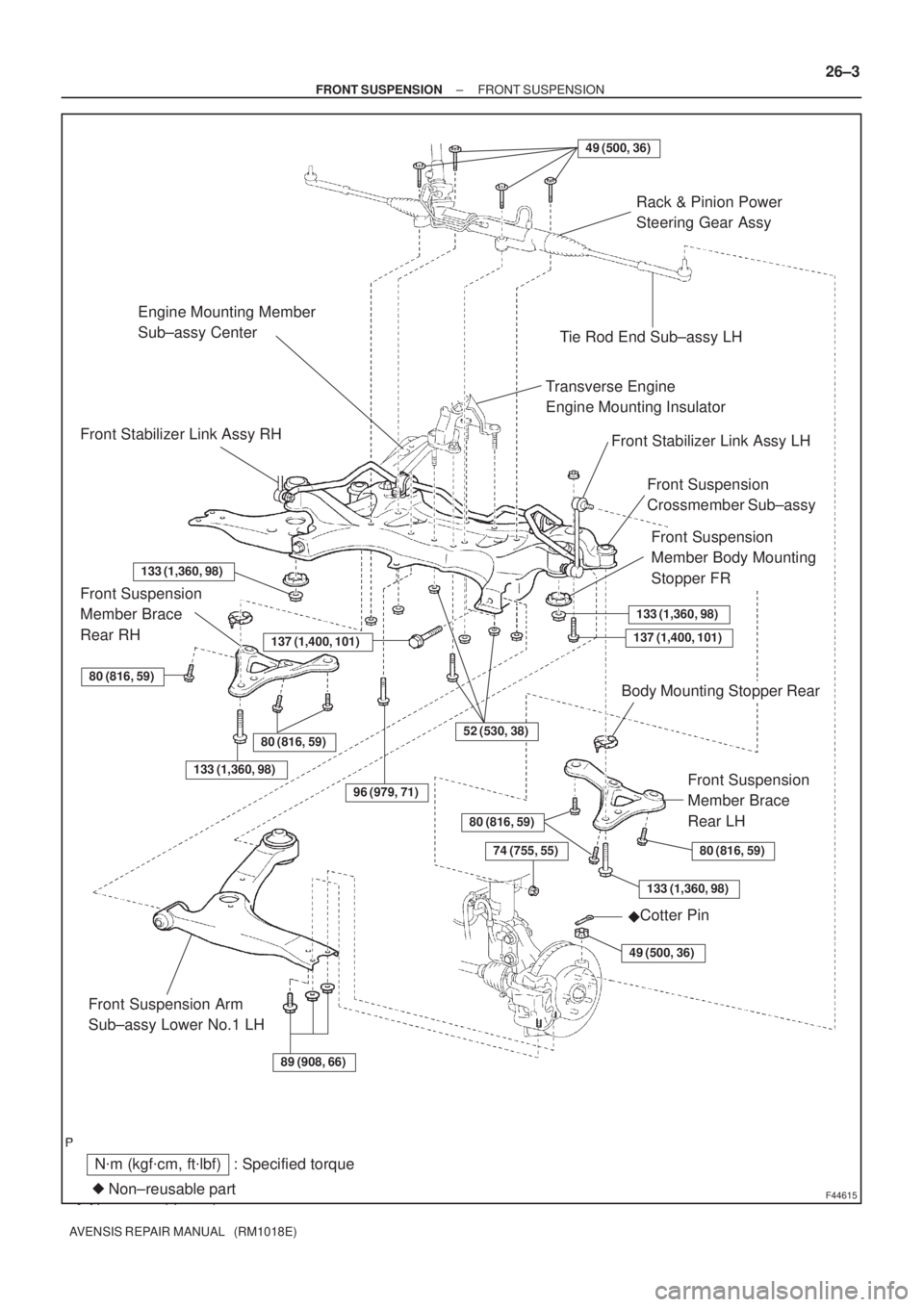

COMPONENTS

F44615
Rack & Pinion Power
Steering Gear Assy
49 (500, 36)
Tie Rod End Sub±assy LH
Front Stabilizer Link Assy RH
Transverse Engine
Engine Mounting Insulator
Front Stabilizer Link Assy LH
Front Suspension
Crossmember Sub±assy
Front Suspension
Member Body Mounting
Stopper FR
133 (1,360, 98)
137 (1,400, 101)
Body Mounting Stopper Rear
52 (530, 38)
80 (816, 59)
74 (755, 55)
Front Suspension
Member Brace
Rear LH
80 (816, 59)
133 (1,360, 98)
Cotter Pin
49 (500, 36)
89 (908, 66)
Front Suspension Arm
Sub±assy Lower No.1 LH
80 (816, 59)
133 (1,360, 98)
80 (816, 59)
Front Suspension
Member Brace
Rear RH
133 (1,360, 98)
137 (1,400, 101)
N
m (kgf
cm, ft
lbf) : Specified torque

Nblt

Non±reusable part

Engine Mounting Member
Sub±assy Center
96 (979, 71)
± FRONT SUSPENSIONFRONT SUSPENSION
26±3
AVENSIS REPAIR MANUAL (RM1018E)

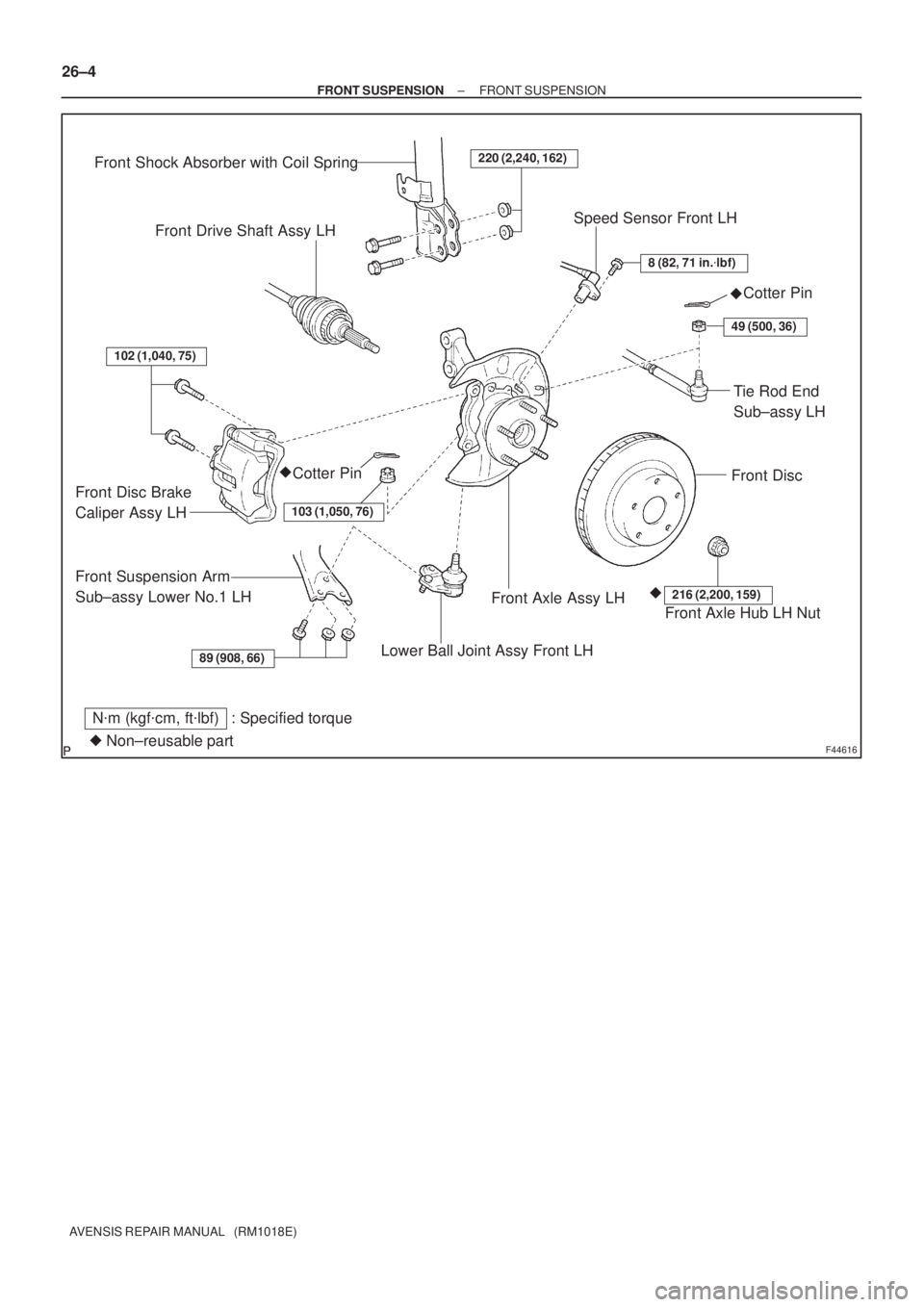

F44616
89 (908, 66)
102 (1,040, 75)
220 (2,240, 162)
8 (82, 71 in.
lbf)
49 (500, 36)
103 (1,050, 76)
216 (2,200, 159)
Front Shock Absorber with Coil Spring
Front Drive Shaft Assy LHSpeed Sensor Front LH
Cotter Pin
Front Disc
Tie Rod End
Sub±assy LH
Cotter Pin
Front Disc Brake
Caliper Assy LH
Front Suspension Arm
Sub±assy Lower No.1 LH
Lower Ball Joint Assy Front LH
Front Axle Assy LHFront Axle Hub LH Nut
N
m (kgf
cm, ft
lbf) : Specified torque

Non±reusable part



26±4
± FRONT SUSPENSIONFRONT SUSPENSION
AVENSIS REPAIR MANUAL (RM1018E)

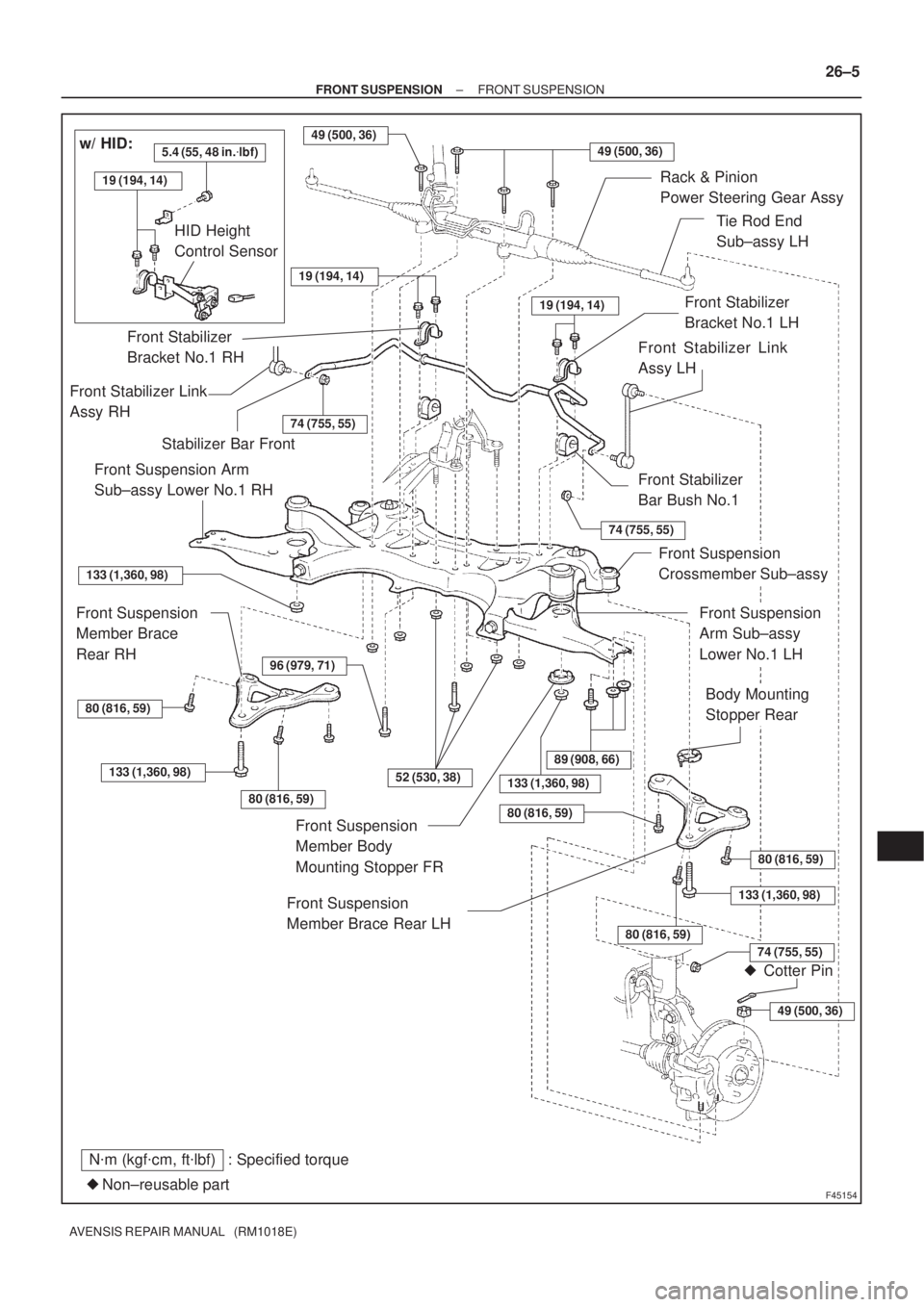

F45154
Rack & Pinion
Power Steering Gear Assy
Tie Rod End
Sub±assy LH
Front Stabilizer Link
Assy LH
Stabilizer Bar Front Front Stabilizer Link
Assy RH
Front Suspension Arm
Sub±assy Lower No.1 RH
Front Suspension
Member Brace
Rear RHFront Stabilizer
Bar Bush No.1
Front Suspension
Crossmember Sub±assy
Front Suspension
Arm Sub±assy
Lower No.1 LH
Body Mounting
Stopper Rear
Front Suspension
Member Body
Mounting Stopper FR
Front Suspension
Member Brace Rear LH
Cotter Pin

89 (908, 66)
133 (1,360, 98)
49 (500, 36)
74 (755, 55)
80 (816, 59)
133 (1,360, 98)
74 (755, 55)
49 (500, 36)
80 (816, 59)
19 (194, 14)
19 (194, 14)
133 (1,360, 98)
80 (816, 59)
133 (1,360, 98)
80 (816, 59)
19 (194, 14)
49 (500, 36)
74 (755, 55)
N
m (kgf
cm, ft
lbf) : Specified torque
Non±reusable part

5.4 (55, 48 in.
lbf)w/ HID:
HID Height
Control Sensor
Front Stabilizer
Bracket No.1 RH
Front Stabilizer
Bracket No.1 LH
96 (979, 71)
80 (816, 59)
52 (530, 38)
± FRONT SUSPENSIONFRONT SUSPENSION
26±5
AVENSIS REPAIR MANUAL (RM1018E)

260DQ±01
F13686
C80293

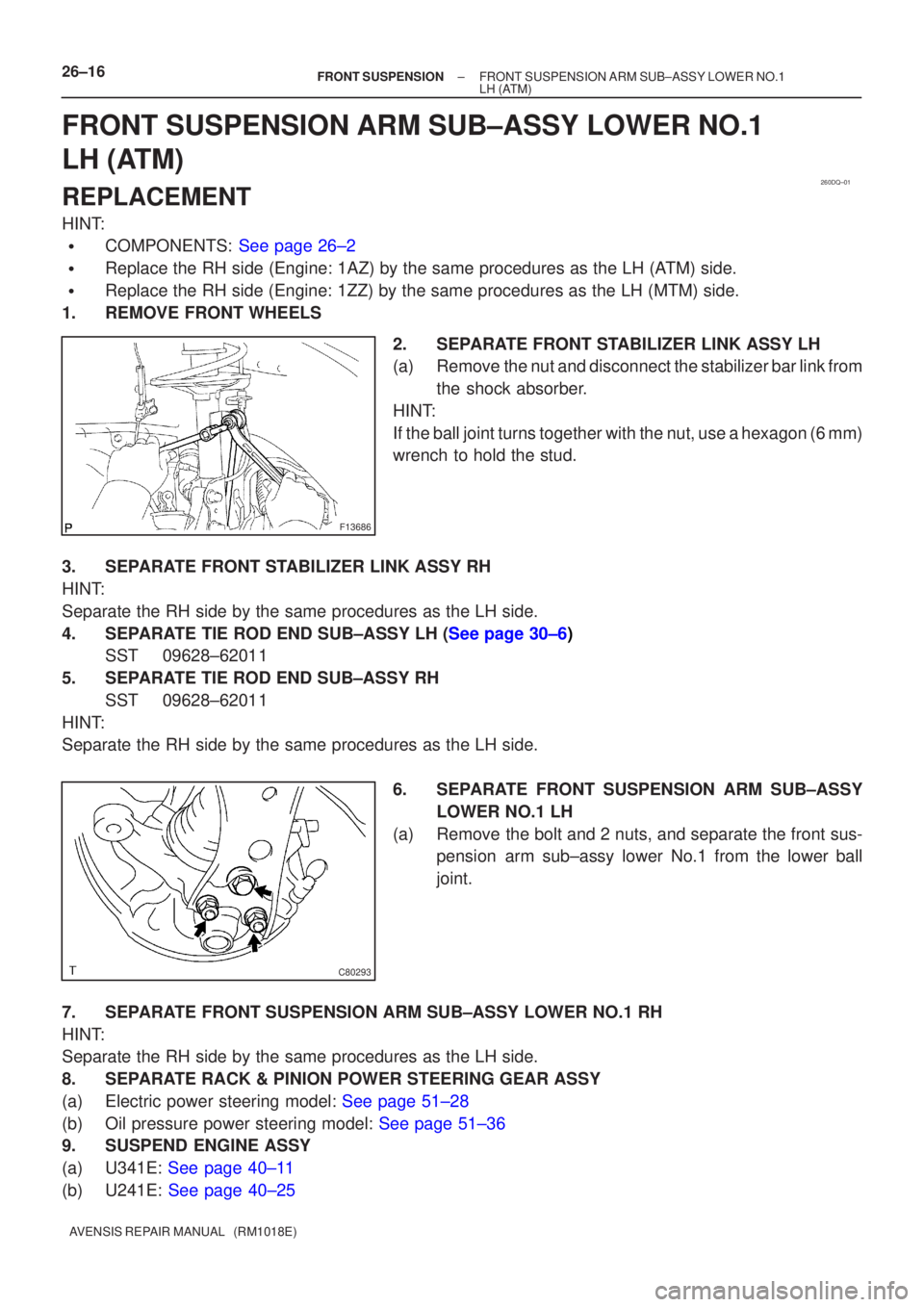

26±16±
FRONT SUSPENSION FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1
LH (ATM)
AVENSIS REPAIR MANUAL (RM1018E)
FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1
LH (ATM)
REPLACEMENT
HINT:

COMPONENTS: See page 26±2

Replace the RH side (Engine: 1AZ) by the same procedures as the LH (A\
TM) side.

Replace the RH side (Engine: 1ZZ) by the same procedures as the LH (M\
TM) side.
1. REMOVE FRONT WHEELS
2. SEPARATE FRONT STABILIZER LINK ASSY LH
(a) Remove the nut and disconnect the stabilizer bar link fromthe shock absorber.
HINT:
If the ball joint turns together with the nut, use a hexagon (6 mm)
wrench to hold the stud.
3. SEPARATE FRONT STABILIZER LINK ASSY RH
HINT:
Separate the RH side by the same procedures as the LH side.
4.SEPARATE TIE ROD END SUB±ASSY LH (See page 30±6) SST 09628±62011
5. SEPARATE TIE ROD END SUB±ASSY RH SST 09628±62011
HINT:
Separate the RH side by the same procedures as the LH side.
6. SEPARATE FRONT SUSPENSION ARM SUB±ASSYLOWER NO.1 LH
(a) Remove the bolt and 2 nuts, and separate the front sus- pension arm sub±assy lower No.1 from the lower ball
joint.
7. SEPARATE FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 RH
HINT:
Separate the RH side by the same procedures as the LH side.
8. SEPARATE RACK & PINION POWER STEERING GEAR ASSY
(a)Electric power steering model: See page 51±28
(b)Oil pressure power steering model: See page 51±36
9. SUSPEND ENGINE ASSY
(a)U341E: See page 40±11
(b)U241E: See page 40±25
