1991 MITSUBISHI MONTERO Service Manual

Fig. 95: Circuit Diagram NS-6 (1.6L)
Fig. 96: Flow Chart NS-6 (1.6L)
DR-1: CHECKING FOR FAULT CODES - 1.6L

Fig. 97: Circuit Diagram DR-1 (1.6L)
Fig. 98: Flow Chart DR-1 (1.6L) (1 of 2)

Fig. 99: Flow Chart DR-1 (1.6L) (2 of 2)
DR-2: FAULT CODE TESTS - 1.6L

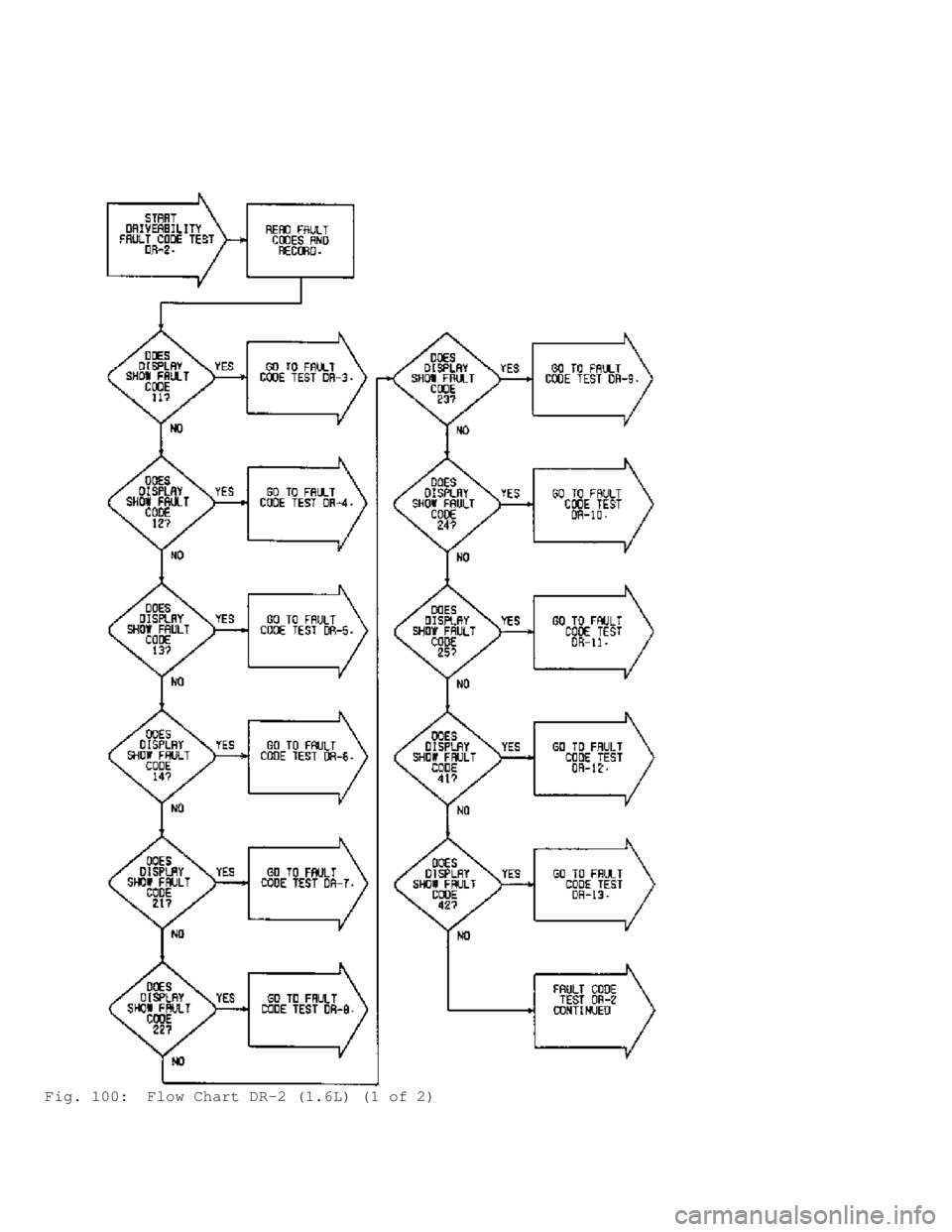

Fig. 100: Flow Chart DR-2 (1.6L) (1 of 2)

Fig. 101: Flow Chart DR-2 (1.6L) (2 of 2)
DR-3: CODE 11 OXYGEN SENSOR CIRCUIT - 1.6L

Fig. 102: Circuit Diagram DR-3 (1.6L)

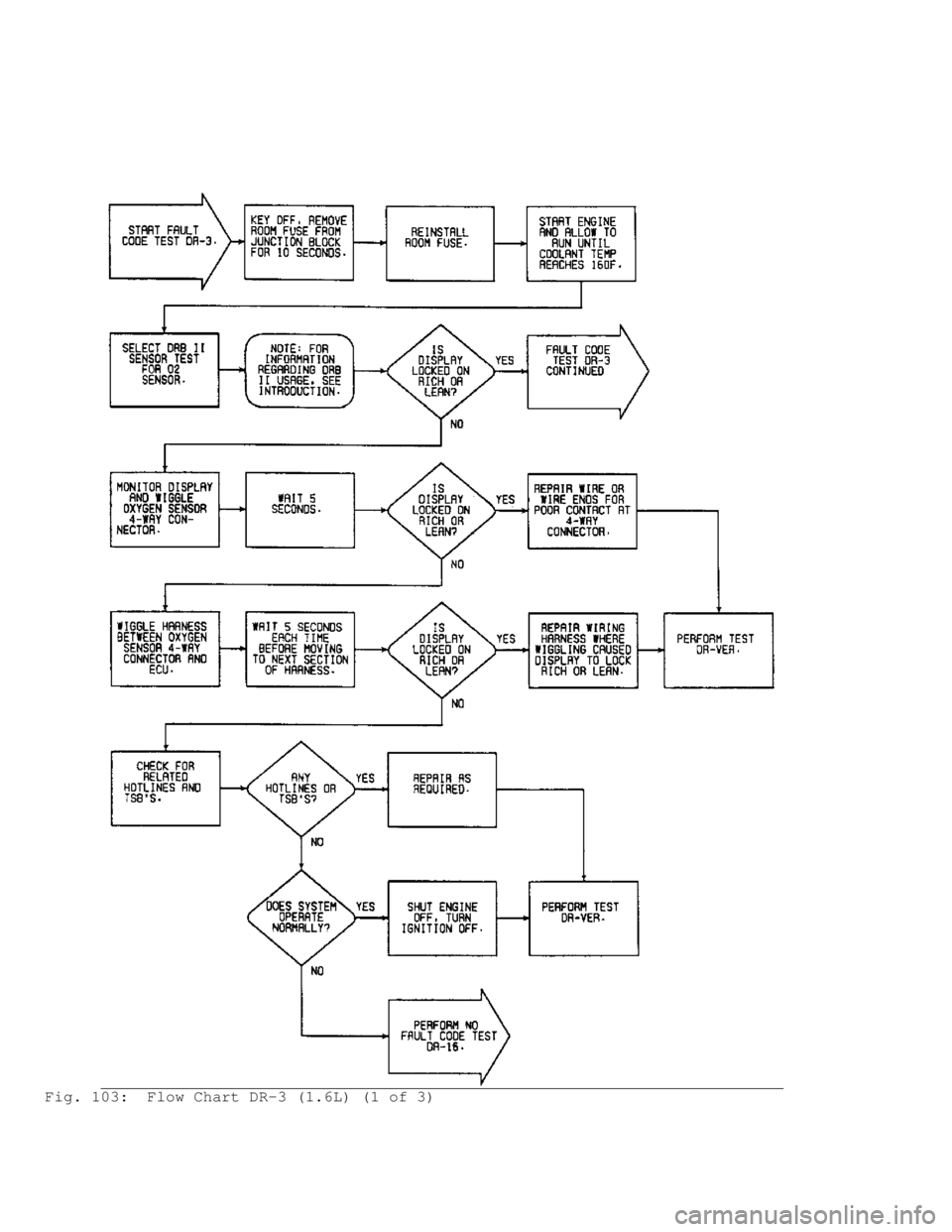

Fig. 103: Flow Chart DR-3 (1.6L) (1 of 3)

Fig. 104: Flow Chart DR-3 (1.6L) (2 of 3)
DR-4: CODE 12 AIRFLOW SENSOR CIRCUIT - 1.6L
