1991 MITSUBISHI MONTERO Service Manual

Fig. 84: Circuit Diagram NS-3 (1.6L)
Fig. 85: Flow Chart NS-3 (1.6L) (1 of 3)

Fig. 86: Circuit Diagram NS-3 (1.6L)

Fig. 87: Flow Chart NS-3 (1.6L) (2 of 3)

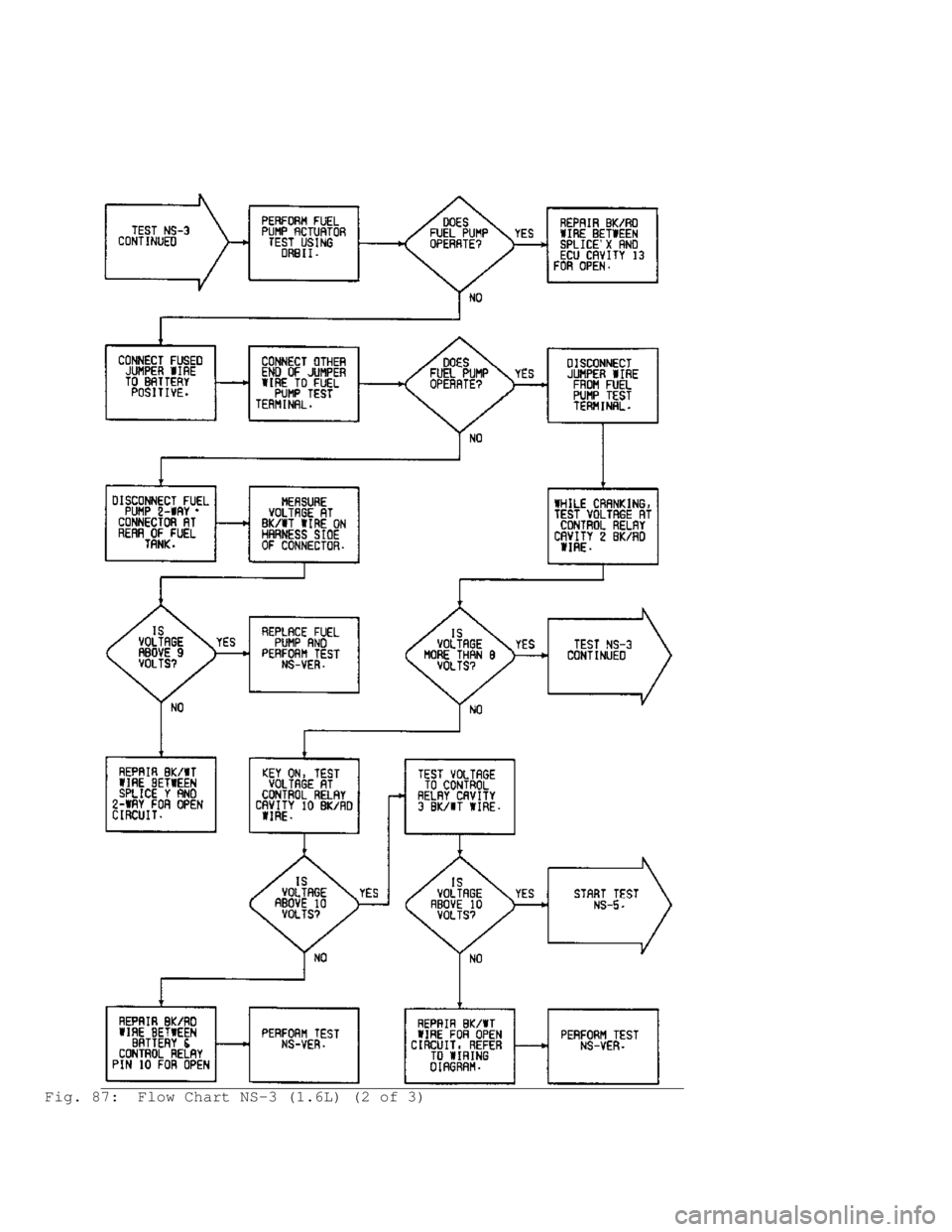

Fig. 88: Flow Chart NS-3 (1.6L) (3 of 3)
NS-4: TESTING FUEL PUMP CIRCUIT - 1.6L

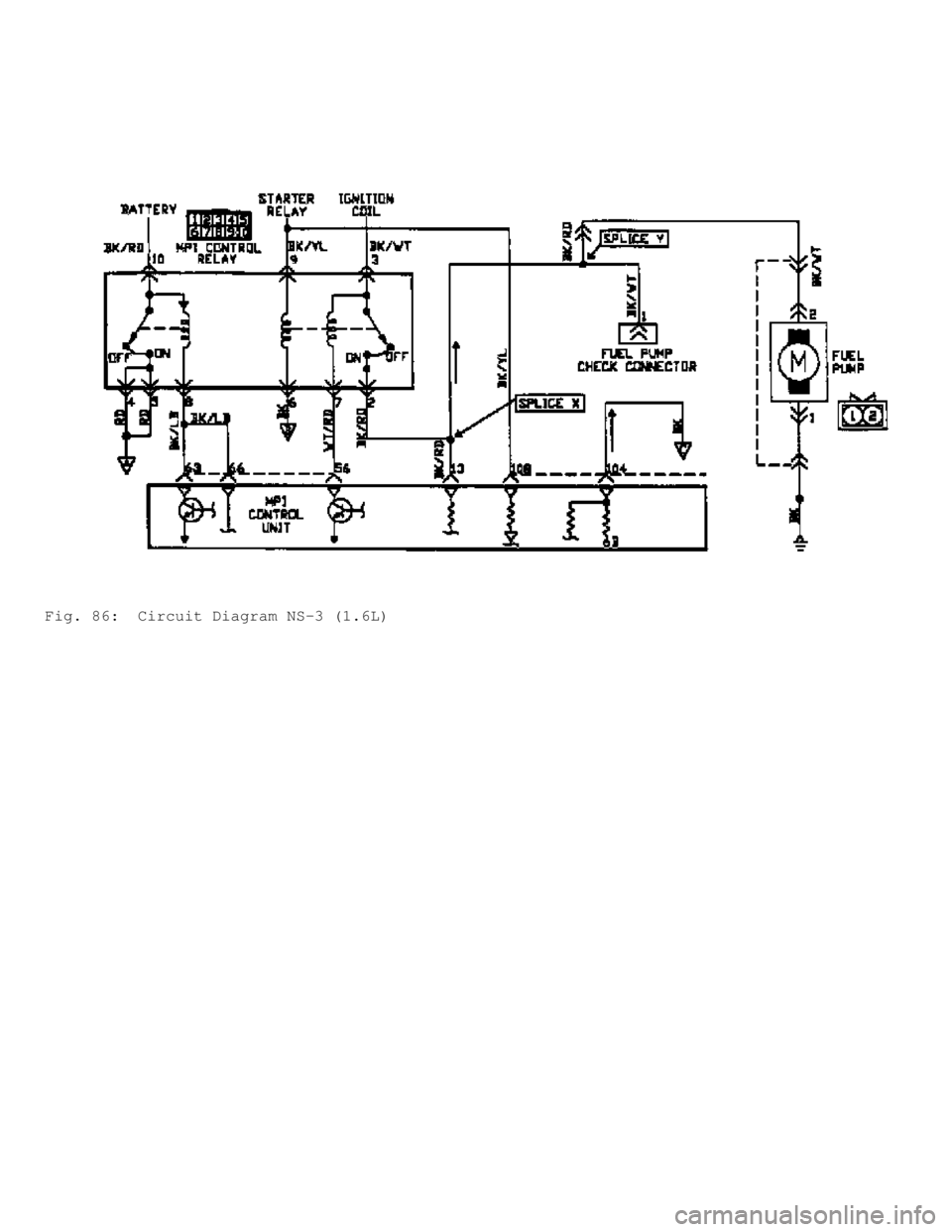

Fig. 89: Circuit Diagram NS-4 (1.6L)
Fig. 90: Flow Chart NS-4 (1.6L) (1 of 2)

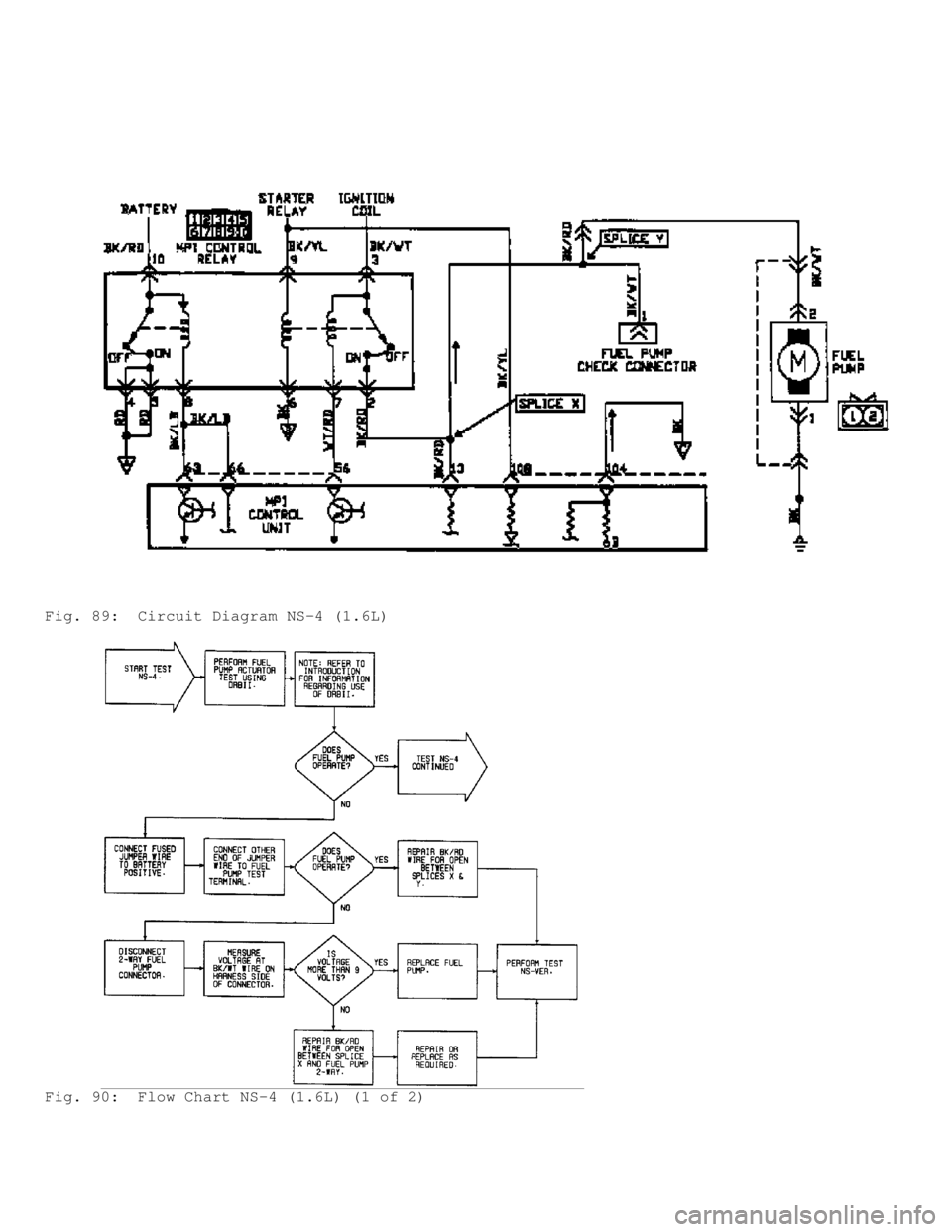

Fig. 91: Circuit Diagram NS-4 (1.6L)
Fig. 92: Flow Chart NS-4 (1.6L) (2 of 2)

NS-5: TESTING CONTROL RELAY CIRCUIT - 1.6L
Fig. 93: Circuit Diagram NS-5 (1.6L)

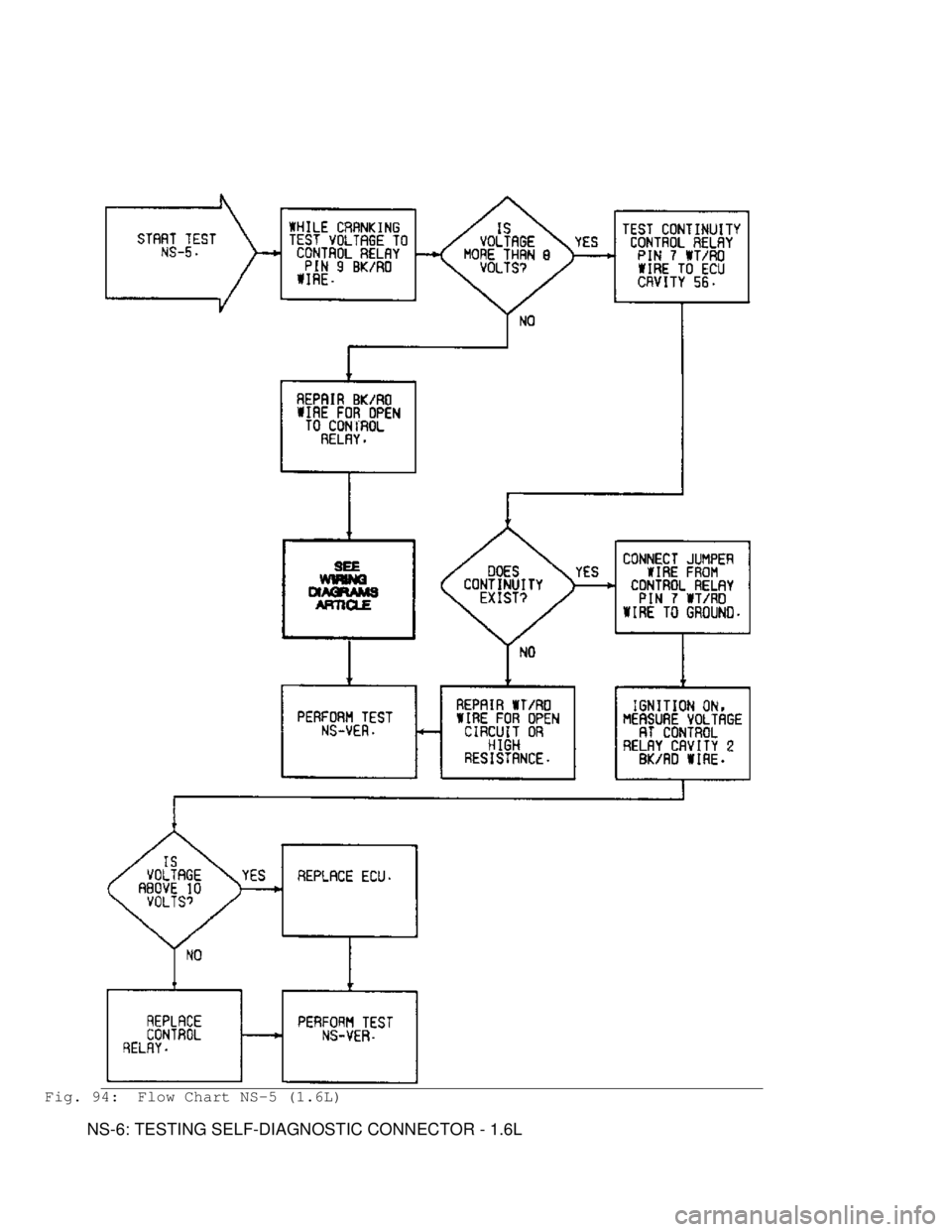

Fig. 94: Flow Chart NS-5 (1.6L)
NS-6: TESTING SELF-DIAGNOSTIC CONNECTOR - 1.6L
