1991 MITSUBISHI MONTERO Service Manual

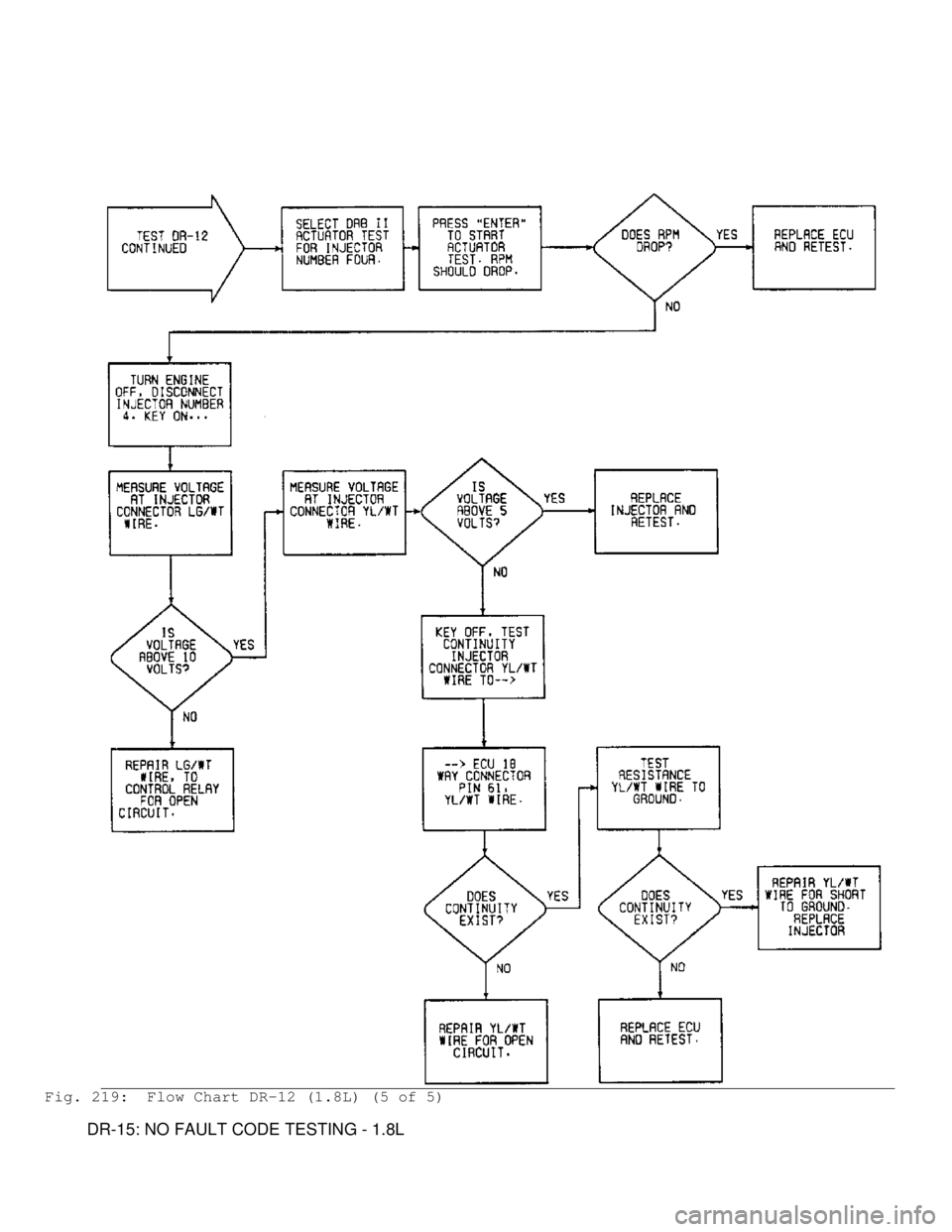

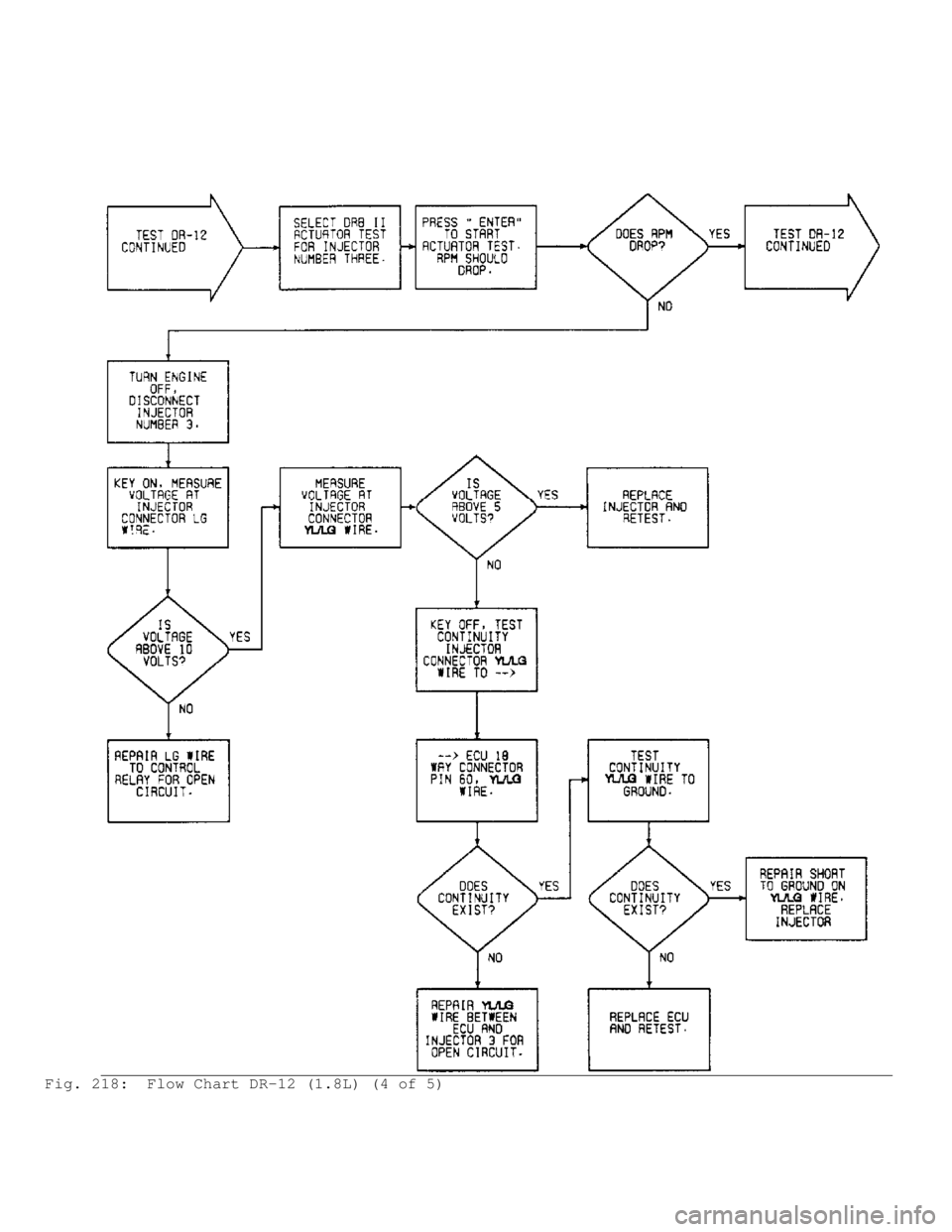

Fig. 218: Flow Chart DR-12 (1.8L) (4 of 5)

Fig. 219: Flow Chart DR-12 (1.8L) (5 of 5)
DR-15: NO FAULT CODE TESTING - 1.8L

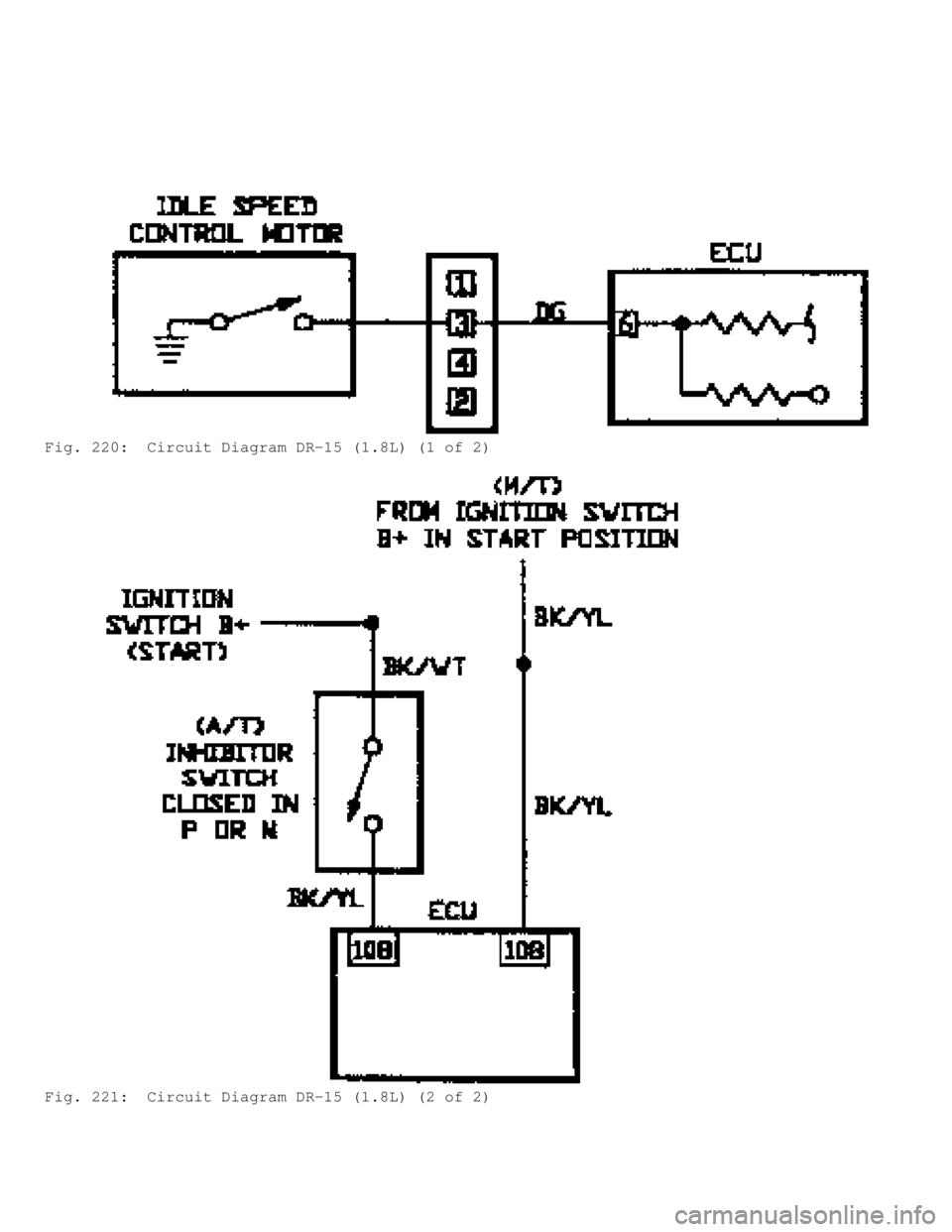

Fig. 220: Circuit Diagram DR-15 (1.8L) (1 of 2)
Fig. 221: Circuit Diagram DR-15 (1.8L) (2 of 2)

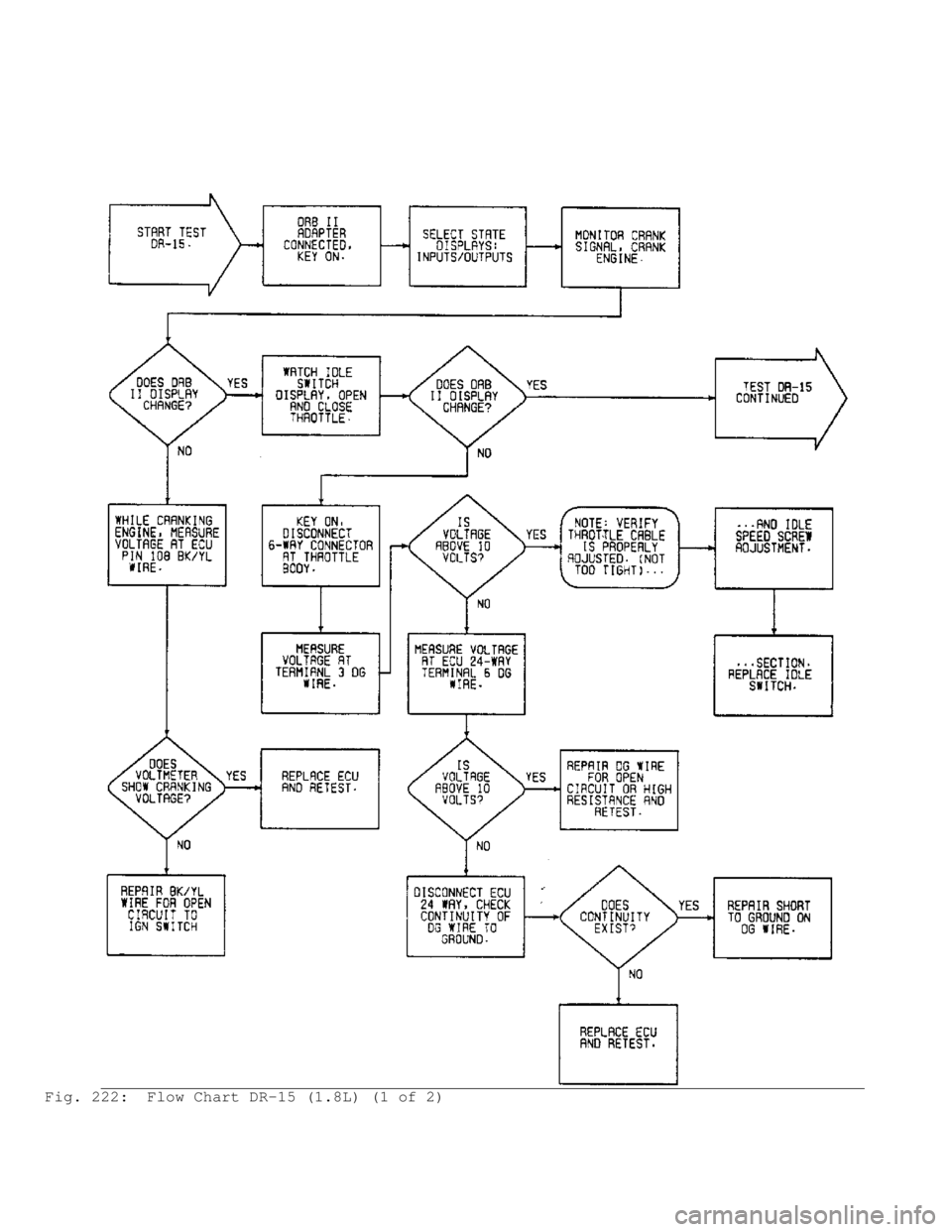

Fig. 222: Flow Chart DR-15 (1.8L) (1 of 2)

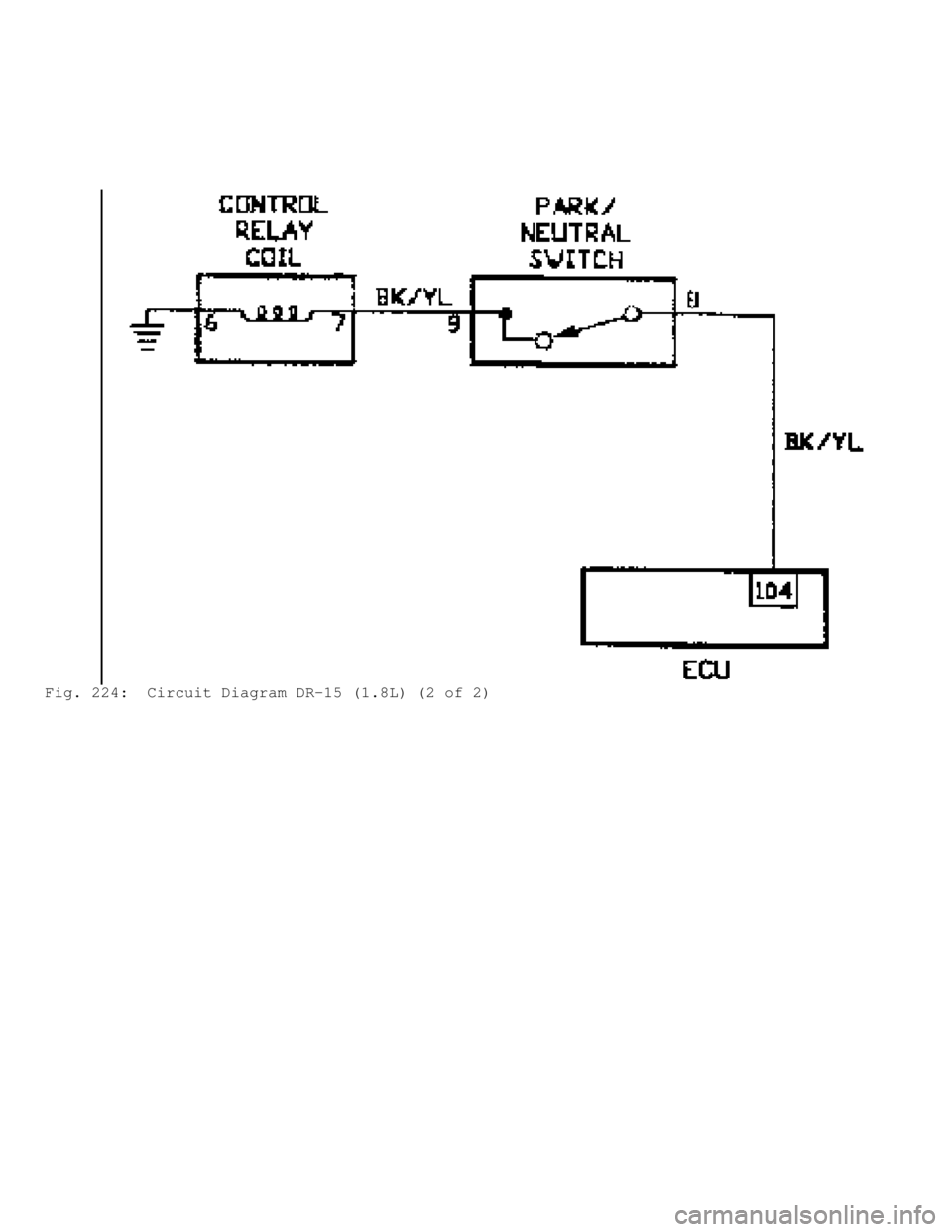

Fig. 223: Circuit Diagram DR-15 (1.8L) (1 of 2)

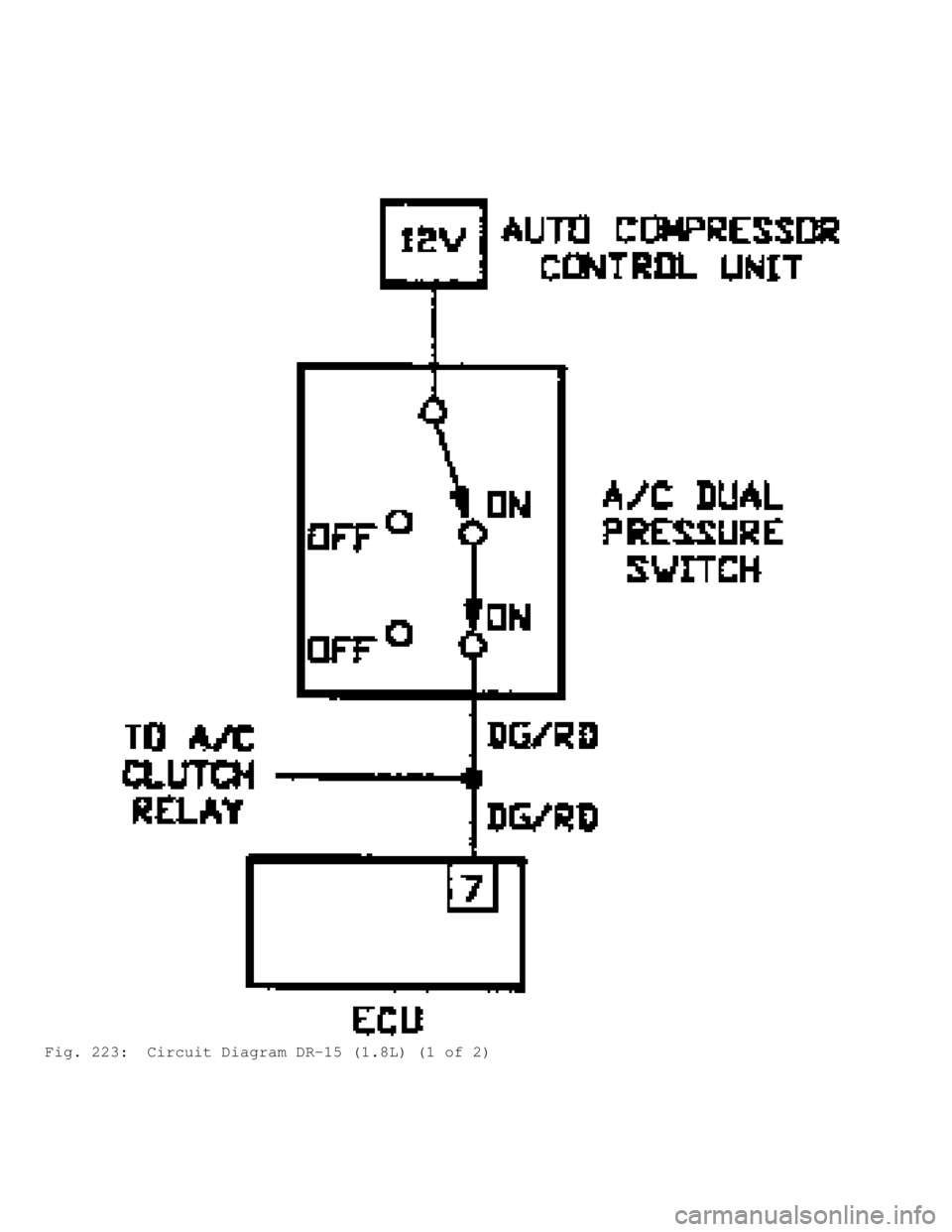

Fig. 224: Circuit Diagram DR-15 (1.8L) (2 of 2)

Fig. 225: Flow Chart DR-15 (1.8L) (2 of 2)
DR-16: NO FAULT CODE SENSOR TEST - 1.8L

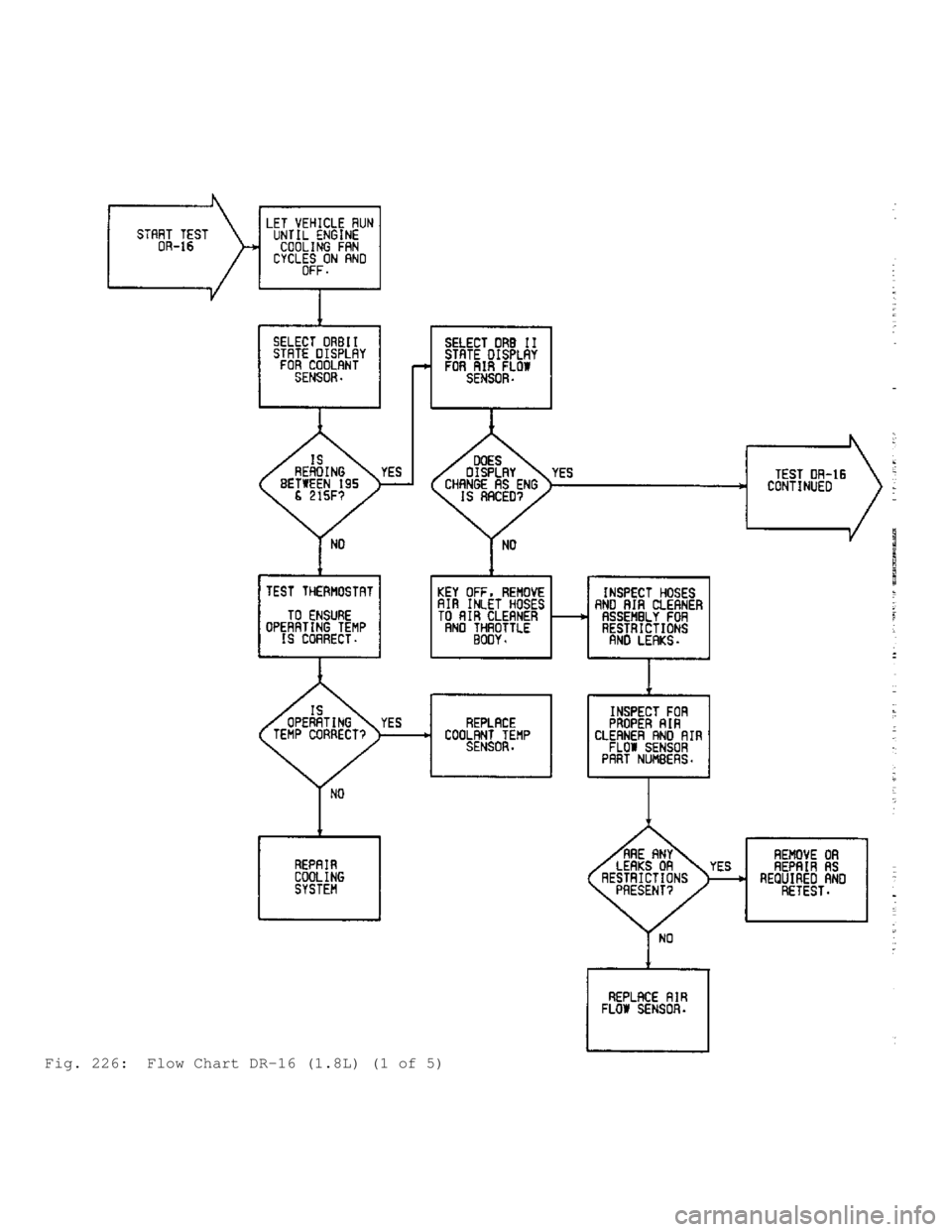

Fig. 226: Flow Chart DR-16 (1.8L) (1 of 5)
