1991 MITSUBISHI MONTERO Service Manual

Front .................... 1/32 (1) .... -1/16 to 5/32 (-2 to 4\
)
Rear ....................... 0 (0) ....................... .....\
Toe-In (Degrees)
Front ...................... 1/16 ................. -1/8 to 5/16
Rear ......................... 0 ......................... .....
Toe-Out on Turns (Degrees)
Inner ..................... 37 3/8 ....................... .....
Outer ..................... 31 1/2 ....................... .....









\









\









\









\









\









\









\







WHEEL ALIGNMENT SPECIFICATIONS TABLE (STEALTH & 3000GT)








\









\









\









\









\









\









\







Application Preferred Range
Front Wheel Drive
Camber (Degrees)
Front & Rear ............... 0 ................... -1/2 to 1/2
Caster (Degrees) .......... 3 29/32 ......... 3 13/32 to 4 29/32\
Toe-In (In. (mm))
Front .................... 0 (0) ....... -1/8 to 1/8 (-3 to 3\
)
Rear ..................... 0 (0) ..... -3/32 to 3/32 (-2 to 2\
)
Toe-In (Degrees)
Front ...................... 0 ................... -1/4 to 1/4
Rear ....................... 0 ................. -3/16 to 3/16
Toe-Out on Turns (Degrees)
Inner ................... 33 3/4 ....................... .....
Outer .................. 28 11/32 ...................... .....
All Wheel Drive
Camber (Degrees)
Front ...................... 0 ................... -1/2 to 1/2
Rear ..................... -5/32 ............. -21/32 to 11/32
Caster (Degrees) .......... 3 29/32 ......... 3 13/32 to 4 29/32\
Toe-In (In. (mm))
Front .................... 0 (0) ....... -1/8 to 1/8 (-3 to 3\
)
Rear ..................... 0 (0) ..... -3/32 to 3/32 (-2 to 2\
)
Toe-In (Degrees)
Front ..................... 0 ................... -1/4 to 1/4
Rear ...................... 0 ................. -3/16 to 3/16
Toe-Out on Turns (Degrees)
Inner .................. 33 3/4 ....................... .....
Outer ................. 28 11/32 ...................... .....









\









\









\









\









\









\









\

\003
WHEEL A LIG NM EN T T H EO RY/O PER ATIO N
1991 M it s u bis h i M onte ro
GENERAL INFORMATION
Wheel Alignment Theory & Operation
ALL MODELS
* PLEASE READ THIS FIRST *
NOTE: This article is intended for general information purposes
only. This information may not apply to all makes and models.
PRE-ALIGNMENT INSTRUCTIONS
GENERAL ALIGNMENT CHECKS
Before adjusting wheel alignment, check the following:
* Each axle uses tires of same construction and tread style,
equal in tread wear and overall diameter. Verify that radial
and axial runout is not excessive. Inflation should be at
manufacturer's specifications.
* Steering linkage and suspension must not have excessive play.
Check for wear in tie rod ends and ball joints. Springs must
not be sagging. Control arm and strut rod bushings must not
have excessive play. See Fig. 1.
Fig. 1: Checking Steering Linkage
* Vehicle must be on level floor with full fuel tank, no
passenger load, spare tire in place and no load in trunk.
Bounce front and rear end of vehicle several times. Confirm

vehicle is at normal riding height.
* Steering wheel must be centered with wheels in straight ahead
position. If required, shorten one tie rod adjusting sleeve
and lengthen opposite sleeve (equal amount of turns). See
Fig. 2.
* Wheel bearings should have the correct preload and lug nuts
must be tightened to manufacturer's specifications. Adjust
camber, caster and toe-in using this sequence. Follow
instructions of the alignment equipment manufacturer.
CAUTION: Do not attempt to correct alignment by straightening parts.
Damaged parts must be replaced.
Fig. 2: Adjusting Tie Rod Sleeves (Top View)
CAMBER
1) Camber is the tilting of the wheel, outward at either top
or bottom, as viewed from front of vehicle. See Fig. 3.
2) When wheels tilts outward at the top (from centerline of
vehicle), camber is positive. When wheels tilt inward at top, camber
is negative. Amount of tilt is measured in degrees from vertical.

Fig. 3: Determining Camber Angle
CASTER
1) Caster is tilting of front steering axis either forward or
backward from vertical, as viewed from side of vehicle. See Fig. 4.
2) When axis is tilted backward from vertical, caster is
positive. This creates a trailing action on front wheels. When axis is
tilted forward, caster is negative, causing a leading action on front
wheels.

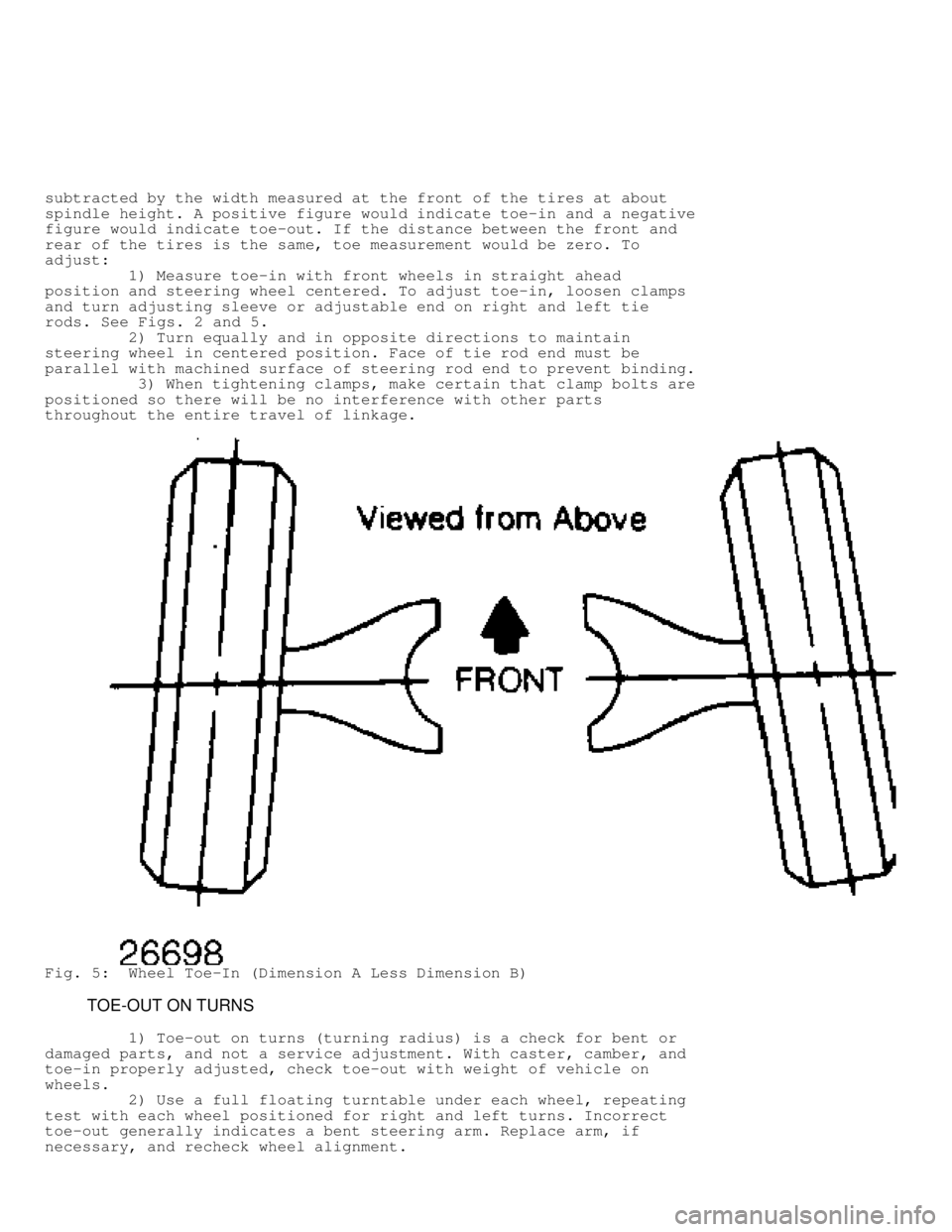

Fig. 4: Determining Caster Angle
TOE-IN ADJUSTMENT
Toe-in is the width measured at the rear of the tires

subtracted by the width measured at the front of the tires at about
spindle height. A positive figure would indicate toe-in and a negative
figure would indicate toe-out. If the distance between the front and
rear of the tires is the same, toe measurement would be zero. To
adjust:
1) Measure toe-in with front wheels in straight ahead
position and steering wheel centered. To adjust toe-in, loosen clamps
and turn adjusting sleeve or adjustable end on right and left tie
rods. See Figs. 2 and 5.
2) Turn equally and in opposite directions to maintain
steering wheel in centered position. Face of tie rod end must be
parallel with machined surface of steering rod end to prevent binding.
3) When tightening clamps, make certain that clamp bolts are
positioned so there will be no interference with other parts
throughout the entire travel of linkage.
Fig. 5: Wheel Toe-In (Dimension A Less Dimension B)
TOE-OUT ON TURNS
1) Toe-out on turns (turning radius) is a check for bent or
damaged parts, and not a service adjustment. With caster, camber, and
toe-in properly adjusted, check toe-out with weight of vehicle on
wheels.
2) Use a full floating turntable under each wheel, repeating
test with each wheel positioned for right and left turns. Incorrect
toe-out generally indicates a bent steering arm. Replace arm, if
necessary, and recheck wheel alignment.

STEERING AXIS INCLINATION
1) Steering axis inclination is a check for bent or damaged
parts, and not a service adjustment. Vehicle must be level and camber
should be properly adjusted. See Fig. 6.
2) If camber cannot be brought within limits and steering
axis inclination is correct, steering knuckle is bent. If camber and
steering axis inclination are both incorrect by approximately the same
amount, the upper and lower control arms are bent.
Fig. 6: Checking Steering Axis Inclination

\003
WIP ER /W ASH ER S YSTE M

1991 M it s u bis h i M onte ro
1991 ACCESSORIES & SAFETY EQUIPMENT
Chrysler Motors/Mitsubishi Wiper/Washer Systems
Dodge; Ram-50
Mitsubishi: Montero, Pickup
DESCRIPTION & OPERATION
All models are equipped with a 2-speed wiper motor with an
optional intermittent wiper feature. Some models are equipped with a
rear wiper/washer.
ADJUSTMENTS
FRONT WIPER ARM ADJUSTMENT
Ensure wiper motor is in park position. Position wiper arm
and blade assembly so tip of blade is specified distance above front
window trim. See FRONT WIPER ADJUSTMENT SPECIFICATIONS table.
FRONT WIPER ADJUSTMENT SPECIFICATIONS TABLE









\









\









\









\









\









\









\







Model Driver Side: In. (mm) Passenger Side: In. (mm\
)
Montero ............ 1.5-1.9 (37-47) ............. 1.5-1.9 (37-47\
)
Pickup & Ram-50 ........ .6 (15) ........................ 1.0 (25\
)









\









\









\









\









\









\









\







REAR WIPER ARM ADJUSTMENT
NOTE: Pickup and Ram-50 are not equipped with rear wipers.
Ensure wiper motor is in park position. Position wiper arm
and blade assembly so tip of blade is specified distance from edge of
window. See REAR WIPER ADJUSTMENT SPECIFICATIONS table.
REAR WIPER ADJUSTMENT SPECIFICATIONS TABLE









\









\









\









\









\









\

Model In. (mm)
Montero ....................................... ( 2) *
( 2) - Blade parallel with lower edge of window.









\









\









\









\









\









\

TESTING
FRONT WIPER MOTOR
Checking Wiper Motor Operation ( Montero, Pickup & Ram-50)
Disconnect wiring connector from wiper motor. Connect battery
voltage to appropriate wiper motor terminal, and ground other
terminal. See WIPER MOTOR OPERATION CHECK table. See Fig. 1. Ensure
wiper motor operates in both low and high speeds.
WIPER MOTOR OPERATION CHECK TABLE









\









\









\









\









\









\









\

Model & Ground Apply Voltage
Application Terminal No. To Terminal No.
Low Speed Operation
Montero ...................... 3 ............................. 1
Pickup & Ram-50 .............. 1 ............................. 3
High Speed Operation
Montero ...................... 4 ............................. 1
Pickup & Ram-50 .............. 2 ............................. 3









\









\









\









\









\









\









\







Fig. 1: Front Wiper Motor Terminal ID (Montero, Pickup & Ram-50)
Courtesy of Mitsubishi Motor Sales of America.
Checking Automatic Stop (Montero, Pickup & Ram-50)
1)Operate wiper motor at low speed. See CHECKING WIPER MOTOR
OPERATION. Disconnect battery voltage to stop motor in any position
except park.
2) Using a jumper wire, connect 2 terminals indicated. See
AUTOMATIC STOP CHECK table. See Fig. 1. Connect 12 volts to terminal
indicated in table, and ground wiper motor bracket. Ensure motor parks
wiper arm.
AUTOMATIC STOP CHECK TABLE









\









\









\









\









\









\









\







Model Jumper Pin Nos. Apply Voltage To Pin Nos.
Montero ................ 3 & 2 ................................. 1
Pickup & Ram-50 ........ 1 & 4 ................................. 3









\









\









\









\









\









\









\







FRONT WIPER RELAY
NOTE: On Pickup, Ram-50,intermittent wiper relay is incorporated
into wiper switch. See STEERING COLUMN SWITCHES article in
the ACCESSORIES/SAFETY EQUIP Section. Precis does not have a
front wiper relay.
Continuity Check (Montero)
Remove relay. Relay is located behind driver's kick panel.
Make sure continuity is present between terminals No. 2 and 5. See
Fig. 2 .
