WHEEL A LIG NM EN T S PEC IF IC ATIO NS & P R O CED URES

1991 M it s u bis h i M onte ro
1991 WHEEL ALIGNMENT
Specifications & Procedures
Chrysler Motors: Colt, Colt Vista, Colt 200,
Ram-50, Stealth, Summit
Mitsubishi: Eclipse, Galant, Mirage, Montero,
Pickup, Precis, 3000GT
WHEEL ALIGNMENT PROCEDURES
NOTE: On vehicles with electronic chassis controls, ensure all
systems are functional before attempting to adjust riding
height or wheel alignment.
CAMBER ADJUSTMENT
Montero, Pickup & Ram-50
1) Check tire inflation. Place front wheel on turning radius
gauge, and level vehicle (unladed). On 2WD models, remove hub cap and
cotter pin. On 4WD models, remove free wheeling hub assembly.
2) On all models, measure camber with camber/caster/kingpin
gauge attached. See appropriate WHEEL ALIGNMENT SPECIFICATIONS table.
If camber is not within specification, remove shock absorber mounting
nut and lock nut.
3) Compress shock absorber and loosen upper arm mounting
bolts and nuts. Adjust camber by increasing or decreasing shims
between upper arm shaft and crossmember. See Fig. 1.
CAUTION: Difference in shim thickness between front and rear must be
.16" (4 mm) or less. DO NOT use more than 3 shims at one
location.
Fig. 1: Adjusting Camber & Caster (Pickup & Ram-50 Shown; Montero
Camber Adjustment Similar)
Courtesy of Mitsubishi Motor Sales of America.
Stealth & 3000GT

Check camber. If camber is not within specification, loosen
eccentric cam nut. Rotate eccentric cam bolt to obtain correct camber.
See Fig. 2 . Each marking represents a change of 1/8-1/4 degree of
camber.

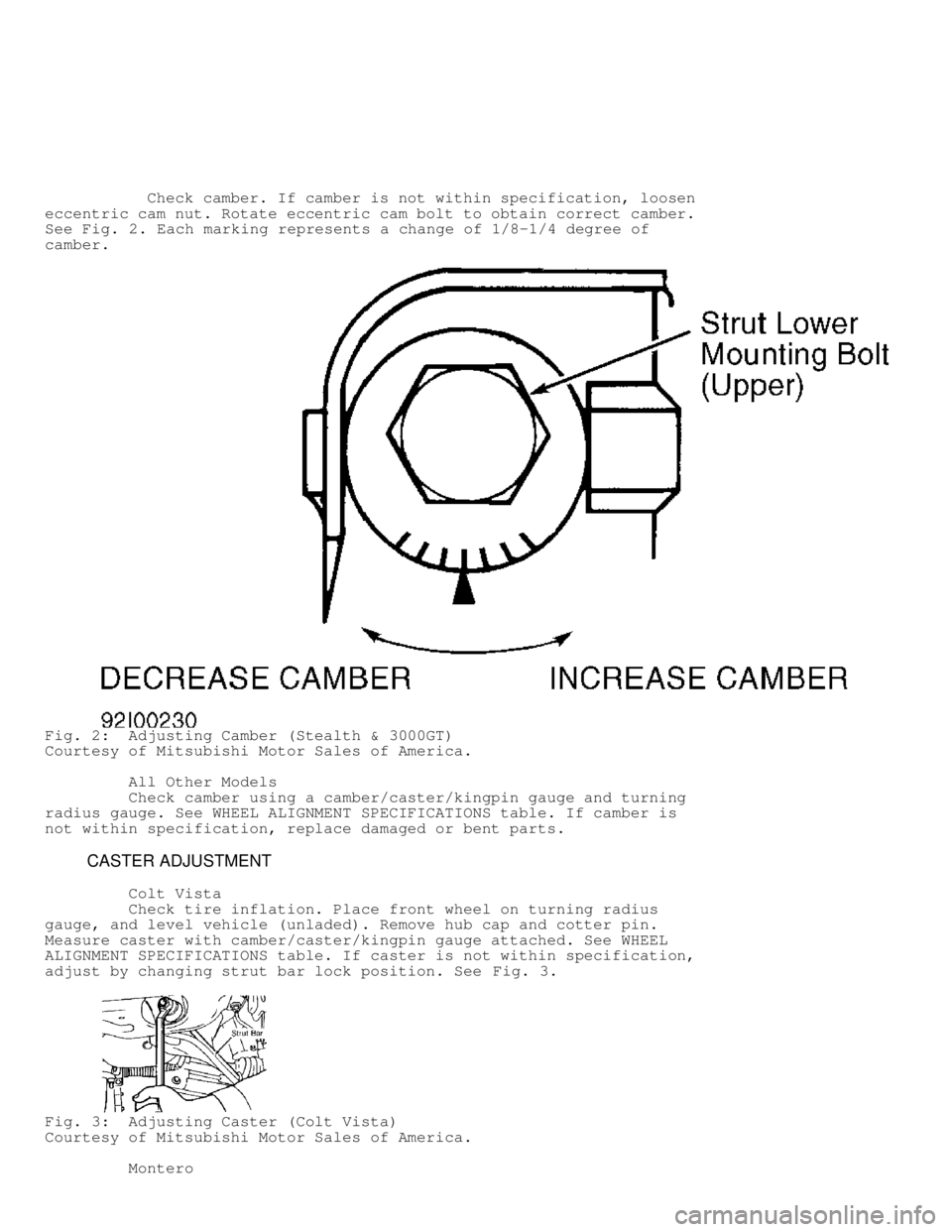

Fig. 2: Adjusting Camber (Stealth & 3000GT)
Courtesy of Mitsubishi Motor Sales of America.
All Other Models
Check camber using a camber/caster/kingpin gauge and turning
radius gauge. See WHEEL ALIGNMENT SPECIFICATIONS table. If camber is
not within specification, replace damaged or bent parts.
CASTER ADJUSTMENT
Colt Vista
Check tire inflation. Place front wheel on turning radius
gauge, and level vehicle (unladed). Remove hub cap and cotter pin.
Measure caster with camber/caster/kingpin gauge attached. See WHEEL
ALIGNMENT SPECIFICATIONS table. If caster is not within specification,
adjust by changing strut bar lock position. See Fig. 3.
Fig. 3: Adjusting Caster (Colt Vista)
Courtesy of Mitsubishi Motor Sales of America.
Montero

Remove free wheeling hub. Measure caster with
camber/caster/kingpin gauge and turning radius gauge. See WHEEL
ALIGNMENT SPECIFICATIONS table. If caster is not within specification,
remove upper arm from crossmember. Adjust caster by turning upper arm
shaft. See Fig. 4.

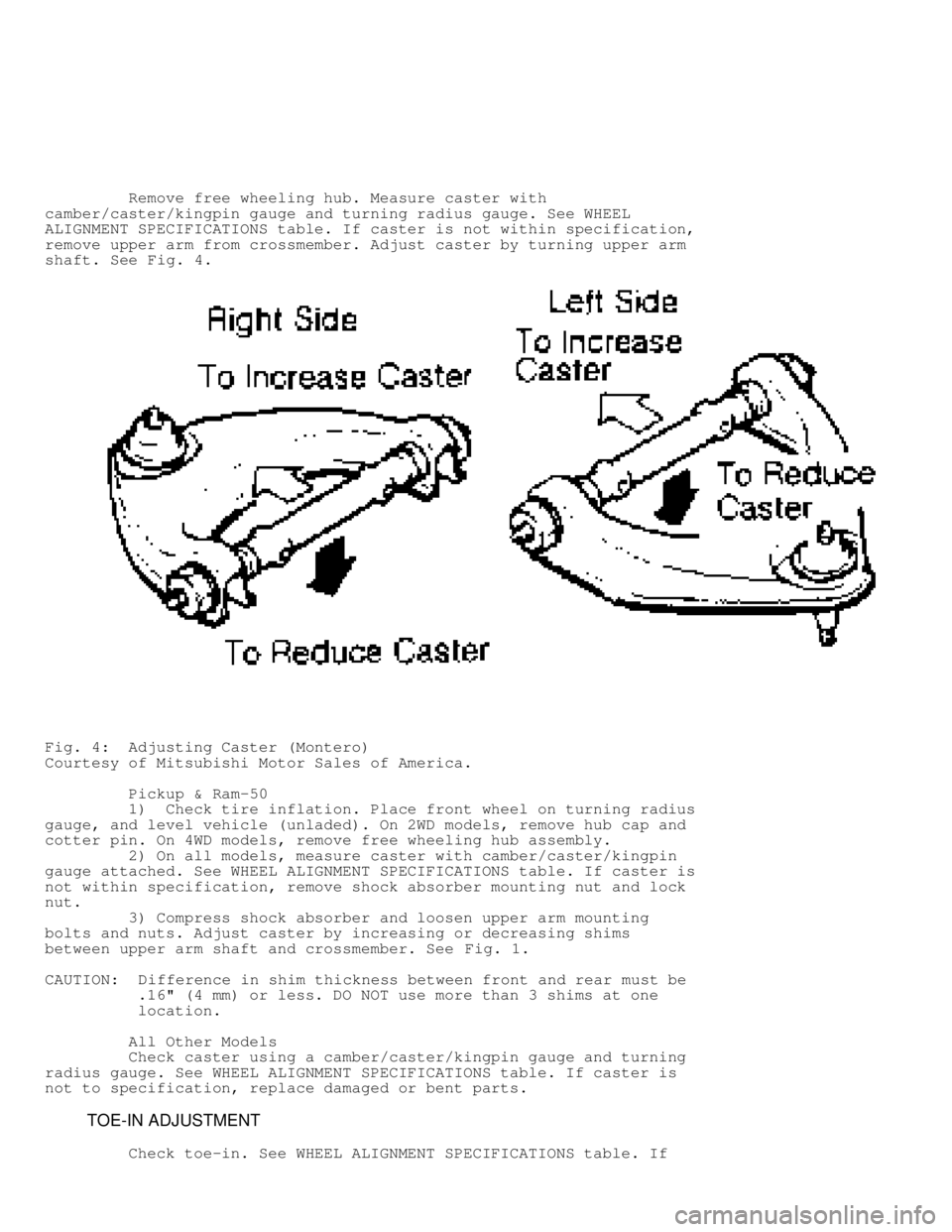

Fig. 4: Adjusting Caster (Montero)
Courtesy of Mitsubishi Motor Sales of America.
Pickup & Ram-50
1) Check tire inflation. Place front wheel on turning radius
gauge, and level vehicle (unladed). On 2WD models, remove hub cap and
cotter pin. On 4WD models, remove free wheeling hub assembly.
2) On all models, measure caster with camber/caster/kingpin
gauge attached. See WHEEL ALIGNMENT SPECIFICATIONS table. If caster is
not within specification, remove shock absorber mounting nut and lock
nut.
3) Compress shock absorber and loosen upper arm mounting
bolts and nuts. Adjust caster by increasing or decreasing shims
between upper arm shaft and crossmember. See Fig. 1.
CAUTION: Difference in shim thickness between front and rear must be
.16" (4 mm) or less. DO NOT use more than 3 shims at one
location.
All Other Models
Check caster using a camber/caster/kingpin gauge and turning
radius gauge. See WHEEL ALIGNMENT SPECIFICATIONS table. If caster is
not to specification, replace damaged or bent parts.
TOE-IN ADJUSTMENT
Check toe-in. See WHEEL ALIGNMENT SPECIFICATIONS table. If

toe-in is not within specification, remove clips. Turn tie rods or
turnbuckles the same amount, but in opposite directions. Recheck toe-
in.
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS TABLE








\









\









\









\









\









\

Application Ft. Lbs. (N.m)
Shock Absorber-To-Crossmember Nut
Montero, Pickup & Ram-50 ............ 10-13 (14-18)
Shock Absorber-To-Lower Arm Bolt
Montero ............................. 11-16 (15-22)
Pickup & Ram-50 ........................... 10 (14)
Upper Arm Shaft To Crossmember
Montero, Pickup & Ram-50 ........... 72-87 (98-118)
Wheel Lug Nut
Colt Vista
Aluminum Wheels ................... 65-80 (88-108)
Steel Wheels ....................... 50-57 (68-77)
Eclipse, Pickup, Ram-50,
Stealth & 3000GT ................ 87-101 (118-137)
Montero ............................ 72-87 (98-118)
All Others ......................... 65-80 (88-108)









\









\









\









\









\









\

WHEEL ALIGNMENT SPECIFICATIONS
WHEEL ALIGNMENT SPECIFICATIONS TABLE (COLT, COLT 200, MIRAGE, SUMMIT)








\









\









\









\









\









\









\







Application Preferred Range
Camber (Degrees)
Front ....................... 0 .................... -1/2 to 1/2
Rear ..................... -11/16 .............. -13/16 to -3/16
Caster (Degrees) ........... 2 5/16 ........... 1 13/16 to 2 13/16\
Toe-In (In. (mm))
Front .................... 0 (0) ........ -1/8 to 1/8 (-3 to 3\
)
Rear ..................... 0 (0) ...... -3/16 to 3/16 (-5 to 5\
)
Toe-In (Degrees)
Front ...................... 0 .................... -1/4 to 1/4
Rear ....................... 0 .................... -3/8 to 3/8









\









\









\









\









\









\









\







WHEEL ALIGNMENT SPECIFICATIONS TABLE (COLT VISTA)








\









\









\









\









\









\









\







Application Preferred Range
Two Wheel Drive
Camber (Degrees)
Front ..................... 7/16 .............. -1/16 to 15/16.
Rear ..................... -9/16 .................. -1 1/8 to 0
Caster (Degrees) .......... 13/16 ................ 5/16 to 15/16\
Toe-In (In. (mm))
Front & Rear ............. 0 (0) ........ -1/8 to 1/8 (-3 to 3\
)
Toe-In (Degrees)
Front & Rear ............... 0 .................... -1/4 to 1/4
Toe-Out on Turns (Degrees)
Inner .................... 37 3/4 ....................... .....
Outer ................... 30 11/16 ...................... .....
Four Wheel Drive

Camber (Degrees)
Front .................... 13/16 ................ 5/16 to 15/16
Rear ....................... 0 .................... -1/2 to 1/2
Caster (Degrees) .......... 13/16 ................ 5/16 to 15/16\
Toe-In (In. (mm))
Front & Rear ............. 0 (0) ........ -1/8 to 1/8 (-3 to 3\
)
Toe-In (Degrees)
Front & Rear ............... 0 .................... -1/4 to 1/4
Toe-Out on Turns (Degrees)
Inner ................... 37 3/4 ........................ .....
Outer .................. 30 11/16 ....................... .....









\









\









\









\









\









\









\







WHEEL ALIGNMENT SPECIFICATIONS TABLE (ECLIPSE)








\









\









\









\









\









\









\







Application Preferred Range
1.8L Engine
Camber (Degrees)
Front ..................... 1/4 ................... -1/4 to 3/4
Rear ..................... -3/4 ................ -1 1/4 to -1/4
Caster (Degrees) ......... 2 5/16 ........... 1 13/16 to 2 13/16\
Toe-In (In. (mm))
Front & Rear ............. 0 (0) ........ -1/8 to 1/8 (-3 to 3\
)
Toe-In (Degrees)
Front & Rear ............... 0 .................... -1/4 to 1/4
2.0L Engine (2WD)
Camber (Degrees)
Front .................... 1/16 ................. -7/16 to 9/16
Rear ..................... -3/4 ................ -1 1/4 to -1/4
Caster (Degrees) ......... 2 3/8 ................ 1 7/8 to 2 7/8\
Toe-In (In. (mm))
Front & Rear ............. 0 (0) ........ -1/8 to 1/8 (-3 to 3\
)
Toe-In (Degrees)
Front & Rear ............... 0 .................... -1/4 to 1/4
2.0L Engine (4WD)
Camber (Degrees)
Front .................... 3/16 ................ -5/16 to 11/16
Rear ................... -1 9/16 ........... -2 1/16 to -1 1/16
Caster (Degrees) ......... 2 5/16 ........... 1 13/16 to 2 13/16\
Toe-In (In. (mm))
Front .................... 0 (0) ........ -1/8 to 1/8 (-3 to 3\
)
Rear .................. 9/64 (3.6) .. -1/32 to 1/4 (-.6 to 6.6\
)
Toe-In (Degrees)
Front ...................... 0 .................... -1/4 to 1/4
Rear ..................... 9/32 ................... 1/16 to 1/2









\









\









\









\









\









\









\







WHEEL ALIGNMENT SPECIFICATIONS TABLE (GALANT)








\









\









\









\









\









\









\







Application Preferred Range
Two Wheel Drive
Camber (Degrees)
Front ..................... 3/8 ................... -1/8 to 7/8
Rear ..................... -3/4 ................ -1 1/4 to -1/4
Caster (Degrees) ............ 2 ................. 1 1/2 to 2 1/2\
Toe-In (In. (mm))
Front & Rear ............. 0 (0) ........ -1/8 to 1/8 (-3 to 3\
)
Toe-In (Degrees)
Front & Rear ............... 0 .................... -1/4 to 1/4
Four Wheel Drive
Camber (Degrees)

Front ..................... 1/2 ........................ 0 to 1
Rear ...................... -1 ................. -1 1/2 to -1/2
Caster (Degrees) ........ 1 15/16 ............. 1 7/16 to 2 7/16\
Toe-In (In. (mm))
Front .................... 0 (0) ........ -1/8 to 1/8 (-3 to 3\
)
Rear .................... 1/8 (3) ......... 0 to 1/4 (0 to 6.4\
)
Toe-In (Degrees)
Front ...................... 0 .................... -1/4 to 1/4
Rear ...................... 1/4 ...................... 0 to 1/2









\









\









\









\









\









\









\







WHEEL ALIGNMENT SPECIFICATIONS TABLE (MONTERO)








\









\









\









\









\









\









\







Application Preferred Range
Camber (Front) (1) ............. 1 .................. 1/2 to 1 1/2
Caster (1) .................. 2 15/16 ......... 1 15/16 to 3 15/16
Toe-In (Front) (2) ....... 7/32 (5.5) .. 3/32 to 11/32 (2.5-8.5)
Toe-In (Front) (1) ......... 7/16 ................ 3/16 to 11/16
Toe-Out on Turns (1)
Inner ..................... 32 1/2 ...................... .....
Outer ....................... 29 ........................ .....
(1) - Measurement in degrees.
(2) - Measurement in inches (mm).









\









\









\









\









\









\









\







WHEEL ALIGNMENT SPECIFICATIONS TABLE (RAM-50 & PICKUP)








\









\









\









\









\









\









\







Application Preferred Range
Two Wheel Drive
Camber (Front) (1) ......... 11/16 .............. 3/16 to 1 3/16
Caster (1) ................. 2 1/2 .............. 1 1/2 to 3 1/2
Toe-In (Front) (2) ...... 7/32 (5.5) .. 3/32 to 11/32 (2.5-8.5)
Toe-In (Front) (1) ......... 7/16 ................ 3/16 to 11/16
Toe-Out on Turns (1)
Inner ...................... 37 ......................... .....
Outer .................... 30 3/8 ....................... .....
Four Wheel Drive
Camber (Front) (1) ........... 1 .................. 1/2 to 1 1/2
Caster (1) ................... 2 ........................ 1 to 3
Toe-In (Front) (2) ....... 7/32 (5.5) .. 3/32 to 11/32 (2.5-8.5)
Toe-In (Front) (1) ......... 7/16 ................ 3/16 to 11/16
Toe-Out on Turns (1)
Inner ...................... 30 ......................... .....
Outer ...................... 27 ......................... .....
(1) - Measurement in degrees.
(2) - Measurement in inches (mm).









\









\









\









\









\









\









\







WHEEL ALIGNMENT SPECIFICATIONS TABLE (PRECIS)








\









\









\









\









\









\









\







Application Preferred Range
Camber (Degrees)
Front ........................ 0 ................... -1/2 to 1/2
Rear ...................... -11/16 ................. -1 to -3/16
Caster (Degrees)
With P/S .................. 1 11/16 ........... 1 3/16 to 2 3/16
Without P/S .................. 1 .................. 1/2 to 1 1/2
Toe-In (In. (mm))
